Transmisor y receptor de audio XLR para cine en casa, Hi-Fi amplificador estéreo, 1KM, RJ45 a XLR
1131,69 €
Color:
Longitud:

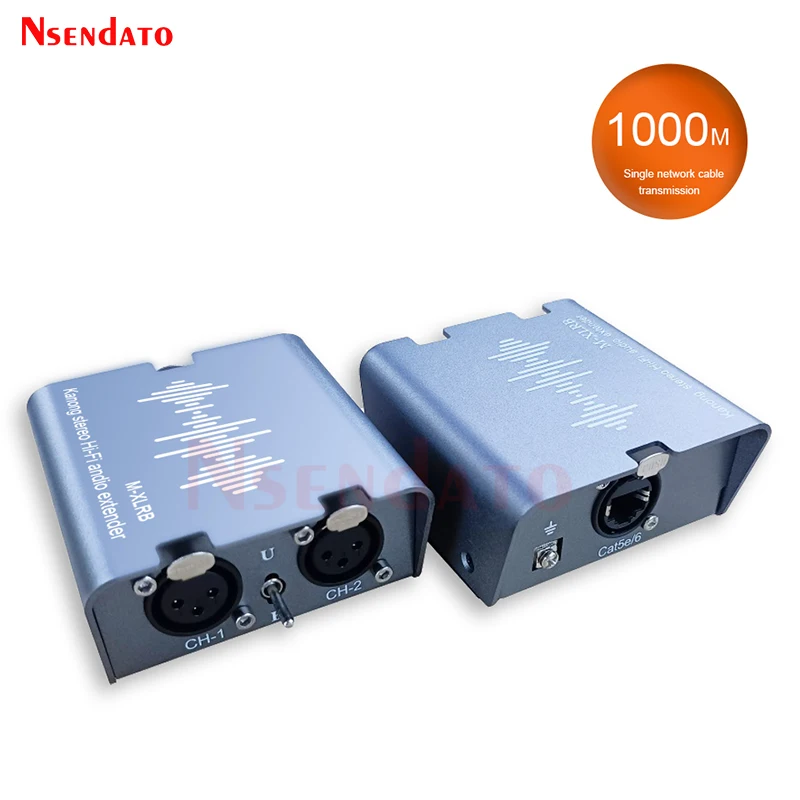

XLR MIC Stereo Hi-Fi audio Transmission Extender 1KM RJ45 To XLR Audio Transmitter and Receiver kits Connectors for Home theater
Introduction
The Dual XLR Stereo high fidelity audio transmission is a MIC stereo high fidelity audio signal twisted pair extension. The product is designed for audio applications where full-range, hi-fidelity audio frequency response is required.
Used in pairs, the Stereo Hi-Fi Balun eliminates costly and bulky coaxial cable, allowing audio equipment to be connected or moved within a structured cabling environment.The equipment adopts balanced characteristic impedance conversion transmission and analog audio spread spectrum isolation technology. It has strong anti-interference and EMI capabilities. It can effectively solve equipment distortion and audio noise caused by long audio transmission line or ground potential difference loop current, and eliminate audio bottom noise. The product is suitable for extended application fields with different distances.
Used in pairs, the Stereo Hi-Fi Balun eliminates costly and bulky coaxial cable, allowing audio equipment to be connected or moved within a structured cabling environment.The equipment adopts balanced characteristic impedance conversion transmission and analog audio spread spectrum isolation technology. It has strong anti-interference and EMI capabilities. It can effectively solve equipment distortion and audio noise caused by long audio transmission line or ground potential difference loop current, and eliminate audio bottom noise. The product is suitable for extended application fields with different distances.
Features
Dual XLR MIC audio twisted pair transmission

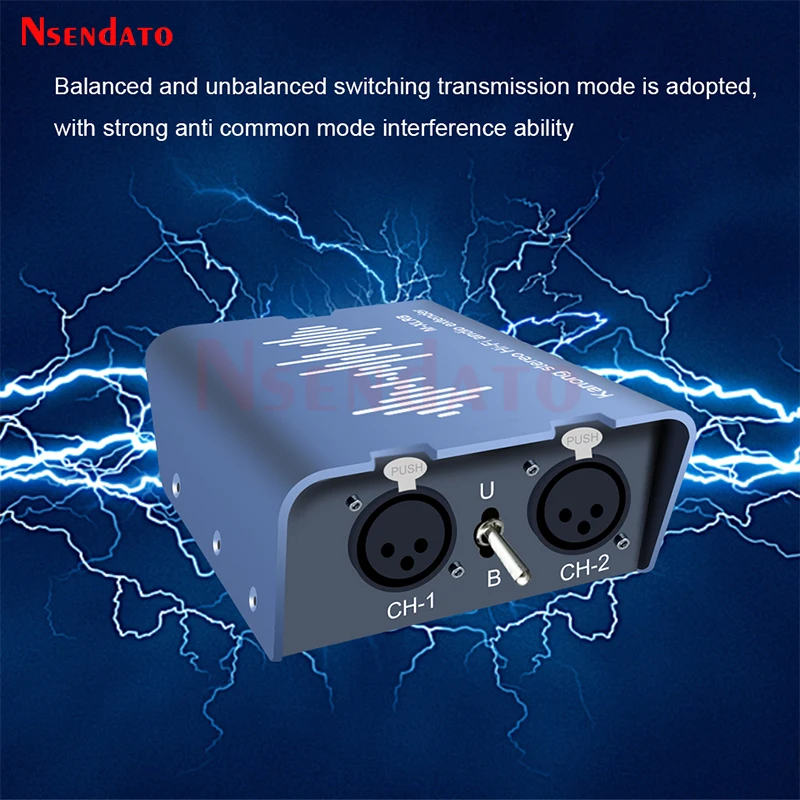

Balanced and unbalanced switching transmission mode is adopted, with strong resistance to common mode interference

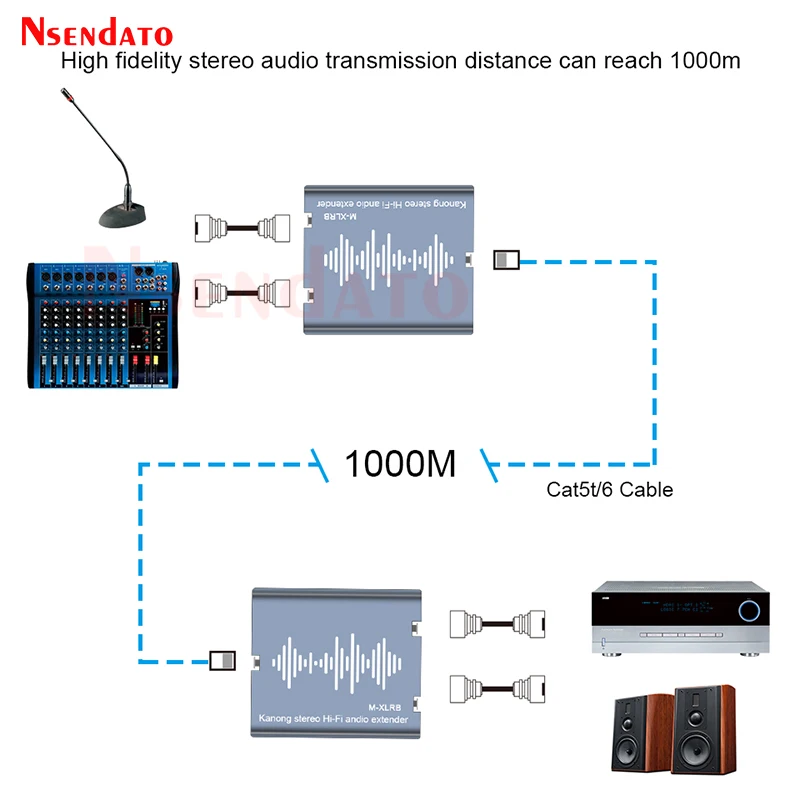

High fidelity stereo audio transmission distance can be up to 1000m
Special audio spread spectrum isolation technology is adopted
Broadcast level hi-fi ground loop, ground loop audio isolation
Works continuously all day, stable and reliable performance
No power required
Audio matrix switcher, audio distributor for amplifier/booster/sound/microphone/home theater/DVD disc/video recorder/camera/mixer device/other commercial/consumer analog devices
Specifications:
High fidelity distribution display, digital set top box
Hi-Fi for home theater, large screen projection video conference
Public video broadcasting system,distance multimedia education,classroom medical treatment
Military field high fidelity flat panel video media advertising transmission demonstration
Bandwidth:20Hz - 25 KHz
Input signal peak:1.25Vp-p
Input / output impedance:600 ohms MIN (signal source)
insertion loss:＜2dB
Signal reflectivity:＞15dB
Common mode rejection ratio:＞60dB
transmission distance:1000m
Signal result:Audio-Pins 1(R)&2(T),Pins 7(R)&8(T)
Characteristic impedance:100 Ω
distributed capacitance:20 pf/ft
attenuation:6.6 dB/305m @1 MHz

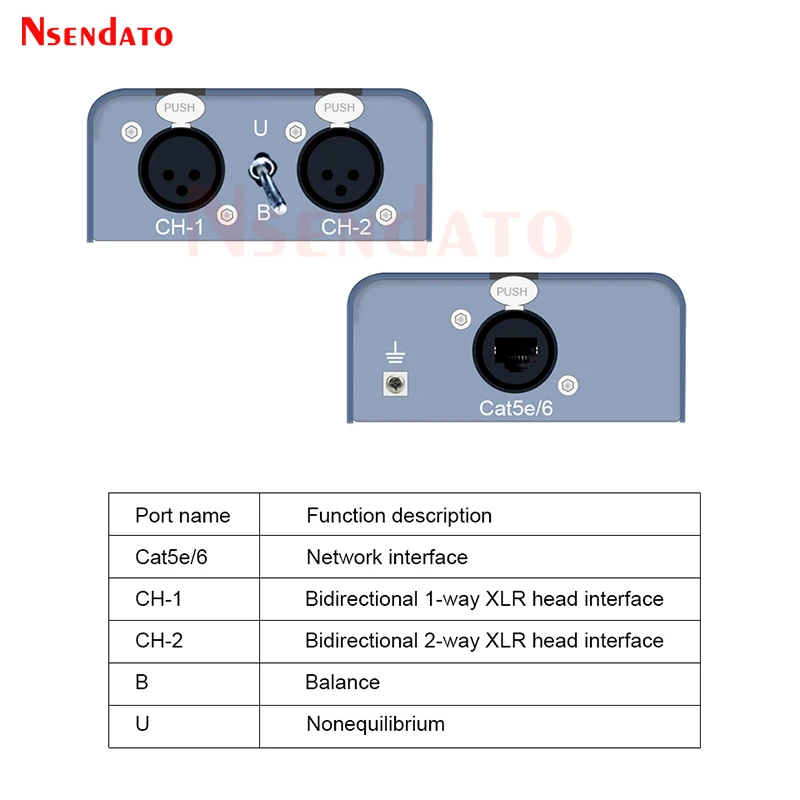

Interface:XLR connectorsx2 RJ45 portx1
