Extractor de Audio HDMI, divisor óptico TOSLINK SPDIF + L/R, 5,1 canales, 2,0 canales, HD

Item Description:

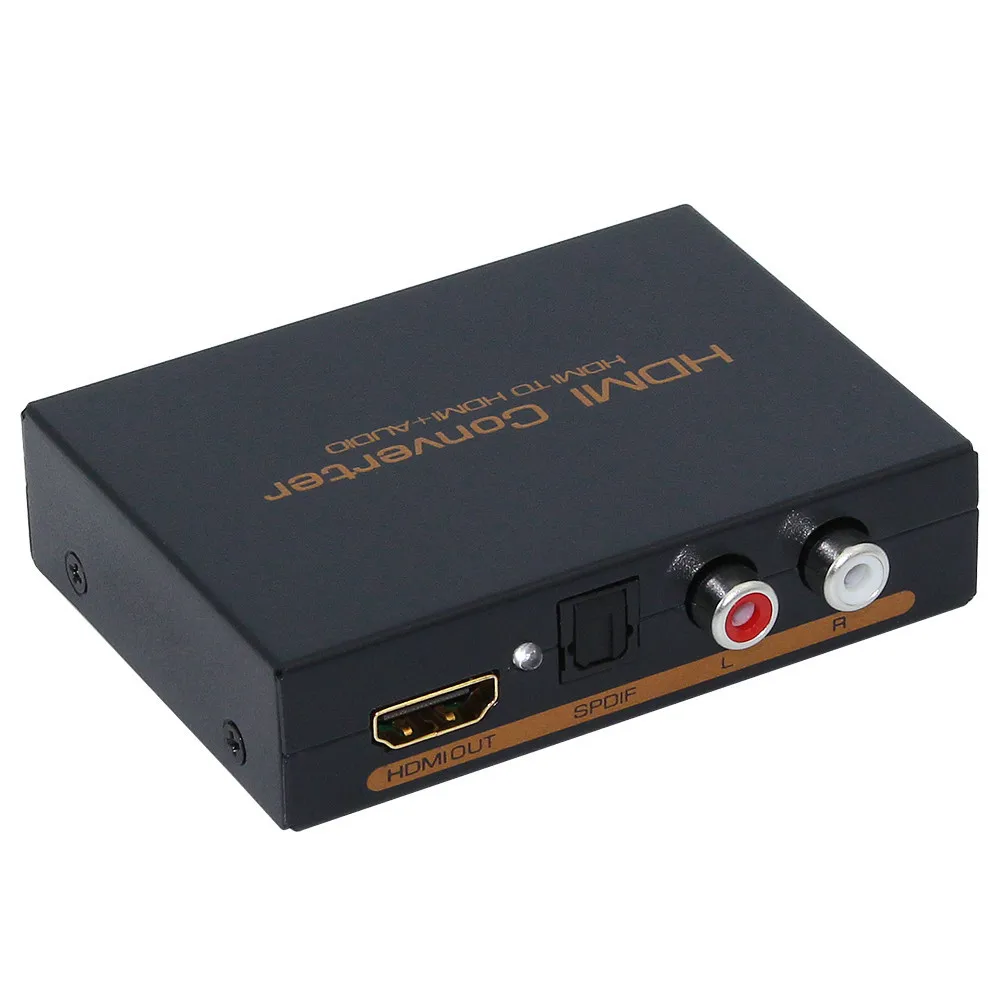

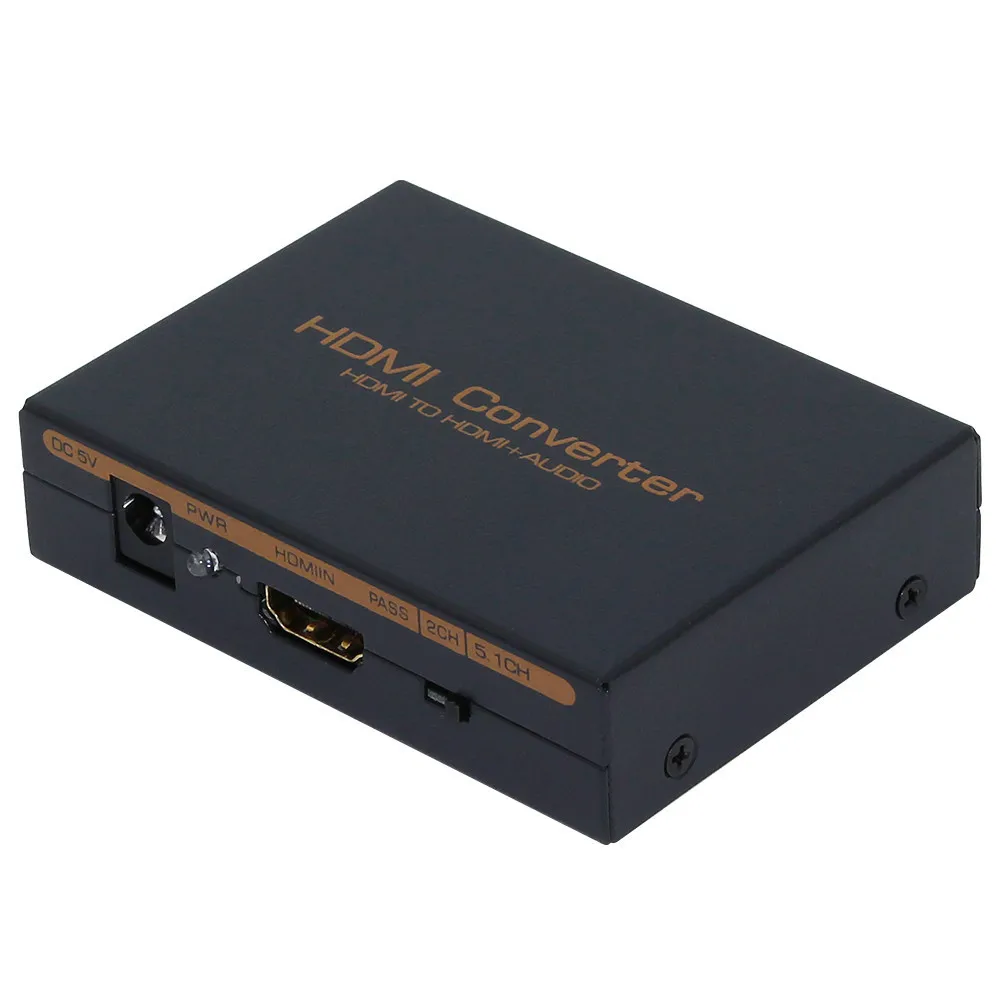

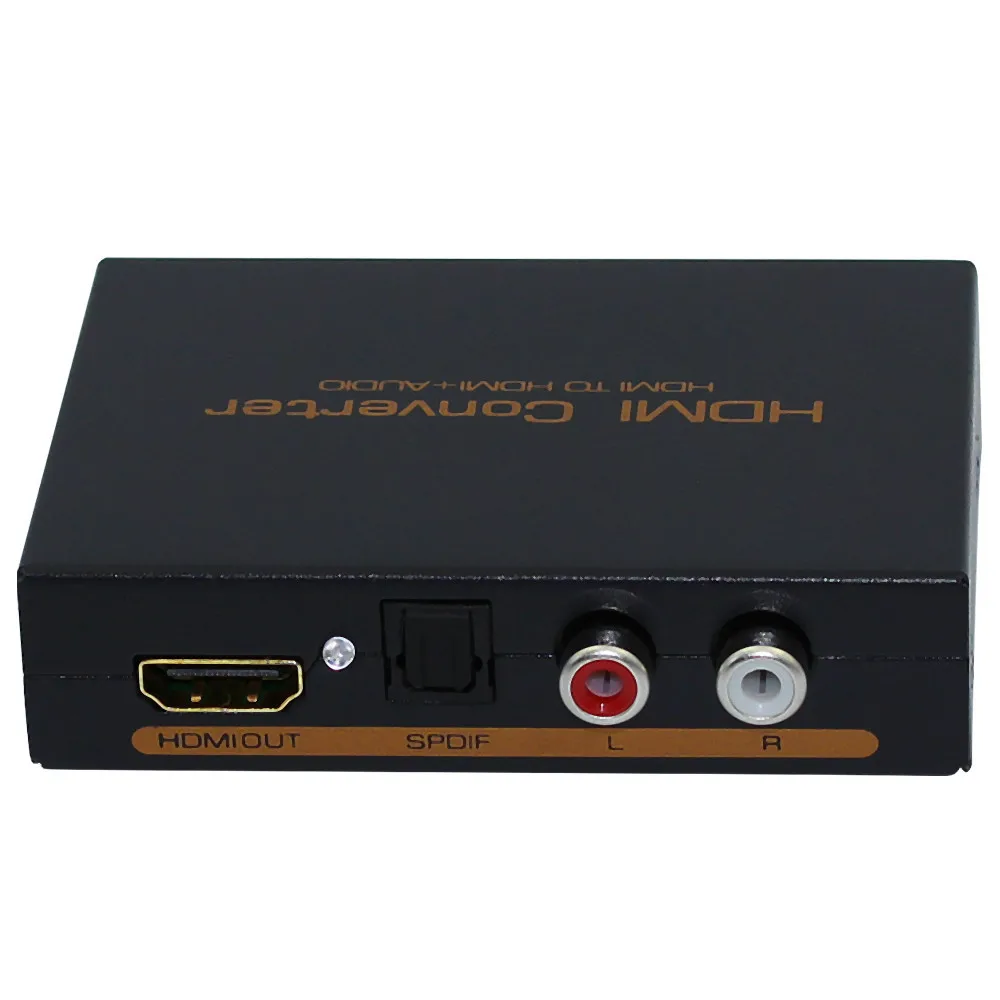

The HDMI-compatible to HDMI-compatible converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF audio out port.This devices can extract the digital 2CH PCM stereo audio signal from the HDMI -compatible input and convert it to 2CH analog stereo output through its RCA style L/R analog output AND SPDIF output at the same time. It offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features:

1. Easy to install

2. High quality and compatibility in Product Category

3. Supports AppleTV and various Blu-ray player

1. One HDMI- input converted to one HDMI+ Audio (SPDIF+R/L)output

5. Output audio support: SPDIF+R/L analog Audio Output

7. Input Resolution: up to 1080P(50/60Hz)/720P/480P

8. LED indication

9. Power supply: D C 5V/1A

Specifications:

1. HDMI resolution: 1080P/1080i/720p/576p/576i/480p/480i

2. Support video color format: 24bit/deep color 30bit,36bit

3. Audio output: L/R+SPDIF

4. Max bandwidth 225MHz

5. Max baud rate 6.75Gbps

6. Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)

7. Input/Output DDC signal 5Volts p-p (TTL)

8. Input cable distance. ≤15m AWG26 HDMI standard cable

9. Output cable distance ≤20m AWG26 HDMI standard cable

10. Max working current: 500mA

11. Power adapter format Input: AC (50HZ, 60HZ) 100V-240V; Output: D C5V/1A

12. Operating Temperature range (-15 to +55°C)

13. Operating Humidity range 5 to 90%RH (No Condensation)

14. Dimension: 84X61.8X20mm (L x W x H)

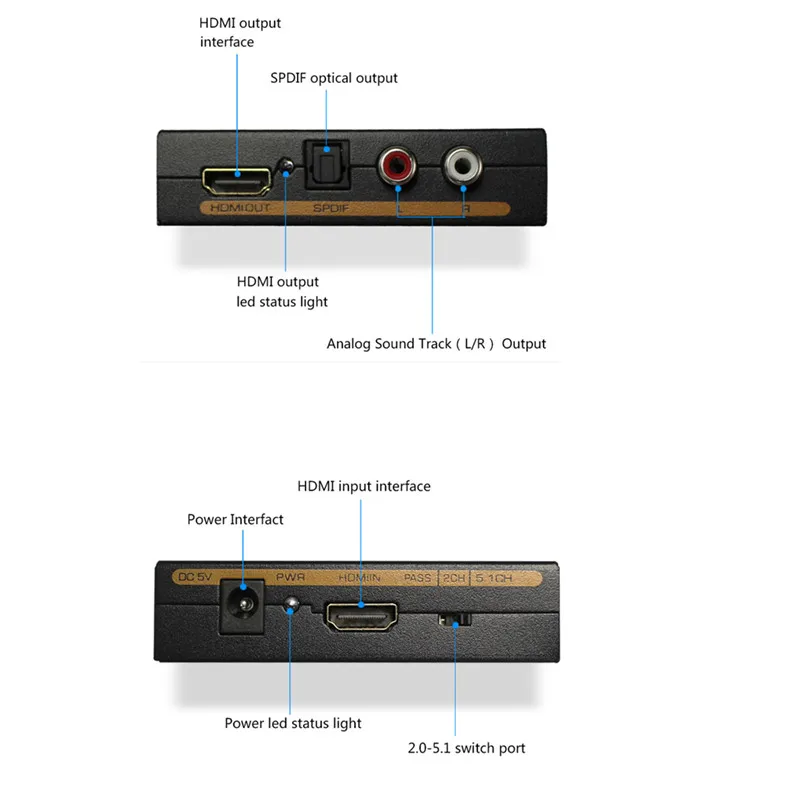

Operating and Connecting:

1. To use one HDMI cable to connect the HD Source with the input HDMI port.

2. To connect the converter HDMI output port with the HD Display

3. To use one audio cable to connect the converter R/L port with the audio equipment.

4. To use the optical cable to connect the SPDIF port with the audio equipment.

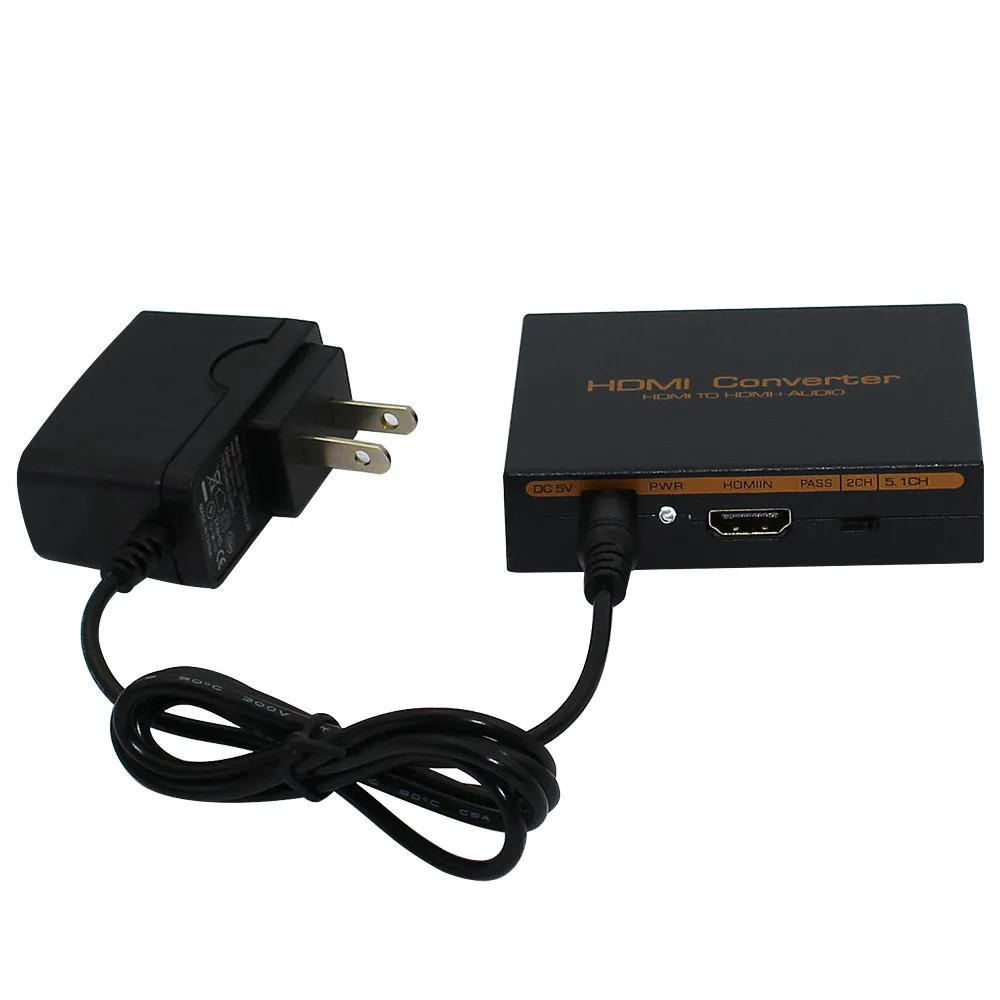

5. To connect the converter with 5V D C power adaptor

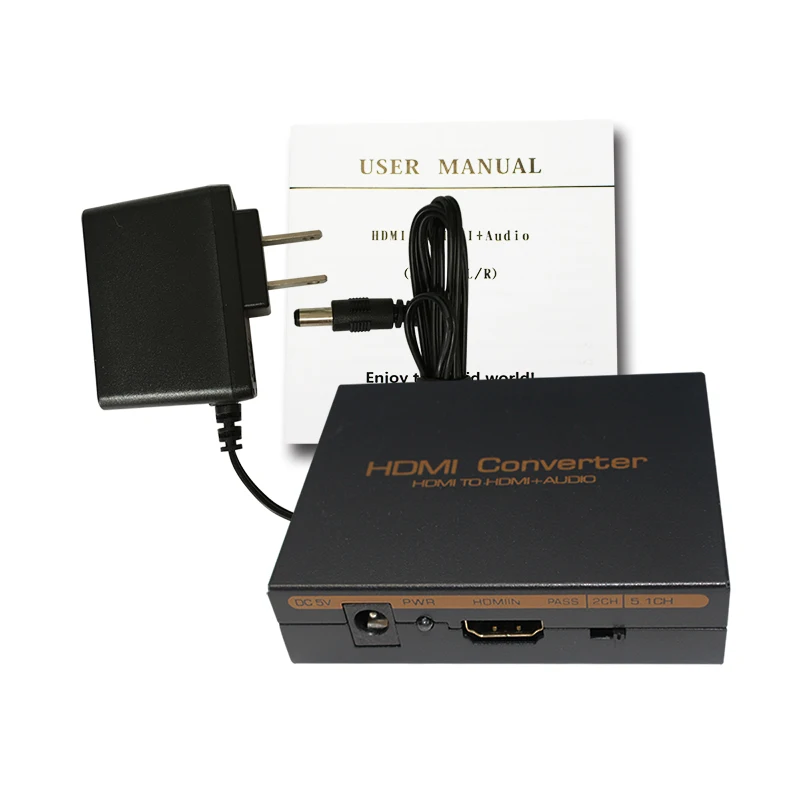

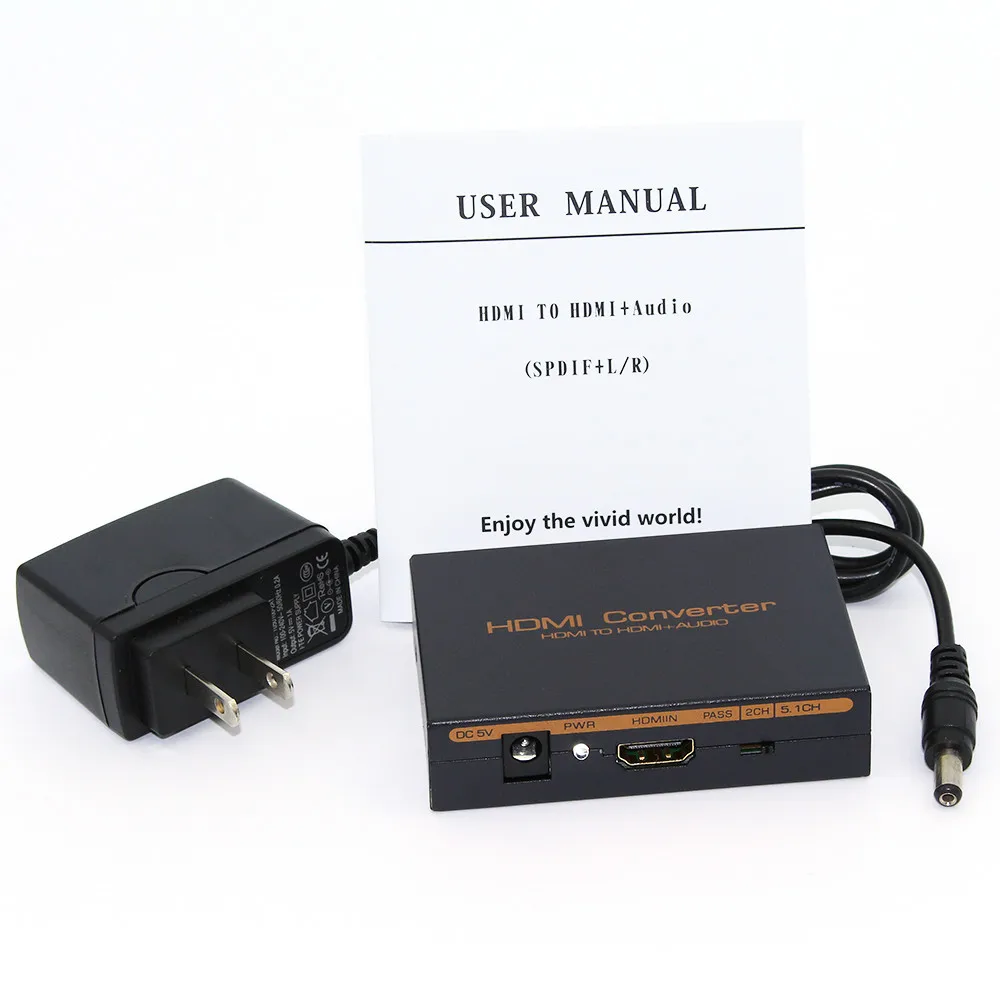

Package include:

1 x HDMI Converter

1 x D C 5V Power Adaptor

1 x User Manual
