K2 DVB-T2 DVBT2 Set Top TV Box Digital Terrestrial Receiver 1080P DVB-T2 DVBT2 H.264 MPEG4 PVR Video TV Box With Remote Control

Features:
Hardware Specification:
CPU: MSTAR-MSD7T01(128 pin) MIPS 34Kf@600MHz.
Memory: MSTAR-MSD7T01 implant 32X16Mbit DDR2 Frequency1066
Flash: 32M bytes.
Demodulator Type: MSTAR-MSD7T01 implant.
TUNER: Rafael R836.
Demodulation:
Terrestrial Receiver DVB-T2/T(EN_302755 V1.3.1/EN 300744).
Input RF Frequency: 48~866MHZ.
Bandwidth: 6MHz, 7MHz, 8MHz.
Constellation: QPSK 16-QAM 64-QAM and 256-QAM.
FEC: 1 / 2, 3 / 5,2 / 3, 3 / 4, 4 / 5, 5 / 6.
Guard Interval: 1 / 128, 1 / 32, 1 / 16, 19 / 256, 1 / 8, 19 / 128, 1 / 4.
FFT Mode: 2K / 8K / 32K.
Input level: -83 - -5dBm.
Software Features:

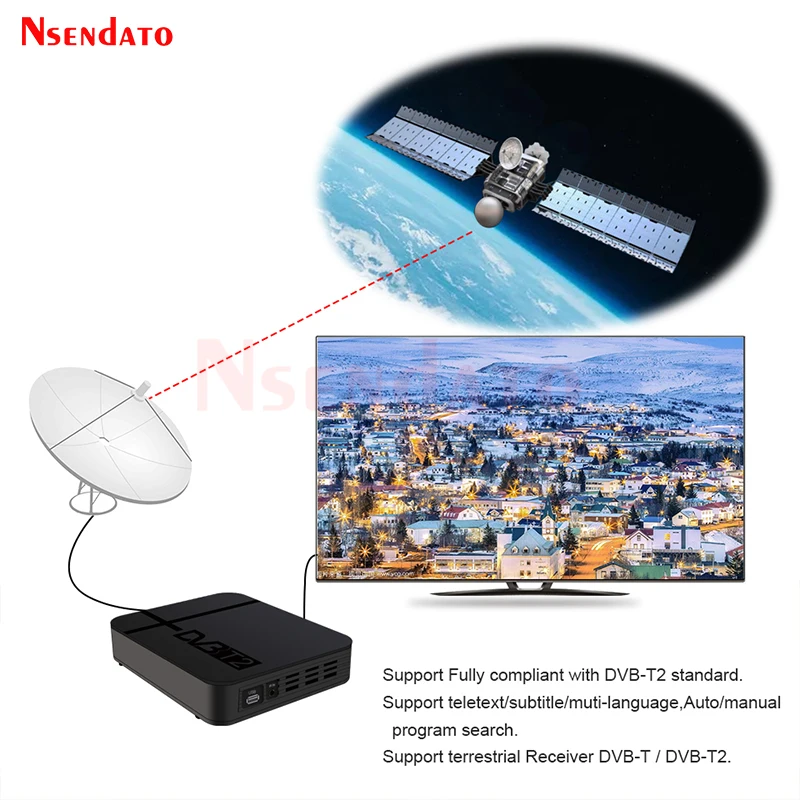

Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard.
The maximum speed of the traffic flow of at least 50 Mbit / sec.
Supports 3D interface.
Supports Sleep Timer.
Supports teletext / subtitle / muti-language.
Powerful and highly effective 7-day EPG function.
AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen

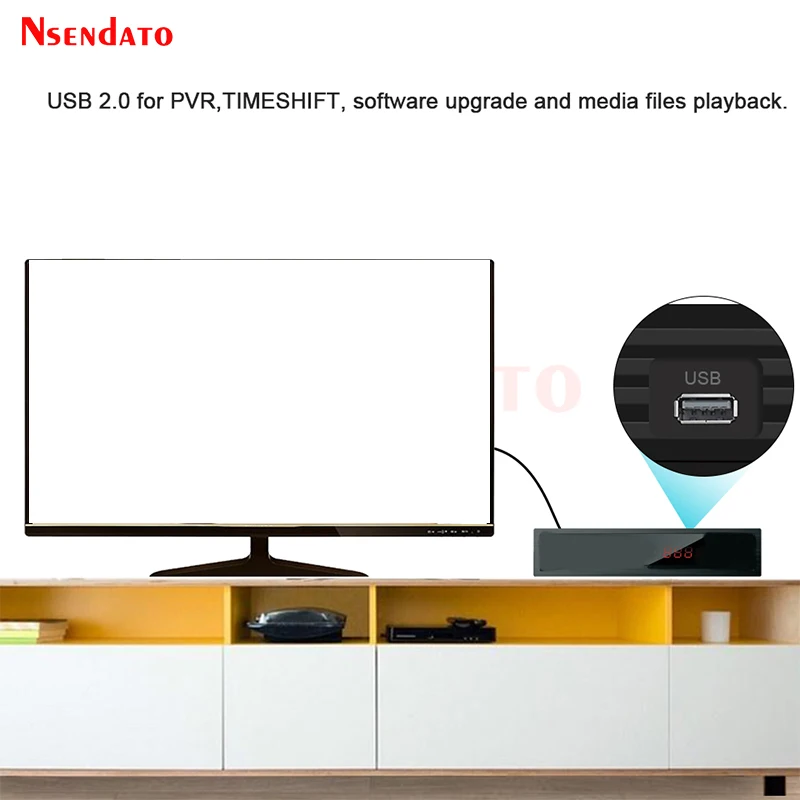

USB 2.0 for PVR,TIMESHIFT, software upgrade and media files playback.

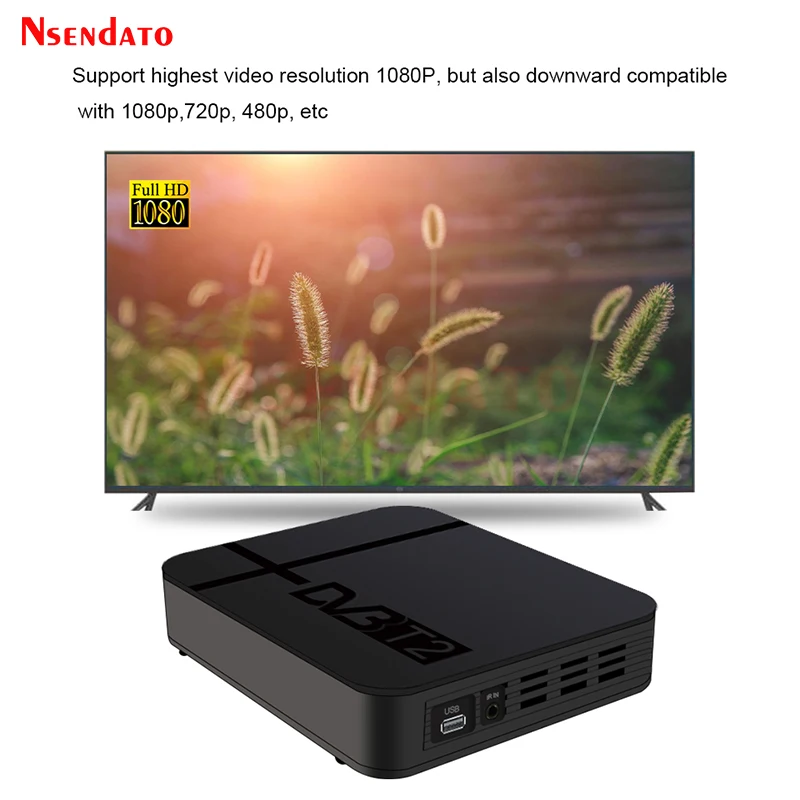

Video output resolution: 480i / 576i / 480p / 576p / 720p / 1080i /1080P.
Video Decoder: Compliant with: MPEG-4 part10 / MPEG-2 ISO / IEC 13818.
MPEG-4 Simple/Main / Advanced Profile @ LEVEL3 (10Mbps).
MPEG-2 Main Profile # Main Level (15Mbps).
H.264 MP# (10Mbps). H.264 H.P L4.1(25Mbps).
Audio Decoder: MPEG-1, MPEG-2 (Layer I/II), MP3, AAC-LC, WMA,HE-AAC 5.1 multi-chhannel decoding.
MediaCodec: avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc.
Audio Codec: WMA,MP3,AAC (.wma,.mp3,m4a).
Photo Codec: JPEG, BMP, PNG.
Note: The item does not support 1080P High Definition Videos with Dolby Sound effect.But it supports other1080P High Definition Videos.

Specifications:
Color: Black
I/O interface: 1 * Tuner RF input connector (EC-type, IEC-162-2 Female); 1 * Tuner RF Loop through connector (IEC-type, IEC-162-2 Male); 1 * HDMI (V1.3 / 1.4); 1 * USB port; 1 * (CVBS L R) RCA Connector; 1 * DC in.

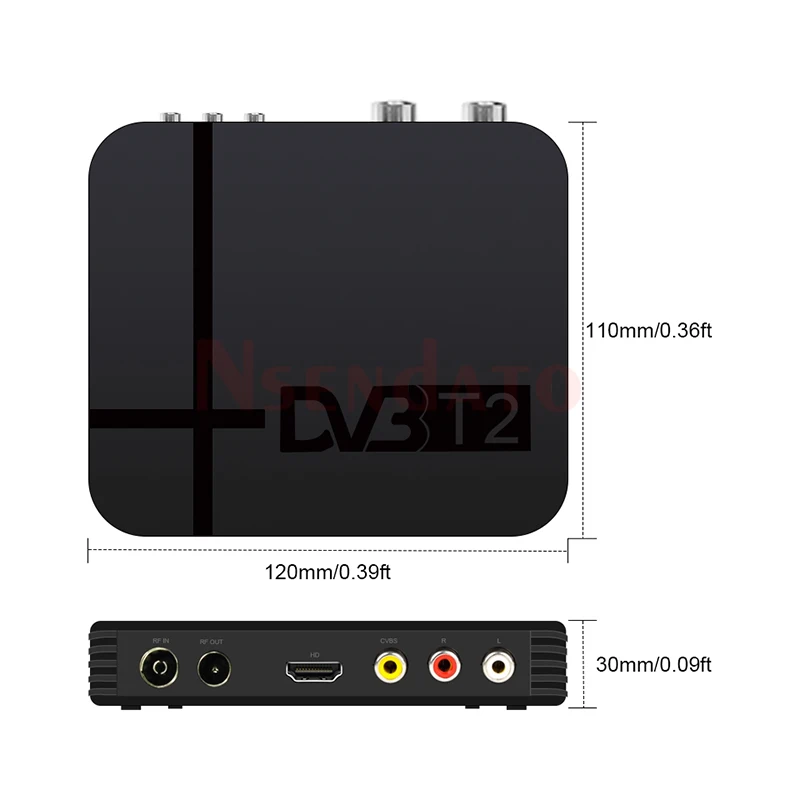

Item size: 12.0 * 11.0 * 3.0cm / 4.72 * 4.33 * 1.18in
Item weight: 129g / 4.80oz
Package size: 17.5 * 15.5 * 7.5cm / 6.88 * 6.10 * 2.95in
Package weight: 413g / 15.57g

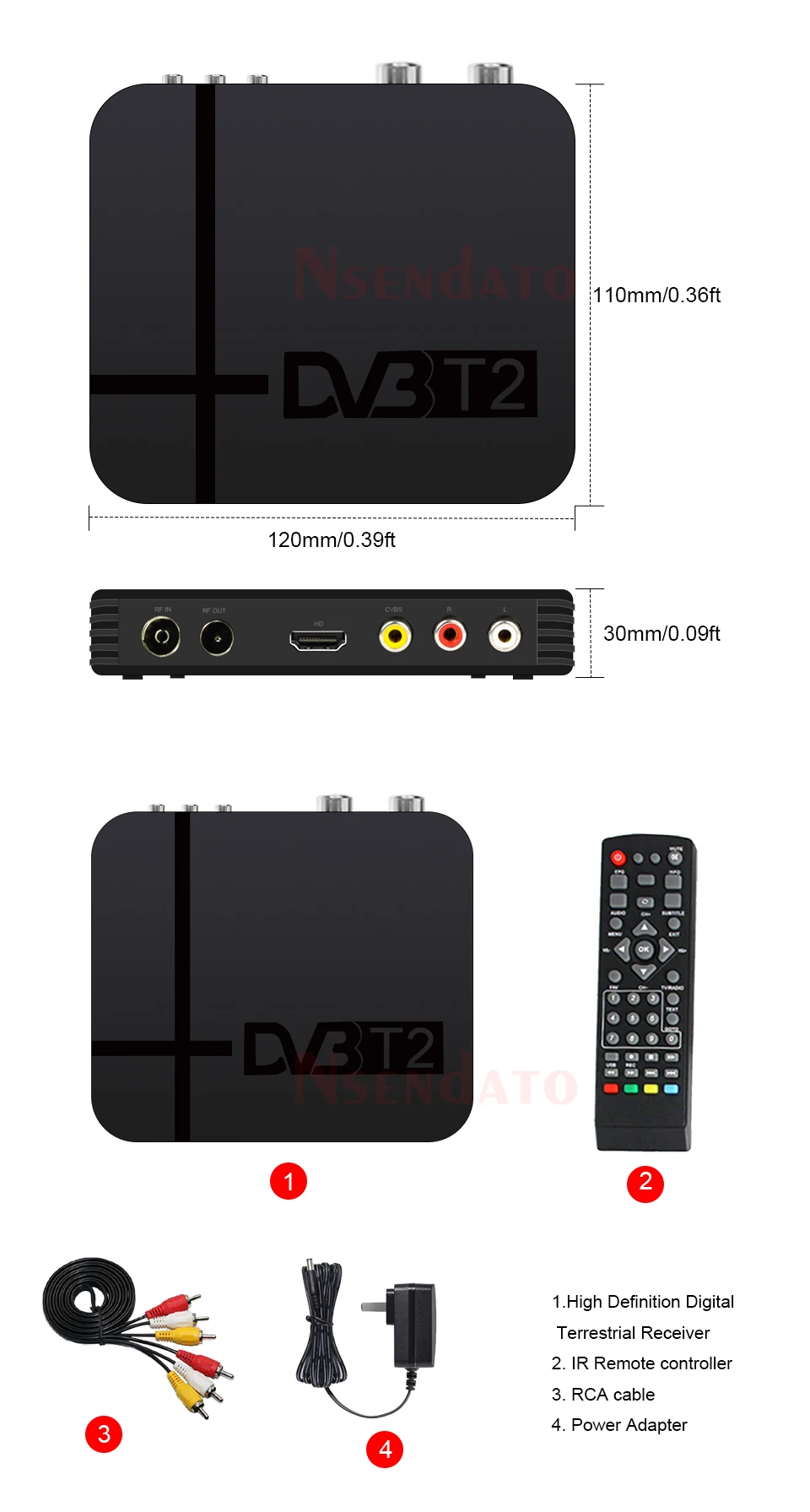

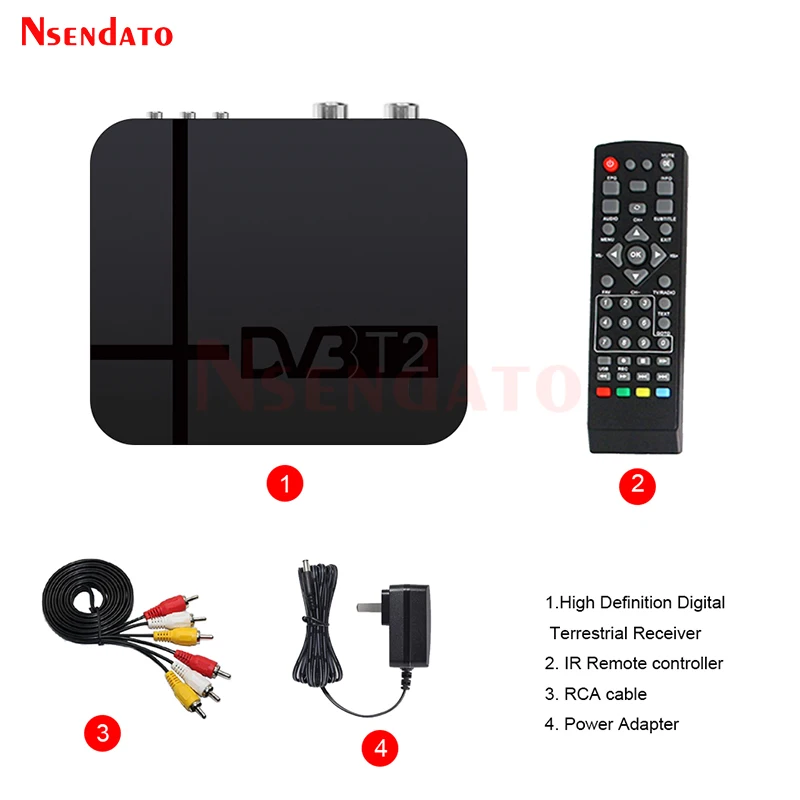

Package list:
1 * High Definition Digital Terrestrial Receiver
1 * RCA cable
1 * Power Adapter
1 * (English) User Manual
