Panel de conexión CAT6 de 48 puertos, conector RJ45, adaptador de Cable de red Keystone, marco de distribución Modular, oferta 1U 24 2U

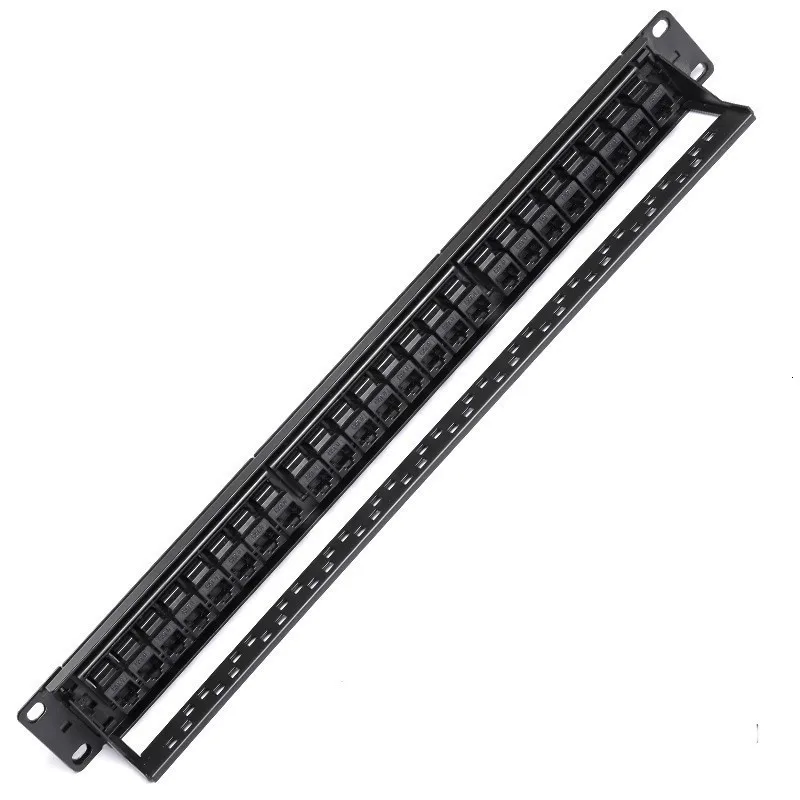

The new 24 Port Straight-through CAT6A Patch Panel! Please click on the image below to enter the purchase:

Quality choice, cost-effective, buy now, enjoy more discounts!

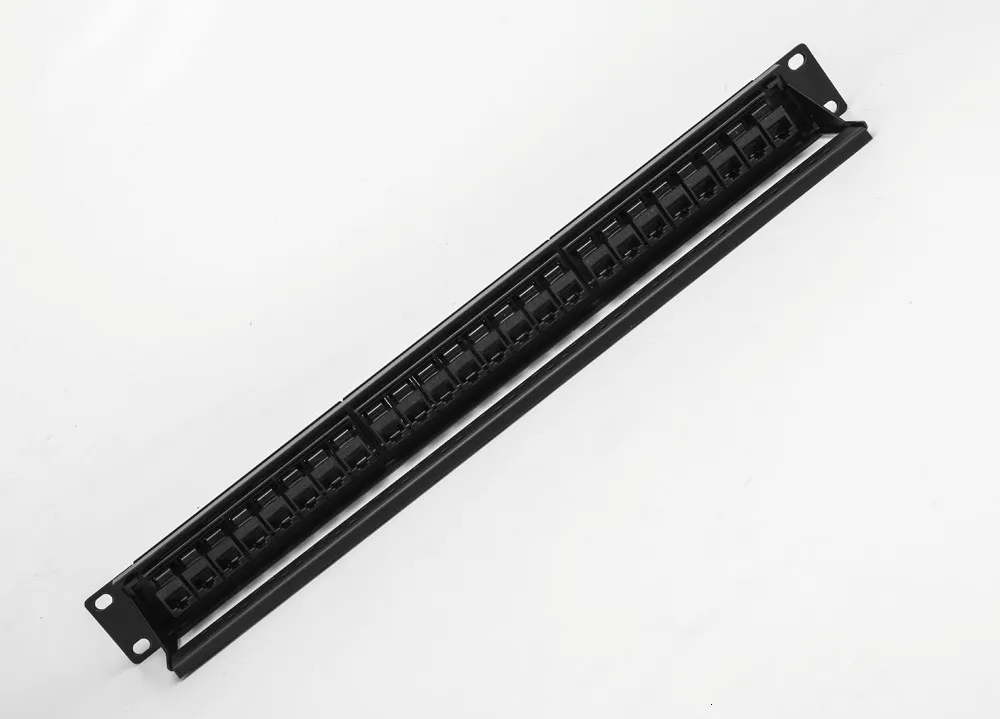

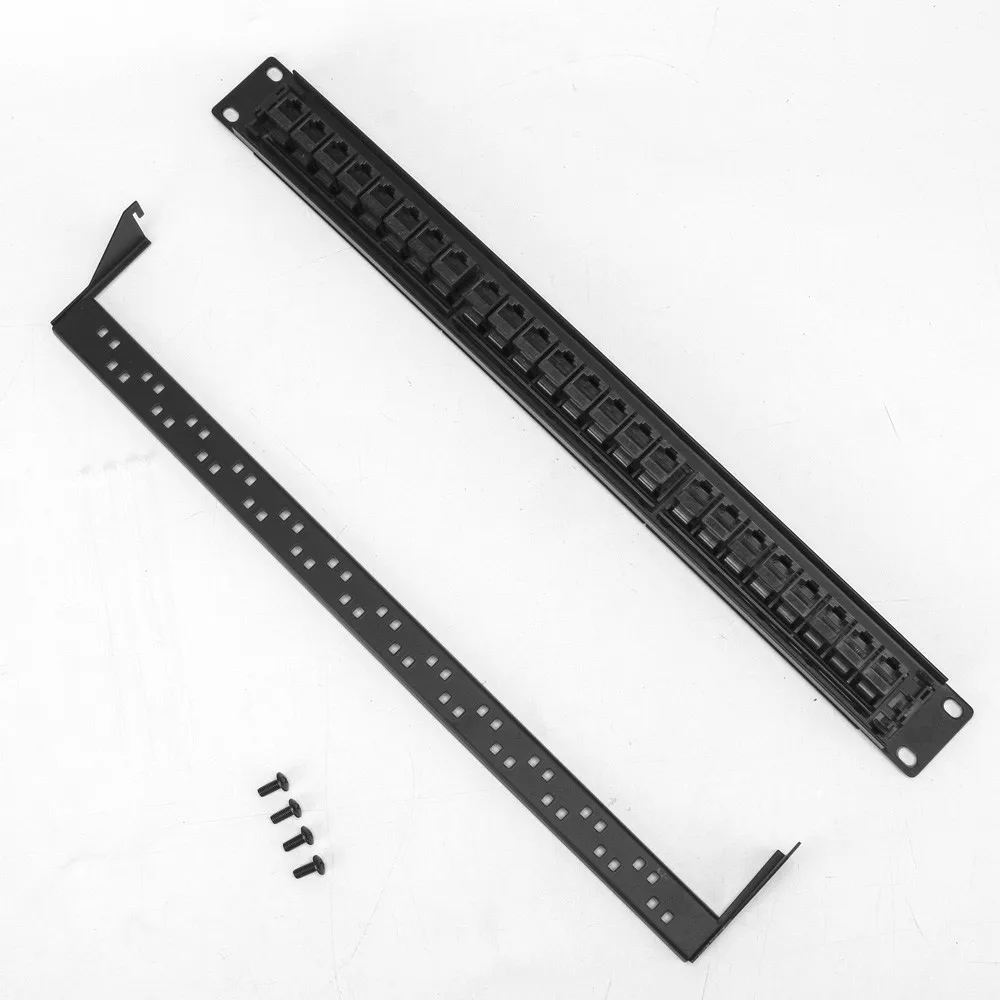

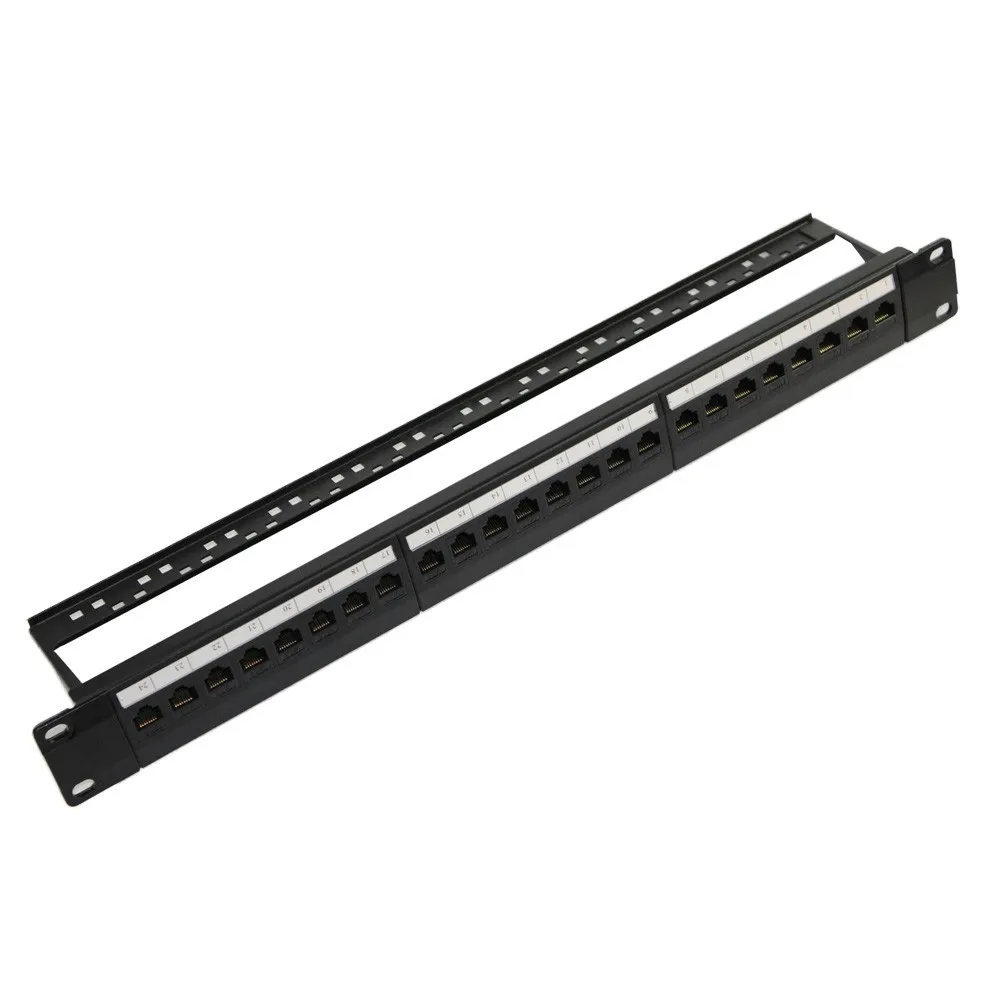

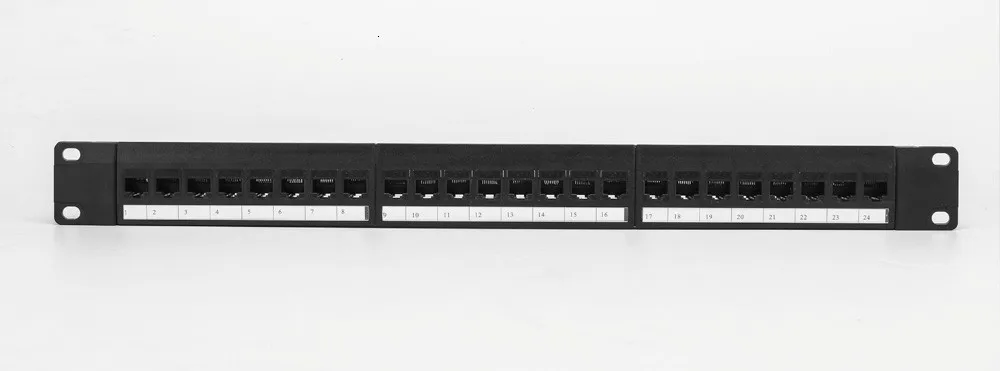

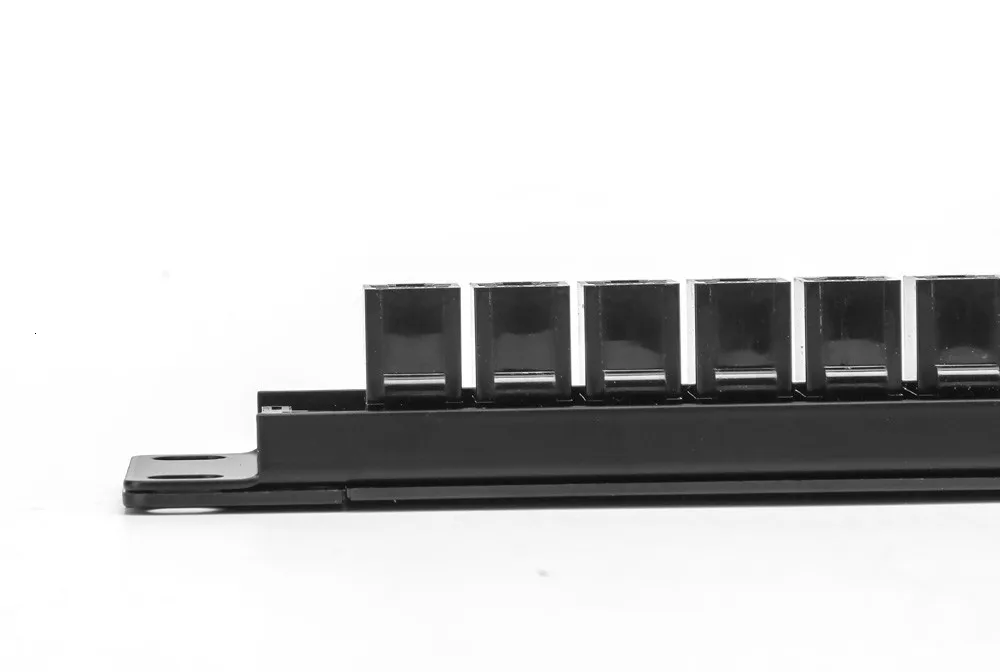

Unshielded 24/48 Ports CAT6 Straight-through Modular Patch Panel

◆ Product Name: UTP CAT6 straight-through modular distribution frame

◆ Product Type: CAT6 24/48 port patch panel, unshielded

◆ Specifications: 19′′ mounting size, modular design, with 24 high performance gold-plated UTP CAT6 pass-through modules

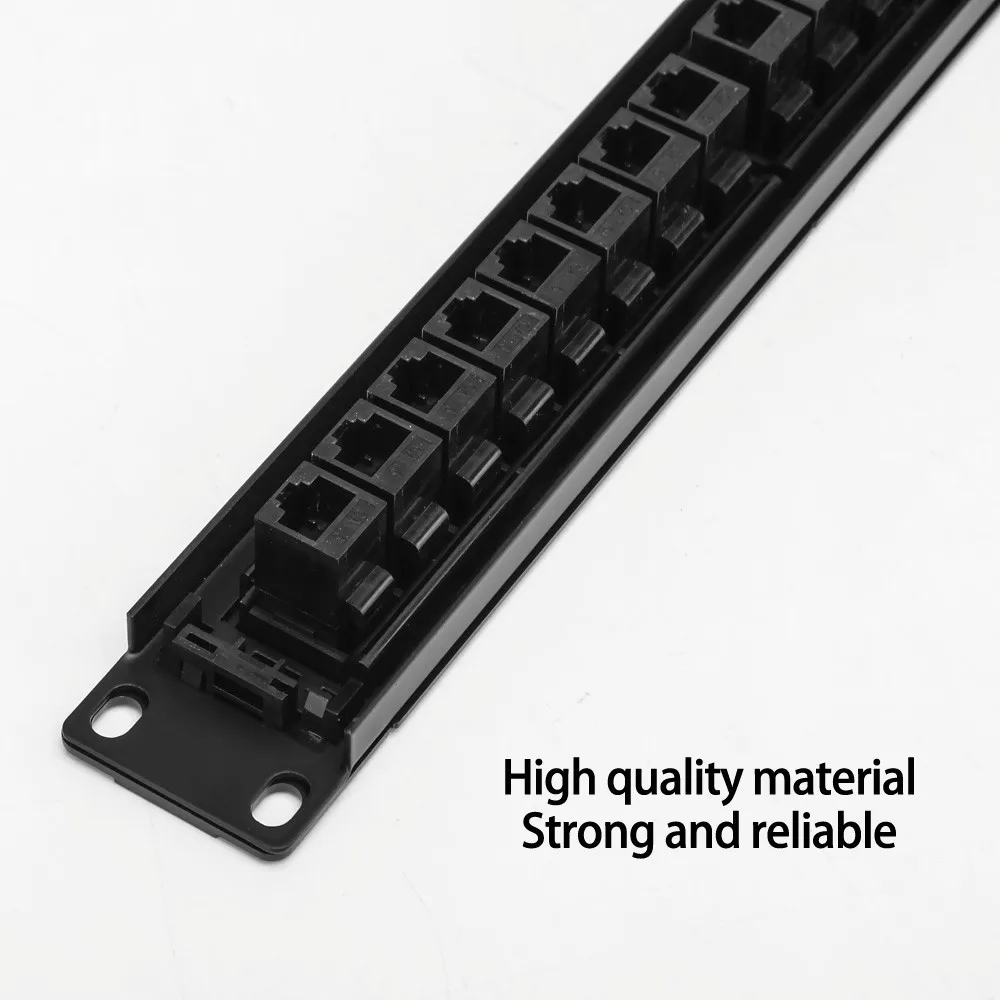

◆ Material: injection molded from high quality cold rolled steel, phosphor bronze and PC

◆ Color: Black

◆Main technical parameters

*IDC: Phosphor bronze, silver plated (20~50uiLZh), suitable for cables of 22, 24 and 26AWG (0.64, 0.5 and 0.4mm), with a life of not less than 250 times.

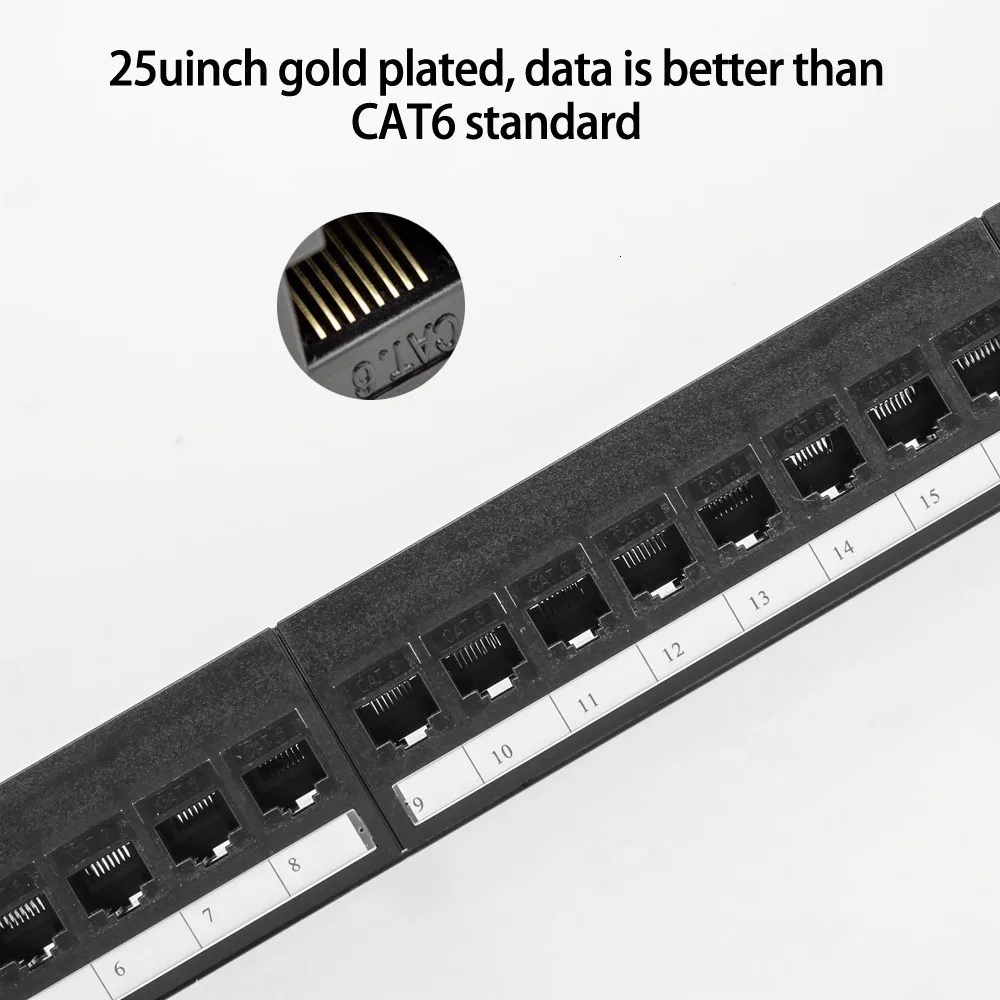

*8-line pin: phosphor bronze, gold-plated (20~50uiLZh), plug and socket can be re-plugged no less than 750 times

* Flame retardant: injection molded with PPO+PC to meet international standards

* Contact resistance: no more than 2.5mΩ under normal atmospheric pressure (without body resistance)

*Insulation resistance: not less than 1000MΩ under normal atmospheric pressure conditions

*Electrical strength: DC 1000V (AC, 700V) No breakdown and arcing in 1 minute

*Standard: Designed and manufactured according to international standard ISO/IEC11801; TIA/EIA568

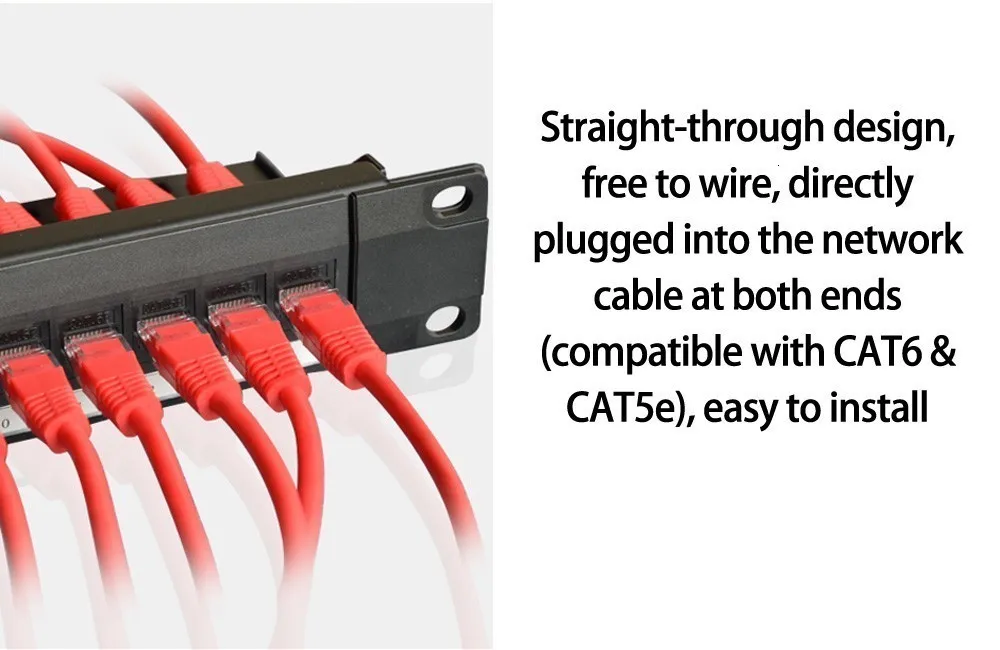

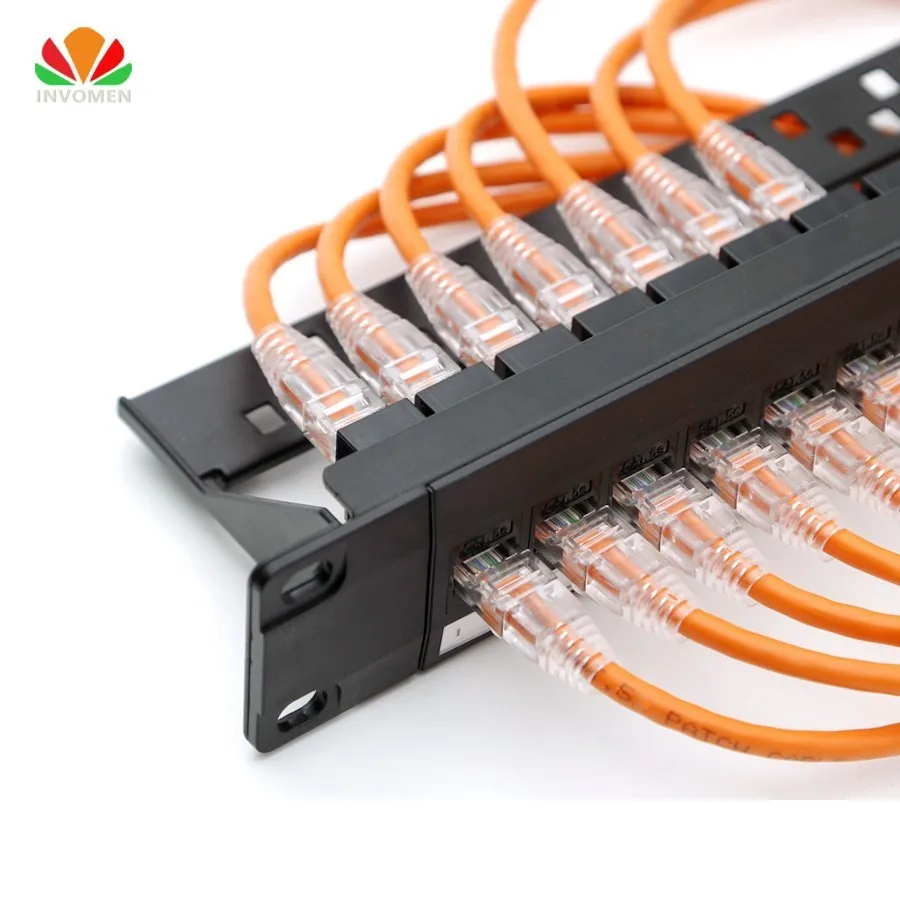

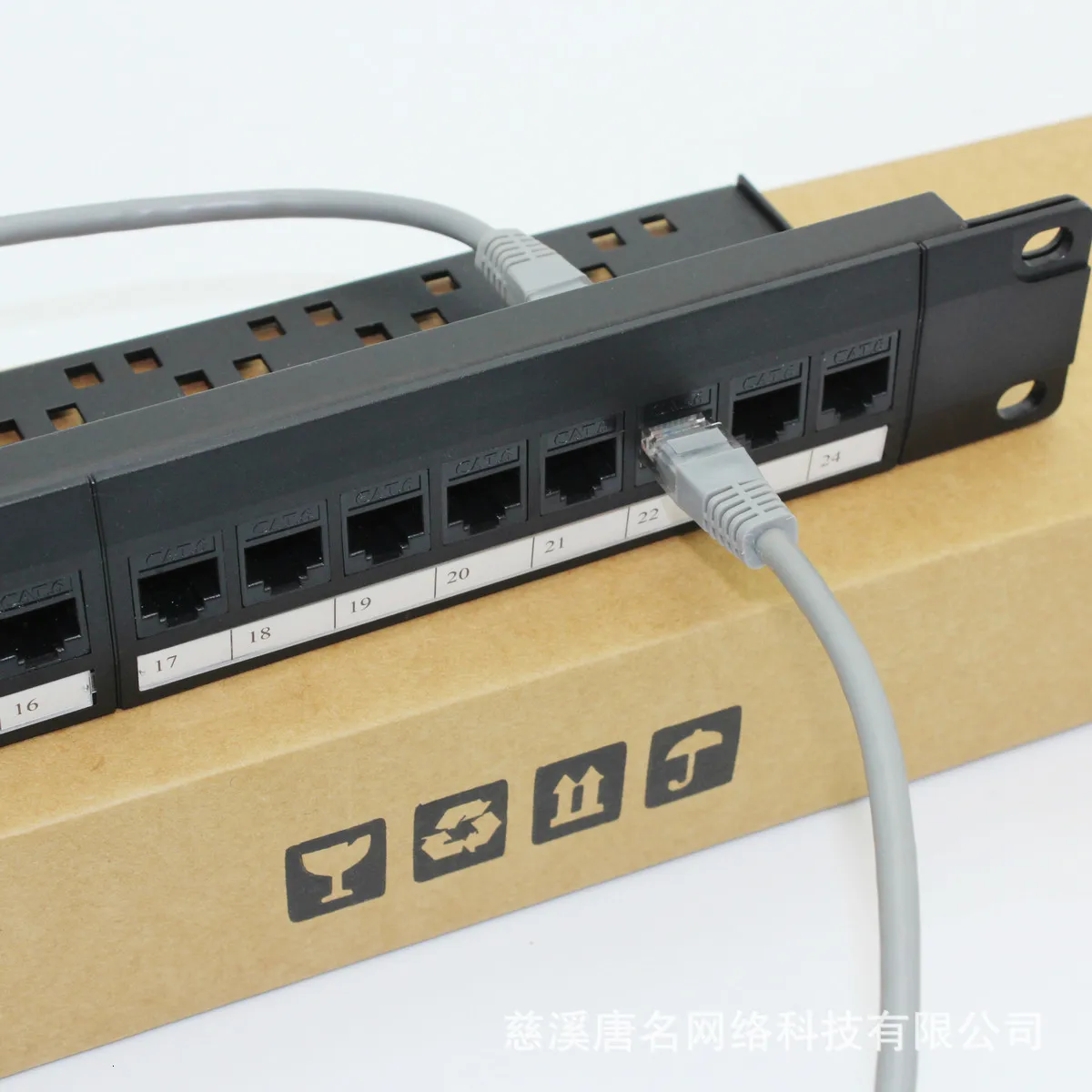

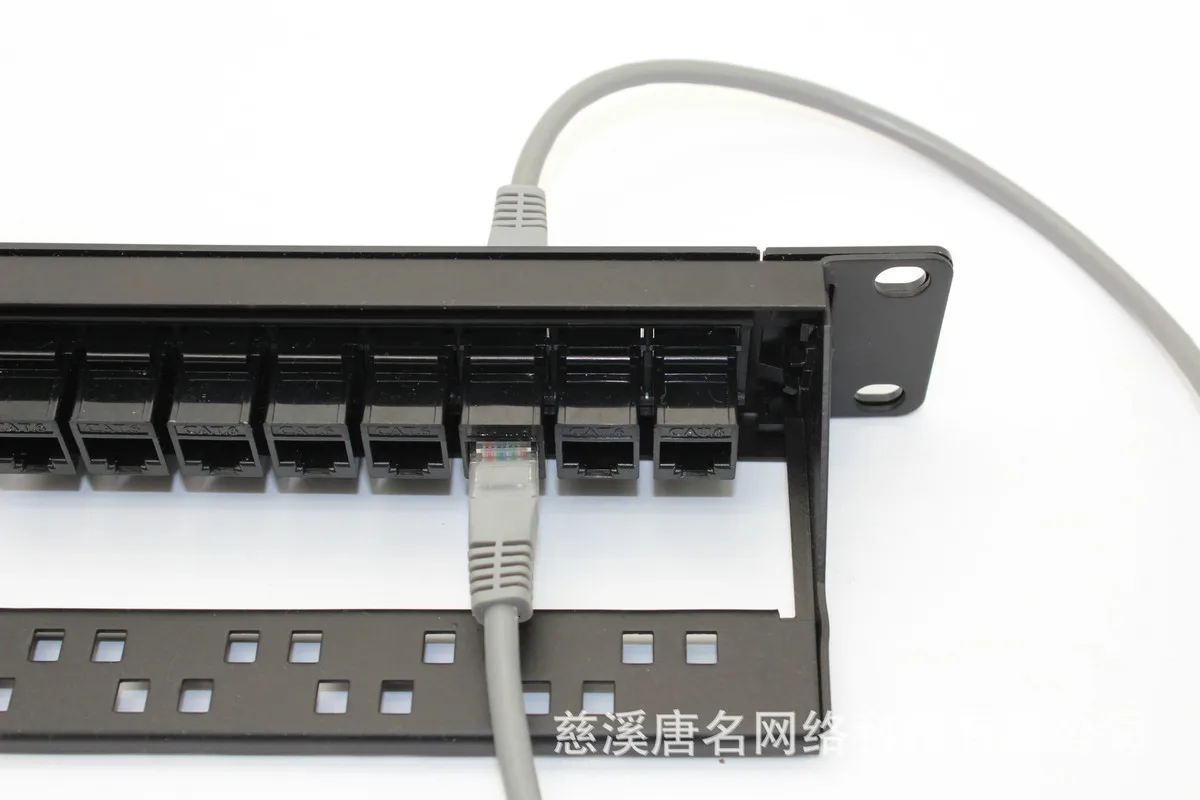

This modular patch panel, 24/48 modules are straight-through modules free of wire, can be directly plugged into the network cable, easy to install and operate

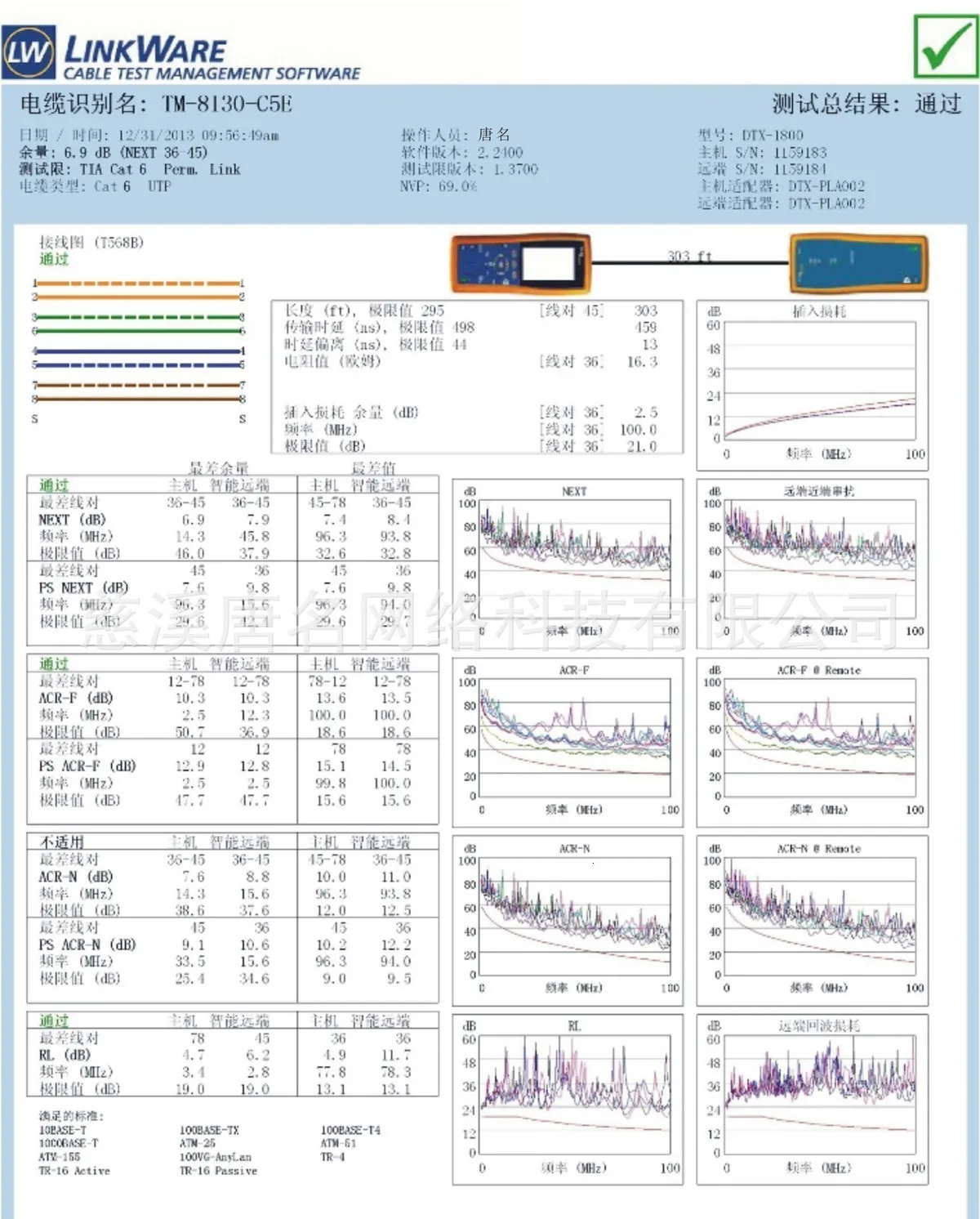

Passed CAT6 test, good performance

Special Note: This product has two purchase options, namely 24-port patch panel

and 48-port patch panel, as shown below, please purchase as needed:

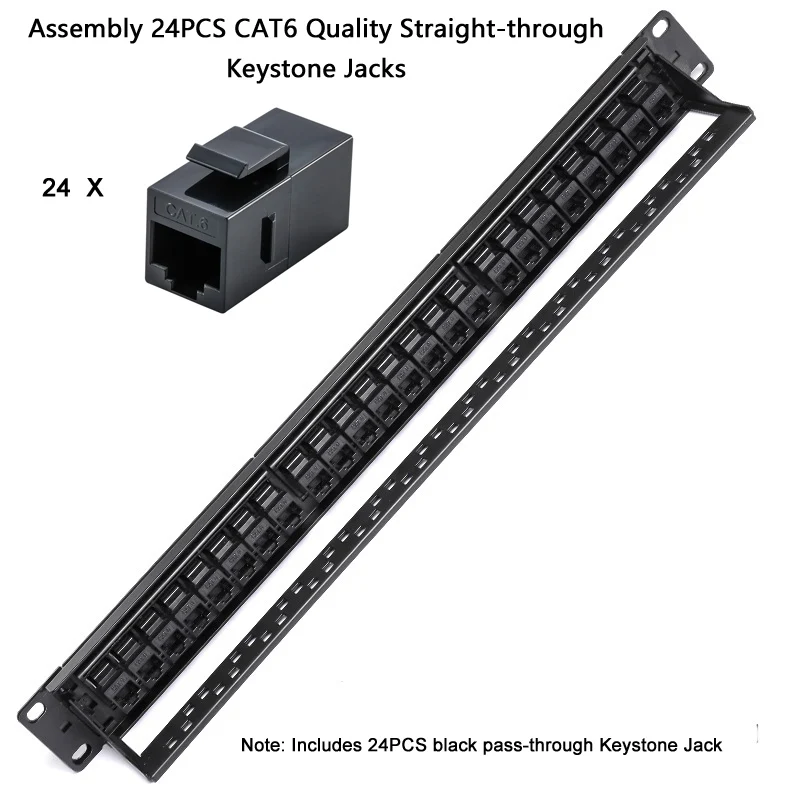

1. 24-port CAT6 patch panel

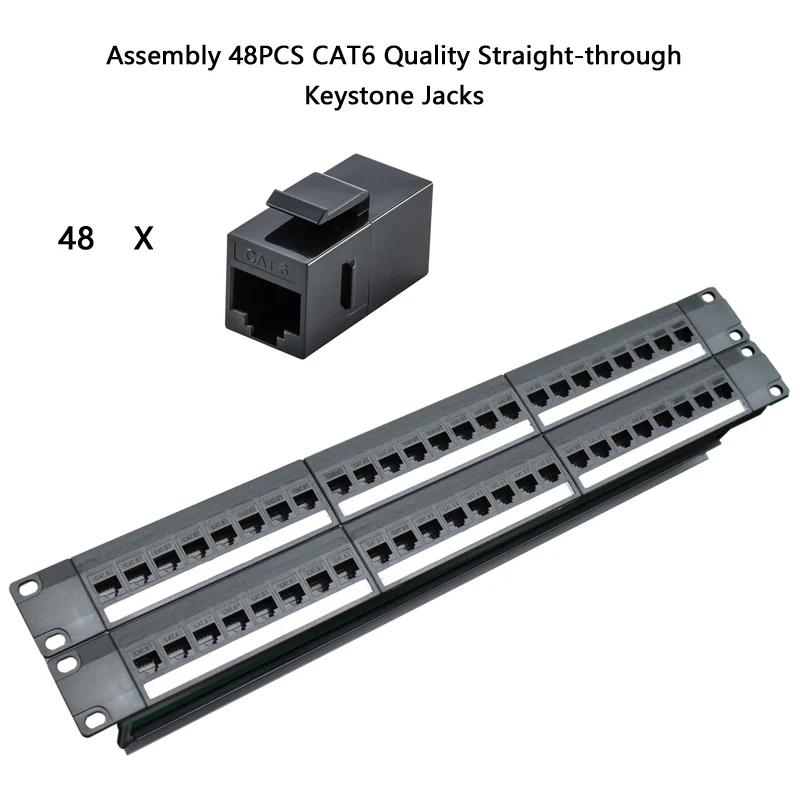

2. 48-port CAT6 patch panel
