Conector de tarjeta CF Compact Flash tipo I/II a IDE SSD HDD, convertidor de tarjeta de 2,5 "IDE 44 Pin macho a adaptador CF con funda

Introduction

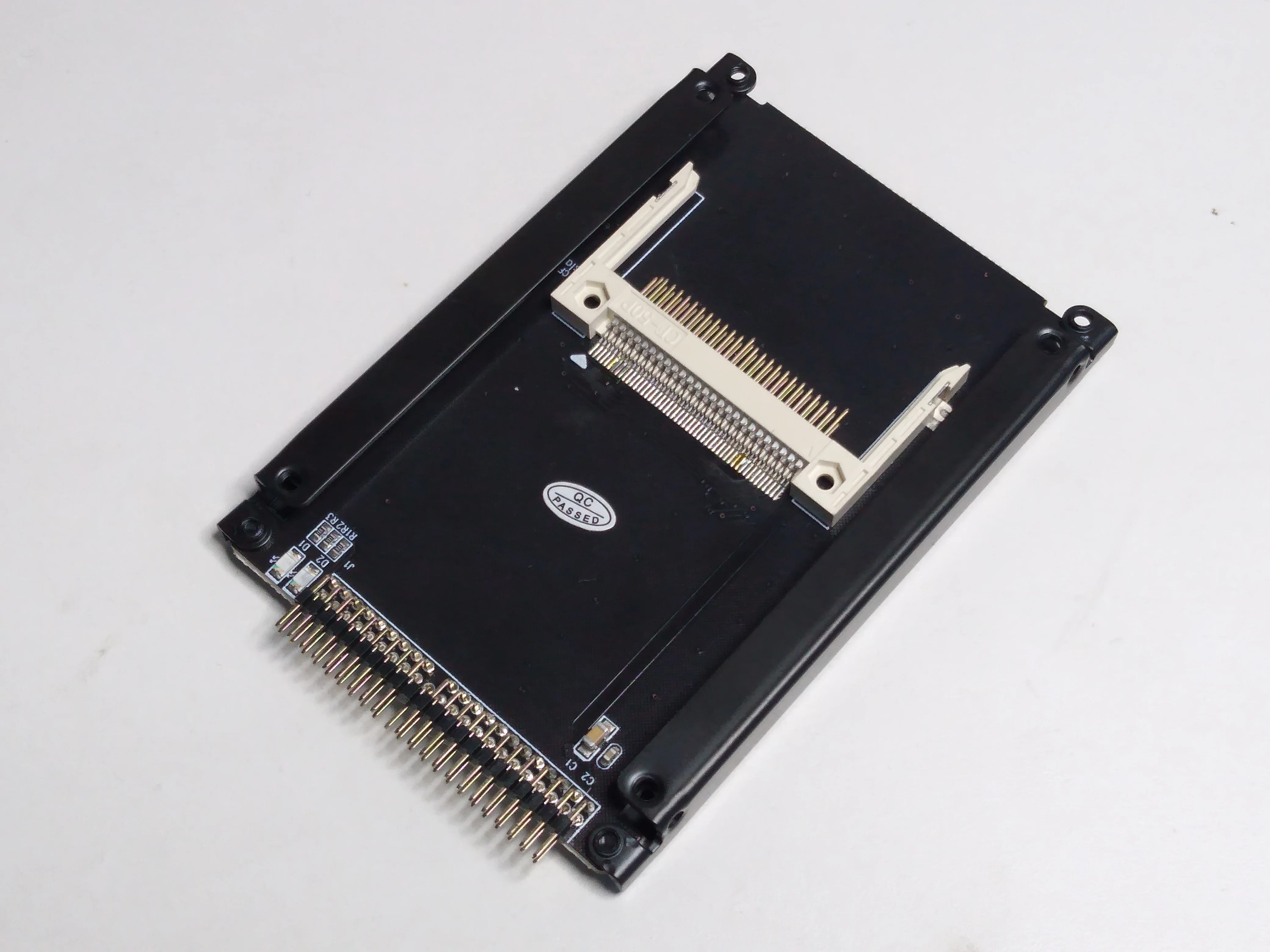

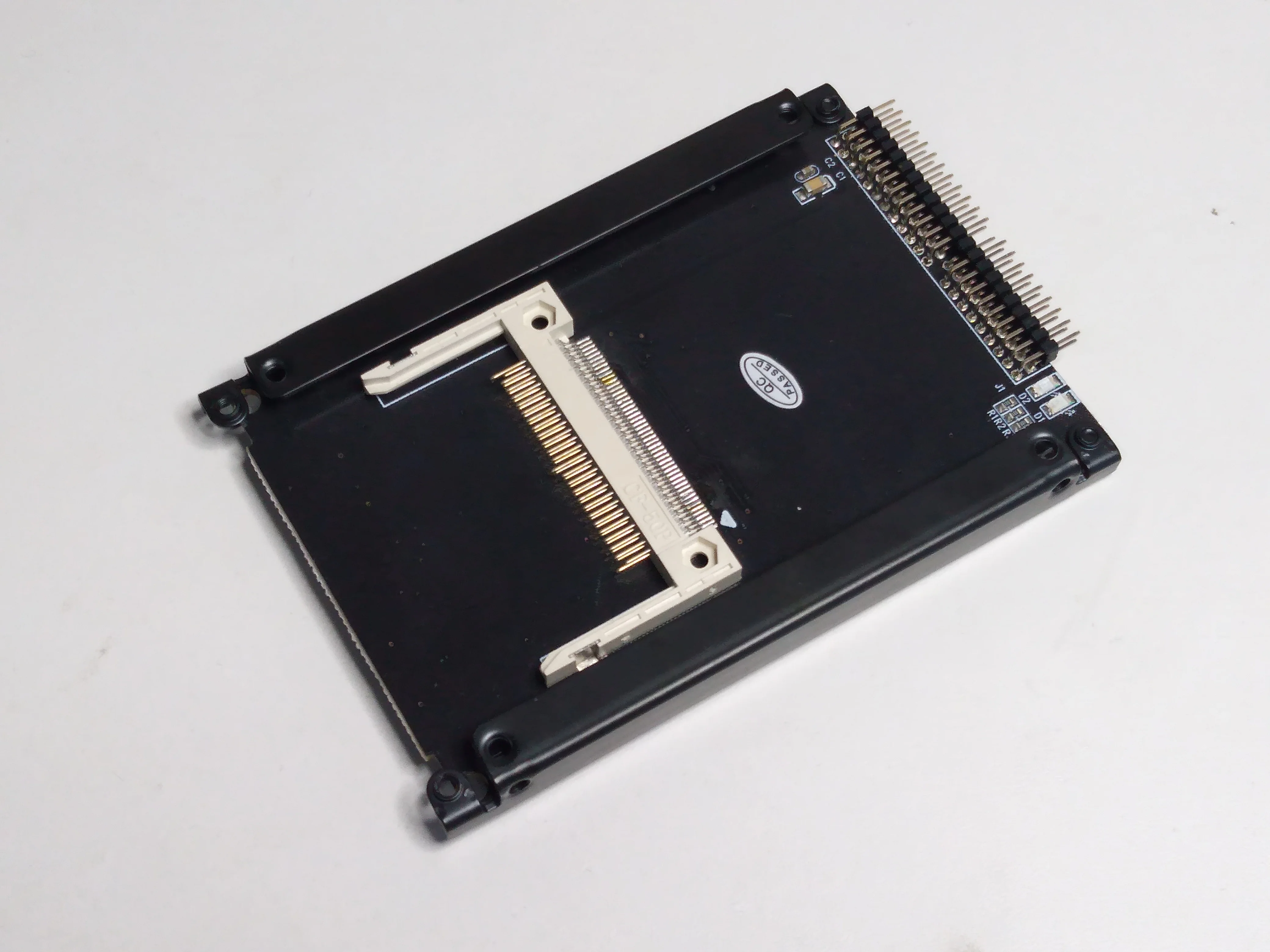

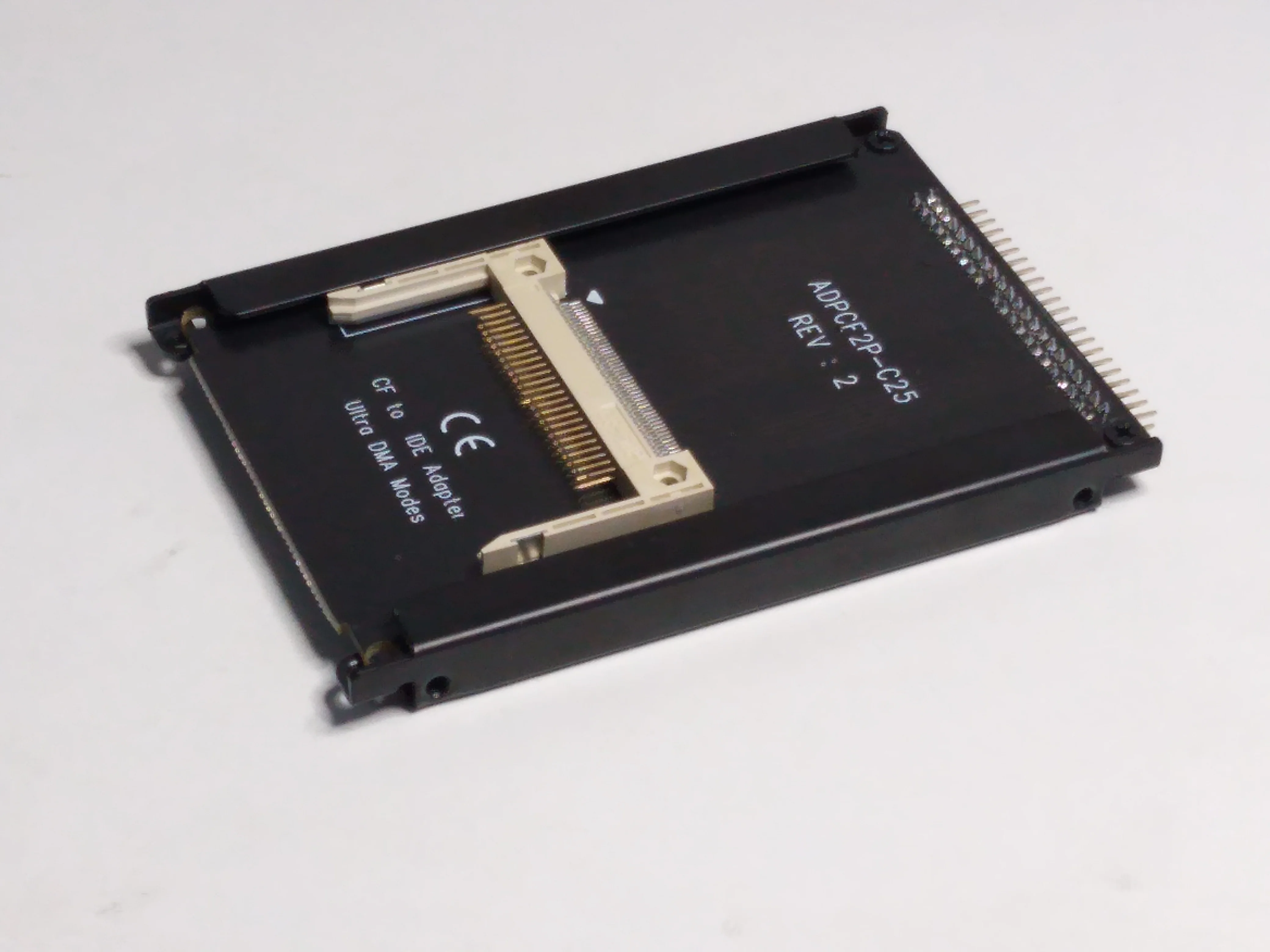

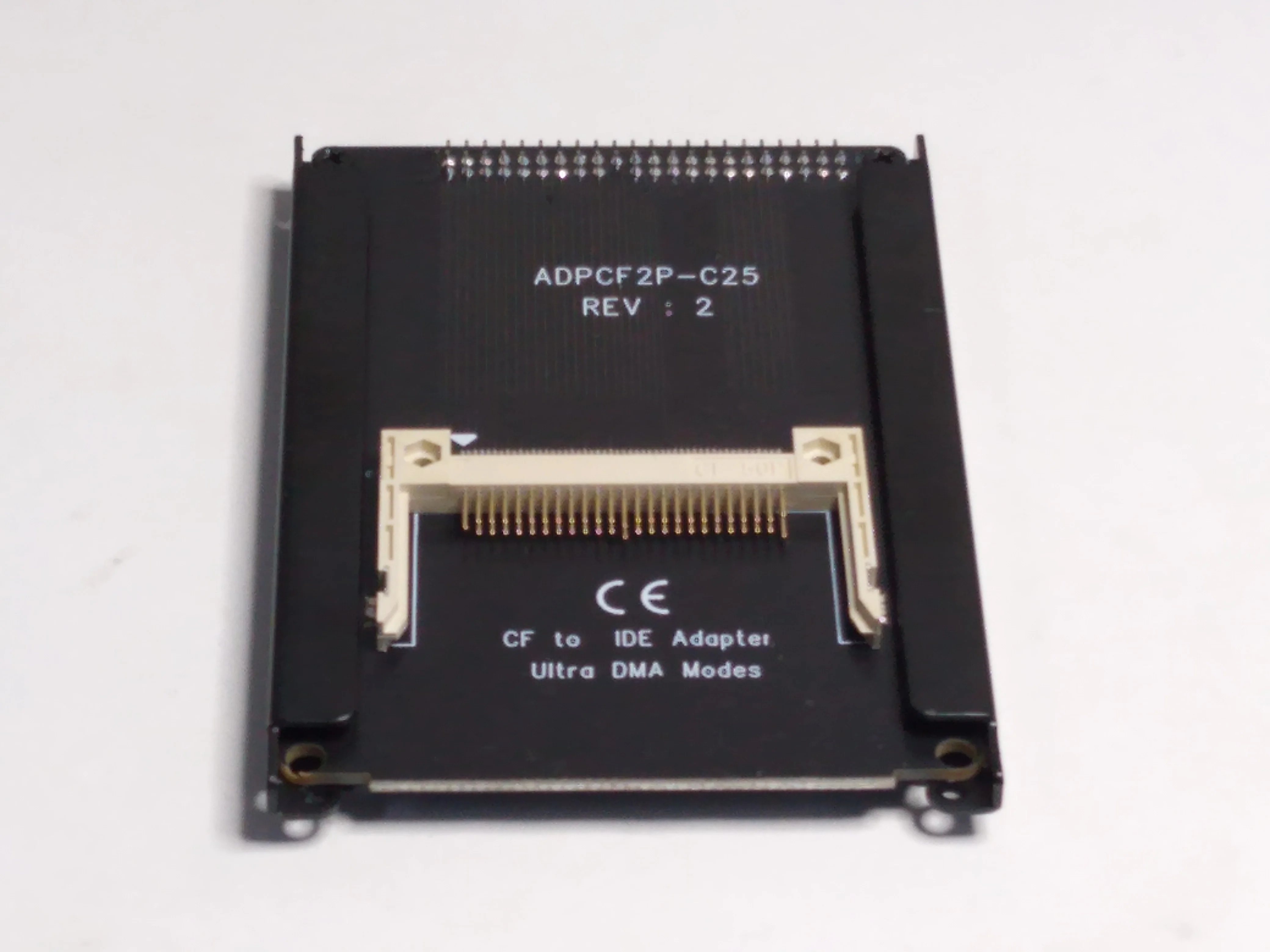

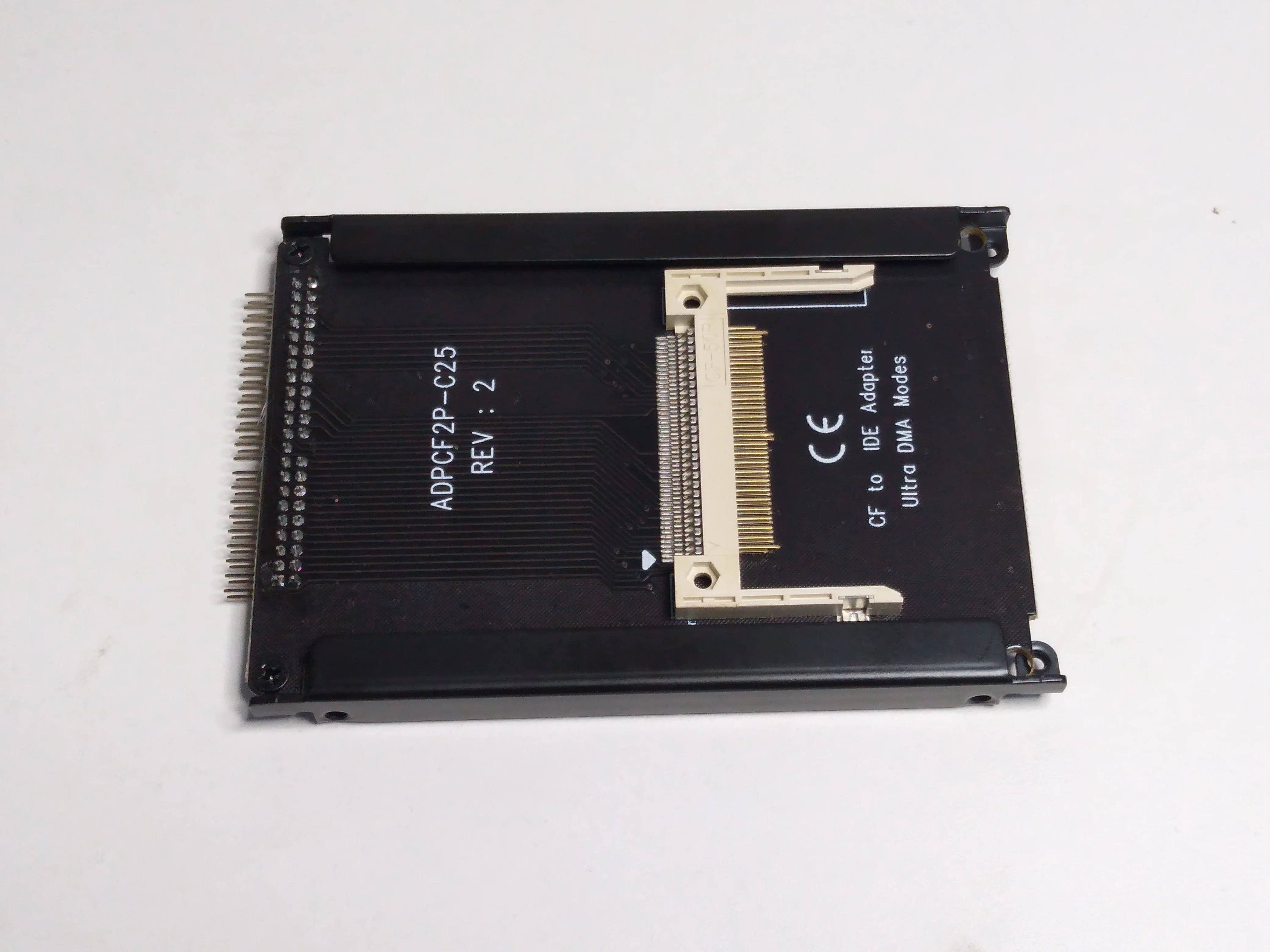

The Compact Flash to IDE HDD Case enables Compact Flash (CFI/II) media card to be used as a direct replacement for a 2.5" IDE hard drive. As a result, any equipment, such as Notebook computer, that uses a 2.5" IDE hard drive can be easily converted to use the low power and shock resistant CF media card, just like a IDE solid state drive (SSD). Once installed, the CF appears as an ordinary IDE hard drive to any OS and can be configured as a bootable device.

Features

IDE 40Pin interface

Ultra low power consumption

Compatible with CFI /II

Support Master-Slave mode

OS Bootable and no drivers required

NOT supports the hot-plug of Compact Flash

Mounts directly onto notebook 2.5" IDE connector

Supports DMA and Ultra DMA modes (only on flash media card with such features).

Compatible with DOS, 98SE, Me, 2000, XP, Vista, Win 7, Mac OS, Linux

Package Contents

Adapter Card

Attention:

Only front side CF Socket supports CFI,CFII and Micro Drive, could be used as a Master device.

Back side supports CFI, don't support CFII, could be used as a Slave device.
