Package Included

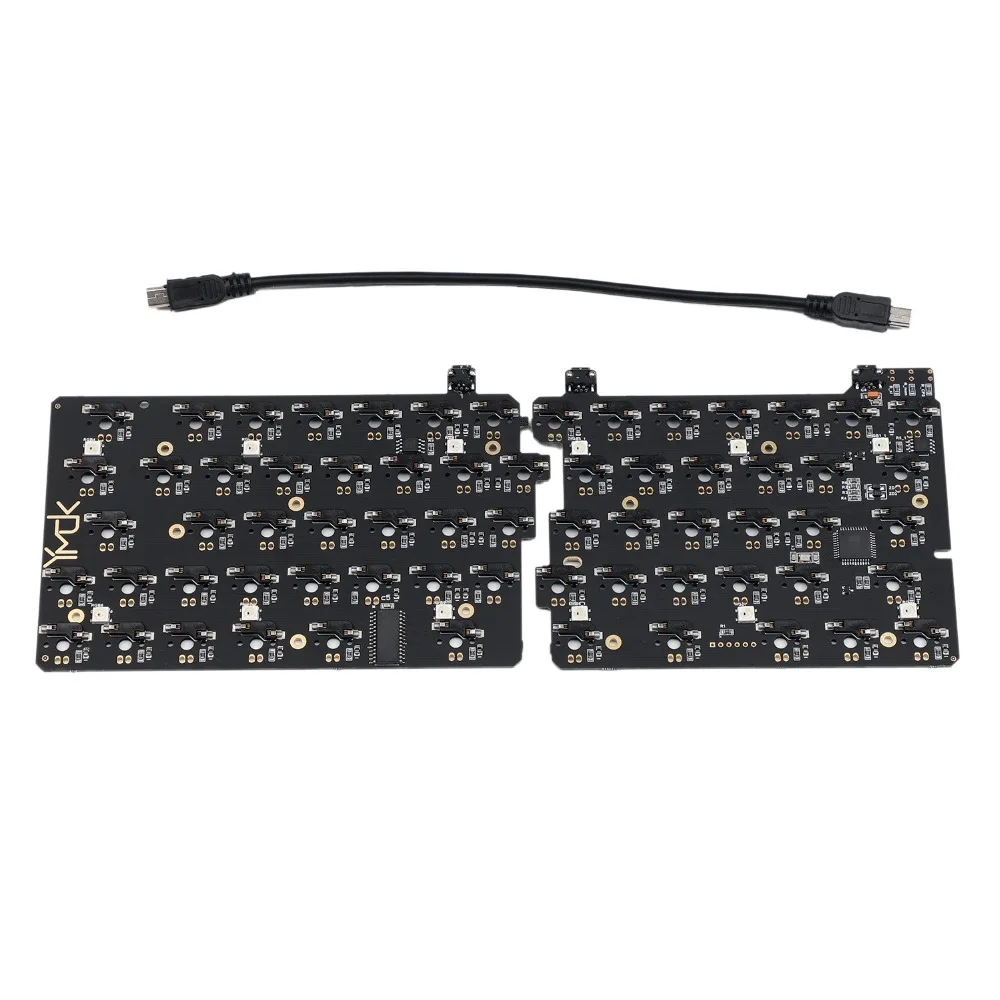

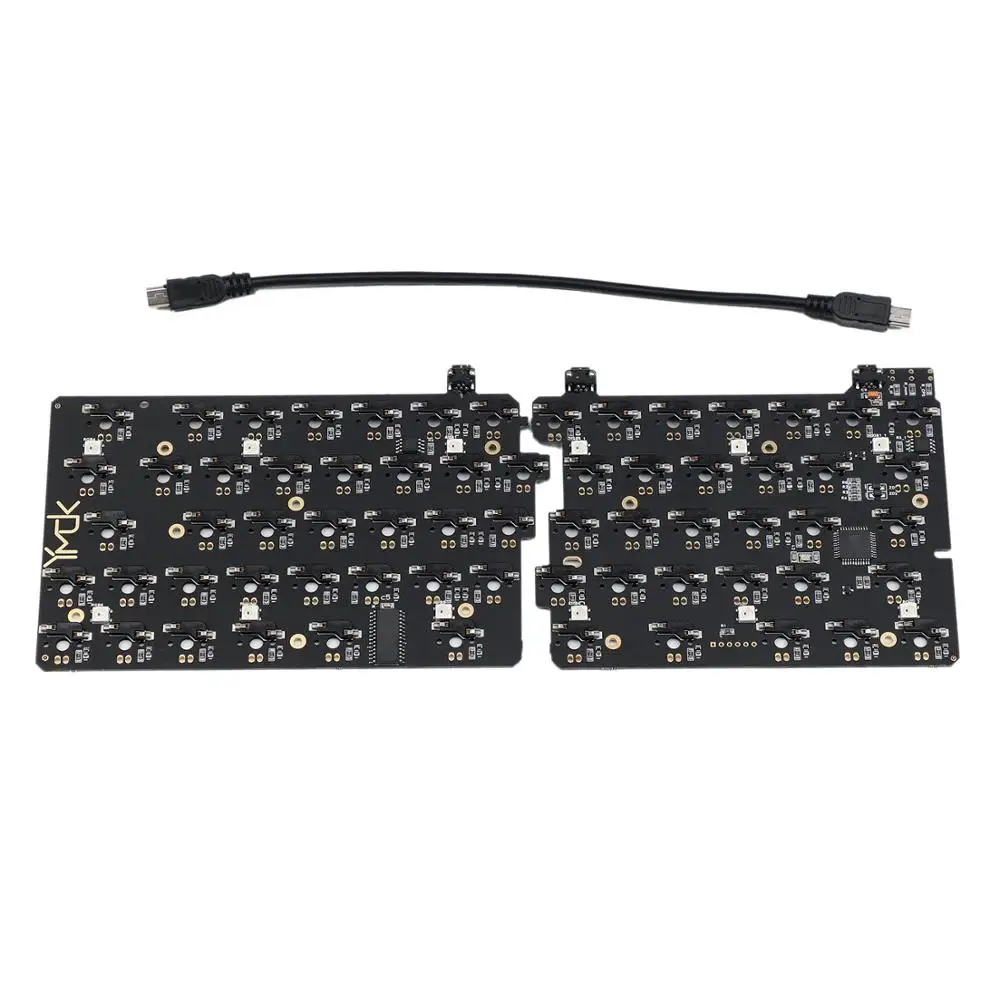

Only SP64 hotswap PCB (2 half) + 5 pin Mini B to B cable
Additional Item You can Add
There is no keycaps and Switches included in these kit,if you need them,just add it from below link
Dye sub keycap Clickand
Laser Engraved Keycap click (if you order for SP64,leave message to get one more blank 2.25u)
Switches Click(Around 67 pcs is ok)
New ZDA Dye Sub Keycap Click
Details

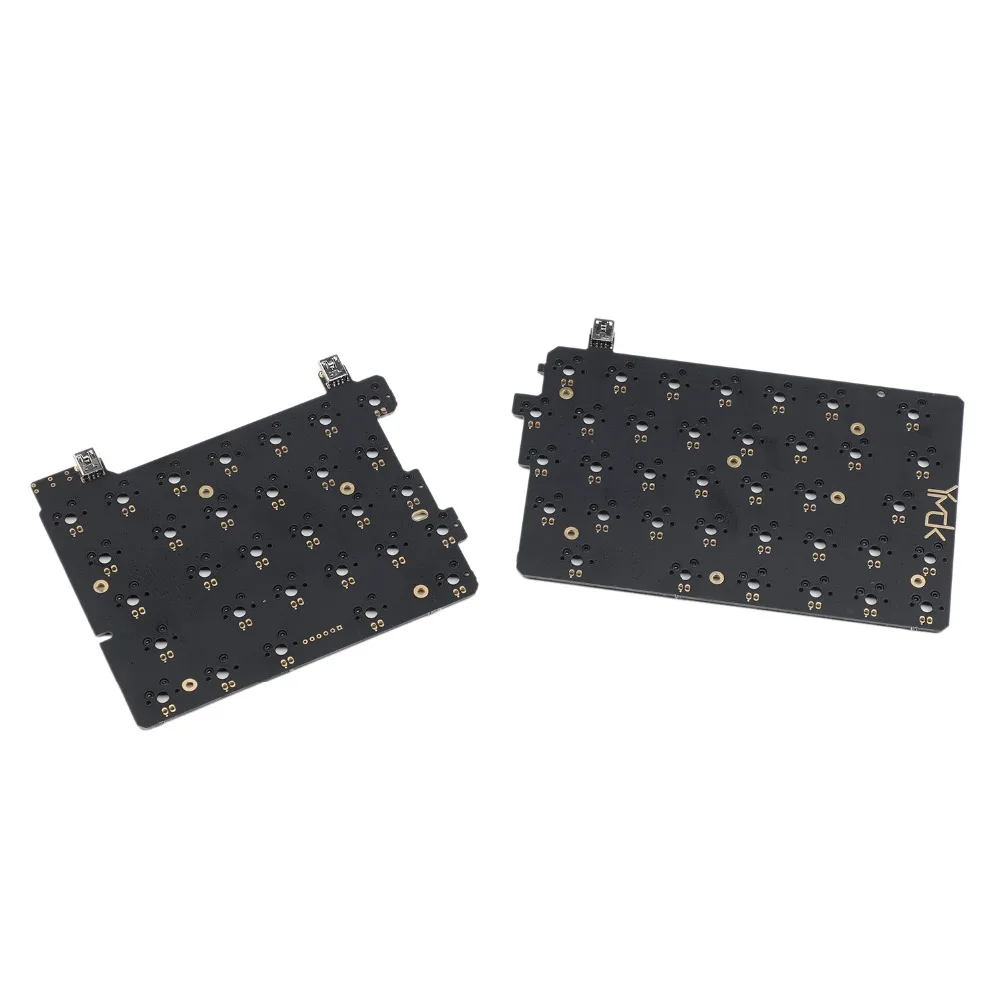

PCB is presoldered with diode and resistors and Kailh hot socket,you only need to prepare switches and keycaps to get it work.All MX switches is compatible including Cherry MX Gateron MX Kailh MX and Outemu MX etc.
PCB is high quality black gold pad and it is programmed with bootmapper.It supports split 64 layout.
The bottom row is 1.25u 1u 1.25u 2.25u 1u 2.75u 1.25u 1.25u 1u 1u 1u.Other rows is same size as GK64
The left space is 2.25u,right space is 2.75u.This PCB is Mini USB port.
PCB attch to upper case with screws which is very tight and easy to mount switches on.
PCB is fully programmable.There is 12 underglow RGB leds under PCB which can change to many color as you want.
Pls find the manual and software as below link
drive.google.com/open?id=1RS0TpA0MzzGt_pHUwjqY-IxCBHK58YDx
