Package Included

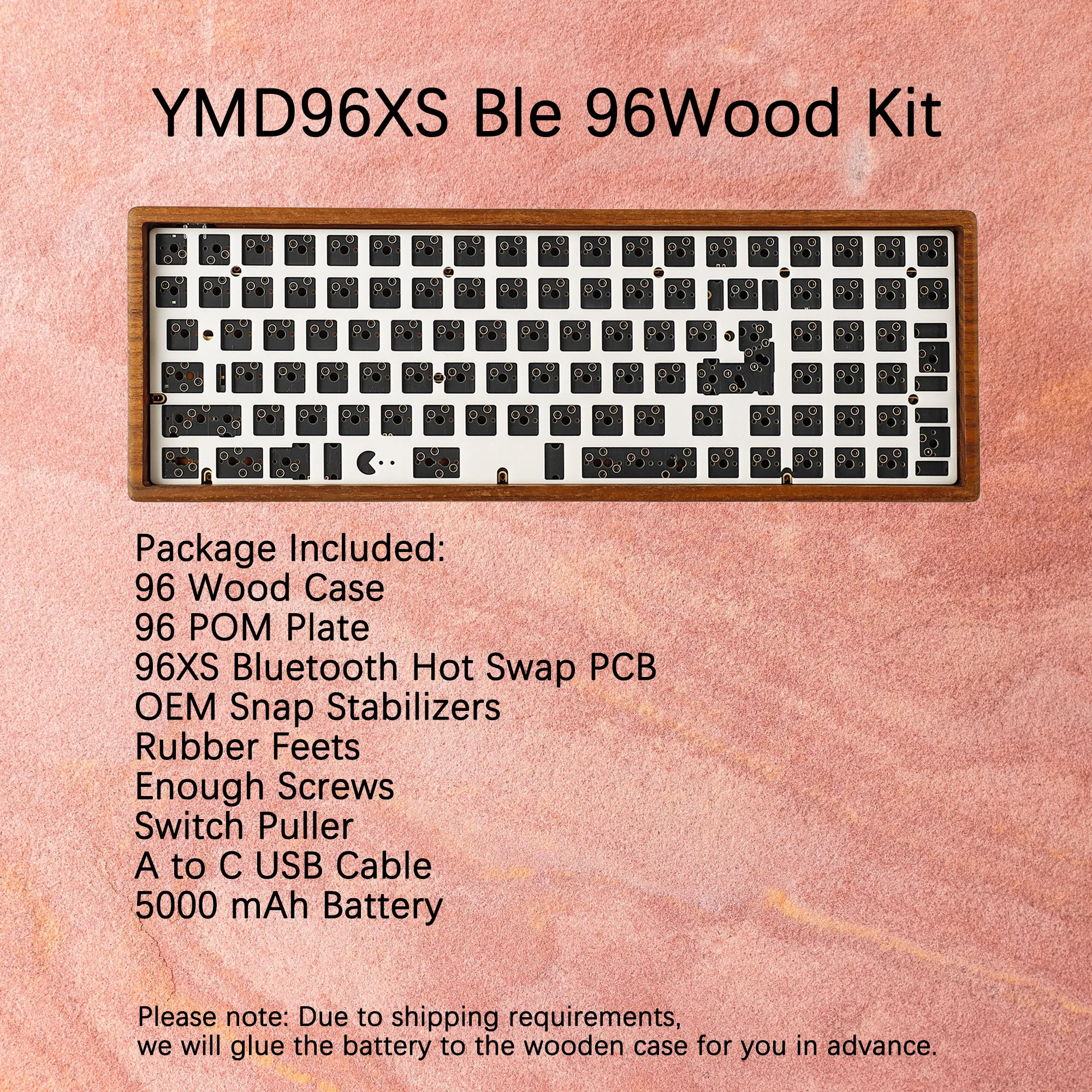

YMD96XS Ble 96Wood Kit: 96 Wood Case + POM Plate + 96XS Bluetooth Hot Swap PCB + OEM Stabilizers needed + Rubber Feets + Screws + Switch Puller+ USB Cable + 5000mAh Battery
Upgraded Parts
Change OEM PCB Stabilizers to Clear Gold screw-in stabilizers, add 10pcs：
Add Walnut or Beech Wood Wrist Click Here：
If you need a separate PCB please click Here：

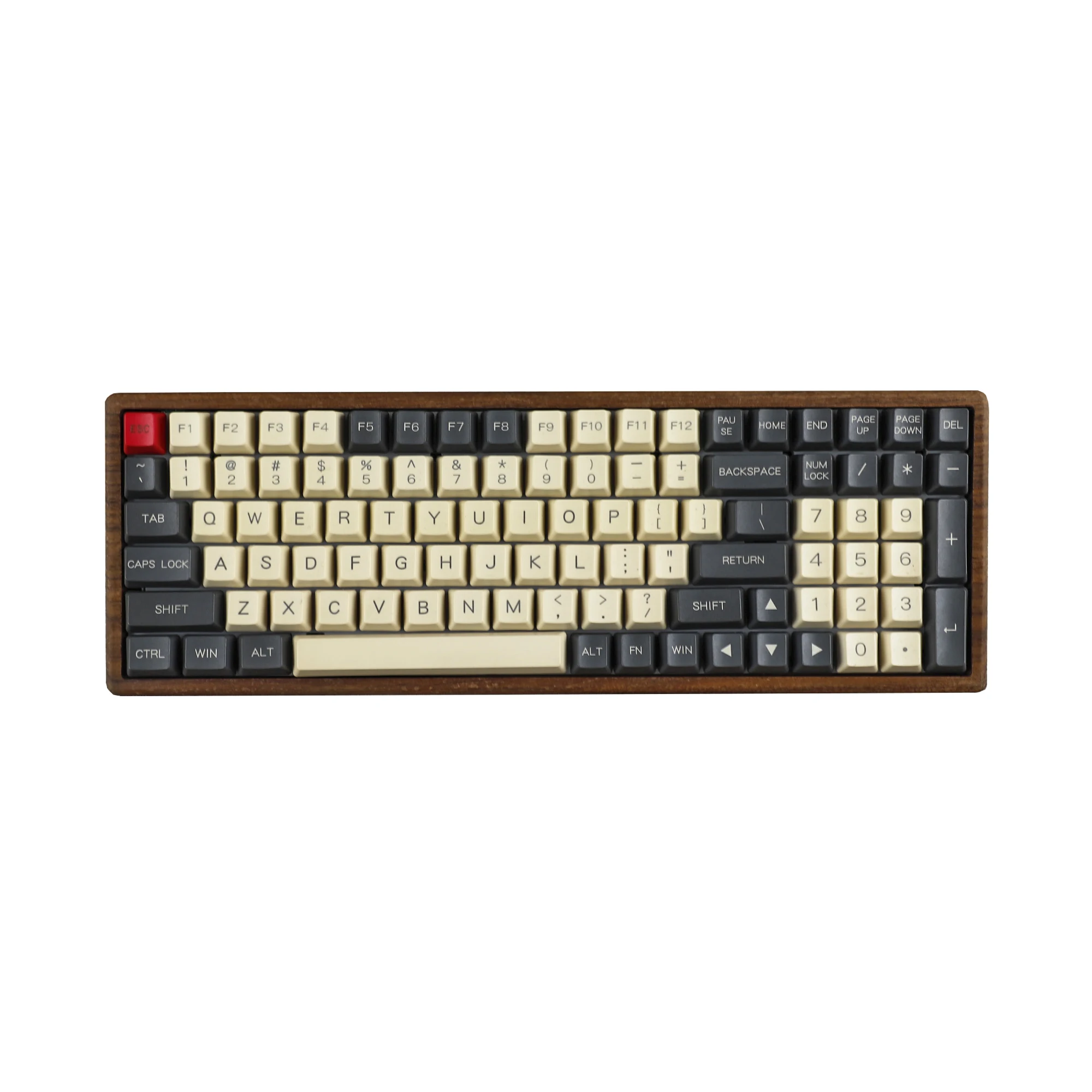

From 100% to 90%-96 layout,keep some function keys but make the keyboard of size smaller.Create a full integrated keyboard from 100% to the new version-90% special layout.Change the way in keyboard of using totally,96 will be a better layout.
Details

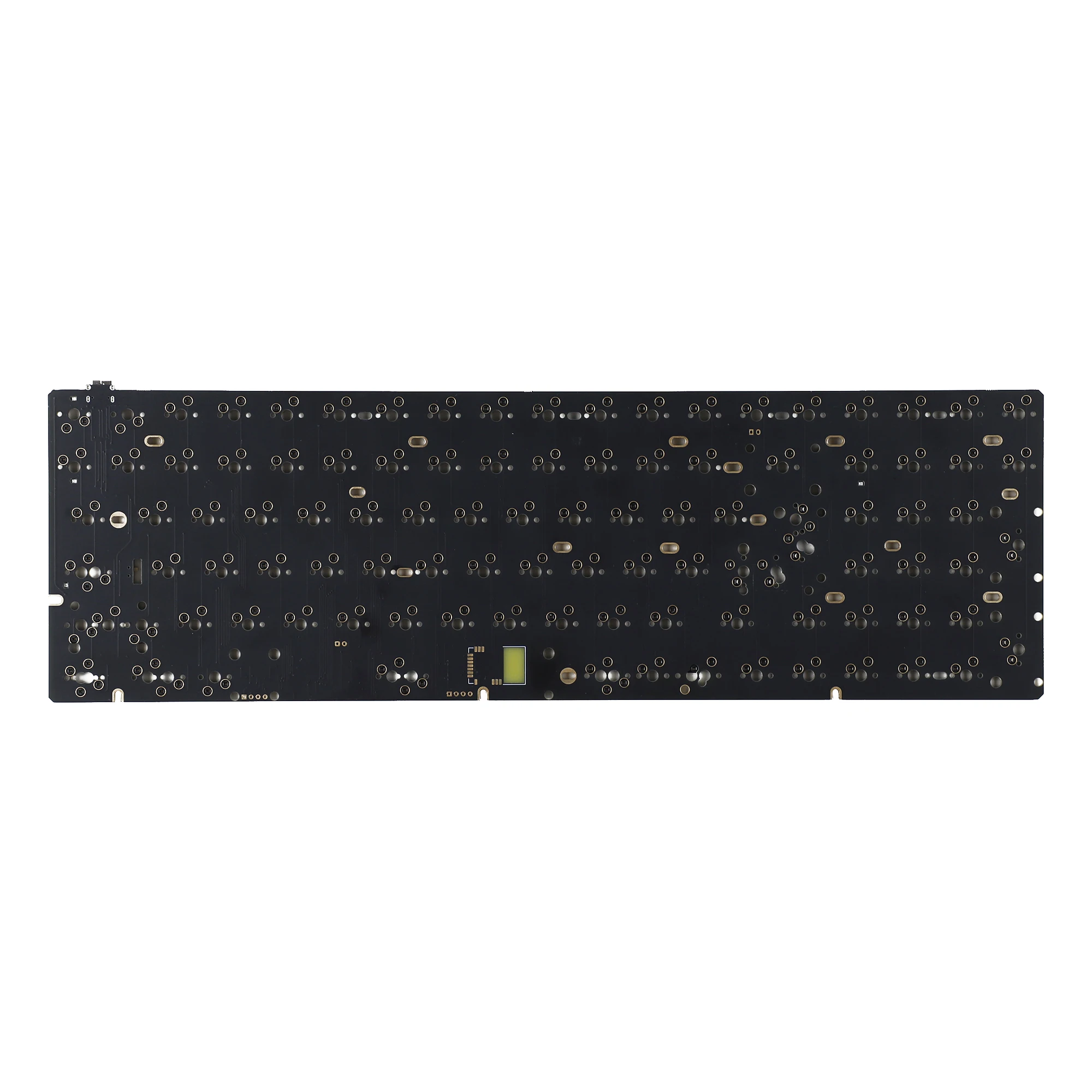

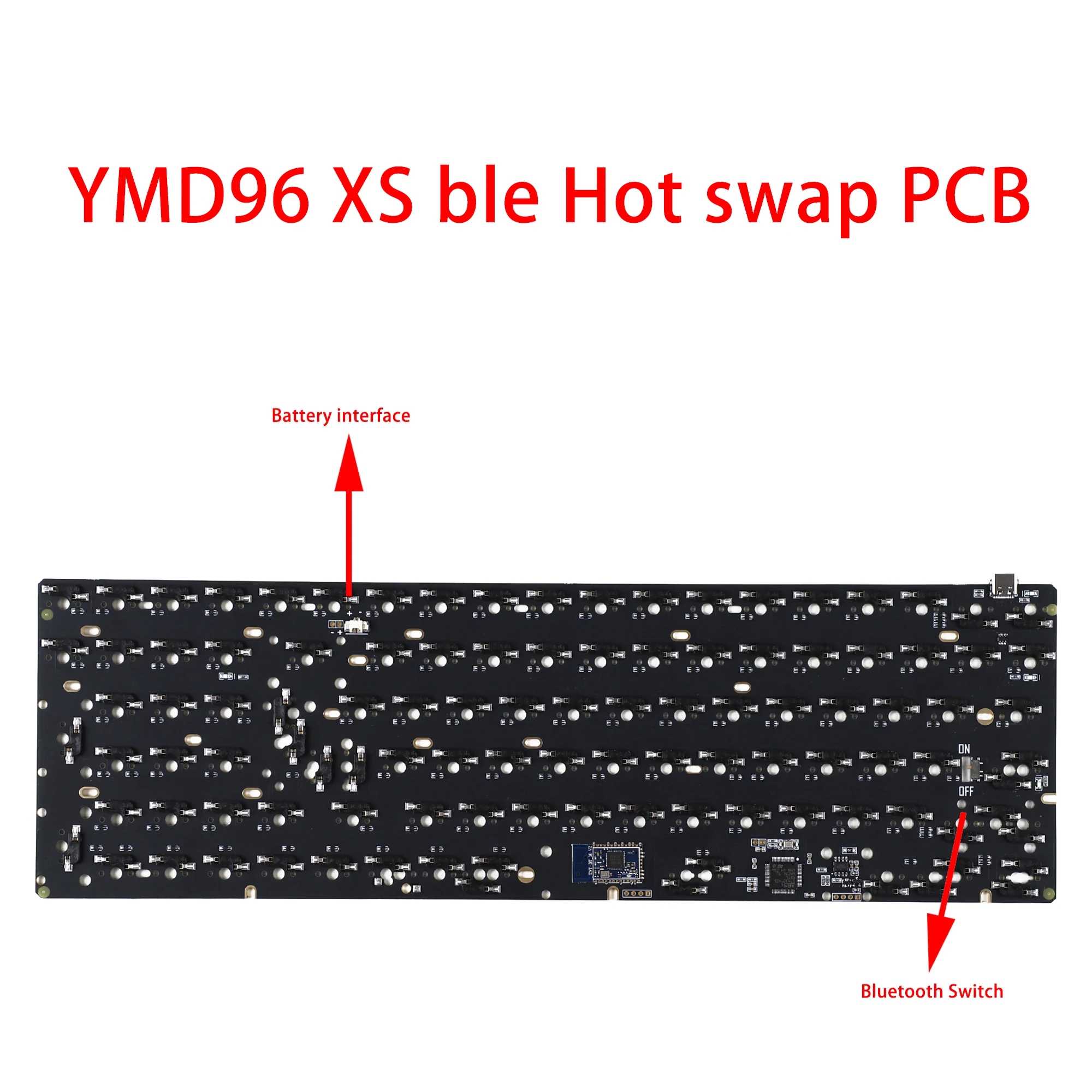

About PCB
Model : YMD96XS Ble
Memory : 32MB

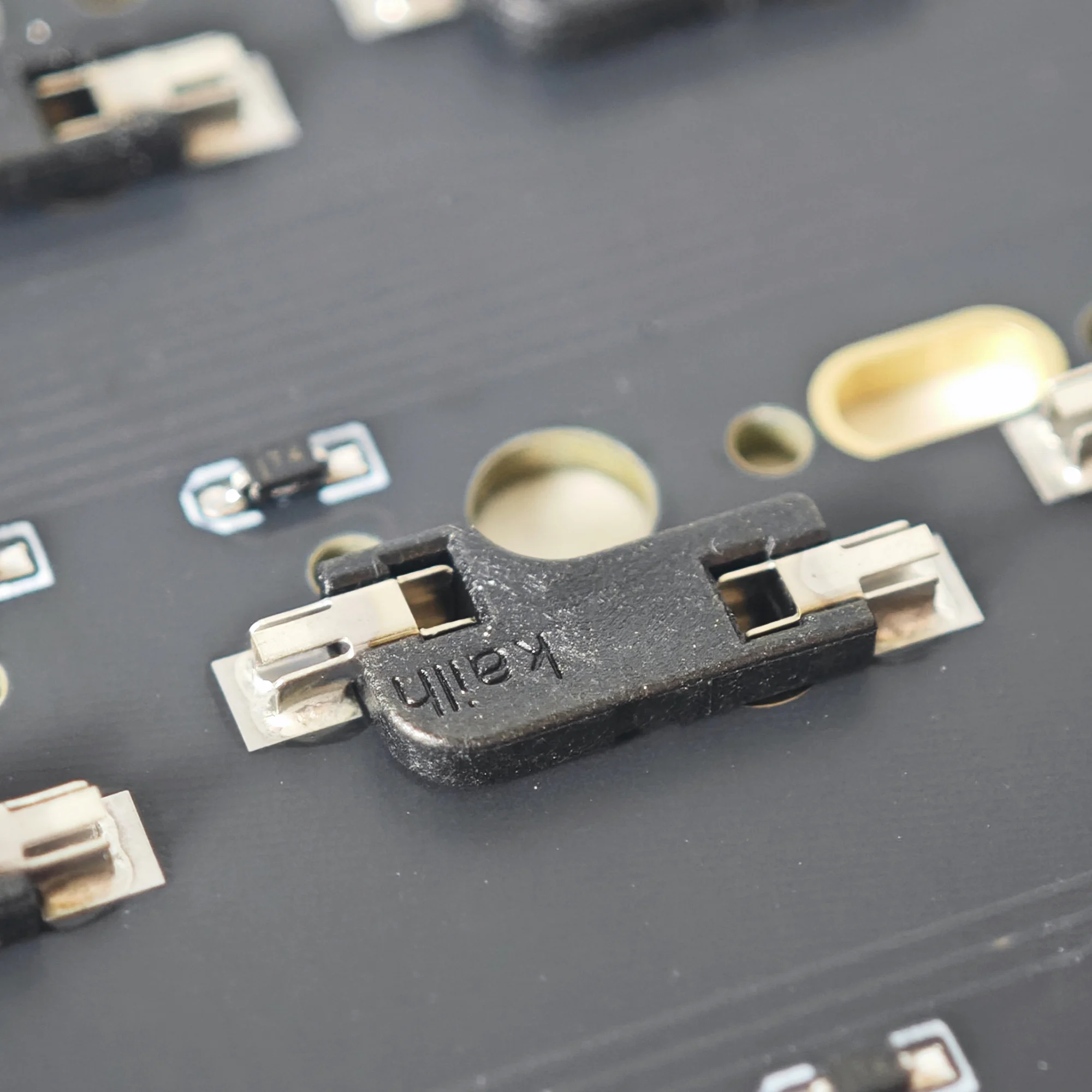

PCB use kailh socket,that supports most mx switches. (Low profile switch is not supported)
Hotswap type-C port PCB,supports many 96 cases.Like our store of wood/melody case.
No switch RGB and bottom RGB
All fit QMK and via.You can check the link for pcb.
This is our latest YMD96XS Bluetooth version PCB, supports hot swapping and supports multiple layouts.It can use VIA to program it only in wired mode.
As default,when you connect to PC with USB,it goes into wired mode.If you pull the cable off,it will go to bluetooth mode.
The PCB support polymer battery with 1.25 pin Red Black connectors.
If you want special function,can contact our customer service to get for you.As default,the PCB can program with VIA VIAL already.If you want to make your own file,can contact us for help.
Please note due to technical agreement reasons, the source files can only be provided in a single-mode version. The single-mode version of the source files cannot use Bluetooth, and Bluetooth will become invalid. If you cannot accept this, please order with caution.
One of the screw stand on the top is little outstanding and touch one hot socket which makes the PCB little little unflat onto the case,however after mounting screws,it's very stable and don't influence the installation in any case.If you care about this,just not order it.
Hotswap doesn't need soldering for installing.
VIA Manuals：
About some shortcut keys
FN+F1: Delete Bluetooth
FN+F2: Bluetooth Reset
FN+F4: Battery Energy
FN+1: Bluetooth Channel 1
FN+2: Bluetooth Channel 2
FN+3: Bluetooth Channel 3

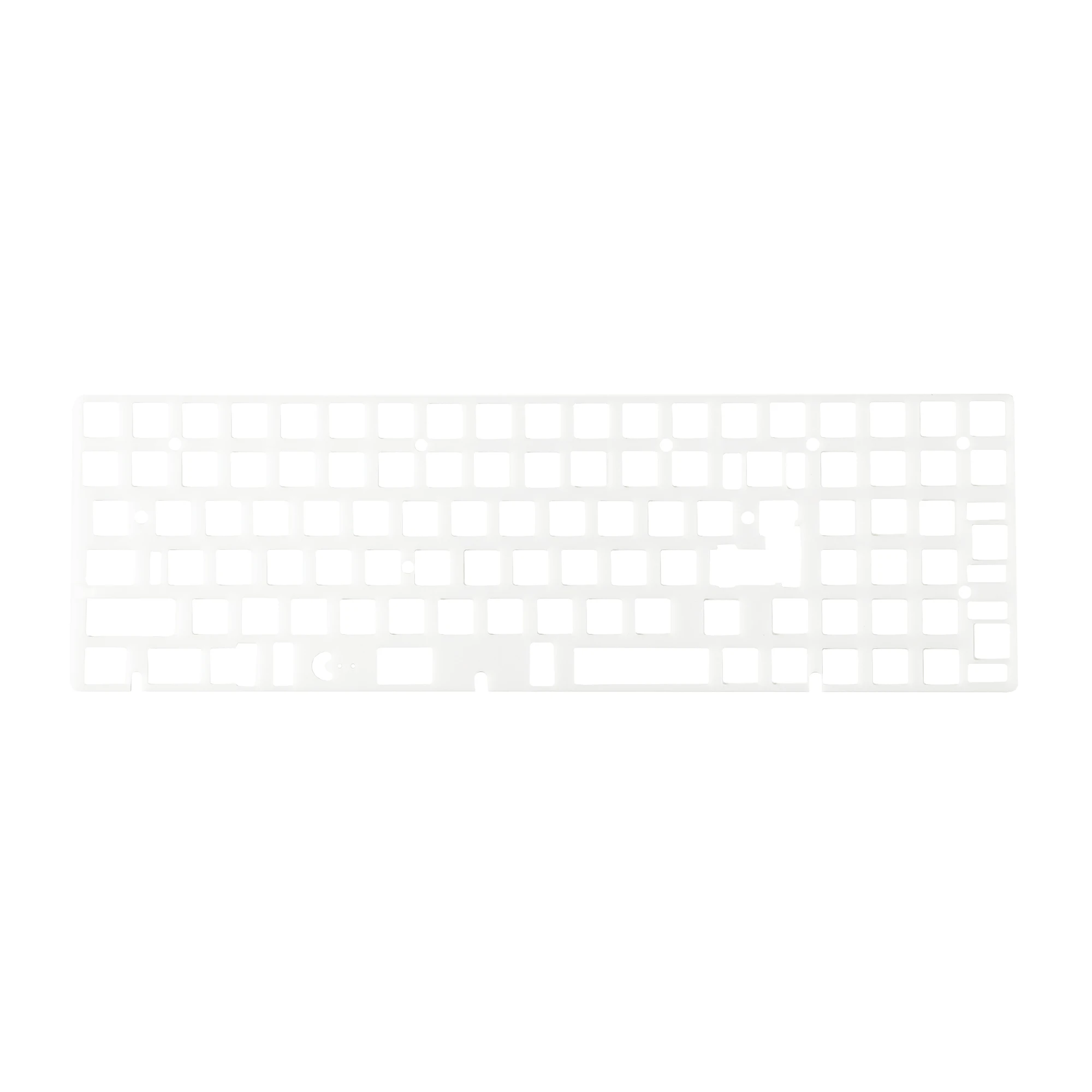

About Plate

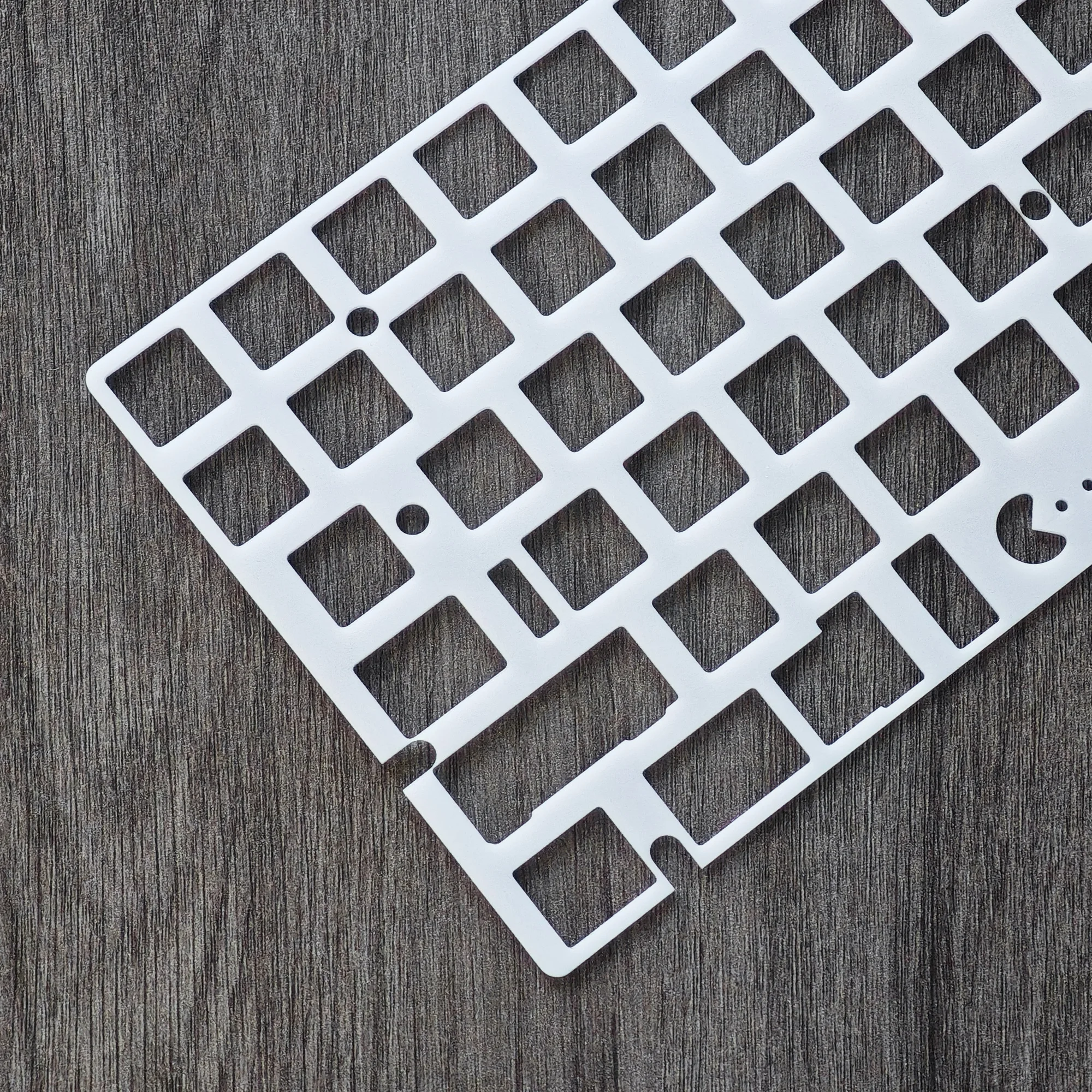

POM plate is soft and the color is white.

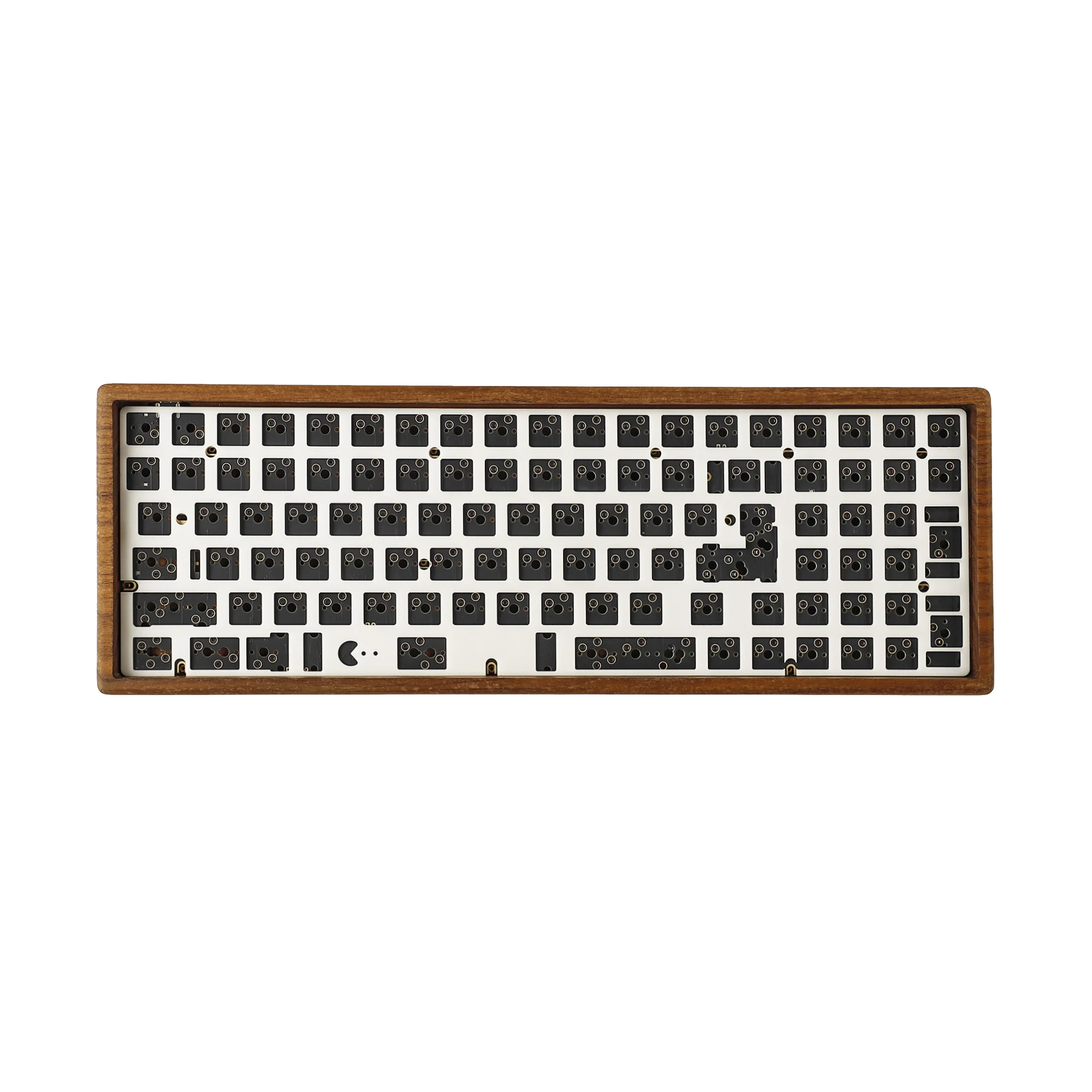

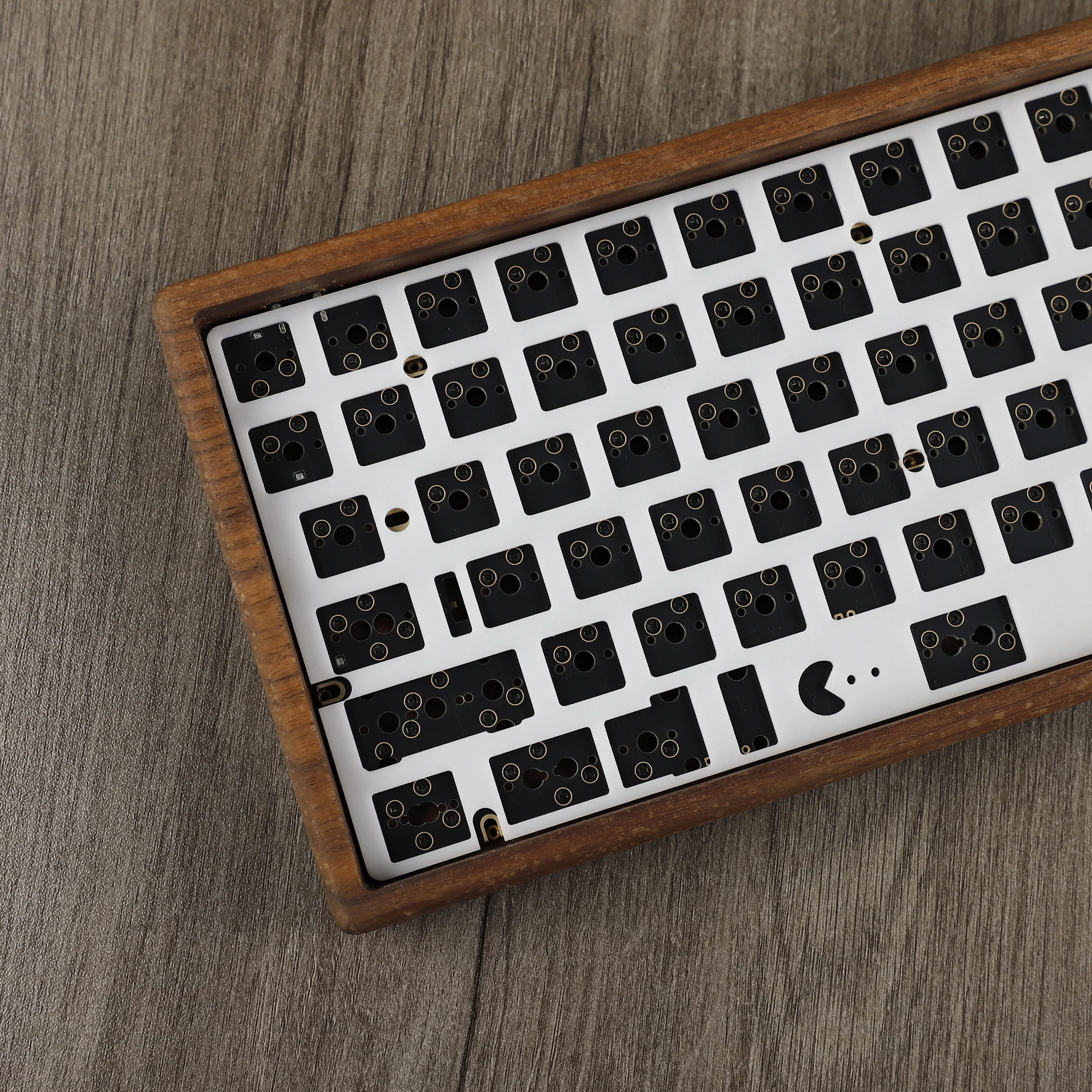

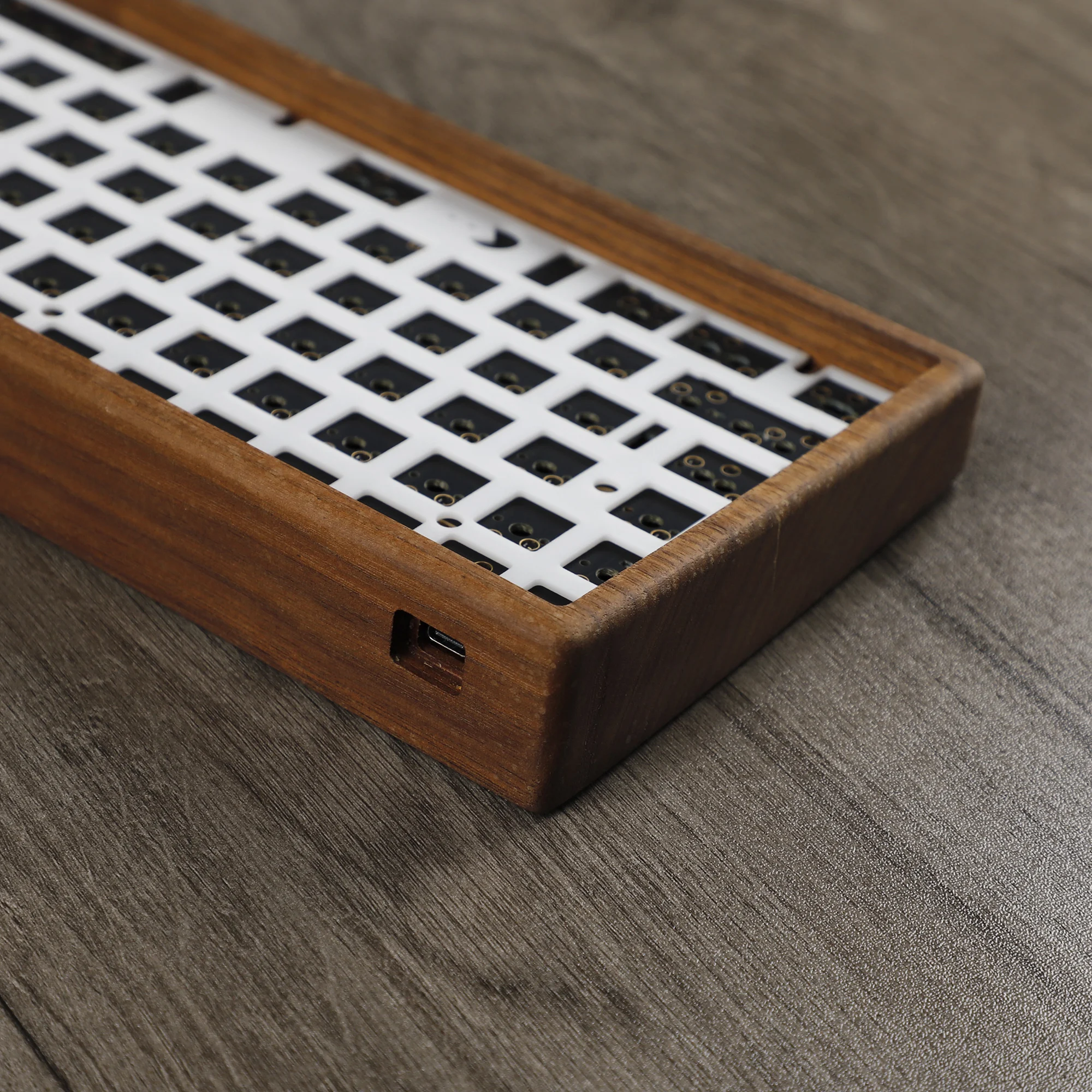

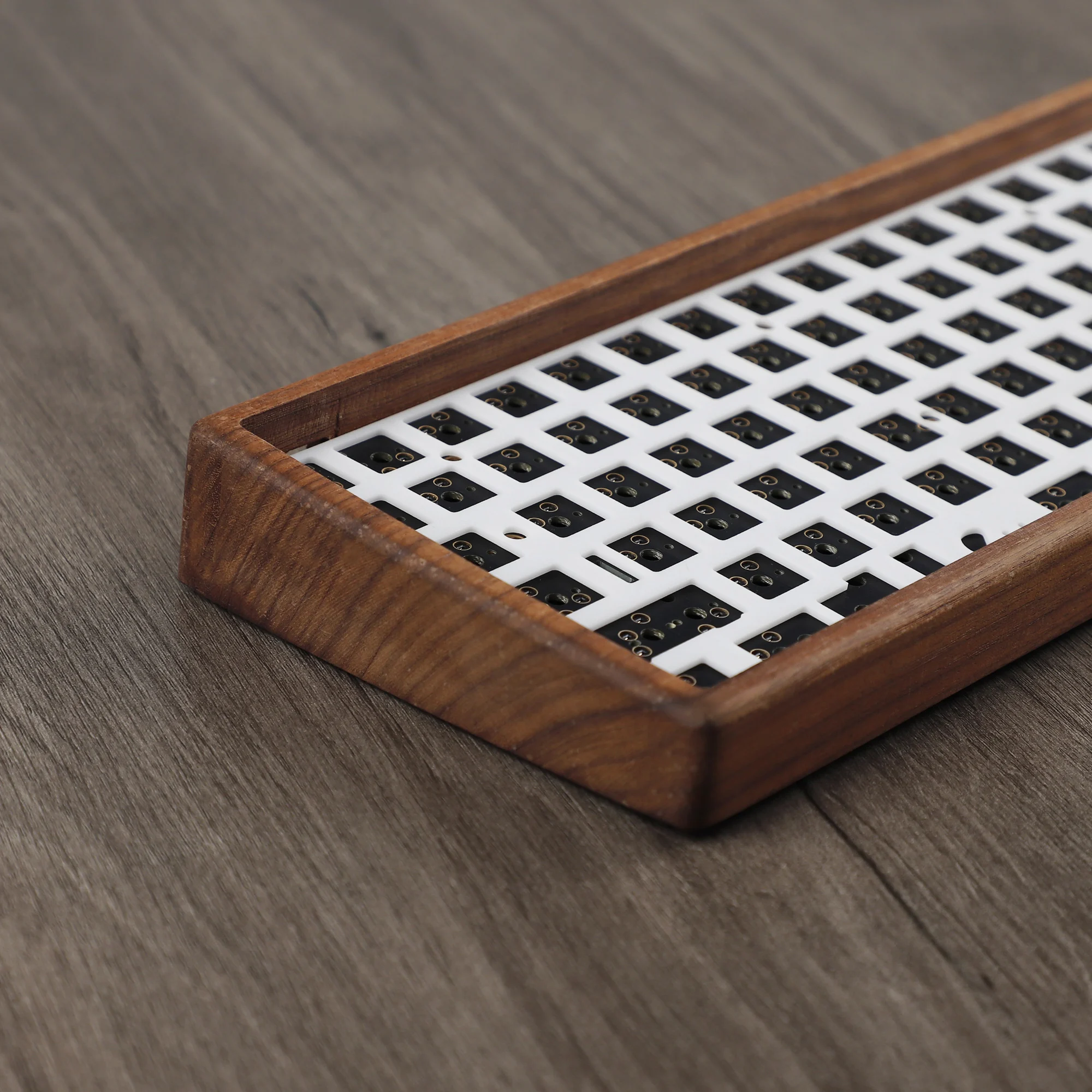

About Wooden Case
Customized walnut/beech wood case,wood case of the surface pattern is different because of the material.
Wood case of the different lifes will create the different touches and temperature differences,so wood case of feature all is different in using.
Note
One of the screw stand on the top is little outstanding and touch one hot socket which makes the PCB little little unflat onto the case,however after mounting screws,it's very stable and don't influence the installation in any case.If you care about this,just not order it.
If you need add leds yourself,please note that it only supports one color now for backlit.And some keys of places are different in leds of direction for hotswap pcb,like right 1u alt ctrl,left 2.25u shift etc keys.
Soldering PCB supports many layouts,but you need prepare a soldering iron to install switches.
Hotswap doesn't need soldering for installing.
Layout Supported

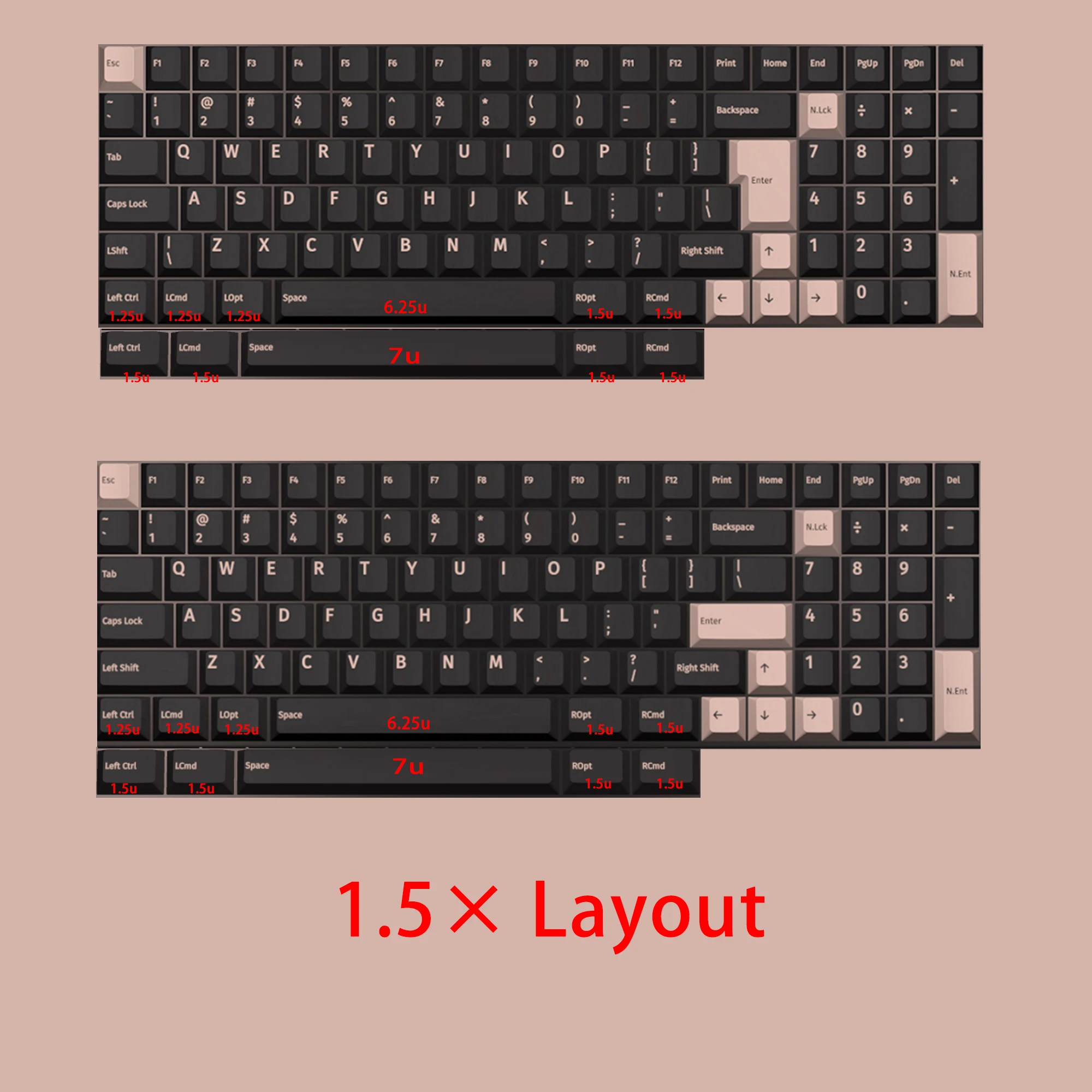

Layout 1.5X
1.5x layout support Rctrl RAlt is 1.5x,it can support both ANSI ISO layout with 7u and 6.25u Space.

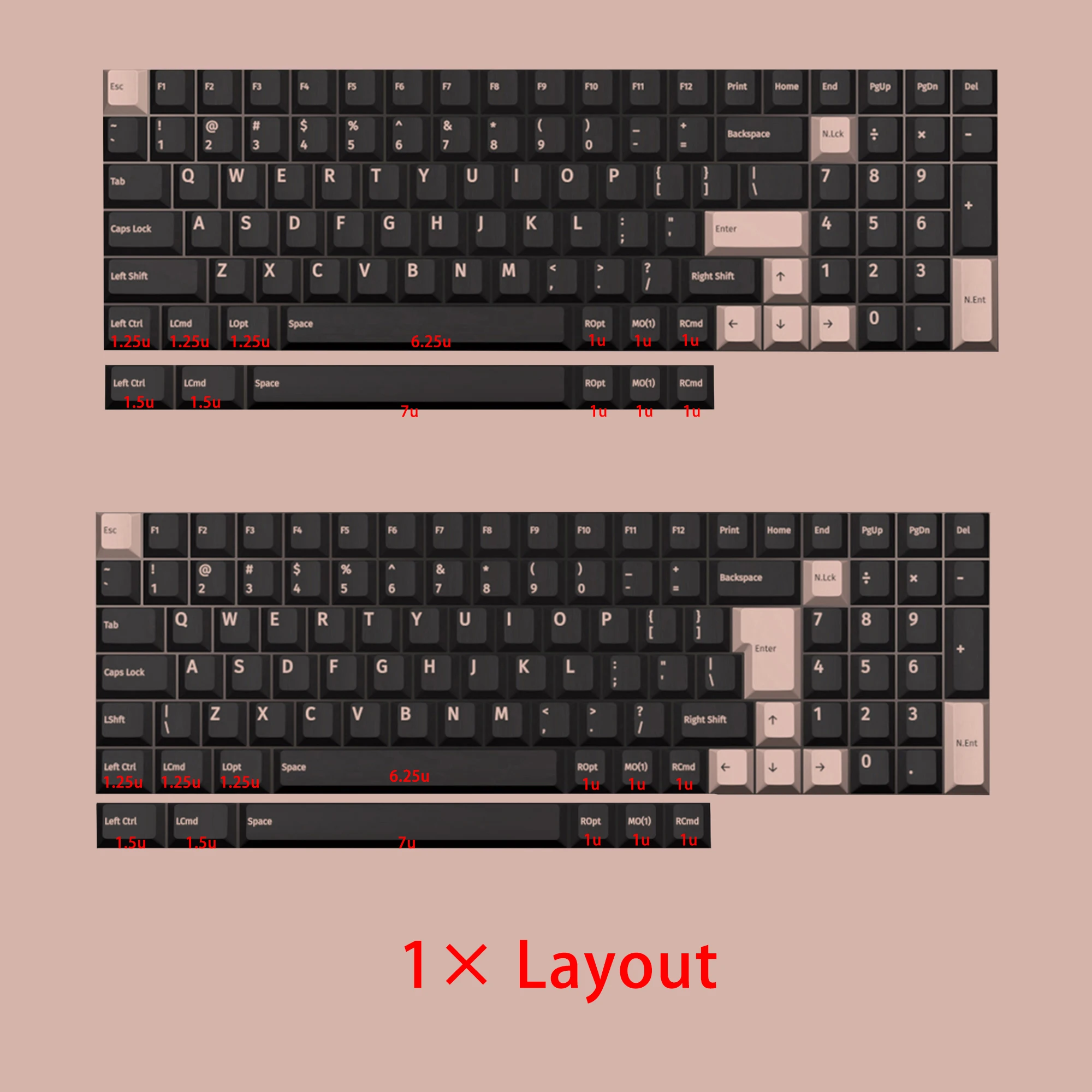

Layout 1X
1x layout support Rctrl RAlt is 1x,it can support both ANSI ISO layout with 7u and 6.25u Space.
