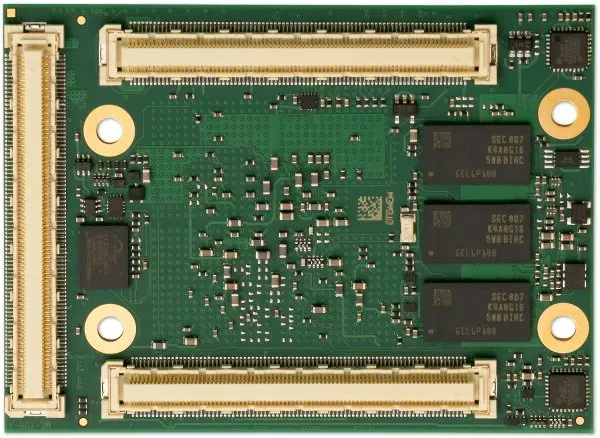

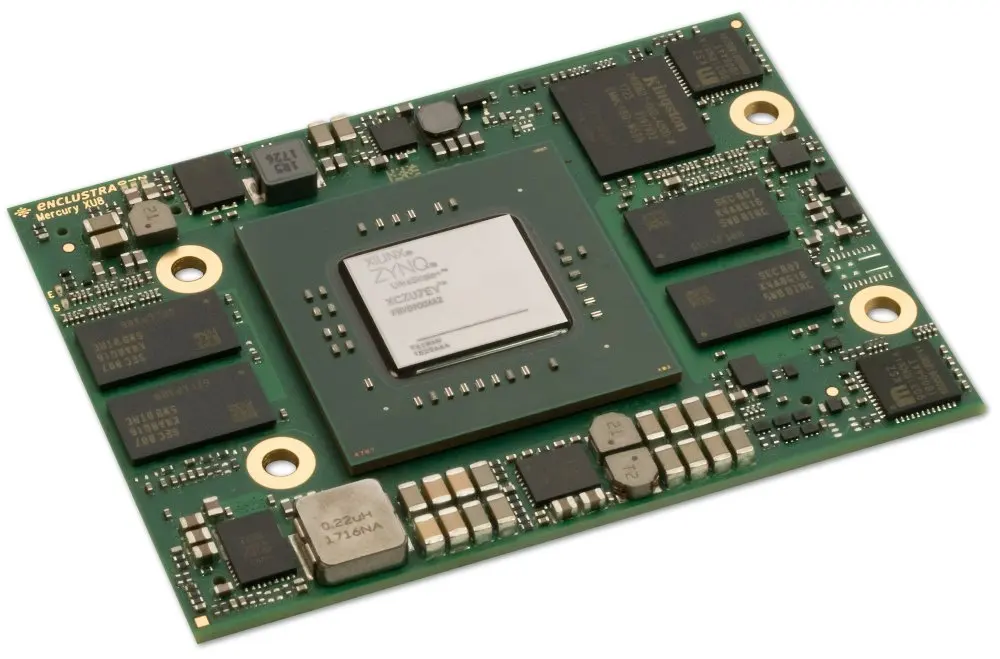

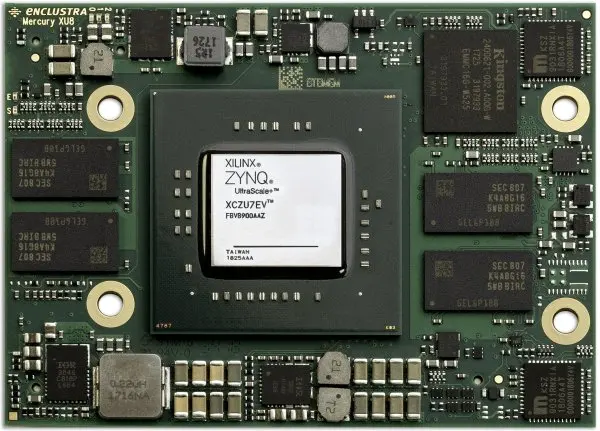

XU8 Xilinx ® Zynq ® Módulo UltraScale+ MPSoC

Overview

The Mercury+ XU8 system-on-chip (SoC) module combines Xilinx's Zynq UltraScale+™ MPSoC-series device with fast DDR4 ECC SDRAM, eMMC flash, quad SPI flash, dual Gigabit Ethernet PHY, dual USB 3.0 and thus forms a complete and powerful embedded processing system.

Highlights

• Built around Xilinx's Zynq Ultrascale+™ MPSoC

• Two independent memory channels for PS (DDR4 ECC SDRAM) and PL (DDR4 SDRAM)

• Up to 28.8 GByte/sec memory bandwidth

• Offers PCIe® Gen3 x16, PCIe Gen2 x4, 2x USB 3.0 and 2x Gigabit Ethernet interfaces

• Available in industrial temperature range

• Three 168-pin Hirose FX10 connectors with 236 user I/Os

Benefits

• A complete and powerful embedded processing system in a compact, space-saving form factor

• Large, high-bandwidth memory, with up to 8 GByte of DDR4 ECC SDRAM (PS) and up to 4 GByte of DDR4 RAM (PL)

• High-bandwidth data transfer: PCIe® Gen3 x16, PCIe Gen2 x4, USB 3.0, and a high number of available LVDS pairs provide high-speed data I/O at low integration cost

• Lowest power consumption due to the high-efficiency DC/DC converters

• Support for Linux embedded operating system

Features

• Xilinx® Zynq Ultrascale+™ MPSoC

  • ARM®quad-core Cortex™-A53 (CG models: dual-core)

  • ARM dual-core Cortex™-R5

  • Mali-400MP2 GPU (only for EV models)

  • H.264 / H.265 Video Codec (only for EV models)

  • 16nm FinFET+ FPGA fabric

• Up to 8 GB DDR4 ECC SDRAM (PS)

• Up to 4 GB DDR4 SDRAM (PL)

• 64 MB QSPI flash

• 16 GB eMMC flash

• PCIe® Gen3 ×16 and PCIe Gen2 ×4

• 20 × 6/12.5/15 Gbit/sec MGT

• 2 × Gigabit Ethernet

• 2 × USB 3.0

• 2 × USB 2.0 (host & host/device)

• Up to 504,000 LUT4-eq

• 236 user I/Os

  • 14 ARM peripherals

  • 122 FPGA I/Os

  • 100 MGT signals (clock and data)

• 5 to 15 V single supply

• Small form factor (74 × 54 mm)
