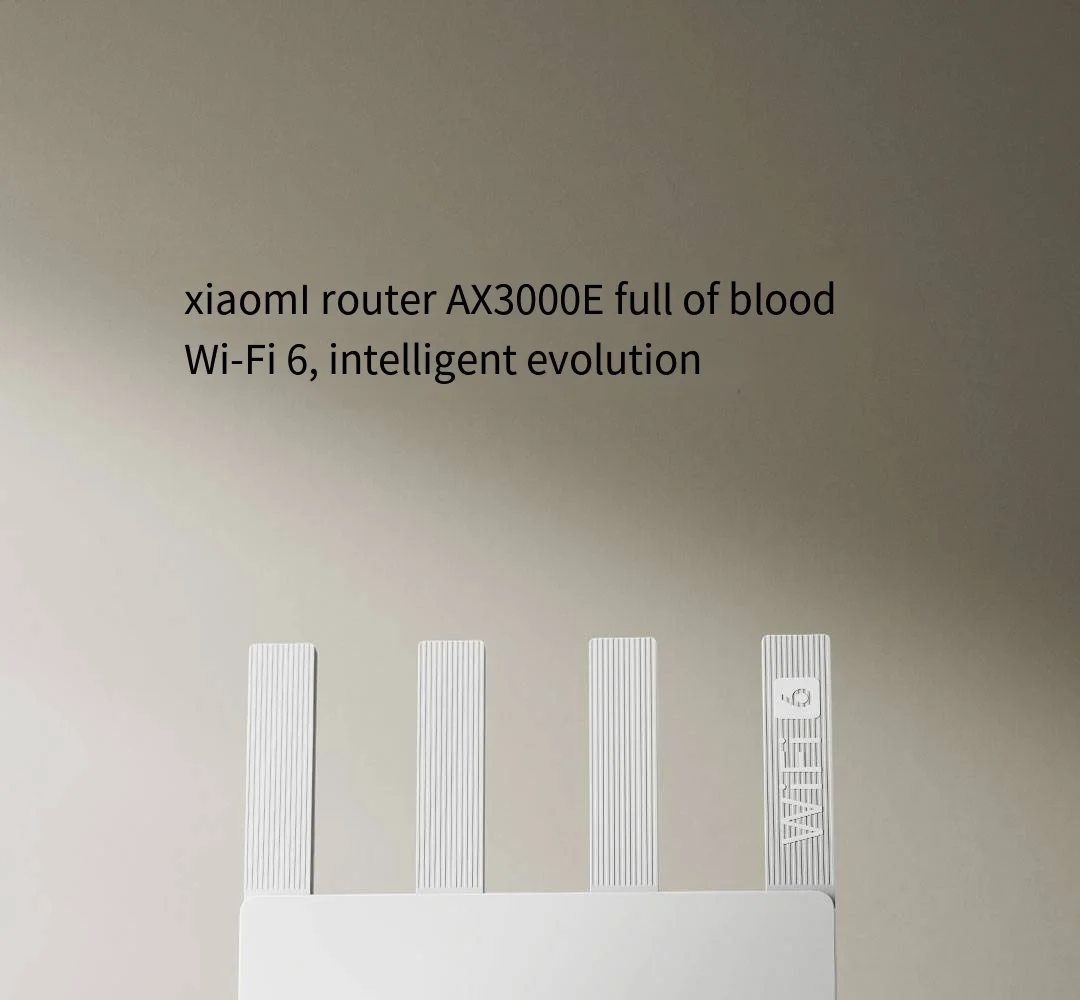

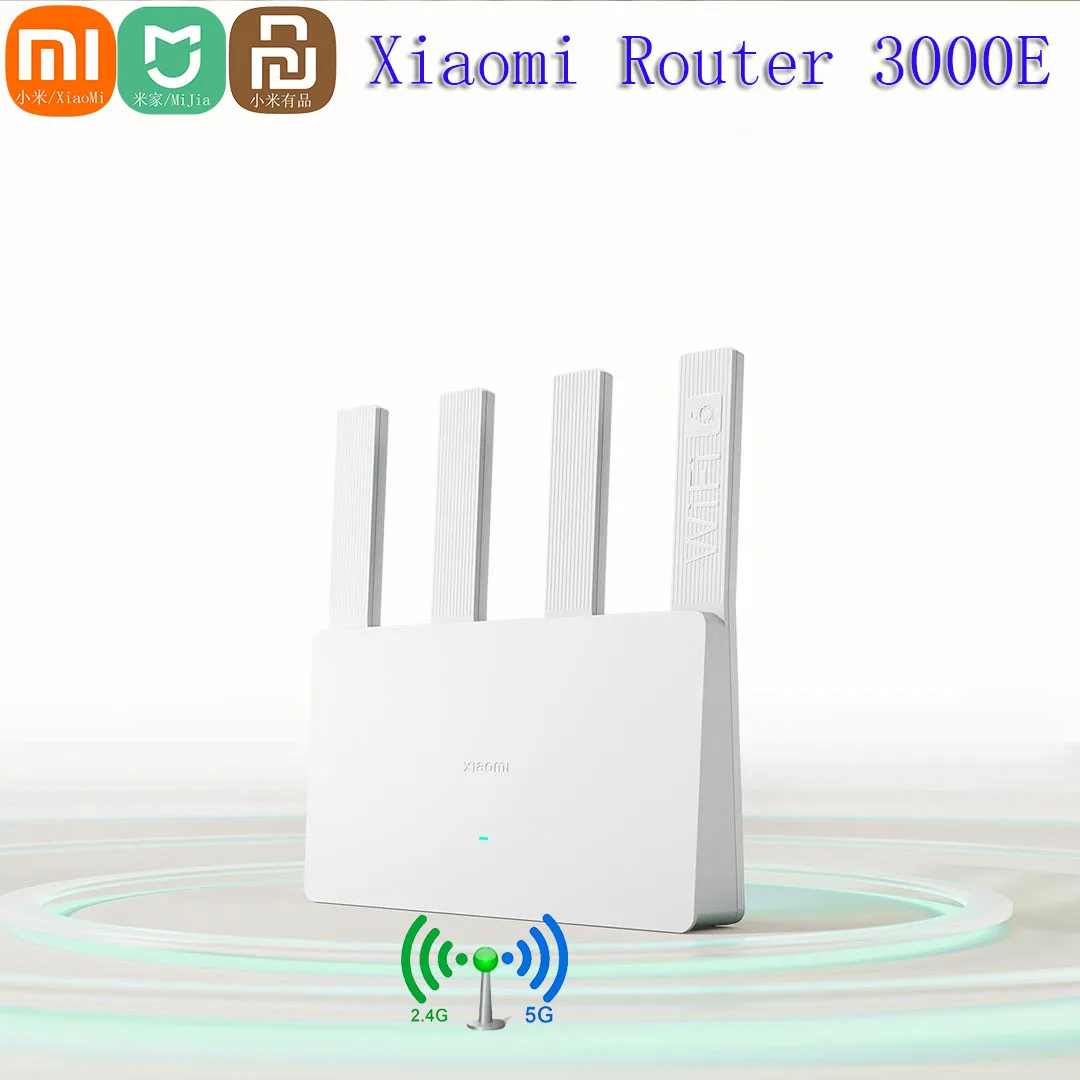

Xiaomi-enrutador Mijia AX3000E WiFi6, 3000 Mbps, 2,4G/5GHz, puertos duales DAN/LAN, procesadores Qualcomm, acelerador de juego de malla de memoria de 256MB

Note:Xiaomi Router AX3000E is in Chinese version, please do not purchase if you mind

You need to change the application area to "Mainland China"! If your Mijia account is connected to other devices in other regions, you cannot connect to Chinese devices at the same time! !

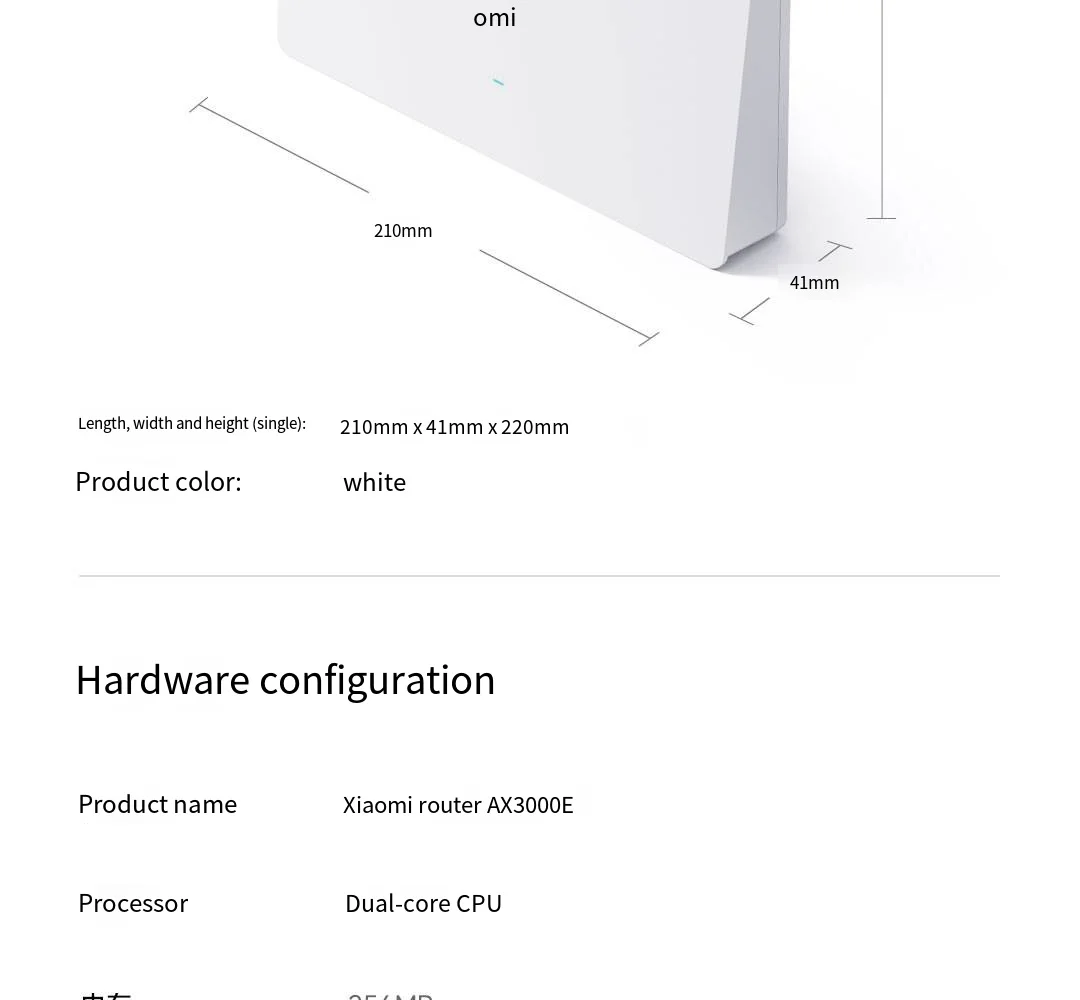

Hardware configuration

Product name --Xiaomi router AX3000E

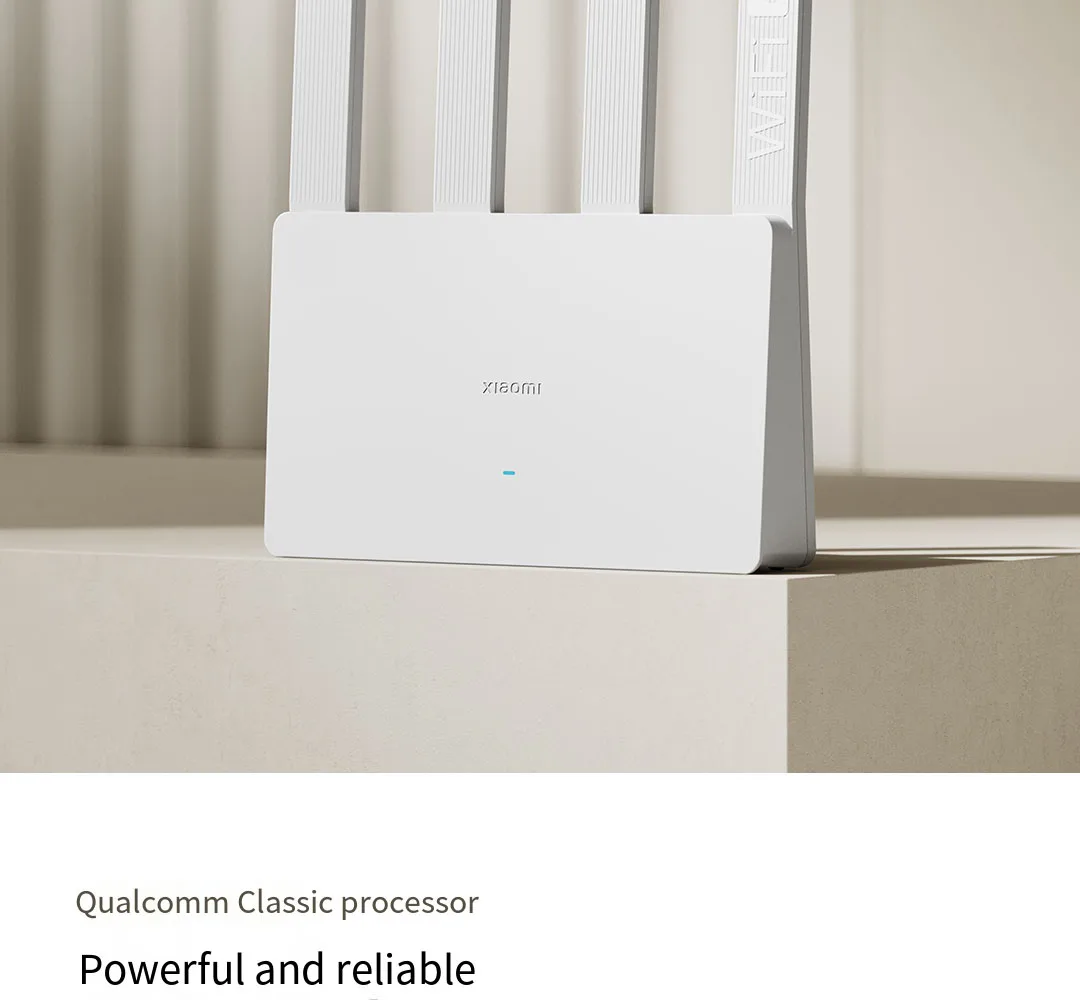

Processor -- dual-core CPU

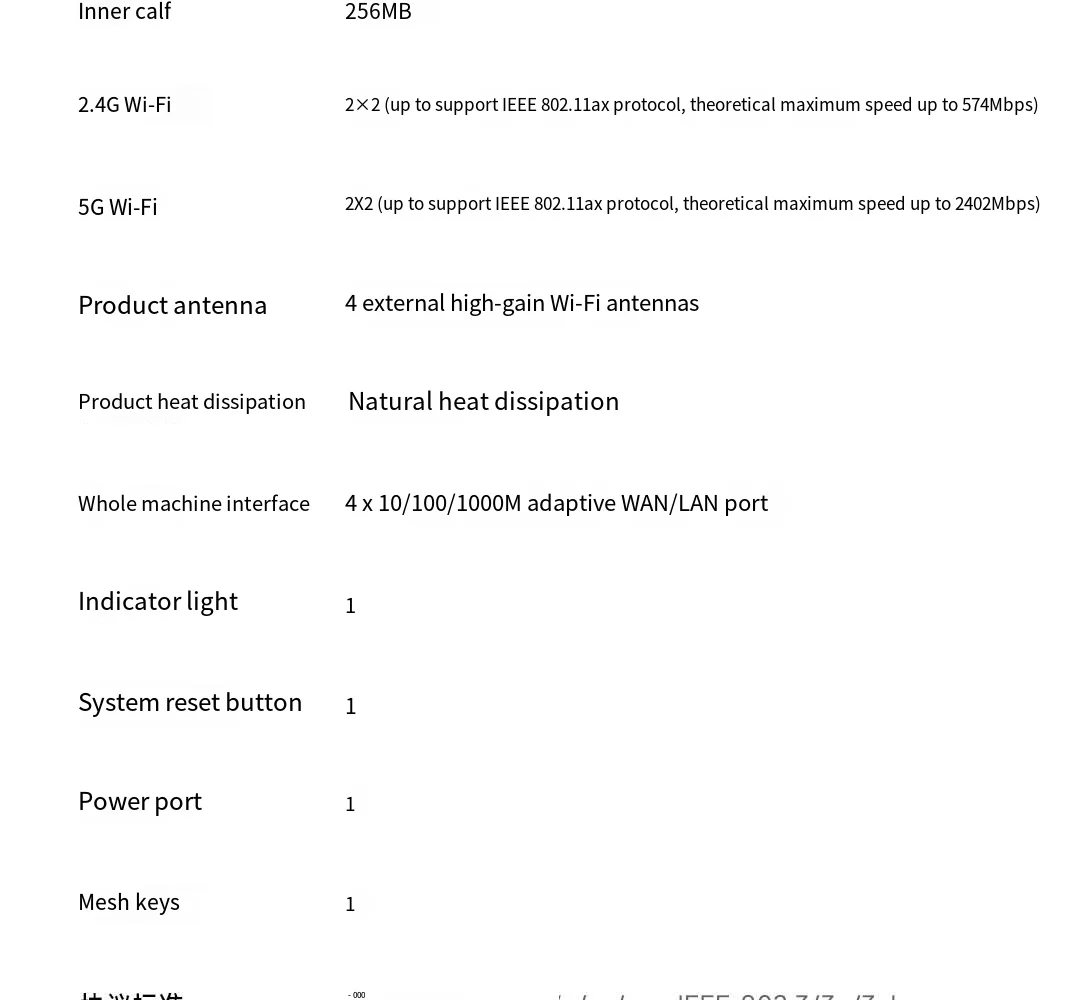

Memory -256MB
2.4G Wi-Fi-- 2X2 (up to support IEEE 802.11ax protocol, theoretical maximum speed up to 574Mbps)

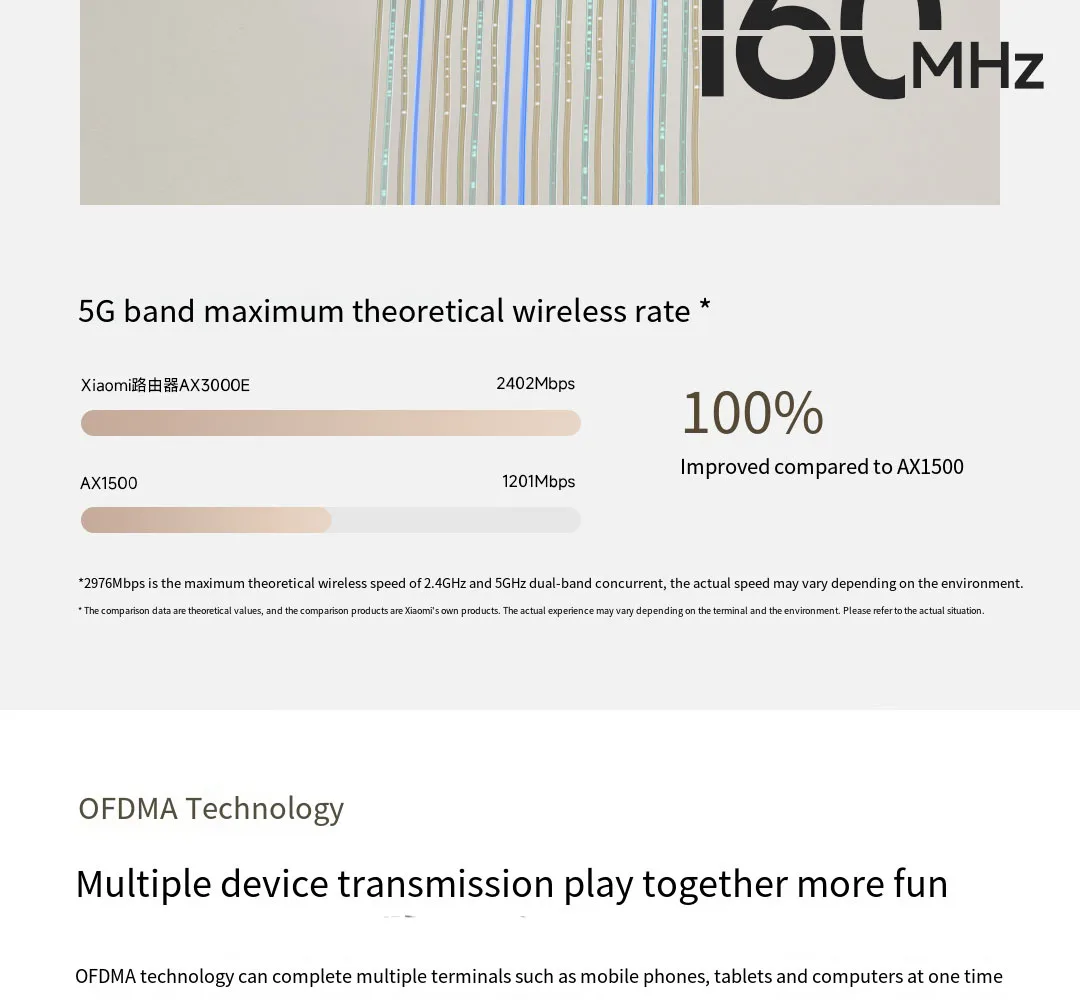

5G Wi-Fi-- 2X2 (up to support IEEE 802.11ax protocol, theoretical maximum speed up to 2402Mbps)
Product Antenna --4 External high-gain Wi-Fi antenna
Product heat dissipation -- natural heat dissipation

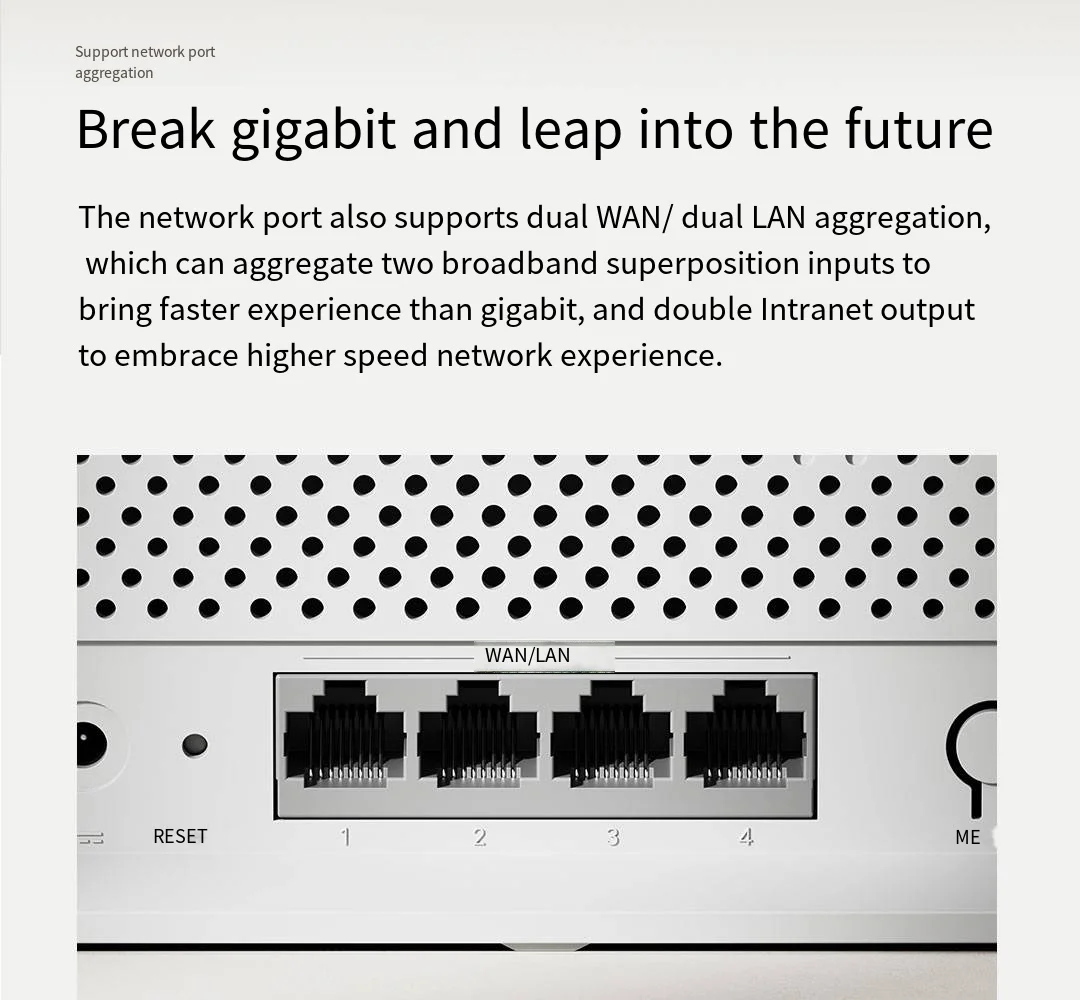

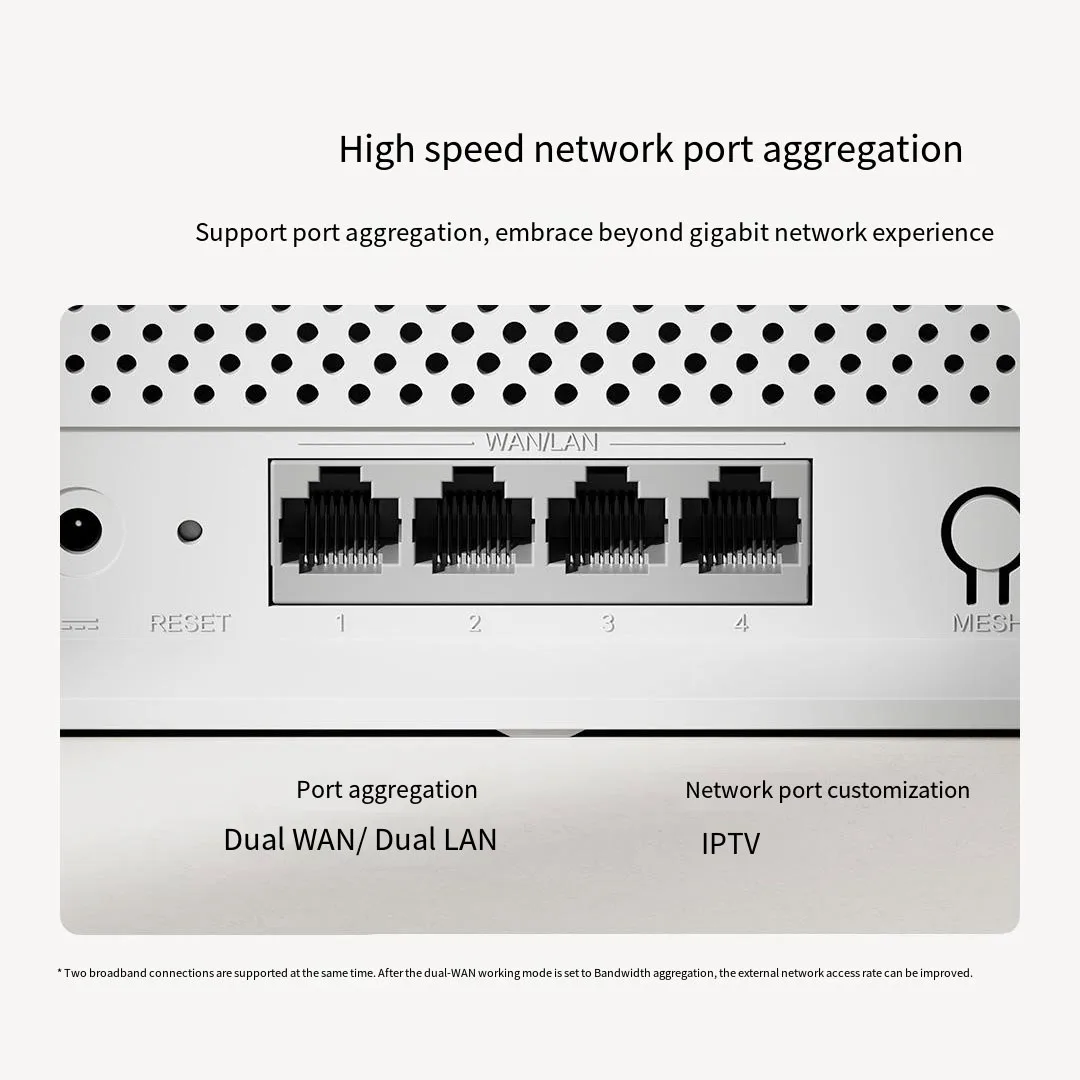

Overall interface: 4 x 10/100/1000M adaptive WAN/LAN port
Indicator light --1
System reset button --1
Power port --1
Mesh key --1

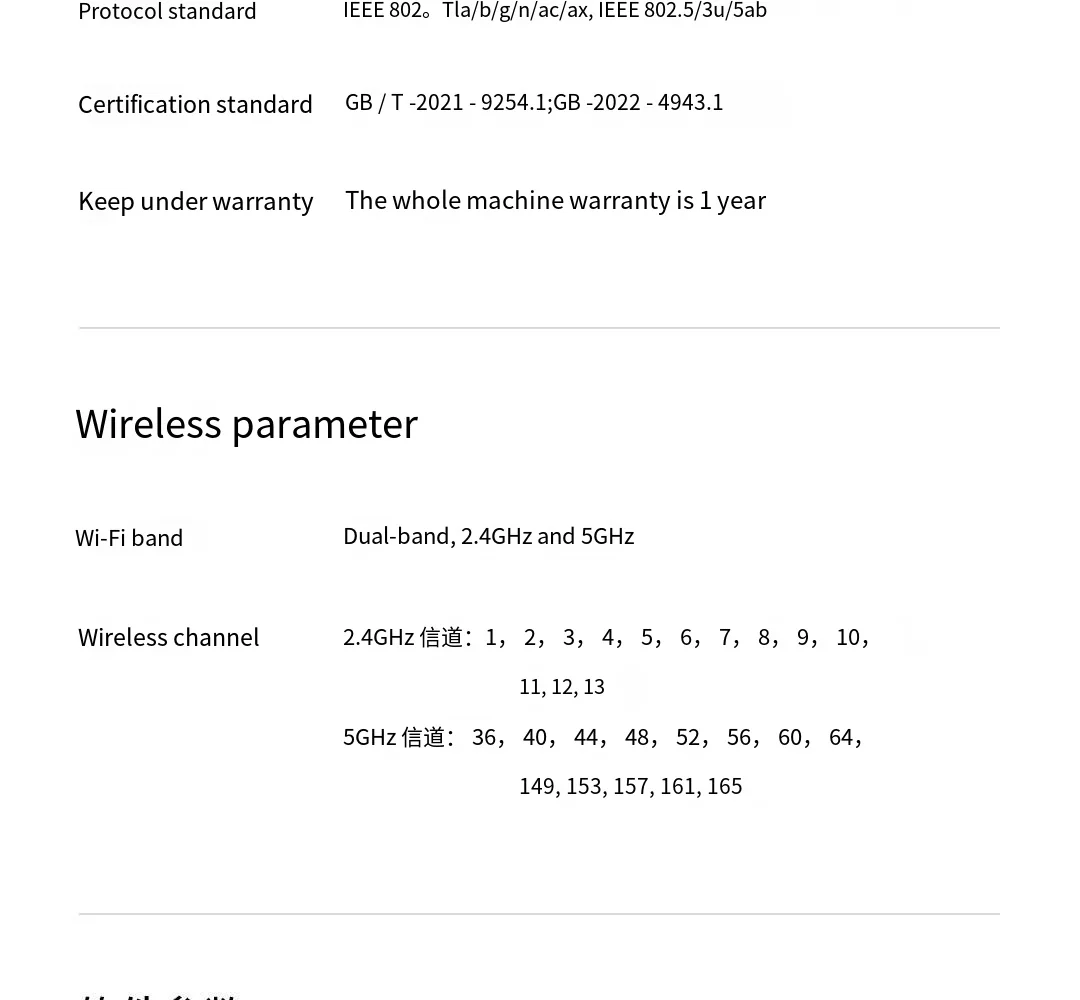

Protocol standards -IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab

Wireless parameter

Wi-Fi bands - dual-band, 2.4GHz and 5GHz
Wireless channels --2.4GHz channels: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10,11, 12, 13
5GHz channels: 36, 40, 44, 48, 52, 56, 60, 64,149, 153, 157, 161, 165

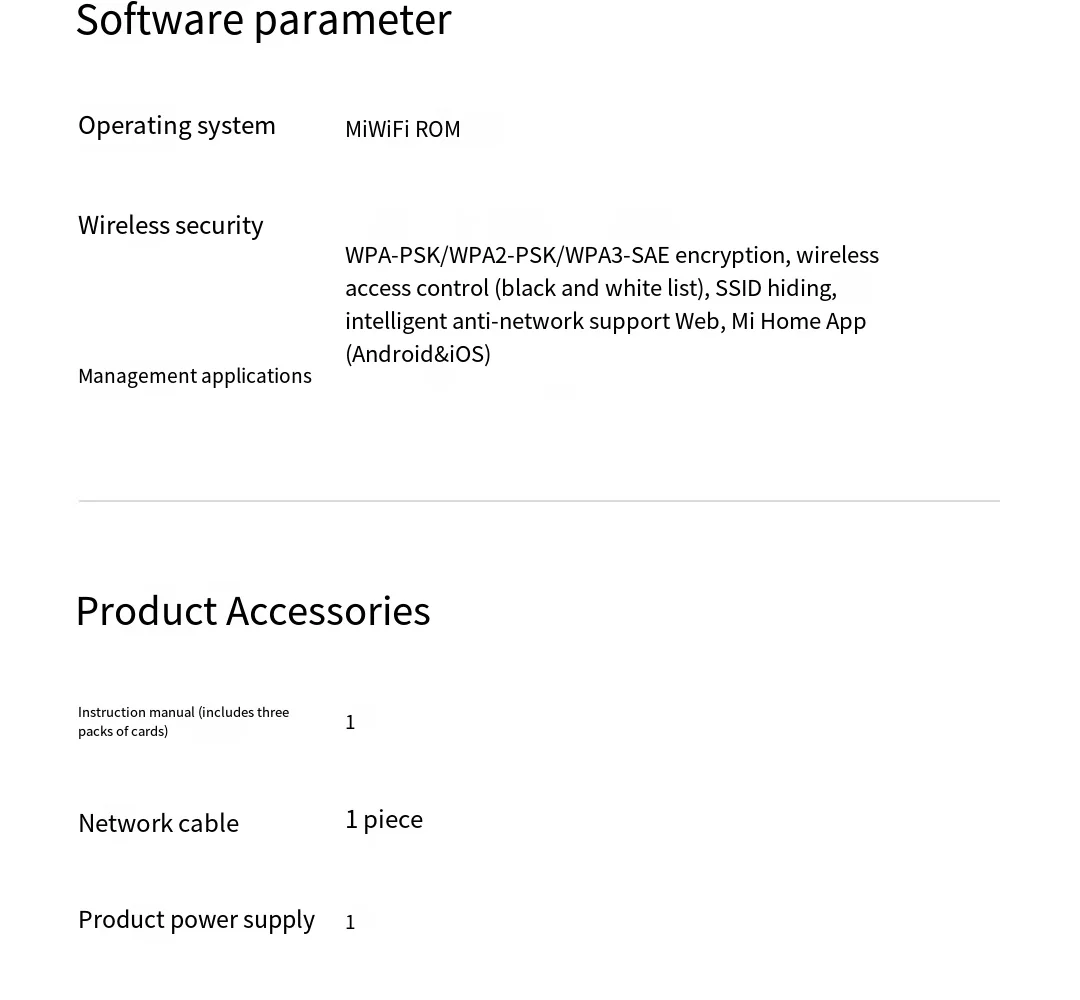

Software parameter

Operating system --MiWiFi ROM
Wireless security -WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, intelligent anti-fouling network
Management application -- Support Web, Mijia App (Android&iOS)

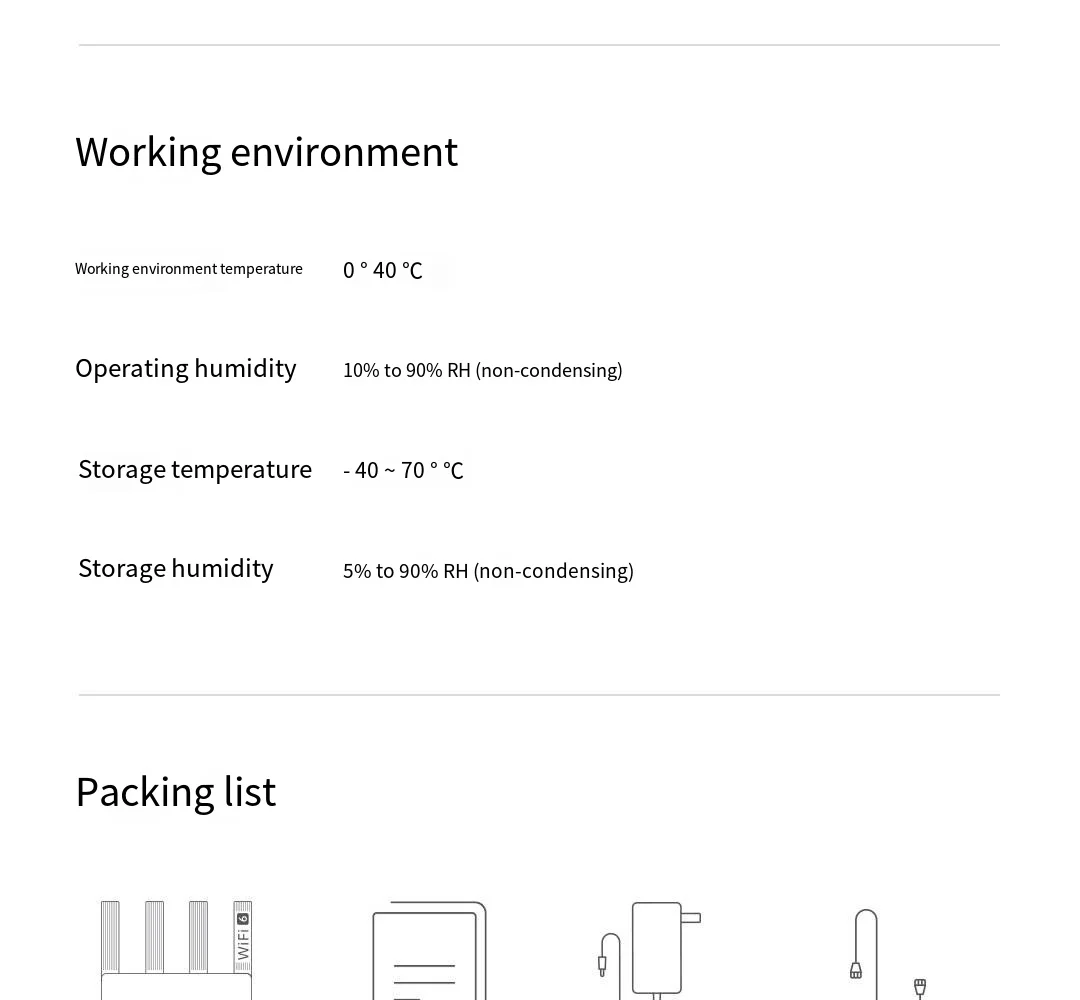

Working environment

Working environment -- temperature 0~40℃
Working humidity --10%~90% RH (non-condensing)
Storage temperature --- -40 to 70 ° C Storage Humidity 5% to 90% RH (non-condensing)

Packing list

Router ×1
Instructions ×1
CN adapter x 1
Network cable x 1

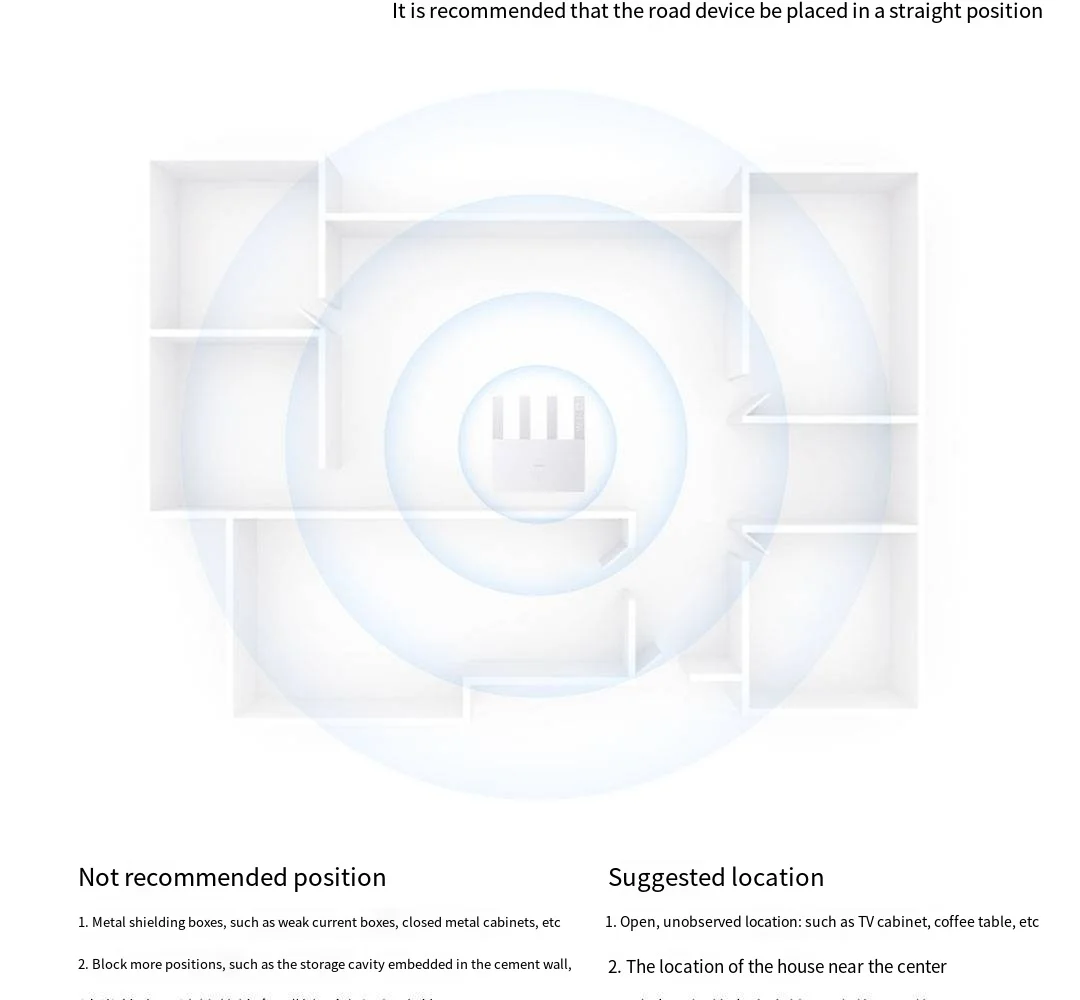

Not recommended position

1, class metal shielding box, such as weak current box, closed metal cabinet, etc
2. Block more positions, such as the storage cavity embedded in the cement wall, the corner of the sofa and other furniture, and the shoe cabinet/TV cabinet
3, there is interference near electrical appliances, such as microwave oven, induction cooker computer main box power supply, household generator, wireless light cat, etc
4, the edge of the house, such as balcony, toilet, laundry room, etc

Suggested location

1. Open, unobserved location: such as TV cabinet, coffee table, etc. 2. The location of the house near the center
3. The router is best placed 1 meter above the ground, not on the ground
4 To ensure router performance, it is recommended to use the device upright
