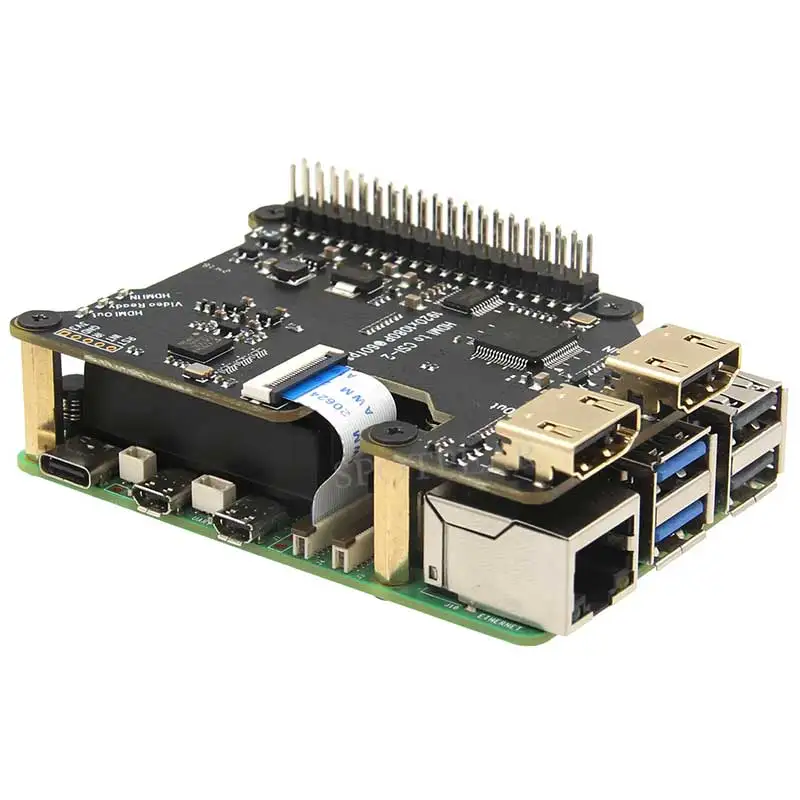

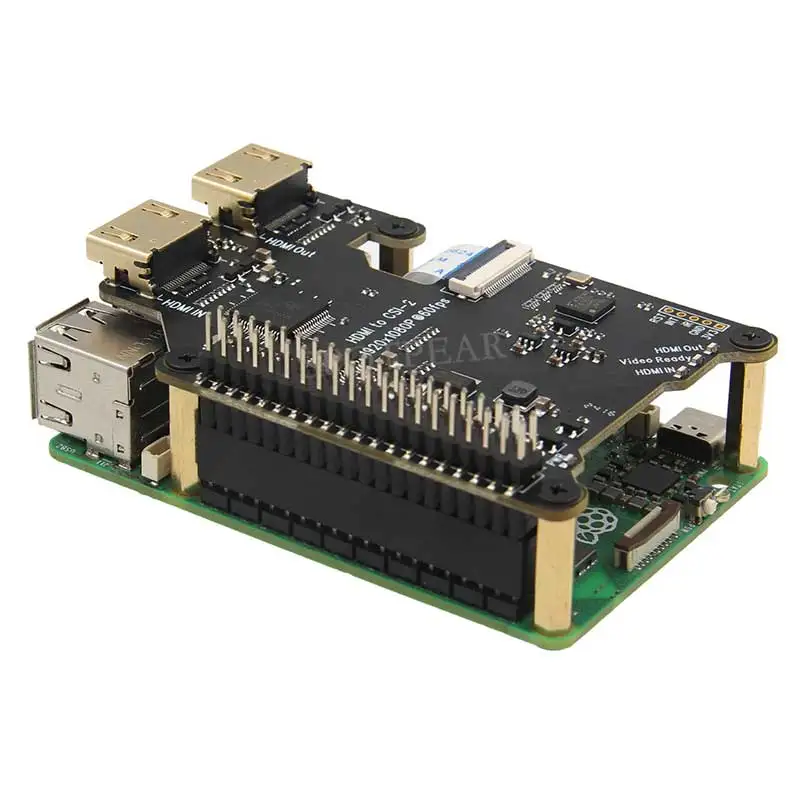

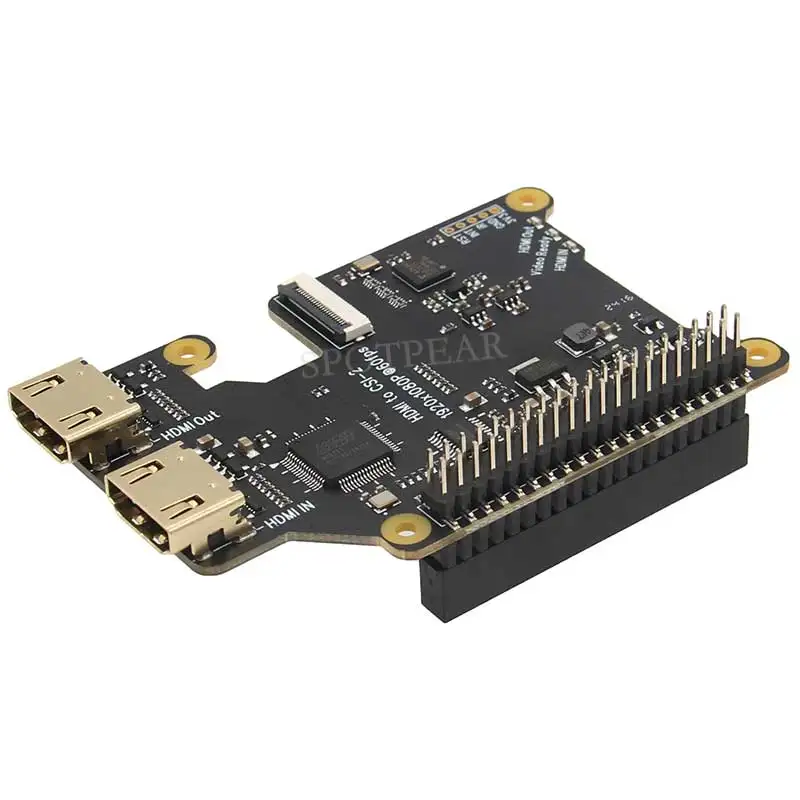

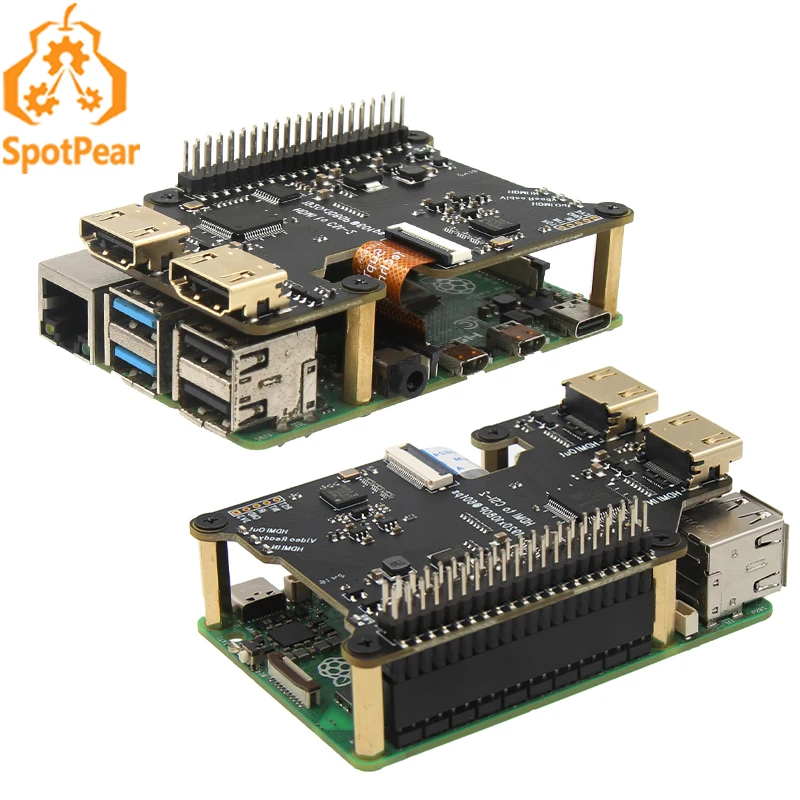

X1301 Raspberry Pi 5 HDMI a CSI-2 Shield 1080P@60fps y audio y vídeo también para 4B/3B

【Overview】
[] The X1301 HDMI to CSI-2 bridge with I2S audio interface is a specialized product tailored for the Raspberry Pi. It is equipped with the Toshiba TC358743XBG bridge chip and a one-to-two active HDMI splitter chip, enabling support for HDMI input and HDMI Pass-Through up to 1080P at a refresh rate of 60 fps.

【Features】
[]

[] Capable of handling video formats up to 2K Full HD (1920x1080, 60fps)

[] Supports HDMI Pass-Through for local HDMI display

[] Equipped with the HDMI to CSI-2 bridge chip: Toshiba TC358743XBG

[] Supports MIPI CSI-2 with 4 data lanes, each with speeds of up to 1 Gbps per lane

[] Enables HDMI audio input and transmission over I²S

[] Prevents HDMI backpowering to the Raspberry Pi CSI

[] Features a CSI-2 connector: 22-pin FPC with 0.5mm pitch

[] Designed to be attached on top, allowing stacking with other HATs

[] Compatible with the HAT+ STANDBY power state, automatically turning off when the Pi 5 shuts down

[] Easily mountable on the Raspberry Pi, allowing you to customize your perfect case

【Resource Overview】

[] X1301
