Parameters:

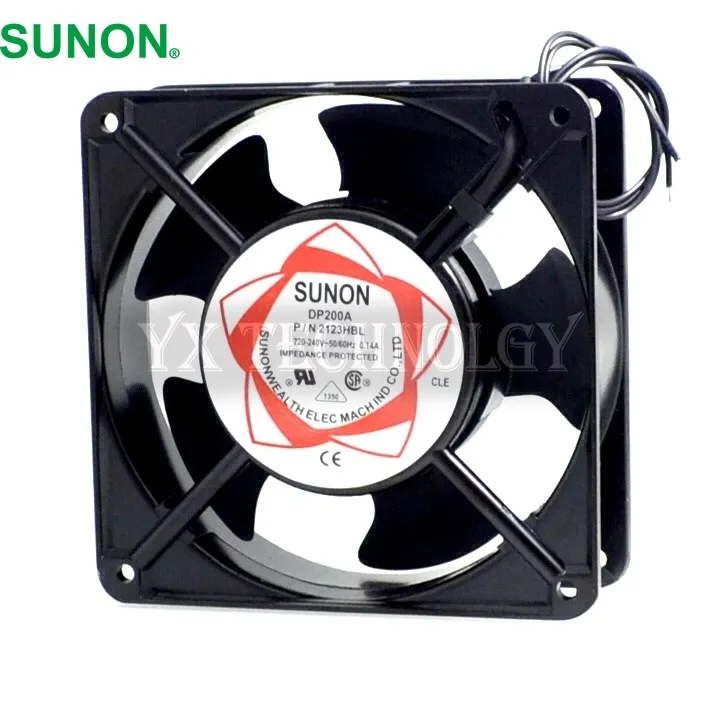

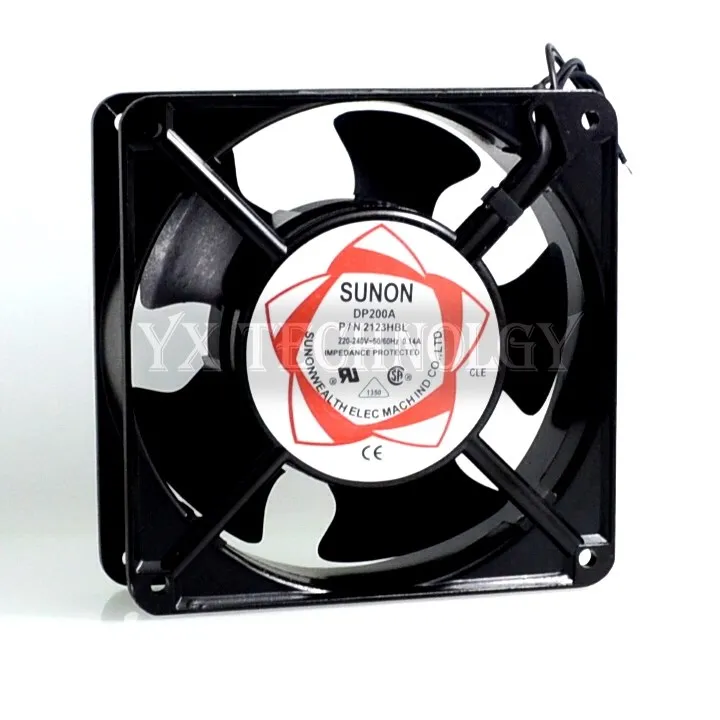

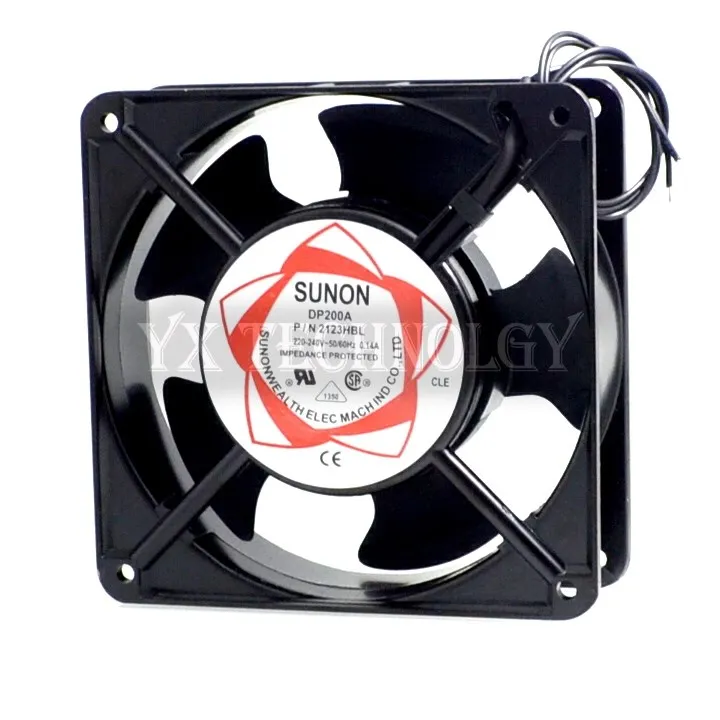

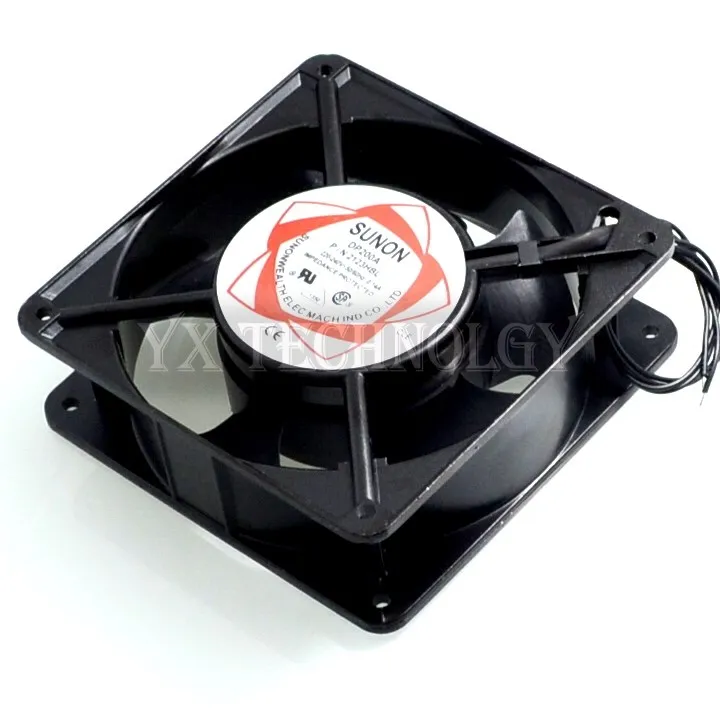

- Model: DP200A P / N 2123HBL
- Size: 120 * 120 * 38MM
- Voltage: 220V
- Current: 0.14A
- Bearing: Ball

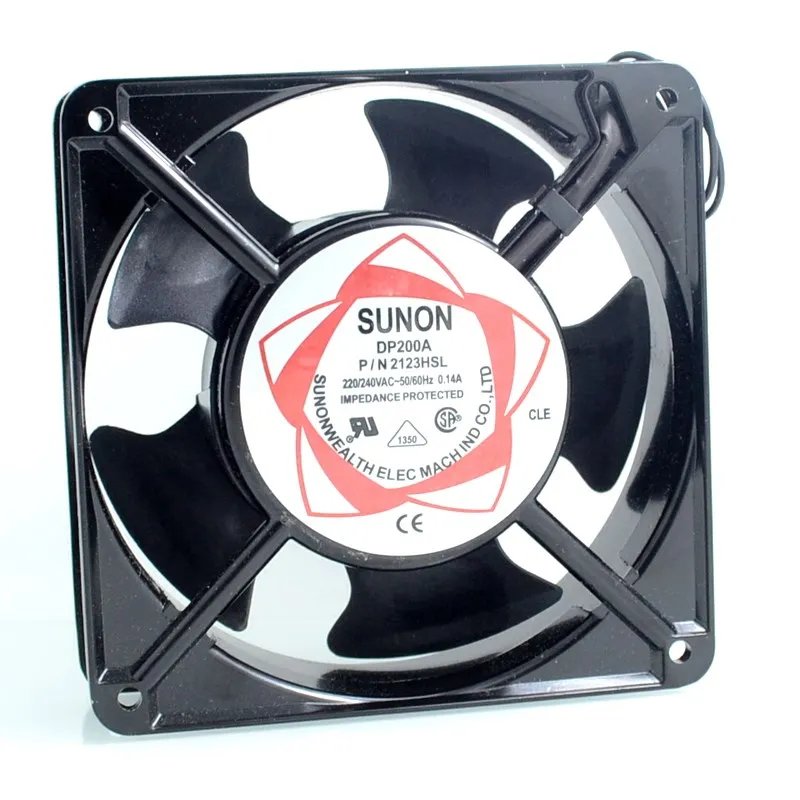

Model : DP200A P / N 2123HSL
Dimensions : 120 * 120 * 38MM
Voltage : 220V
Current : 0.14A
Bearings : SLEEVE
● Size: 120x120x38MM

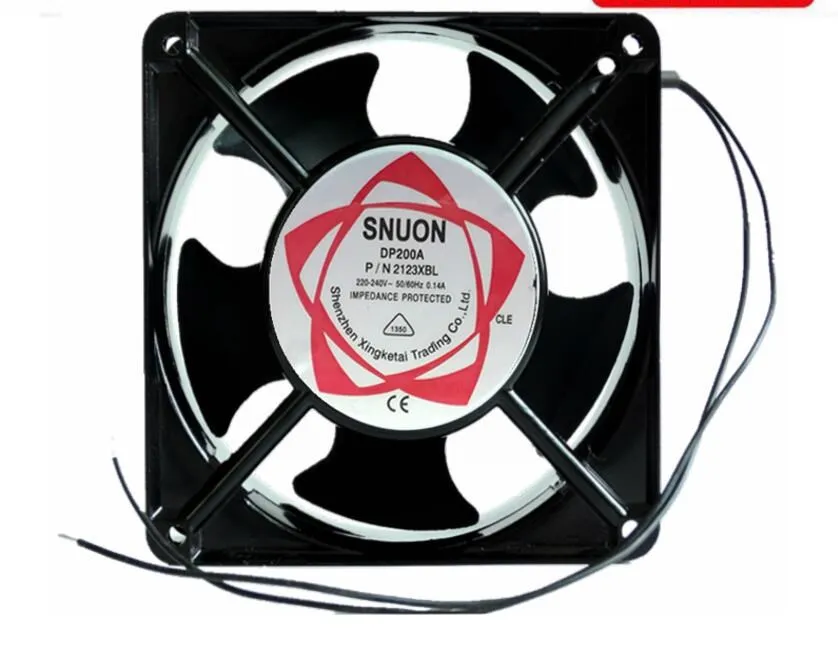

● Model: DP200A P / N2123XBL
● bearing structure: B: BaLL (ball bearing)
● Voltage: 220 ~ 240V (AC)
● Frequency: 50/60 (Hz)
● Speed: 2700-3100 (R / min)
● Air volume: 2.68 / 3.25 (m3 / min)
● Noise: 43/46 (dB-A)
● Weight: 550 (g)
● fan: injection molding, PBT + 30% glass + VO grade flame retardant;
● Bearing: the use of high precision, long life and low noise imported ball bearings;
● Insulation: enameled wire with B-class insulation, temperature 120 degrees Celsius;
● Wiring method: lead type (line length 25CM)
Insulation resistance: 500 megohm above;
● withstand voltage: leakage current 0.5mA. Withstand voltage 1500V / 1 minute;
● Operating voltage: 110V (voltage range: 85V ~ 125V)
● Operating voltage: 220V (voltage range: 185V ~ 245V)
● fan rotation: counterclockwise from the direction of the fan;
● Ambient temperature (°): - 40 ° ~ 70 ° B: (ball bearing)
● life: working environment temperature 40 ° B: (ball bearing) 60000 (hours)

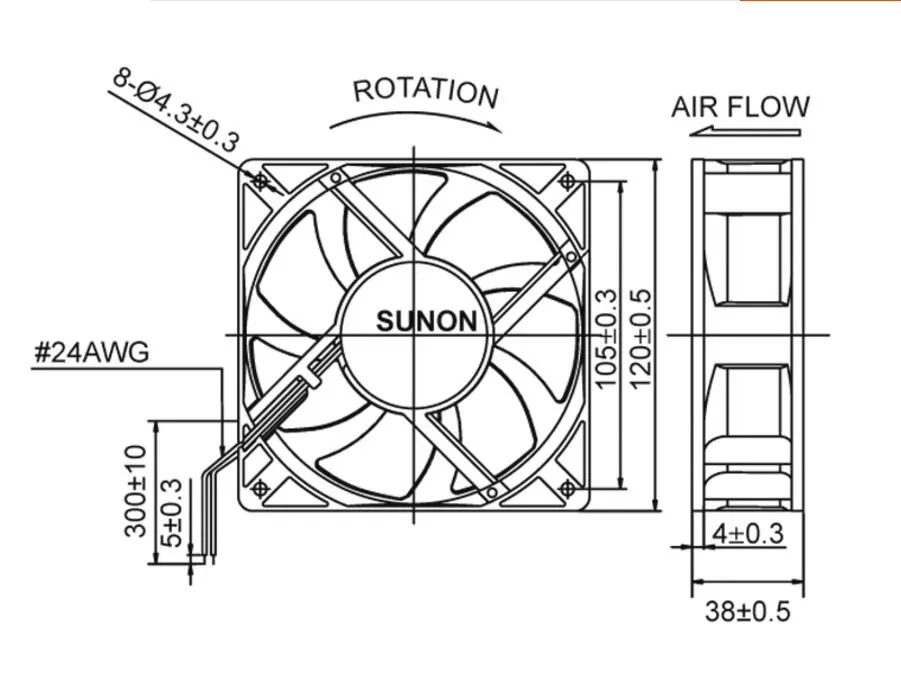

● Size: 120x120x38MM

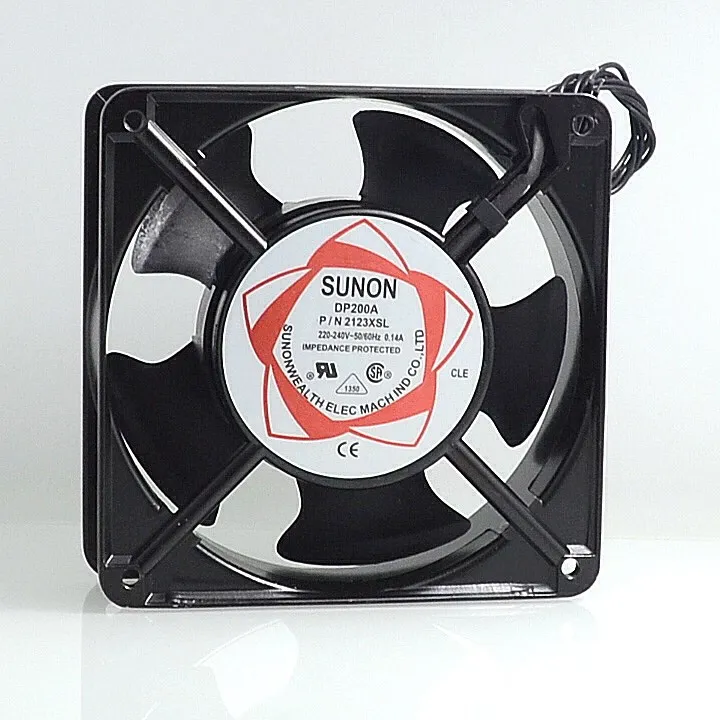

● Model: DP200A P/N 2123XSL
● bearing structure:S: Sleeve (Oil bearing)
● Voltage: 220~240V (AC)
● Power: 29/31 (W)
● Frequency: 50/60 (Hz)
● Speed: 2700-3100 (R / min)
● Air volume: 2.68 / 3.25 (m3 / min)
● Noise: 43/46 (dB-A)
● Weight: 550 (g)
● fan: injection molding, PBT + 30% glass + VO grade flame retardant;
● Bearing:Low noise imported oil bearing;
●Insulation: enameled wire with B-class insulation, temperature 120 degrees Celsius;
● Wiring method: lead type (line length 25CM)
Insulation resistance: 500 megohm above;
● withstand voltage: leakage current 0.5mA. Withstand voltage 1500V / 1 minute;
● Operating voltage:110V (voltage range: 85V~125V)
● Operating voltage: 220V (voltage range: 185V~245V)
● fan rotation: counterclockwise from the direction of the fan;
● Ambient temperature (°): - 20 °~ 50 ° B: (oil bearing)
● life: working environment temperature 40 ° B: (oil bearing) 30000 (hours
