Product Description:
High-Performance Cooling Fan for Industrial & Electronics Use

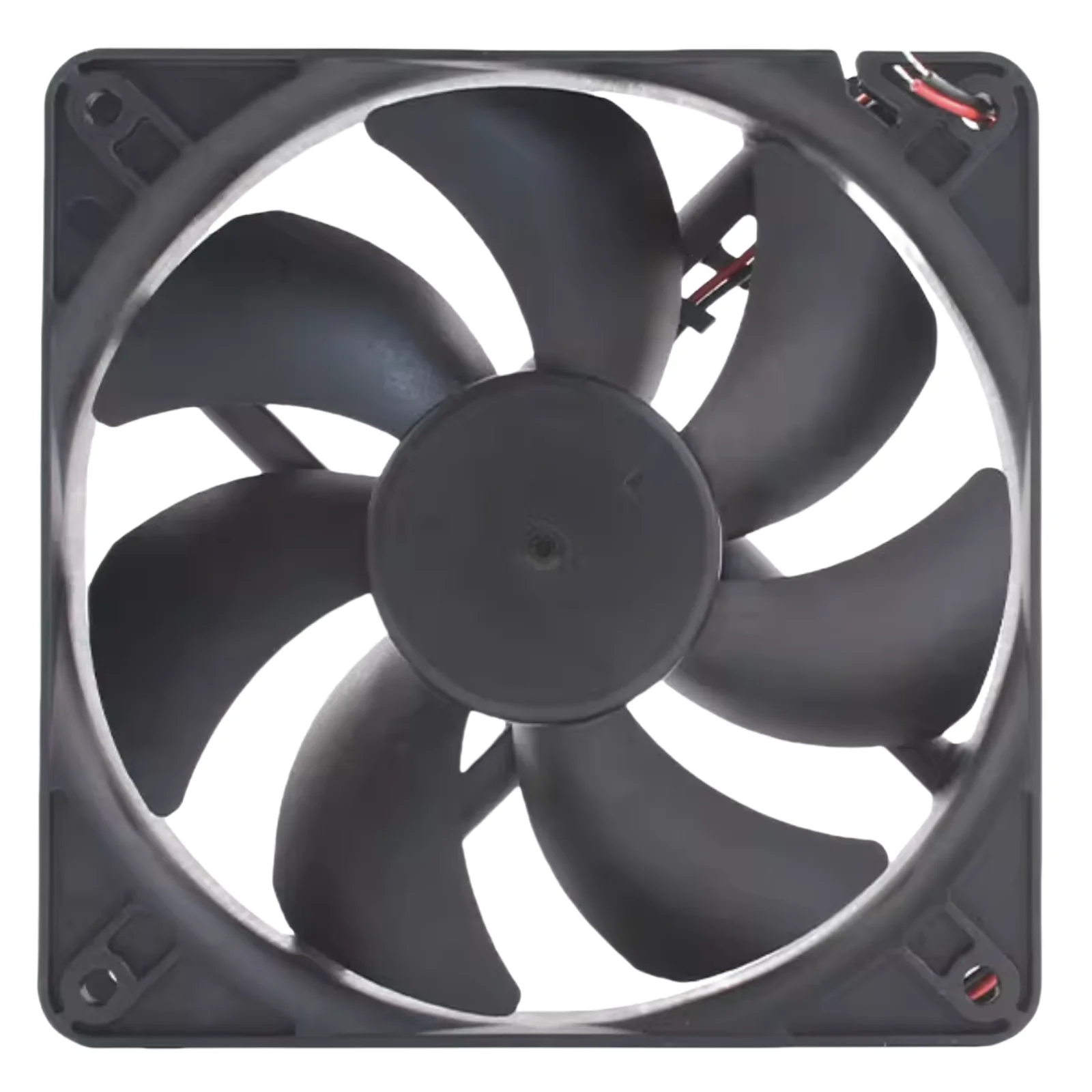

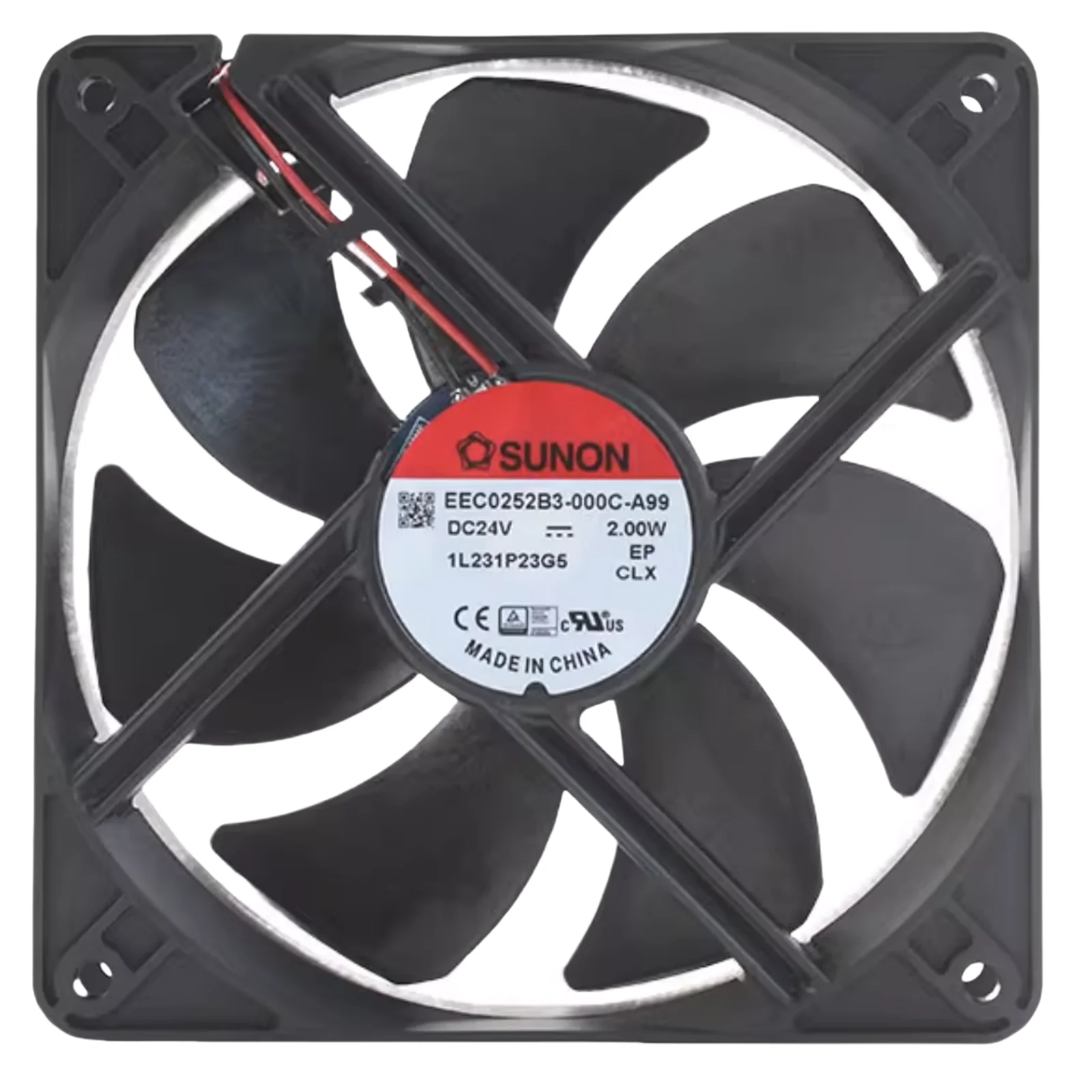

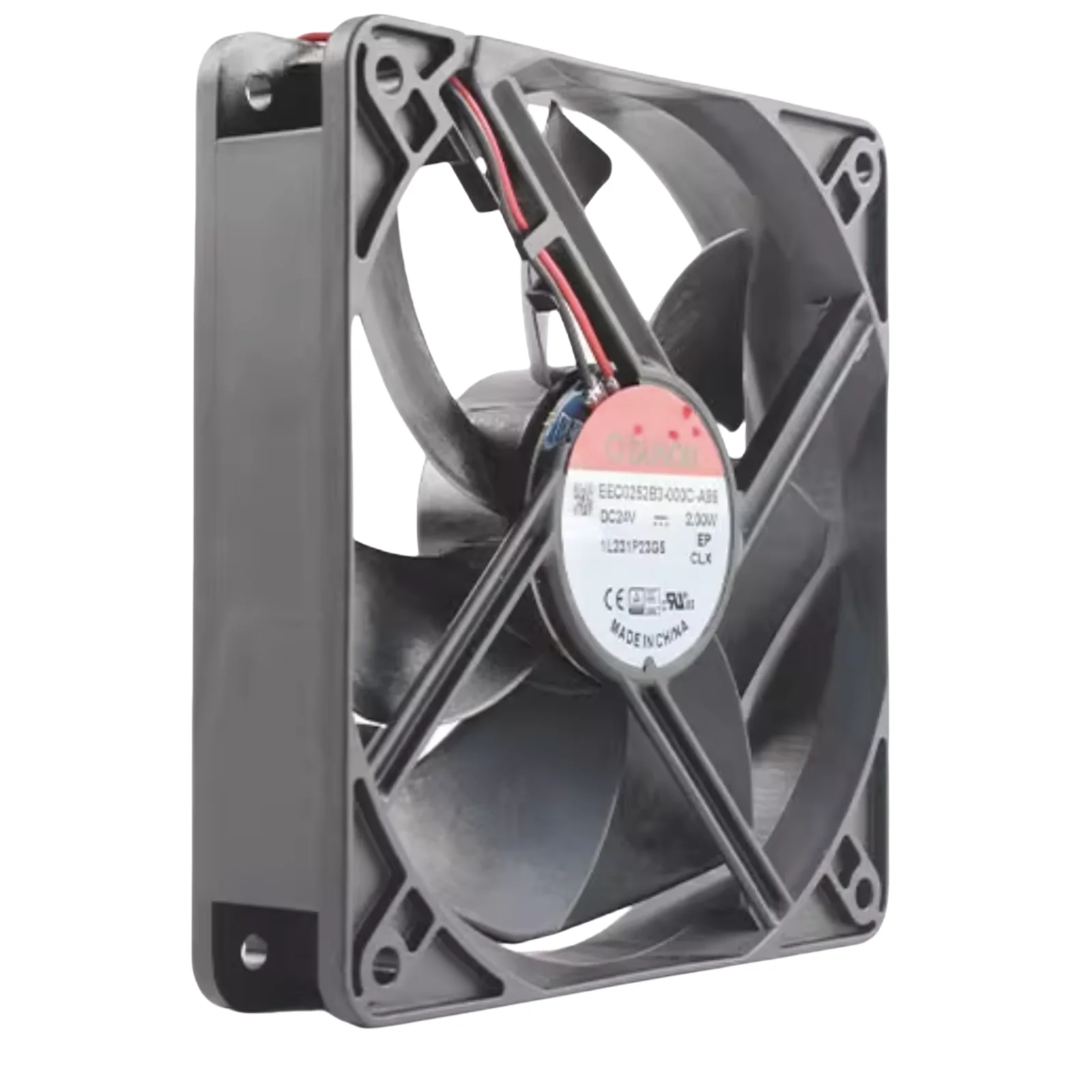

The SUNON EEC0252B3-000C-A99 is a 120x120x25mm DC axial fan engineered for inverters, servers, and high-temperature electronics. With 2200 RPM speed and 75 CFM airflow, it delivers efficient cooling with ultra-low noise (34dBA), making it ideal for noise-sensitive environments
.
Key Features:
✅ 2200 RPM & 75 CFM Airflow – Optimized for heat dissipation in compact spaces like server racks and power supplies
.
✅ Ultra-Quiet (34dBA) – Ball bearing design reduces operational noise, perfect for offices and labs
.
✅ 50,000-Hour Lifespan – Dual ball bearings ensure durability for 24/7 operation
.
✅ Wide Temperature Range (-10°C to +70°C) – Stable performance in extreme conditions
.
✅ UL94V-0 Certified – Flame-retardant frame material for safety compliance
.
Technical Specifications:
- Model:.
Size: 120x120x25mm (standard 120mm mounts).
Voltage: 24V DC ±10%.
Current: 84mA.
Power: 2.0W.
Speed: 2200 RPM (±10%).
Airflow: 75 CFM (2.12 m³/min).
Static Pressure: 0.16 Inch-H₂O (40 Pa).
Noise Level: 34 dB(A).
Bearing Type: Dual Ball.
Weight: 157g.
Applications:
✔ Inverters & Power Supplies – Prevents overheating in high-load circuits.
✔ Server Racks – Cooling for 1U/2U chassis.
✔ Gaming PCs – Silent cooling for CPUs/GPUs.
✔ Industrial CNC – Motor and control panel ventilation
.
Package Includes:
1x SUNON EEC0252B3-000C-A99 Fan.
