Product Description
🔹
Product Overview

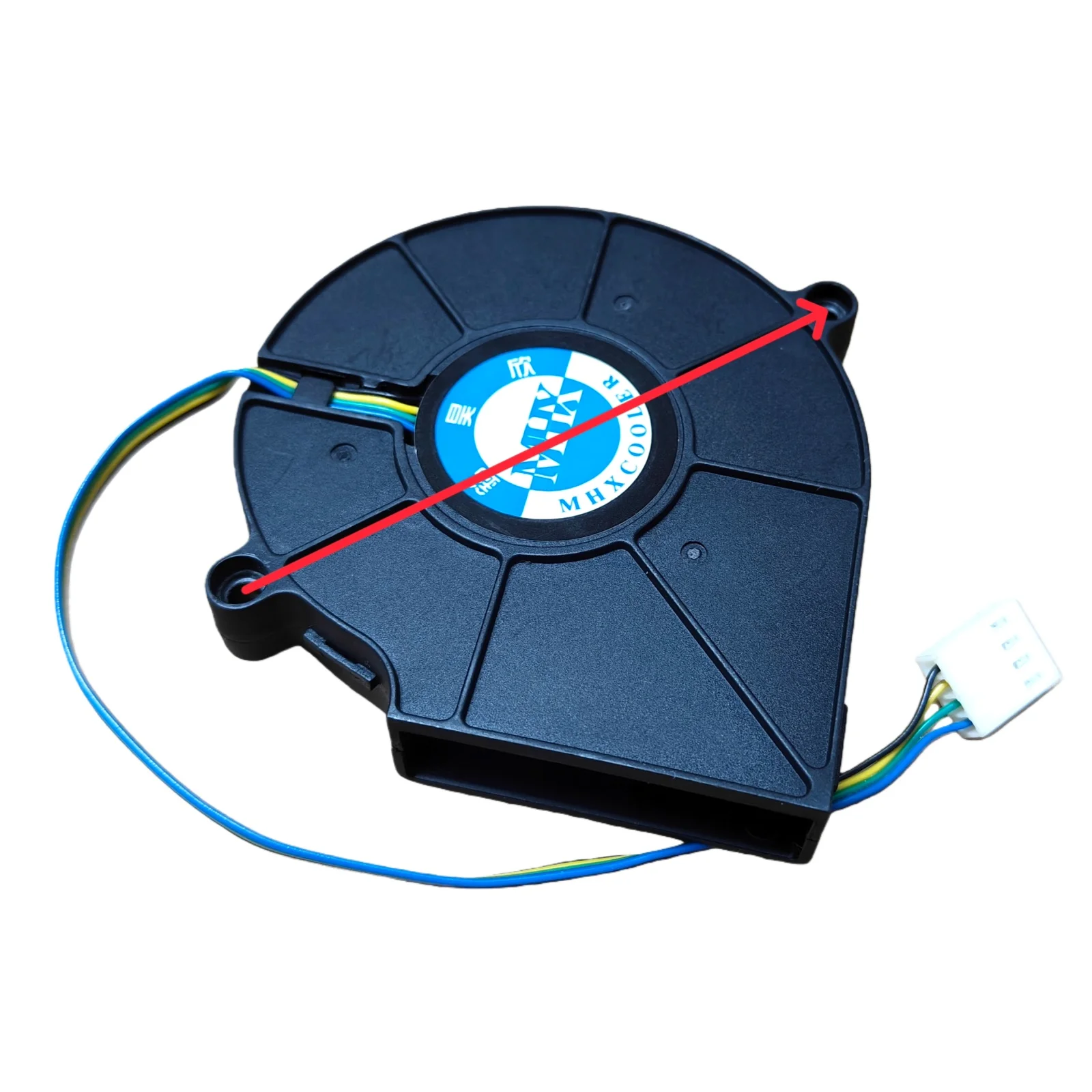

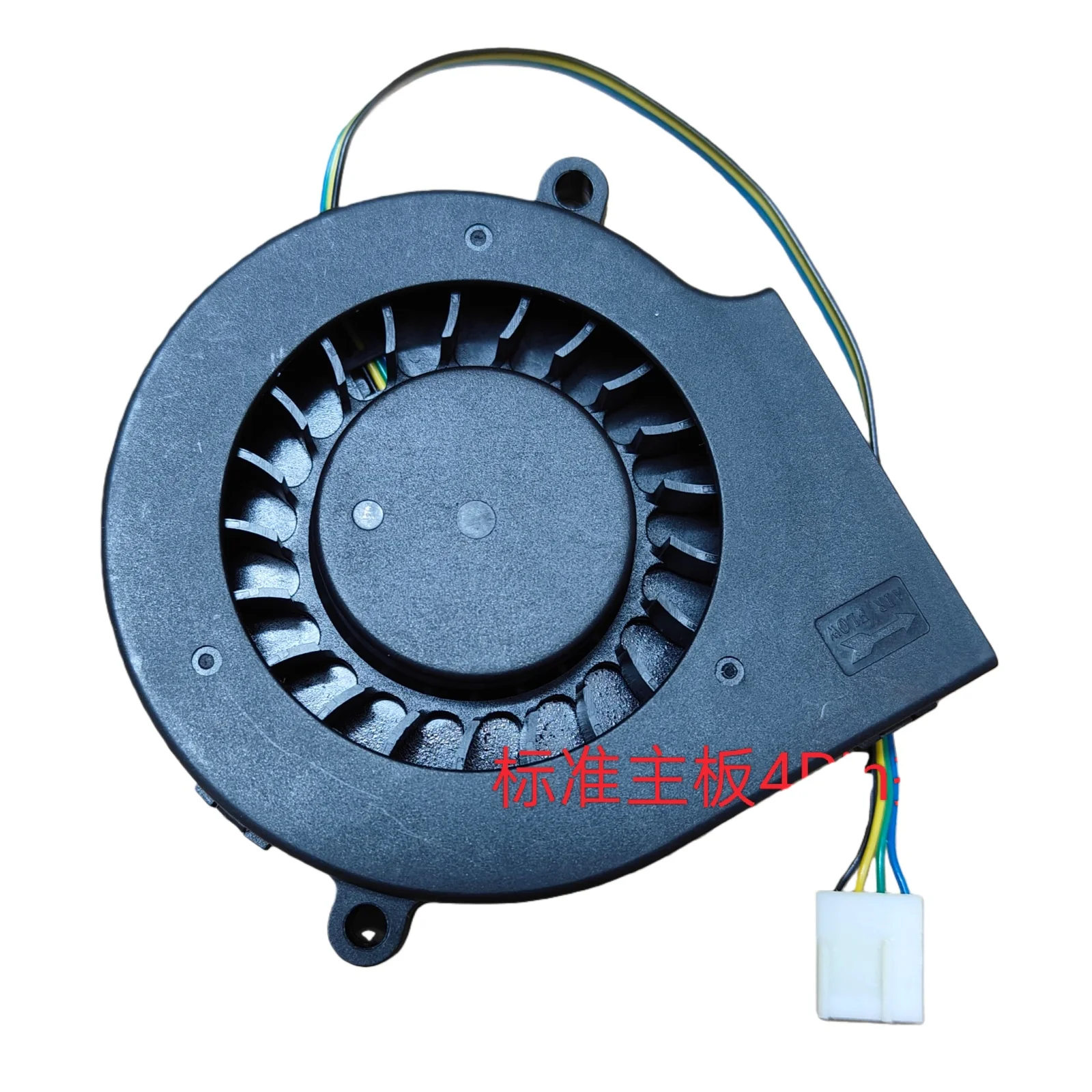

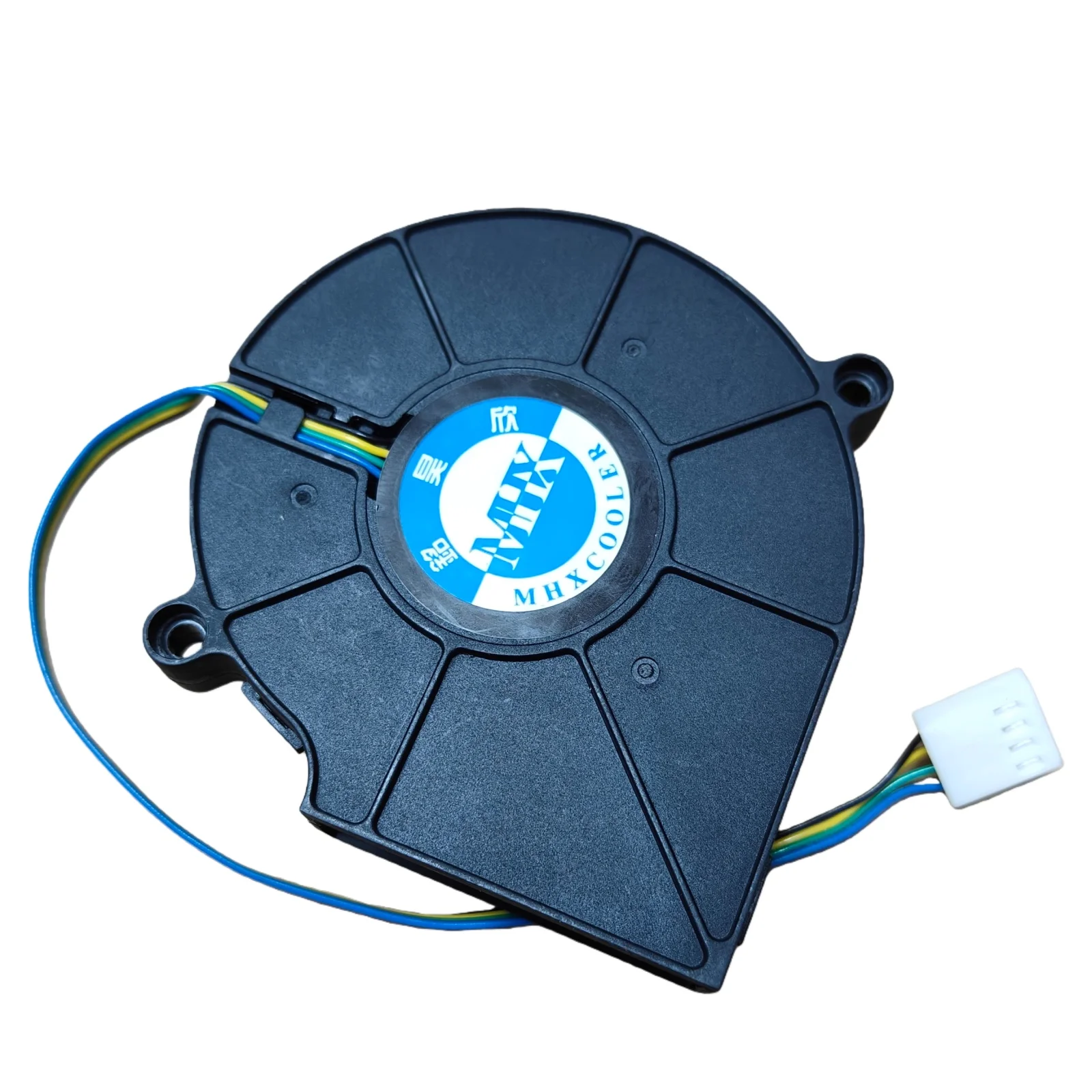

The 7515 Turbo Blower Fan (77x75x16mm) is designed for efficient air pressure output and targeted cooling in compact spaces.
It features a dual ball bearing structure for long life, strong airflow, and stable performance in continuous operation.
Ideal for 3D printers, routers, servers, and cabinet ventilation.
Variant
Voltage
Current
Speed
Connector
Feature
Type A
12V
0.43A
4800 RPM
4-Pin
PWM Speed Control
Type B
12V
0.20A
3000 RPM
2-Pin
Silent Low Noise
Type C
24V
0.25A
4800 RPM
2-Pin
📐
Fan Dimensions

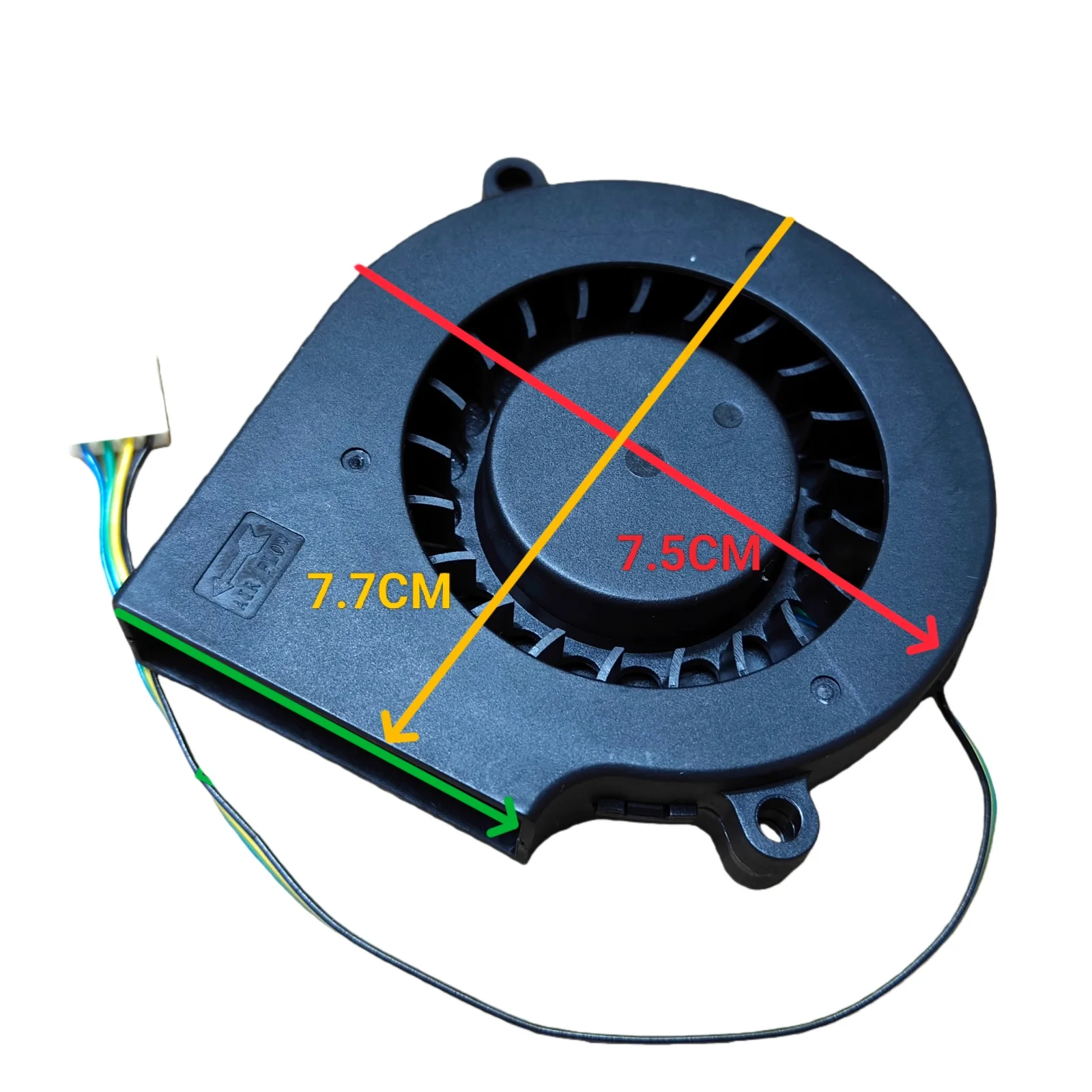

Overall Size: 77×75×16mm
Air Outlet: 46×11mm
Bearing Type: Dual Ball Bearing
Material: PBT Flame Retardant Plastic
Cable Length: ~25cm
Direction: Blowing out through outlet
🌟
Key Features
💨 High Air Pressure Design — Focused airflow through a narrow outlet, perfect for cooling enclosed or directional systems.
⚙️ Dual Ball Bearing — Ensures long service life and stable 24/7 operation.
🎛️ PWM Speed Control (Type A) — 4-pin smart control supports temperature-based speed regulation.
🔇 Silent Operation (Type B) — Quiet and smooth, ideal for home or office devices.
🔌 Multiple Voltage Options (12V / 24V) — Flexible for various equipment types.
🏭
Application Scenarios
✅ 3D Printer Extruder Cooling
✅ CNC Router / Control Box Ventilation
✅ Power Supply Units
✅ Cabinet & Enclosure Exhaust
✅ Home Appliances / RV Ventilation
