Basic functions:

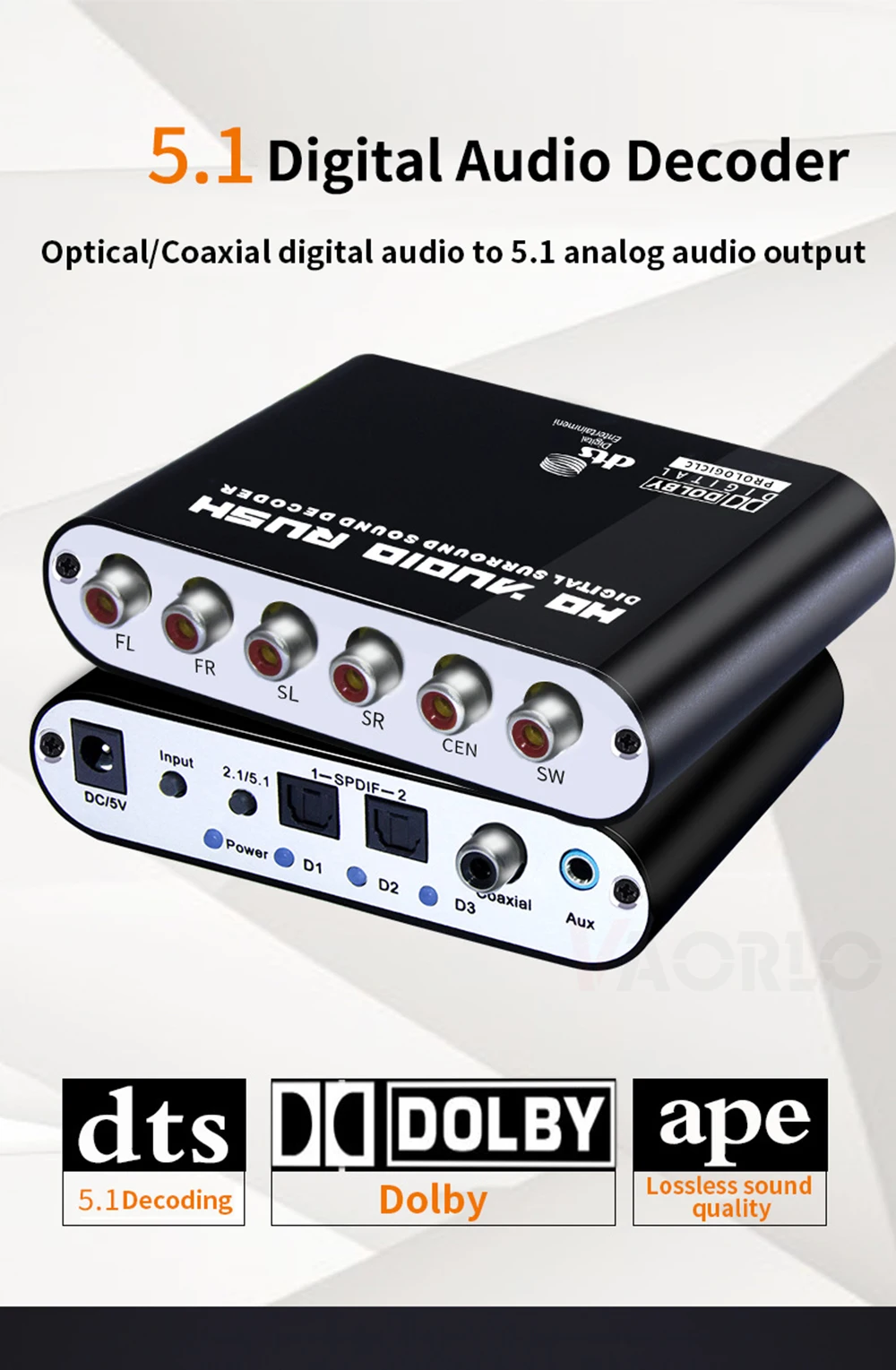

DTS / AC3 5.1 channel audio decoder
A design concept:

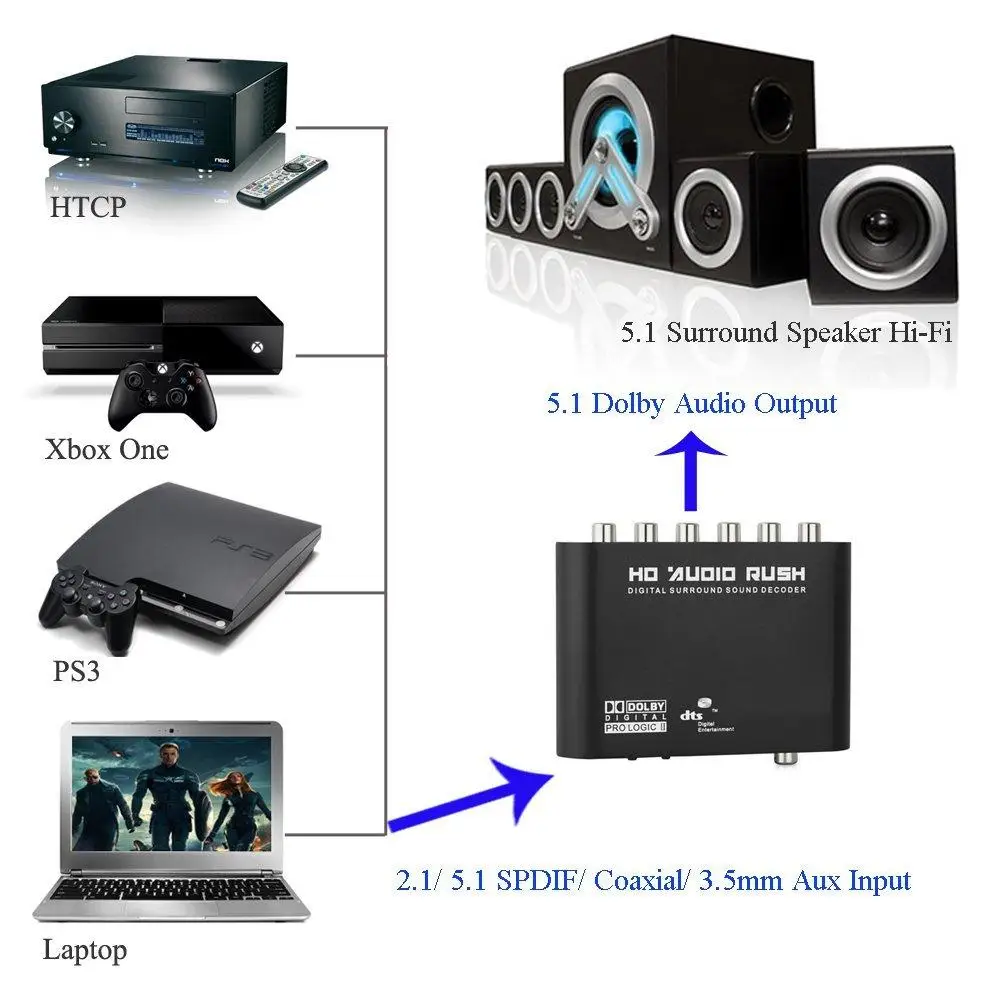

DTS / AC3 Audio Decoder is widely used to decode the source audio output from audio-video players such as PC, notebook, PS3, XBOX360, HD player, HD set-top box, DM500 / DM800, Blu-ray DVD and HD- DTS / Dolby Sound Field, so that many families, schools, squares, concert halls, cinemas and other places to enjoy the DTS or Dolby sound field brought the shock effect.
Functions and features:
1. Decoding DTS / AC-3 source digital audio signals into analog 5.1 channel audio signals
2. The analog stereo ( R / L ) signal through the audio processing chip, converted to analog 5.1-channel audio signal
3. Two-way SPDIF optical input, 1 coaxial coaxial input, 1 stereo Stereo input, more complete multi-channel digital audio output to bring the switch more convenient
4. RCA output interface, easy docking docking amplifier
5. Multi-channel one-touch switch, convenient and fast, while the stereo and 5.1-channel switch
6. Sex noise ratio: 120db
7. Resolution: 80db (1 KHz )
8. Response frequency: 20Hz ~ 20KHz +/- 0.5db
9. Analog output level: 2.2V

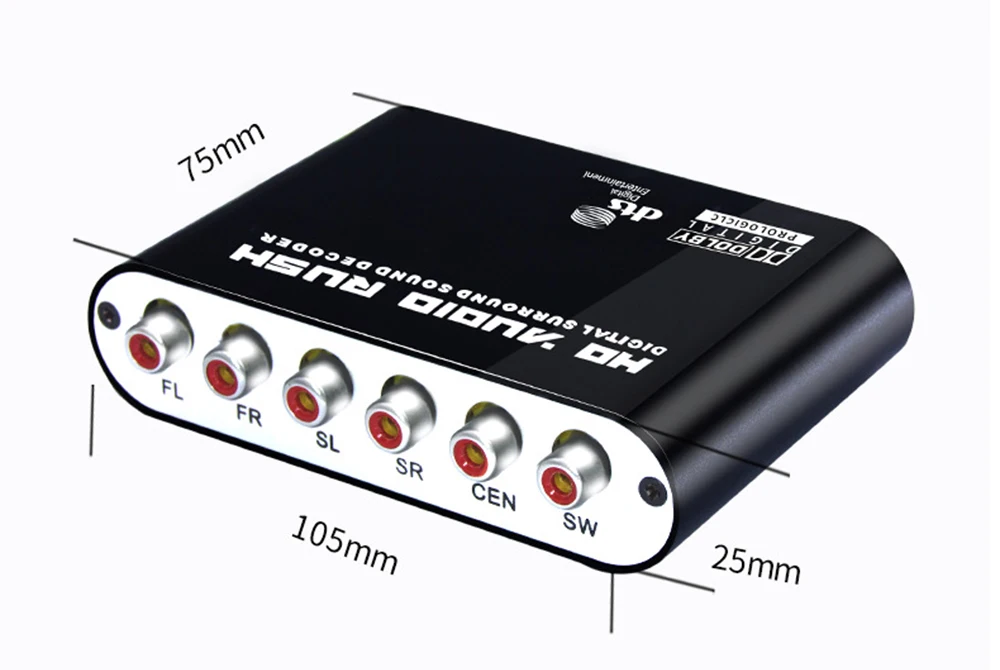

10. Product appearance size: 105 × 75x25mm

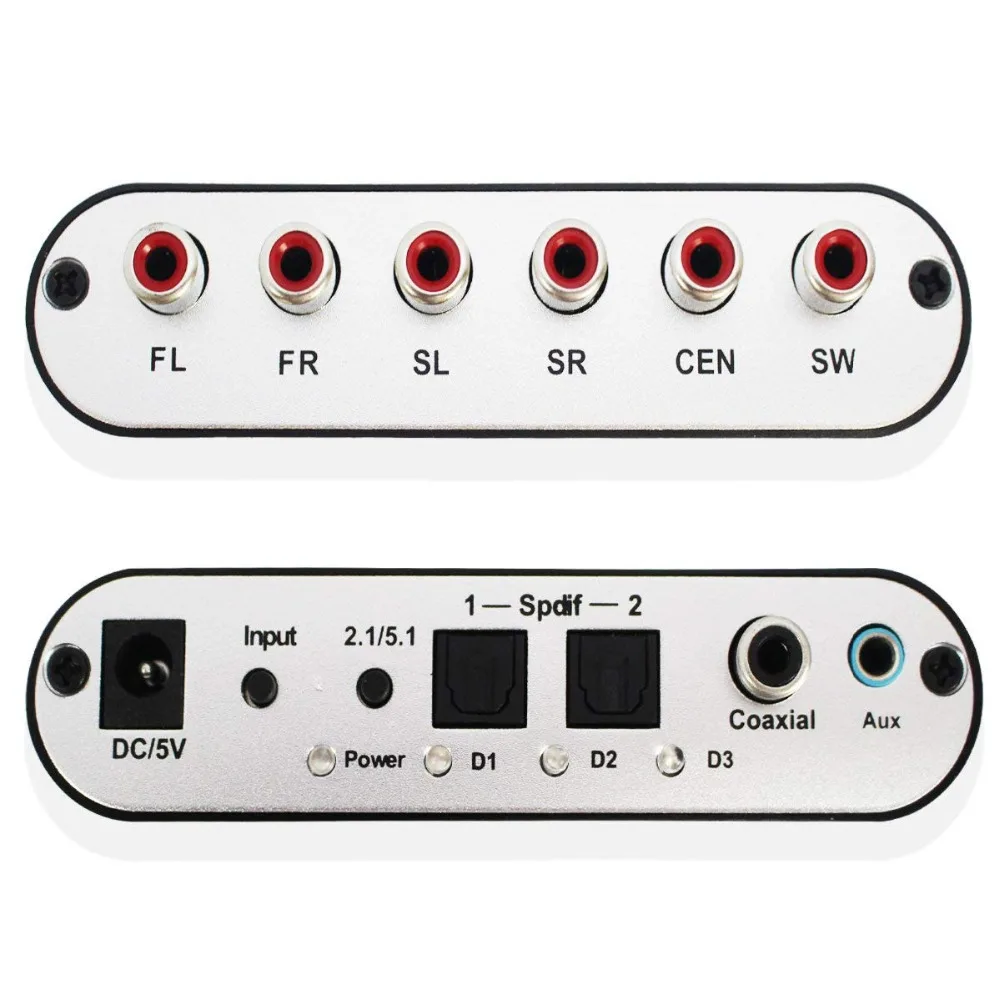

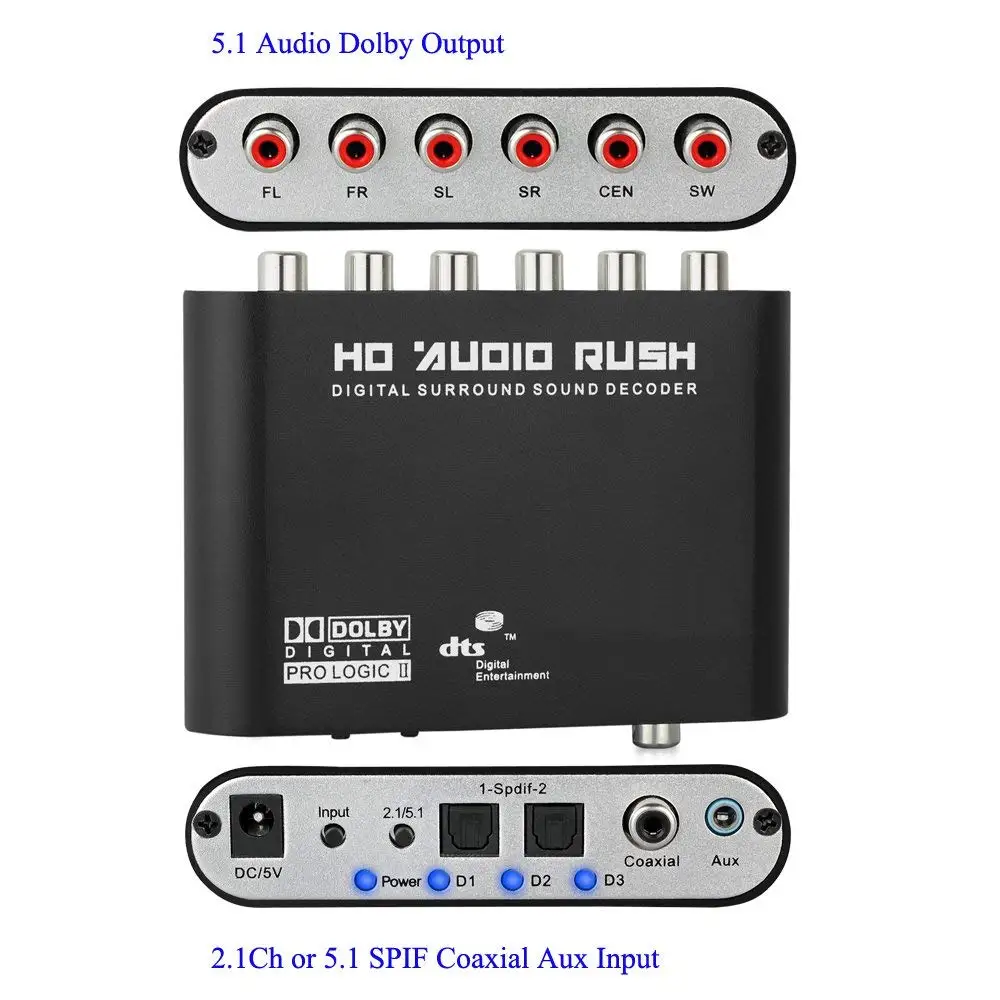

Interface function:
1. Input interface: Optical Fiber, Coaxial, AUX Stereo
2. Output connectors: FL, FR, SL, SR, CEN, SW (Bass)
Product advantages:
1. Solvable DTS / Dolby Digital audio source
2. Wide range of applications: network players, high-definition video player, Blu-ray DVD, DVD, SP3, XBOX360 such as the output of digital signals
3. Product exquisite, compact and convenient, plug and play, mobility and strong

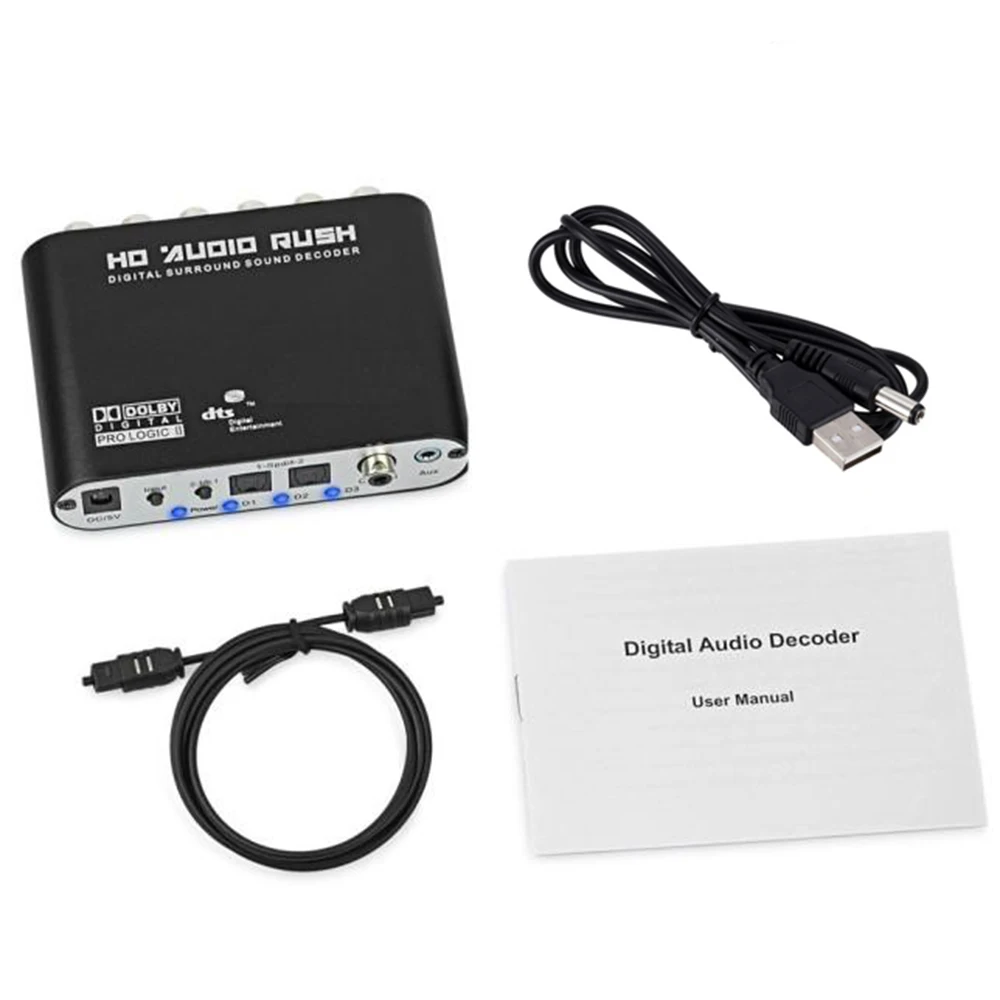

Package content:
1 x Digital Audio Decoder
1 x USB Power Cable
1 x Optical Cable
1 x User Manual
