Upsiren 24W/mk 0,75/1,25/1,75mm GPU CPU disipador de calor almohadilla de silicona conductora de refrigeración almohadilla térmica auténtica Original de alta calidad

24w/mk Thermal conductivity Thermal pad High quality 100X100mm CPU Heatsink Cooling Conductive Silicone Pad Thermal Pads

The Thermal pad support customization and wholesale, large quantity with preferential treatment

Feature:

1. Strong plasticity, various sizes, and can be cut at will.
2. Durable, insulating and non-conductive. Non-corrosive, non-curing and non-toxic.
3. Easy to use, no need to apply silicone grease, just tear off the protective film on both sides to use.
4. It can be used for heating elements such as CPU, GPU, graphics card, memory, mining machine, SSD solid state drive, notebook computer, game equipment, LED, server, household appliances, radiator, capacitor and resistor.

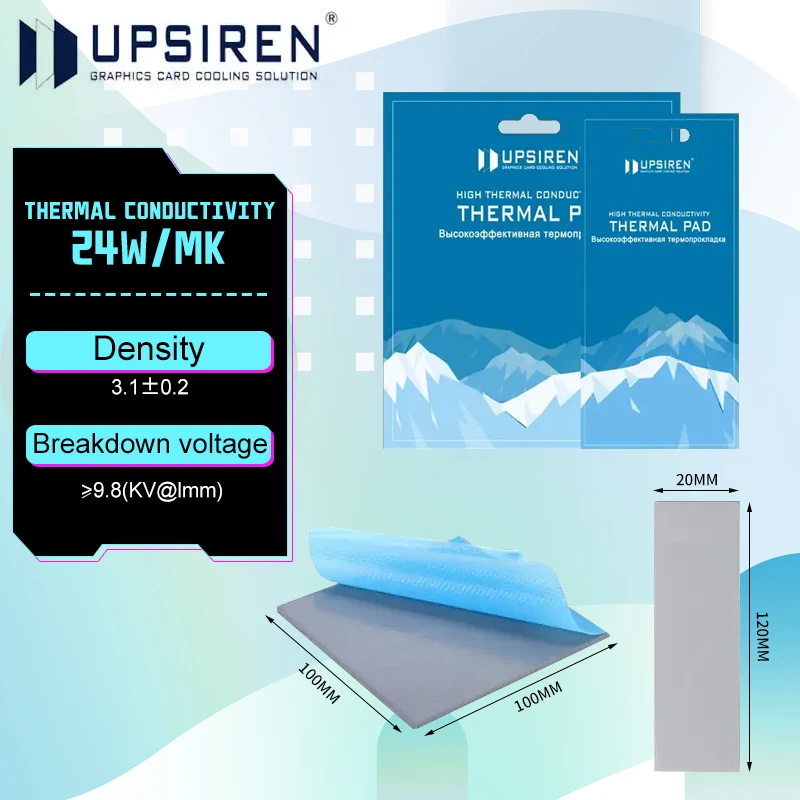

Specification:

Color: Gray
Density: 3.1±02g/cc
Hardness: 50-65sc
Thermal conductivity: 24w/mk
Breakdown voltage: 9.8KV/mm
Corrosive: none
Product size: about 120*20mm/85*45mm/100*100mm

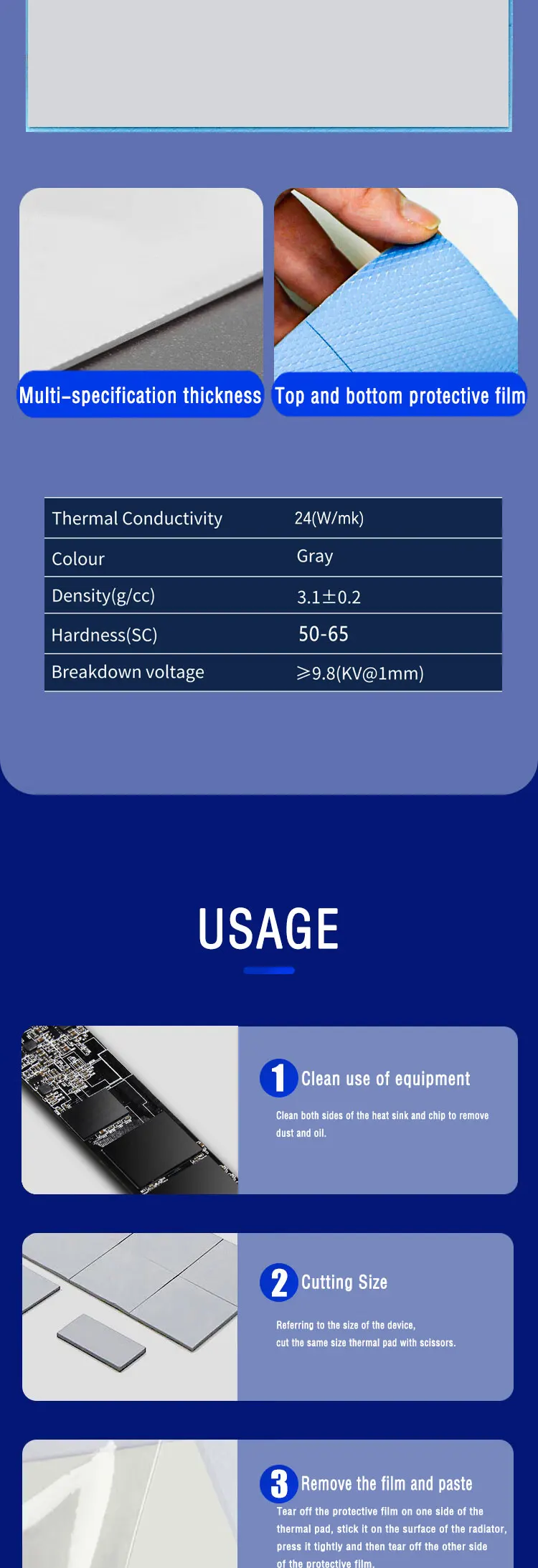

Instructions for use:

Install the thermal pad:
The installation of thermal pads is much simpler than thermal paste, because they can easily fit in various places where heat dissipation is required, so even a novice has no difficulty.
Remove the old thermal pad:
every time the radiator is removed or installed. Aged thermal pads need to be removed. Clean up thoroughly. And use a new thermal pad. Otherwise, the cooling effect will be affected.
Thermal pad size and thickness description:
The thermal conductivity is the same for each thickness. Thermal pads can be purchased in various thicknesses and sizes. Users can also cut them to desired size

FAQ:

How to choose the size you need.
1: Calculate the size of each location that needs to be cooled.
2: Calculate the thickness of the thermal pad according to the gap between the boards.
3: The thermal pad is soft. The thickness needs to be increased by 0.5-1.0mm in the calculation. Fits tightly after installation squeeze. Better heat dissipation.
4: When the thickness of the purchased thermal pad is insufficient, it can also be used in superposition.
5: The heat dissipation effect is best only when the two sides of the thermal pad are closely fitted and not crushed.

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
