Descripción
UGREEN USB Sound Card Audio Adapter can bypass the defective sound card or the faulty 3.5mm audio/microphoneport of your laptop/desktop and regain the audio function for you. Save the cost of replacing a failed sound card.
There are 5 models optional, please place order according to your actual needs:
(1)2 Ports 15cm Model: 15cm cable; USB-A to 2*3.5mm ports;
(2)2 Ports 15cm - OTG Model: 2 Ports 15cm Model + USB3.0 OTG Adapter;
(3)3 Ports 15cm Model: 15cm cable; USB-A to 3*3.5mm ports;
(4)3 Ports 15cm - OTG Model: 3 Ports 15cm Model + USB3.0 OTG Adapter;
(5)3 Ports 100cm Model: 100cm cable; USB-A to 3*3.5mm ports.
Specification:
- Dimension: 74 x 34 x 15.5mm (LxWxH)
- Cable length: 15cm or 100cm
- Indicator light: Two blue indicator lights (one for headphone and one for micphone)
- Output:
(1) 3.5mm headphone jack, support stereo audio output, interface properties (TRS);
(2) 3.5mm mono microphone jack, support mono microphone output, interface properties (TRS);
(3) 4-pin combo Mic/headphone jack (Only support CTIA), support stereo audio output, mono microphone input, interface properties (TRRS).
- SNR: ≥85dB
- Sampling Rate:
(1)Microphone input supports up to 16bit/48KHz;
(2)Headphone output supports up to 24bit/96KHz.
- Frequency response: 20Hz - 20KHz
- With function of disabling headphone Mic and volume control
- No driver required for Windows / Mac OS / Linux / Chrome OS / iOS / Android
- Compatible with Laptop / Desktop / PS5 / PS4 / Nintendo Switch / Smartphone.
Important Note:
- Ensure usb audio adapter is set to be your primary playback and recording device in your control panel or system preferences;
- The 4-pin combo Mic/headphone jack only support TRRS CTIA standard, does not support TRRS OMTP standard;
- The input of microphone jack and combo Mic/headphone jack only support mono;
- Please make sure your phone supports OTG function when using it on the phones.
- Please make sure your phone supports OTG function when using it on the phones.

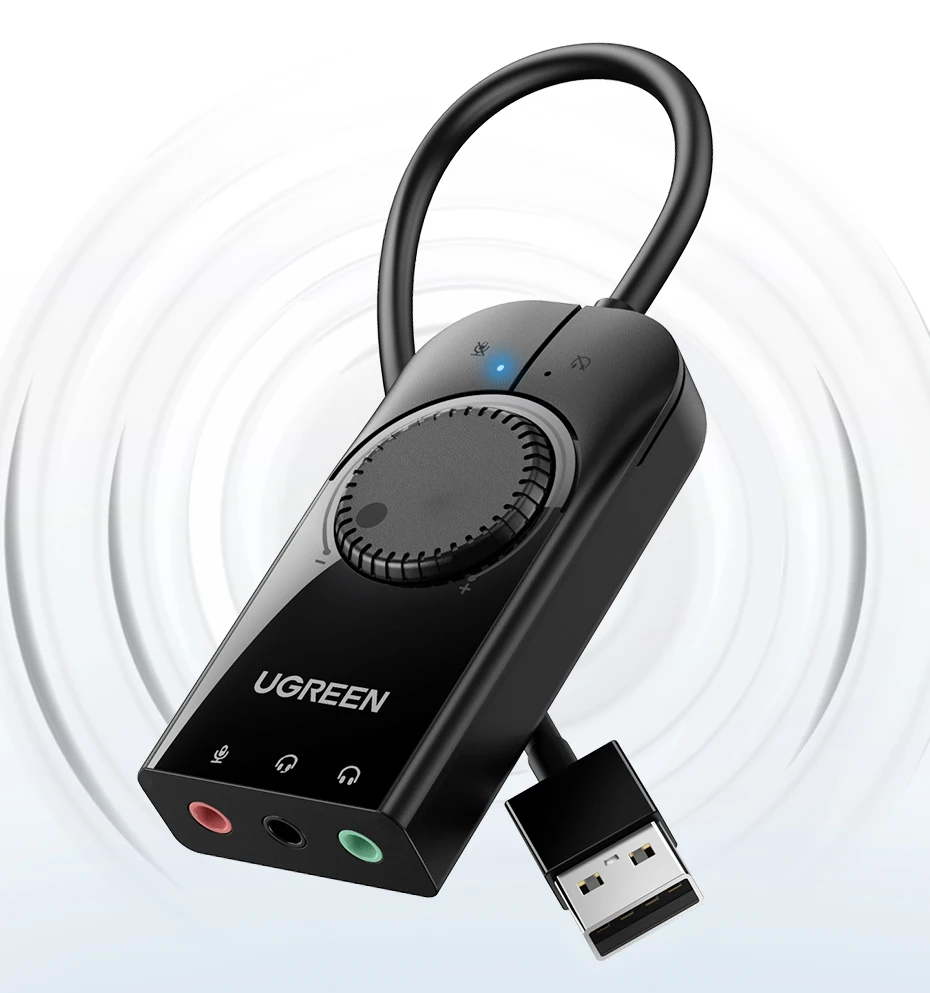

Enjoy Premium Sound
External sound card

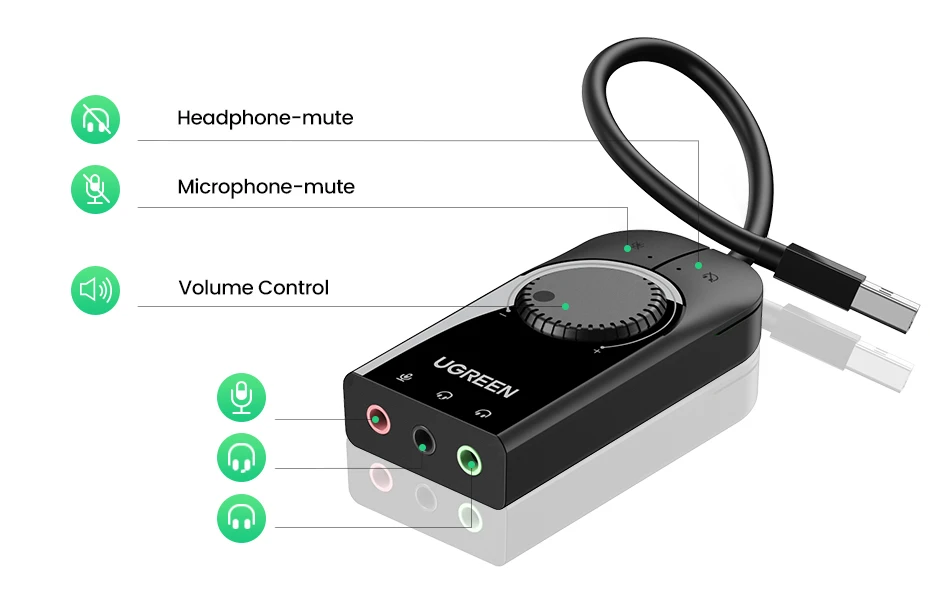

All in One
Small body, Multi-functions

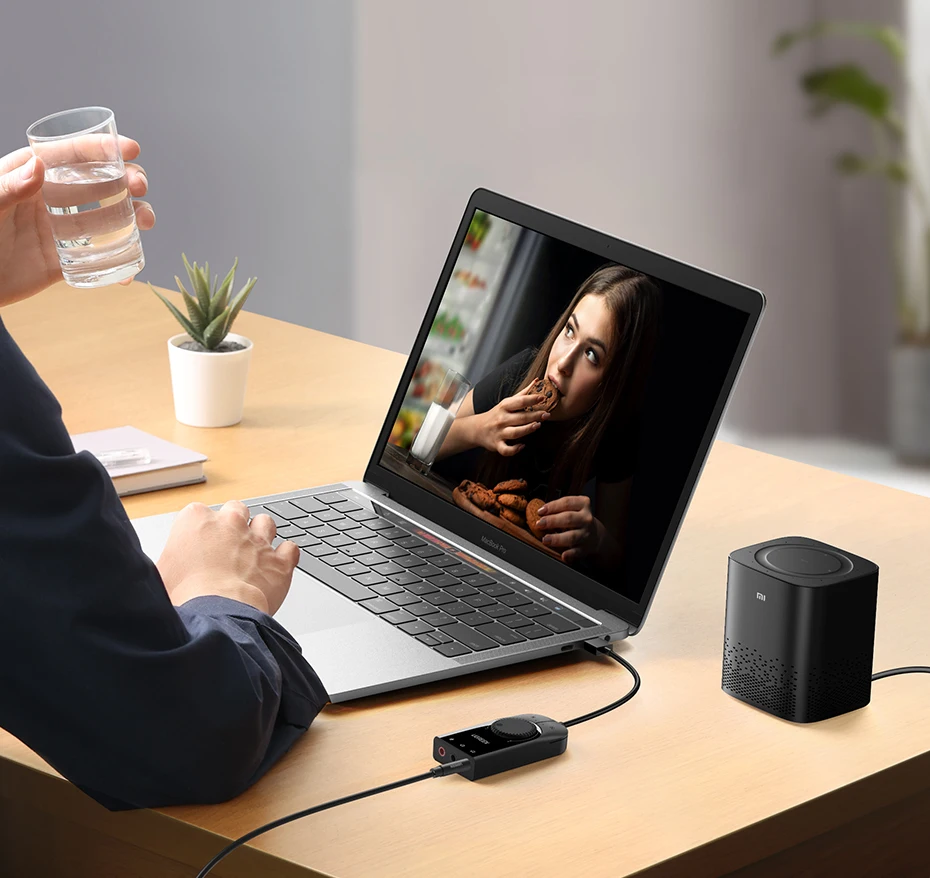

Connect Computer to Speaker/Headset
Make the sound more realistic

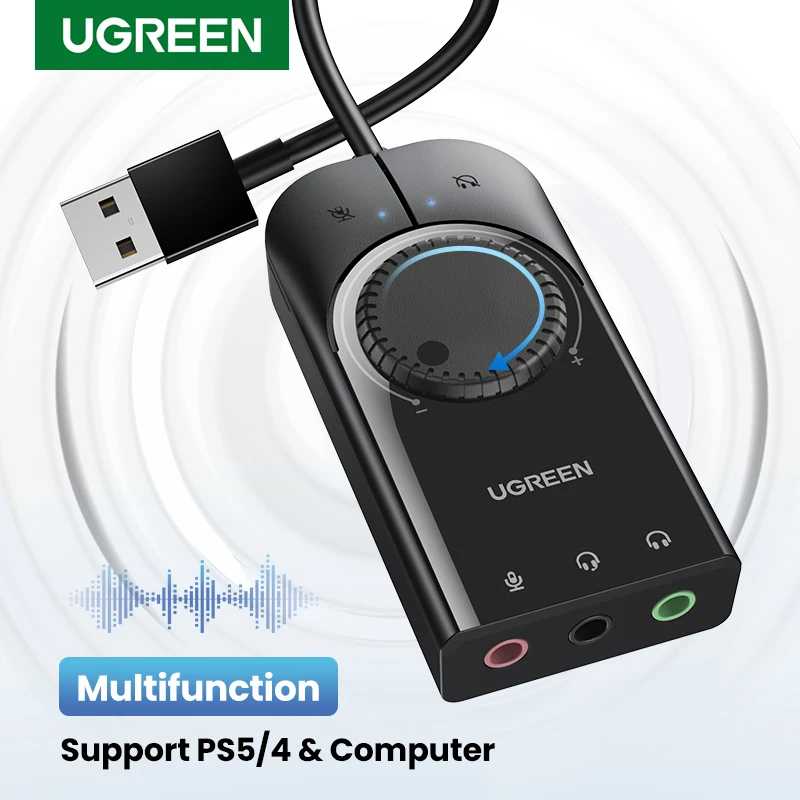

Gaming with PS5/PS4
Excellent immersive experience
Enjoy Music Anywhere
Freely connect to your phone with OTG adapter

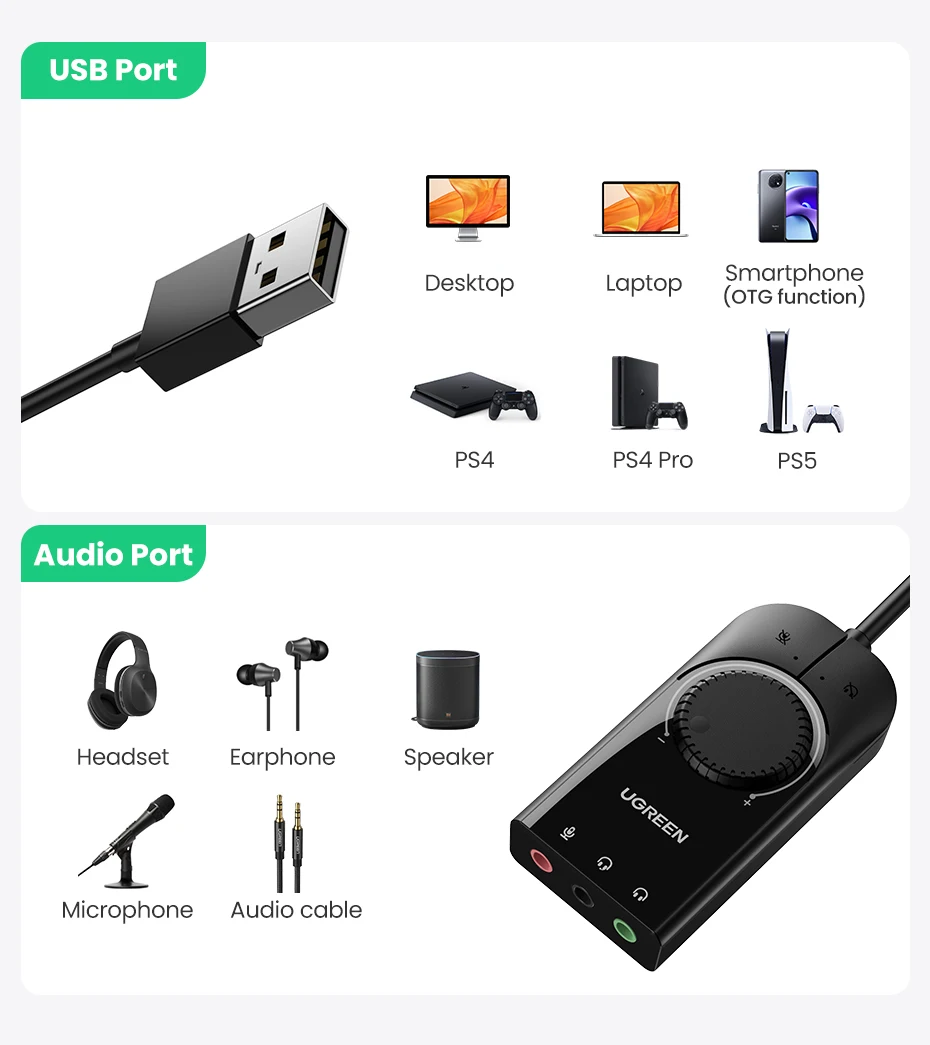

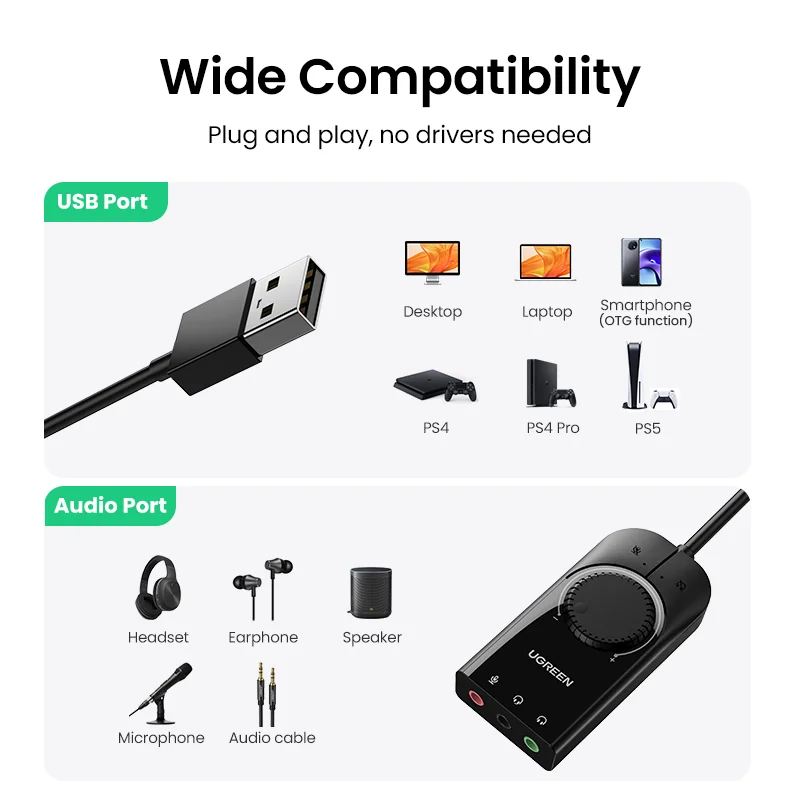

Wide Compatibility
Plug and play, no drivers needed

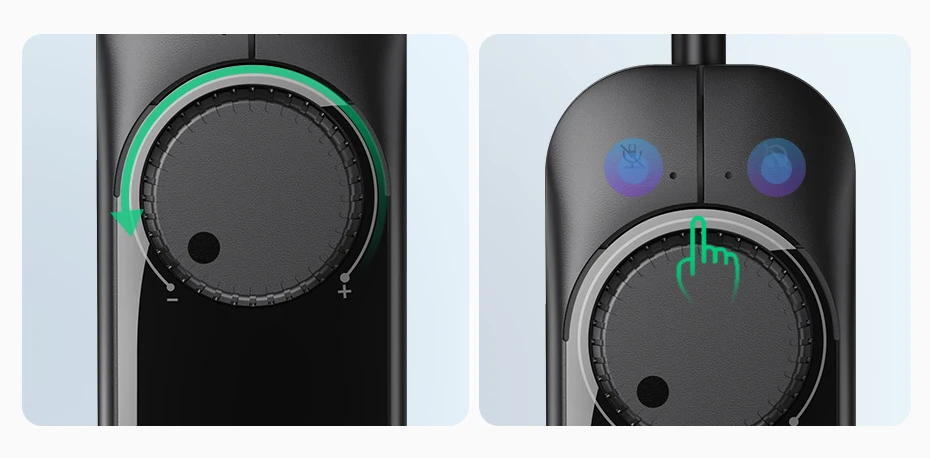

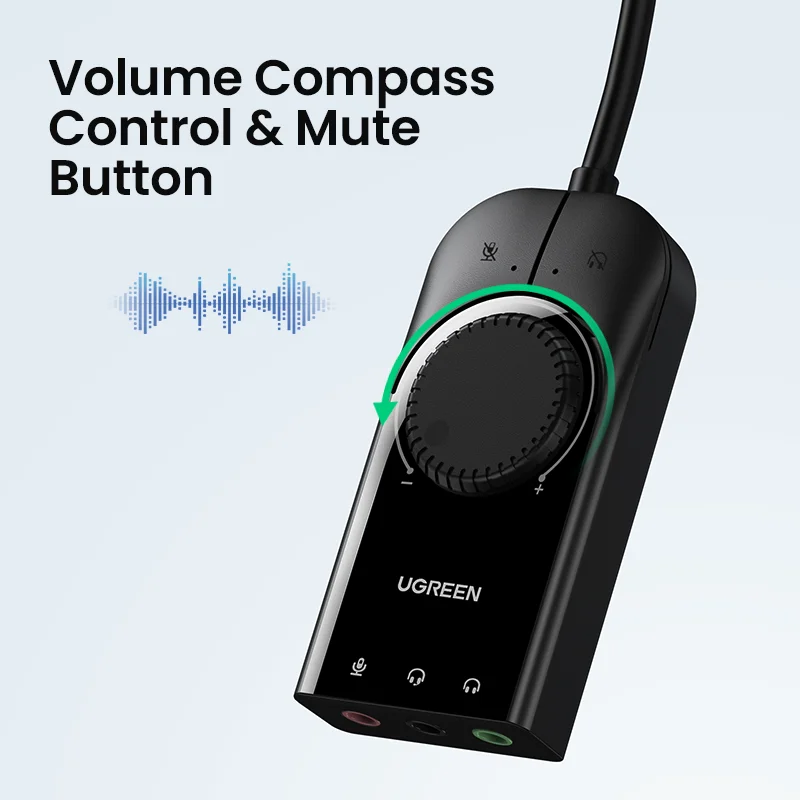

Easily with Compass
Microphone & Earphone one key mute

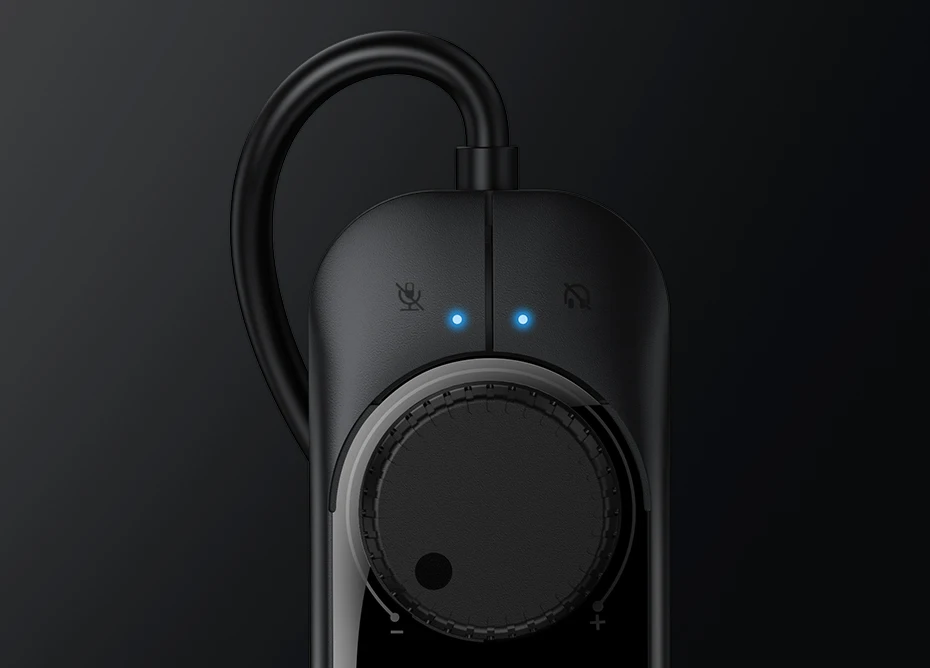

LED Indicator Light

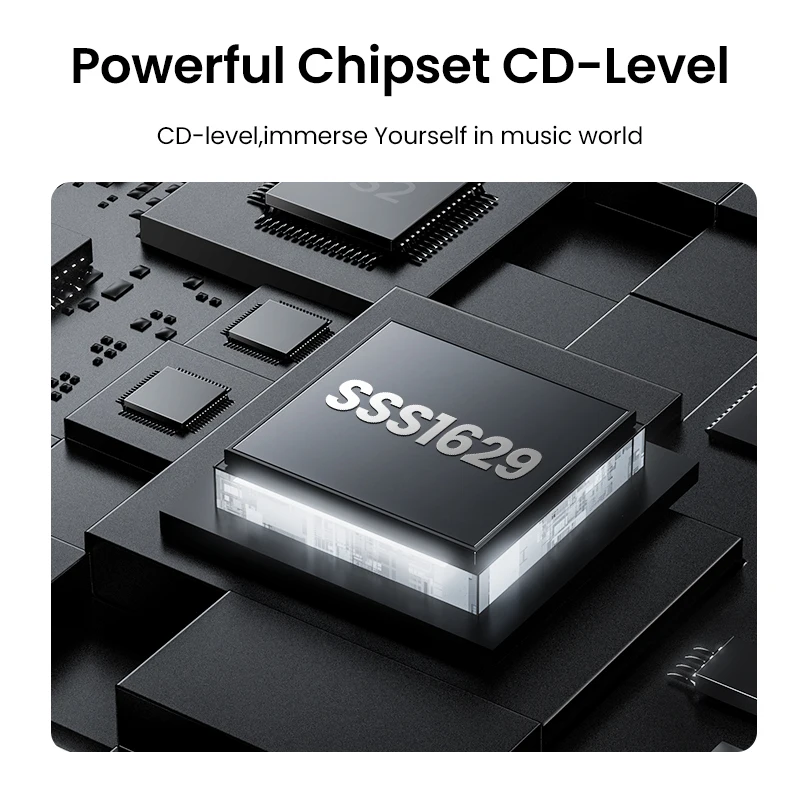

Powerful Chipset CD-Level
Support 16bit/48KHz sampling rate

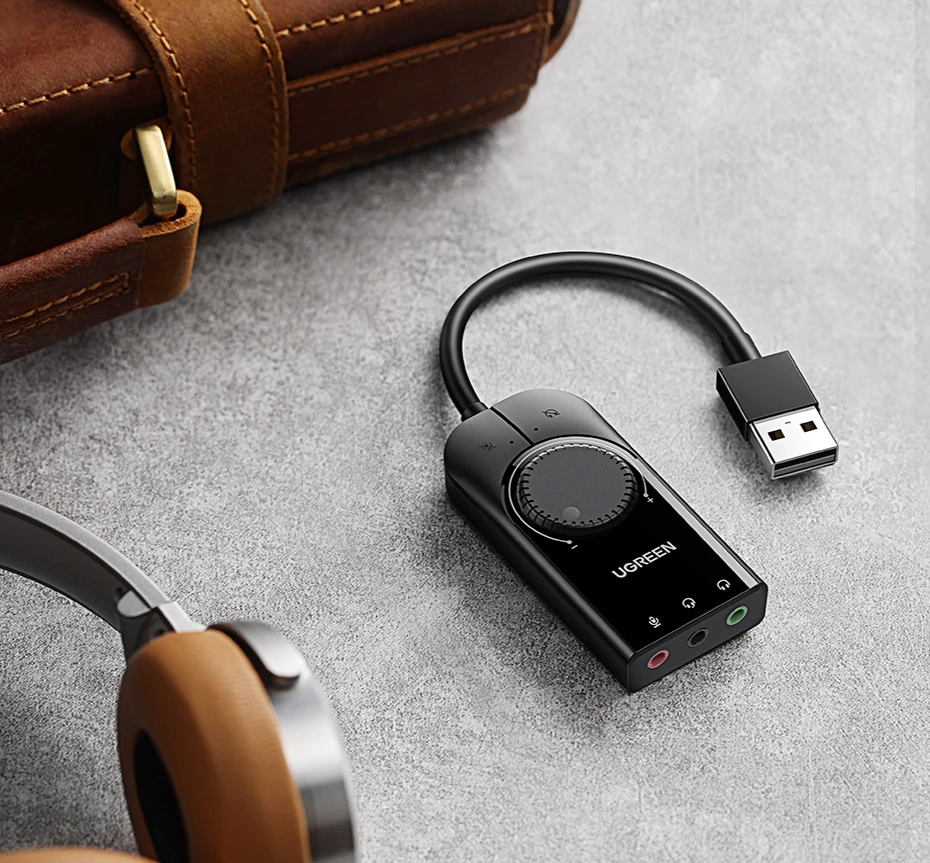

15CM/100CM Cable
Easy to Carry

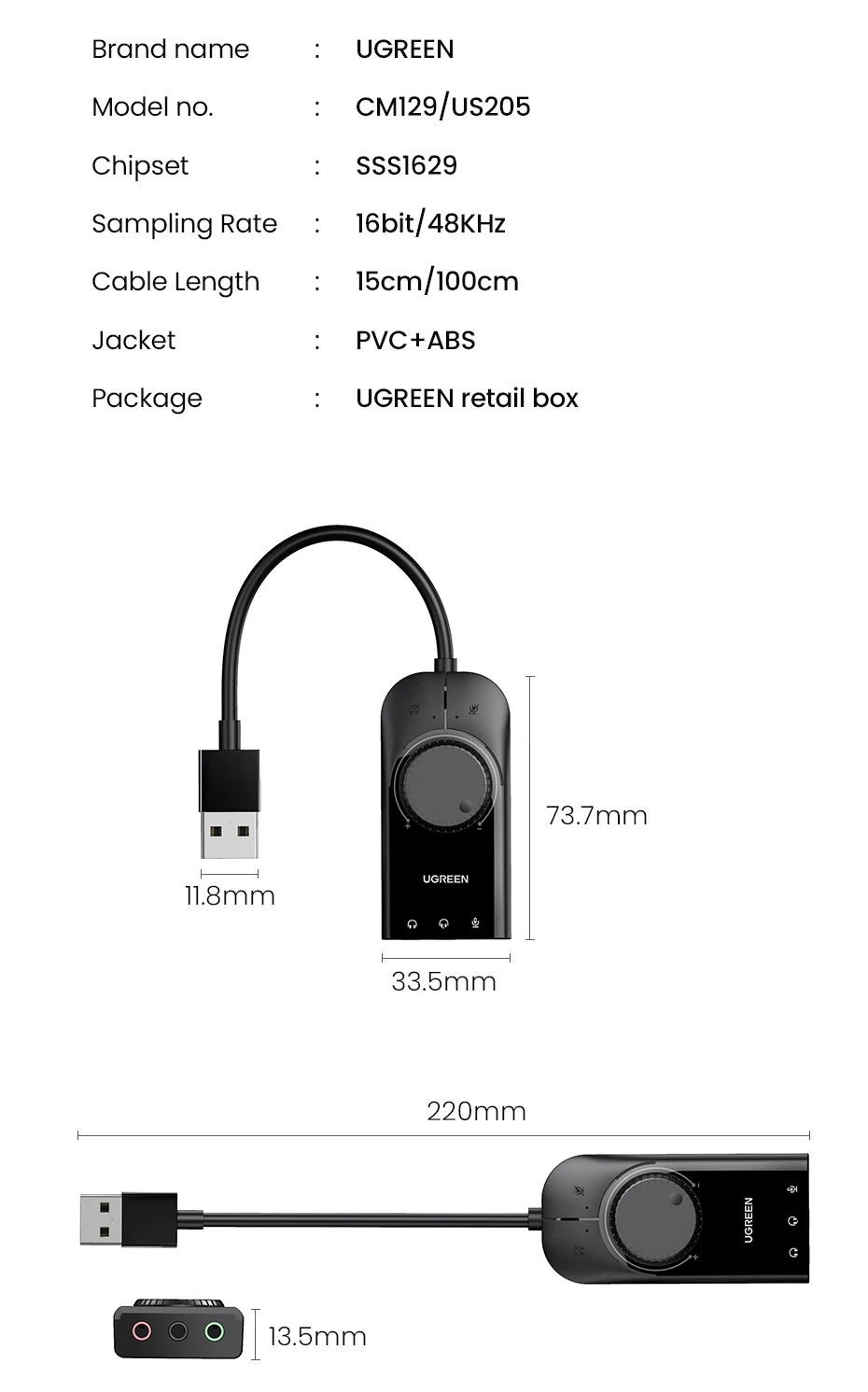

Product Specification

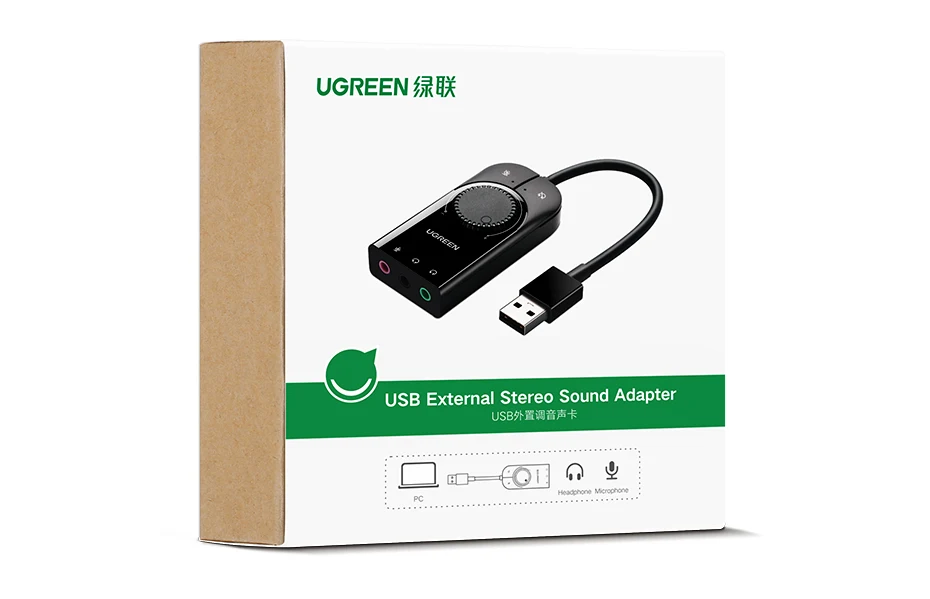

Package Display
