Tienda de placas de chips EIO-SFP1

Overview

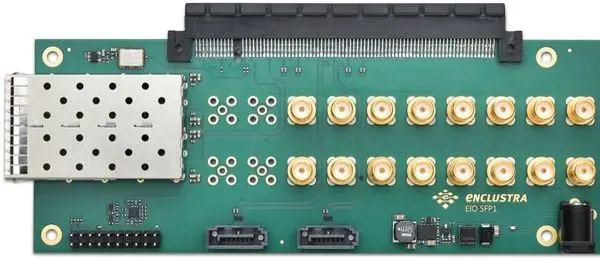

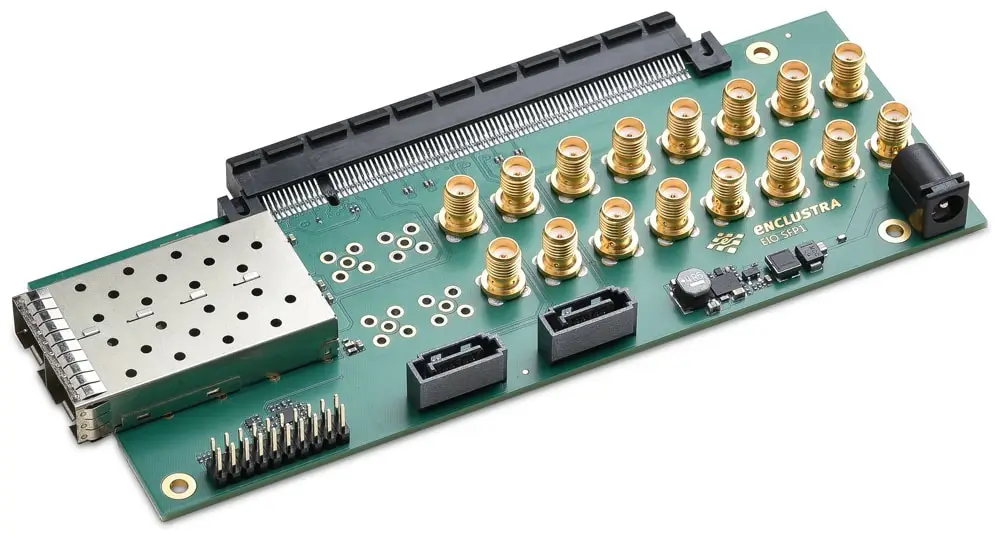

The EIO-SPF1 add-on card can be used to add a wealth of high-speed I/O interfaces to the

Features

• PCIe x16 edge connector

• 2 SFP+ slots for optical or electrical transceiver modules

• 4 MGT channels on SMA connectors

• 2 SATA connectors

• 312.5 MHz low jitter LVDS reference clock oscillator

• Clock input and output on SMA connectors (optional)

• Compatible with Mercury+ PE1 and many other PCIe-based FPGA evaluation boards
