Descripción
The plug-and-play design includes a robust plastic housing with unparalleled mounting options, a range of common industrial interfaces such as RS-232 and RS-485 as well as an integrated SIM cardholder to enable easy deployment. Quad-Band support ensures global coverage for an all-in-one solution with data communications plus SMS and fax capabilities. Like all Cinterion products, the BGS2 Terminal comes with full type approval (FTA) and is certified by the largest carriers worldwide.

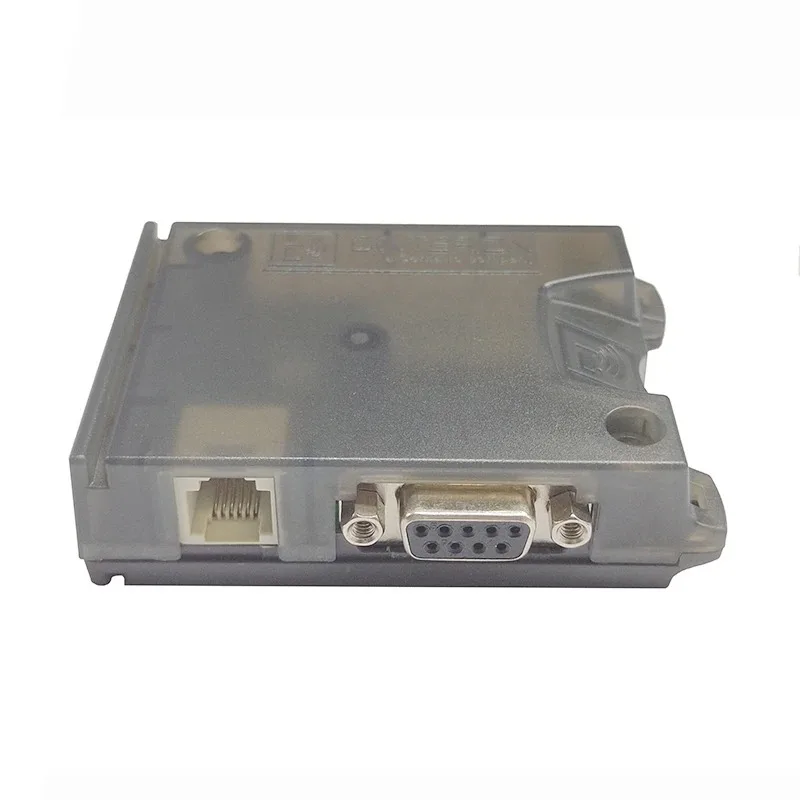

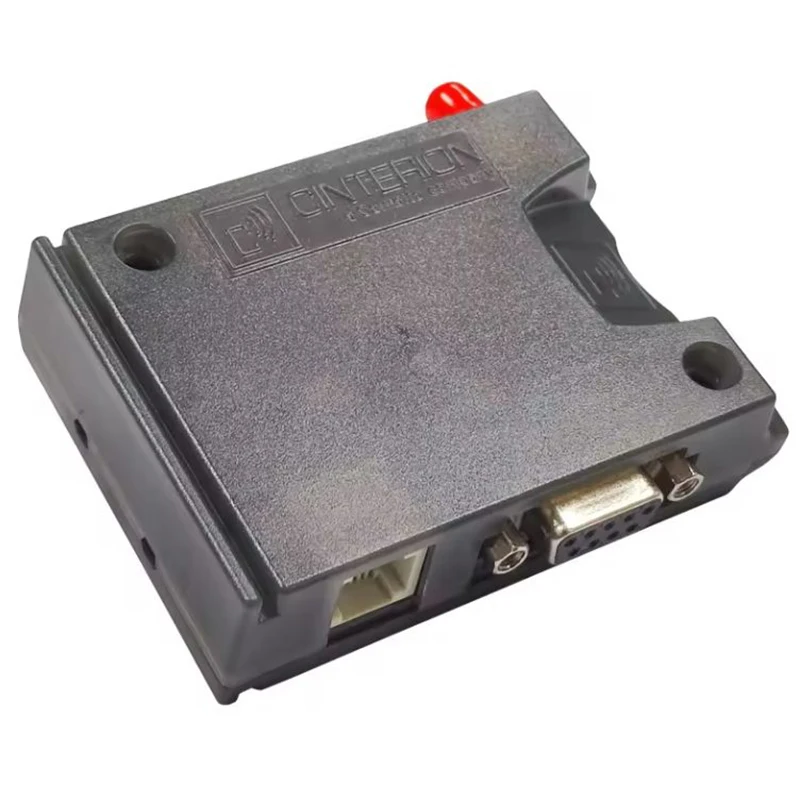

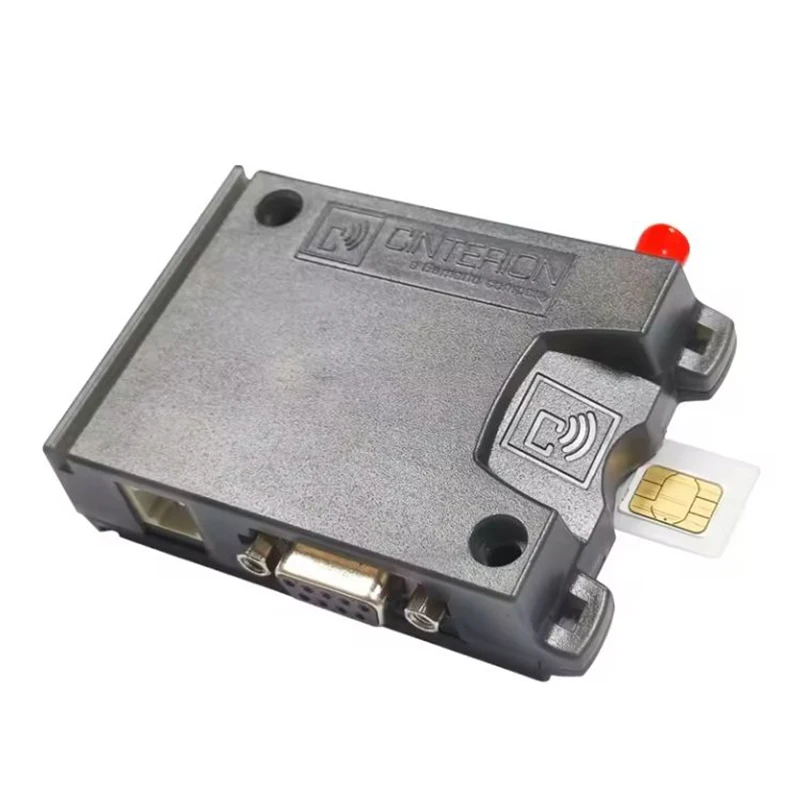

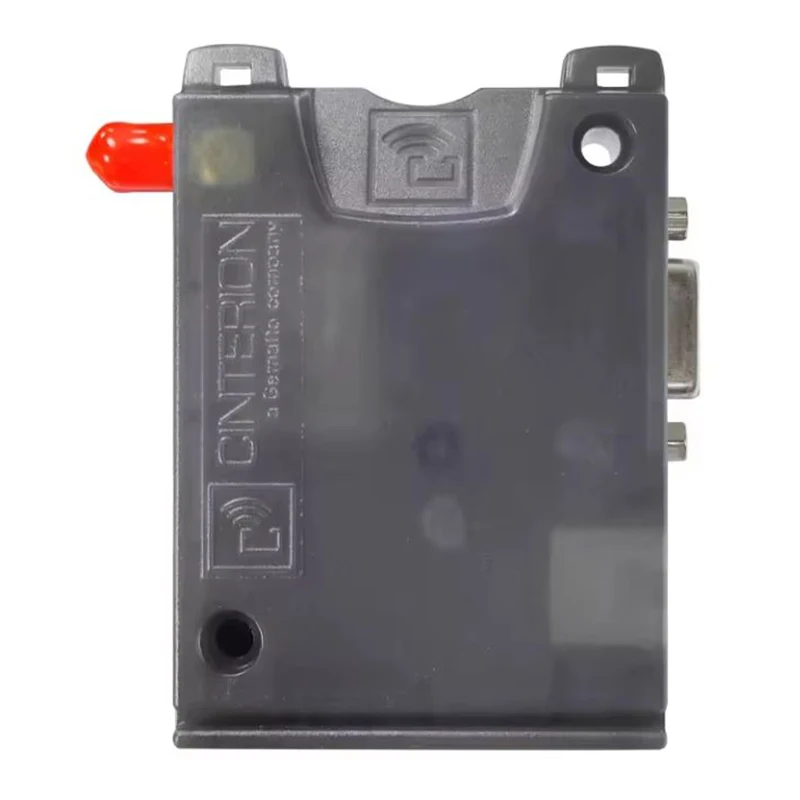

The Cinterion BGS2 Terminal is a simple plug and play M2M device that quickly delivers powerful Quad-Band 2G connectivity and TCP/IP connectivity based on GPRS class 10 data transmission with outstanding low power consumption. Ideal for first time M2M implementers and small scale deployments, the BGS2 Terminal offers reliable, cost-effective, out-of-the-box M2M communications for a variety of industrial applications such as metering, security, transportation, remote monitoring and control and many more.
RS232-BGS2T-E(E8): 900/1800MHz
RS232-BGS2T-W: 850/900/1800/1900MHz
The BGS2T wireless M2M terminal features:
Region: Emea, Apac, Latam
Quad-band 2G
GPRS Class 10
Large Input Voltage Range
TCP/IP
Compact Size
Flexible Mounting
Industrial Interfaces
Low Power Consumption
GENERAL FEATURES
GSM Quad-Band:850/900/1800/1900 MHz
GPRS multi-slot class 10
Compliant to GSM phase 2/2+3GPP Release 99
Output power:
Class 4 (2W) for GSM850
Class 4 (2W) for GSM900
Class 1 (1W) for GSM1800
Class 1 (1W) for GSM1900
SIM Application Toolkit Rel.99
Control via AT commands
(Hayes, 3GPP TS 27.007 and 27.005)
GPRS class 10:
DL: max. 85.6 kbps, UL: max. 42.8 kbps
Mobile Station class B
CSD data transmission
USSD support
SMS text and PDU mode, cell broadcast
Fax Group 3, class 1&2
Driver for Microsoft® Windows 7™,
Windows XP™ and Windows Vista™
CE, R&TTE, GCF, FCC, PTCRB, IC
Local approvals and network operator
certifications
Hardware watchdog
Firmware update via serial interface
Real time clock with alarm functionality
flexible mounting concept
Cable fixations
Antenna Connector SMA (female)
Mini-SIM card reader, 1.8 V and 3.0 V
Plug-in power supply connector
(6-pole Western jack @BGS2T RS232
V.24 / V.28 RS-232 Interface
(D-sub 9-pole female socket @BGS2T RS232)
6 pin header with RS-485 interface,
power and ignition/reset (@BGS2T RS485)
Operating status LED's
Cinterion® BGS2 Terminal Features
TCP/IP stack access via AT commands
Internet Services: FTP, ICMP, DNS, TCP server & client,
UDP client, HTTP, SMTP, POP3, Transparent Mode
Supply voltage range: 8 - 30 V
Dimension: 80 × 55 × 23 mm (excluding connectors)
Operation Temperature Ranges:
Normal operation: -30 °C to +85 °C
Restricted operation: -40 °C to +90 °C
Weight 65 g
