Package Included

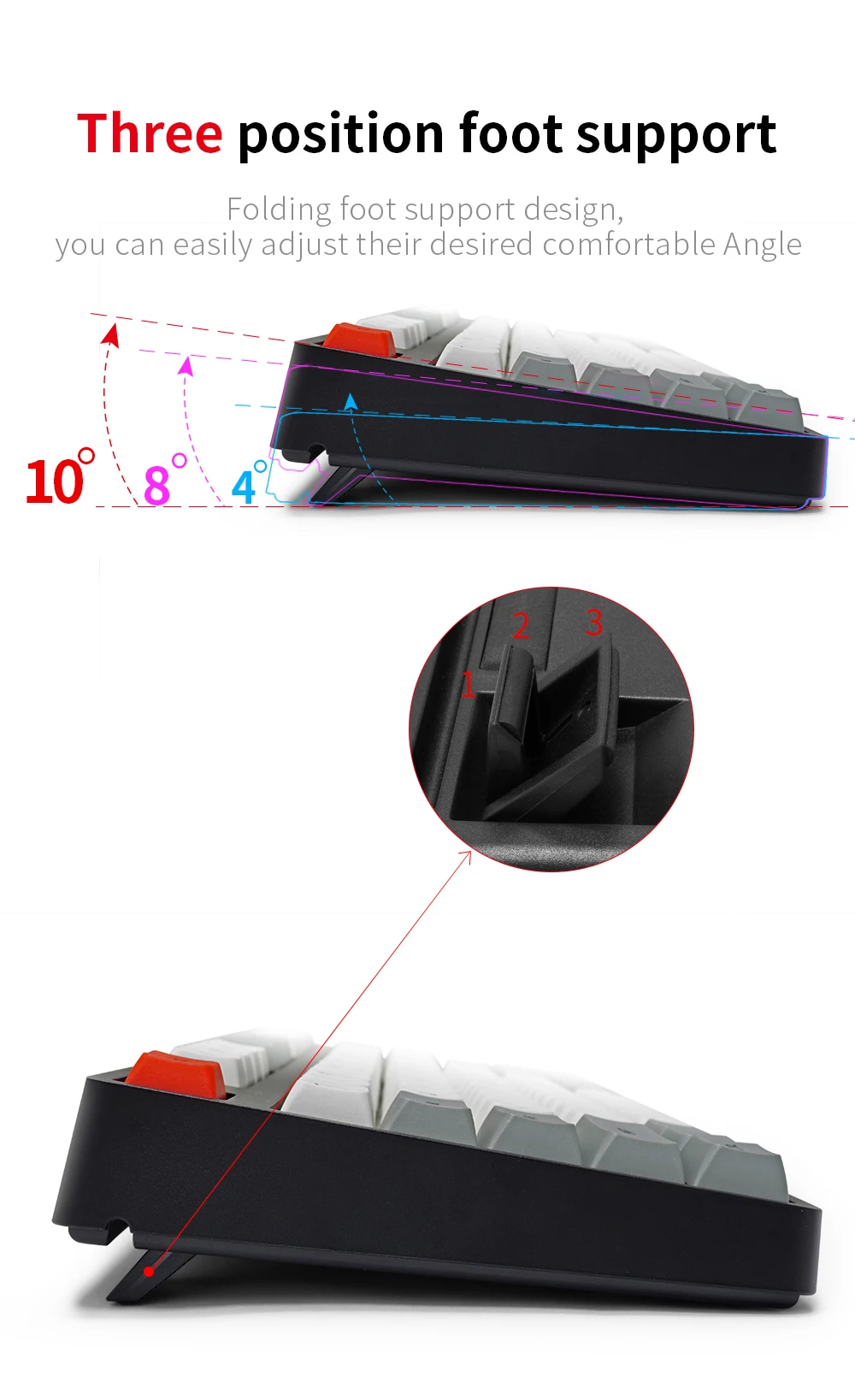

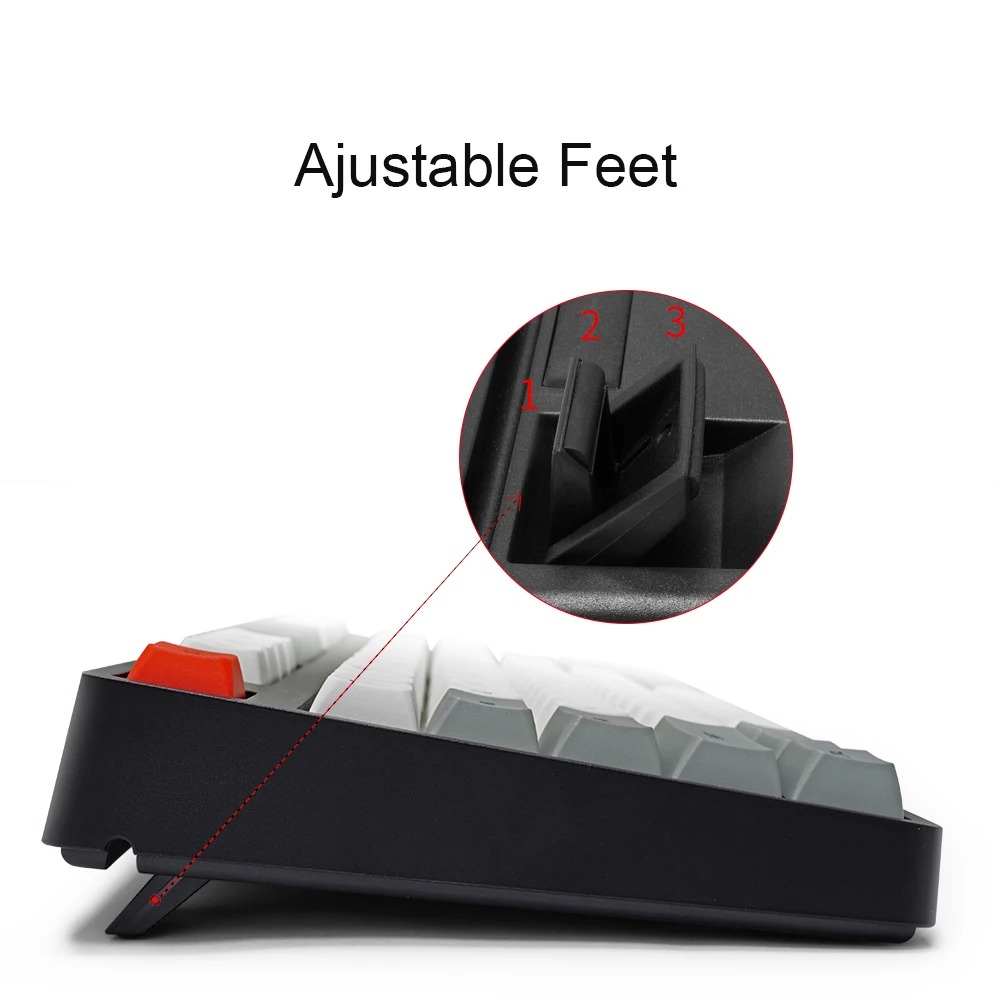

Plastic Case + Feet + Stabilizers + Hotswap Type C PCB + Plate + Cable + Removal Tool
GK87 is wired edition.GK87s is bluetooth edition.Bluetooth edition has an1900mAh volumebattery
There is no switches in the kit,you can order Cherry Gateron Kailh SMD Box switches etc yourself.Just put in switches in is ok,no need soldering again.3 pin 5 pin both supported
Details

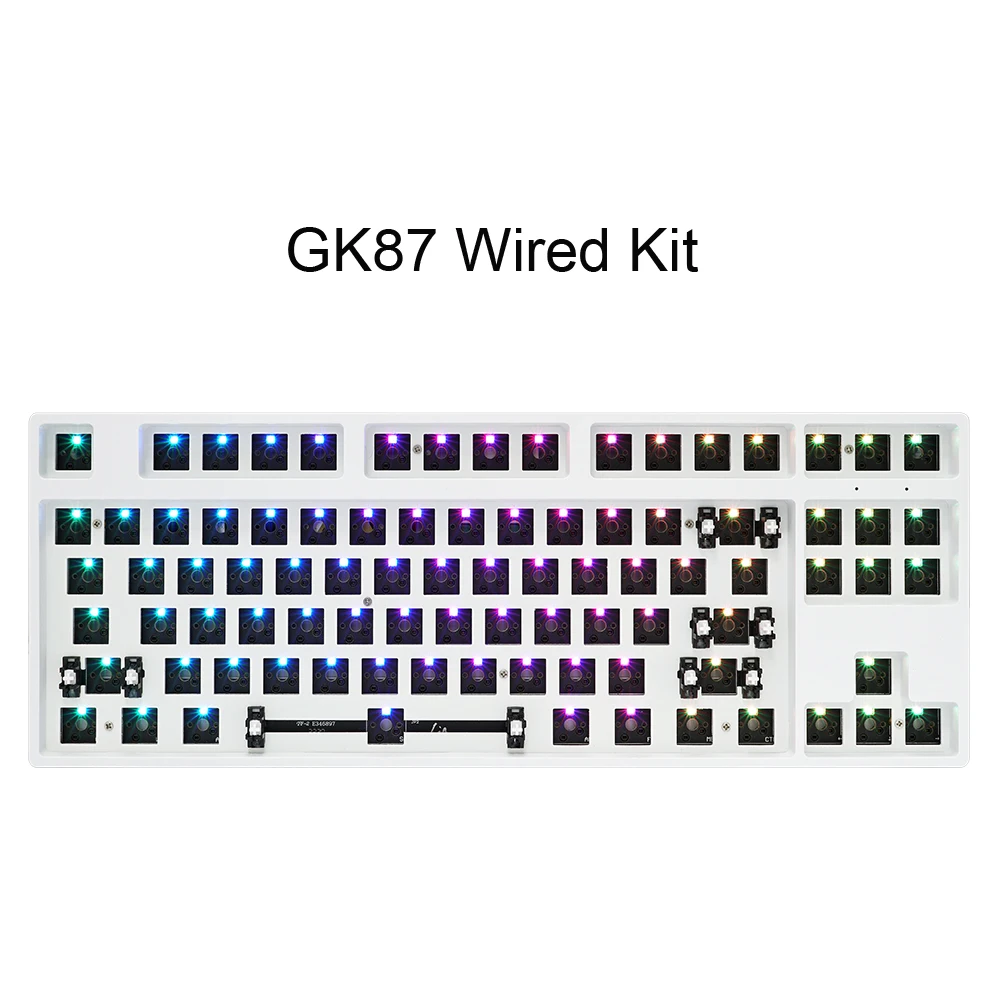

GK87 is wired edition.PCB is black high quality.

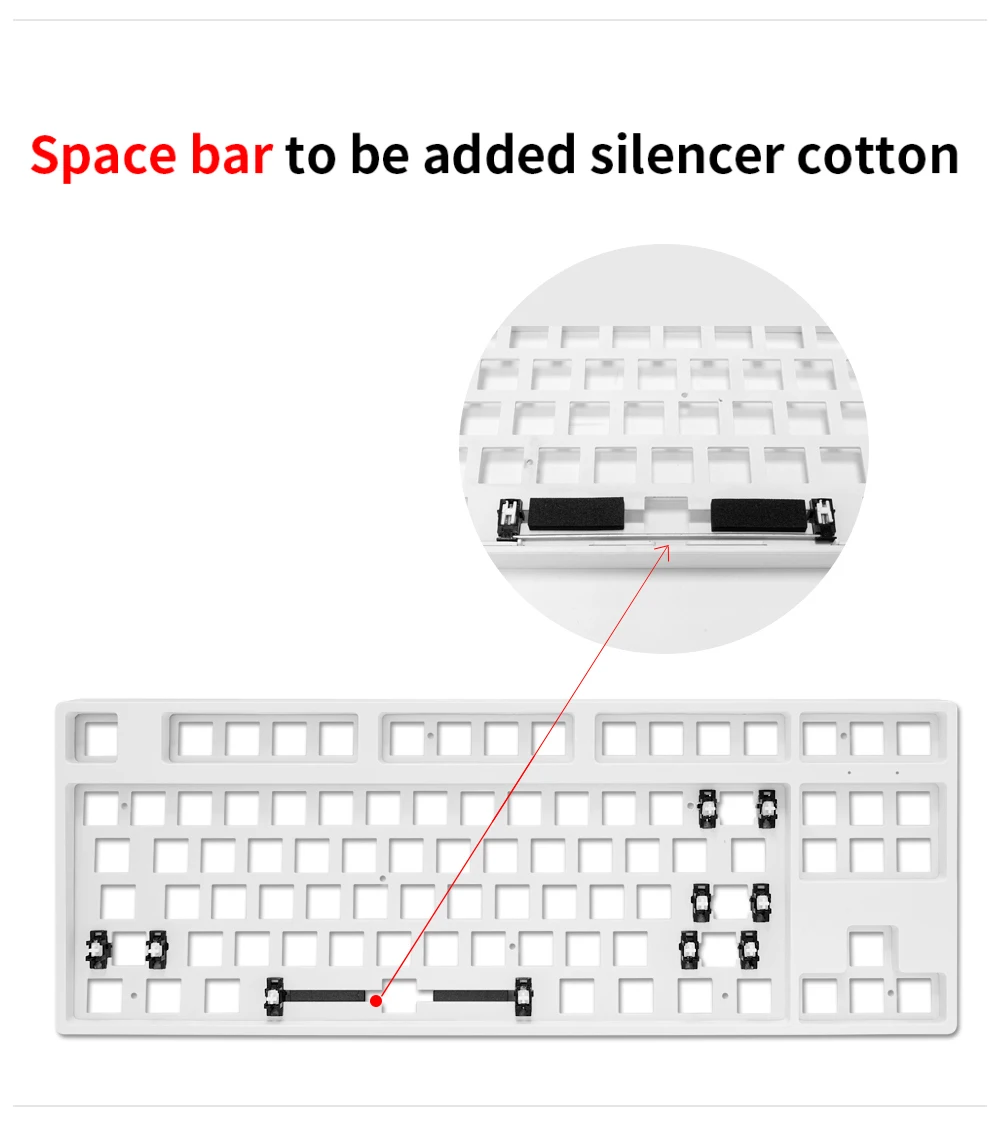

The stabilizers is produced by Gateron factory which is tighter and better than before.For linear switches,please unistall the stabilizer and clip it to get better tactile feeling.If clicky switches,can just keep the status.

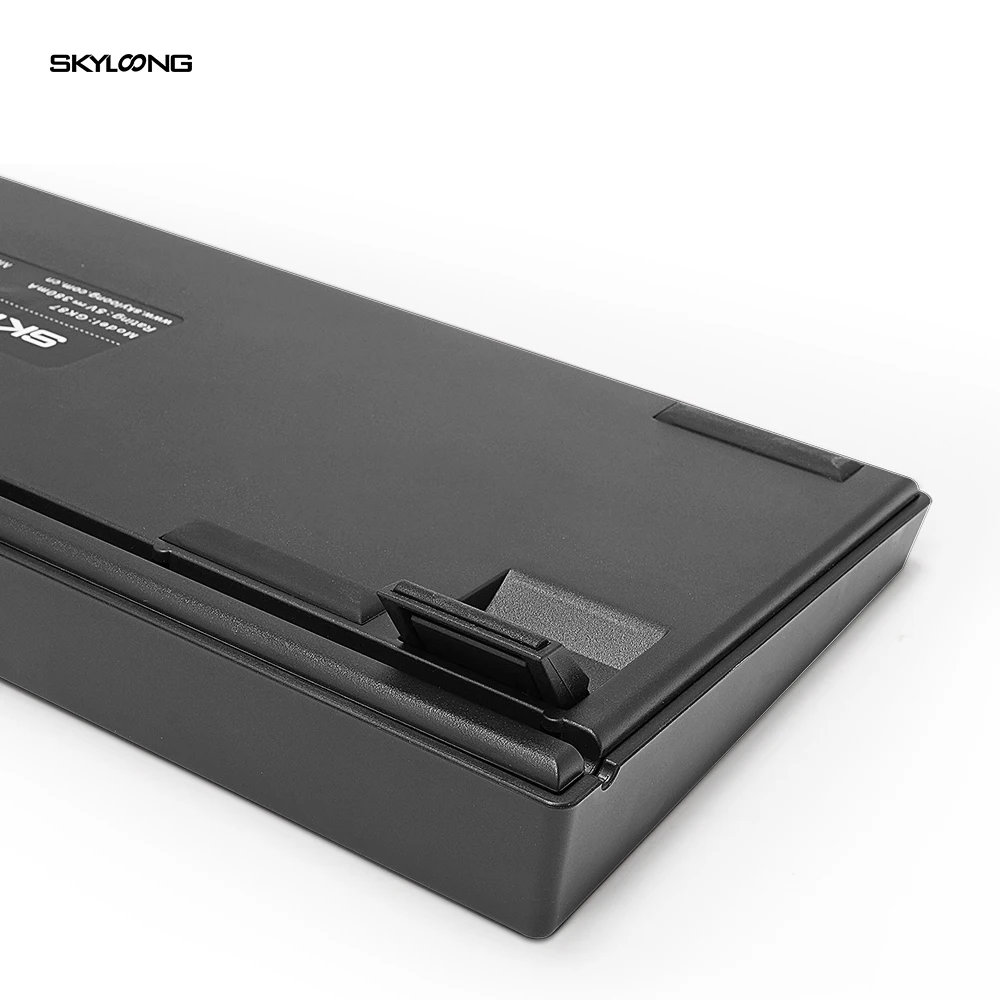

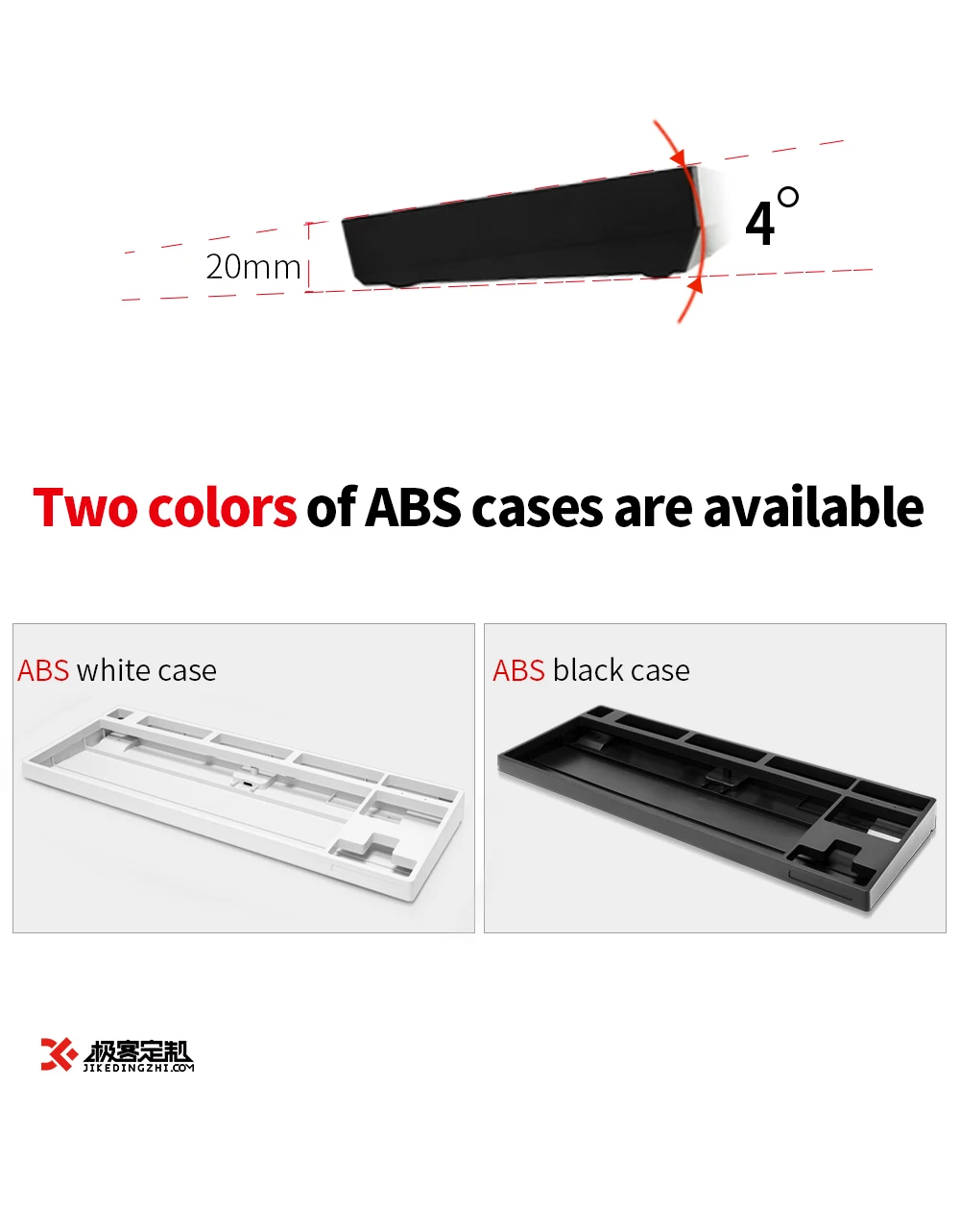

The new plastic case is ABS amoulded by Zealio factory which is higher quality and looks better than before.
Pls note: This pcb is fully programmable.

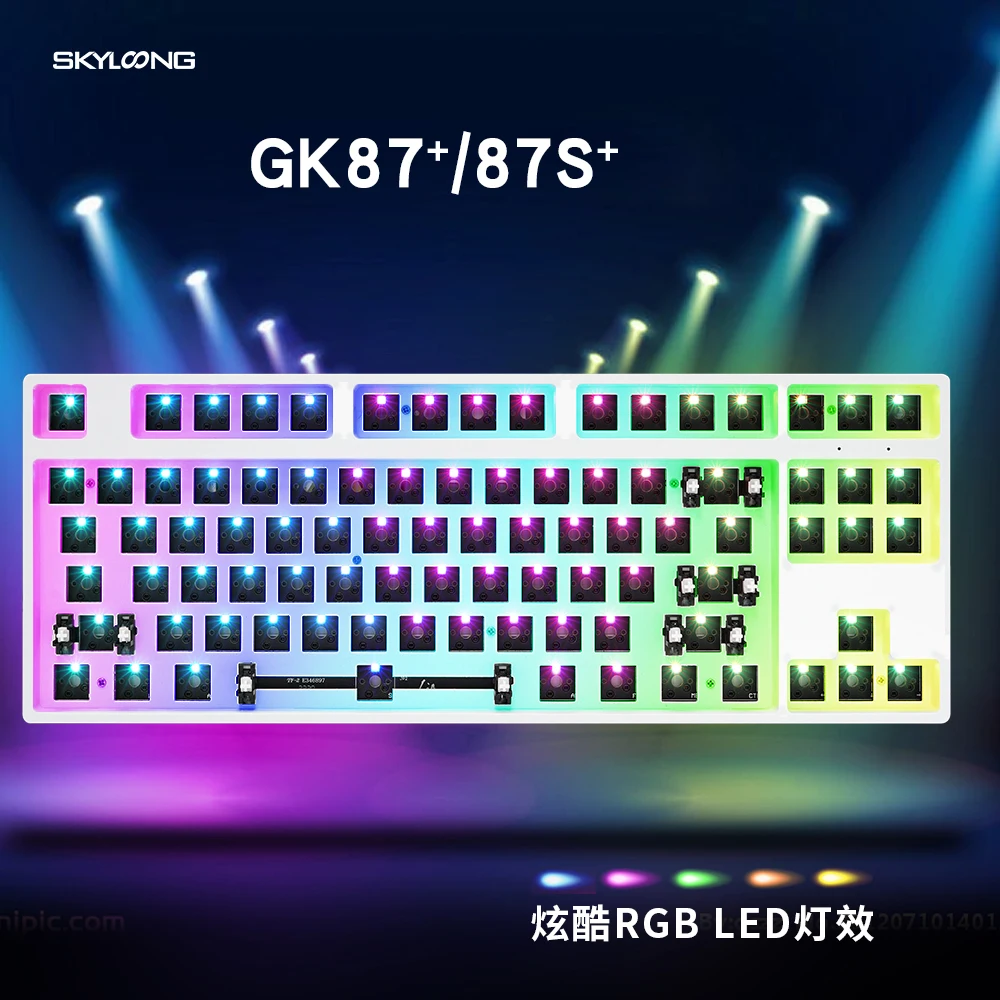

The chipset is MCU 32 bit,8M Flash,3 pcs 256*256*256 RGB drive to support full 16.8 million RGB.

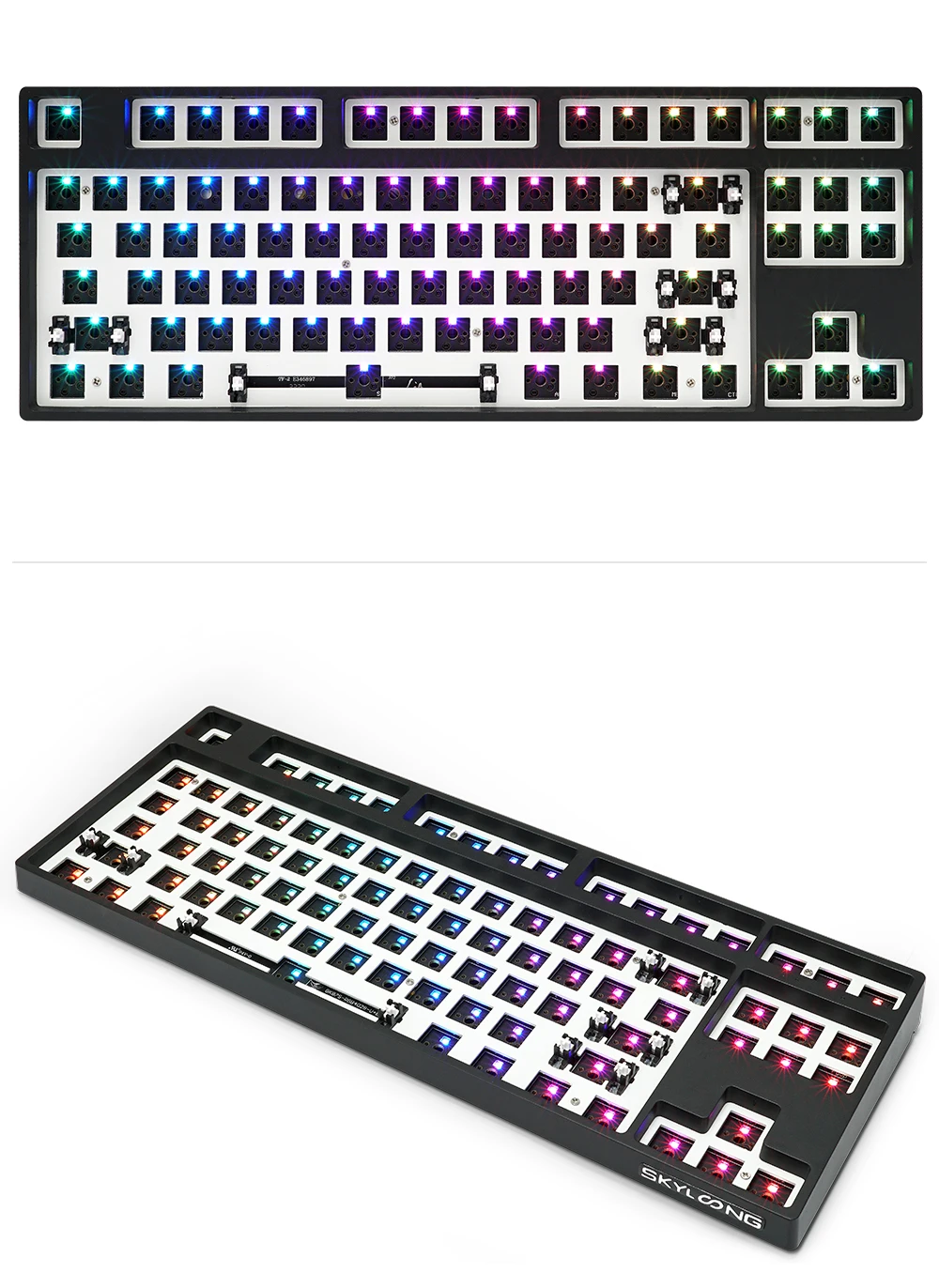

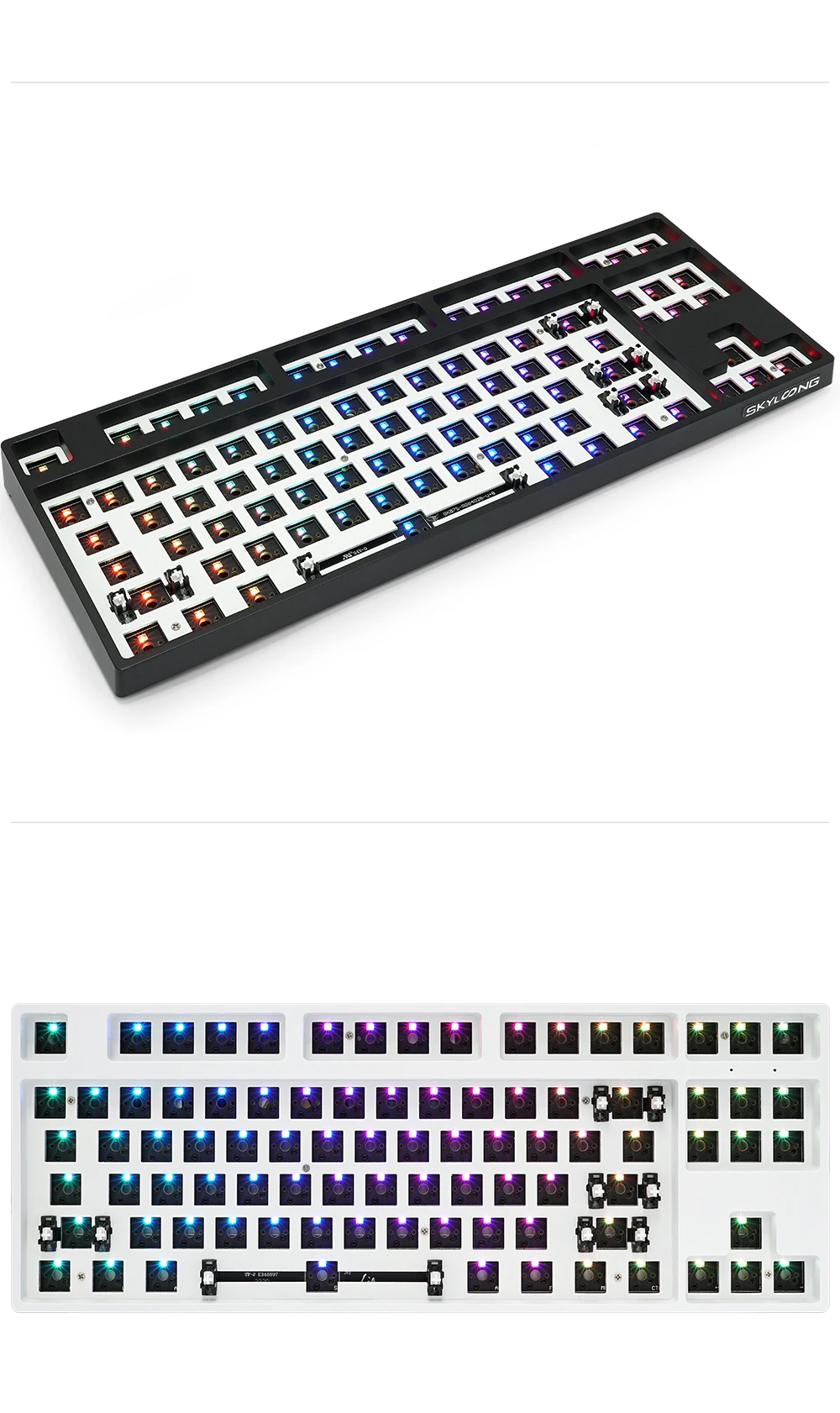

PCB has switches RGB presoldered,it's under per switch.There is no underglow RGB presoldered.
Bluetooth option is bluetooth 5.1,uses broadcom bluetooth chip and program which is more stable even than some 4.0 in the market.You can switch wired and bluetooth mode with Fn+Spc,enter into pairing mode by Fn+ZXC,can connect 3 device at most.
Bluetooth option RAlt ZXC Space key led is related to bluetooth mode,such as when battery volume is low,Ralt led will change color.So if these led color is different from other leds,it's not broken.
Bluetooth stand by time is around 10 days,if you use it without led,it can last around 6-8 days,if you use it with leds,it last around 2-4 days.The battery will charge in auto when you insert USB to PC or charger when the capacity is under 90%.
PCB is programmable with the software below (Can download on official website)
drive.google.com/open?id=1NQxMtKlI5PnjdT355soHQ4GN_JoaRMLT
