Descripción

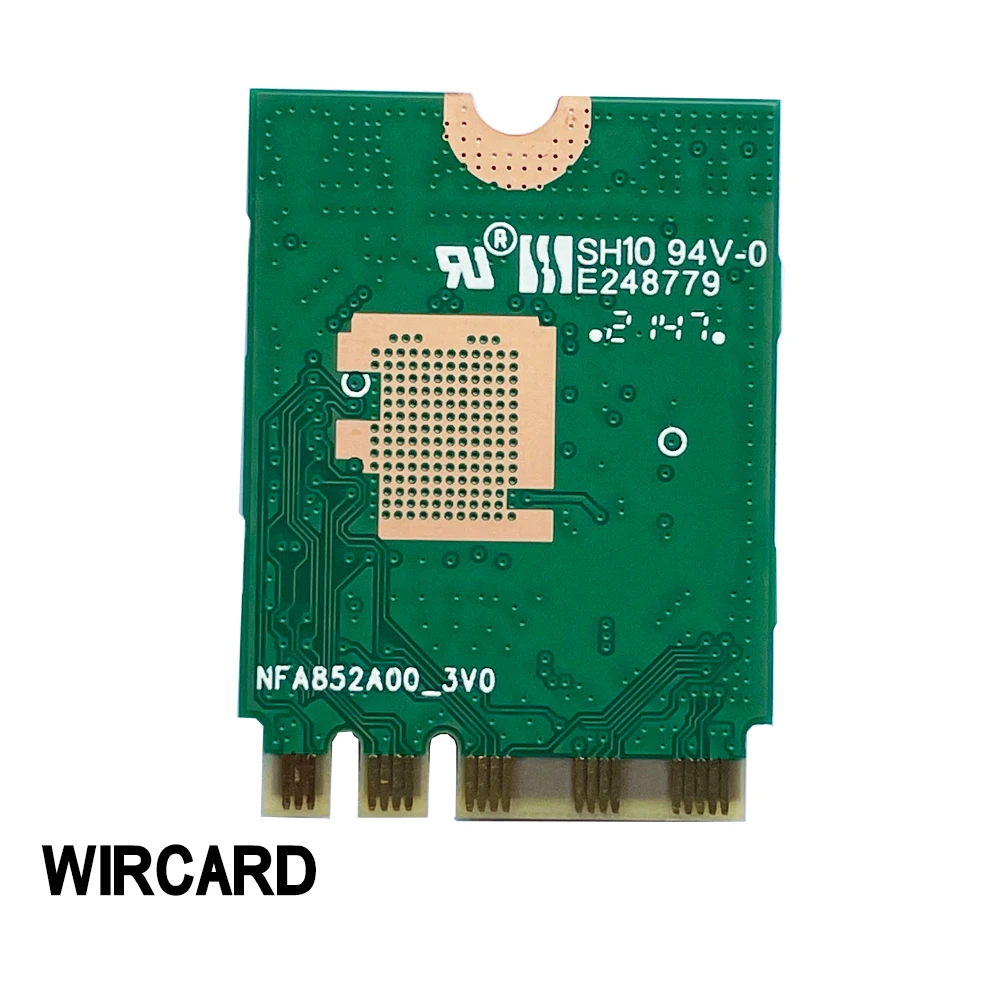

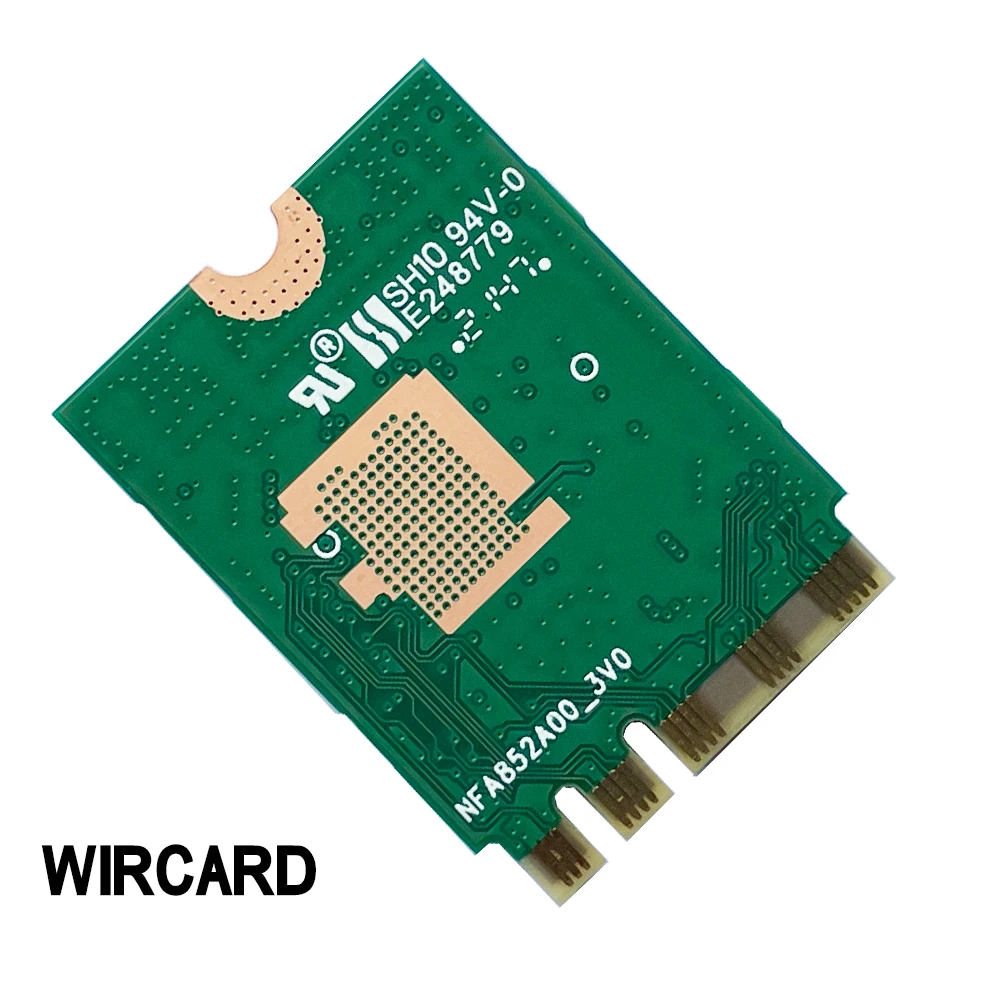

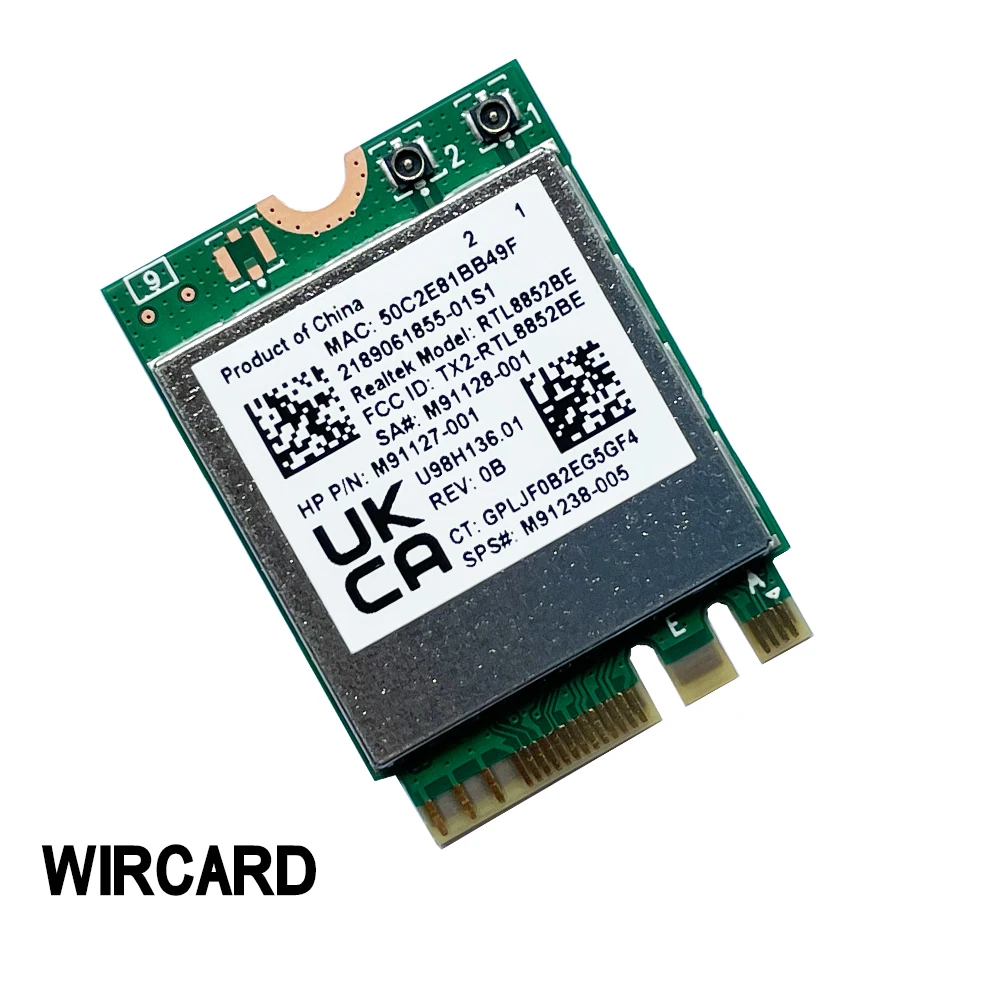

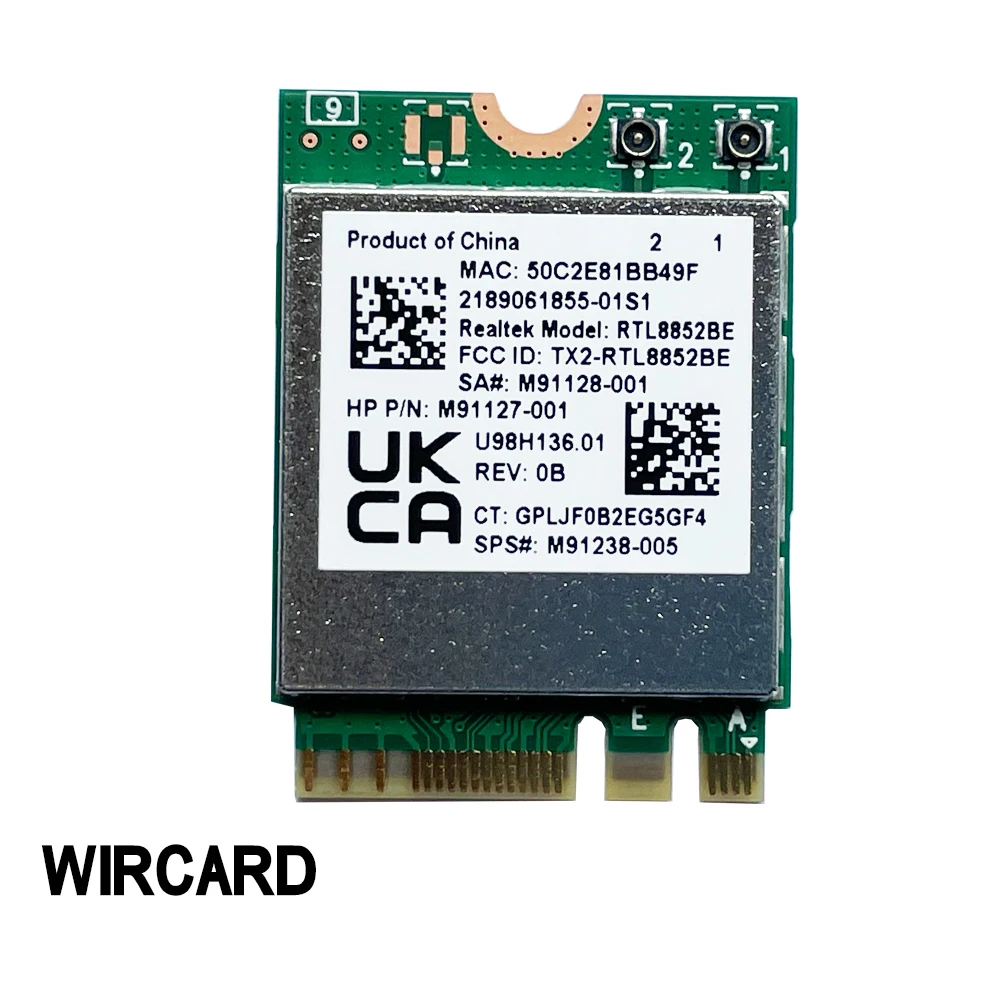

RTL8852BE WLAN 802.11ax 2T2R
+ BT5.2 M.2 2230 Combo CardThe RTL8852BE-M2CC is a highly integrated single‐chip that support 2‐stream 802.11ax solutions with
Multi‐user MIMO (Multiple‐Input, Multiple‐Output) with Wireless LAN (WLAN) PCI Expressnetwork interface controller with integrated Bluetooth Smart Ready USB interface controller. Itcombines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in single chip. The RTL8852BE-M2CCprovides a complete solution for a high‐performance integrated wireless and Bluetooth device.common Features⚫ Form factor: NGFF M.2 2230 (A‐E Key) type.
⚫ Supports for BT& WLAN Co‐existence.
⚫ WAPI(WirelessAuthentication Privacy Infrastructure) certified.
⚫ RoHS Compliance.
⚫ Halogen FreeCompliance.

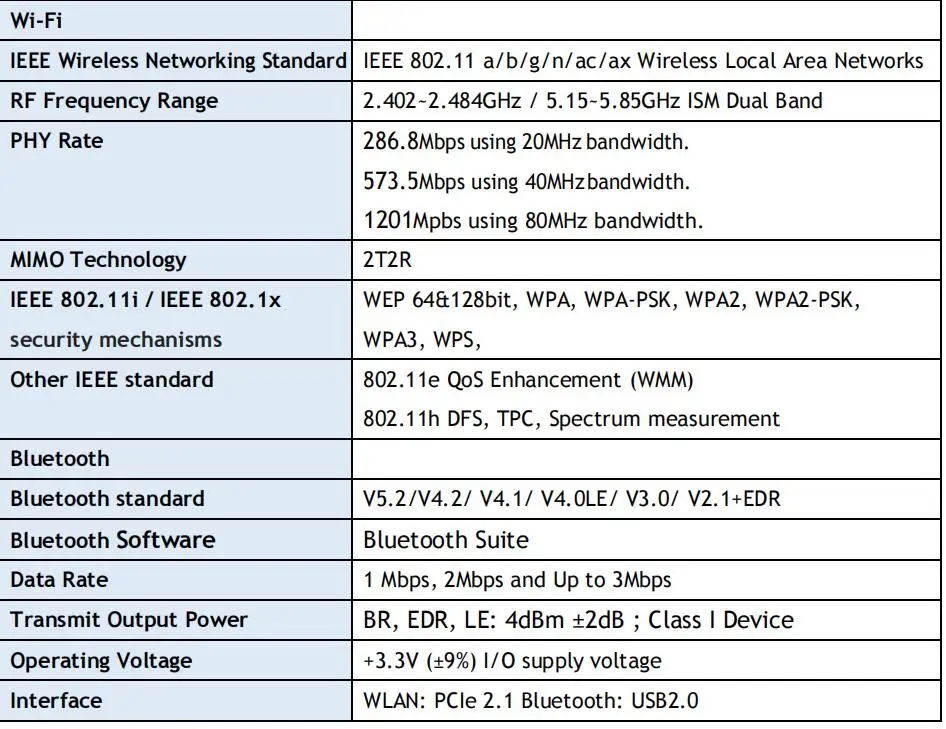

1.2.2 Wi-Fi Features⚫ IEEE 802.11a/b/g/n/ac/axWLAN.
⚫ WLAN supports 2.4GHz and 5GHz channel.
⚫ Supports low‐power PCIe Gen2 with L1SS.
⚫ Enterpriselevel securitysupporting:WPA,WPA2,WPA3,Open, sharedkey,
and pair‐wise key authenticationservices.⚫ Maximum PHY data rate up to 286.8 Mbps using 20MHz bandwidth, 573.5Mbps using 40MHz
bandwidth, and 1201Mbps using 80MHz bandwidth.⚫ TwoTransmit andTwoReceive paths 20MHz / 40MHz / 80MHz bandwidth transmission.
⚫ Supports 802.11ac 2T2R, Wave‐2 compliant with MU‐MIMO.
⚫ Supports 802.11ax 2T2R, with OFDMAand MU‐MIMO, by 4 types PPDU format, such as HE‐SU‐
PPDU , HE ‐ E U R
, ‐ SU ‐ PPD HE ‐ MU ‐ PPDU , and HE ‐ TB ‐ PPD U .
1.2.3 Bluetooth Features⚫ Bluetooth: BT2.1/3.0/4.0/4.1/4.2/5.2.
⚫ Supports Class I (TX power maximum to +6dBm).
⚫ Supports 2 Mbps Bluetooth Low Energy (BLE), BLE long range.
⚫ Supports for SCATTERNET and PICONET.
⚫ Supports Secure Simple Pairing.
⚫ FastAGC controlto improve receiving dynamic range.
⚫ Dual Mode support: Simultaneous LE and BR/EDR.
