Descripción
Features
• PCIe v2.1 (2.5 GT/s) x1, with Switching Voltage Regulator (iSVR)
• Integrated Non-Volatile Memory (iNVM)
• Platform Power Efficiency
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Proxy: ECMA-393 and Windows* logo for proxy offload
• Advanced Features:
- 0 to 70 °C commercial temperature
- Jumbo frames
- Interrupt moderation, VLAN support, IP checksum offload
- RSS and MSI-X to lower CPU utilization in multi-core systems
- Advanced cable diagnostics, auto MDI-X
- ECC – error correcting memory in packet buffers
- Four Software Definable Pins (SDPs)
Specification
• Chipset:Intel I210
• Port number:1* RJ45
• Standard:IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3bz
• Network media:10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTP
• Data rate:10/100/1Gbps
• Interface:MINI-PCI Express
• Auto MDIX:YES
• Full Duplex Support :YES
• MTBF:376,212 Hours
• LED Indicator:Link/Act, Speed
• Operating Temperature: 0 ℃-70 ℃
• Relative Humidity: 10%-90%(non-condensing)
• Storage Temperature: -10℃-70℃
• Relative Humidity: 5%-90%(non-condensing)
System Requirements
• Windows®10(32/64), Win7 (32/64), Win8.1 (32/64)
• Windows Server® 2019,2016,2012, 2008
• LINU
• DOS

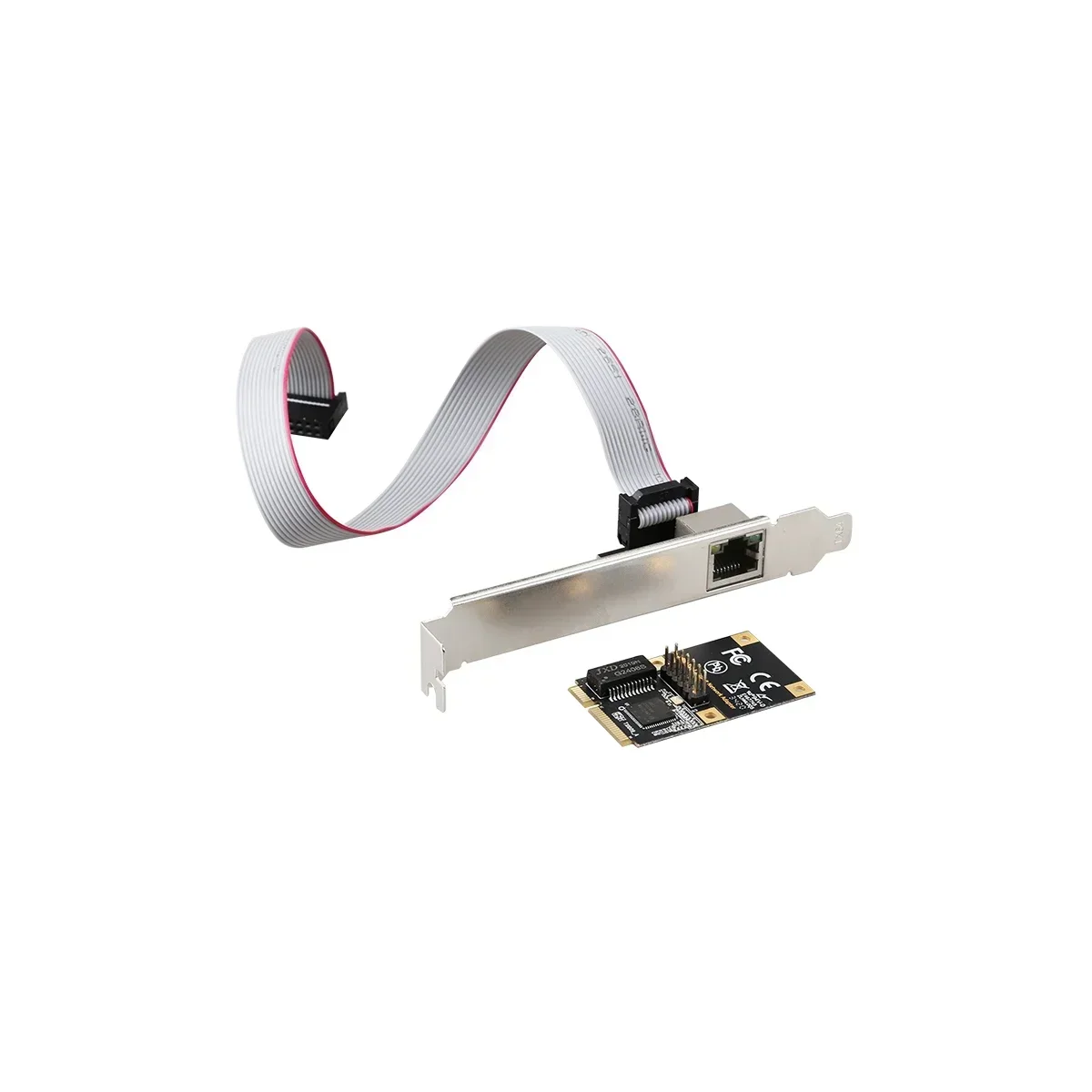

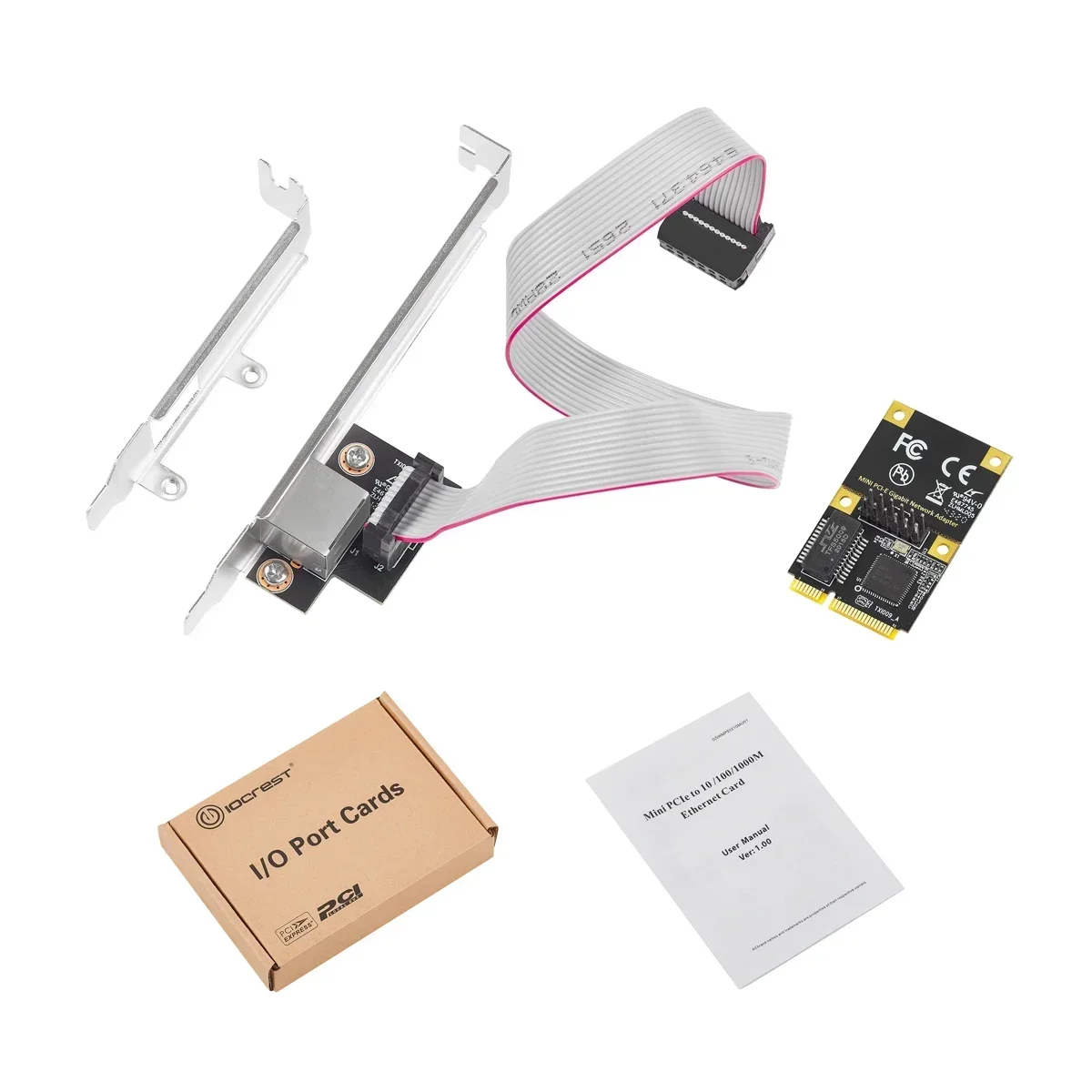

Package Contents

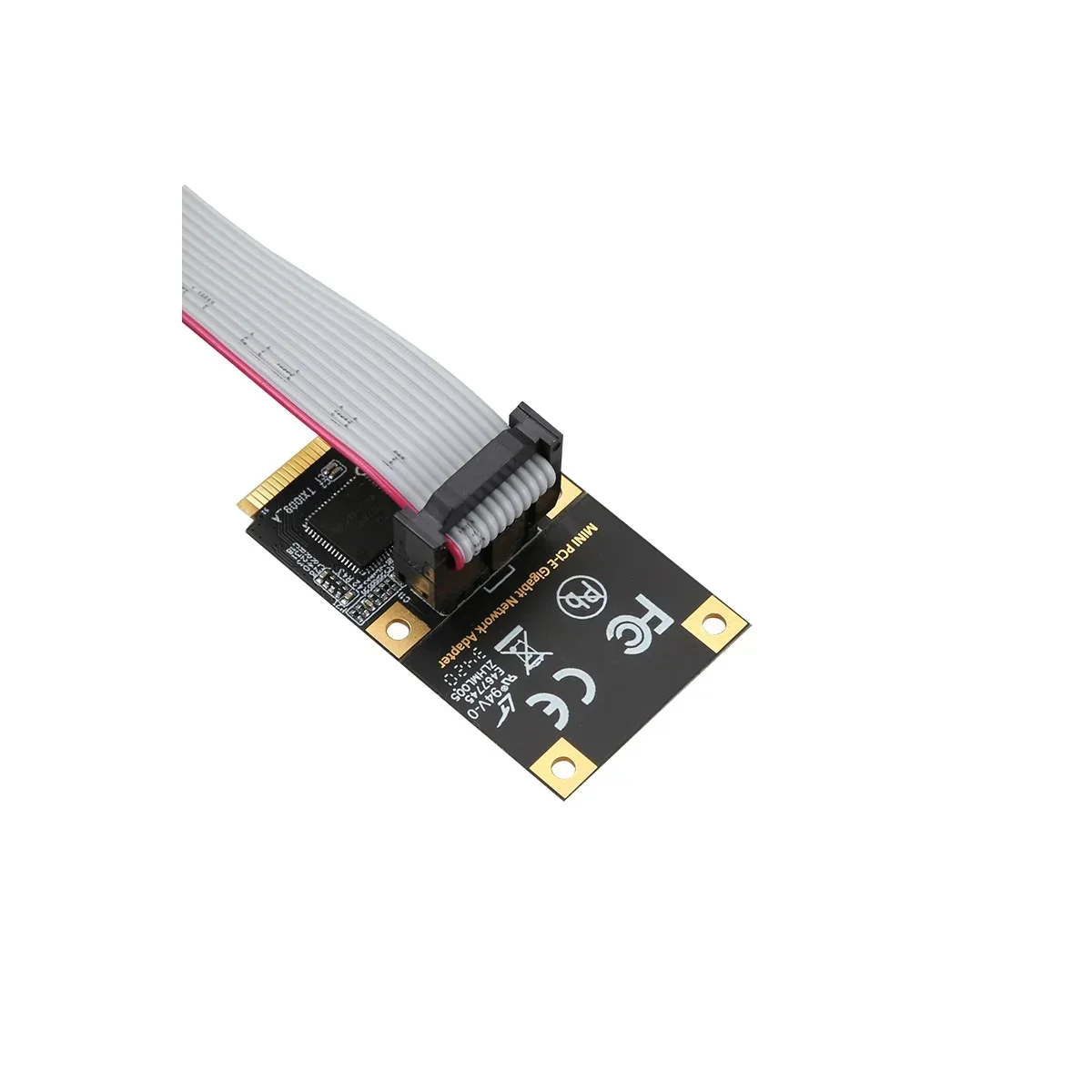

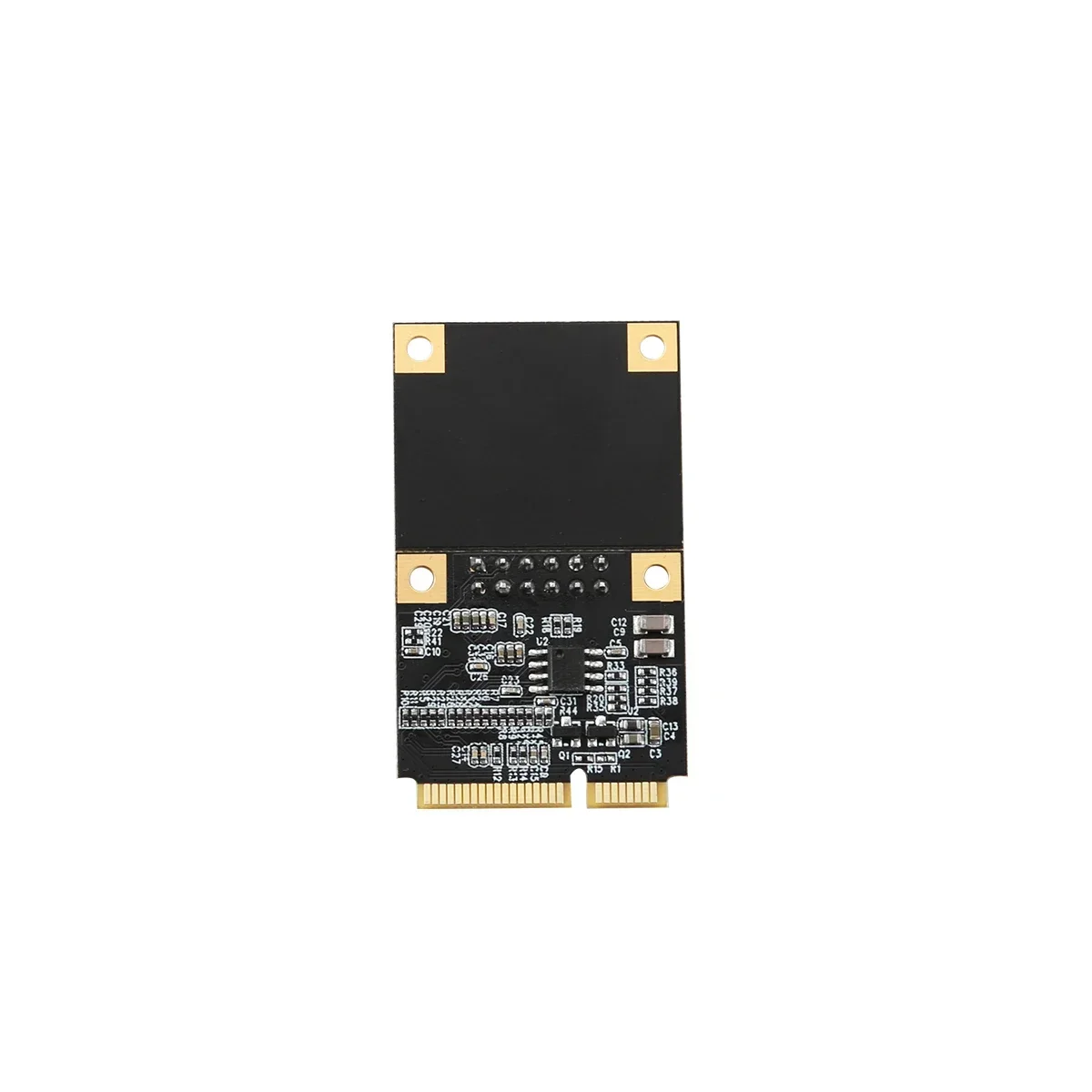

• 1 x Gigabit Ethernet Mini PCI-Express Card - Main card
• 1 x Gigabit Ethernet Mini PCI-Express Card - Daughter card
• 1 x User manual
• 1 x Gigabit Ethernet cable
