Features：
Widely Used in:
Humidifier/ Aromatherapy and other Small Appliances Series
Small Hear Radiating Communication equipment plate cooling heat
Intelligent industrial control equipment plate cooling heat
High Precision Medical equipment cooling
PC CPU Server Cooling Dissipation
Anywhere & electronic that need cooling

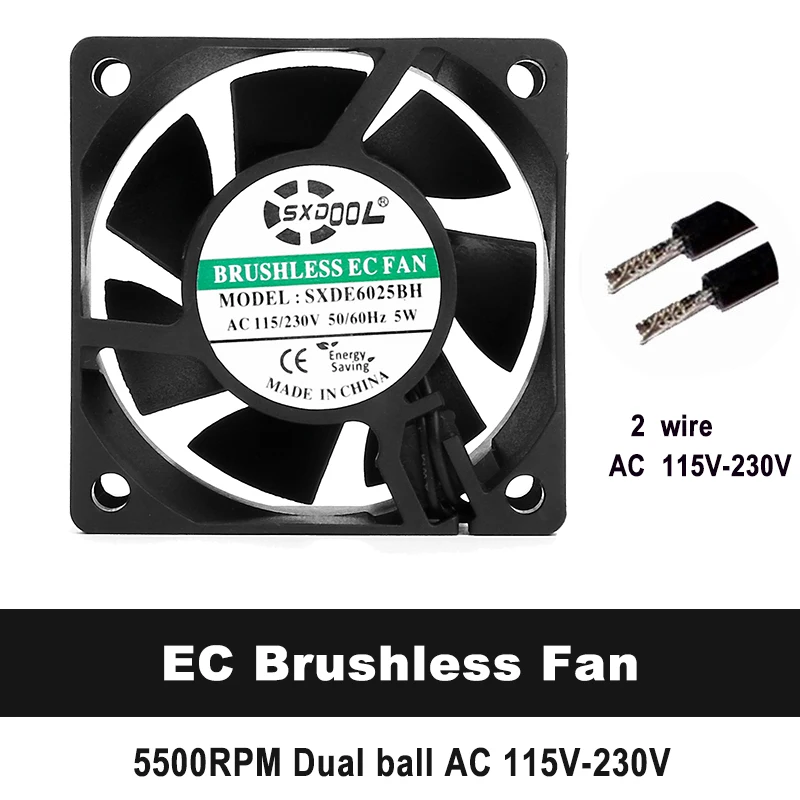

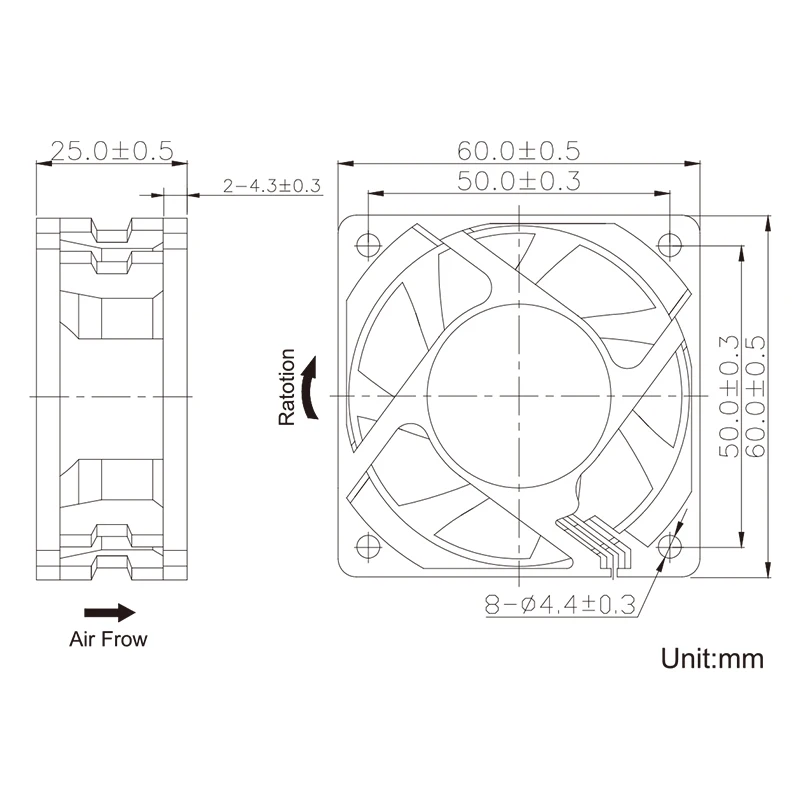

60X60X25mm Dual Ball Bearing Fan
Parameters:
Dimensions: 60mm(L)×60mm(W)×25mm(H)
Mountings Hole:50.2±0.3mm
Connector: 2 wire (without connector)
Rated Voltage: AC 110V-240V
Bearing Type: Dual Ball
Rated Speed: 5500RPM±10%
Noise Level: 37dBA±10%
Air Flow: 25.2CFM±10%
Cable Length: 20cm
Life: 50000Hours
Weight: 62g/pcs
Power:5.0W

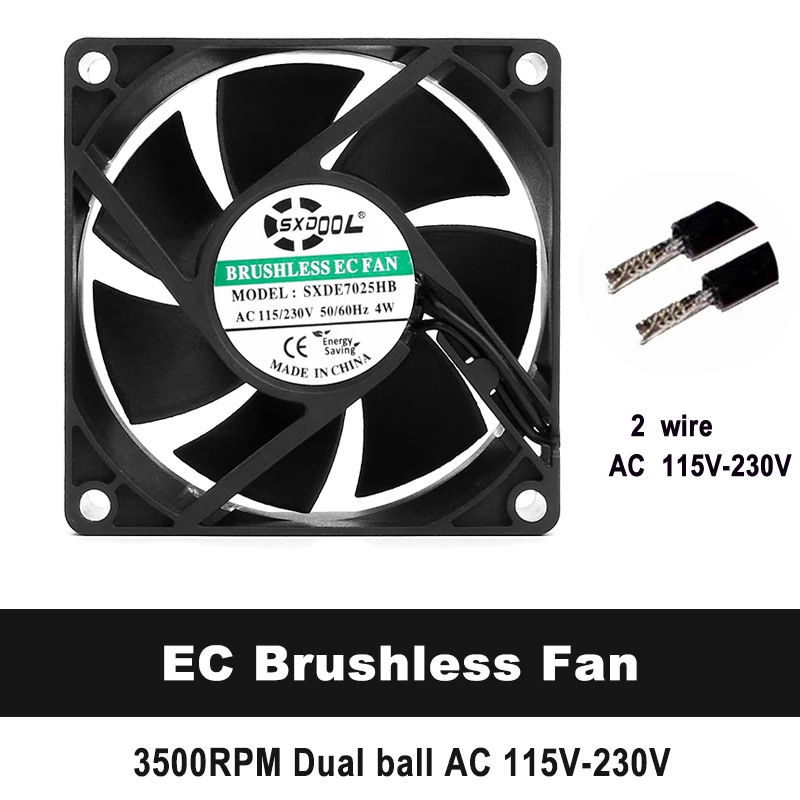

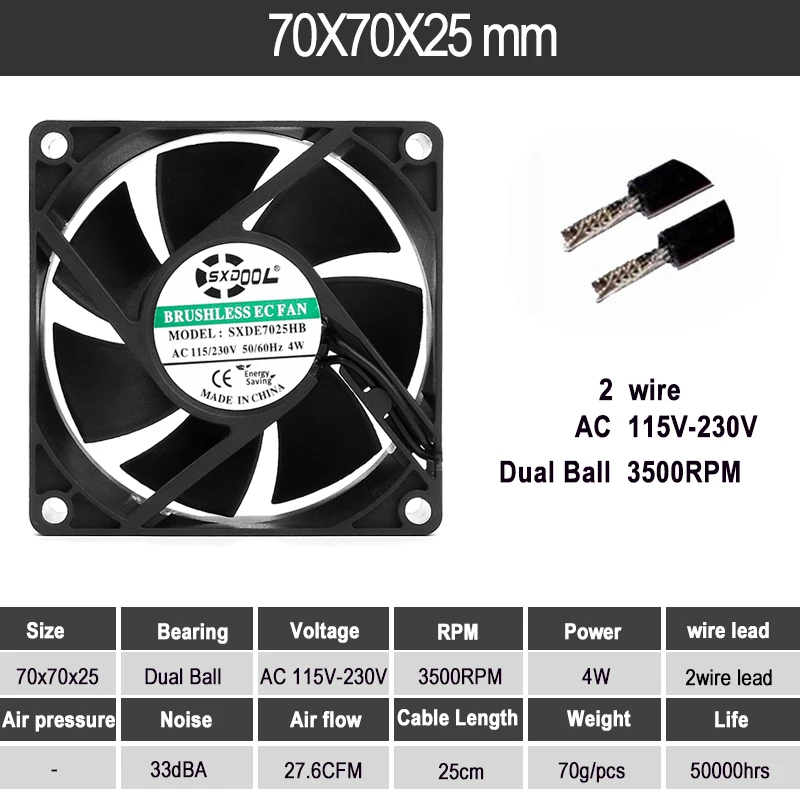

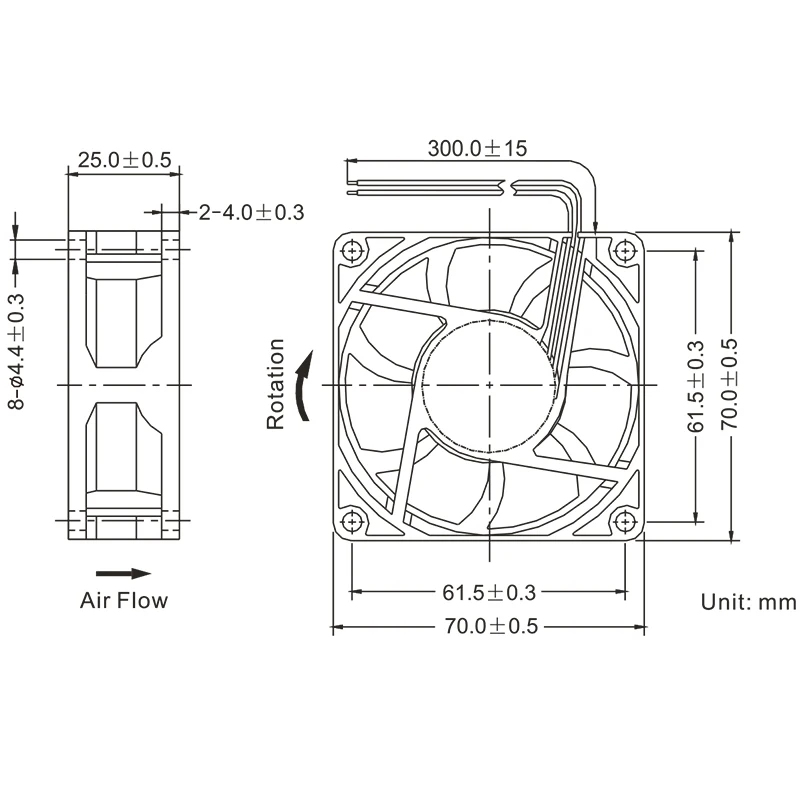

70X70X25mm Dual Ball Bearing Fan
Parameters:
Dimensions: 70mm(L)×70mm(W)×25mm(H)
Mountings Hole:61.5±0.3mm
Connector: 2 wire (without connector)
Rated Voltage: AC 110V-240V
Bearing Type: Dual Ball
Rated Speed: 3500RPM±10%
Noise Level: 33dBA±10%
Air Flow: 27.6CFM±10%
Cable Length: 20cm
Life: 50000Hours
Weight: 70g/pcs
Power:4.0W

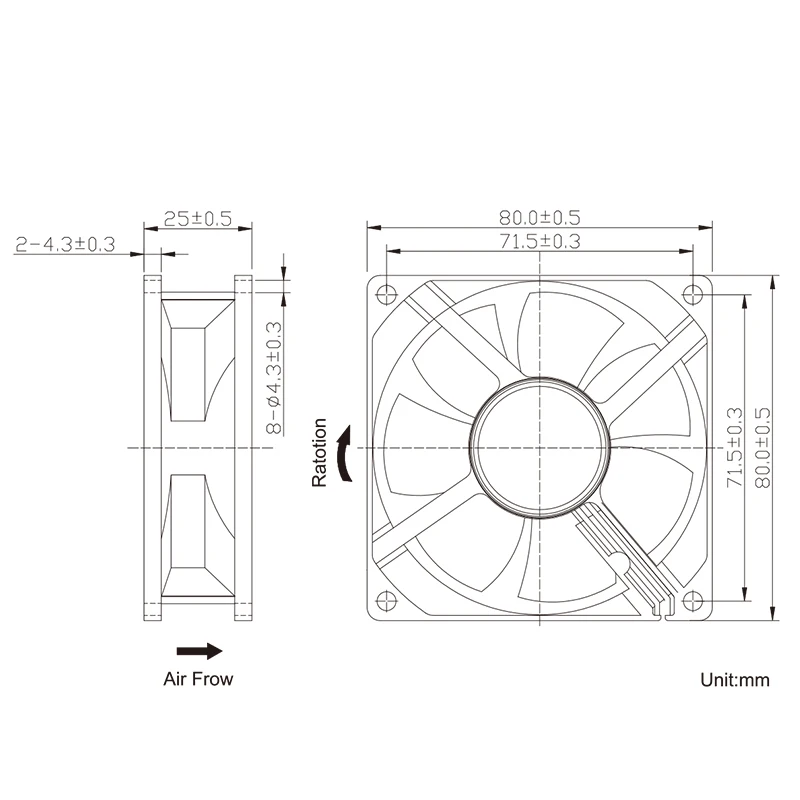

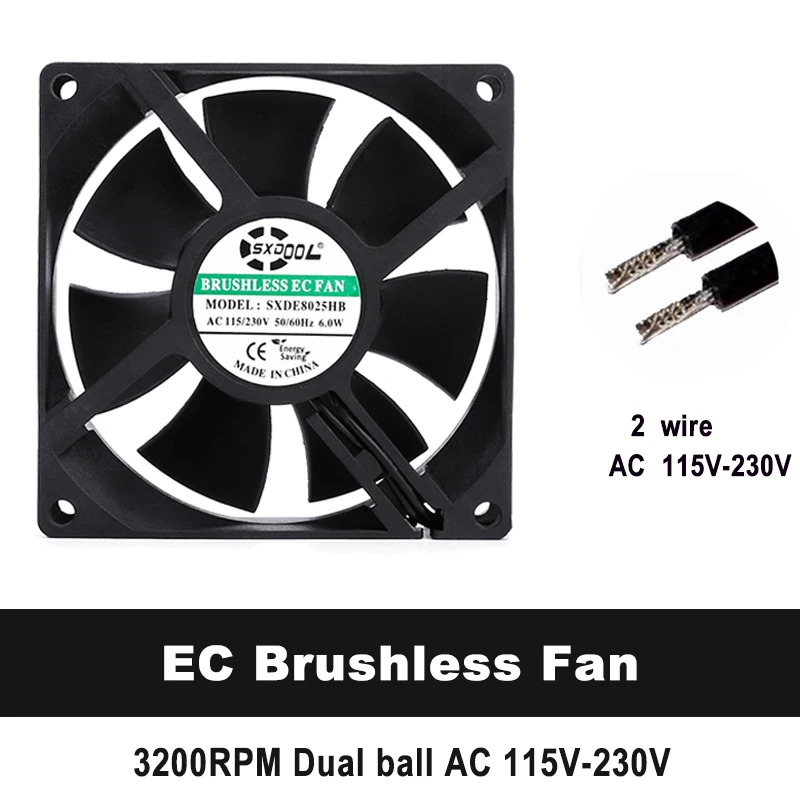

80X80X25mm Dual Ball Bearing Fan
Parameters:
Dimensions: 80mm(L)×80mm(W)×25mm(H)
Connector: 2wire (without connector)
Rated Voltage: AC 110V-240V
Bearing Type: Dual Ball Bearing
Rated Speed: 3200RPM±10%
Noise Level: 34dBA±10%
Air Flow: 42.5CFM±10%
Cable Length: 30cm
Life: 50000Hours
Weight: 76g/pcs
Power:5.0W
Package include: 1pcs EC 80mm Fan

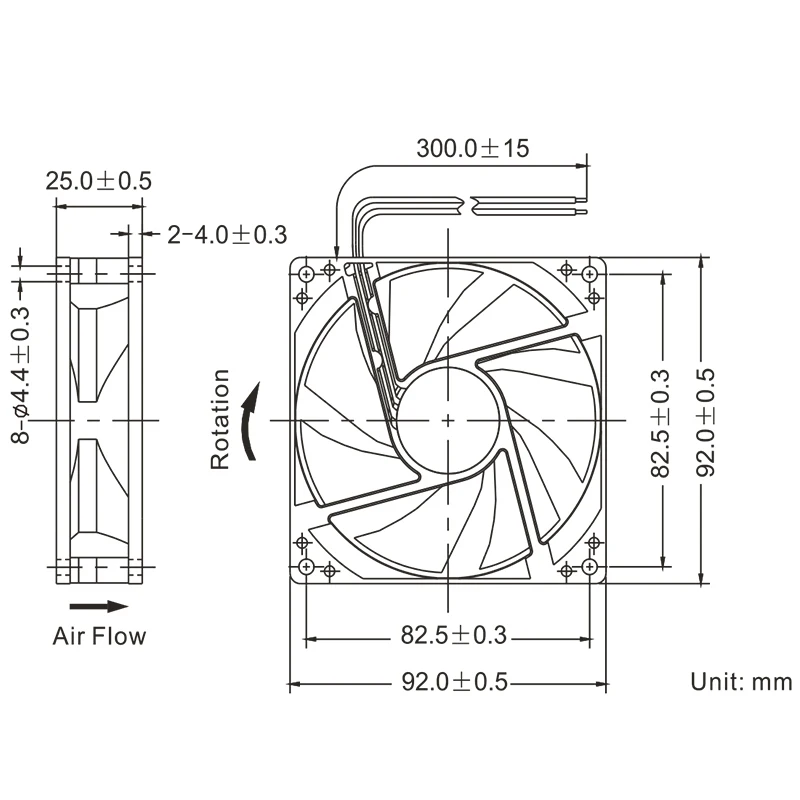

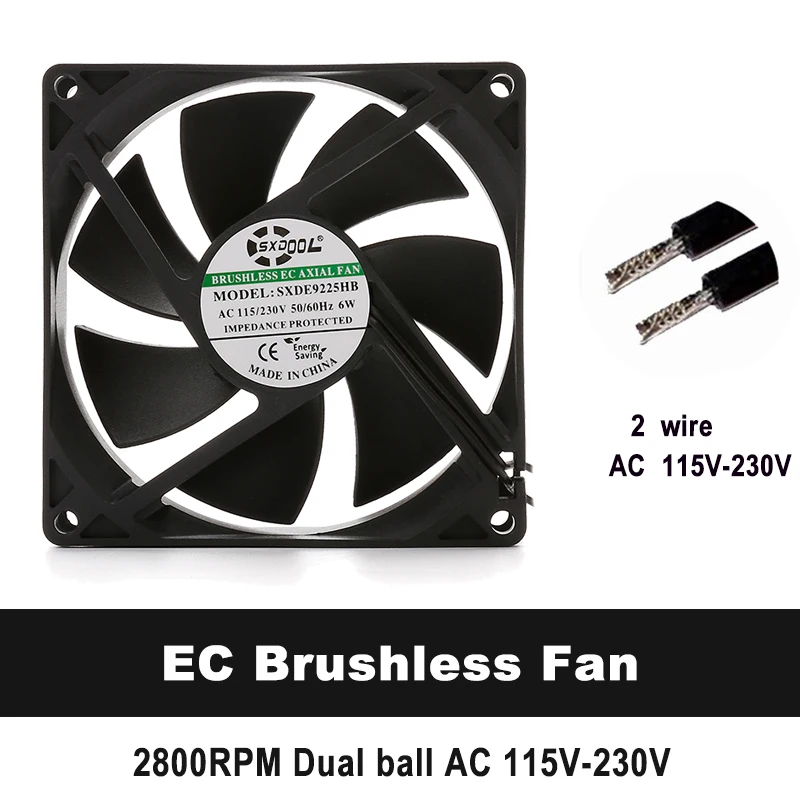

92X92X25mm Dual Ball Bearing Fan
Parameters:
Dimensions: 92mm(L)×92mm(W)×25mm(H)
Connector: 2wire (without connector)
Rated Voltage: AC 110V-240V
Bearing Type: Ball Bearing
Rated Speed: 2800RPM±10%
Noise Level: 33dBA±10%
Air Flow: 55.2CFM±10%
Cable Length: 30cm
Life: 50000Hours
Weight: 85g/pcs
Power:6.0W

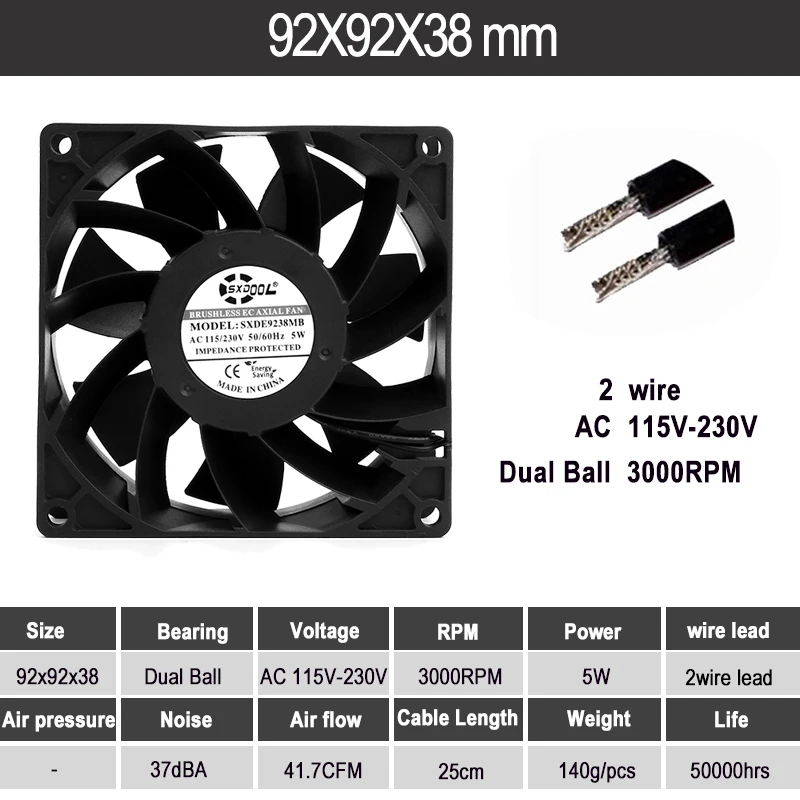

92X92X38mm Dual Ball Bearing Fan
Parameters:
Dimensions: 92mm(L)×92mm(W)×38mm(H)
Connector: 2wire (without connector)
Rated Voltage: AC 110V-240V
Bearing Type: Dual Ball Bearing
Rated Speed: 3000RPM±10%
Noise Level: 33dBA±10%
Air Flow: 68.5CFM±10%
Cable Length: 30cm
Life: 50000Hours
Weight: 175g/pcs
Power:5.0W

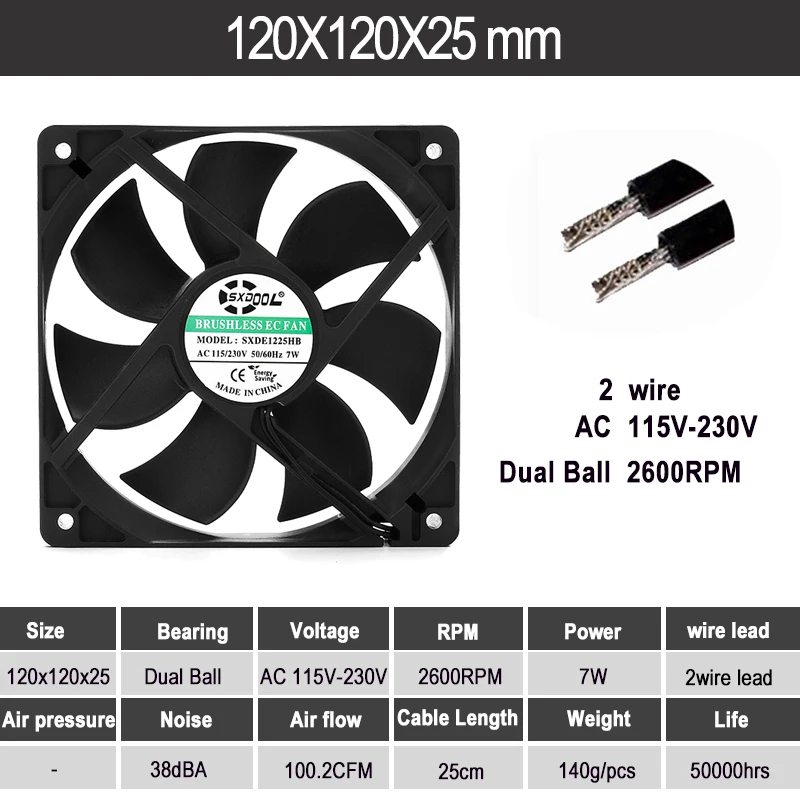

120X120X25mm Dual Ball Bearing Fan
Parameters:
Dimensions: 120mm(L)×120mm(W)×25mm(H)
Mountings Hole:105.0±0.3mm
Connector: 2 wire (without connector)
Rated Voltage: AC 110V-240V
Bearing Type: Dual Ball
Rated Speed: 2600RPM±10%
Noise Level: 38dBA±10%
Air Flow: 100.2CFM±10%
Cable Length: 20cm
Life: 50000Hours
Weight: 70g/pcs
Power:7.0W

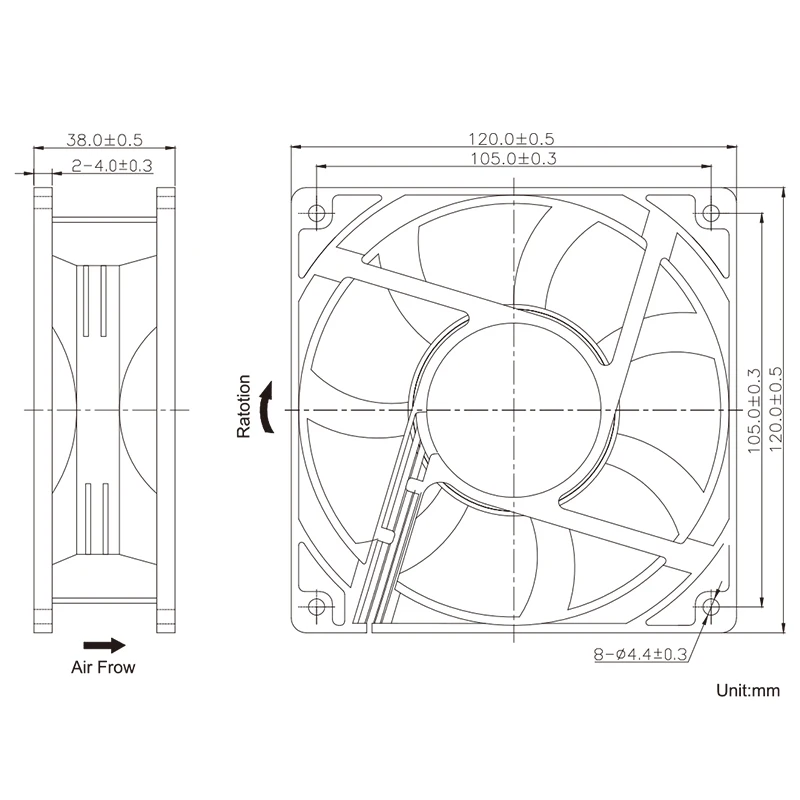

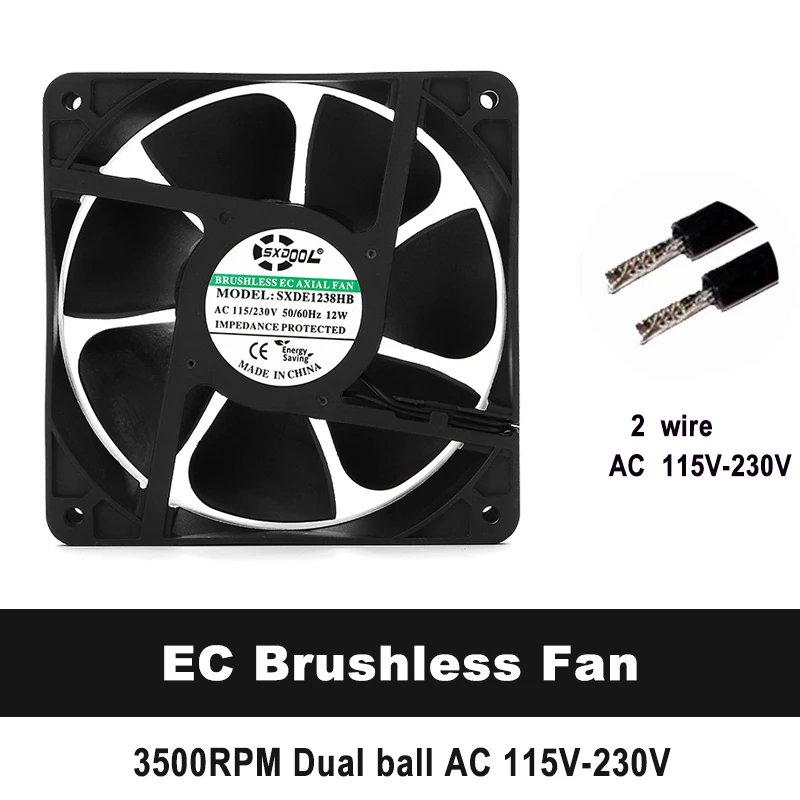

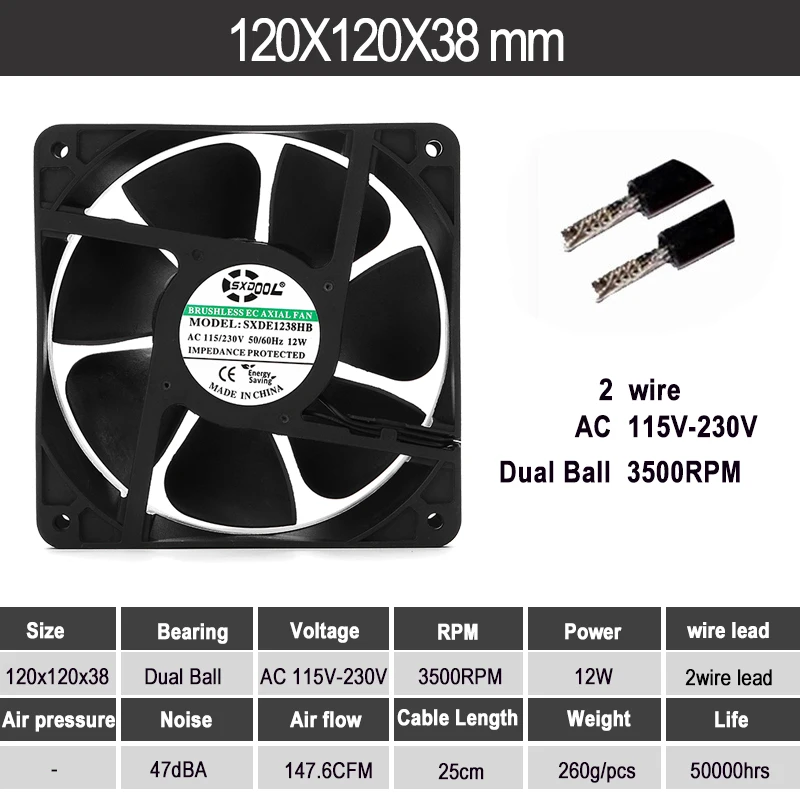

120X120X38mm Dual Ball Bearing Fan
Parameters:
Dimensions: 120mm(L)×120mm(W)×38mm(H)
Mountings Hole:105.0±0.3mm
Connector: 2 wire (without connector)
Rated Voltage: AC 110V-240V
Bearing Type: Dual Ball
Rated Speed: 3500RPM±10%
Noise Level: 47dBA±10%
Air Flow: 147.6CFM±10%
Cable Length: 20cm
Life: 50000Hours
Weight: 260g/pcs
Power:12.0W
