para SUNON KDE2412PMB1-6A 12038 12cm 120mm 24V 10.3W Ventilador de refrigeración, alto flujo de aire, para inversores Siemens y aplicaciones industriales

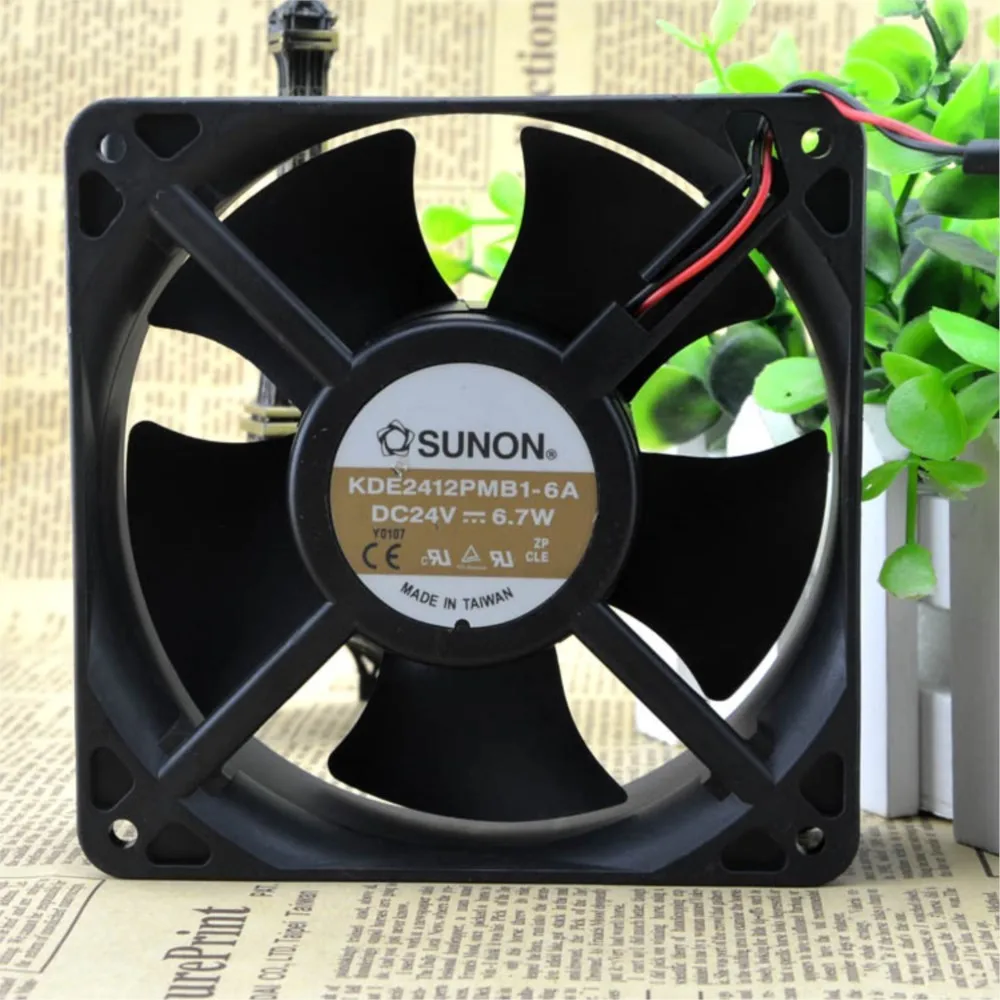

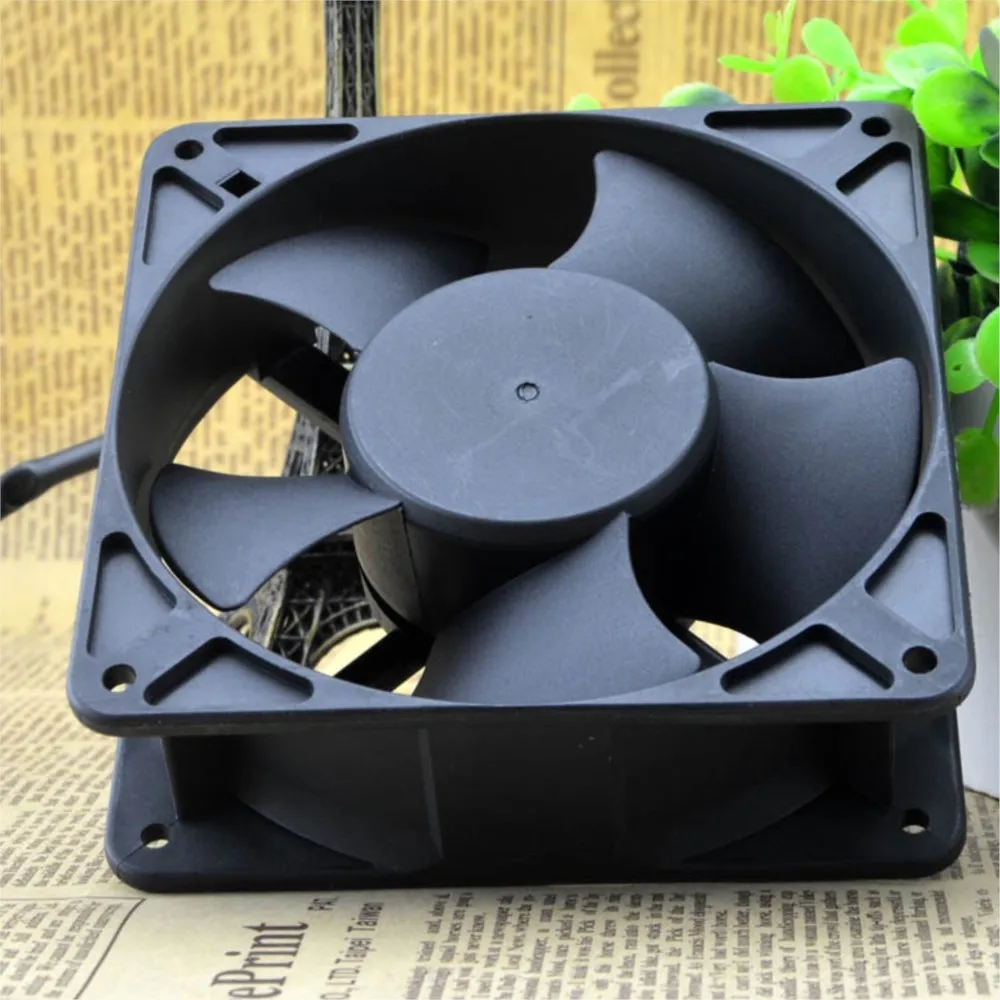

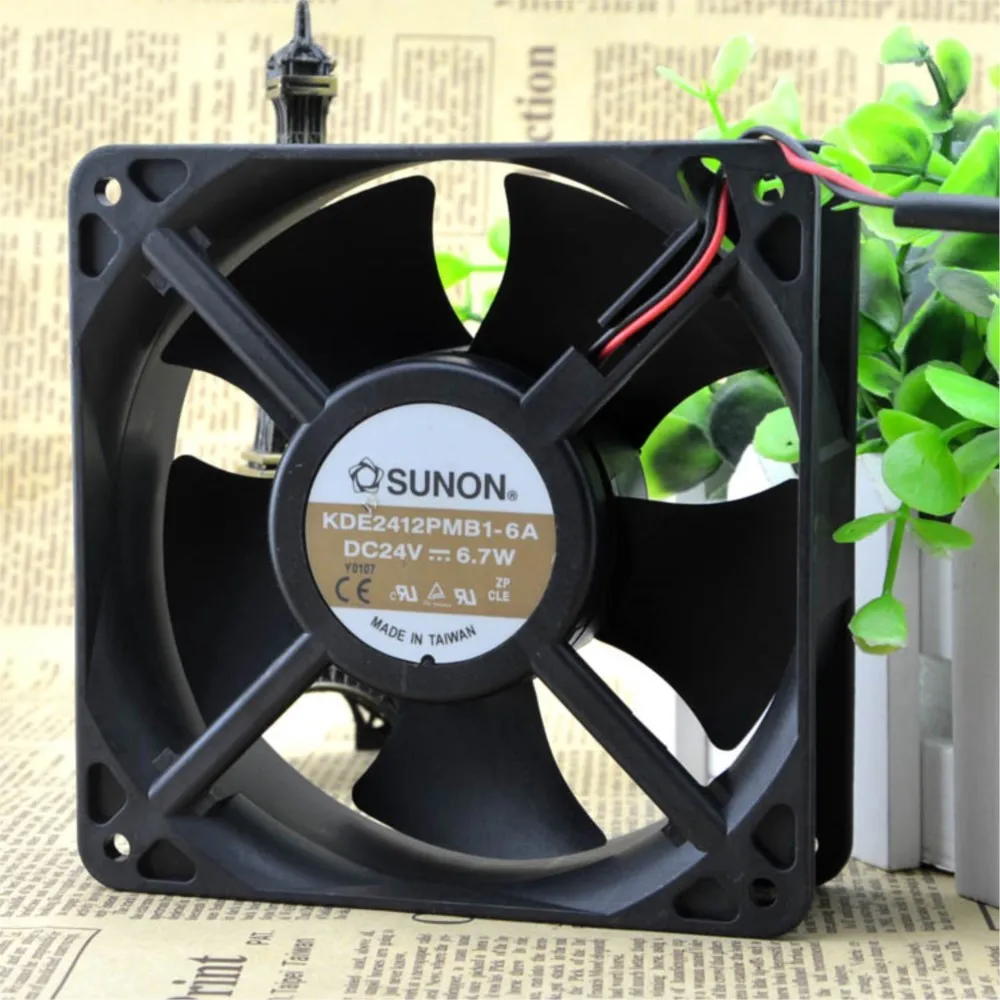

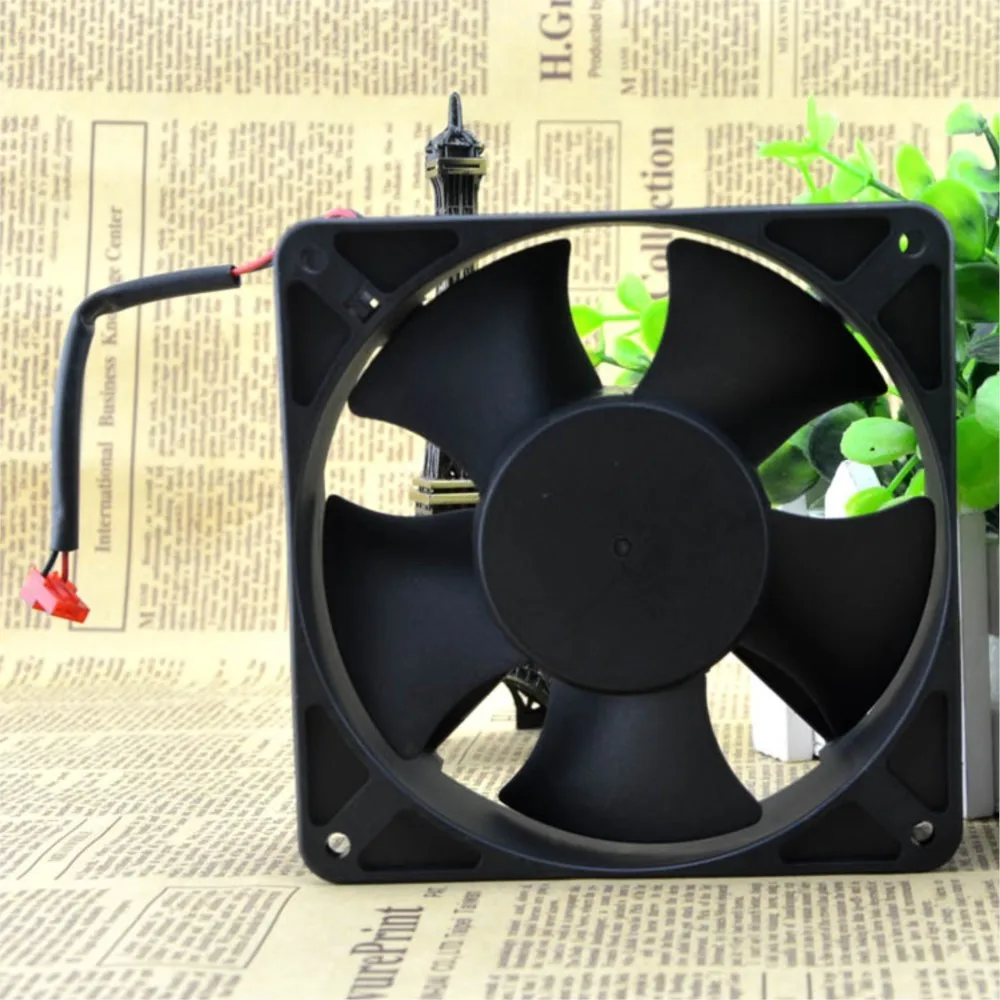

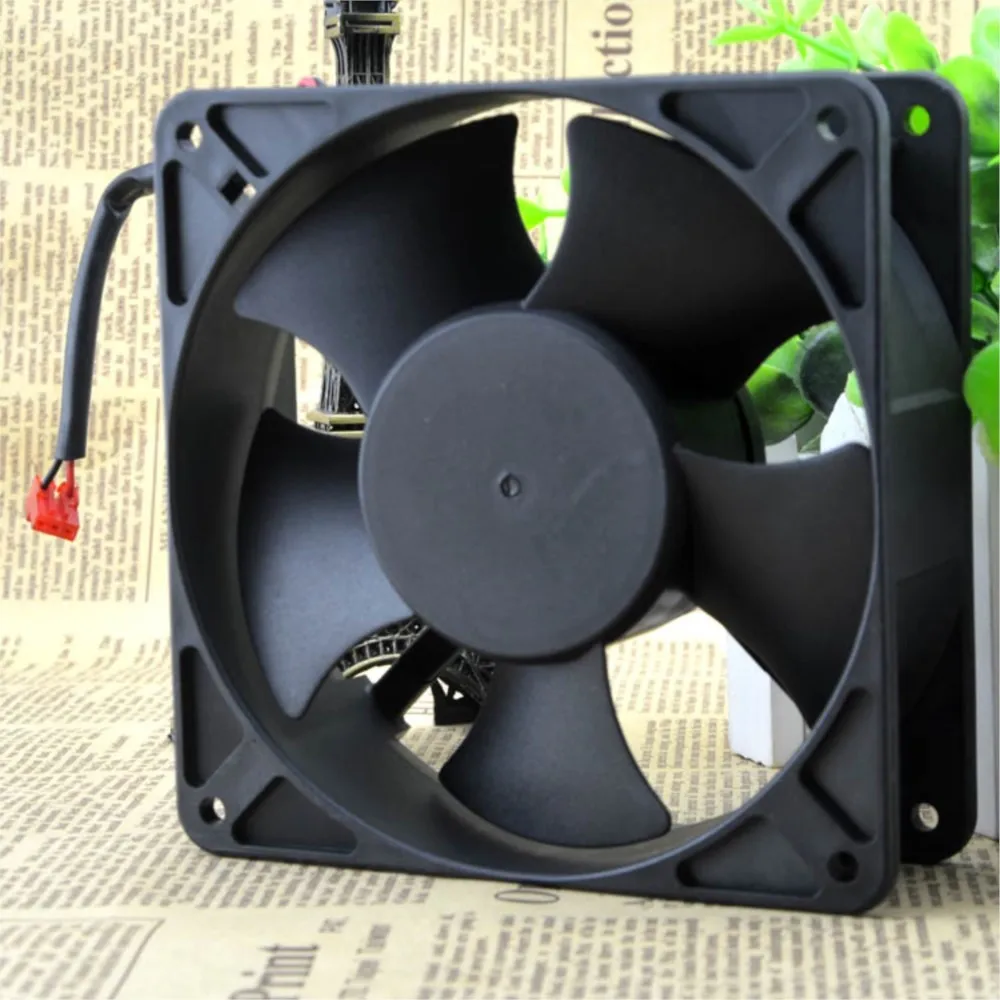

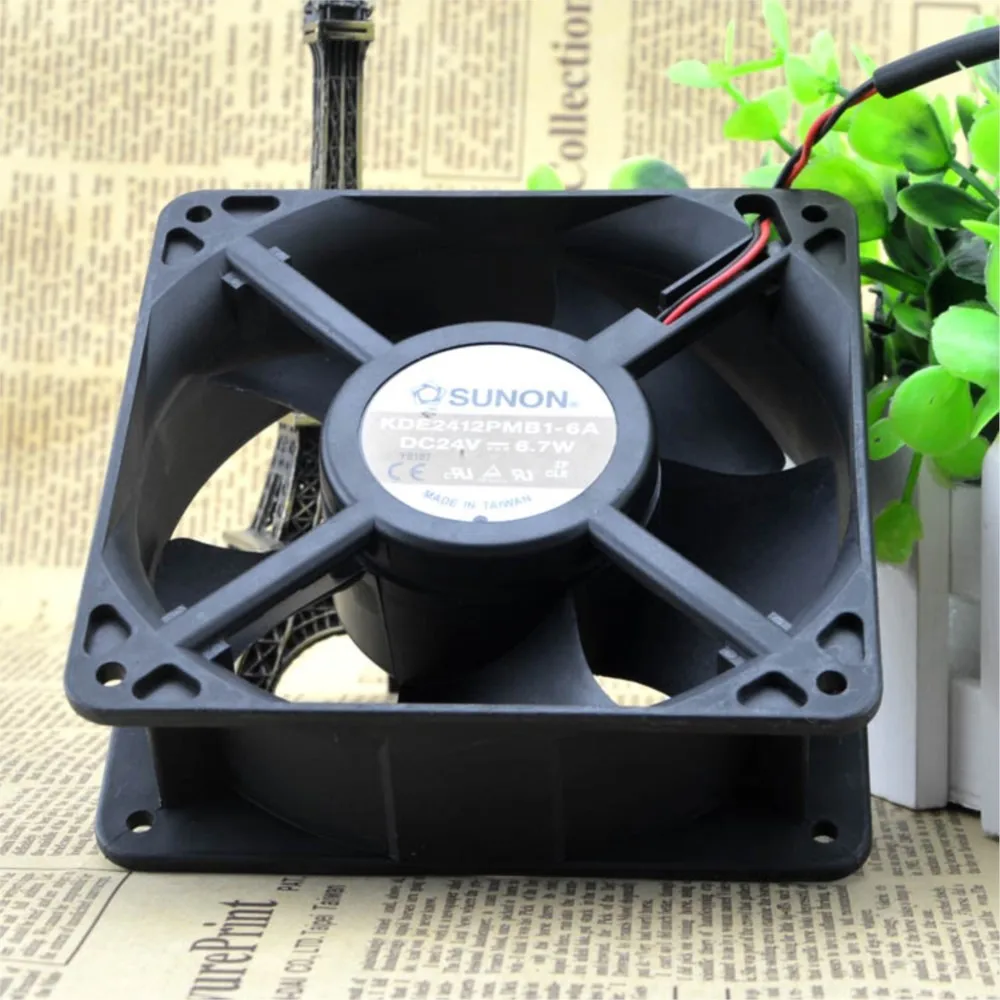

Fan models: KDE2412PMB1-6A

appearance size: 120*120*38mm
bearing: high precision double ball bearing
voltage: 24V
start-up voltage: 16V
operating voltage: 20.4-27.6V
current: 0.42A
power: 10.3W
rotating speed: 3100rpm ± 250rpm
noise: 42dB A
air volume: 108CFM
wiring: 2-wire 2p interface
frame for fan: injection molding, PBT + 30% glass fiber VO grade flame retardant
fan blade: Injection Molding once, PBT + 30% glass fiber + VO grade flame retardant.
Fan rotation direction: anticlockwise from the direction of fan blade
run temperature:-10 degrees Celsius to +70 degrees Celsius
storage Temperature:-40 degrees Celsius to +70 degrees Celsius
power supply range: positive and negative 15% of rated power supply
in no way edge Electronic Resistance: greater than 500 megoo
withstand voltage: sink leakage current 0.5mA 500V/1 minute
working life: 80000 hours when the ambient temperature is 25 degrees
scope of Application: industrial equipment such as frequency converter
net Weight: 326g
origin: Taiwan
