Stack HAT, un kit de expansión de E/S diseñado para Raspberry Pi, proporciona 5 juegos de pinheaders 2x20, pilas hasta 5 HAT de inmediato

DESCRIPTION

Overview

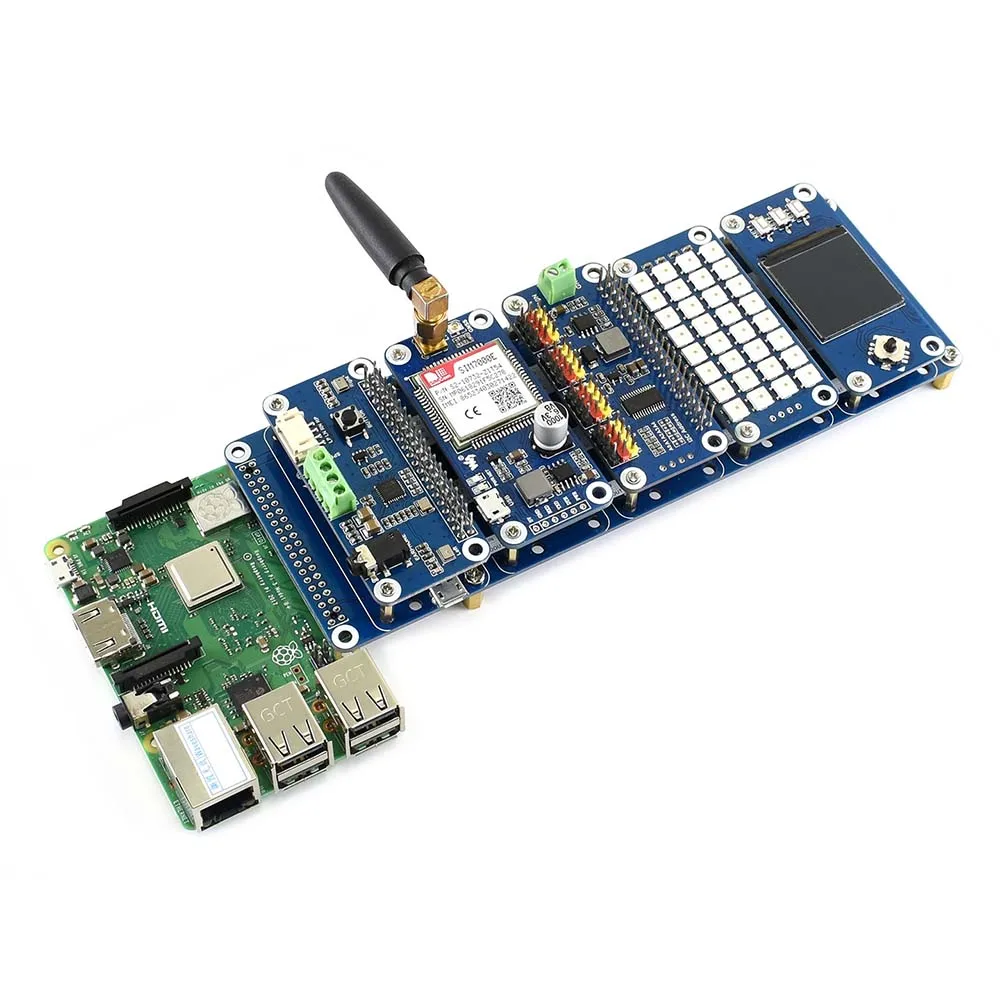

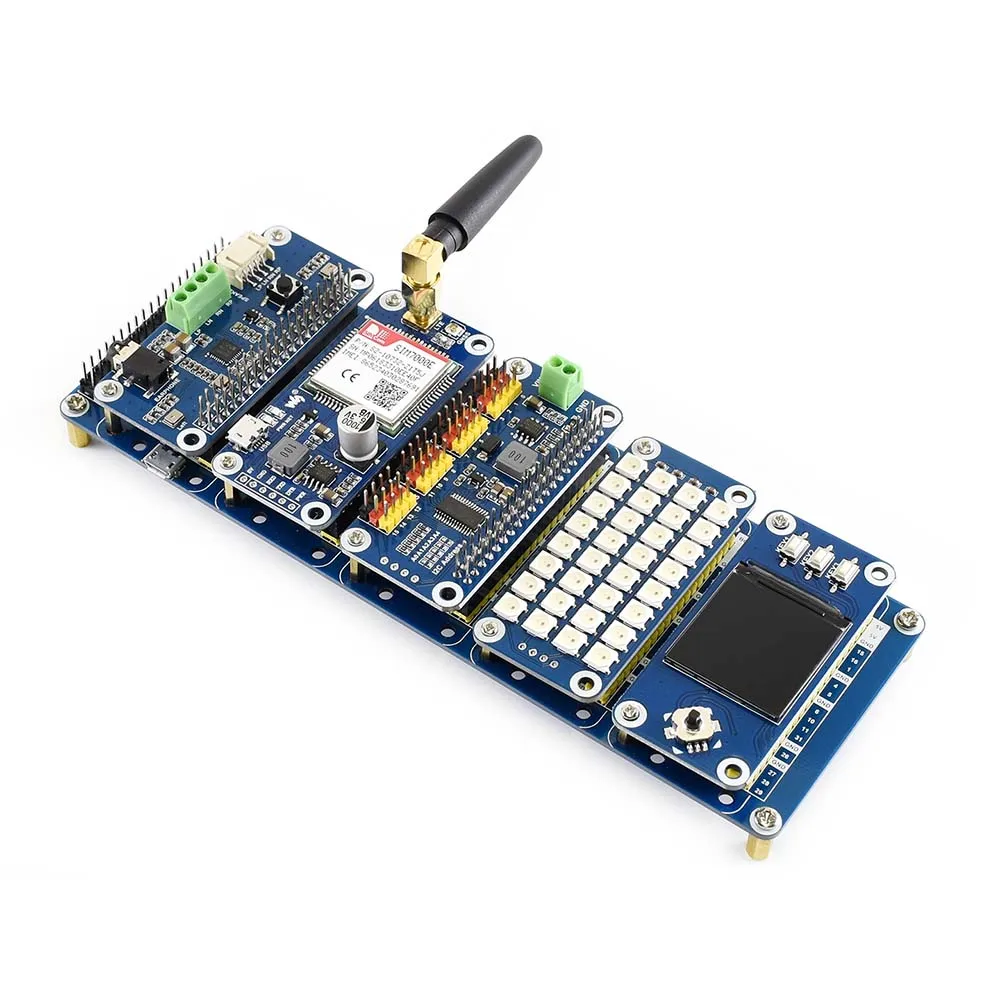

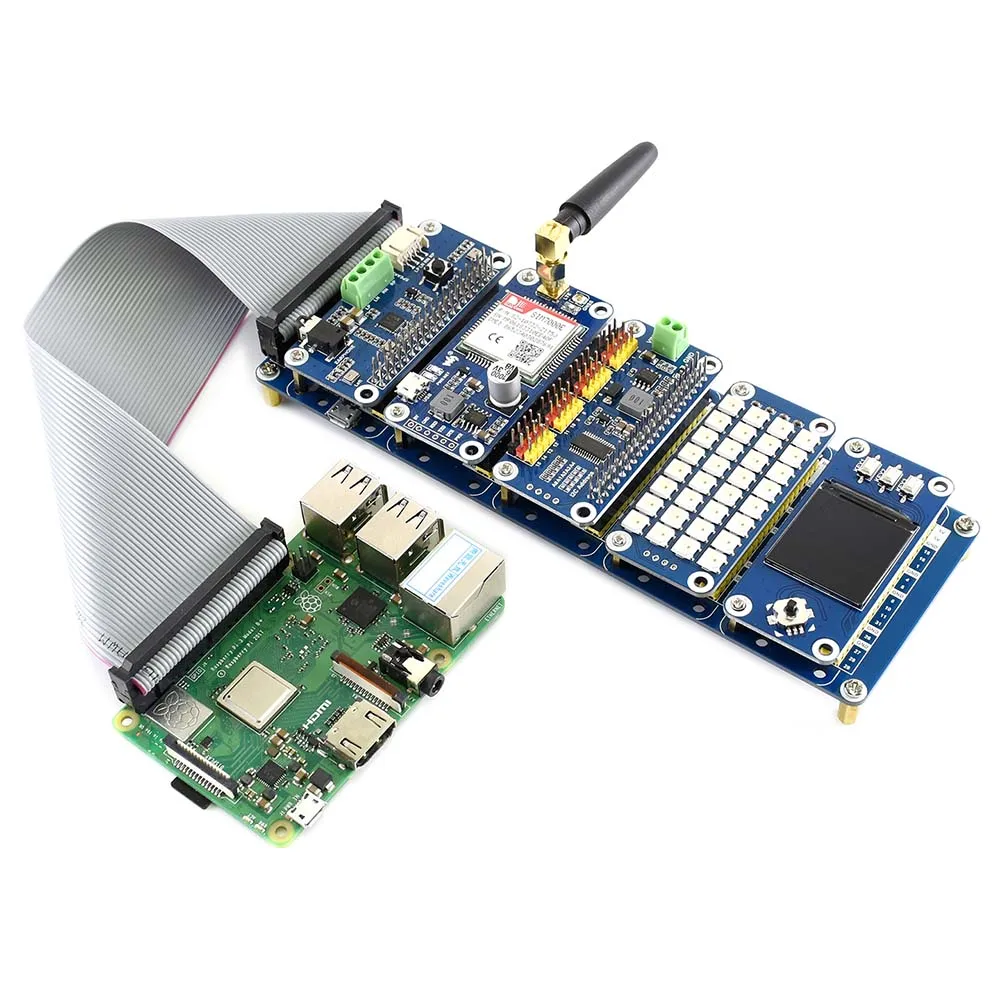

This is an I/O expansion kit designed for Raspberry Pi, which provides 5 sets of 2x20 pinheaders, that means a handy way to "stack" multi different HATs together, and use them as a specific combination / project.

Features

• Standard Raspberry Pi connectivity, directly pluggable OR through ribbon cable

• 5 sets of 2x20 pinheaders, connect multi HATs together

• USB external power port, provides enough power supply for multi HATs

• Clear and descriptive pin labels for easy use

• Reserved jumper pads on the bottom side, pin connections are changeable by soldering, to avoid pin conflicts

Note: make sure there are no any pin conflicts between the HATs you want to use together before connecting.

Specifications

• Dimension: 183mm × 65mm

• Mounting hole size: 3mm

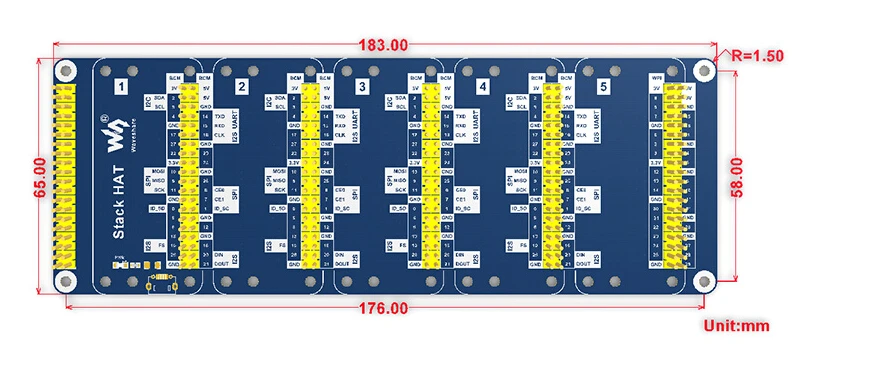

Dimension

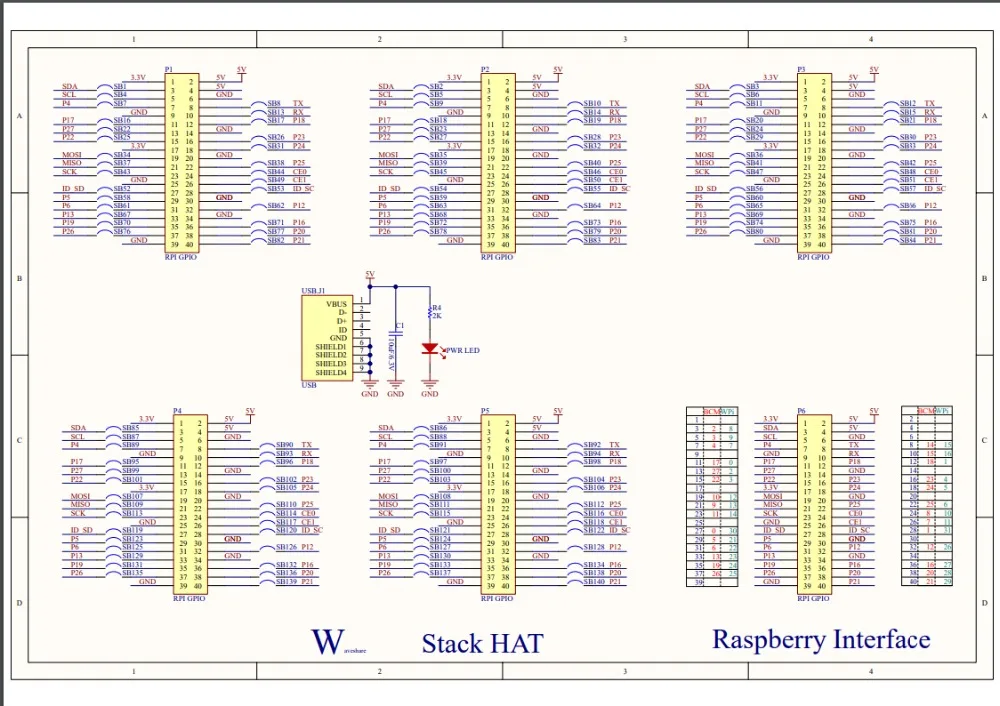

Schematic Prints

Development Resources

Wiki :

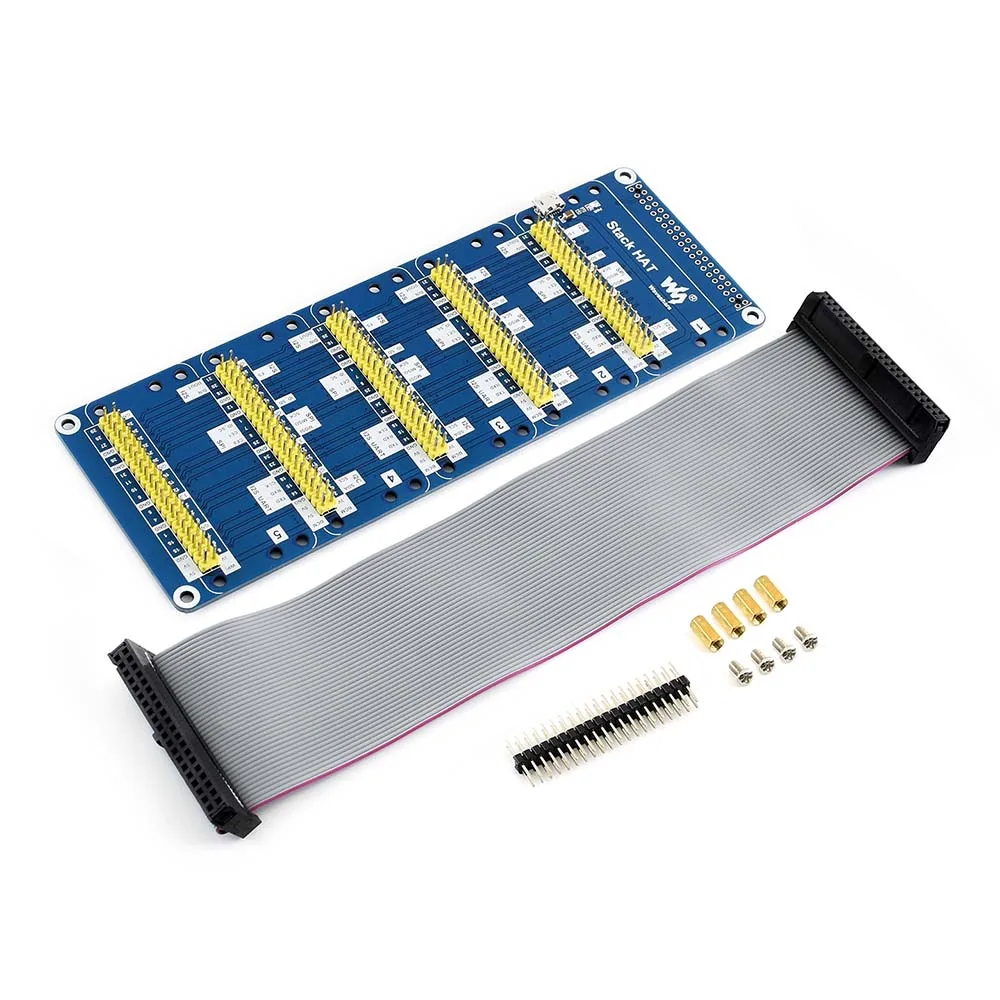

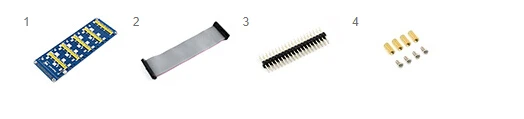

PACKAGE CONTENT

Weight: 0.083 kg

Recommend For Other Product:
