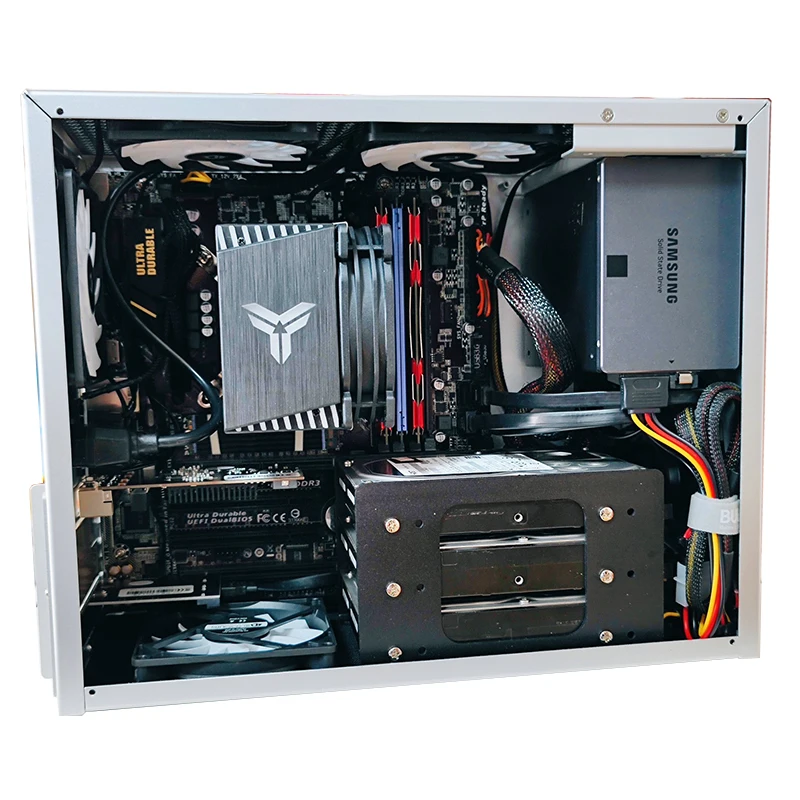

Using this adapter bracket can be fixed on the idle 12cm fan position of the chassis

Free screwdriver

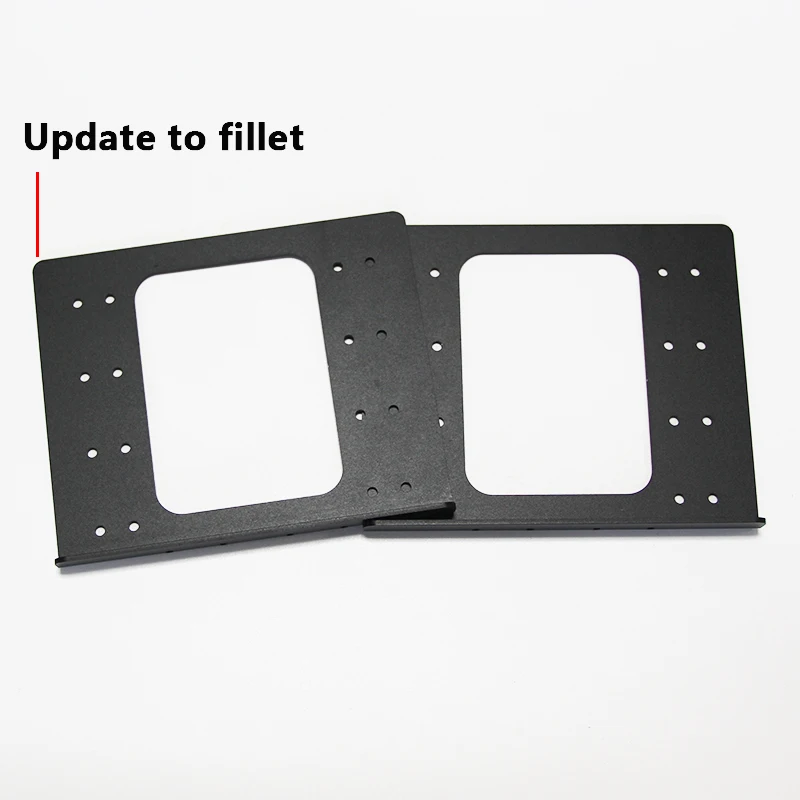

Update

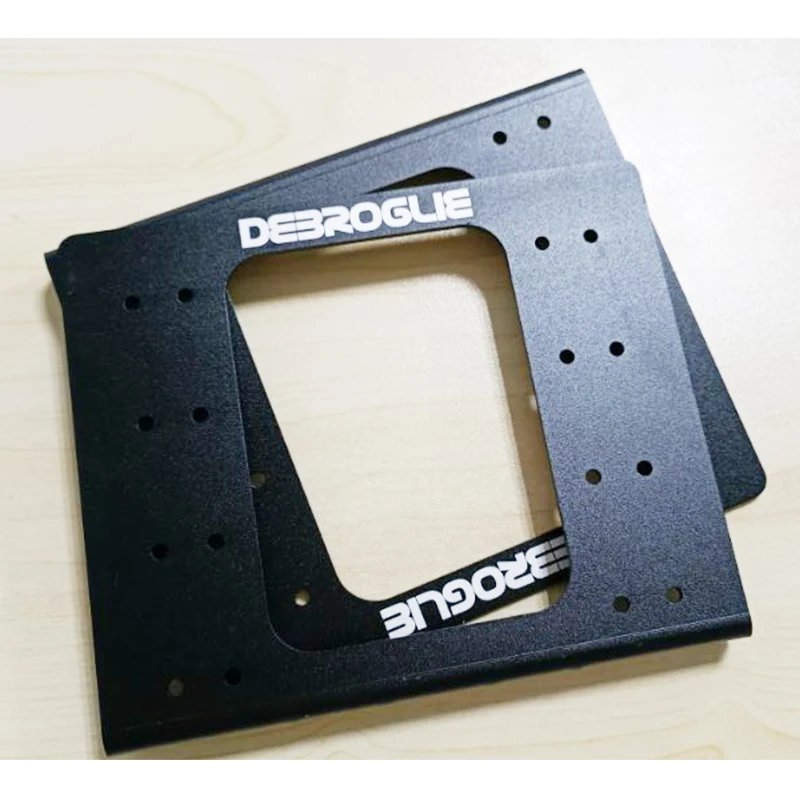

There is a logo in the new batch of products. Products with logo and products without logo will be sent randomly.

Package

2F black: 2 layers black bracket, 8pcs HDD screws, 4pcs Bottom fixing screws

2F sliver: 2 layers sliver bracket, 8pcs HDD screws, 4pcs Bottom fixing screws

4F black: 4 layers black bracket, 16pcs HDD screws, 4pcs Bottom fixing screws

4F sliver: 4 layers sliver bracket, 16pcs HDD screws, 4pcs Bottom fixing screws

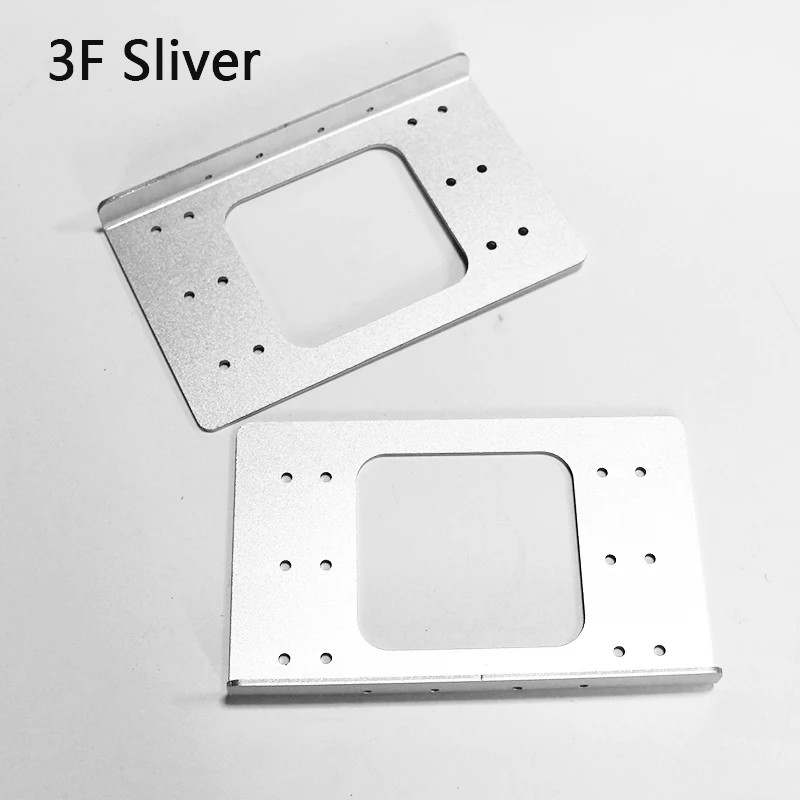

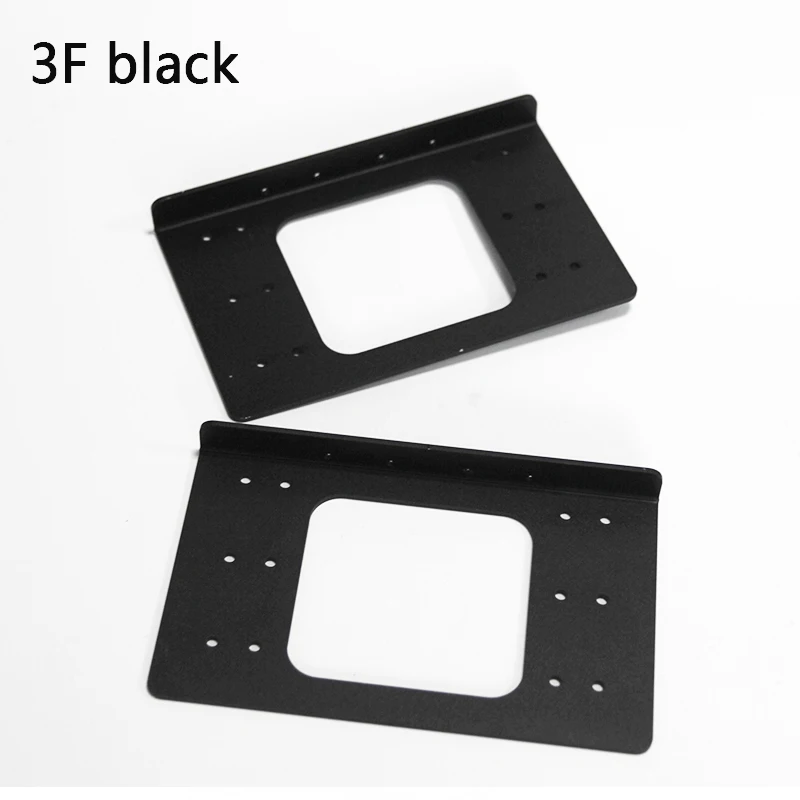

3F black: 3 layers black bracket, 12pcs HDD screws, 4pcs Bottom fixing screws

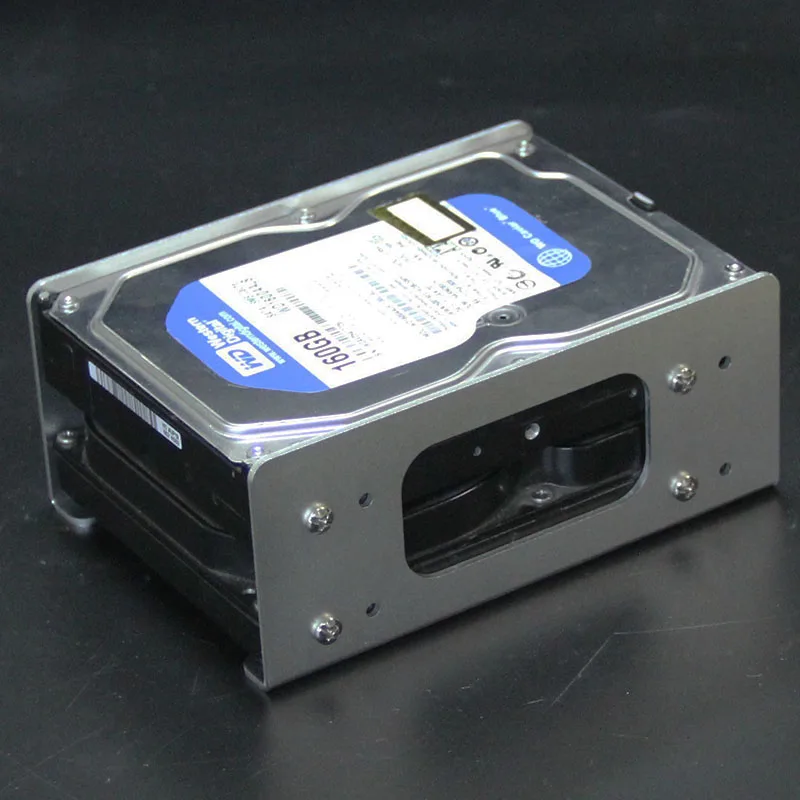

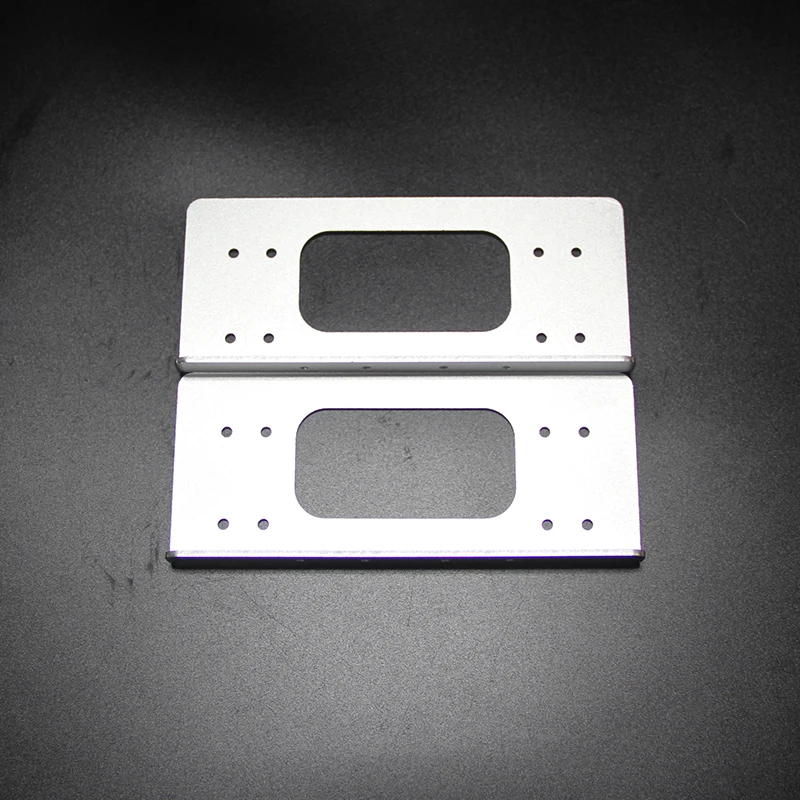

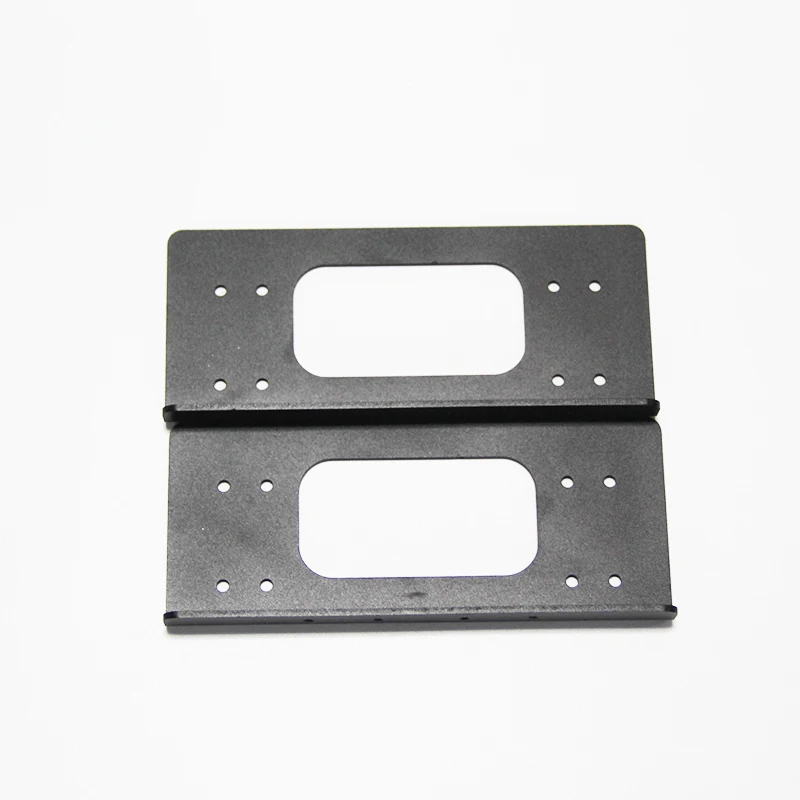

2F

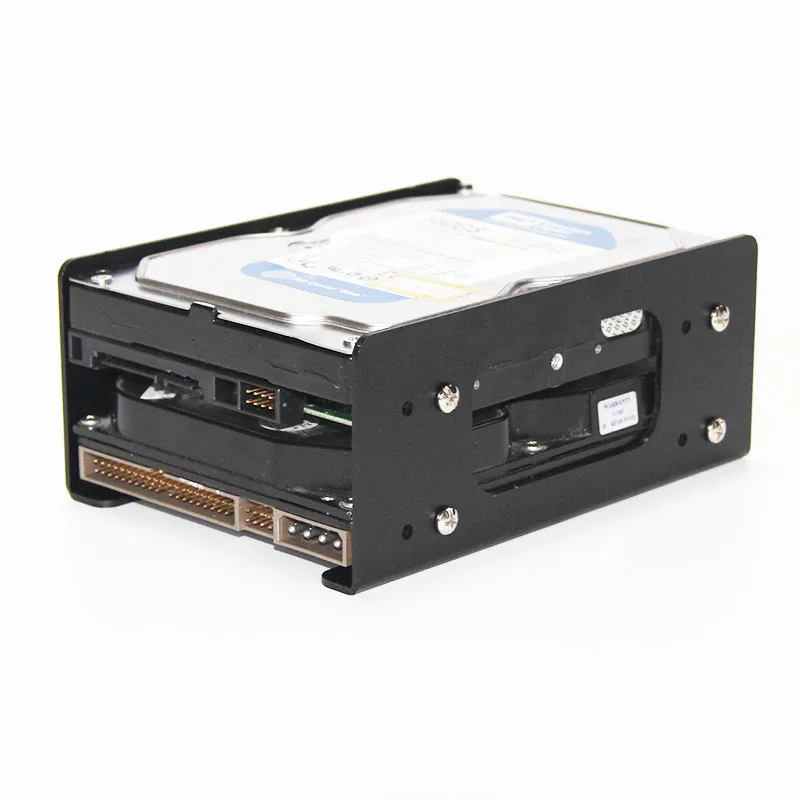

Name: HD-FF2 L-shaped hard drive bracket
Material: aluminum alloy
Features: hard disk storage, storage, beautiful and tidy, with screw holes at the bottom, can be installed on the chassis (note that the holes are non-standard, the size is in the detailed drawing, you may need to punch yourself)
Support Hard Disk: Support Two 3.5-inch hard disks
Color: black/silver
Thickness: 2mm
Accessories: Screw
size

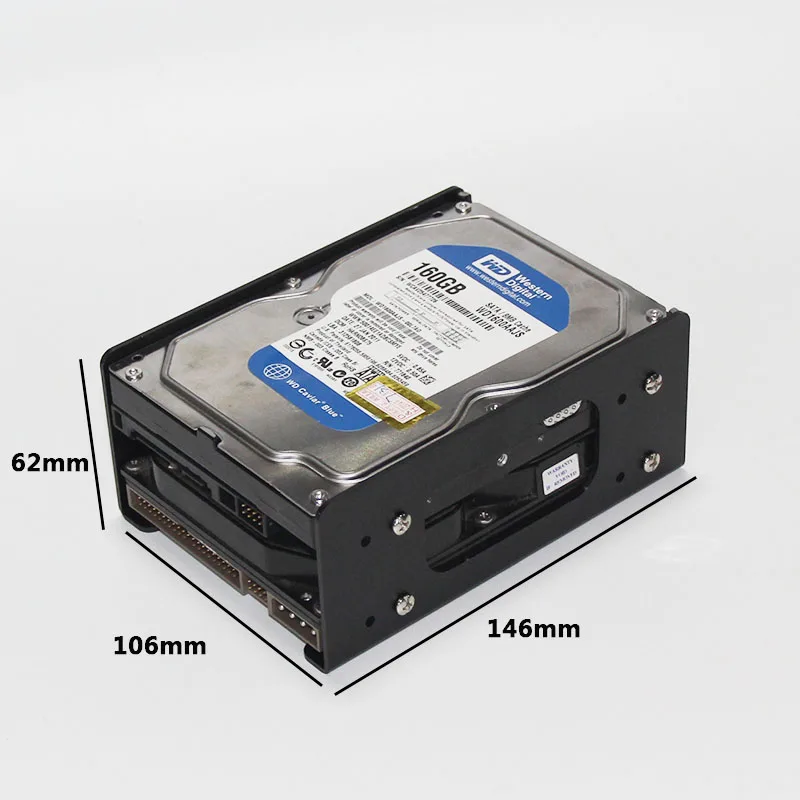

Dimensions after installing the hard disk: 146 (length) x 106 (width) x 62 (height) mm
Single side size: 146mmx62mm L-shaped protrusion width is 15mm

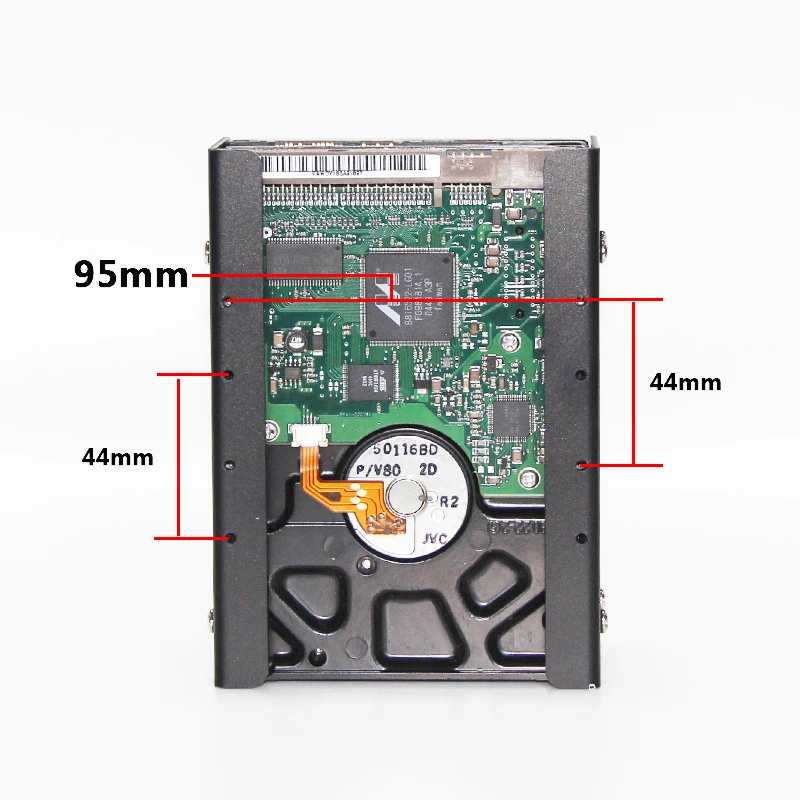

The bottom hole spacing is 44mm, and the bottom hole can be installed on the 3.5-inch hard drive in the chassis
Distance between upper and lower screw holes: 3cm
This bracket has no partition, and the hard disk is installed directly with the side plate.
This link does not contain hard disks, only brackets are sold

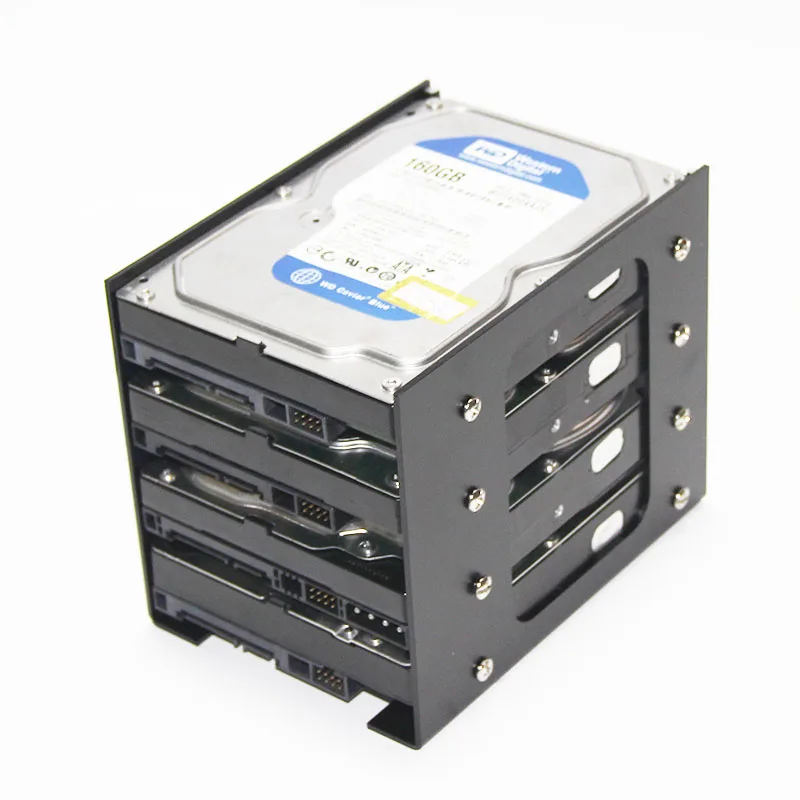

4F

Name: Falcon HD-FF4 L-type hard drive bracket
Material: aluminum alloy
Features: hard disk storage, storage, beautiful and tidy, with screw holes at the bottom, can be installed on the chassis (note that the holes are non-standard, the size is in the detailed drawing, you may need to punch yourself)
Hard disk: Support 4x 3.5-inch hard disks
Color: black/silver
Thickness: 2mm
Accessories: Screw
size

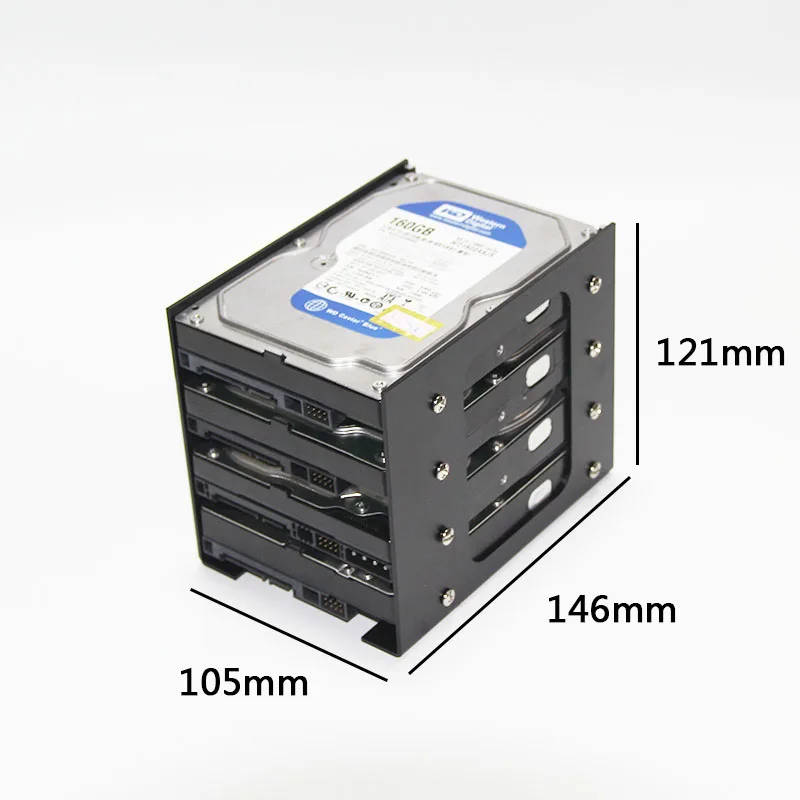

Dimensions after installing the hard disk: 146 (length) x105 (width) x121 (height) mm
Single side size: 146mmx121mm L-shaped protrusion width is 15mm
The bottom hole spacing is 44mm, and the bottom hole can be installed on the 3.5-inch hard drive in the chassis
Distance between upper and lower screw holes: 3cm
This bracket has no partition, and the hard disk is installed directly with the side plate.
This link does not contain hard disks, only brackets are sold

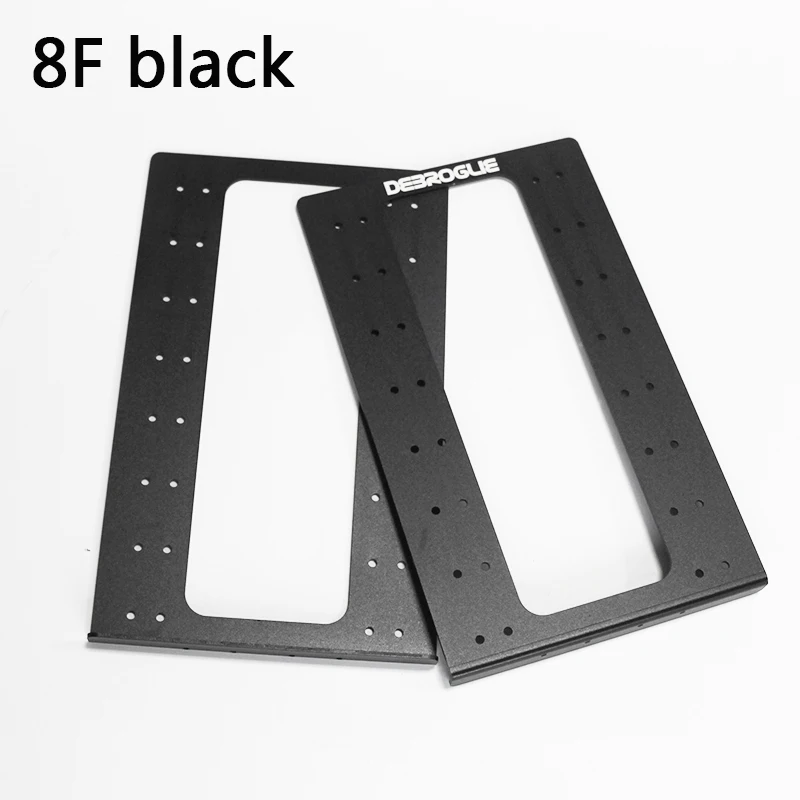

8F

Name: HD-FF8 L-shaped hard drive bracket
Material: aluminum alloy
Features: hard disk storage, storage, beautiful and tidy, with screw holes at the bottom, can be installed on the chassis (note that the holes are non-standard, the size is in the detailed drawing, you may need to punch yourself)
Support Hard Disk: Support 8 3.5-inch hard disks
Color: black/silver/ black and sliver mix
Thickness: 2mm
Accessories: Screw
size
Dimensions after installing the hard disk: 146 (length) x 106 (width) x 242 (height) mm
Single side size: 146mmx242mm L-shaped protrusion width is 15mm
The bottom hole spacing is 44mm, and the bottom hole can be installed on the 3.5-inch hard drive in the chassis
Distance between upper and lower screw holes: 3cm
This bracket has no partition, and the hard disk is installed directly with the side plate.
This link does not contain hard disks, only brackets are sold
