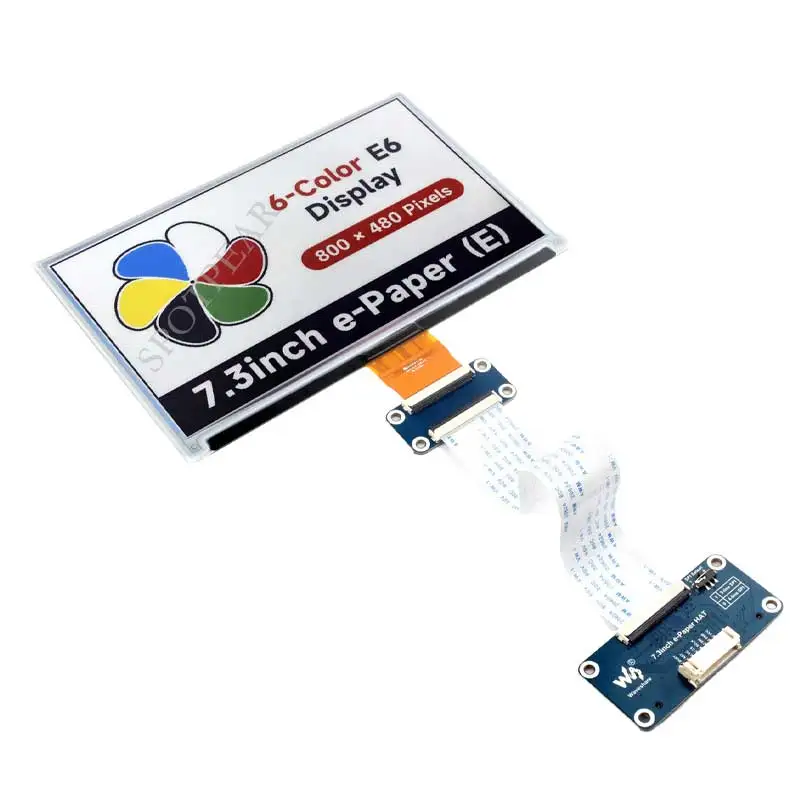

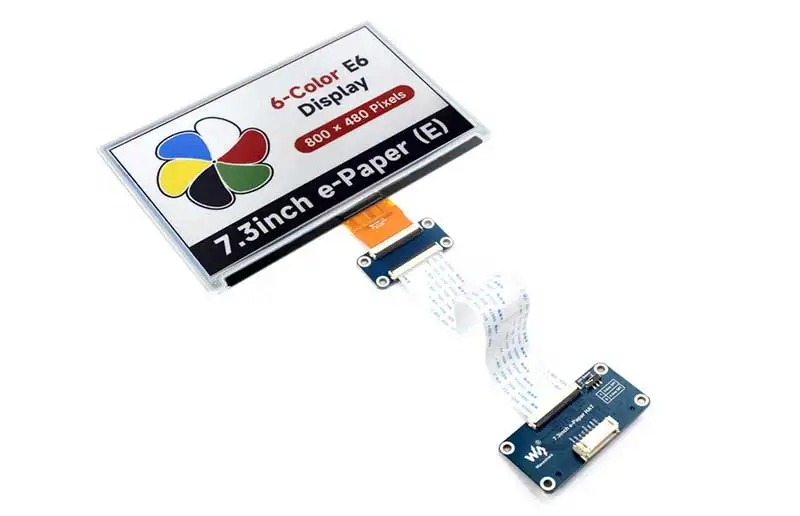

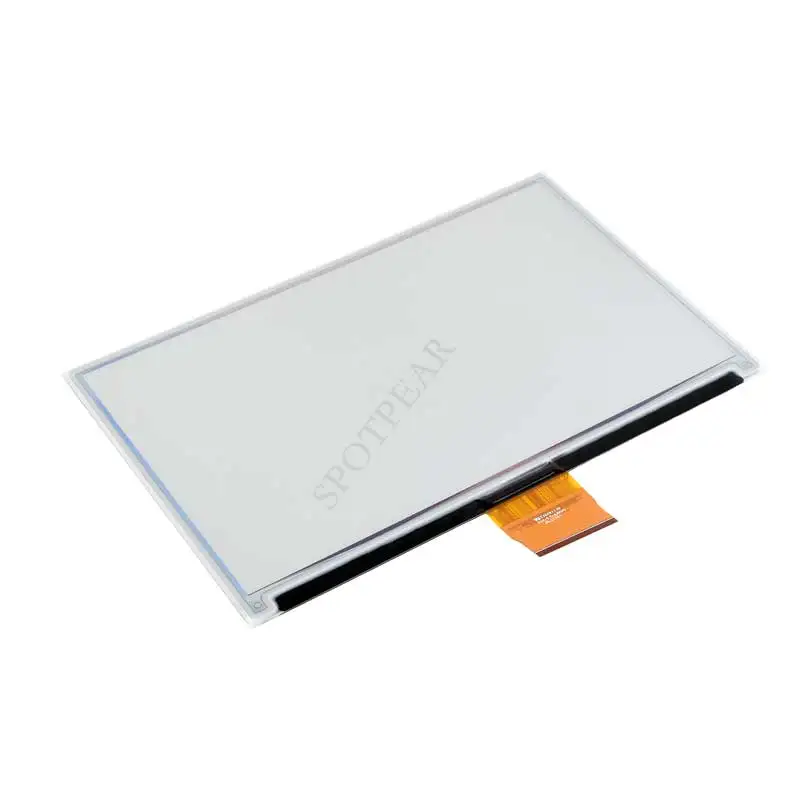

Sombrero ePaper de 7,3 pulgadas (E) Pantalla de tinta electrónica SPI de 6 colores 800 × 480 para Arduino / Raspberry Pi / Jetson / STM32

[] 7.3inch 6-Color E-Paper Display, E-Ink Display, Low Power Consumption, 800×480 Pixels, SPI Communication, Optional For E-Paper Driver HAT

Ideal For Price Tags, Shelf Labels, Industrial Instruments...

Note: the e-Paper Driver HAT and accessories are optional, please refer to the Package Content for detailed part list

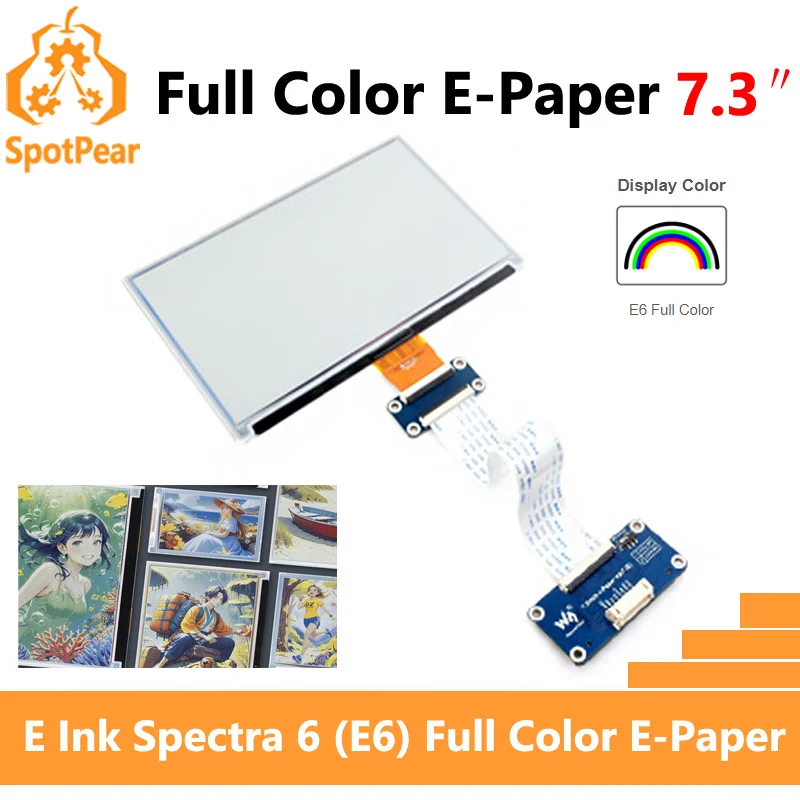

[] Adopts E_Ink Spectra 6(E6) technology, supports 6-Color display

[] No backlight, keeps displaying last content for a long time even when power down

[] Ultra low power consumption, basically power is only required for refreshing

[] Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

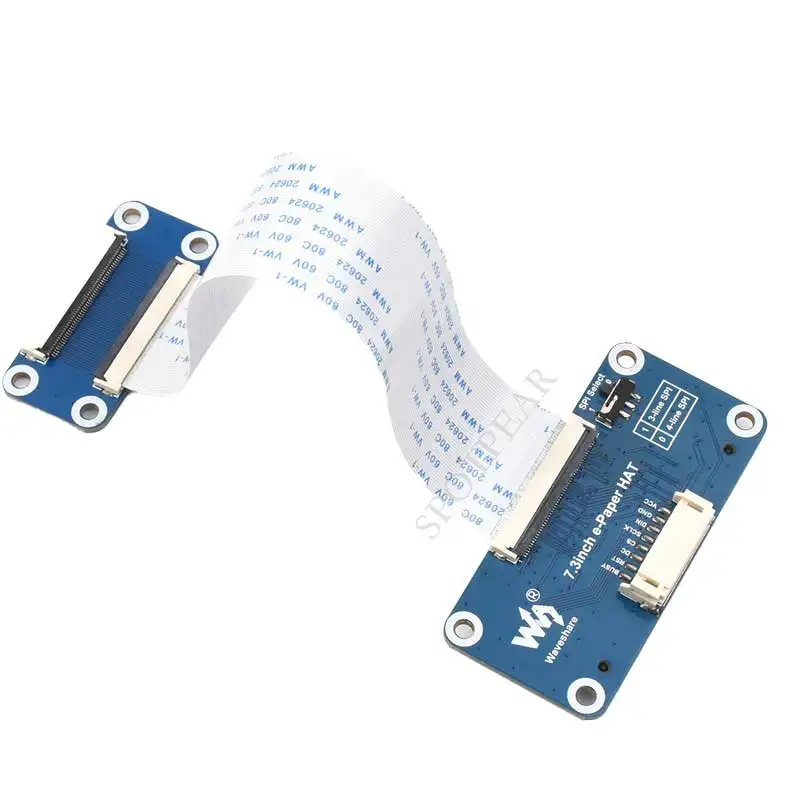

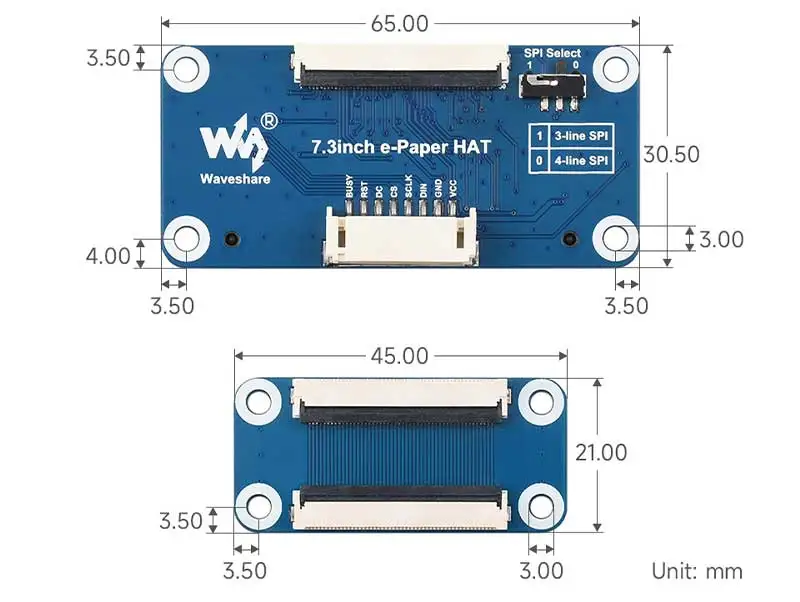

[] Optional for e-Paper Driver HAT:

[] With standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards/Jetson Nano

[] Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.

[] Onboard voltage translator, compatible with 3.3V / 5V MCUs

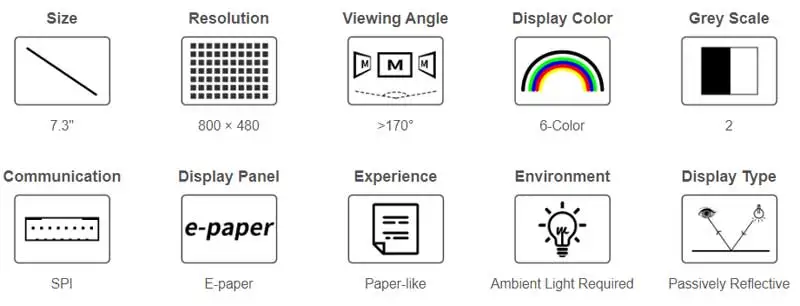

OPERATING VOLTAGE

Raw display: 3.3V

DISPLAY COLOR

6-Color

e-Paper Driver HAT: 3.3V/5V

INTERFACE

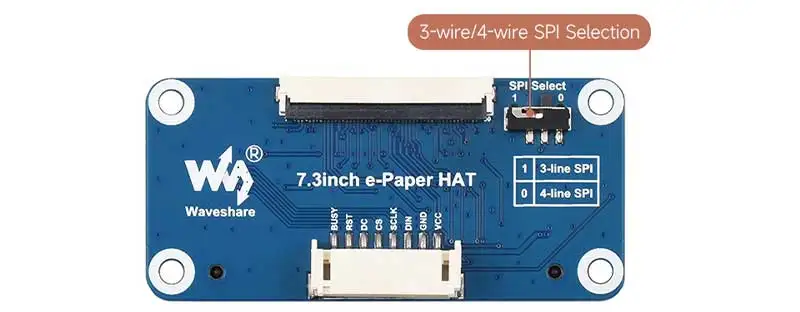

3-wire SPI, 4-wire SPI

GREY SCALE

2

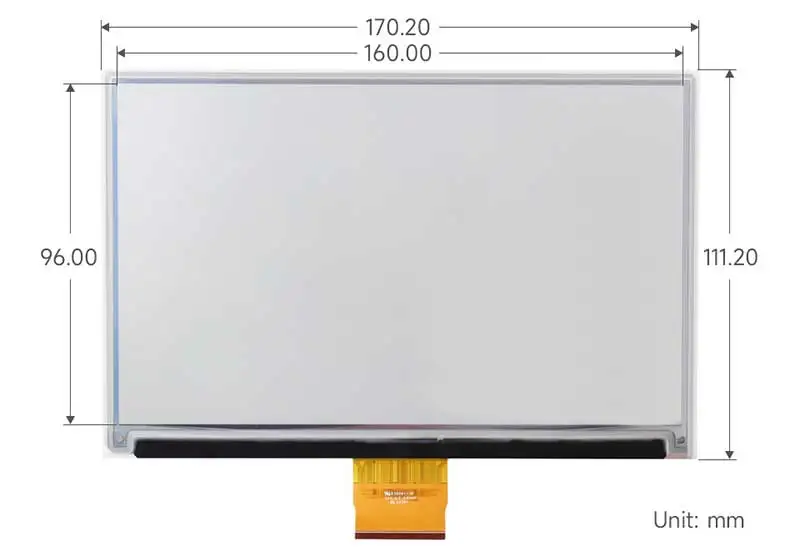

DISPLAY DIMENSIONS

170.20 × 111.20 × 0.91mm

FULL REFRESH TIME

12s

DISPLAY AREA

160 × 96mm

REFRESH POWER

70mW(typ.)

DOT PITCH

0.2 × 0.2mm

STANDBY CURRENT

0.01uA (almost none)

RESOLUTION

800 × 480 pixels

VIEWING ANGLE

170°

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Standard Raspberry Pi 40PIN GPIO Header, Compatible With Raspberry Pi Series Boards / Jetson Nano

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

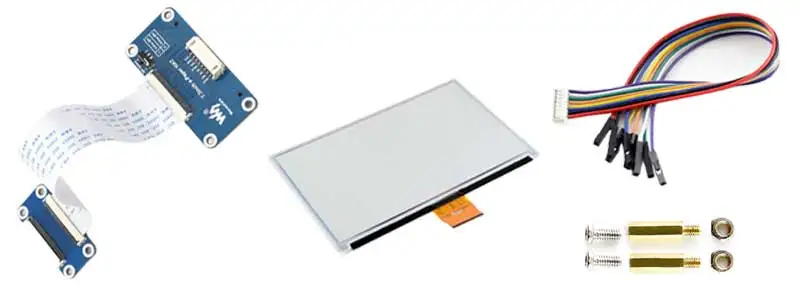

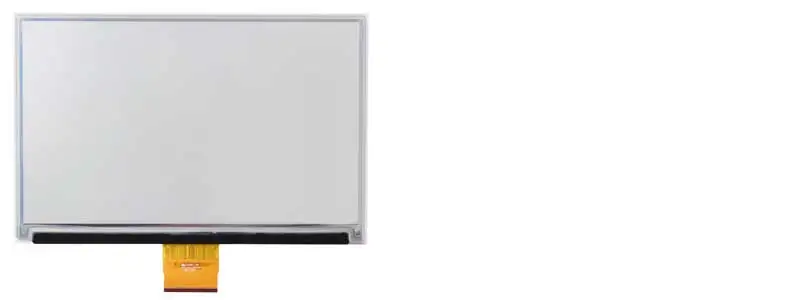

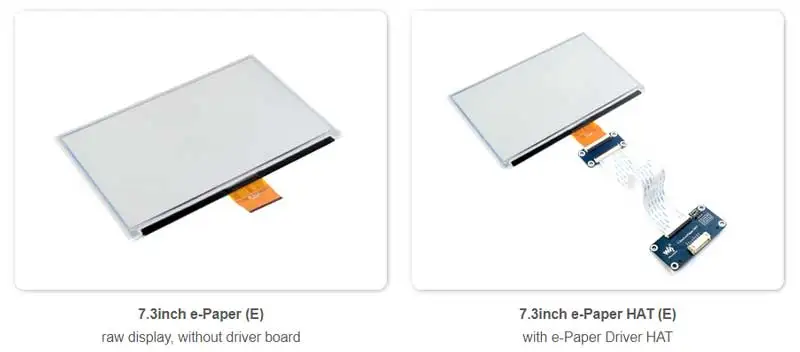

[] 7.3inch-e-Paper-(E) ×1

[] 7.3inch-e-Paper-HAT-(E) ×1
