Bundle (Pack)
Descripción
Note：Please note the type what you want:
Bundle 1： 4GB LPDDR4+ 32GB eMMC
Bundle 2： 8GB LPDDR4+ 64GB eMMC
Bundle 3： 16GB LPDDR4+128GB eMMC
EC-I3588J 8-Core 8K Computer
Powered by Rockchip RK3588 new-gen 8-core 64-bit processor, the computer can be configured with up to 32GB RAM. Capable of
8K video encoding and decoding, it provides abundant interfaces, supporting multiple hard disks, Gigabit Ethernet, WiFi6, 5G/4G
expansion and a variety of videos input and output. It supports various operating systems. This computer can be used in ARM PC,
edge computing, cloud server, smart NVR and other fields.

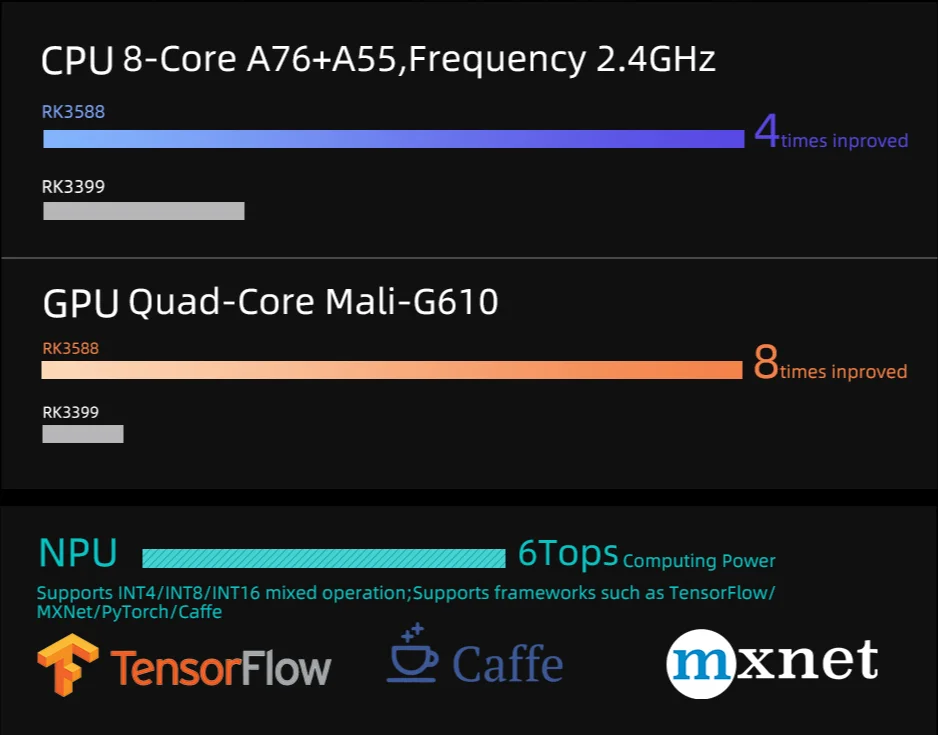

New-Gen AIoT SoC RK3588
RK3588 is Rockchip's new-gen flagship AIoT SoC with 8nm lithography process. Equipped with 8-core 64-bit CPU, its frequency is up to 2.4GHz.Integrated with ARM Mali-G610 MP4 quad-core GPU and built-in AI accelerator NPU, it provides 6Tops computing power and supports mainstream deep learning frameworks. The powerful RK3588 can deliver more optimized performance in various AI application scenarios.
8K video encoding and decoding

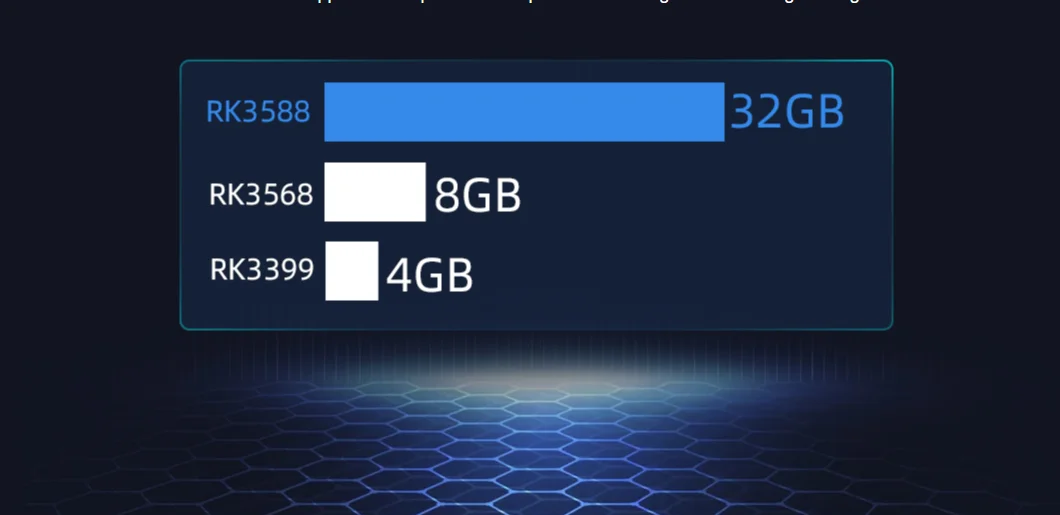

Super-large 32GB RAM
Multi-channel input and output
With HDMI 2.1/DP1.4/VGA multi-channel video output and HDMI-IN video input interfaces, it supports multi-channel 8K video output and 4K video input — up to four-screen output with different displays can be achieved.
Powerful network communication capability

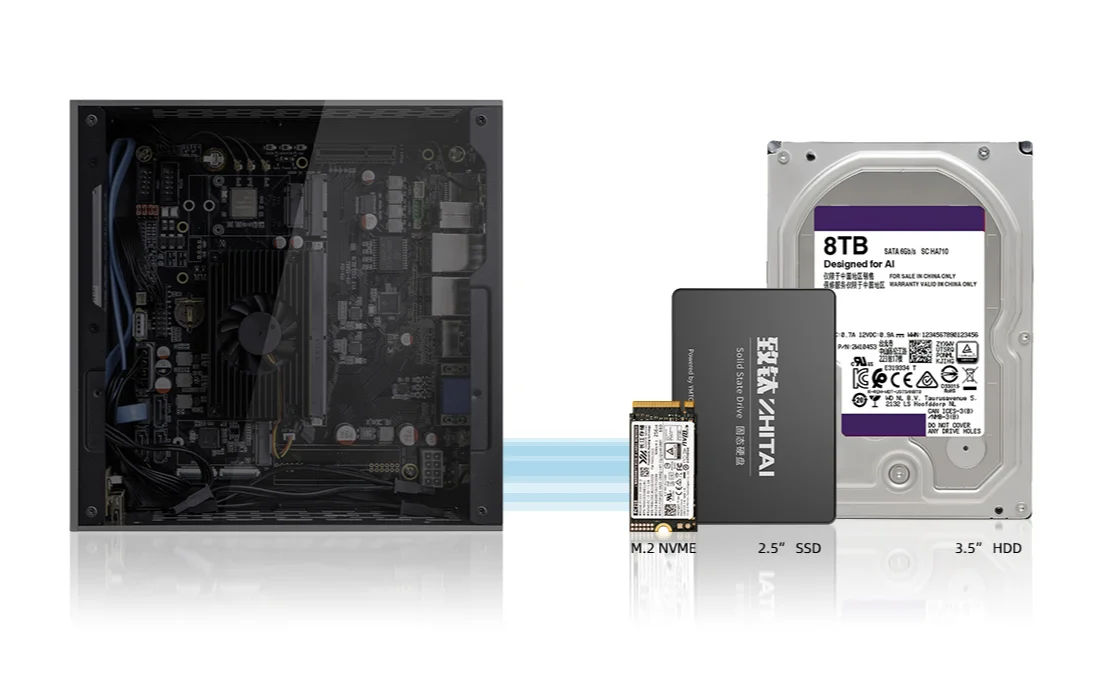

Multiple hard disks, Massive capacity

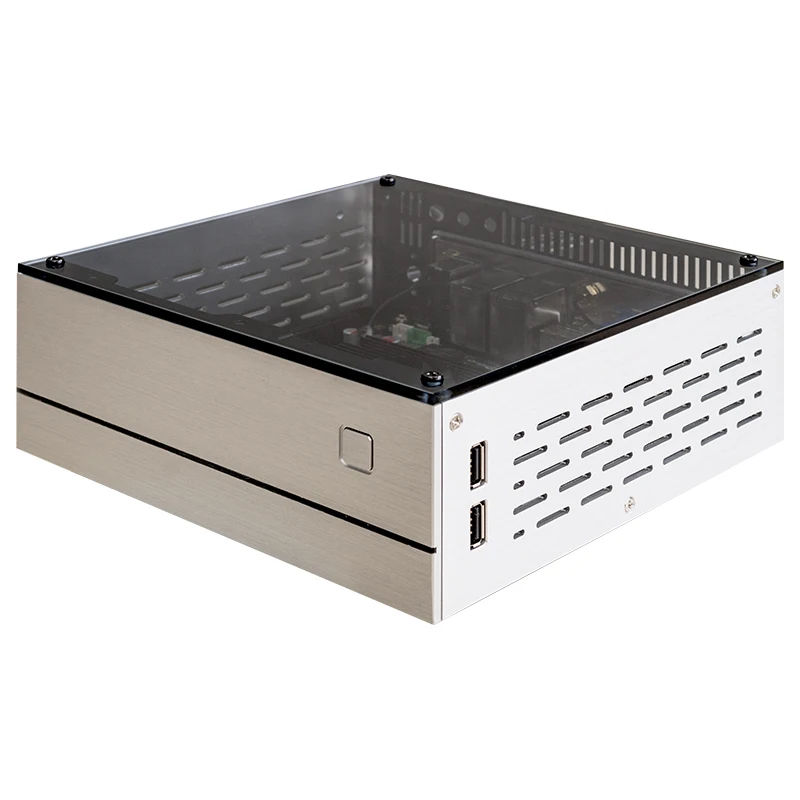

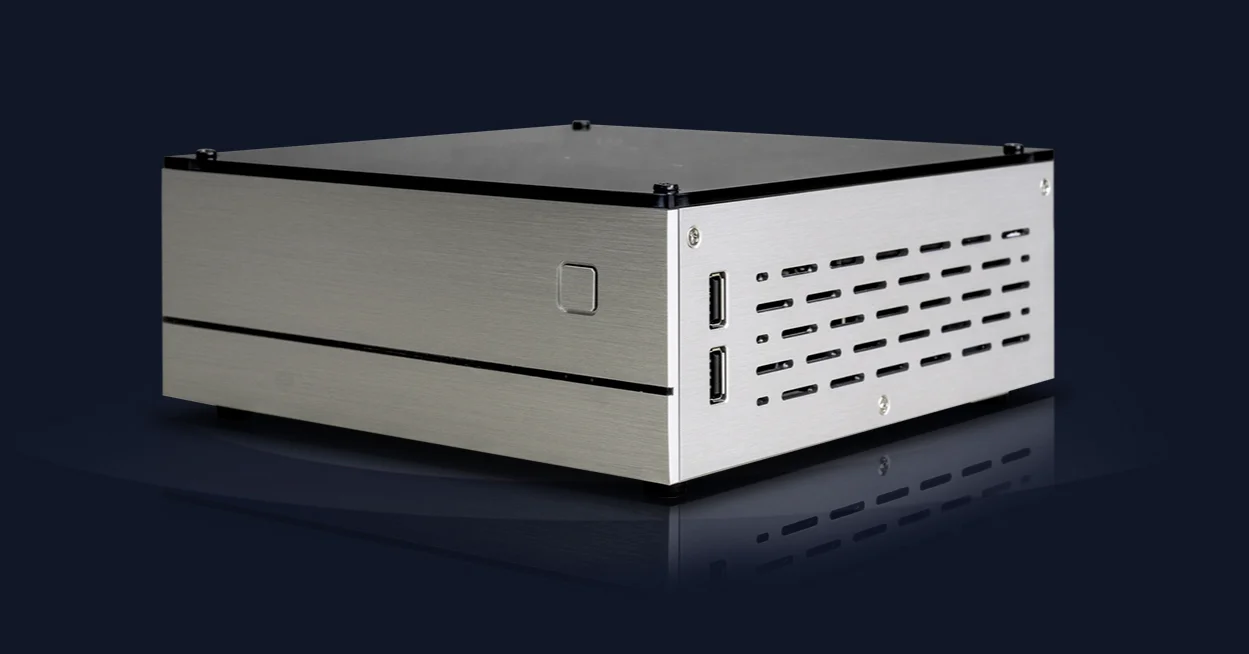

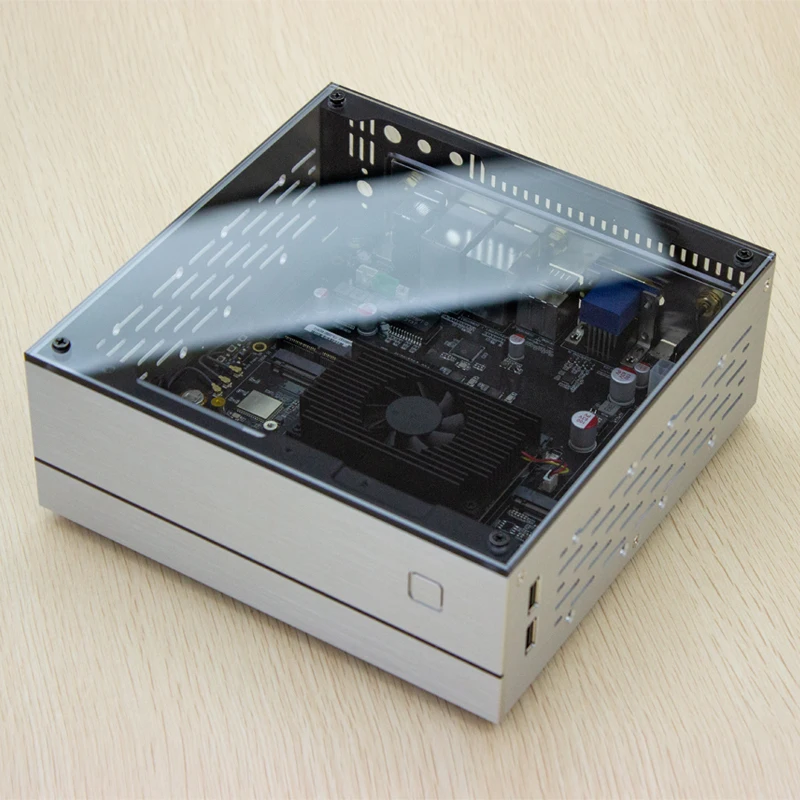

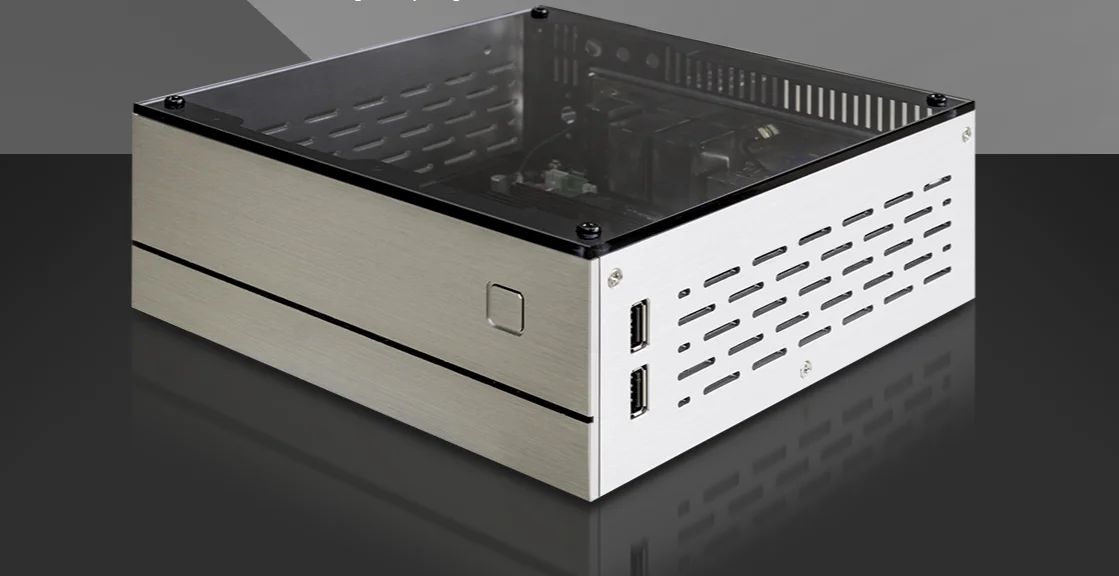

Metal brushed enclosure, Simple and stylish
Supports various operating systems
Android 12.0, Ubuntu Desktop version and Server version, Debian11, Buildroot, KylinOS and UOS are supported. It also supports RTLinux,
delivering excellent real-time performance. Besides, UEFI Boot is available. The stable and reliable operation provides a safe and stable
system environment for product research and production.

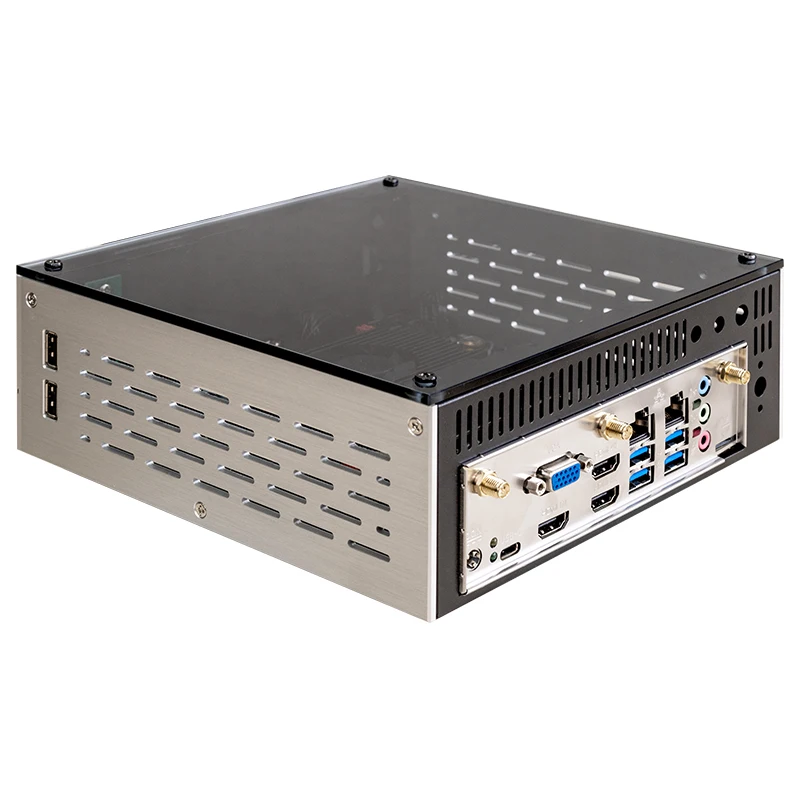

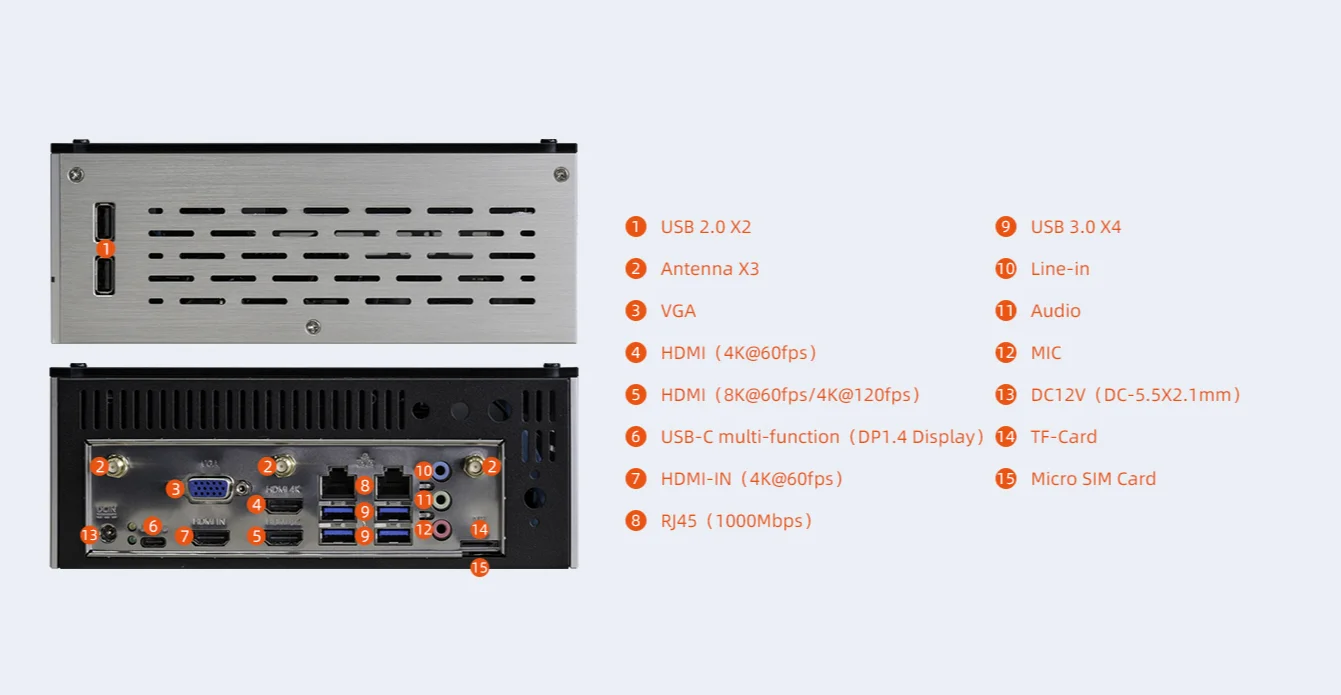

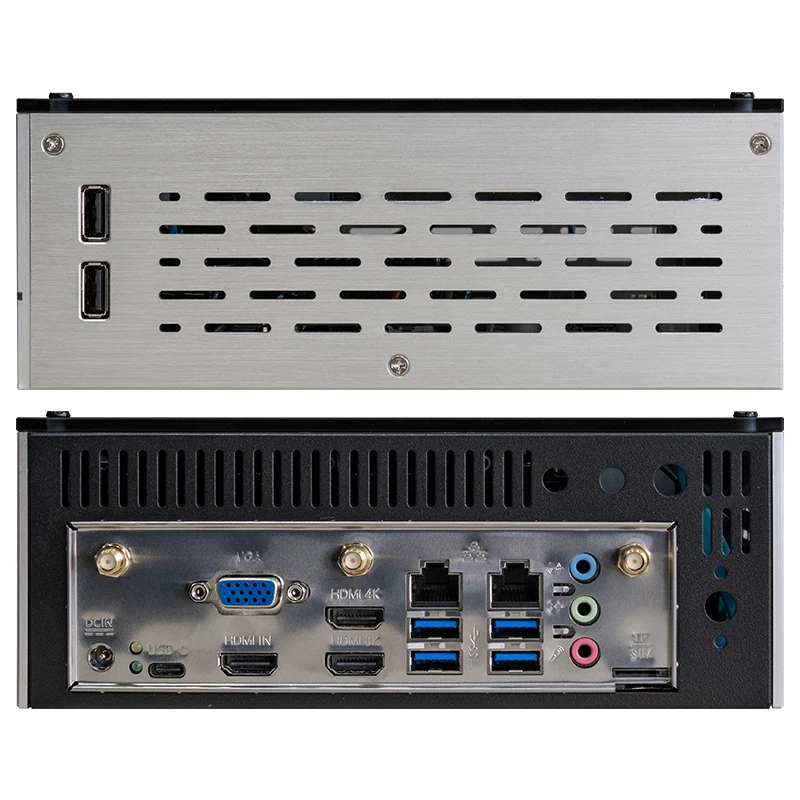

More interfaces for more possibilities

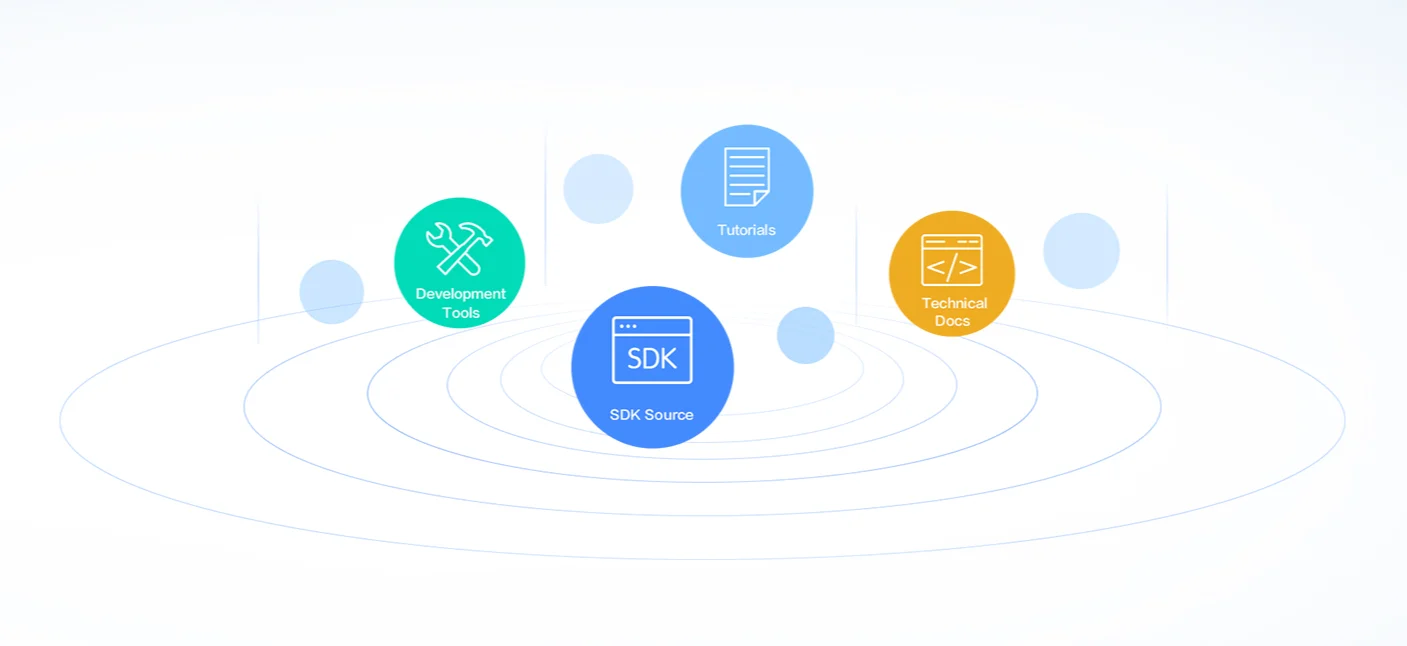

Abundant resources
SDK, tutorials, tech docs and dev tools are provided, making development simpler and more convenient.
A wide range of applications
It can be widely used in edge computing box, NVR, 8K video box, Android game device, desktop computer, small server and other fields.
Specifications
Basic Specifications
SOC
RockChip RK3588
CPU
8-core 64-bit (4×Cortex-A76+4×Cortex-A55),
8nm lithography process，frequency up to 2.4GHz
GPU
ARM Mali-G610 MP4 quad-core GPU
Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
NPU
NPU computing power up to 6 TOPS,
Support INT4/INT8/INT16 mixed operation,
Support framework switching of TensorFlow / MXNet / PyTorch / Caffe
VPU
Video decoding:
8K@60fps H.265/VP9/AVS2
8K@30fps H.264 AVC/MVC
4K@60fps AV1
1080P@60fps MPEG-2/-1/VC-1/VP8
Video encoding:
8K@30fps encoding, support H.265 / H.264
Achieve up to 32-channel 1080P@30fps decoding and
16-channel 1080P@30fps encoding
RAM
4GB/8GB/16GB 64bit LPDDR4/LPDDR4x/LPDDR5 (Up to 32GB optional)
Storage
16GB/32GB/64GB/128GB eMMC
Storage
Expansion
1 × M.2 SATA3.0, can expand with one 2242 (SATA3.0) SSD
4 × standard SATA3.0, can expand with two SATA3.0 SSD/HDD
1 × TF Card Card
Hardware Specifications
Wireless
2.4GHz/5GHz dual-band WiFi6, Bluetooth 5.0, support 5G/4G LTE expansion
Ethernet
2 × 1000Mbps Ethernet (RJ45) * One of them supports POE power supply
and max output is 60w (optional)
Display
Video output:
1 × HDMI2.1 (8K@60fps or 4K@120fps)
1 × HDMI2.0 (4K@60fps)
1 × DP1.4 (8K@30fps, USB-C multi-function interface output)
1 × VGA (1080P@60fps)
Video input:
1 × HDMI-IN (4K@60fps), support HDCP 2.3
Audio
Audio output:
1 × Phone output
2 × HDMI audio output
1 × DP1.4 audio output
Audio input:
1 × Line-In input
1 × MIC input
1 × HDMI audio input
USB
4 × USB3.0 (Limit 1A)
1 × USB-C multi-function interface（USB3.0 OTG / DP1.4） (Limit 2A)
2 × USB2.0 (Limit 500mA)
Power
DC12V voltage input (DC5.5×2.1mm)
Button
1 × Power Button
OS/Software
OS
Android: Android 12.0
Linux: Ubuntu Desktop, Ubuntu Server, Debian11, Buildroot, RTLinux
Kylin Linux, UOS, etc.
Supports UEFI Boot
General
Case
20(L) * 20(W) * 8.5(H) cm (including rubber feet),metal brushed enclosure
Weight
≈1.3kg (no peripheral devices)
Power Consumption
Idle: ≈1.35W (12V/110mA)
Typical: ≈4.8W (12V/400mA)
Max: ≈20W (12V/1700mA)
Environment
Operating Temperature: -20℃- 60℃
Storage Temperature: -20℃- 70℃
Storage Humidity: 10%～80 %
