Descripción
SFF-8639 NVME U.2 to NGFF M.2 M-key PCIe SSD Adapter for Mainboard Replace Intel SSD 750 p3600 p3700
With Black Case Enclosure

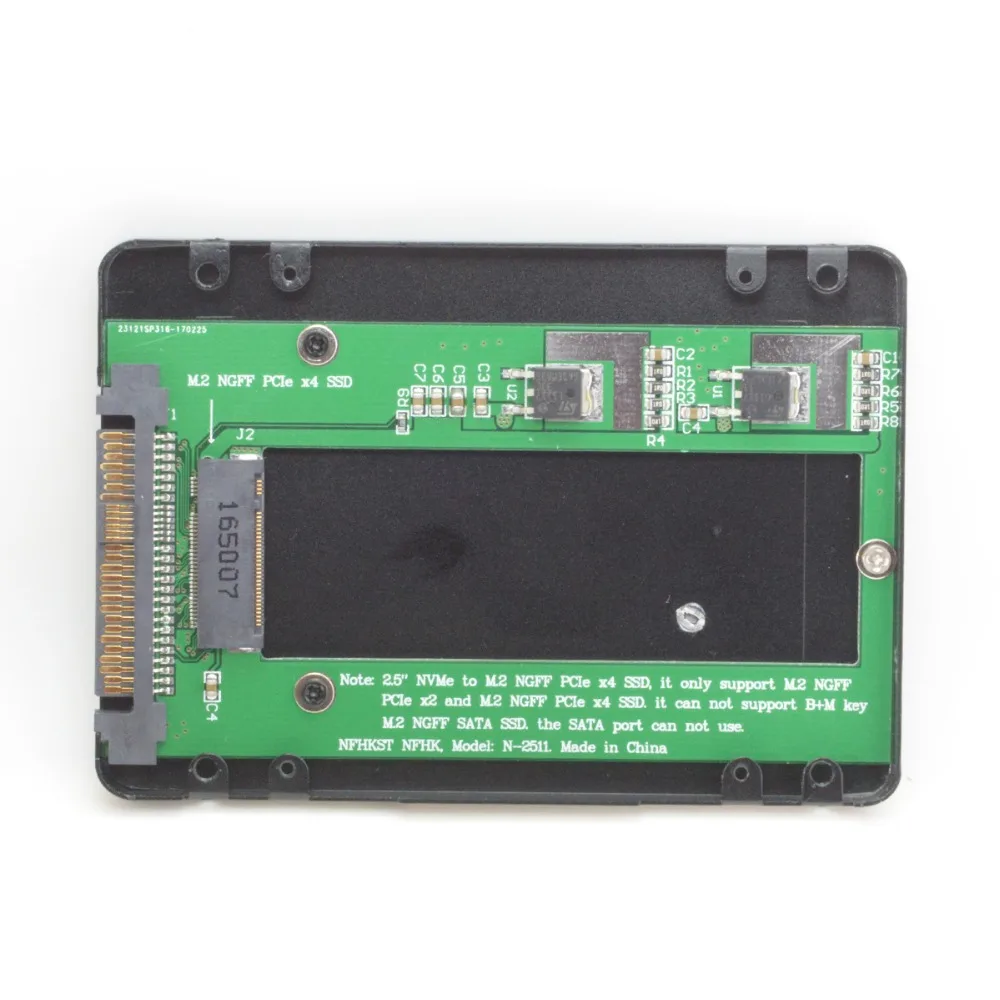

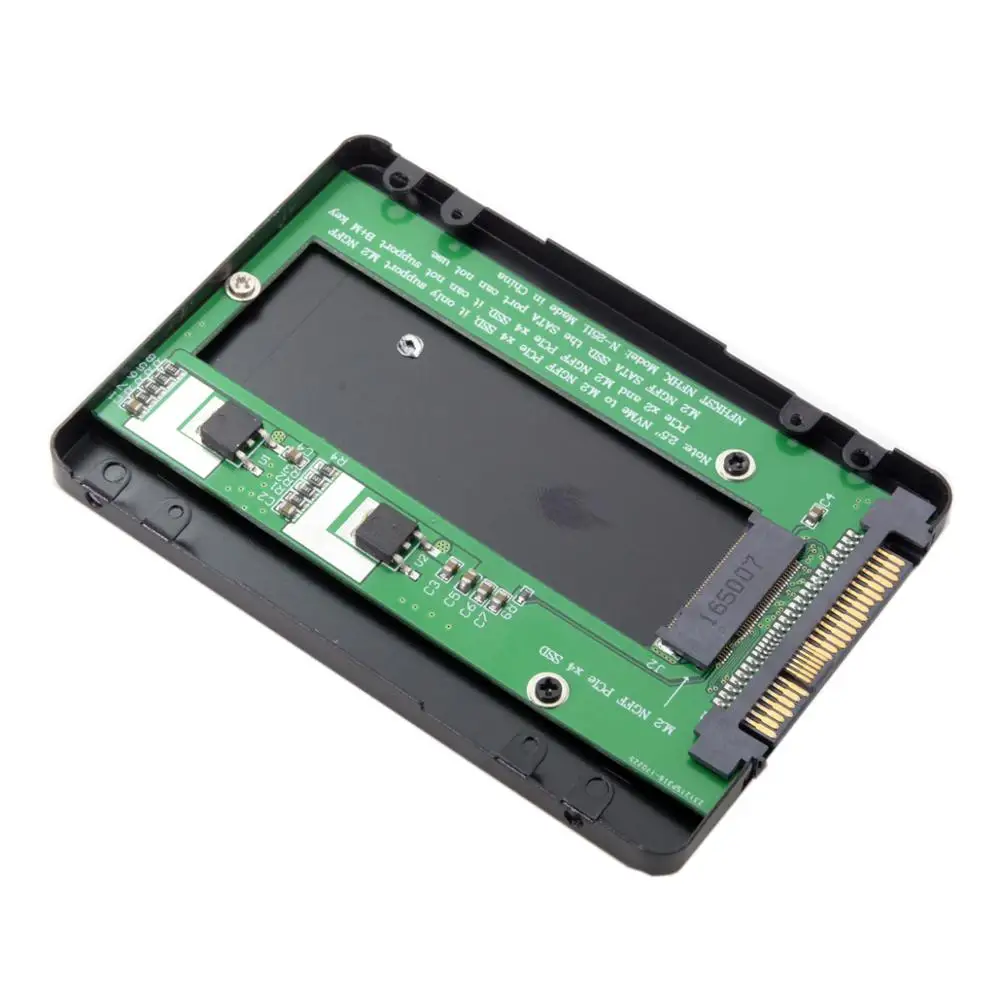

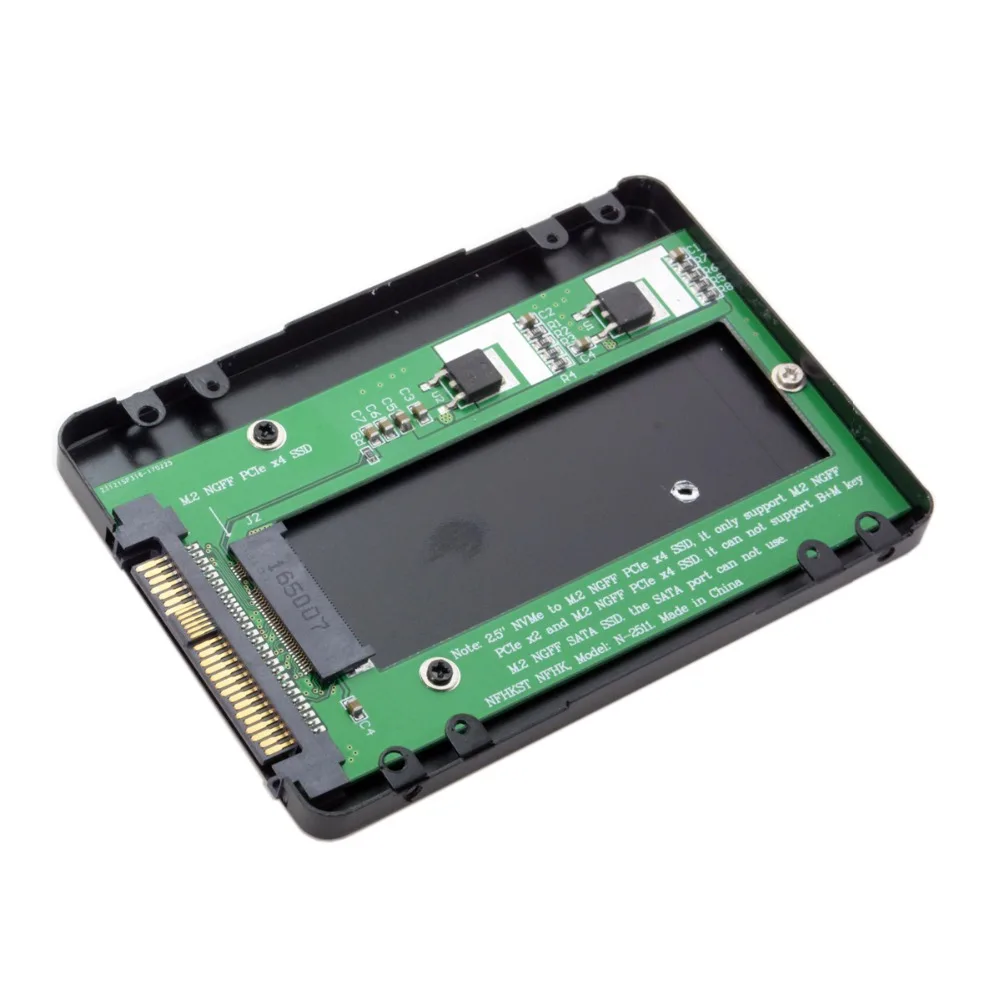

This converter enables the connection of a M.2 NGFF SSD in 2280, 2260, 2242 and 2230 format.

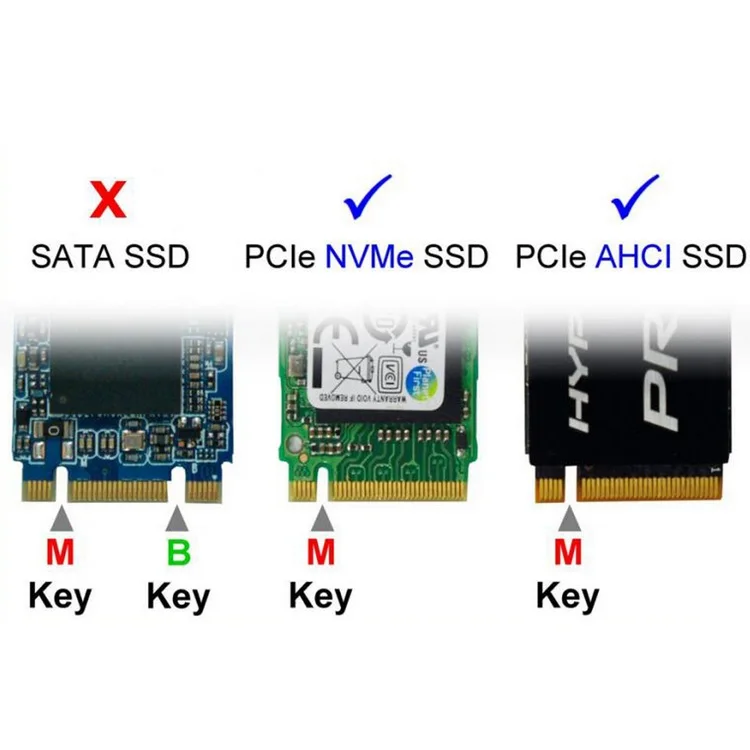

Need M-key or NVME SSD, the B-key or B/M-key SSD cannot work.
The converter can be installed into your system internally through the U.2 68 pin interface.

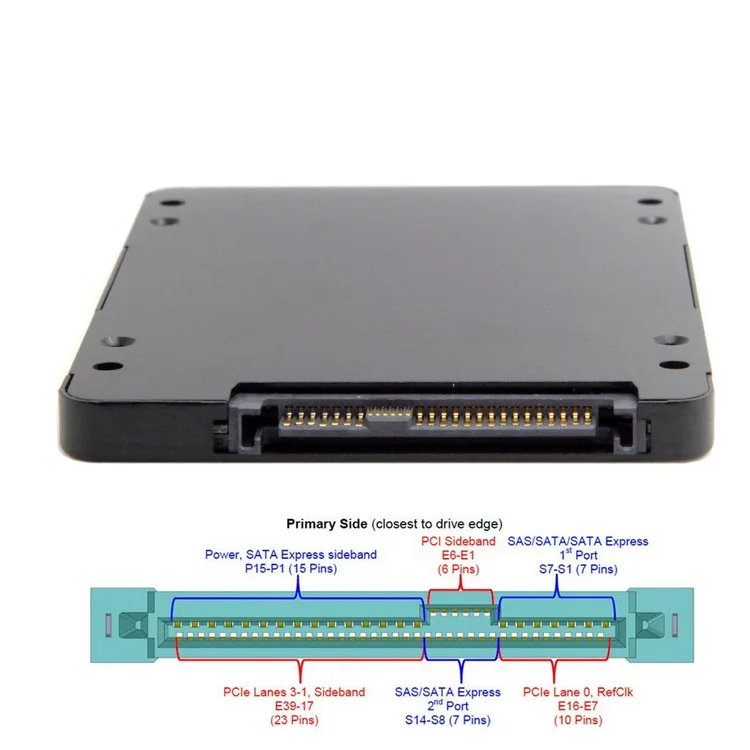

Connector: U.2 SFF-8639 male & 67 pin M.2 NGFF key M slot
Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with key M
Maximum height of the components on the module: 1.5 mm
application of double-sided assembled modules supported
System requirements :
1. Windows 8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.16
2. A free U.2 SFF-8639 interface or A free SFF-8643 interface

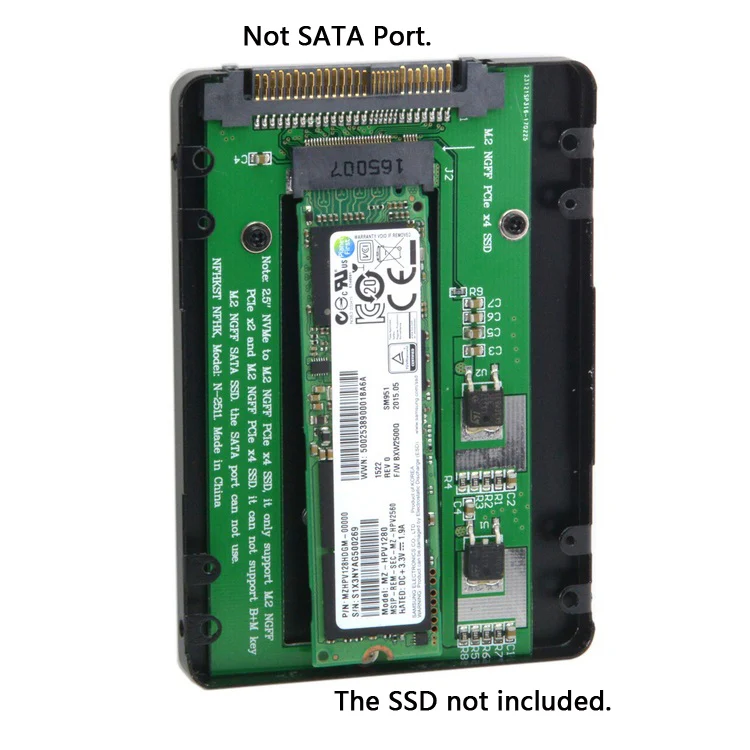

3. It does not work for SATA port.
