Feature
🌱Compatible with Worldwide LoRaWAN® Networks:
Compatible with different types of LoRaWAN® gateways to enable fast connection with LoRaWAN® networks (support the universal frequency plan from 863MHz ~928MHz).
🌱Long Range & Battery powered:
Ultra-wide-transmission range of 2km in urban scenes and 10km in line of sight scenes. Powered by easily replaceable standard Li-SOCl2 battery (type: ER34615) with Max.10 years of battery life.
🌱Designed to Use in Harsh Environments:
-40℃ ~ 85℃ operating temperature and IP66-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
Simple Configuration: SenseCAP provides a no-code experience that enables users to finish configuration with 4 steps through SenseCAP Mate APP.
High-performance Guarantee
We are well aware that the sensors may work under harsh outdoor conditions. To ensure that the performance and durability of the sensors are consistent with their specifications throughout the complete lifecycle, SenseCAP S210X went through 6 reliability tests before releasing and met the requirements to perform perfectly in extreme conditions.
High-Low Temperature Test - determine performance under adverse temperature conditions.
Conformance Test - whether the collected values of multiple devices are consistent
Waterproof Test
Freezing Test
Long-Range Communication Test - whether the device loses packets under long-distance transmission
R&D and Production Test - to test the pass rate of multiple devices under factory conditions
Specification
Soil Temperature
Range
-40 to +80 °C
Accuracy
0 to 50°C: ±0.5 °C
-40 to 0, 50 to 80°C: ±1 °C
Resolution
0.1 °C
Soil Moisture (VWC-Volumetric Water Content)
Range
0 to 100% (air-water)
Accuracy
0 to 50%: ±3%
50 to 100%: ±5%
Resolution
0 to 50%: 0.1%
50 to 100%: 0.5%
General Parameters
Product Model
S2104
Microcontroller
Wio-E5
Support Protocol
LoRaWAN v1.0.3 Class A
Built-in Bluetooth
App Tool to change parameters
LoRaWAN Channel Plan
IN865/EU868/US915/AU915/ AS923/KR920/RU864 *
Max Transmitted Power
19dBm
Sensitivity
-136dBm@SF12 BW=125KHz
Communication Distance
2 to10km (depending on gateway antenna and environments)
IP Rating
IP66
Operating Temperature
-40 to +85 °C
Operating Humidity
0 to 100 %RH (non-condensing)
Device Weight
405g
Cable Length
5 meters
Certification
CE / FCC / RoHS
Battery (Contained in equipment)
Battery Life
Up to 10 years**
Battery Capacity
19Ah (non-rechargeable)
Battery Type
Standard D-size SOCl2 Battery
LoRaWAN Frequency
Note:
No Frequency limitation. The sensor can be switched to other frequency plans at any time.
S210x Devices are manufactured to support the universal frequency plan from 863MHz ~928MHz in one SKU. That is to say, every single device can support the frequency plans below:
Frequency Plan
Common Name
Sub-band
EU863-870
EU868
___
US902-928
US915
Sub-band from 1 to 8
AU915-928
AU915
Sub-band from 1 to 8
AS923
AS923
AS923_1, AS923_2, AS923_3, AS923_4
IN865-867
IN865
___
KR920-923
KR920
___
RU864-867
RU864
___
Hardware Overview
SenseCAP LoRaWAN S2104 Sensor measures soil moisture and temperature at the range of 0 ~ 100% (m³/m³) and -40 ~ 80℃ respectively, making it widely applicable in soil sensing scenarios. It is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and upgrade. Benefiting from LoRa and IP66 design, this sensor features stability and reliability and can cover a long transmission range while keeping lower power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of the deployment, and can be disassembled and installed in a few minutes.
It can cover a transmission range of 2km in urban scenes and 10km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 10 years of usage and an industrial IP66 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh environments.
Part List

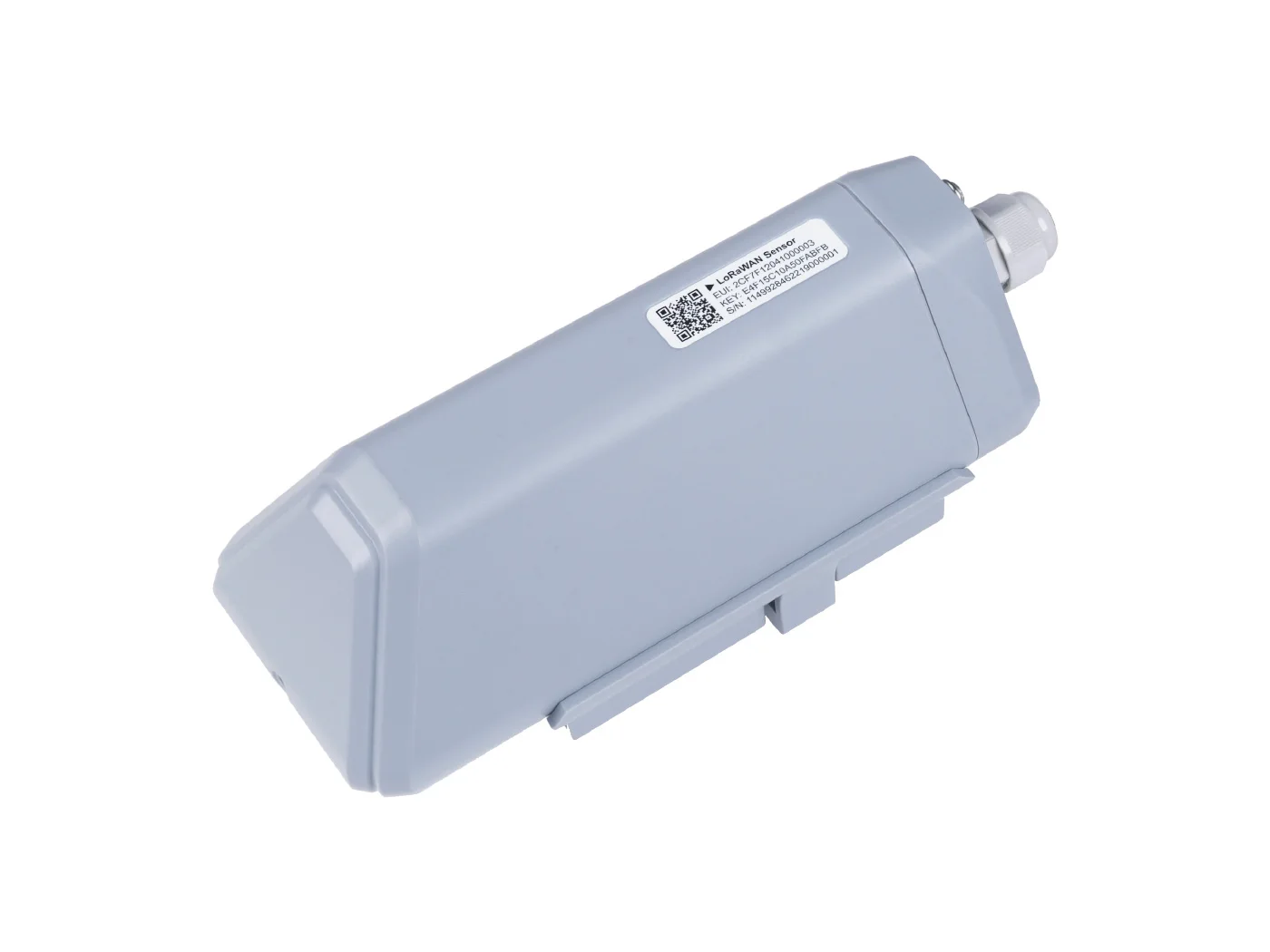

Sensor Node
1

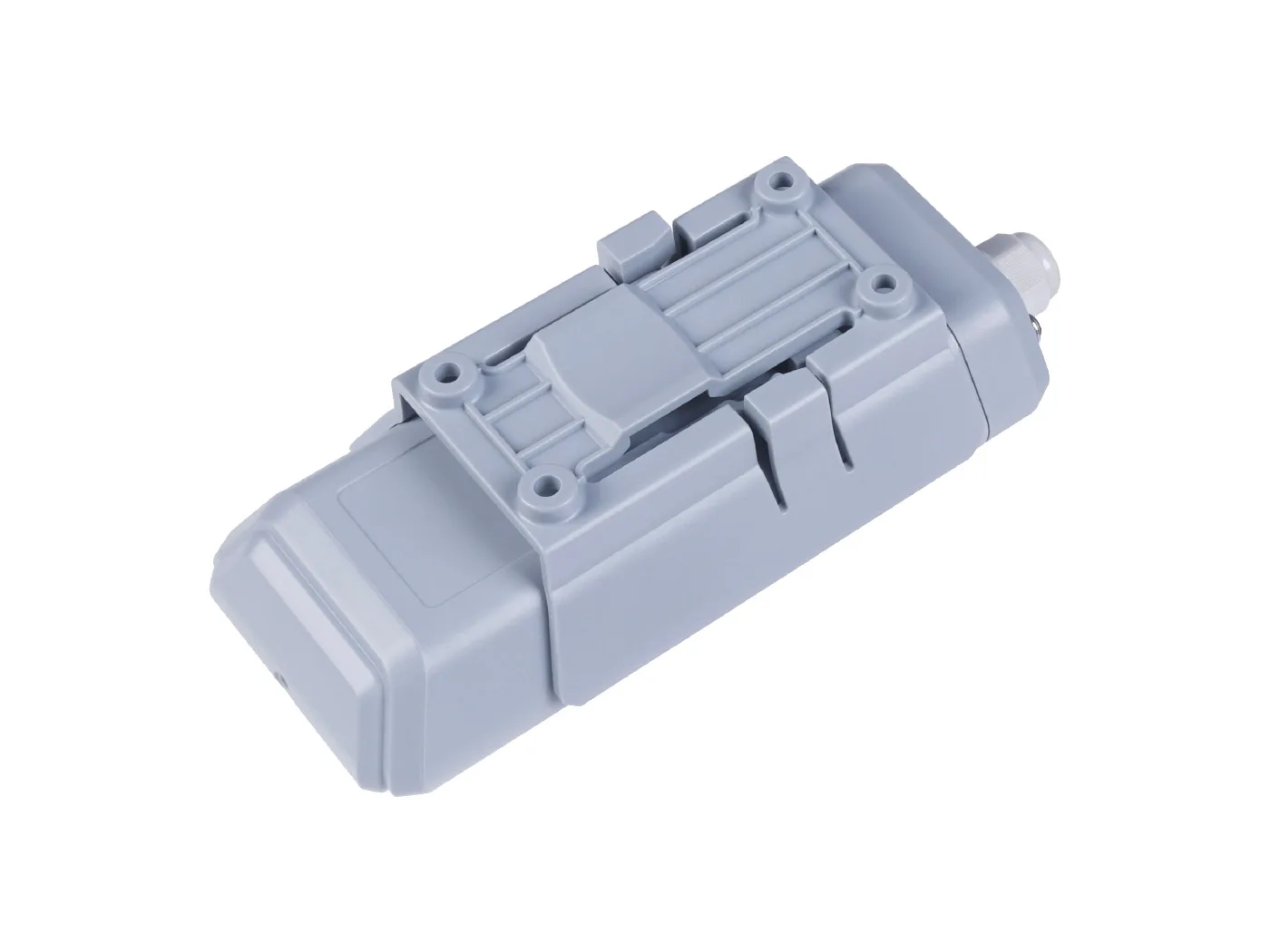

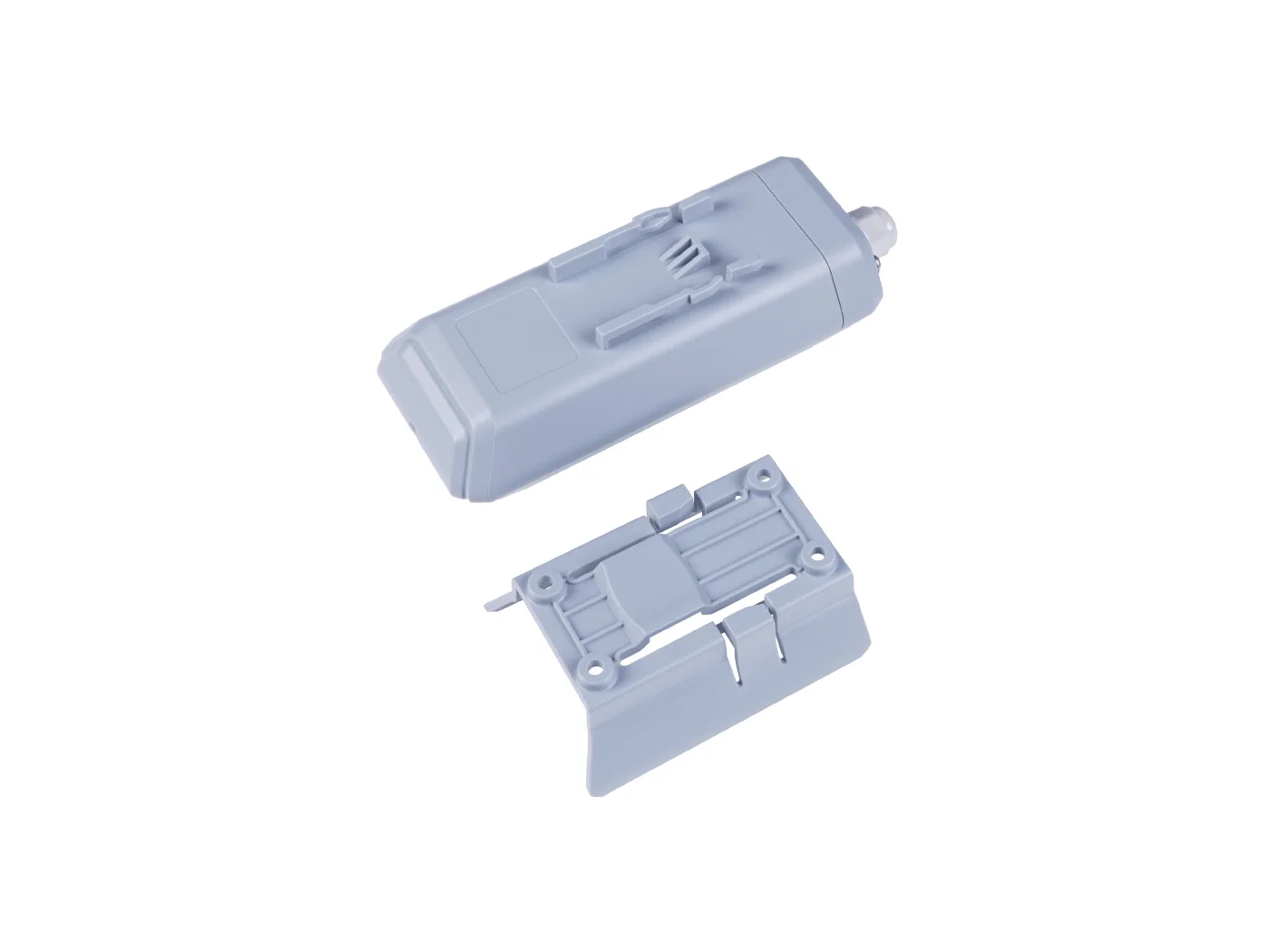

Bracket
2
Quick Start Guide
1
KA4*20mm Self-drilling Screw
4
