Capacidad de SSD
Descripción

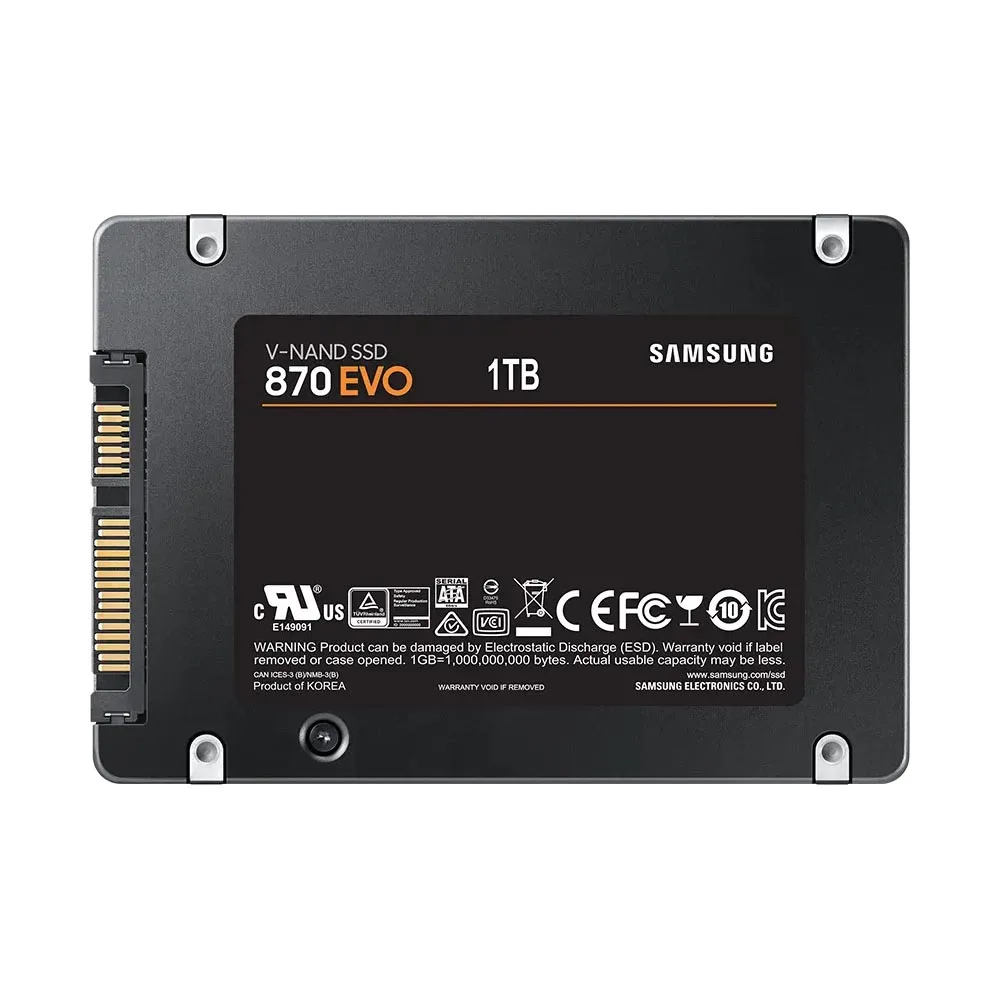

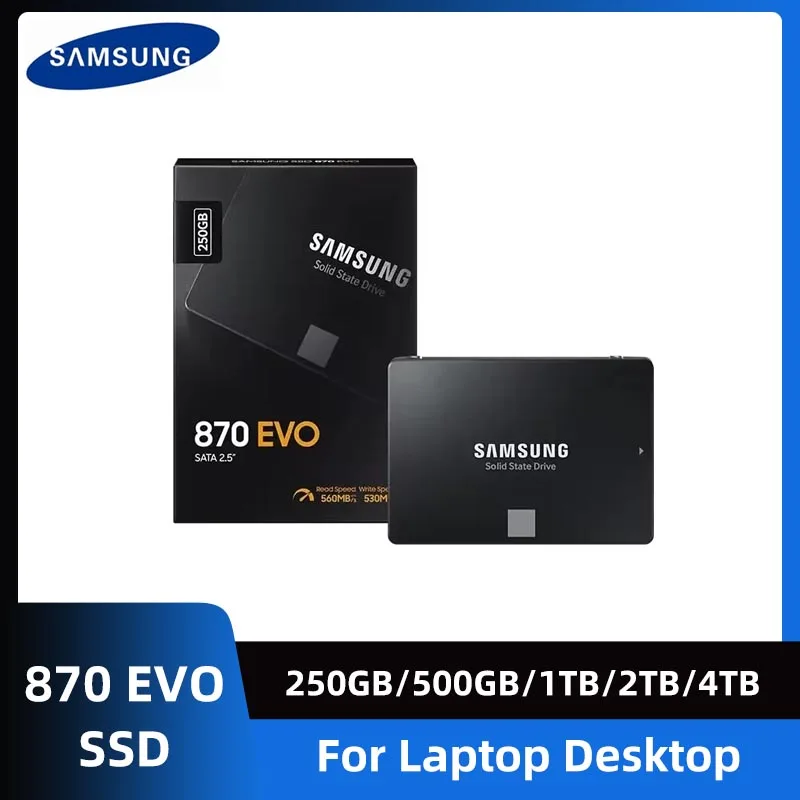

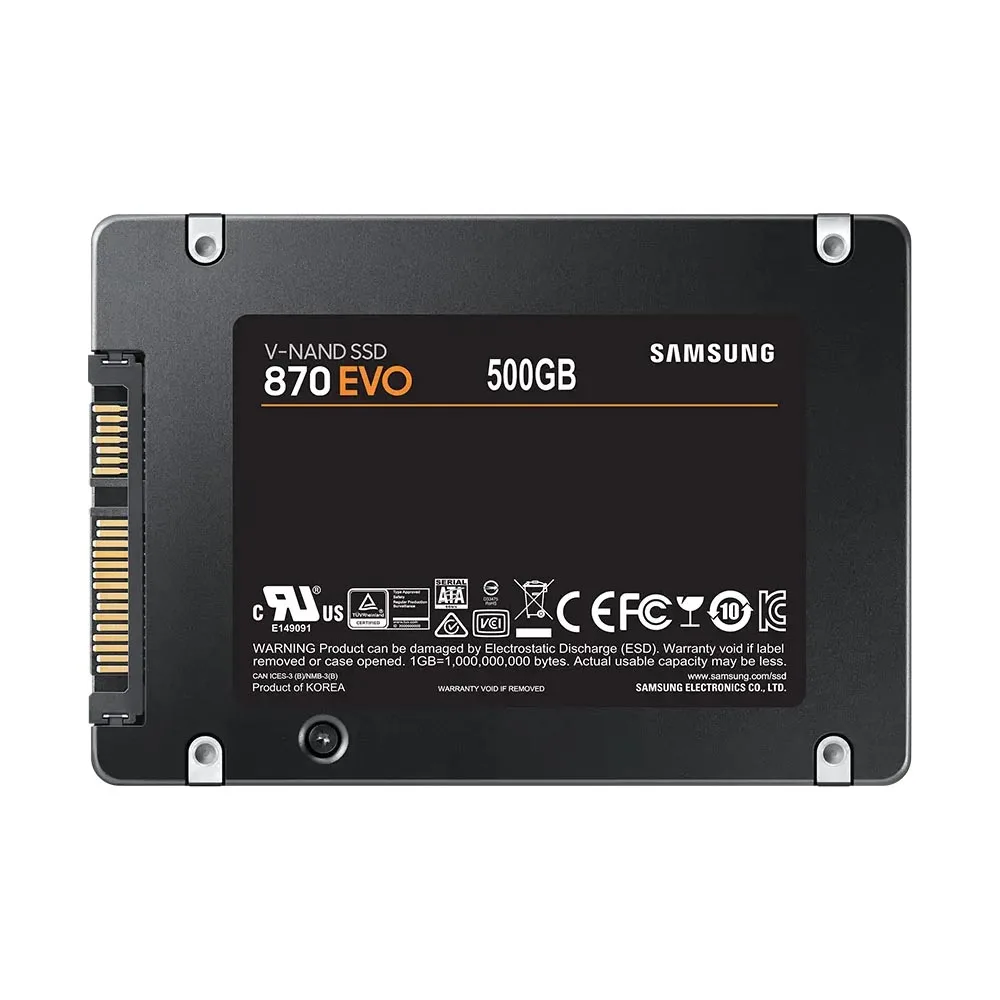

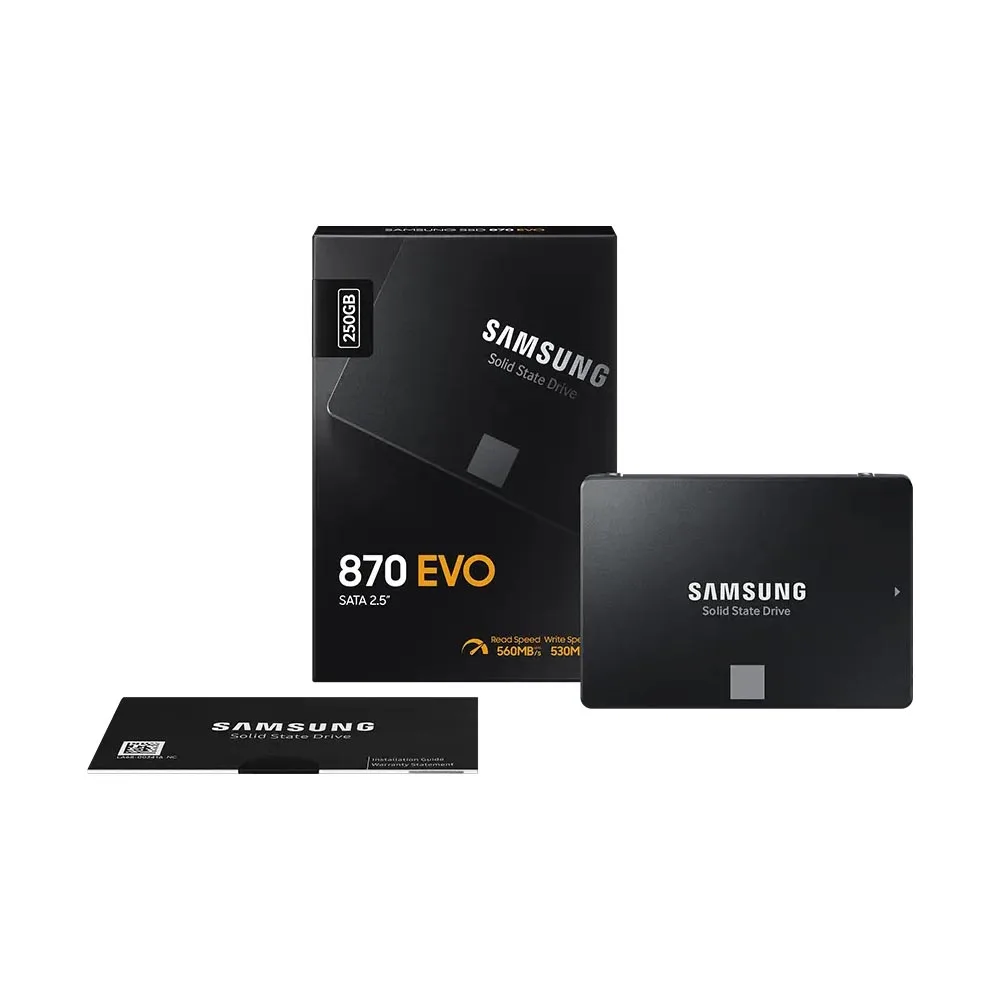

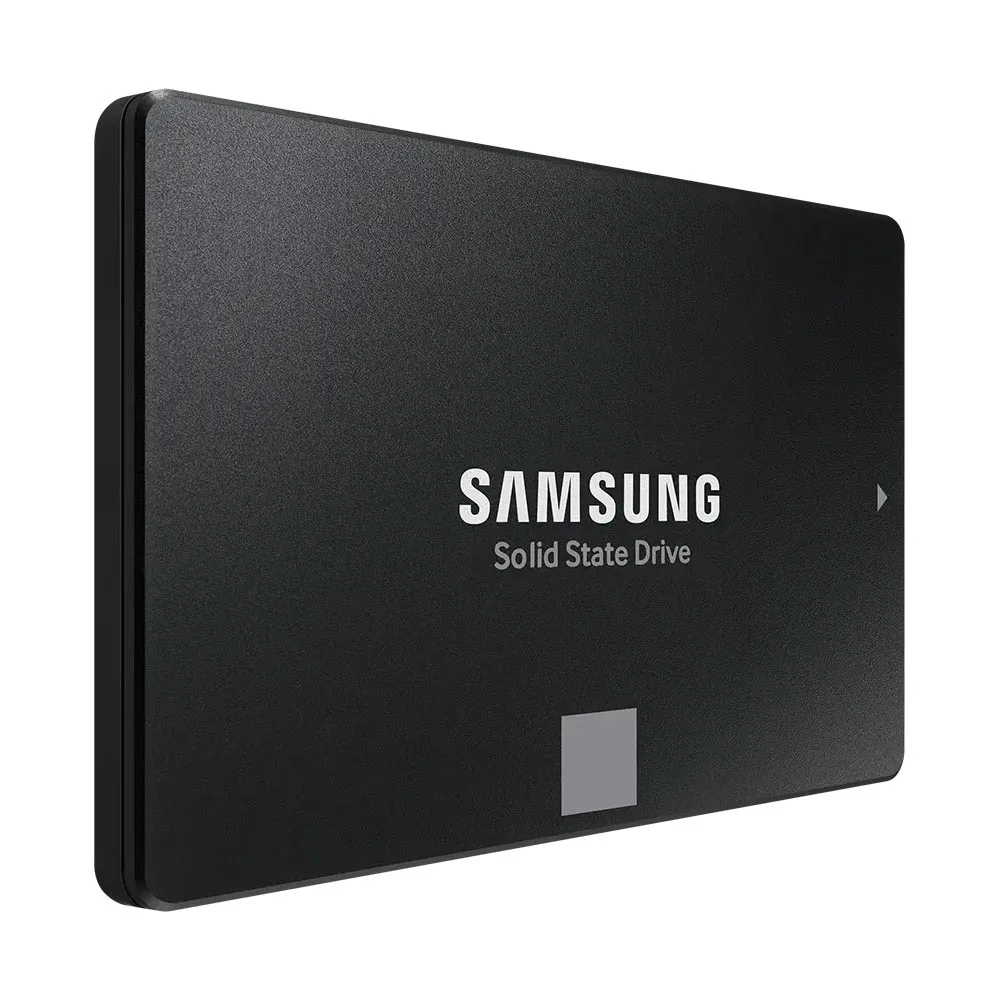

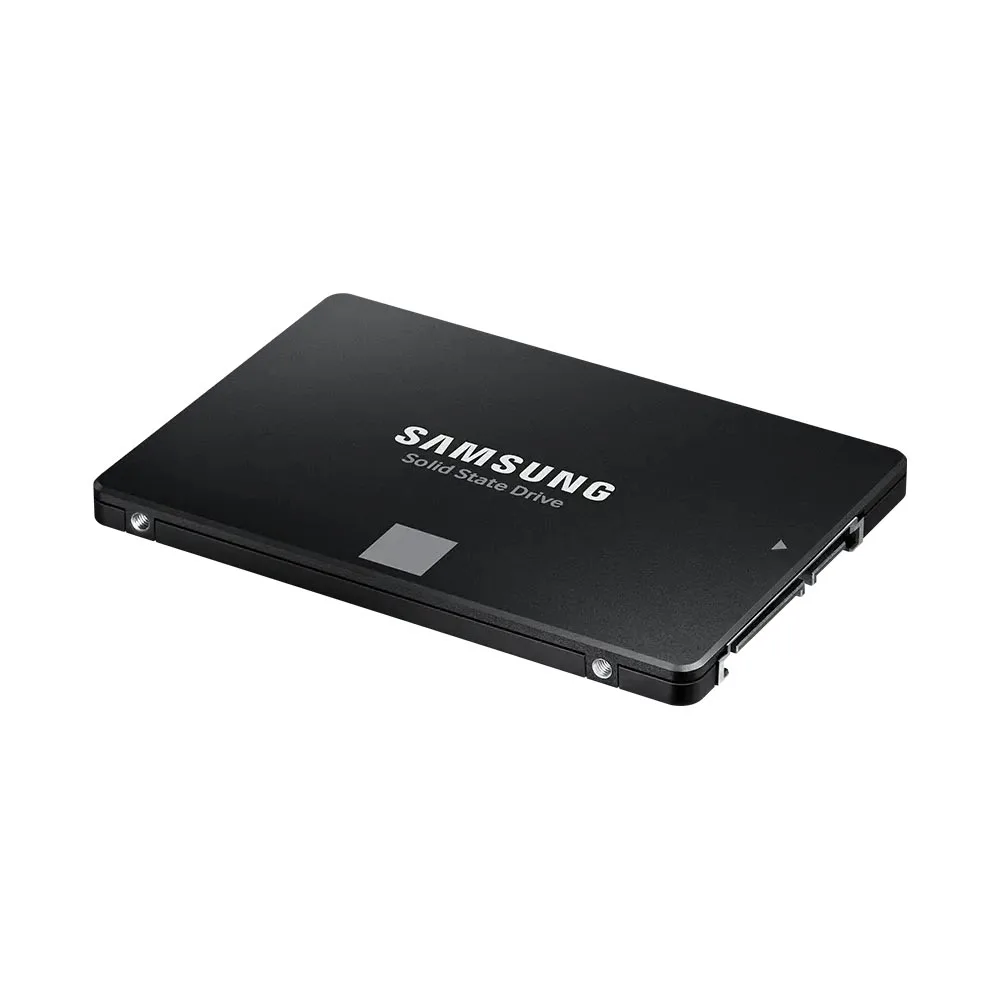

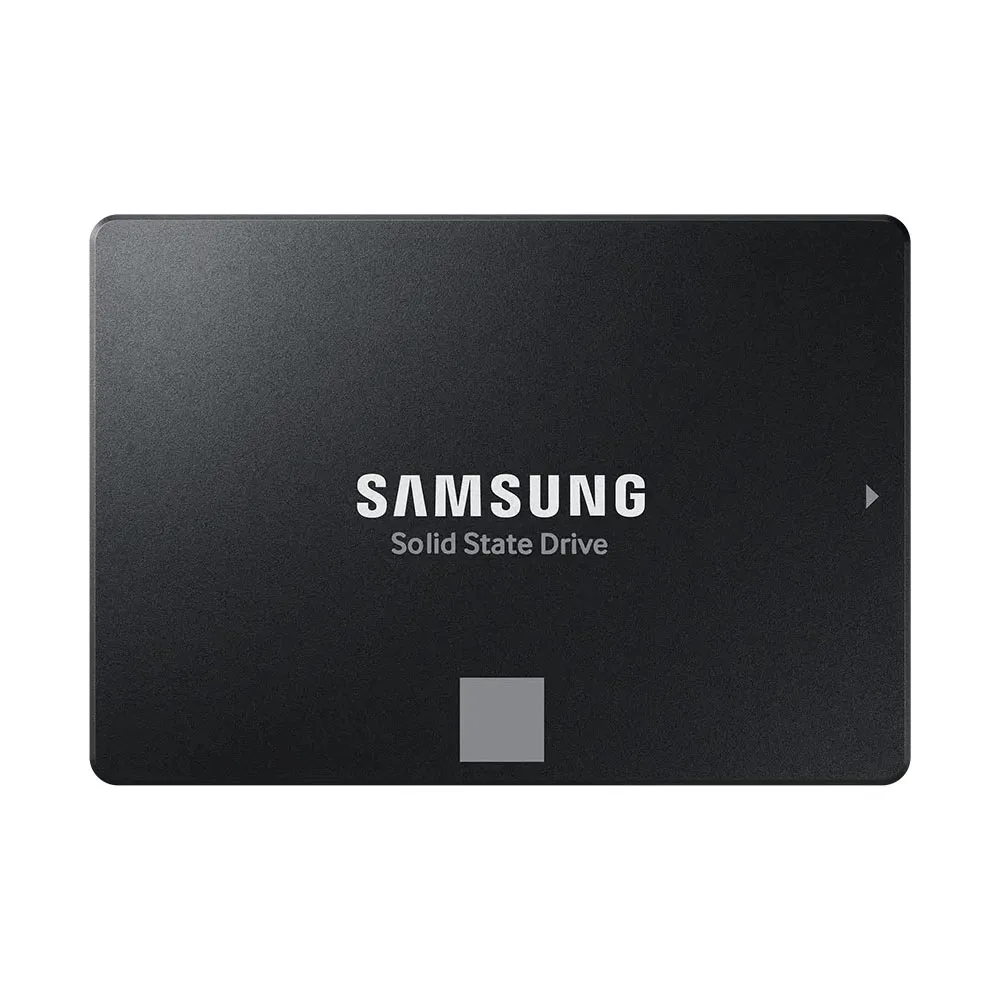

SAMSUNG 2.5'' SATAIII SSD 870 Evo 1TB 2TB 4TB 500GB 250GB Internal Solid State Drive Storage Disk For Laptop or Desktop
Features
*Application: PC client
*Capacity (250GB)
250GB ((1GB=1 billion bytes of IDEMA) * Actual usable capacity may be reduced (due to formatting, partitioning, operating system, application or other necessary usage)
*Capacity (500GB)
500GB ((1GB=1 billion bytes of IDEMA) * Actual usable capacity may be reduced (due to formatting, partitioning, operating system, application or other necessary usage)
*Capacity (1TB)
1,000GB ((1GB=1 billion bytes of IDEMA) * Actual usable capacity may be reduced (due to formatting, partitioning, operating system, application or other necessary usage)
*Capacity (2TB)
2,000GB ((1GB=1 billion bytes of IDEMA) * Actual usable capacity may be reduced (due to formatting, partitioning, operating system, application or other necessary usage)
*Capacity (4TB)
4,000GB ((1GB=1 billion bytes of IDEMA) * Actual usable capacity may be reduced (due to formatting, partitioning, operating system, application or other necessary usage)
*Outline: 2.5 inches
*Interface: 6Gb/s SATA interface (compatible with SATA 3 Gb/s and SATA 1.5 Gb/s interface)
*Dimensions (width x height x depth): 100 x 69.85 x 6.8 (mm)
*Weight: about 45.0g
*NAND flash memory: Samsung V-NAND 3-bit MLC
*Controller: Samsung MKX controller
*cache
(250GB) Samsung 512MB low power DDR4 SDRAM
(500GB) Samsung 512MB low power DDR4 SDRAM
(1TB) Samsung 1GB Low Power DDR4 SDRAM
(2TB) Samsung 2GB Low Power DDR4 SDRAM
(4TB) Samsung 4GB low power DDR4 SDRAM
Special function
*TRIM support:Supported
*S.M.A.R.T:Supported
*Garbage collection: supported
*Security: AES 256-bit encryption (Class 0) TCG/Opal IEEE1667 (encrypted drive)
*WWN support:Support
*Device sleep mode support: supported
Performance
sequential reading
Up to 560MB/s *Performance may vary based on system hardware and configuration
sequential write
Up to 530 MB/s
*Performance may vary based on system hardware and configuration
**Measurements are taken with Intelligent TurboWrite activated
4KB random read (QD32)
Random read up to 98,000 IOPS
*Performance may vary based on system hardware and configuration
**Measurements are taken with Intelligent TurboWrite activated
4KB random write (QD32)
Up to 88,000 IOPS
*Performance may vary based on system hardware and configuration
**Measurements are taken with Intelligent TurboWrite activated
4KB Random Read (QD1)
Up to 13,000 IOPS
*Performance may vary based on system hardware and configuration
**Measurements are taken with Intelligent TurboWrite activated
4KB random write (QD1)
Up to 36,000 IOPS
*Performance may vary based on system hardware and configuration
**Measurements are taken with Intelligent TurboWrite activated
Environment
Average power consumption (system level)
*Average: (250GB)2.2 W, (500GB)2.2 W, (1TB)2.5 W, (2TB)2.5 W, (4TB)2.5 W
*Maximum: (250GB)3.5 W (peak), (500GB)3.5 W (peak), (1TB)4.0 W (peak), (2TB)4.5 W, (4TB)5.0 W
* Actual power consumption may vary based on system hardware and configuration.
Power consumption (standby):
(250GB) 30 mW maximum, (500GB) 30 mW maximum, (1TB) 30 mW maximum, (2TB) 35 mW maximum, (4TB) 35 mW maximum
* Actual power consumption may vary based on system hardware and configuration.
*Allowable voltage: 5 V ± 5 %
*Reliability: 1.5 million hours (mean time between failures)
*Operating temperature: 0 - 70 ℃
*Seismic resistance: 1,500 G & 0.5 ms (Half sine)
Software
Software: Samsung SSD Magician Management Software
*Data migration software for SSD upgrade
Warranty
(250GB) 5-year limited warranty or 150 TBW limited warranty
(500GB) 5-year limited warranty or 300 TBW limited warranty
(1TB) 5-year limited warranty or 600 TBW limited warranty
(2TB) 5-year limited warranty or 1,200 TBW limited warranty
(4TB) 5-year limited warranty or 2,400 TBW limited warranty
