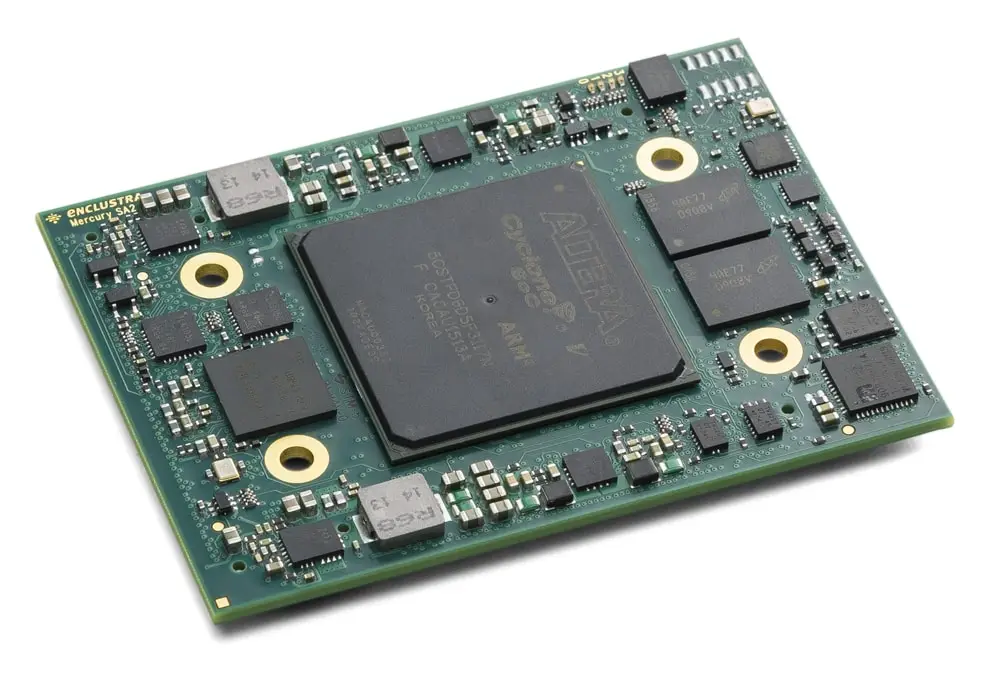

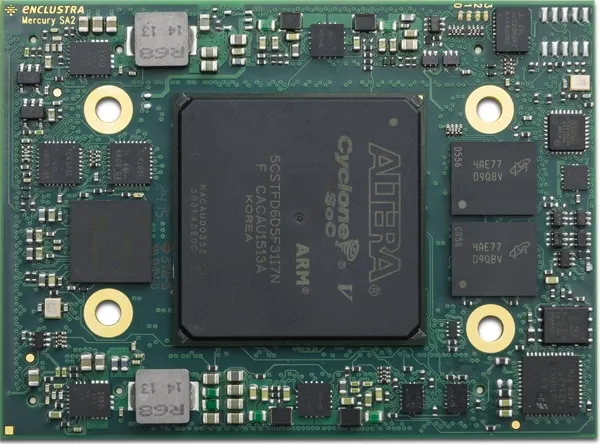

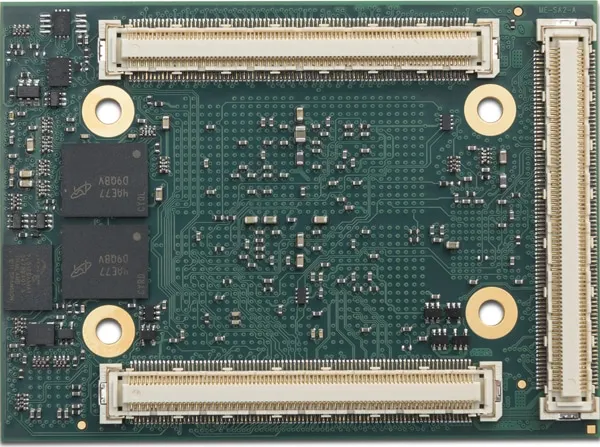

SA2 Intel ® Ciclón ® V Módulo SoC

Overview

The Mercury+ SA2 system-on-chip (SoC) module combines Intel's Cyclone V ARM Processor-based SoC FPGA with fast DDR3L SDRAM, quad SPI flash, a Gigabit Ethernet PHY, dual Fast Ethernet PHYs and an RTC and thus forms a high-performance embedded processing solution, combining the flexibility of a CPU system with the raw, real-time parallel processing power of an FPGA.

Highlights

• Built around the Intel Cyclone® V ARM® Processor-based SoC FPGA

• Offers USB 3.0, USB 2.0, PCIe® x4, Gigabit Ethernet and dual Fast interfaces

• Available in industrial-grade temperature range

• Smaller than a credit card

Benefits

• A complete and powerful embedded processing system in a compact, space-saving form factor

• Large, high-bandwidth memory, with up to 2 GByte of DDR3L SDRAM

• High-bandwidth data transfer: PCIe® x4 interface, and a high number of available LVDS pairs provide high-speed data I/O at low integration cost

• Lowest power consumption due to the high-efficiency DC/DC converters

• Support for Linux operating systems

Features

• Intel Cyclone® V ARM® Processor-based SoC FPGA

  • ARM®dual-core Cortex™-A9
    (32 bit, up to 800 MHz)

  • Intel Cyclone V 28nm FPGA fabric

• Small form factor (74 × 54 mm)

• 294 user I/Os

  • 18 ARM peripheral I/Os (2 × CAN, SPI, SDIO, 2 × I2C, 2 × UART)

  • 234 FPGA I/Os (single-ended or differential))

    • 202 FPGA I/Os

    • 32 FPGA I/Os shared with USB 3.0

  • 42 MGT signals (clock and data)

• 9 × 6.144 Gbps MGTs

• Up to 2 GByte DDR3L SDRAM

• 64 MB QSPI flash

• PCIe® Gen1/Gen2 x4

• Gigabit Ethernet

• Dual Fast Ethernet

• USB 3.0 device controller

• USB 2.0 device controller

• 2 × CAN, 2 × UART, SPI, 2 × I2C, SDIO/MMC

• 5 to 15 V supply voltage
