Product overview

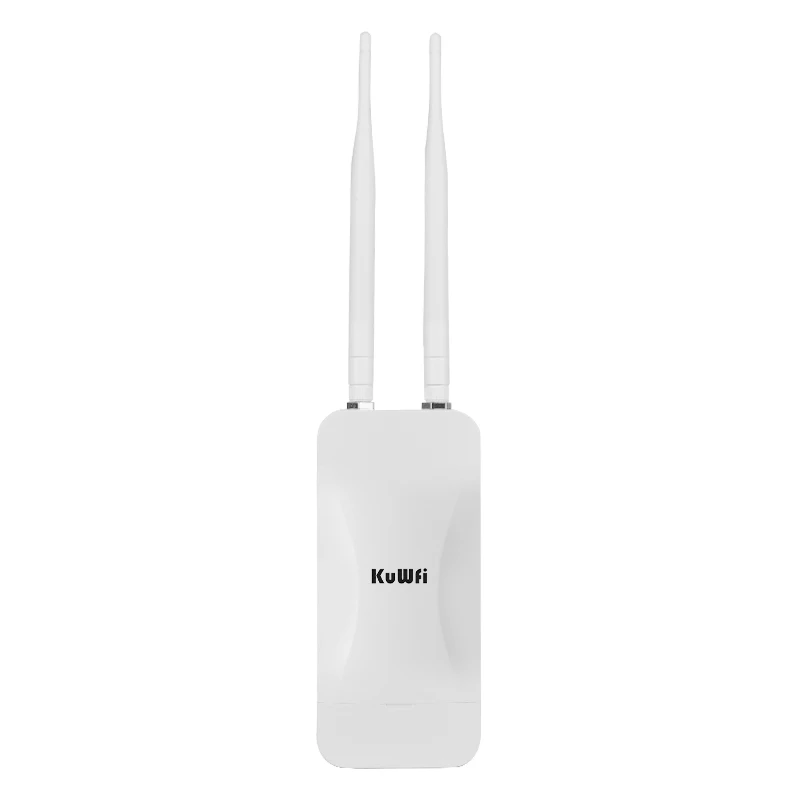

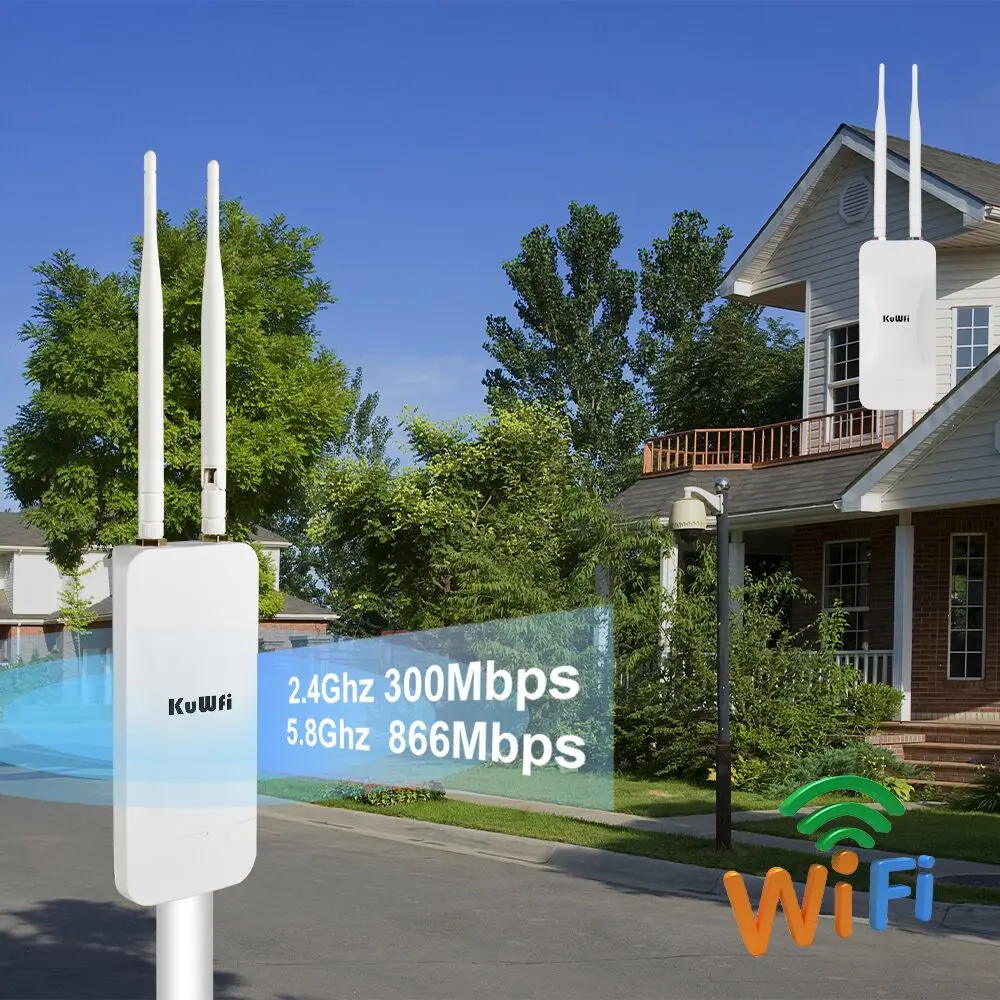

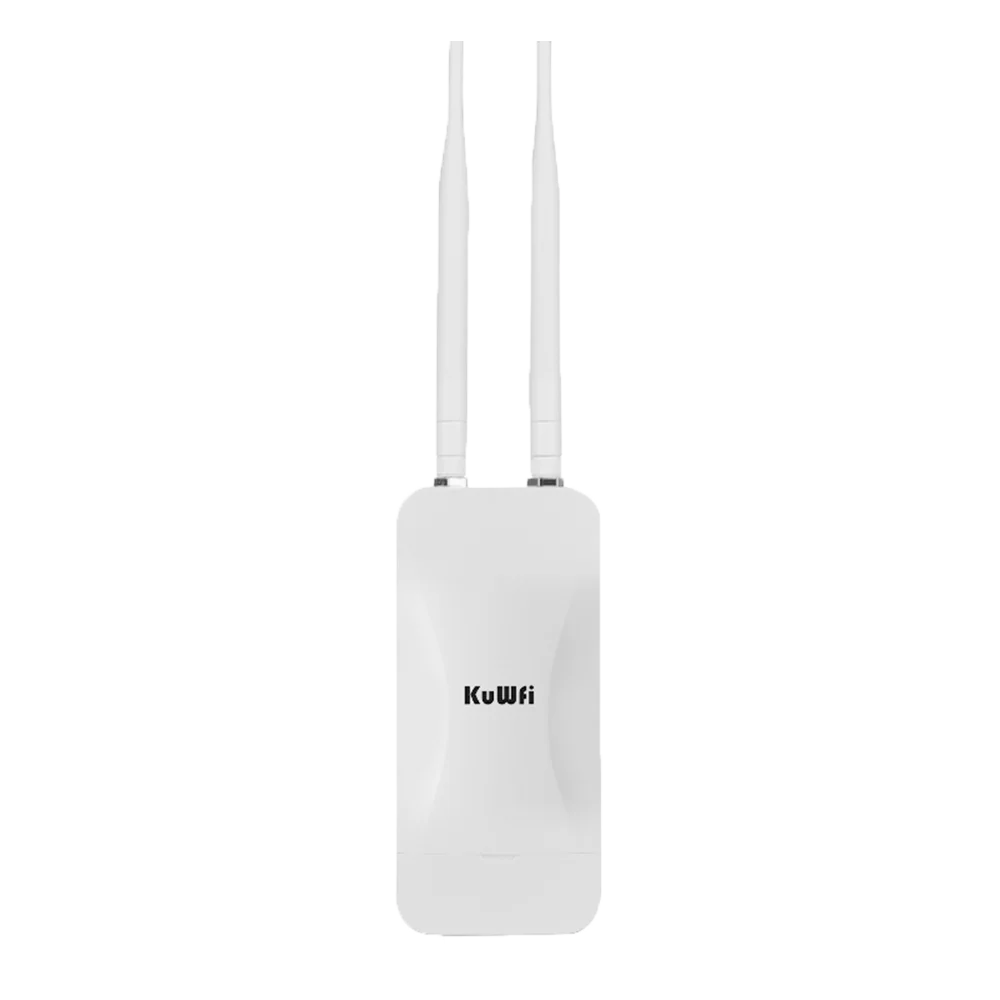

AP 1200F is an entry-level dual-frequency 802.11ac outdoor wireless access point product, providing 2.4GH z and 5.8GHz dual-frequency wireless services, 2.4GHz up to 300Mbps access rate, 5G Hz up to 866Mbps access rate.
Features
. Dual-frequency concurrency, wireless maximum concurrency rate up to 1200Mbps.

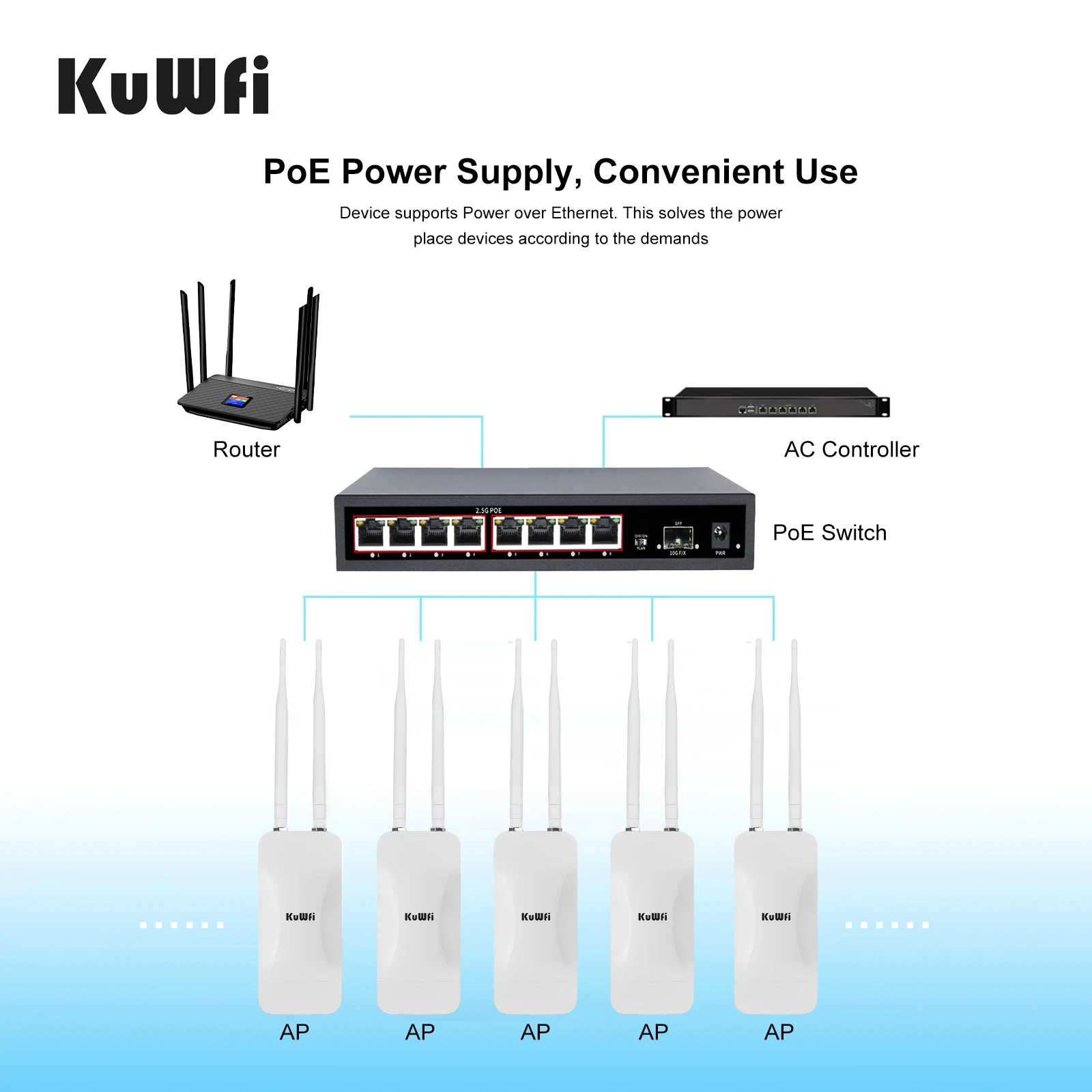

. It also supports 24 V PoE and 12V DC power supply.
. Adapted to high gain dual-frequency antenna, wide coverage.
. Small and fashionable, easy to install.
. Very low power consumption.
Specifications
CPU：MT7628DAN+ MT7613BEN
Flash：8MB
External dual-frequency antenna：2.4GHz / 5GHz omnidirectional dual-frequency antennas, each gain: 5 dBi
Top speed：2.4G provides a maximum access rate of 300Mbps, and 5G to 866Mbps
(WAN)：10 / 100M adaptive WAN port, supporting 24 VPOE
(LAN)：10 / 100M adaptive LAN port

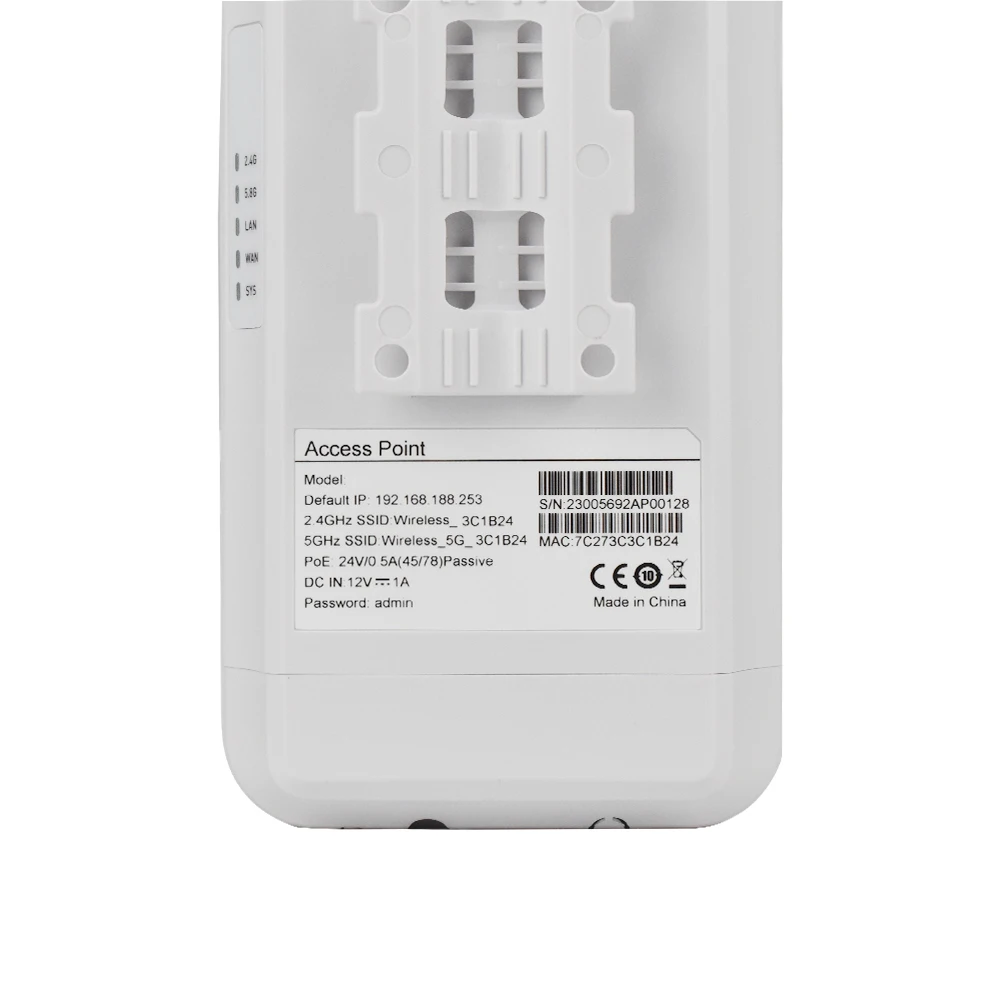

Supply electricity：24V Passive PoE ，12V /1A DC
Normal operating temperature: -30°C to 55°C;
Storage temperature: -40°C to 70°C;
humidity: 5%~95% (no condensation)
levels of protection：IP65

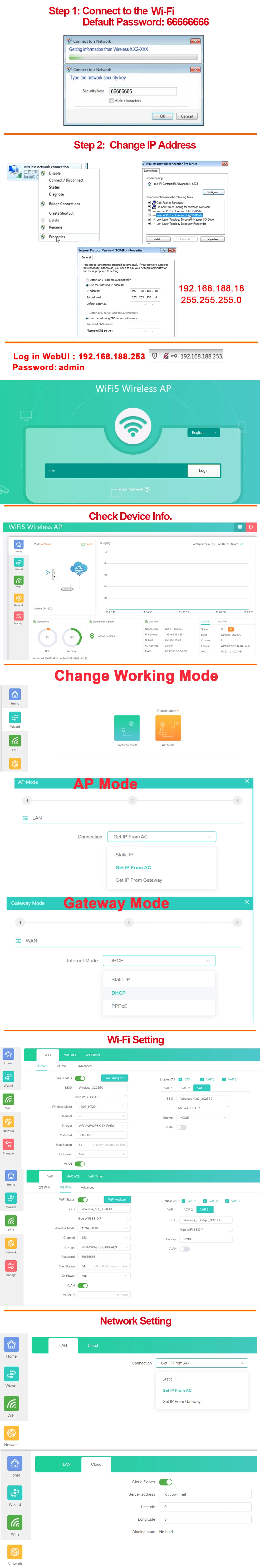

Support mode
Gateway mode: the device is connected to the WAN network through the WAN port and connected to the Internet using static IP, DHCP or PPPOE
Relay mode: In this mode, the device overrides wireless network signals to other clients or devices and connects to other routers using the WAN
AP mode: Devices cover wireless network signals over other clients and devices, and use Ethernet to connect to other routers for WAN access
Package
Outdoor AP *1
Antenna *2
Nylon Za with Ad midia 2
The PoE module * 1
Screws crews 2
Manual *1
