Feature
Note:
If you want to use SSDs with reComputer, we only recommend you choose the 128GB, the 256GB, and the 512GB versions from Seeed, because some of the SSDs in the market will work with this product under a particular JetPack version and some will not work with a different JetPack version. Even the official NVIDIA dev kits have the same behavior with SSDs.
Specification
Jetson OrinNano System on Module
Al Performance
reComputer Industrial J3010 - Orin Nano 4GB, 20 TOPS
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
CPU
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3
Memory
8GB 128-bit LPDDR5 68 GB/s
4GB 64-bit LPDDR534 GB/s
Video Encoder
1080p30 supported by 1-2 CPU cores
Video Decoder
1x4K60 (H.265) | 2x4K30 (H.265) | 5x1080p60 (H.265) | 11x1080p30 (H.265)
Carrier Board
Storage
1x M.2 Key M PCIe (M.2 NVMe 2280 SSD 128G included)
Networking
Ethernet
1x LAN1 RJ45 GbE PoE(PSE 802.3 af 15 W)
1x LAN2 RJ45 GbE (10/100/1000Mbps)
I/O
USB
3x USB3.2 Gen1,
1x USB2.0 Type C (Device mode),
1x USB2.0 Type C For Debug UART & RP2040
Display
1x HDMI Type A; 1x DP
Fan
1x4 pin Fan Connector (5V PWM)
DI/DO
4x DI,4x DO,3x GND_DI,2x GND_DO,1x GND_ISO,1x CAN
COM
1x DB9 (RS232/RS422/RS485)
SIM
1x Nano SIM card slot
Expansion
Mini PCIe
Mini PCIe for 4G/LoRaWAN® (Module optional)
M.2 Key E
Support SMD Wi-Fi/Bluetooth (Module optional)
M.2 Key B
M.2 Key B support 4G/5G (Module optional)
Fan
Fanless, passive heatsink1*Fan connectors(5V PWM)
TPM
1x TPM 2.0 connector (Module optional)
RTC
1x RTC socket (CR1220 included), 1* RTC 2-pin
Camera
2x CSI (2-lane 15pin)
Power
DC 12V-24V Terminal block 2 pin
19V Power Adapter(without power cord)
Mechanical
Dimensions (W x D x H)
159mm x 155mm x 57mm
Weight
1.57kg
Installation
Desk, DIN rail, wall-mounting, VESA
Environment
Operating Temperature
-20 ~ 60°C with 0.7m/s
Operating Humidity
95% @ 40 °C (non-condensing)
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock
50G peak acceleration (11 msec)
Warranty
2 Years
Hardware Overview

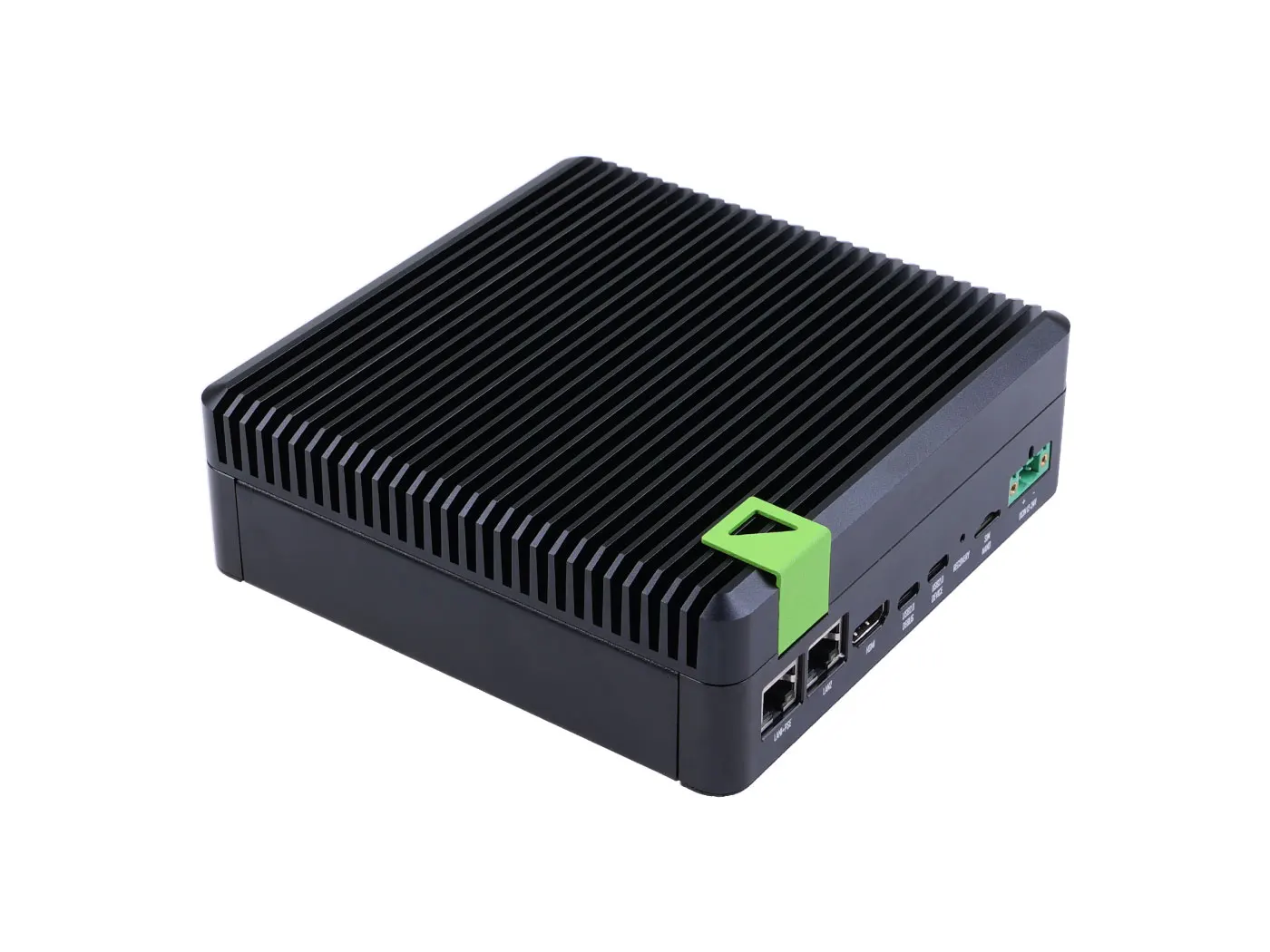

Full System
Carrier Board

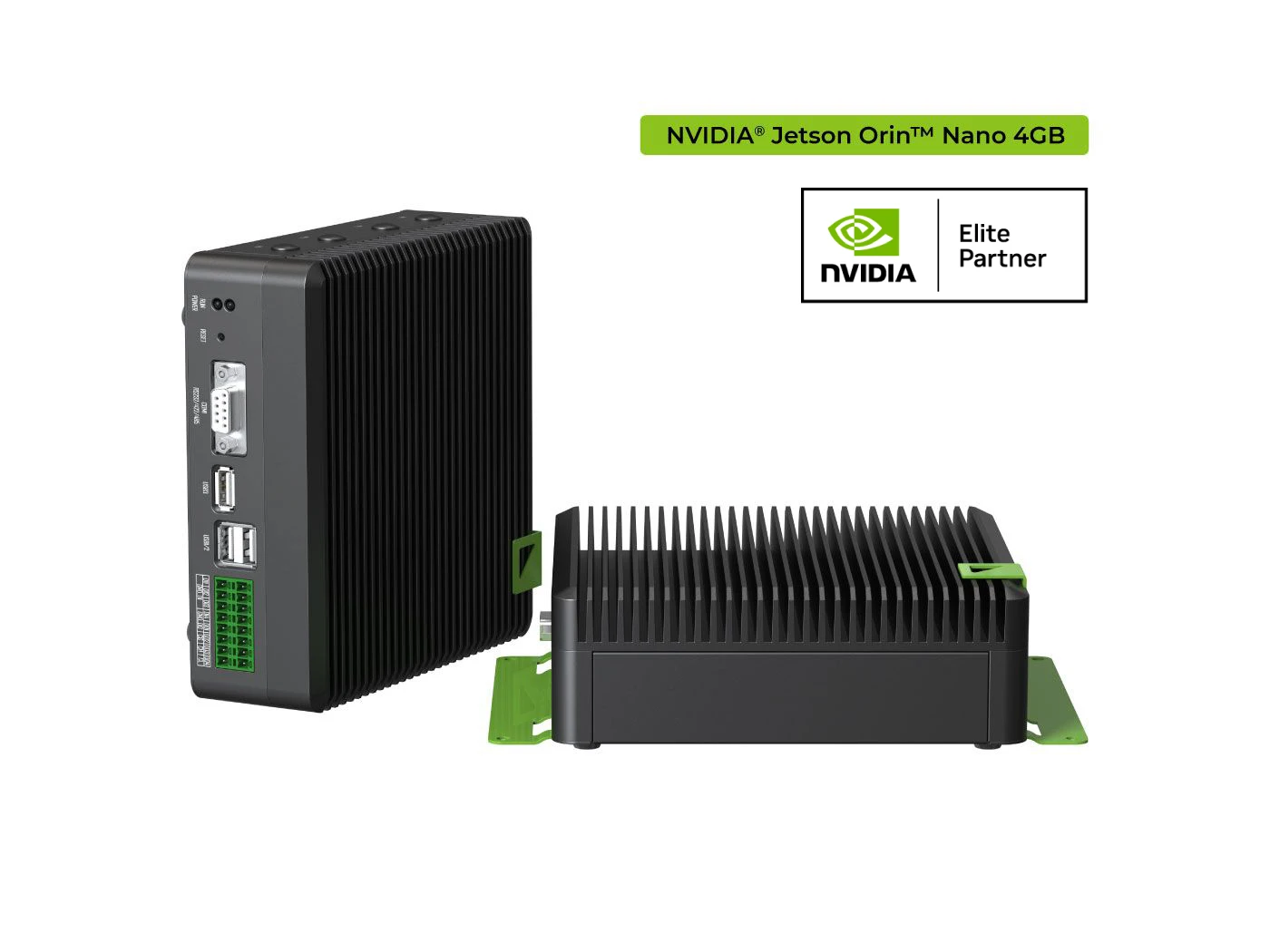

Desktop, Wall Mount, DIN Rail, VESA mount to fit in anywhere
Application
Application Fields:
AI Video Analytics
Machine Vision
Autonomous Mobile Robot (AMR)
Generative AI
Part List
reComputer Industrial J3010(System Installed)
x1

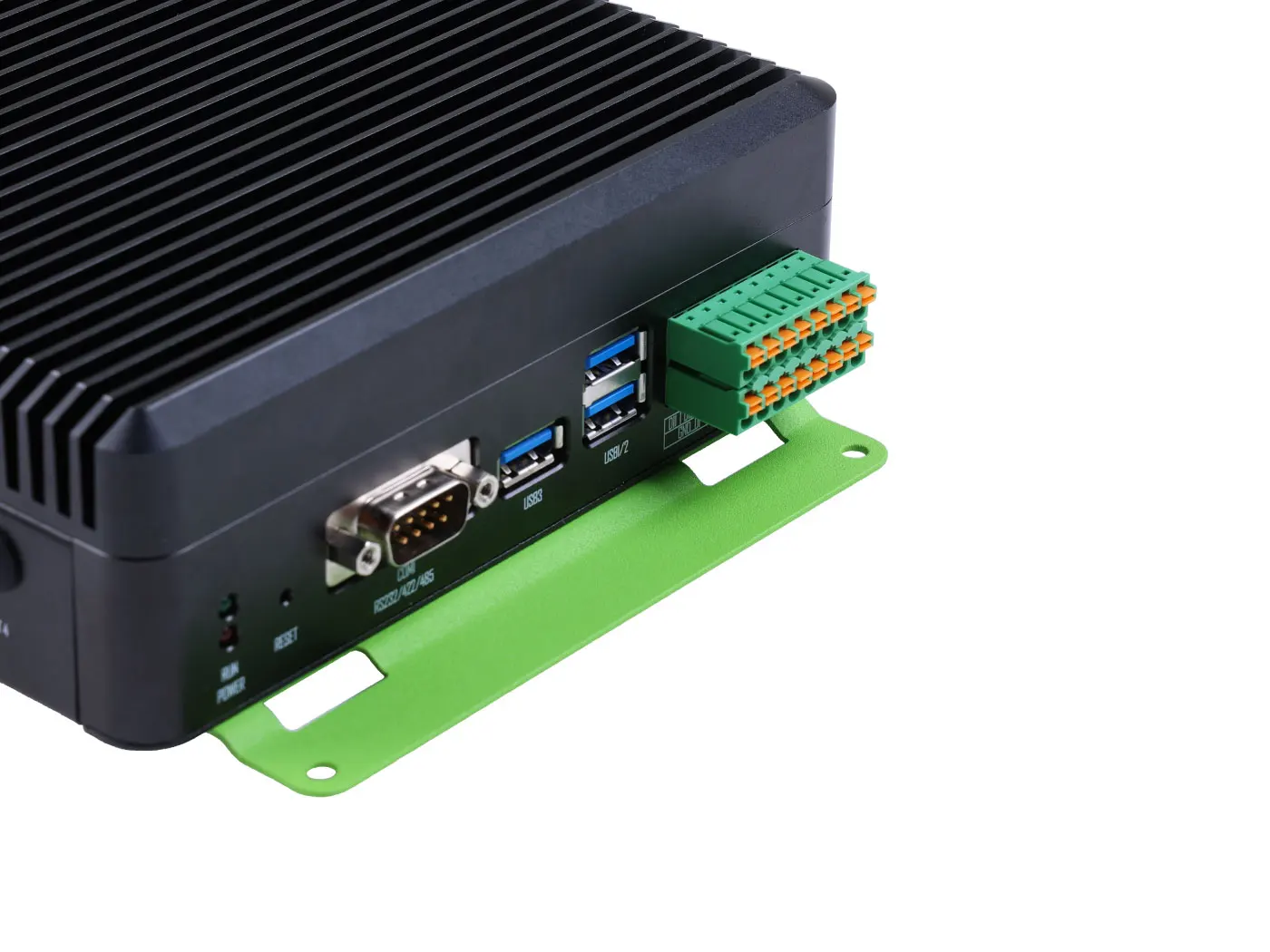

Mounting bracket
x2
DIN rail bracket
x1
Bracket screw
x4
16-Pin Terminal Block for DIO
x1
19V Power adapter (power cord sold separately)
x1
2-Pin Terminal block power connector
x1
