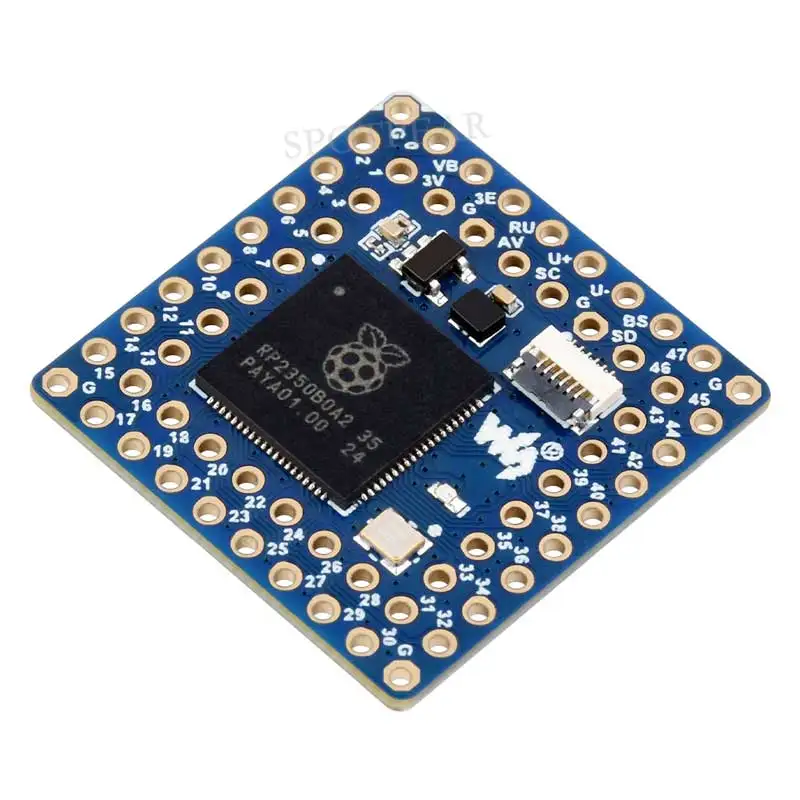

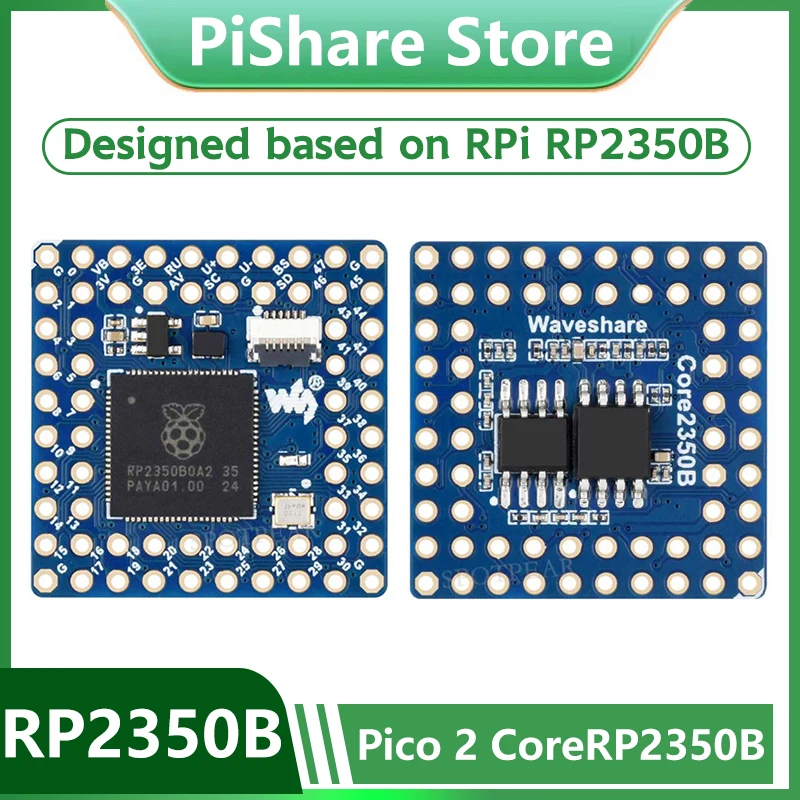

Raspberry Pi Pico 2 RP2350 Core2350B Placa central PSRAM Pico 2 RP2350

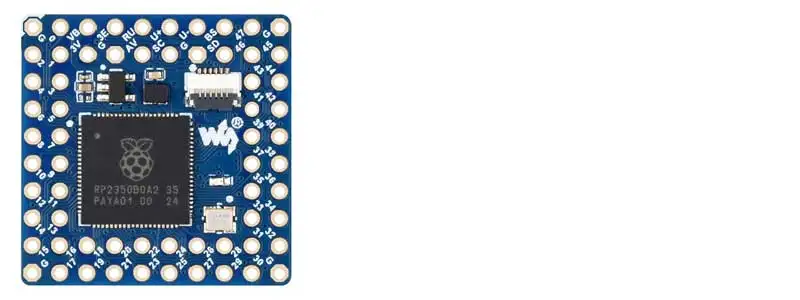

The Core2350B series is a low-cost, high-performance microcontroller development board designed by Waveshare. In a smaller board, the RP2350B is used as the main control, and 48 multi-function pins are brought out, which is convenient for development and integration into products.

The main features are：

• RP2350B microcontroller chip designed with Raspberry Pi

• Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, clock frequency up to 150MHz, allowing users to flexibly switch between the two architectures

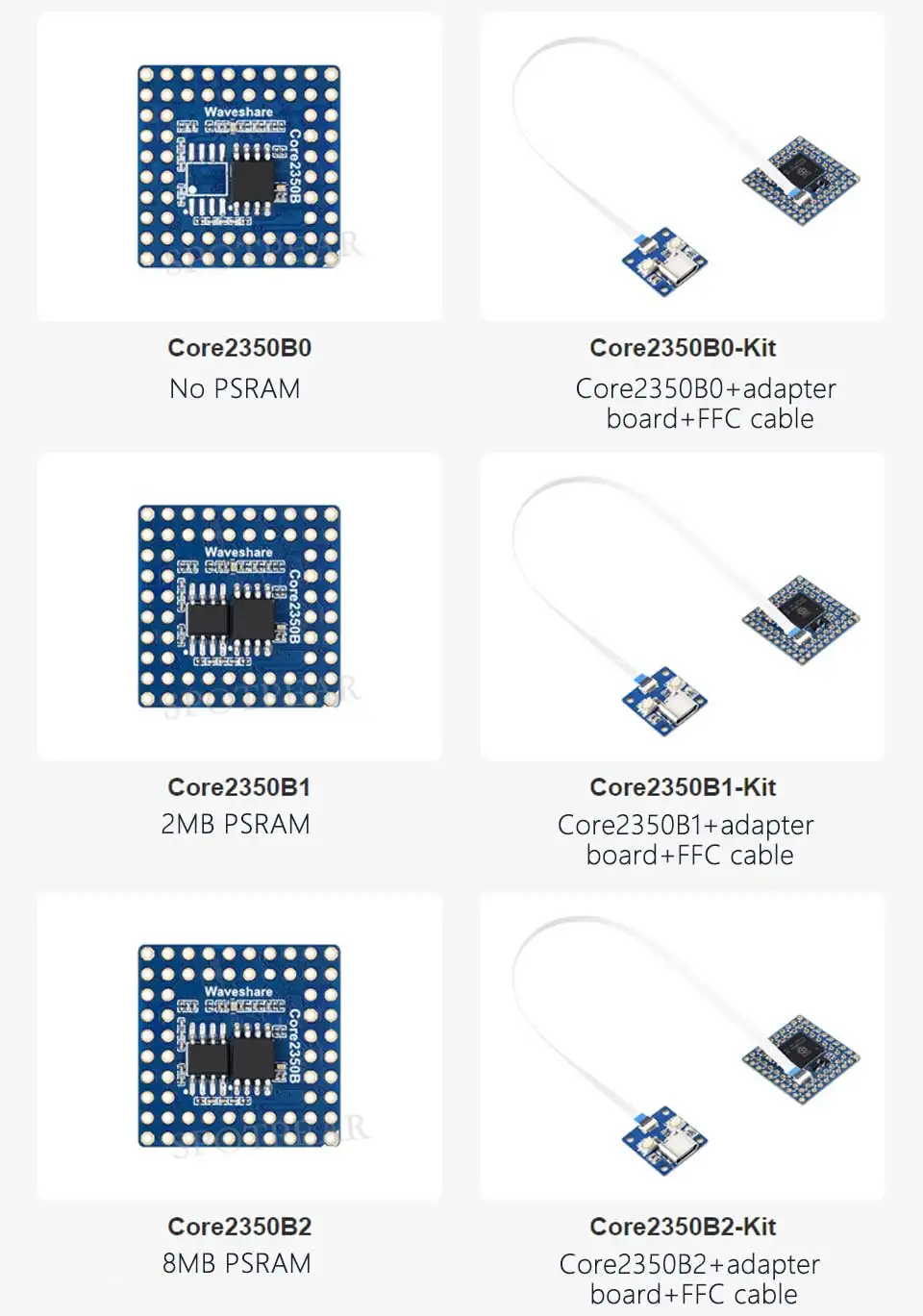

• Optional PSRAM: None (0MB) / 2MB / 8MB, built-in 520KB SRAM and 16MB on-chip Flash

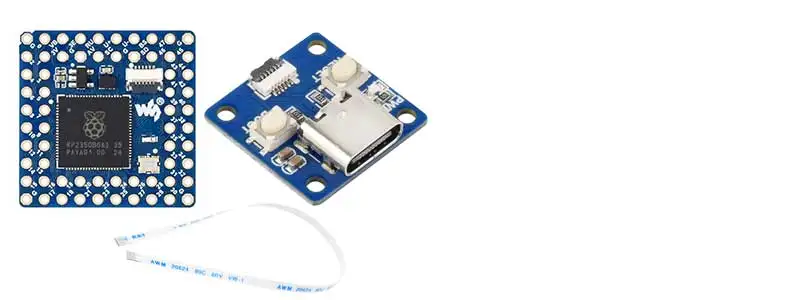

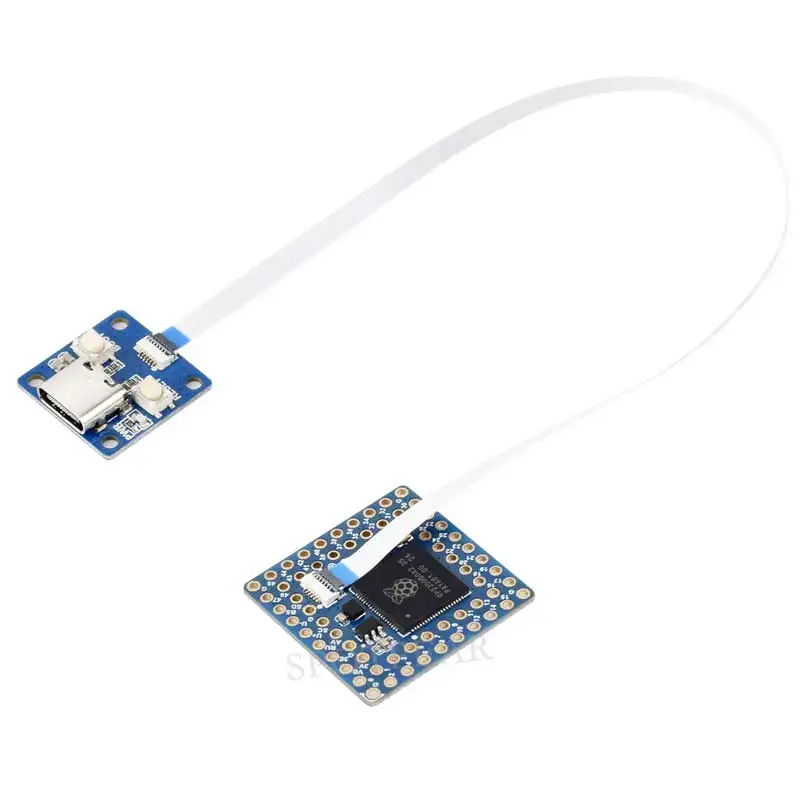

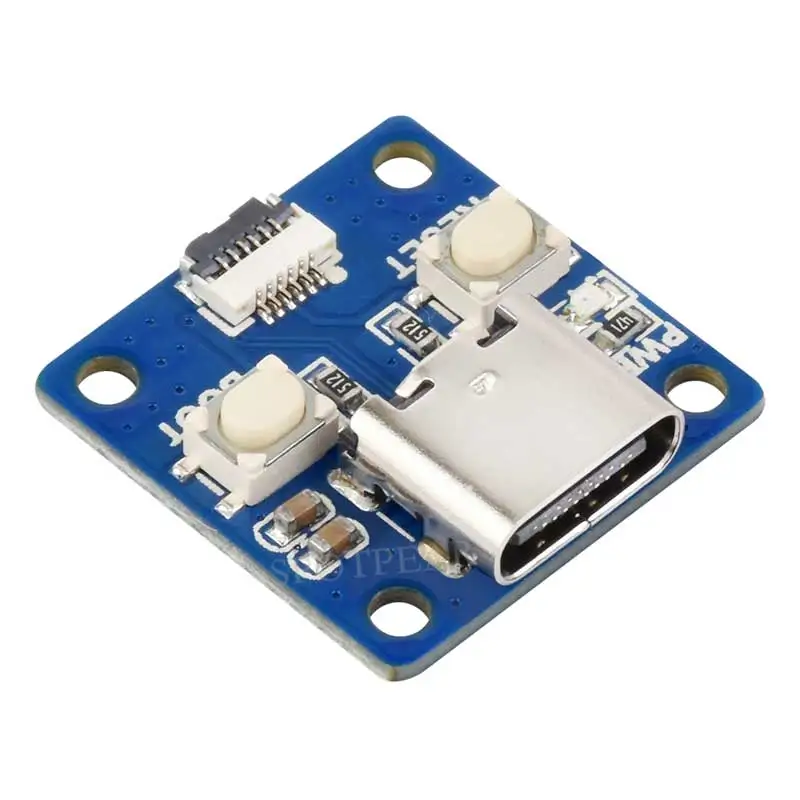

• Onboard FPC 6PIN interface, can lead out USB Type-C interface through adapter board

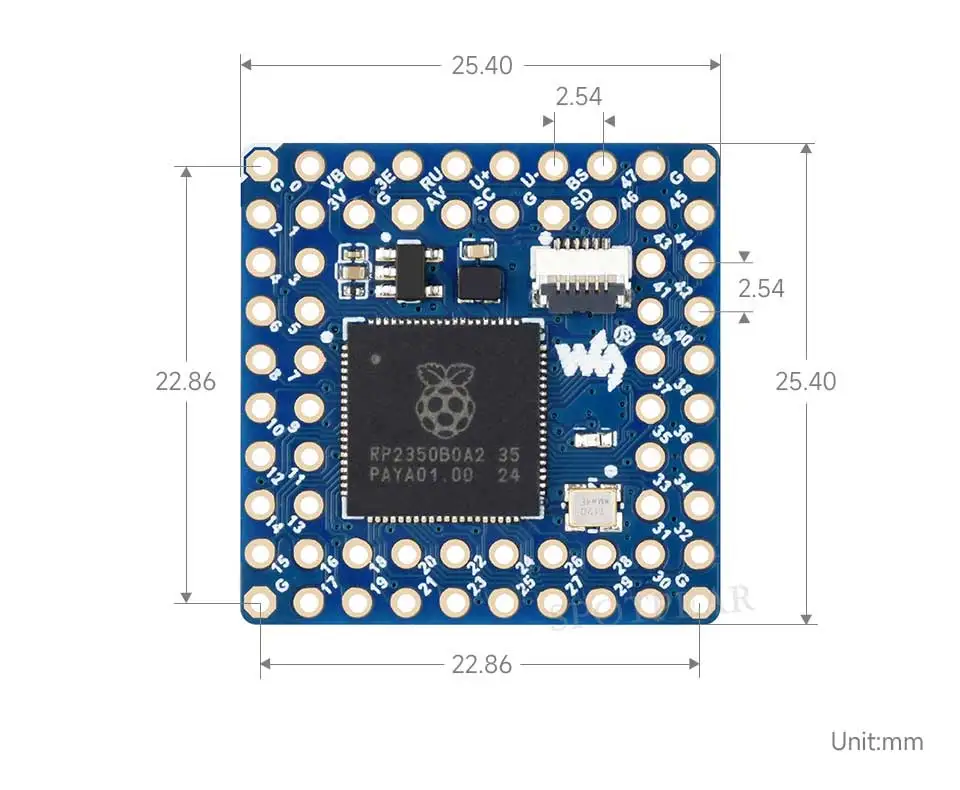

• 64 pins arranged at a standard 2.54mm pitch for easy integration into user-developed substrates

• USB1.1 host and slave support

• Supports low power sleep and hibernation modes

• Drag-and-drop program downloading via USB recognition as mass storage

• Bring out 48 multi-function GPIO pins

• 2 I2C, 2 UARTs, 8 12-bit ADCs, and 24 controllable PWM channels

• Precise on-chip clocks and timers

• Temperature Sensor

• 12 Programmable I/O (PIO) state machines for custom peripheral support

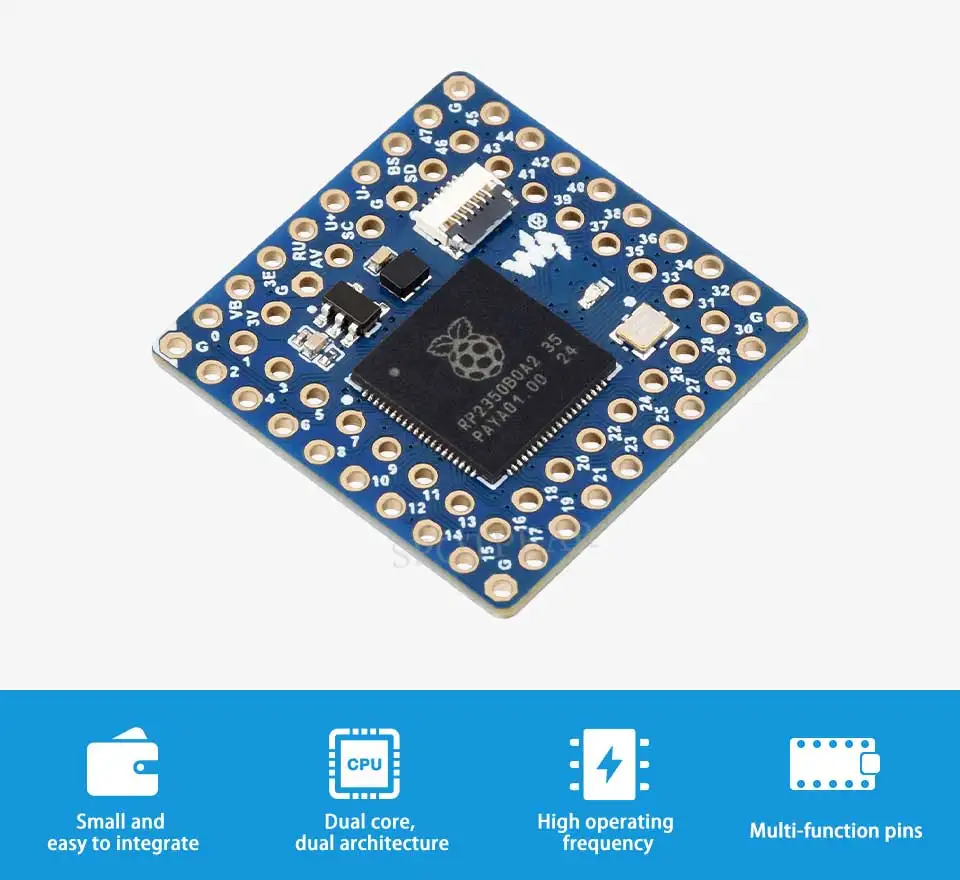

Unique dual-core, dual-architecture

The RP2350's unique dual-core, dual-architecture capability allows users to switch between a pair of industry-standard Arm Cortex-M33 cores and a pair of open hardware Hazard3 cores, enabling developers to experiment with the RISC-V architecture in a stable, well-supported environment.

Supports C/C++, MicroPython,

Arduino

Complete SDK and open source tutorials are provided to make it easy to get started and can be quickly embedded into applications

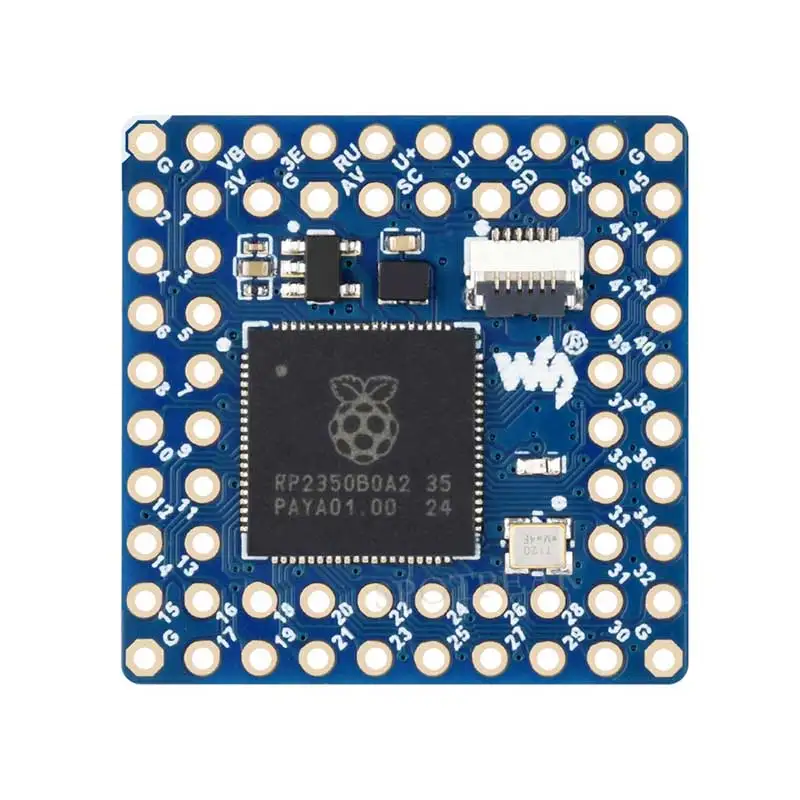

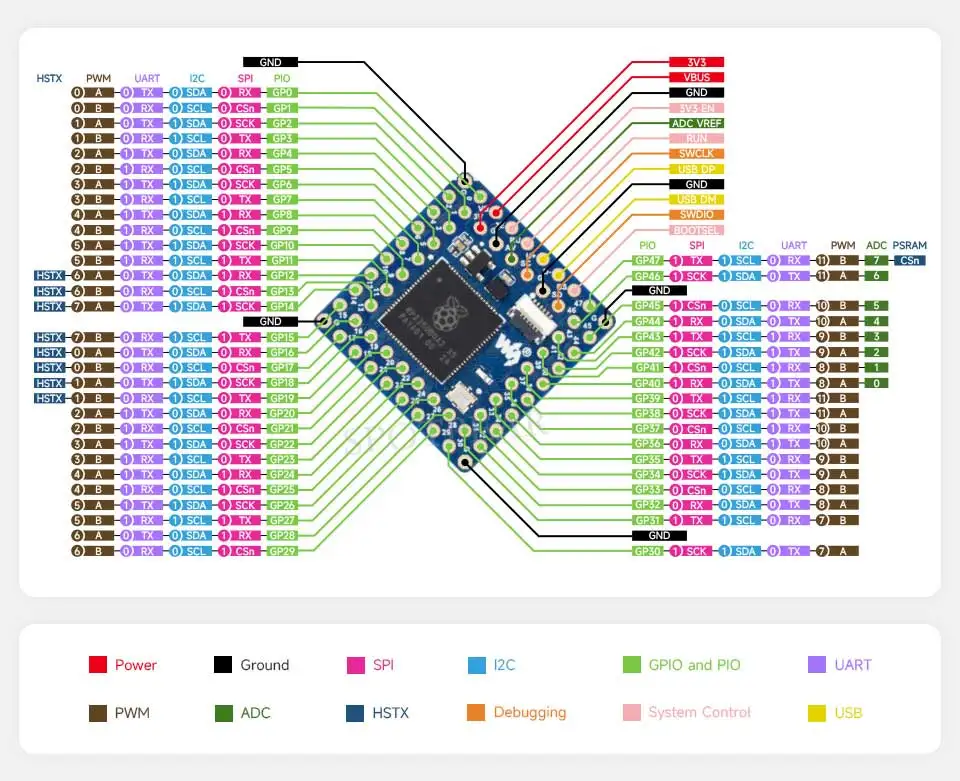

Pin Definition

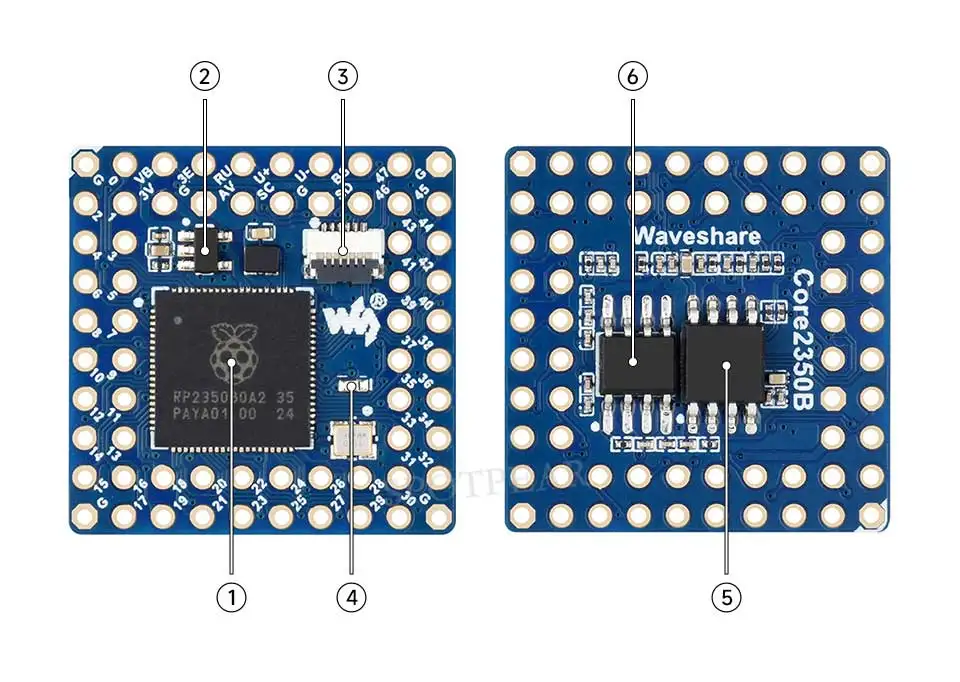

Resource Overview
