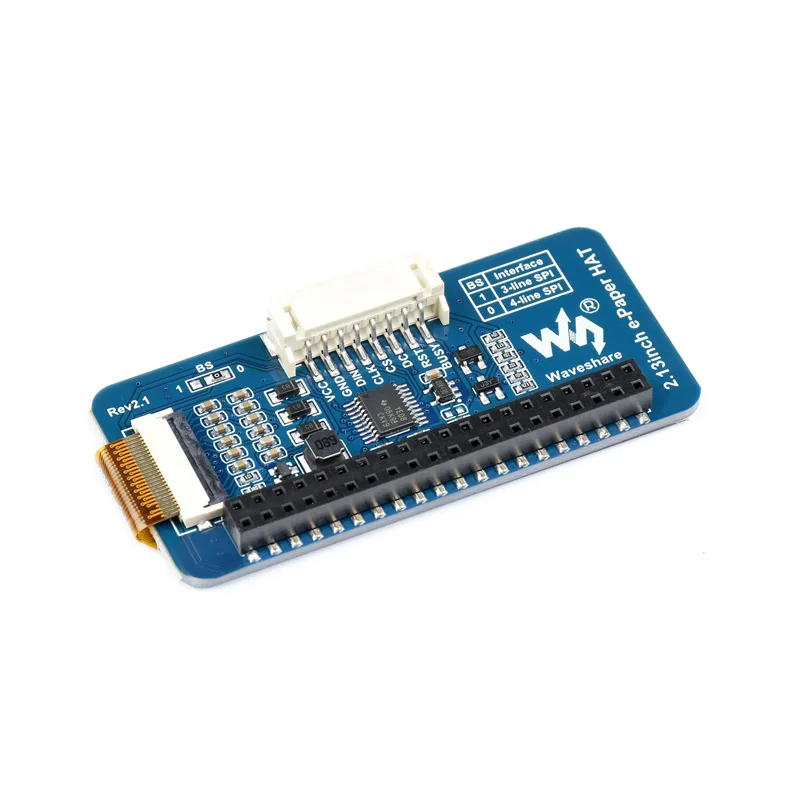

Raspberry Pi pantalla de tinta electrónica de 2,13 pulgadas HAT 250x122 interfaz SPI para Arduino para Raspberry Pi / Jetson Nano

Do not include Raspberry Pi

Overview

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down

• Ultra low power consumption, basically power is only required for refreshing

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

• SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.

• Onboard voltage translator, compatible with 3.3V/5V MCUs

• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Advantages Of EINK

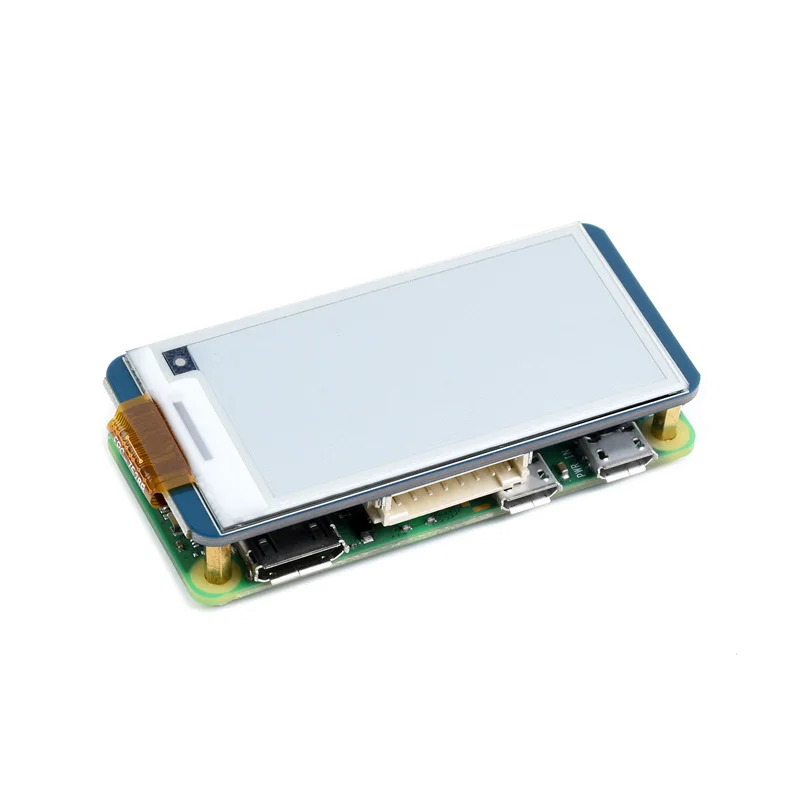

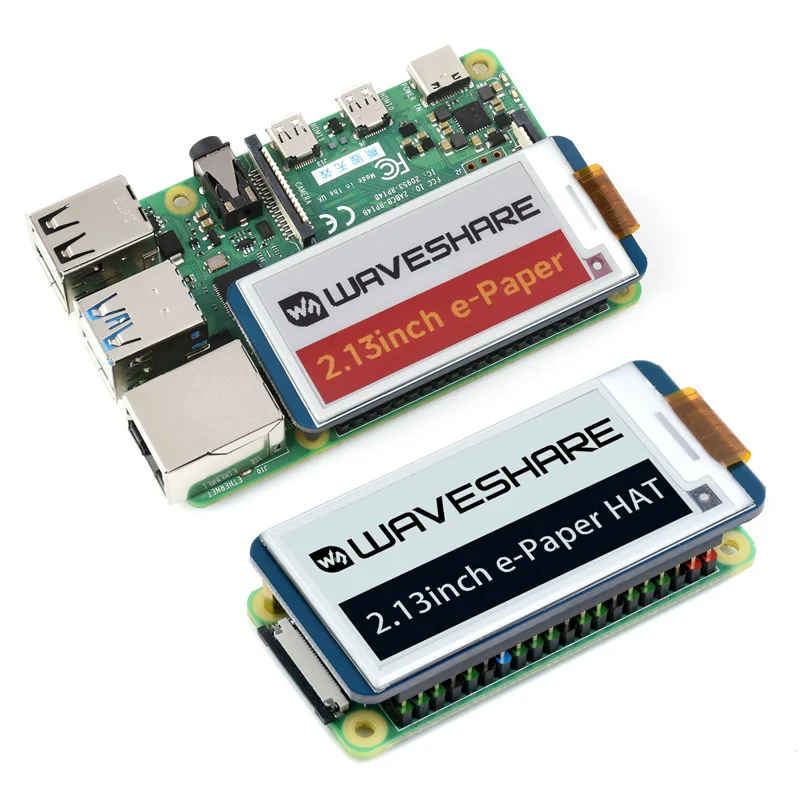

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series Boards, Jetson Nano

for reference only, the Raspberry Pi in the picture is NOT included

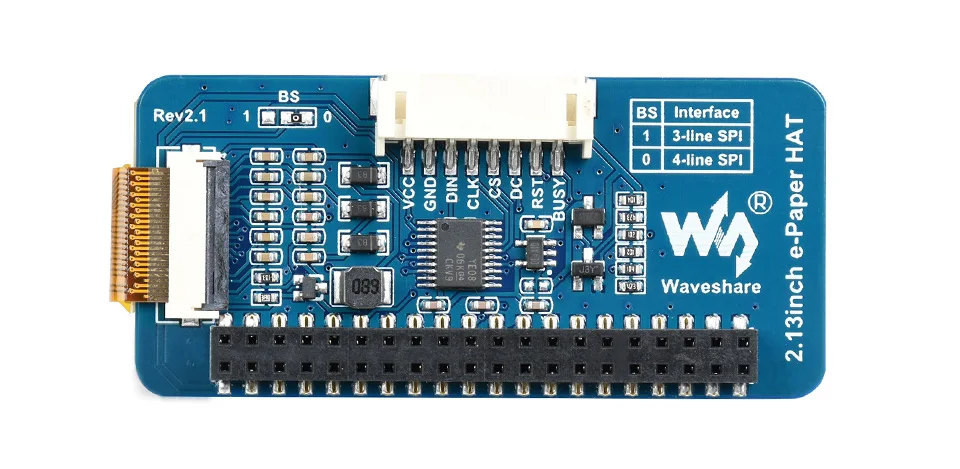

Onboard SPI Control Interface

For Use With Other Controller Boards Like STM32/Arduino

VCC

3.3V/5V

GND

Ground

DIN

SPI MOSI pin

CLK

SPI SCK pin

CS

SPI chip selection, low active

DC

Data / Command selection (high for data, low for command)

RST

External reset, low active

BUSY

Busy status output (high for busy)

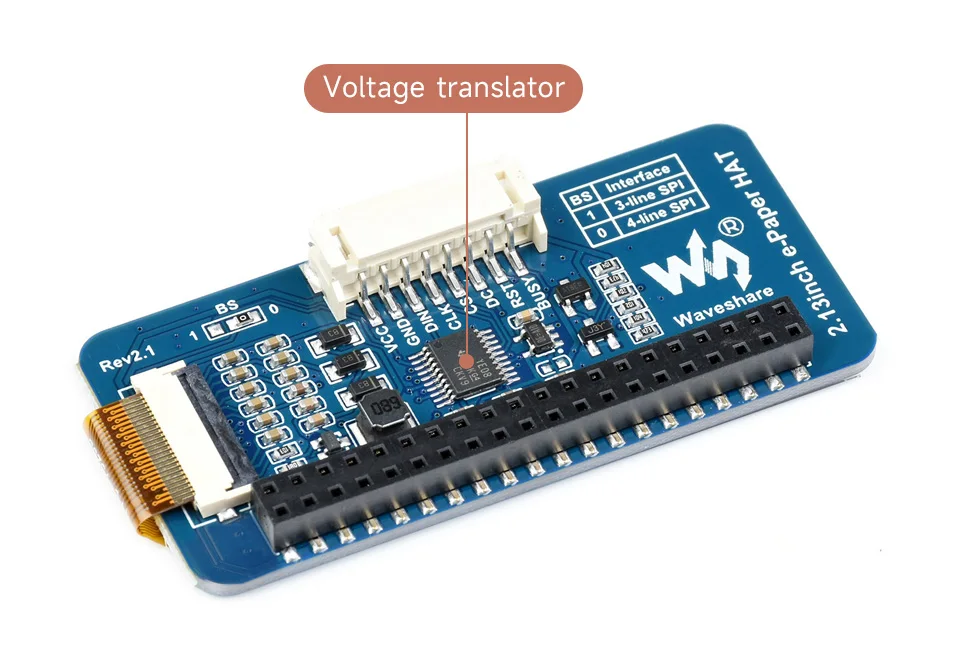

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

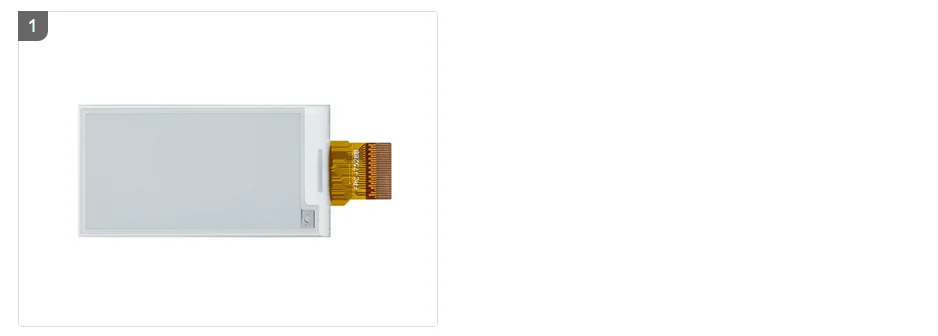

1. 2.13inch e-Paper HAT Option x1

2. RPi screws pack (2pcs) x1

3. PH2.0 20cm 8Pin x1
