Raspberry Pi AI HAT+ Oficial Original Hailo-8/8L 13/26Tops para Pi5 PCIe M.2 Gen3

High-Performance AI HAT Designed By Raspberry Pi

Suitable For Raspberry Pi 5, Options For 13 TOPS / 26 TOPS

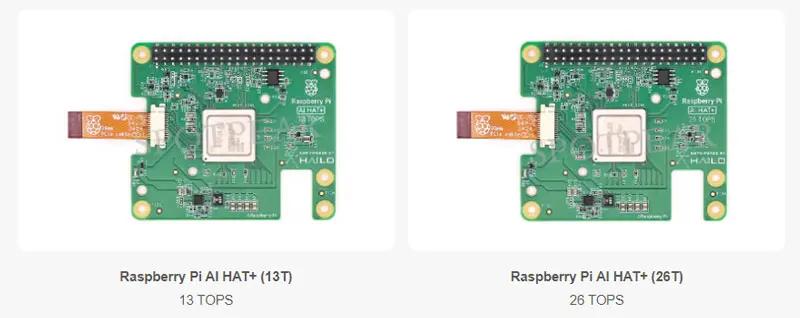

MODEL

Raspberry Pi AI HAT+ (13T)

Raspberry Pi AI HAT+ (26T)

NEURAL NETWORK ACCELERATOR

Hailo-8L

Hailo-8

AI PERFORMANCE (INT8)

13 TOPS

26 TOPS

FRAMEWORKS

Support TensorFlow, TensorFlow Lite, ONNX, Keras, PyTorch

OS SUPPORT

Raspberry Pi OS latest version

SOFTWARE SUPPORT

Fully integrated into Raspberry Pi's camera software stack

HOST SUPPORT

Raspberry Pi 5

OPERATING TEMPERATURE

0℃ ~ 50℃ (ambient)

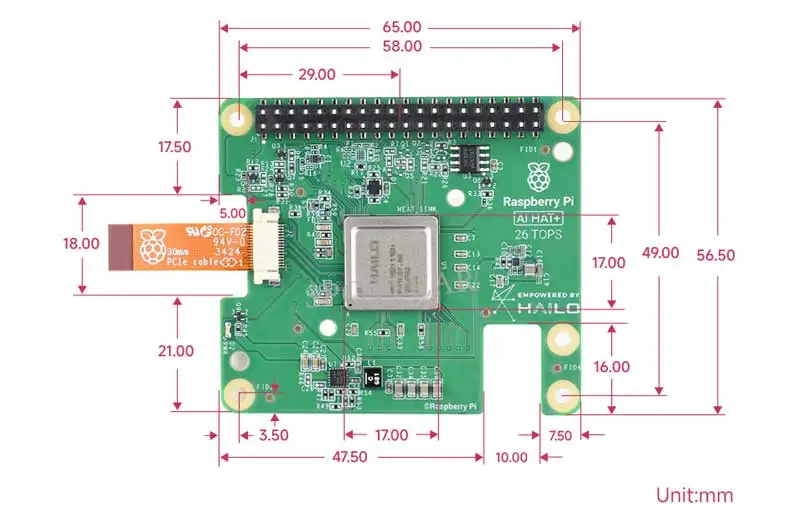

DIMENSIONS

56.5(W) × 65(L) × 5.5(H) (mm)

PCIE INTERFACE

Compatible with Raspberry Pi 5 PCIe Gen 3 interface

HAT STANDARD

Conforms to Raspberry Pi HAT+ specification

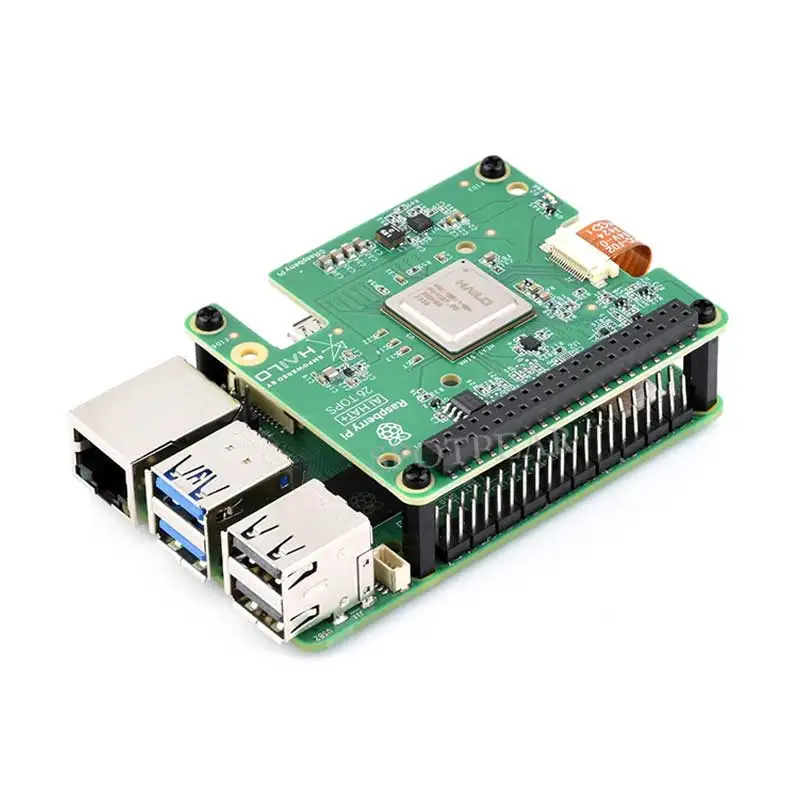

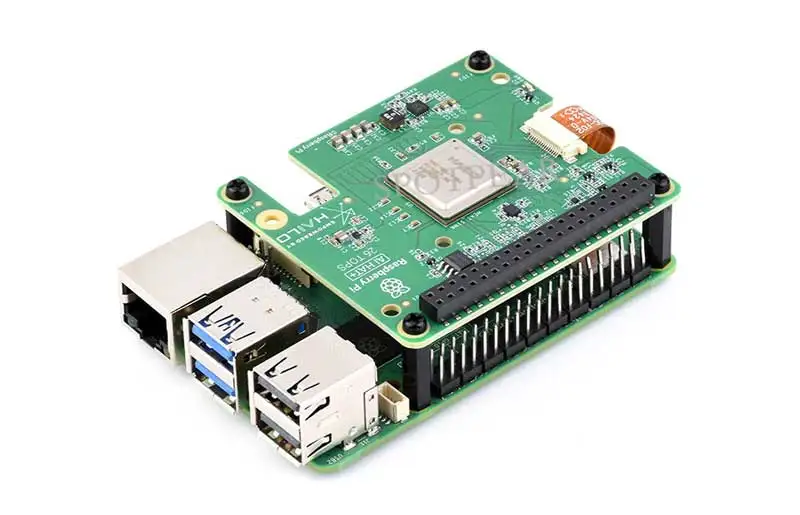

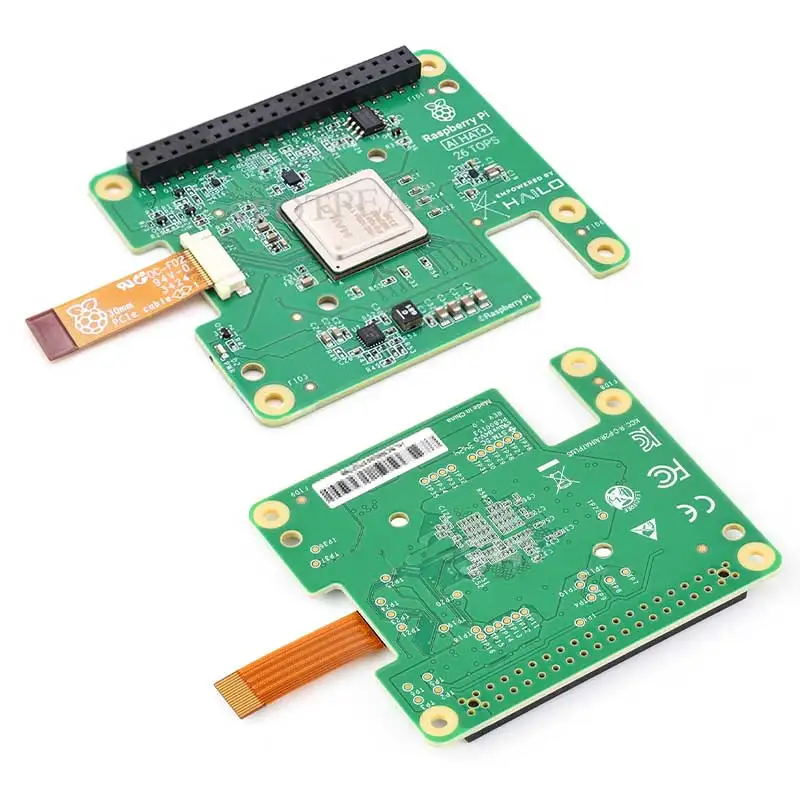

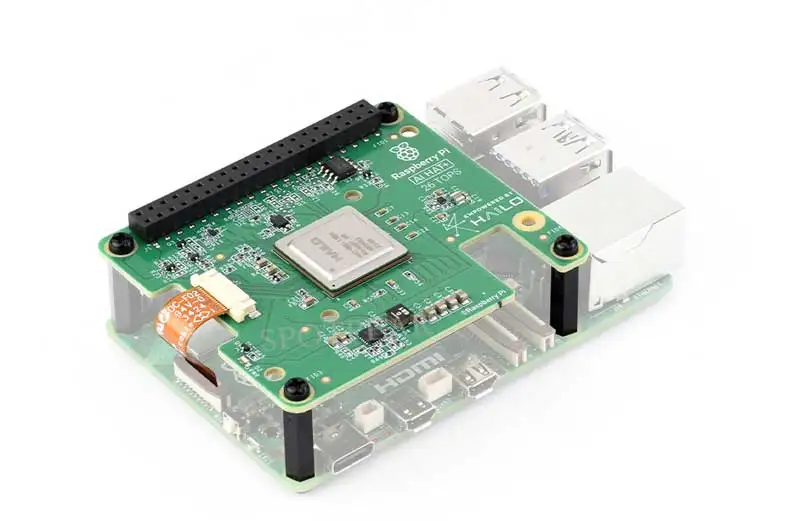

The Raspberry Pi AI HAT+ is an add-on board with a built-in Hailo AI accelerator designed for Raspberry Pi 5. It provides an accessible, cost-effective, and power-efficient way to integrate high-performance AI. It's suited to everything from entry-level applications to more complex neural processing, with the ability to process multiple concurrent models and AI tasks. Explore applications including process control, security, home automation, and robotics.

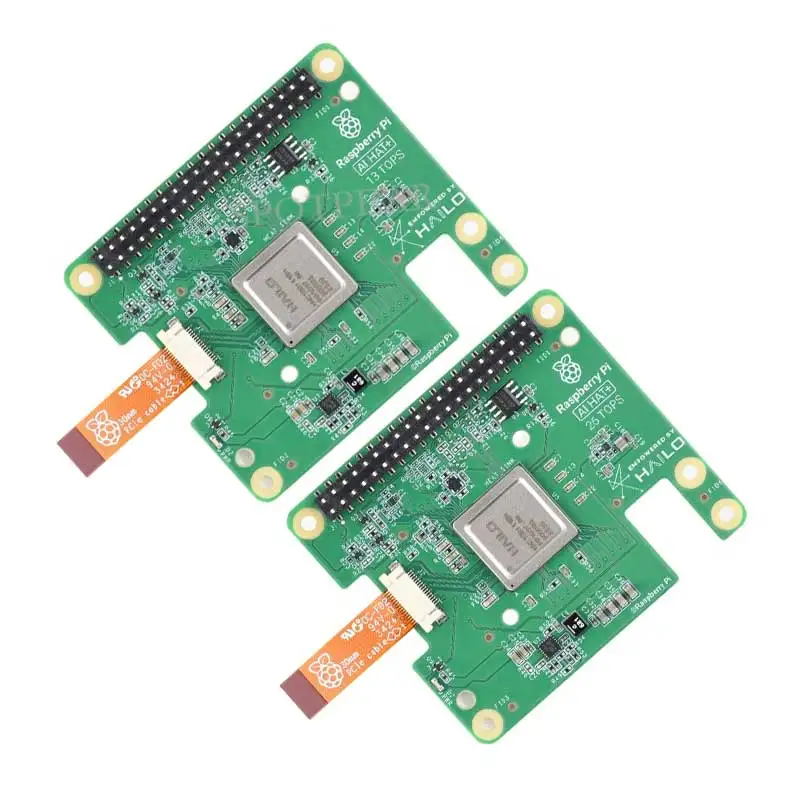

The AI HAT+ is available in 13 or 26 TOPS variants, built around the Hailo-8L and Hailo-8 neural network inference accelerators. The 13 TOPS variant capably runs neural networks for applications including object detection, semantic and instance segmentation, pose estimation, and more. The 26 TOPS variant can handle larger networks, can run them more quickly, and can more effectively run multiple networks simultaneously.

The AI HAT+ communicates using Raspberry Pi 5's PCIe Gen 3 interface. It automatically detects the onboard Hailo accelerator and makes the NPU available for AI computing tasks. The built-in rpicam-apps camera applications in Raspberry Pi OS natively support the AI module, automatically using the NPU to run compatible post-processing tasks.

Key features include:

• Hailo-8 or Hailo-8L accelerator offering 26 TOPS or 13 TOPS inferencing performance respectively

• Fully integrated into Raspberry Pi's camera software stack

• Conforms to Raspberry Pi HAT+ specification

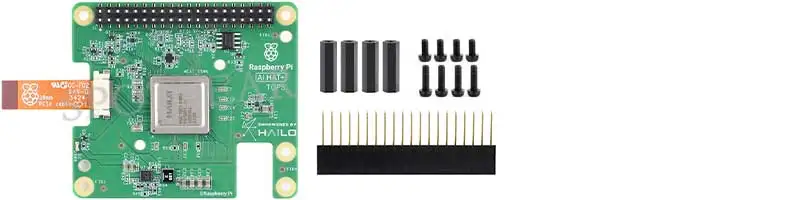

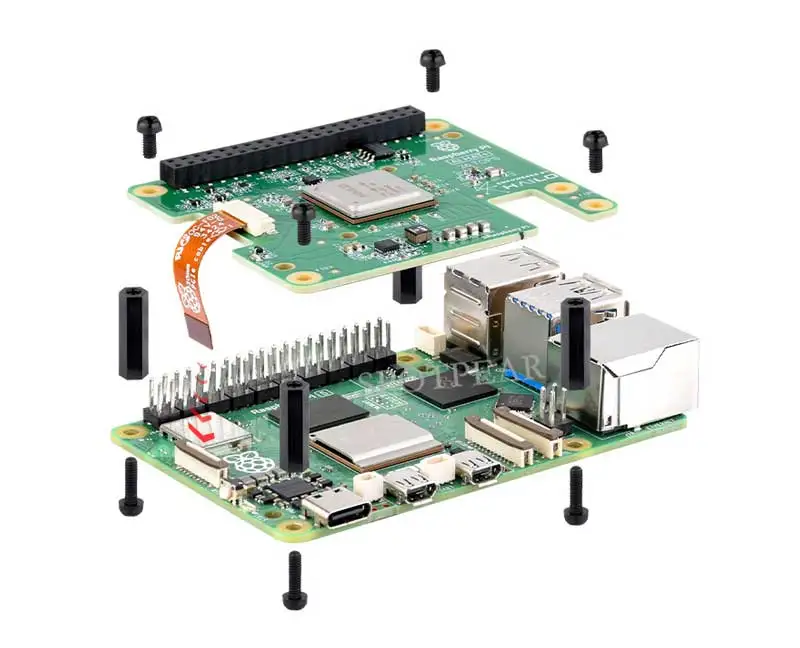

• Comes with 16mm stacking header, spacers, and screws to enable fitting on Raspberry Pi 5 with Raspberry Pi Active Cooler in place

• Operating temperature: 0℃ ~ 50℃ (ambient)

With support for common frameworks like TensorFlow and PyTorch, the Raspberry Pi AI HAT+ allows you to build a wide range of AI-powered applications for process control, home automation, research, and more.

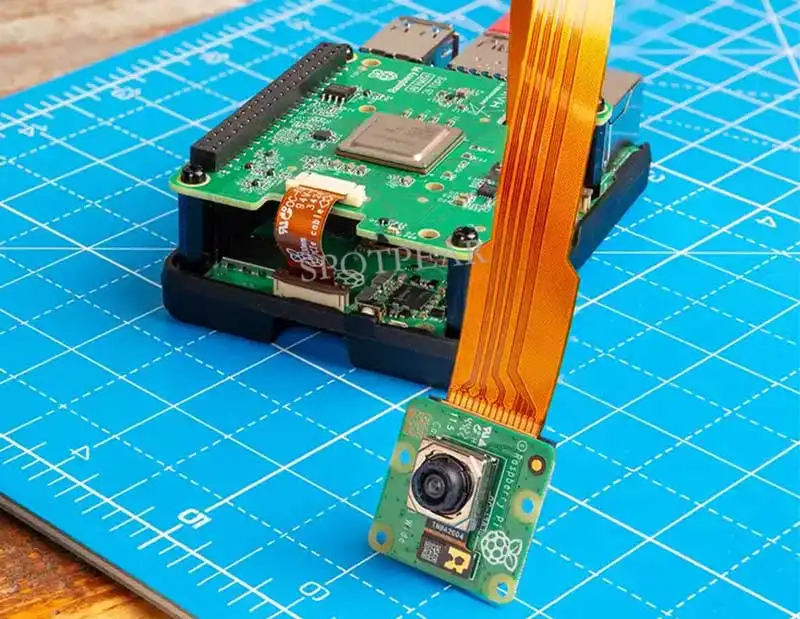

The Raspberry Pi AI HAT+ is fully integrated into Raspberry Pi's camera software stack, taking advantage of the neural network accelerator to run post-processing tasks such as object detection, image segmentation, and pose estimation.
