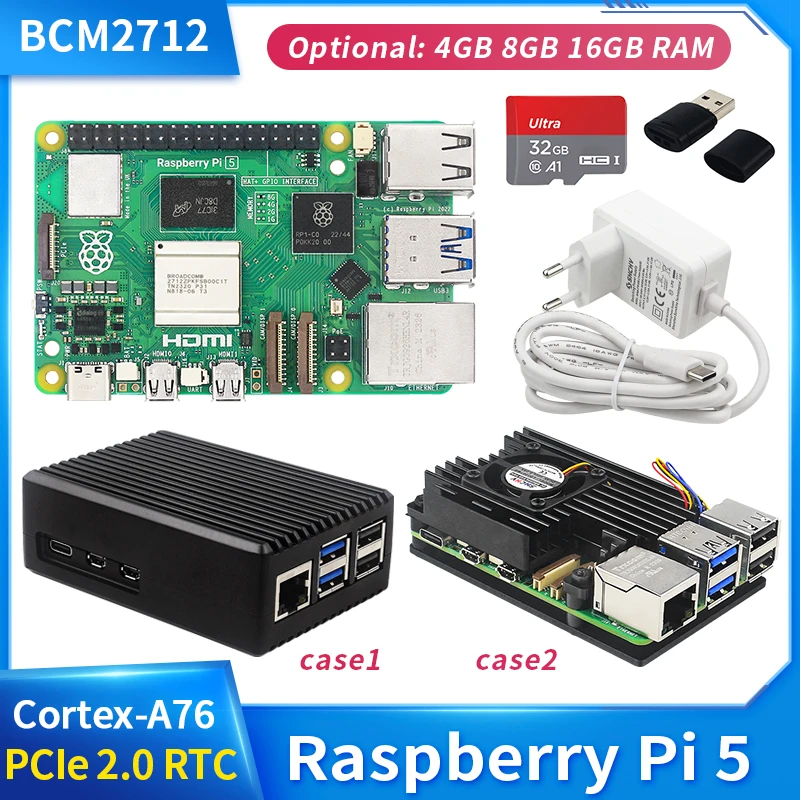

Official Raspberry Pi 5 16GB 8GB 4GB RAM BCM2712 Cortex-A76 2.4GHz LPDDR4X-4267 PCIe 2.0 RTC Optional Case Power Supply for RPi5
The latest generation of Raspberry Pi: the everything computer.
Introduction:
1. Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual 4Kp60 display output over HDMI-compatible; and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers.
2. For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.
What's On Board
Upgraded New Chipset

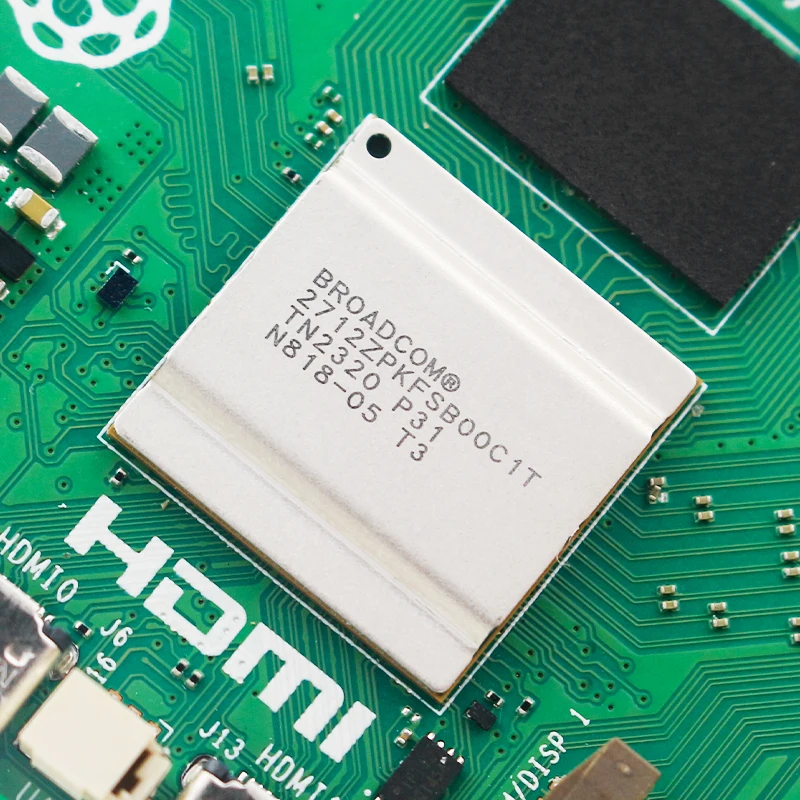

BCM2712
BCM2712 is a new quad-core 64-bit Arm Cortex-A76 processor from Broadcom, clocked at 2.4GHz, with 512KB per-core L2 caches, and a 2MB shared L3 cache. Cortex-A76 is three microarchitectural generations beyond Cortex-A72, a better manufacturing process makes a faster Raspberry Pi 5 with lower power consumption.
An updated VideoCore hardware video scaler (HVS) is capable of driving two simultaneous 4Kp60 HDMI-compatible displays, up from single 4Kp60 or dual 4Kp30 on Raspberry Pi 4.
RP1
RP1 is the I/O controller designed for Raspberry Pi 5, provides two USB 3.0 and two USB 2.0 interfaces; a Gigabit Ethernet controller; two four-lane MIPI transceivers for camera and display; analogue video output; 3.3V general-purpose I/O (GPIO); and the usual collection of GPIO-multiplexed low-speed interfaces (UART, SPI, I2C, I2S, and PWM). A four-lane PCI Express 2.0 interface provides a 16Gb/s link back to BCM2712.
DA9091
DA9091 is a power-management IC (PMIC) of the chipset. This integrates eight separate switch-mode power supplies to generate the various voltages required by the board, including a quad-phase core supply, capable of providing 20 amps of current to power the Cortex-A76 cores and other digital logic in BCM2712.
Updated Layout
•2 × 4-lane MIPI DSI/CSI port, compatible with CSI-2 camera and DSI display
•Adapting PCIe 2.0 interface via FPC connector, supports high-speed peripherals
•Onboard power button for power on/off without disconnecting power adapter
•Onboard RTC battery header for connecting external battery (the battery is not included)
•Onboard fan header, compatible with Active Cooler for Raspberry Pi 5
•Onboard UART header designed for Raspberry Pi Debug probe
•Memory indication markers for easy board RAM identification.
Specifications
Raspberry Pi 5 is the latest generation flagship product in the Raspberry Pi series, following the success of the Raspberry Pi 4. It provides a 2-3x increase in CPU performance over the previous generation. Onboard dual CSI/DSI ports and USB connectors which are provided by the Raspberry Pi RP1 I/O controller. And this is the first Raspberry Pi computer using silicon built in-house at Raspberry Pi.
Key features include:
1. 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, 512KB per-core L2 caches and a 2MB shared L3 cache
2. VideoCore VII GPU @800MHz, supporting OpenGL ES 3.1, Vulkan 1.2
3. Dual 4Kp60 HDMI-compatible display output
4. 4Kp60 HEVC decoder
5. LPDDR4X-4267 SDRAM (options for 4GB/8GB)
6. 2.4GHz/5GHz dual-band 802.11ac Wi-Fi
7. Bluetooth 5.0 / Bluetooth Low Energy (BLE)
8. TF card slot, with support for high-speed SDR104 mode
9. 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
10. Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
11. 2 × 4-lane MIPI DSI/CSI port
12. PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
13. 5V/5A DC power via USB-C, with Power Delivery support
14. Raspberry Pi standard 40-pin header
15. Real-time clock (RTC), powered from external battery (not included)
16. Onboard power button for power on/off without disconnecting power adapter
Raspberry Pi 4B VS Raspberry Pi 5

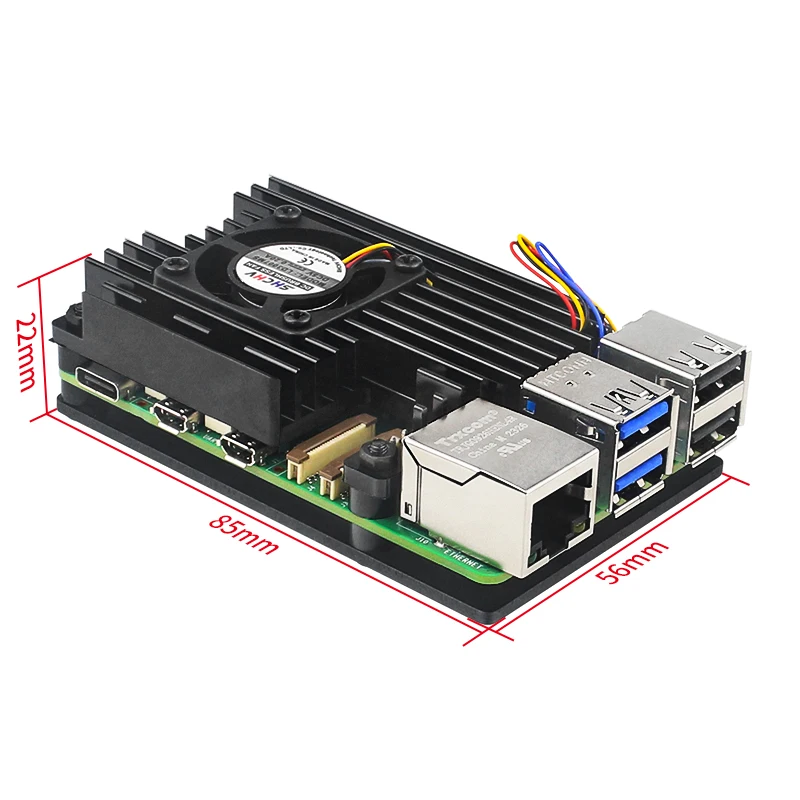

Dimension

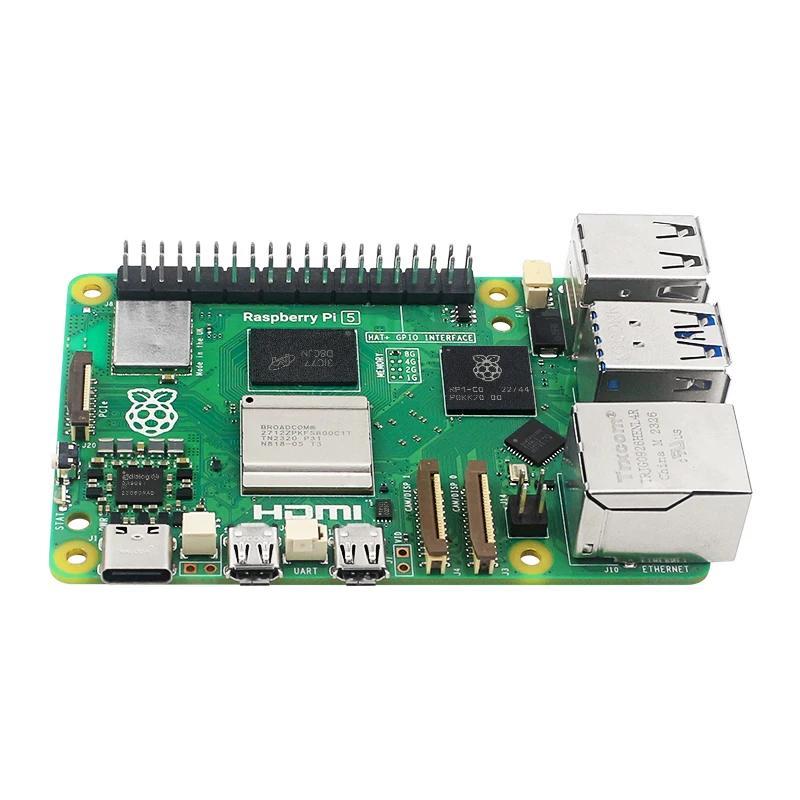

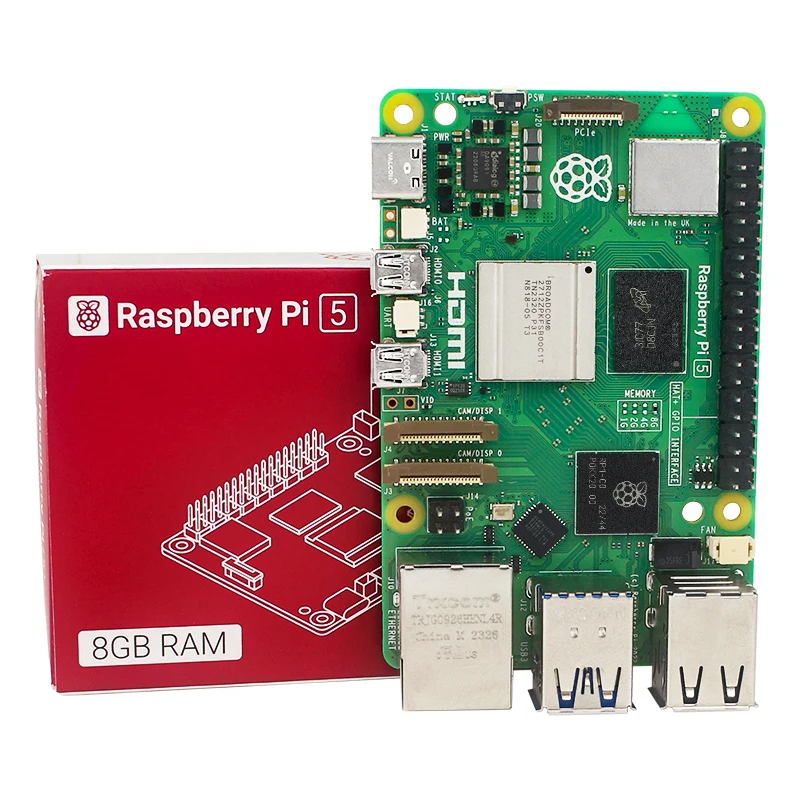

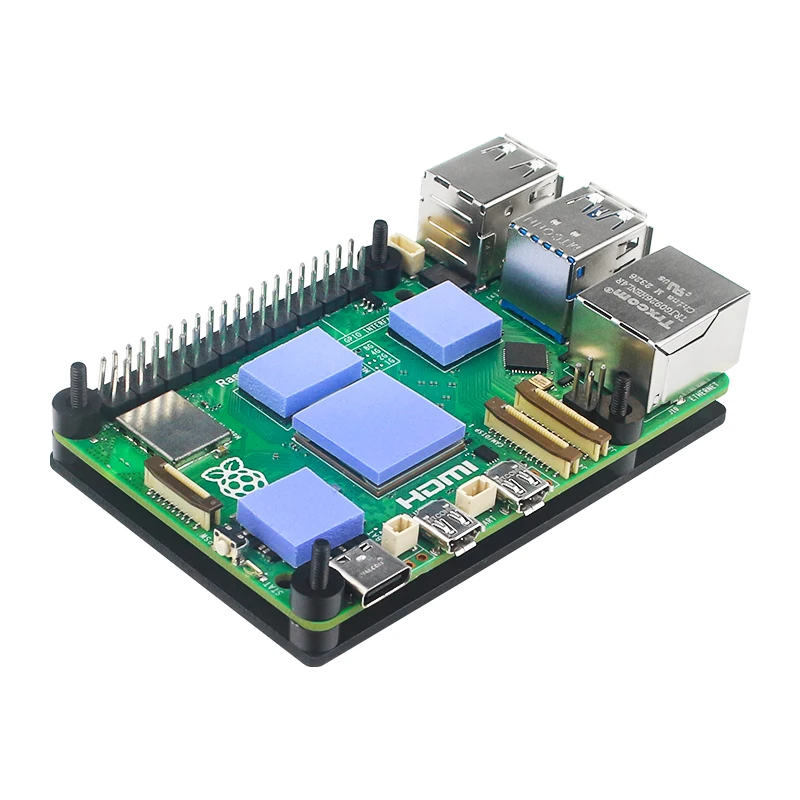

RPi 5 show:

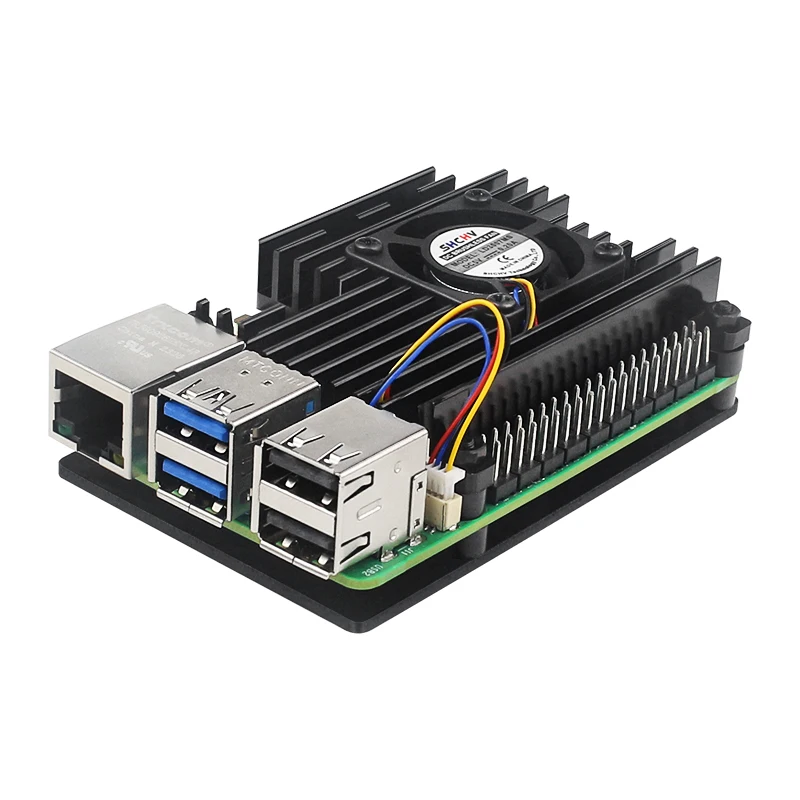

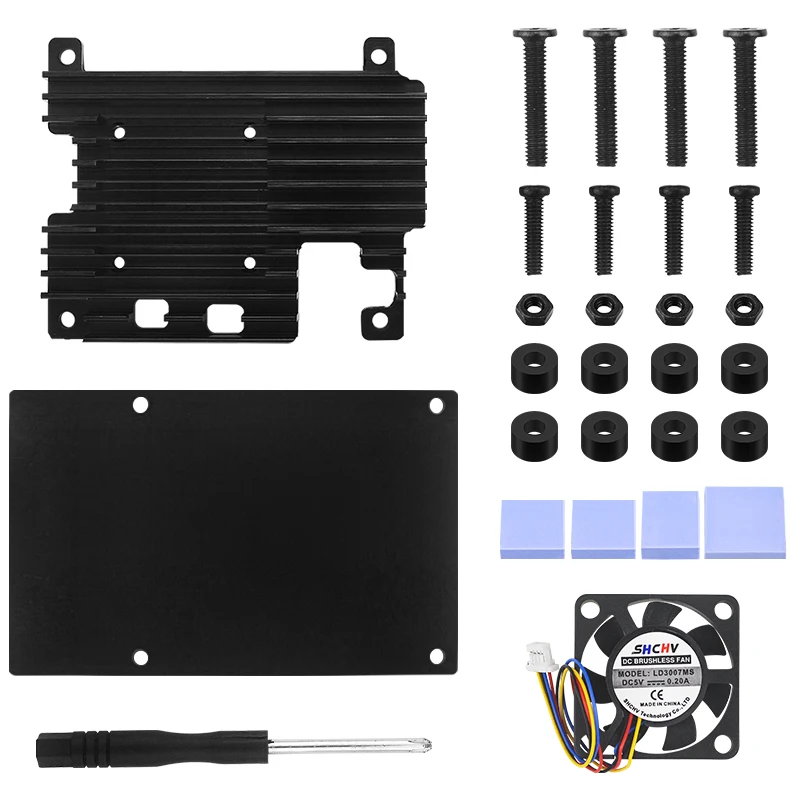

RPi 5 Aluminum Case

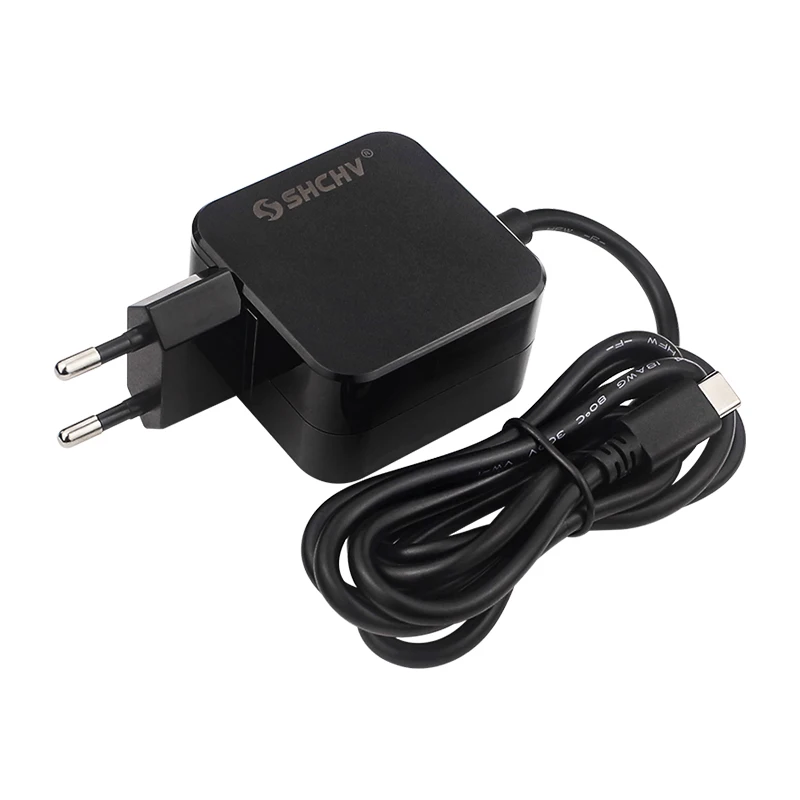

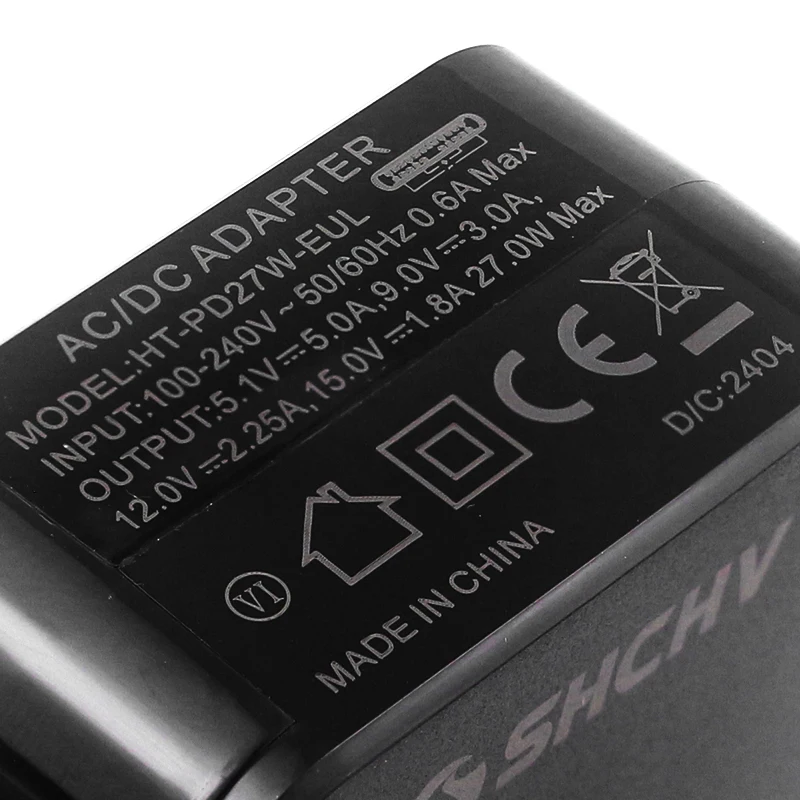

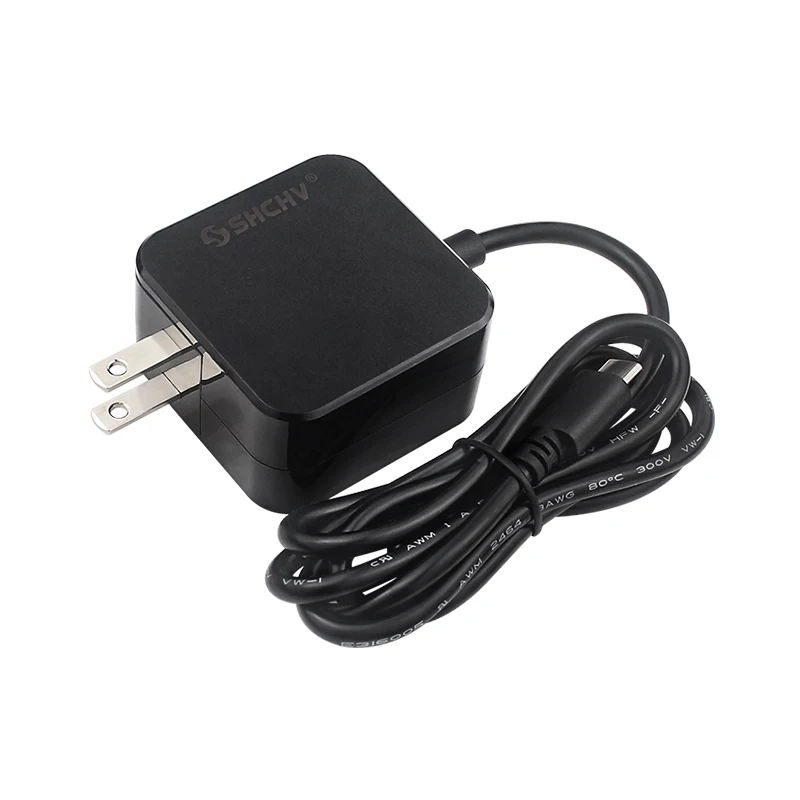

27W USB-C Power Supply
Packing List

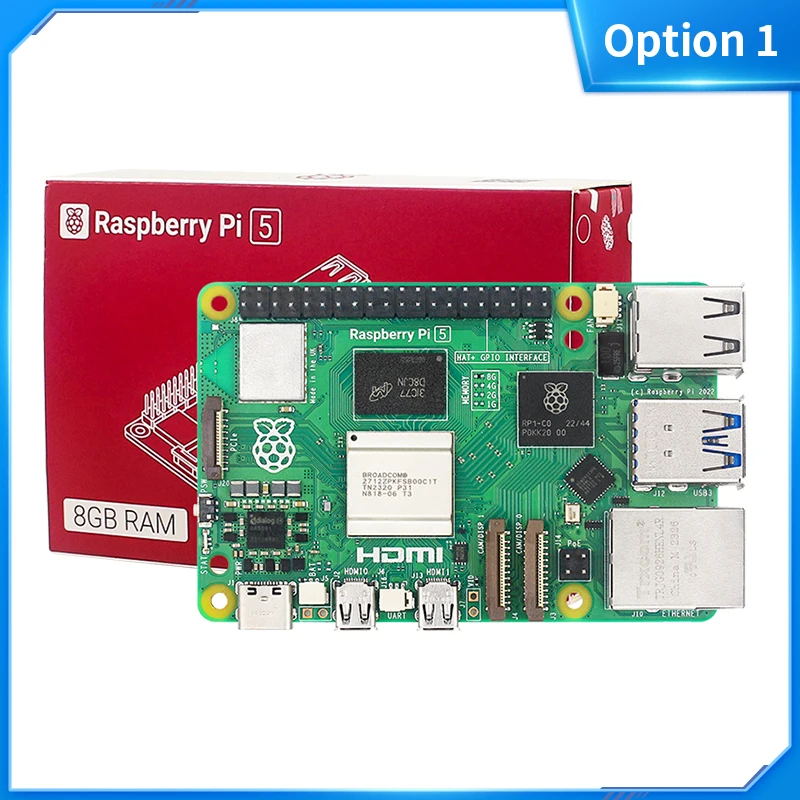

Option 1:
1 x Raspberry Pi 5 （Optional 4GB / 8GB / 16GB RAM）

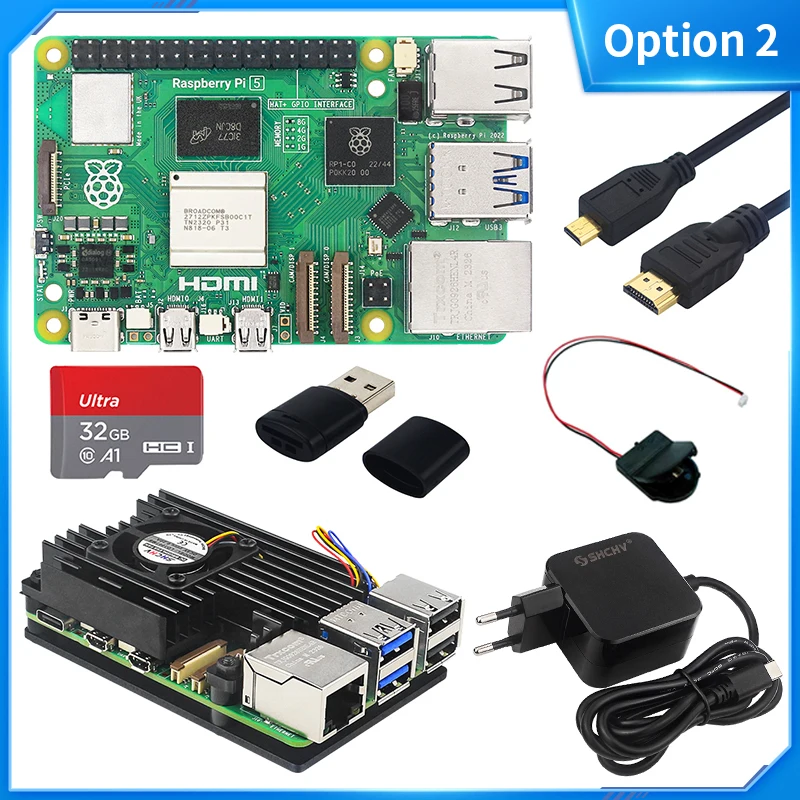

Option 2:
1 x Raspberry Pi 5 （Optional 4GB / 8GB / 16GB RAM）
1 x Aluminum Alloy Case
1 x RTC Battery Box
1 x 27W USB-C Power Supply
1 x 1.5M Micro HDMI-compatible to HDMI-compatible Cabke
1 x 32GB Micro SD-compatible Card
1 x Card Reader

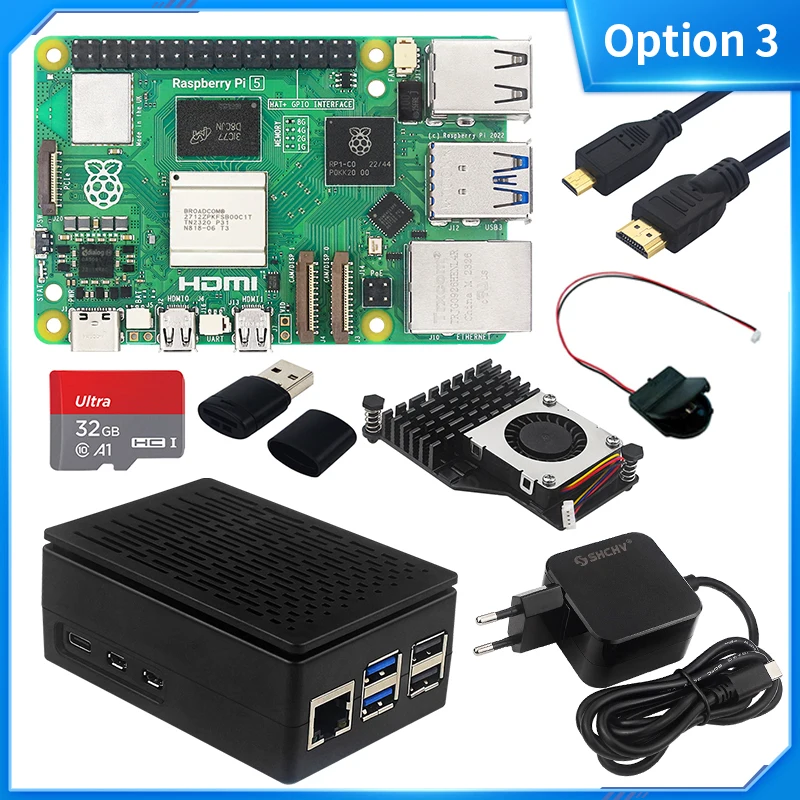

Option 3:
1 x Raspberry Pi 5 （Optional 4GB / 8GB / 16GB RAM）
1 x ABS Case
1 x Active Cooler Fan
1 x RTC Battery Box
1 x 27W USB-C Power Supply
1 x 1.5M Micro HDMI-compatible to HDMI-compatible Cabke
1 x 32GB Micro SD-compatible Card
1 x Card Reader

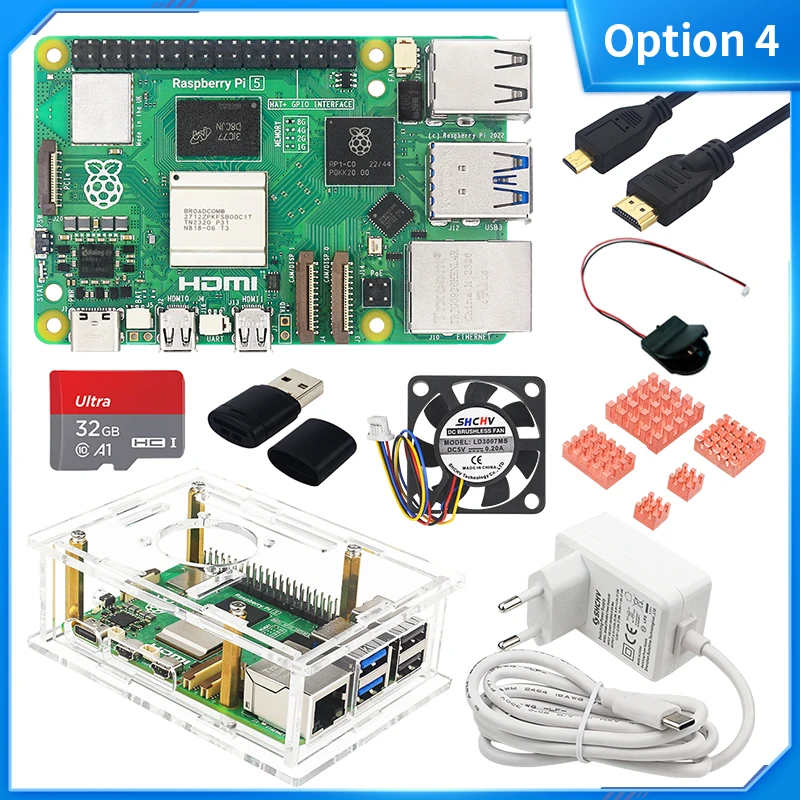

Option 4:
1 x Raspberry Pi 5 （Optional 4GB / 8GB / 16GB RAM）
1 x Acrylic Case
1 x Cooling Fan
1 x RTC Battery Box
1 x 27W USB-C Power Supply
3 x Copper Heatink
1 x 1.5M Micro HDMI-compatible to HDMI-compatible Cabke
1 x 32GB Micro SD-compatible Card
1 x Card Reader

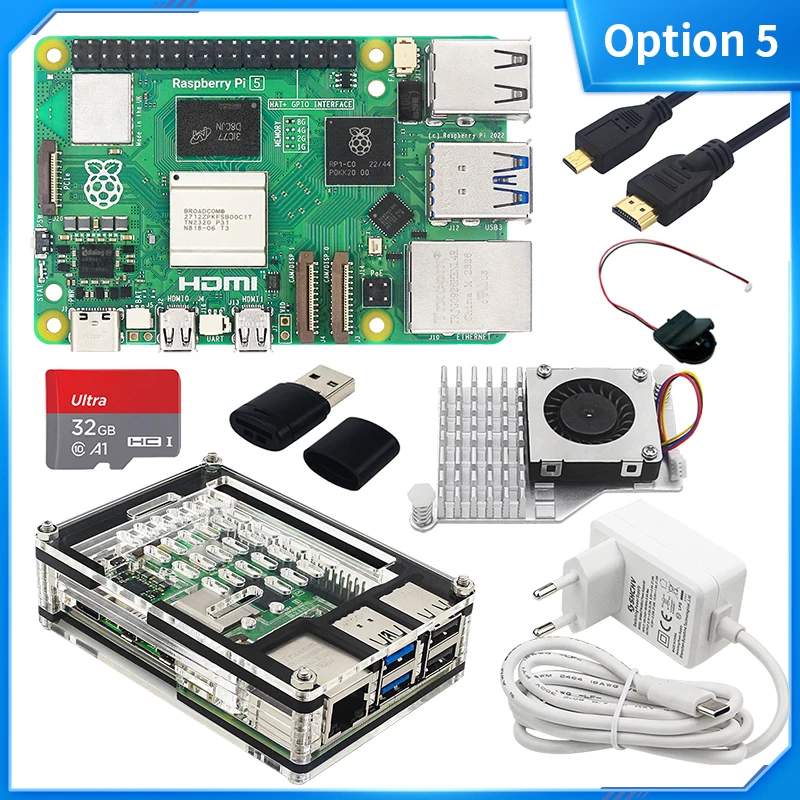

Option 5:
1 x Raspberry Pi 5 （Optional 4GB / 8GB / 16GB RAM）
1 x Acrylic Case 9 Layer
1 x Active Cooler Fan
1 x RTC Battery Box
1 x 27W USB-C Power Supply
1 x 1.5M Micro HDMI-compatible to HDMI-compatible Cabke
1 x 32GB Micro SD-compatible Card
1 x Card Reader

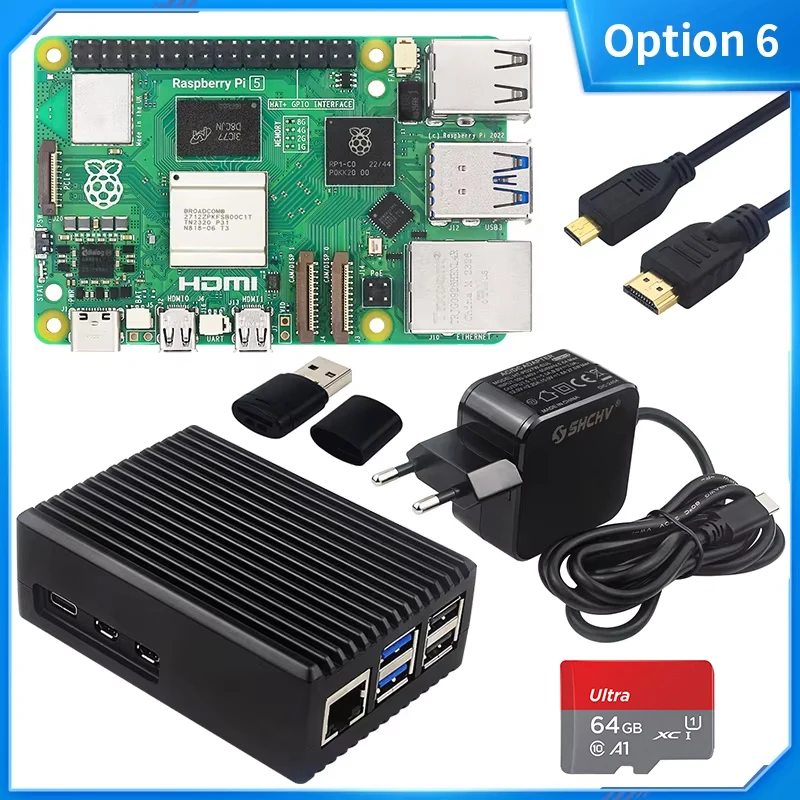

Option 6:
1 x Raspberry Pi 5 （Optional 4GB / 8GB / 16GB RAM）
1 x Aluminum Case
1 x 27W USB-C Power Supply
1 x 1.5M Micro HDMI-compatible to HDMI-compatible Cabke
1 x 64GB Micro SD-compatible Card
1 x Card Reader

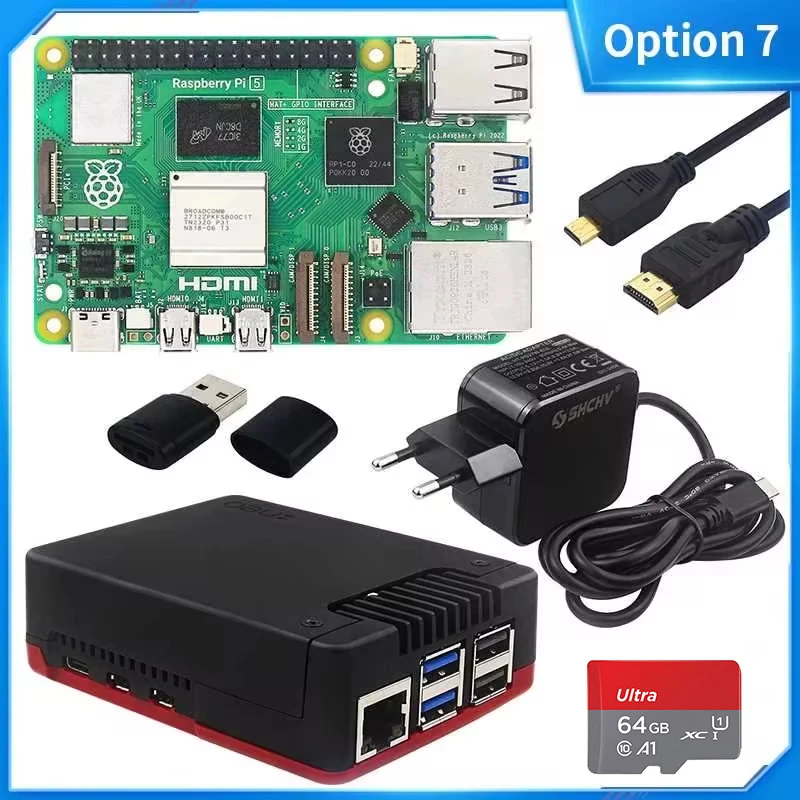

Option 7:
1 x Raspberry Pi 5 （Optional 4GB / 8GB / 16GB RAM）
1 x Argon NEO 5 Aluminm Case
1 x 27W USB-C Power Supply
1 x 1.5M Micro HDMI-compatible to HDMI-compatible Cabke
1 x 64GB Micro SD-compatible Card
1 x Card Reader
