Descripción

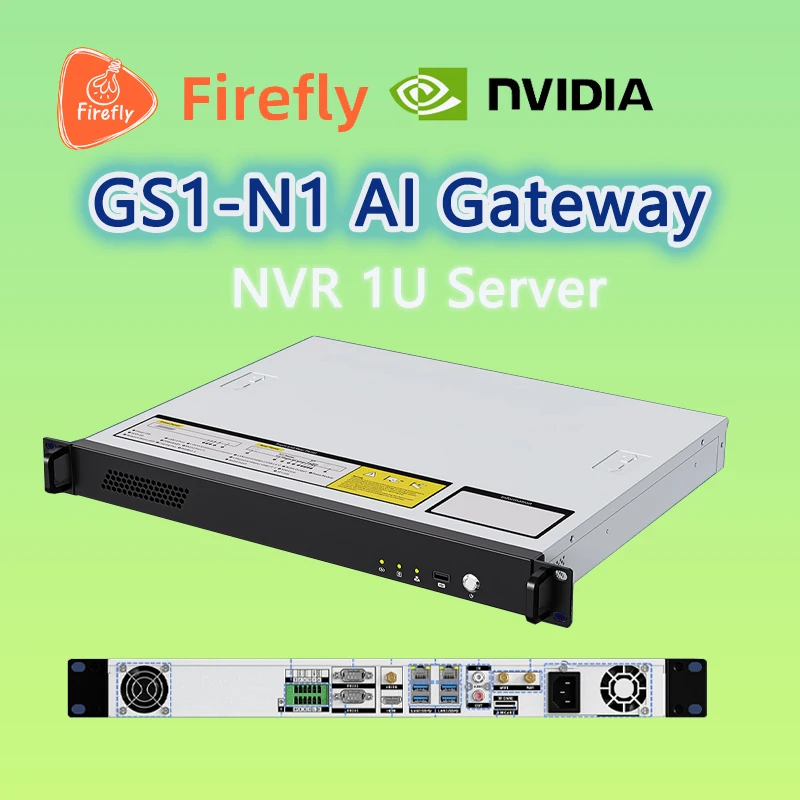

The GS1-N1 AI Gateway Server is a high-performance edge computing solution featuring 8K video encoding/decoding, versatile RS232/RS485 interfaces, and terabyte-level storage capacity. With support for optional edge computing modules, it delivers powerful AI processing, seamless connectivity, and massive data storage for industrial, surveillance, and smart applications.

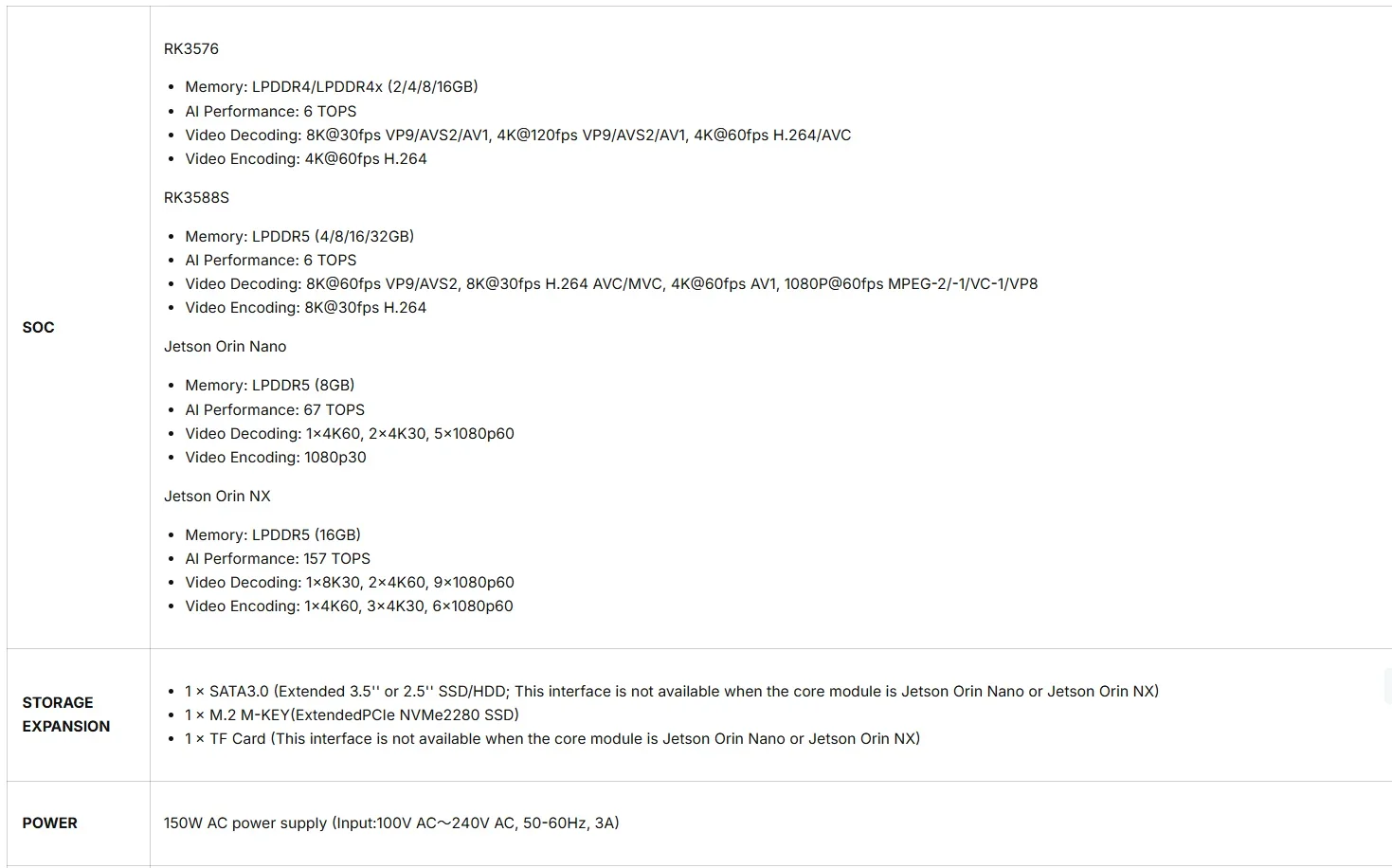

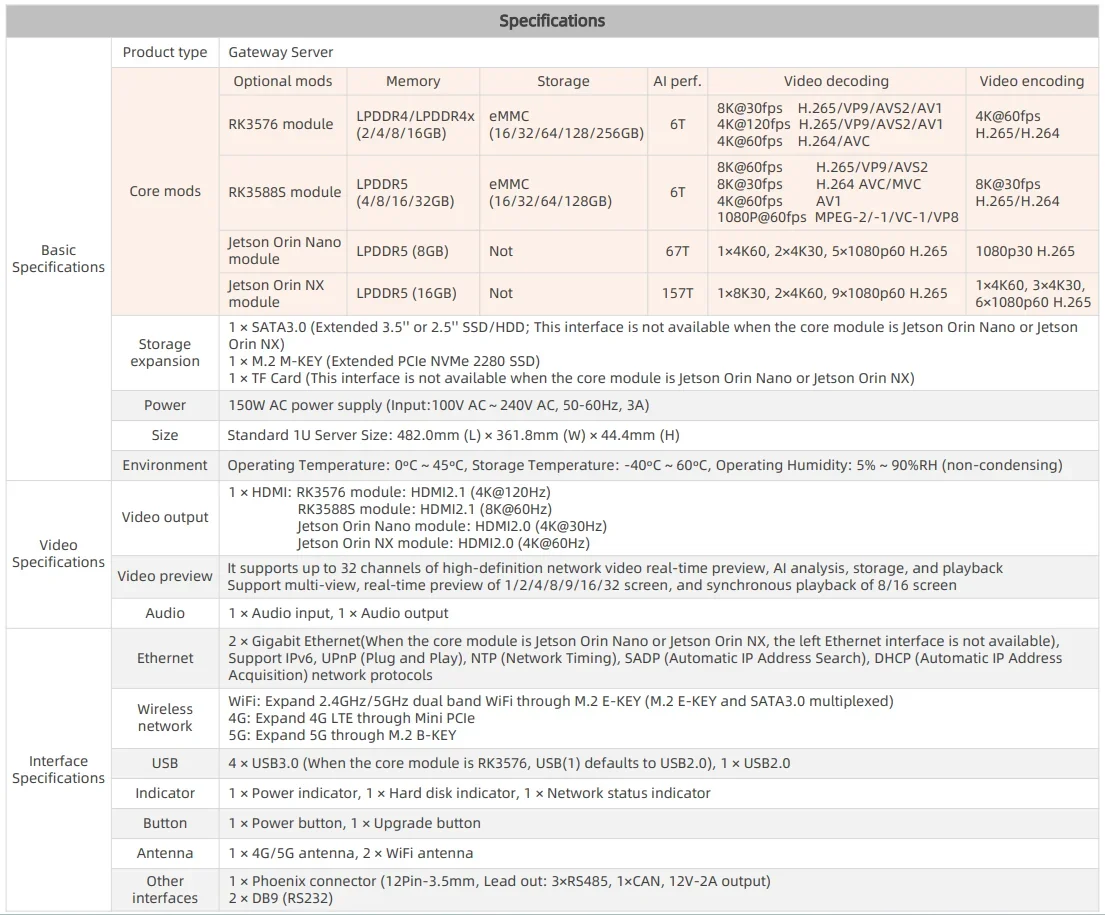

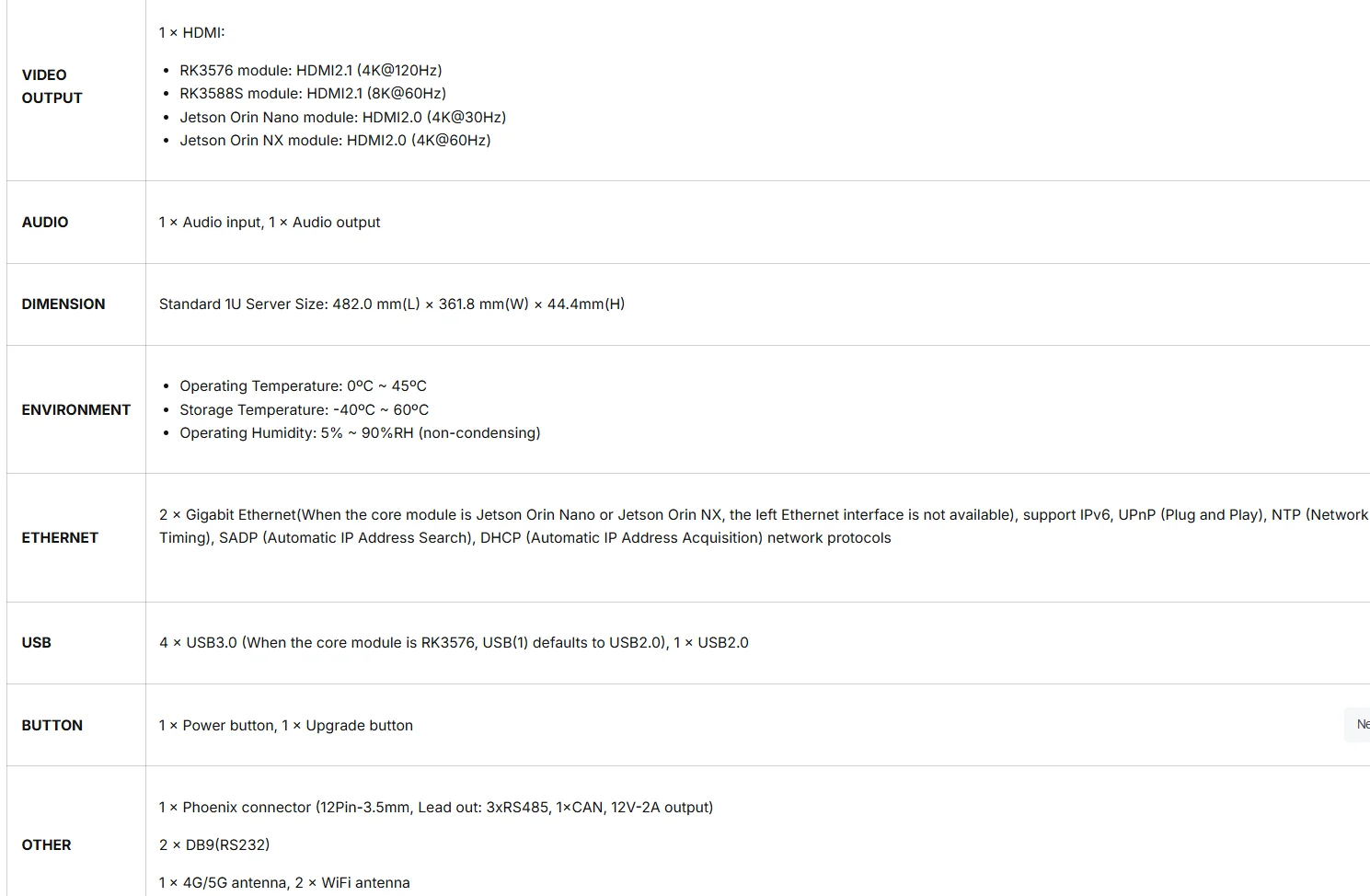

Product Datasheet:

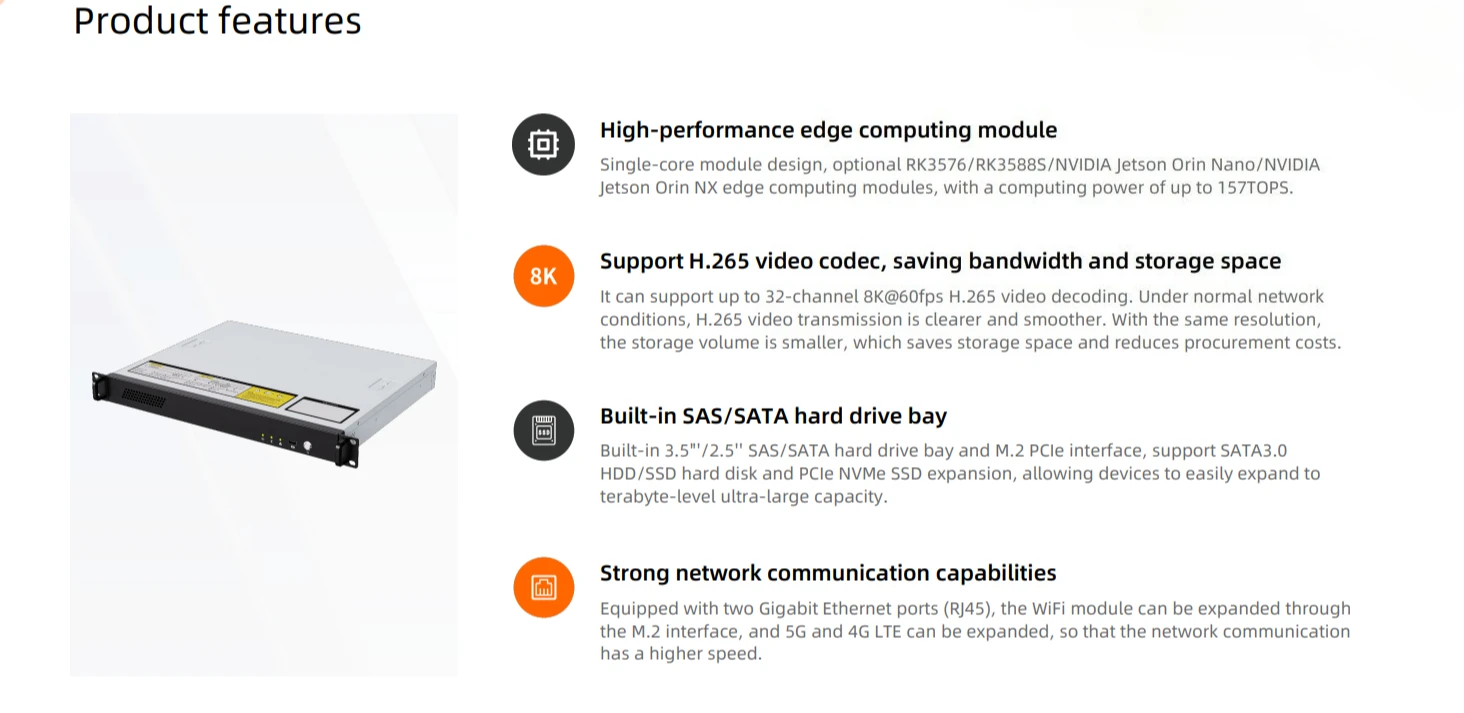

Feature
High-Performance Edge Computing Module:Optional RK3576/RK3588S/NVIDIA Jetson Orin series edge computing modules provide up to 157 TOPS of computing power, providing strong performance support for AI and deep learning applications.
8K Video Encoding and Decoding:Supports up to 32-channel 8K@60fps VP9 video decoding and 8K@30fps H.264 encoding, delivering authentic 8K ultra-high-definition visual experiences with exceptional image clarity, richly detailed visuals, and true-to-life image quality.
Built-in SAS/SATA Hard Drives:One built-in 3.5-inch/2.5-inch SAS/SATA drive bay, supporting SATA 3.0 HDD/SSD storage. Additionally, it features an onboard M.2 PCIe slot for PCIe NVMe SSD expansion, allowing for effortless upgrades to terabyte-scale storage capacity.

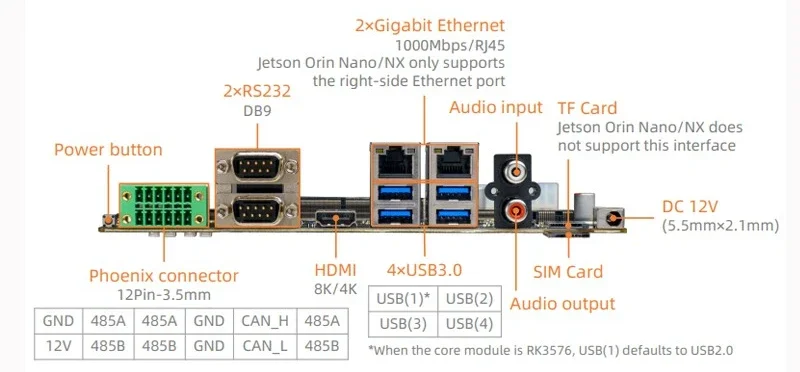

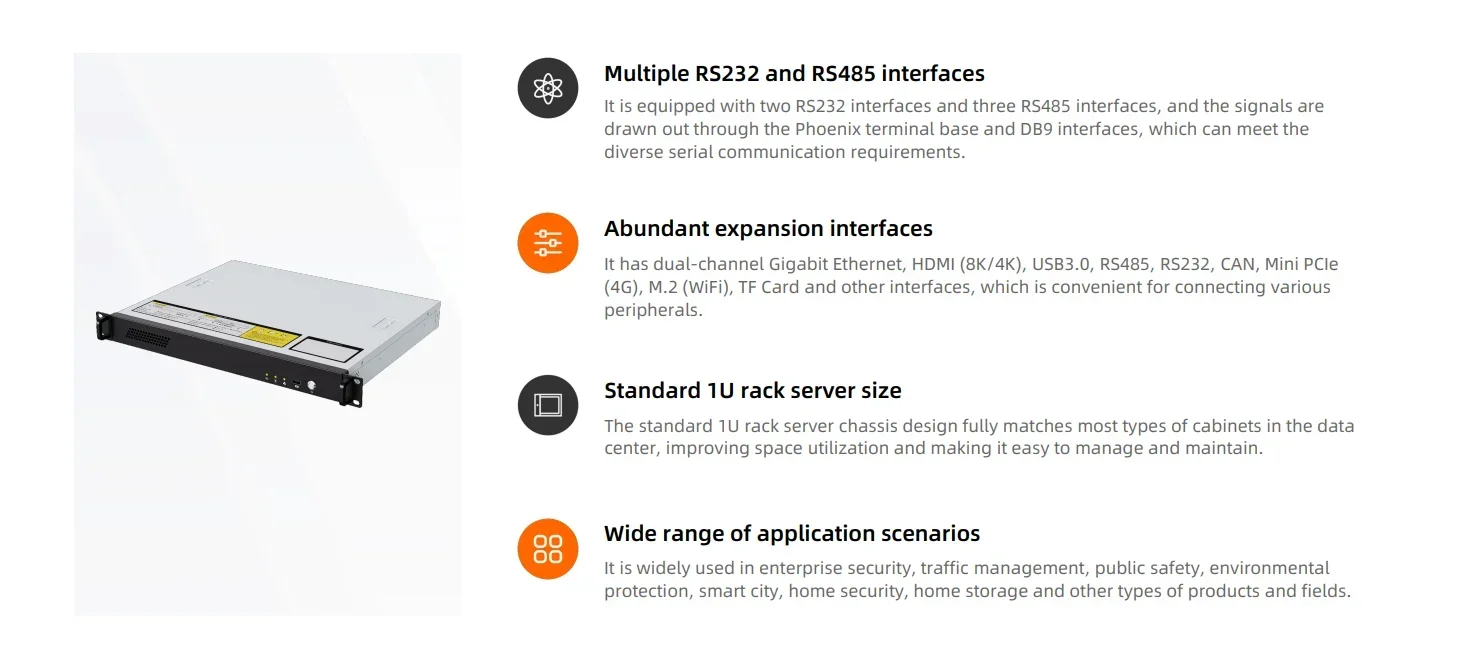

Multiple Sets of RS232 and RS485 Interfaces:Equipped with 2 RS232 interfaces and 3 RS485 interfaces, the signals are routed through Phoenix terminals and DB9 connectors to meet different serial communication needs.

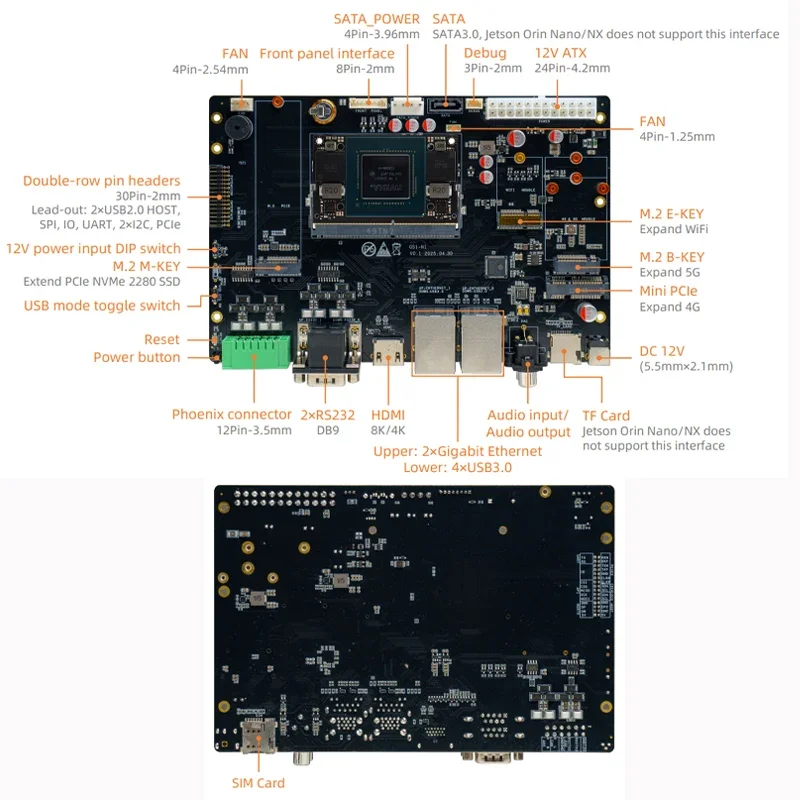

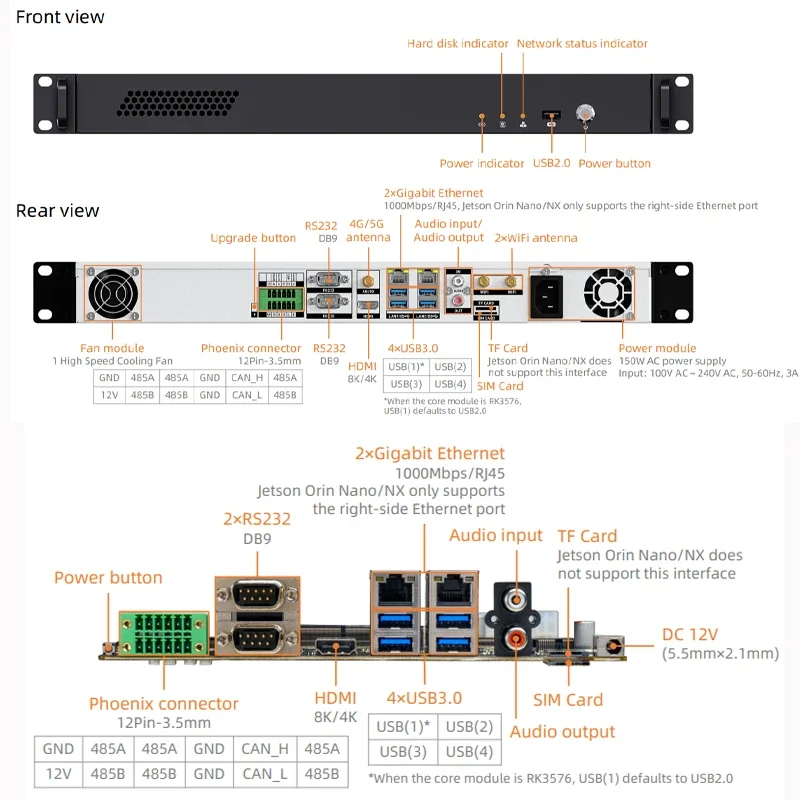

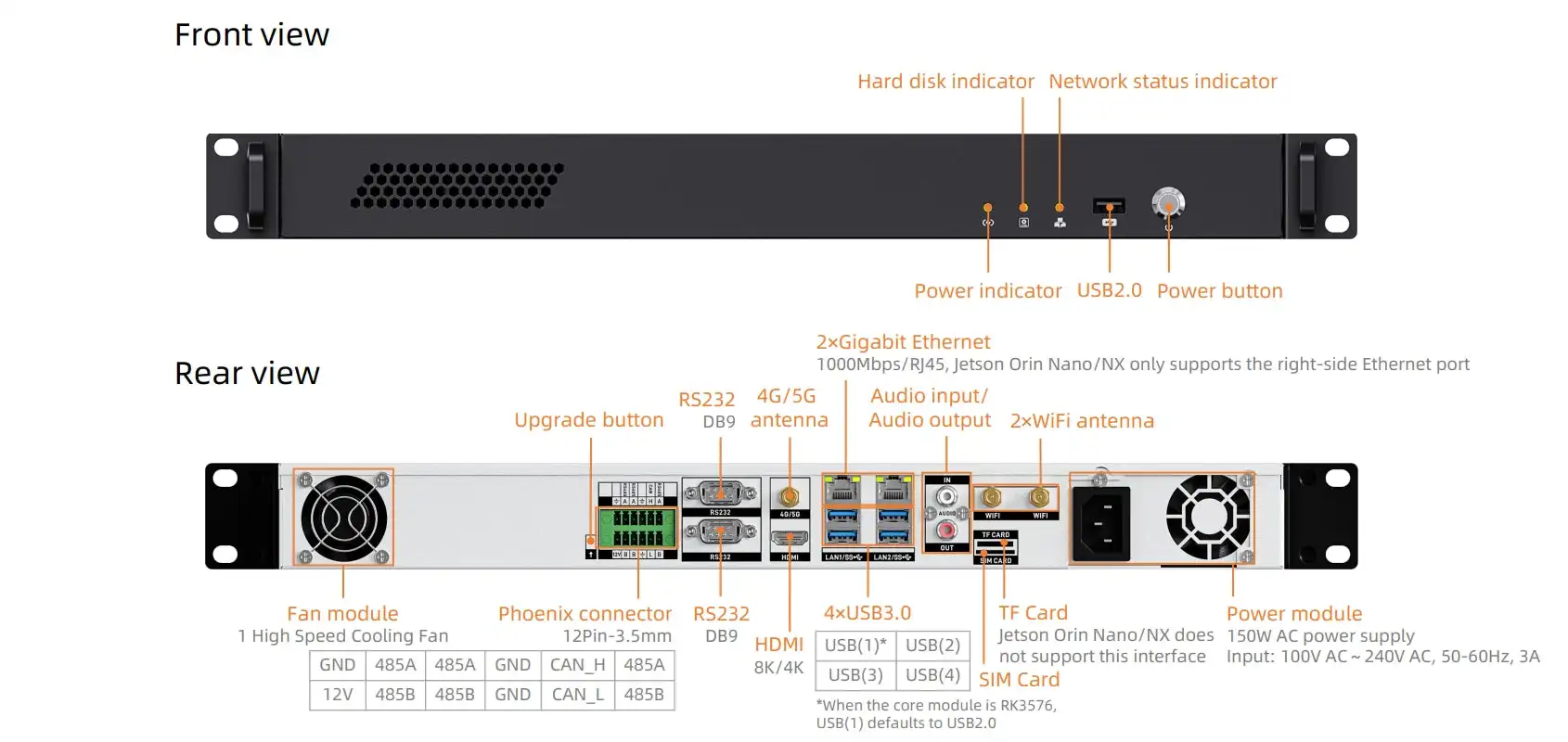

Hardware Overview
