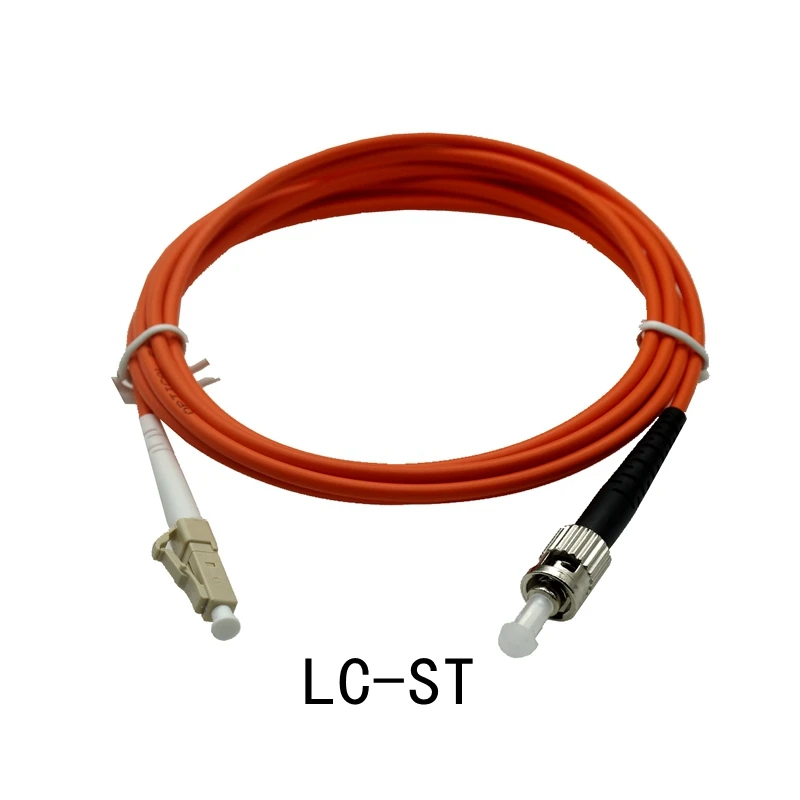

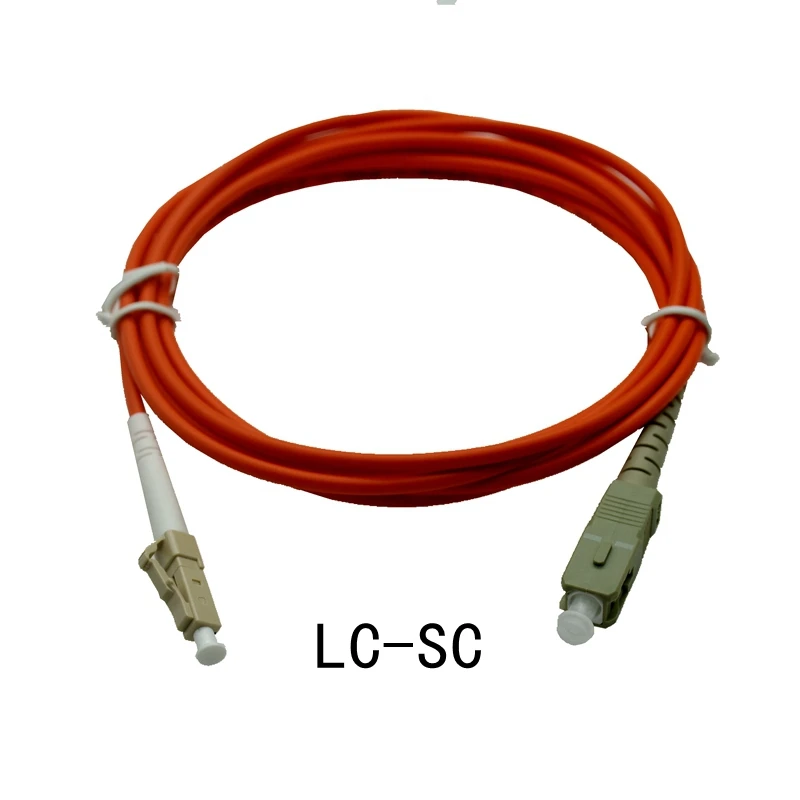

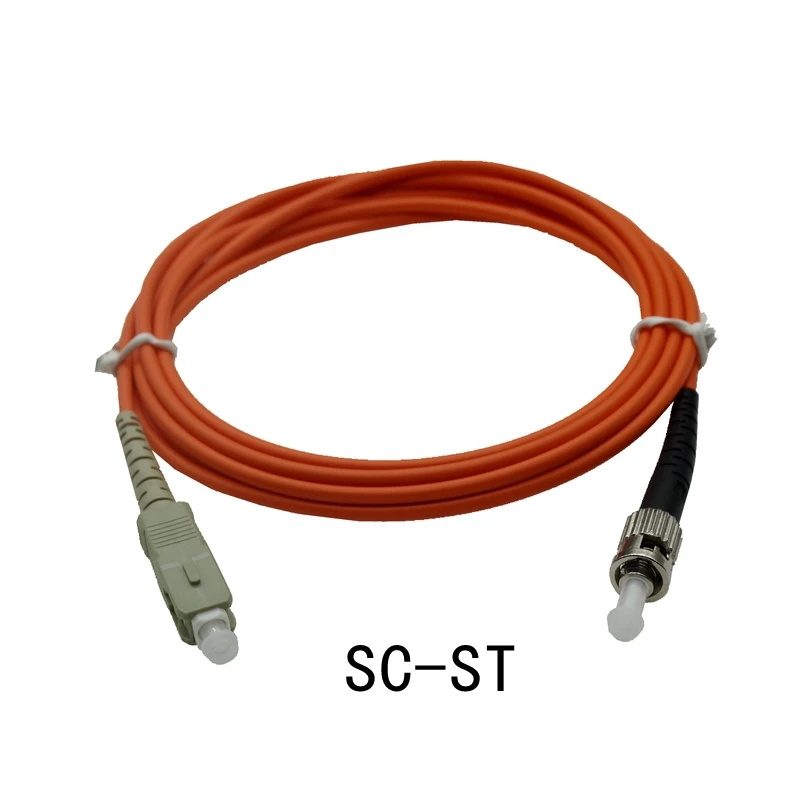

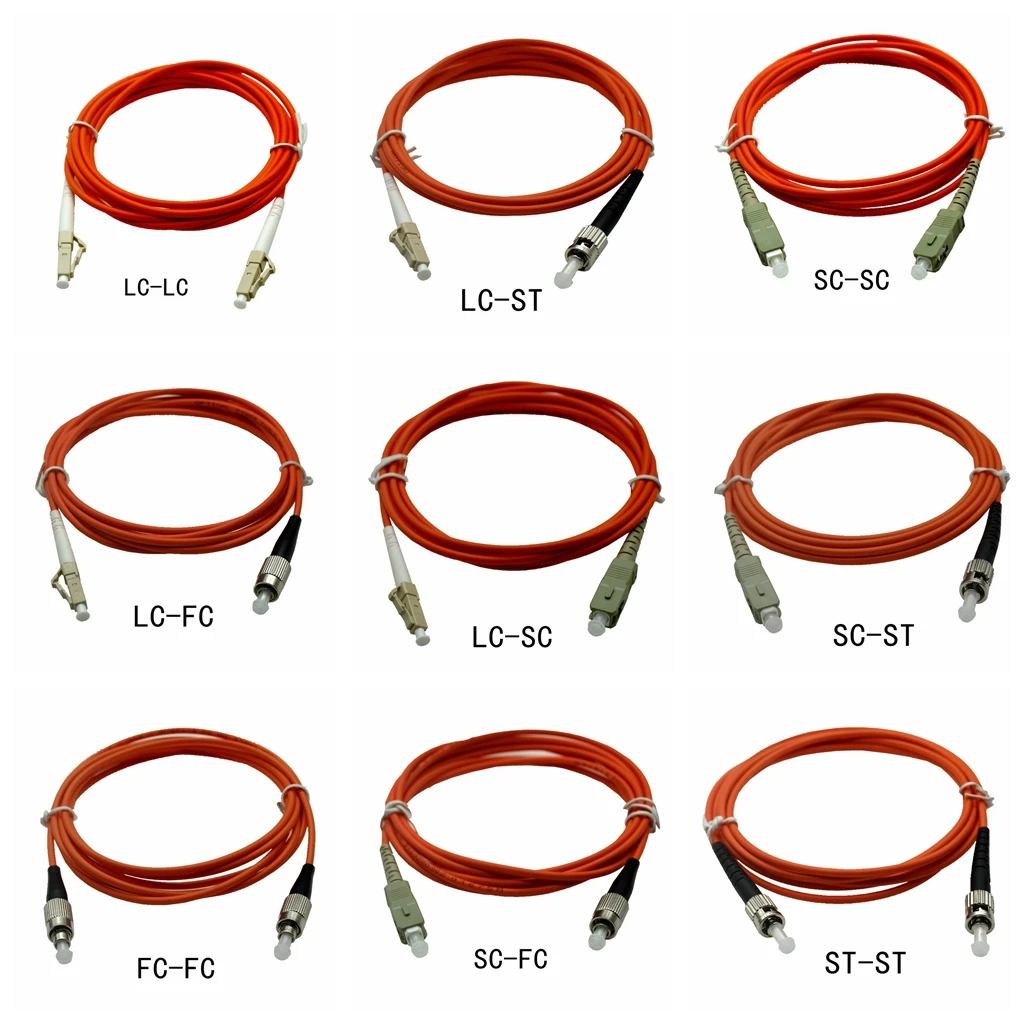

Puente de fibra óptica multimodo de un solo núcleo UPC LC a SC FC ST OM3 Cable corto de fibra 3M 5m 10m 20m 50m Cable dúplex y multicore

SC/UPC-FC/UPC Fiber Patch Cable SC-FC Multimode Fiber Jumper MM Simplex OM2/OM3 1m 2m 3m 5m 10m 20m 30m 40m 50m

Applications

· FTTH

· LANS,WANS,CATV,CCTV

· Premise installations

· Data processing networks

· Industrial ,mechanical and military

· Test equipment and active device termination

Features

· Insert-pull, key-oriented coupling mechanism which allows highly repeatable, low-loss connection

· Simplex,Duplex and Multi-core accessories ,apply in the standard and specific structure

· Single mode

· PC polish

· Comply with Telcordia GR-326-CORE Specification

· The material of plastic plug Comply with the request of UL94V-O and Standard of RO

Specification

Connector Type

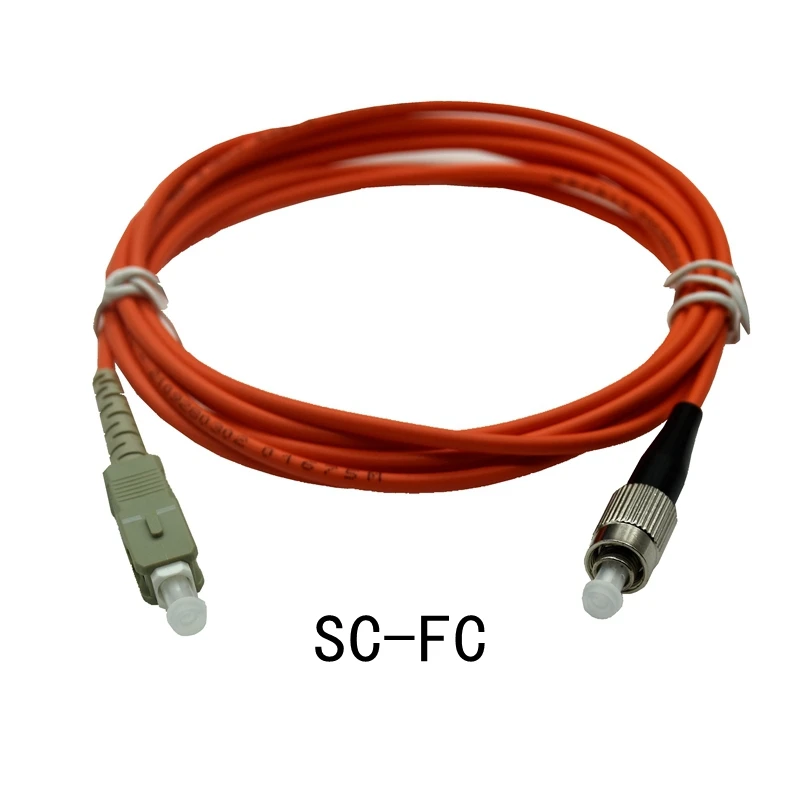

SC to FC

Polish Type

UPC to UPC

Fiber Count

Simplex

Fiber Mode

OM2 62.5/125μm

Wavelength

850/1300nm

1G Ethernet Distance

550m at 850nm

Insertion Loss

≤0.3dB

Return Loss

≥50dB

Fiber Grade

Bend Insensitive

Minimum Bend Radius

7.5mm

Attenuation at 850nm

3.0 dB/km

Attenuation at 1300nm

1.0 dB/km

Cable Jacket

LSZH

Cable Diameter

3.0mm

Polarity

A(Tx) to B(Rx)

Operating Temperature

-20~70°C
