Descripción
The following is a tutorial on installing a CPU cooling fan. The product in the picture may be different from the one you purchased, but the installation method is the same.
Brand Name：QiuzAim

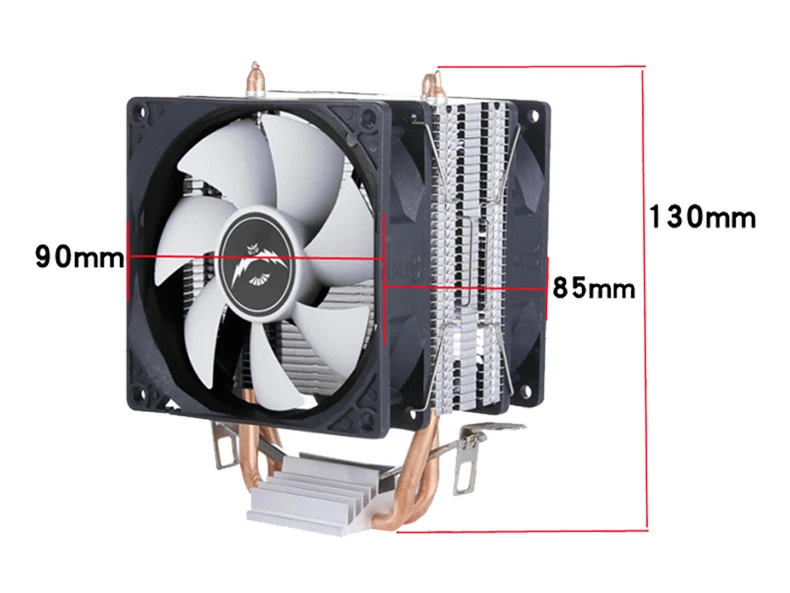

Fan size: 90 × 90 × 25mm
3Pin speed: 2000 RPM ± 10%
4Pin speed: 800-2000 RPM ± 10%
Maximum air volume: 60CFM
Maximum noise: 25dBA
Fan interface: 3Pin (3-wire constant speed)/4Pin (4-wire temperature control)
Rated voltage: 12V DC
3Pin current: No light 0.18A with light 0.28A ± 10%
4Pin current: No light 0.1A with light 0.2A ± 10%
3Pin power: 2W without light, 3.5W with light ± 10%
4Pin power: 1W without light, 2.5W with light ± 10%
Packaging method: boxed

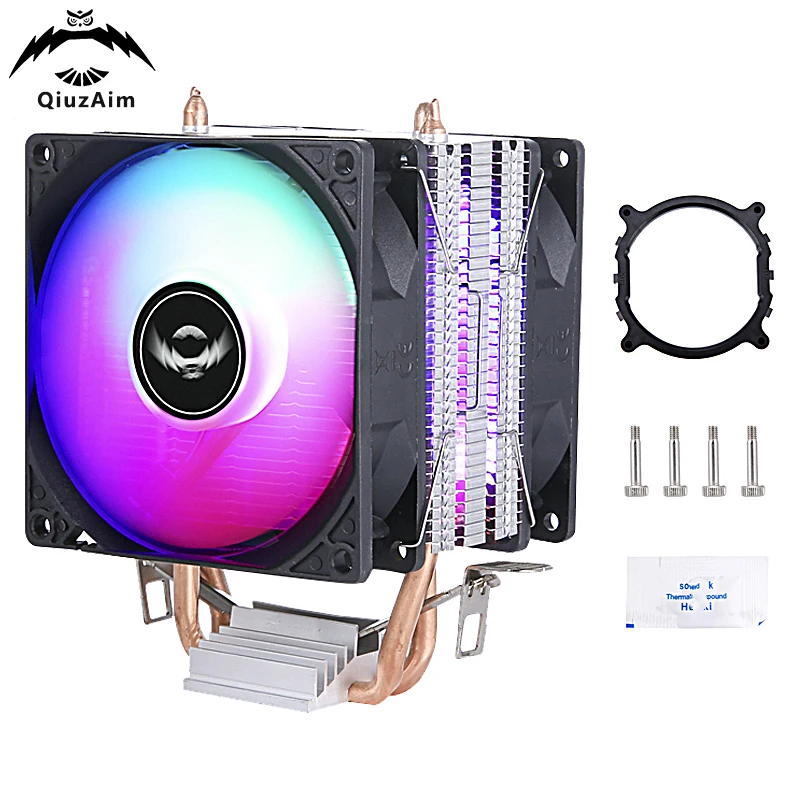

Package: Color Box (CPU cooler*1, fixing bracket*1 kit, silicone grease*1 )
Packing list（Sketch Map）：①②③
Product applicable platform
AMD full series of desktop universal：
AM5/AM4/AM3/AM3+/AM2/AM2+/FM1/FM2/FM2+/X2/X3/X4/A4/A6/A8/A10/FX...
(AMD series：Customers are required to keep the original bracket，If lost, please contact the Our customer service.)
LGA 2011 E5 X79 X99(Suitable for computer motherboards with square threaded bases)
Installation Steps Illustration
3Pin and 4Pin connectors are universally compatible;
installation is worry-free regardless of the interface type.

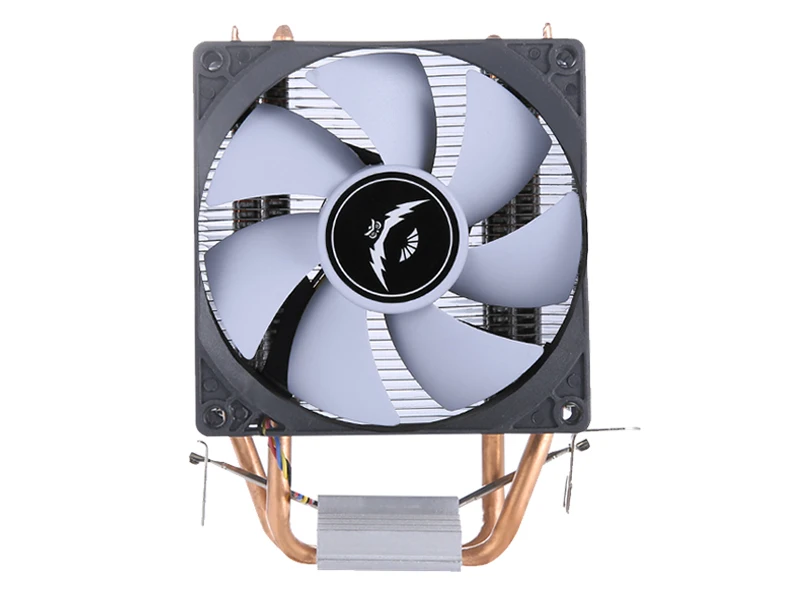

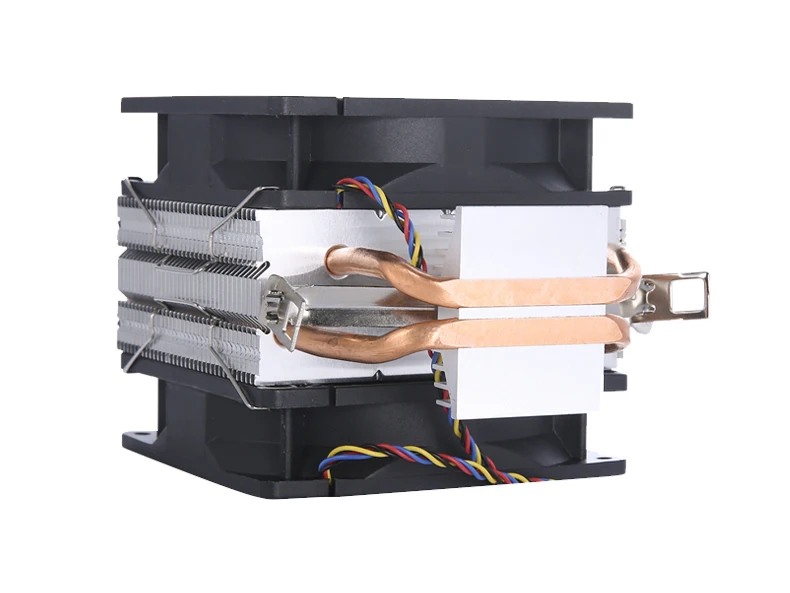

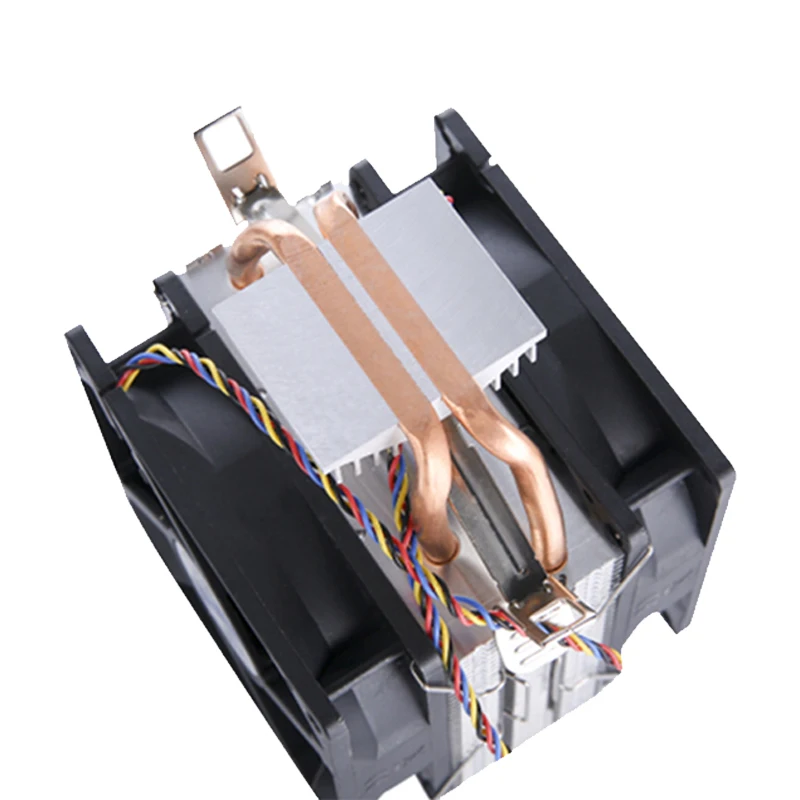

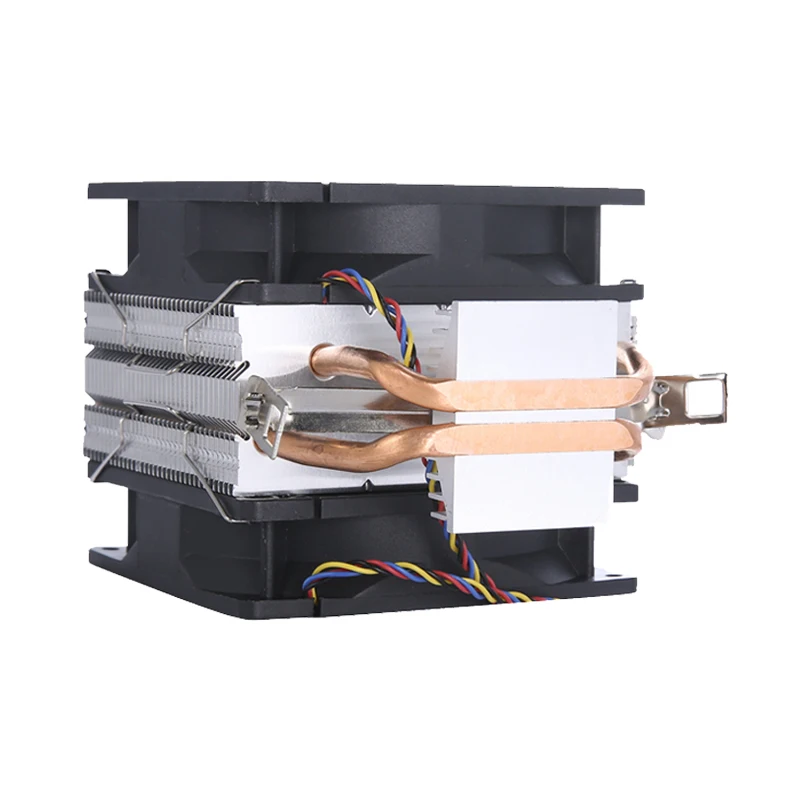

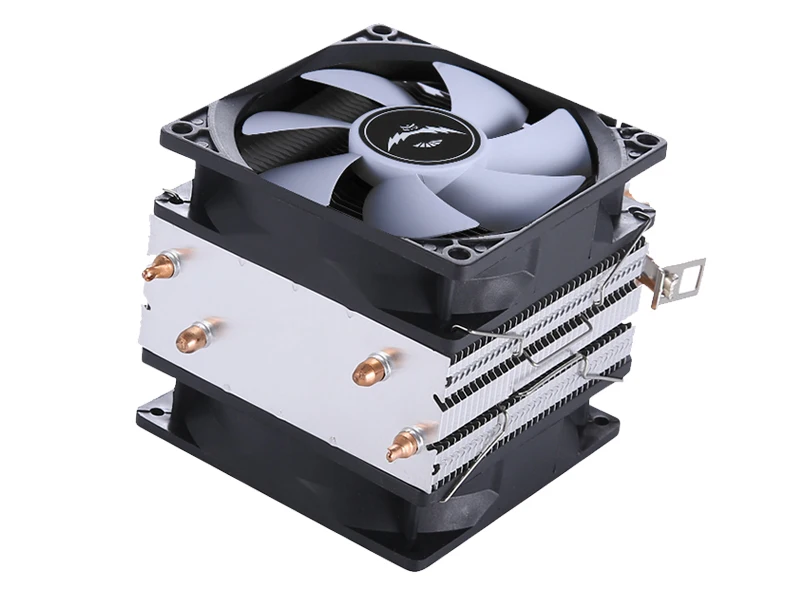

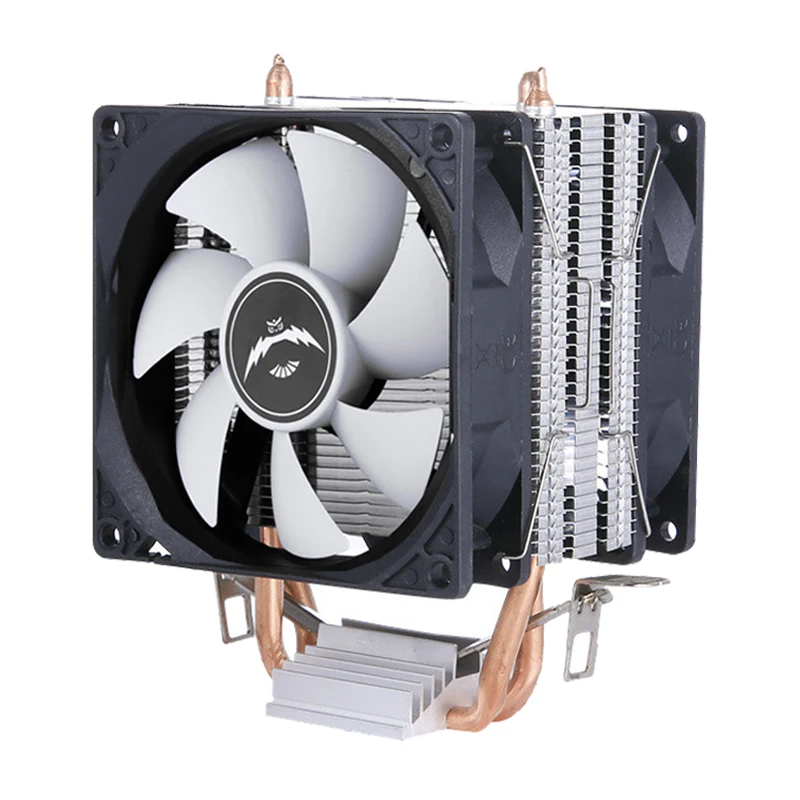

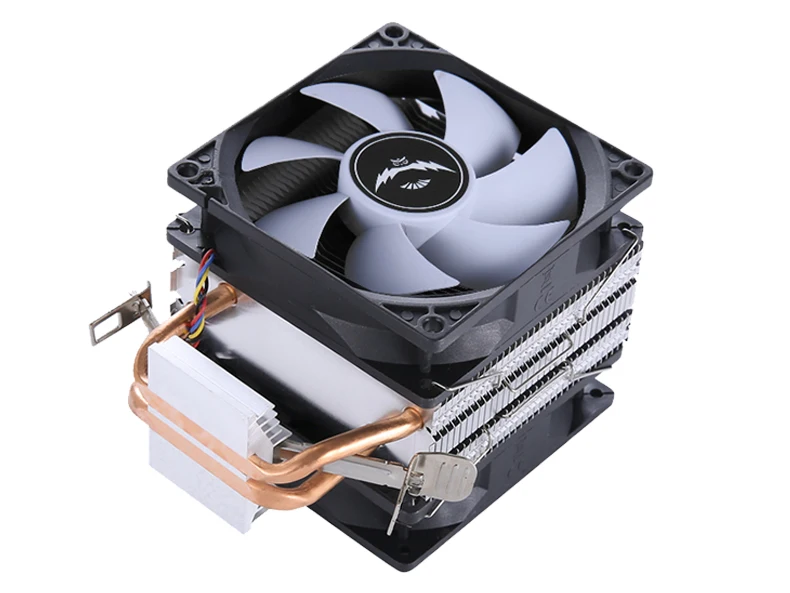

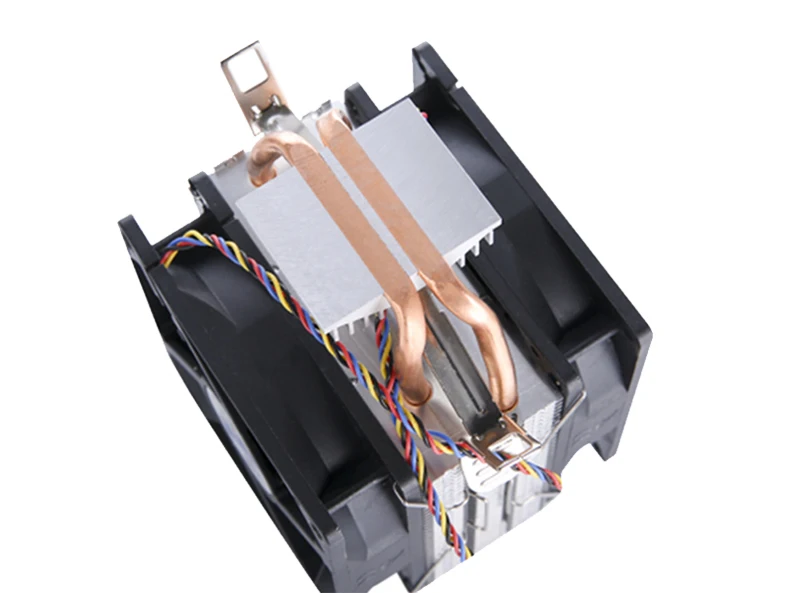

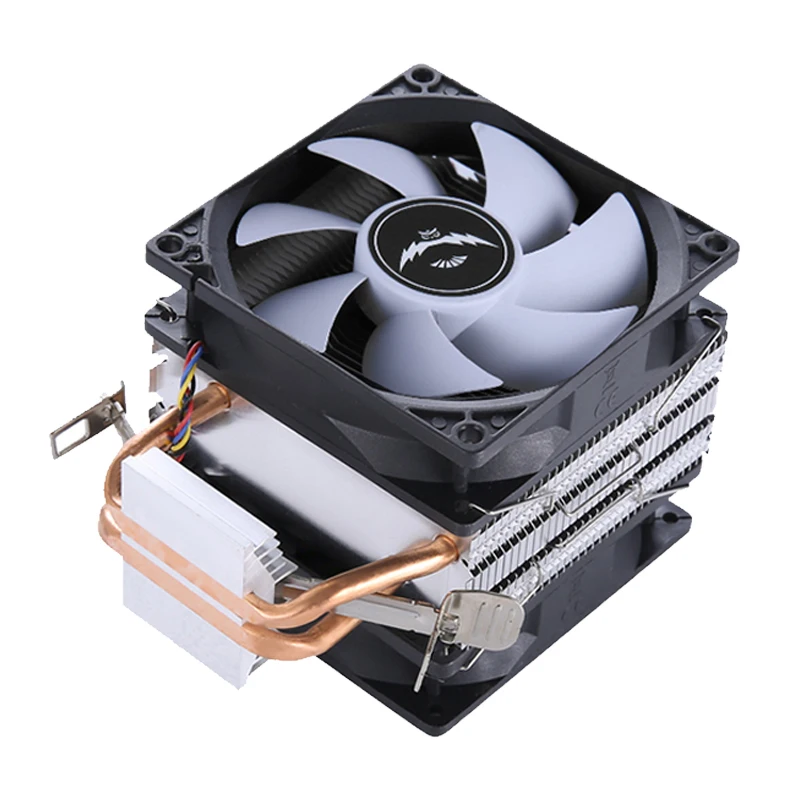

Product image display:
Statement:
As shown in the figure below, it is an inevitable production process, not a quality problem,
nor will it affect the product function and performance. Your successful purchase means
that you have approved the process. If there is any dispute or refund due to this process,
we will not accept it.
