Descripción
Feature
Specification
Carrier Board
Storage
1x M.2 Key M 2242 Interface for NVMe SSD
Networking
Ethernet
2x Gigabit Ethernet (10/100/1000M)
M.2 KEY E
1x M.2 KEY E(WIFI) Interface
M.2 KEY B
1x M.2 KEY B(4G/5G) Interface
I/O
USB
4x USB 3.2 Type A (Integrated USB 2.0)
1x USB 2.0+3.2 Type C
Camera
1x 15pinCSI
Audio
1x3.5 Audio Jack
2x MIC
2x SPEAKER
1x SPEAKER FEEDBACK
Display
1xHDMI
Fan
1xFan Connector (5V PWM)

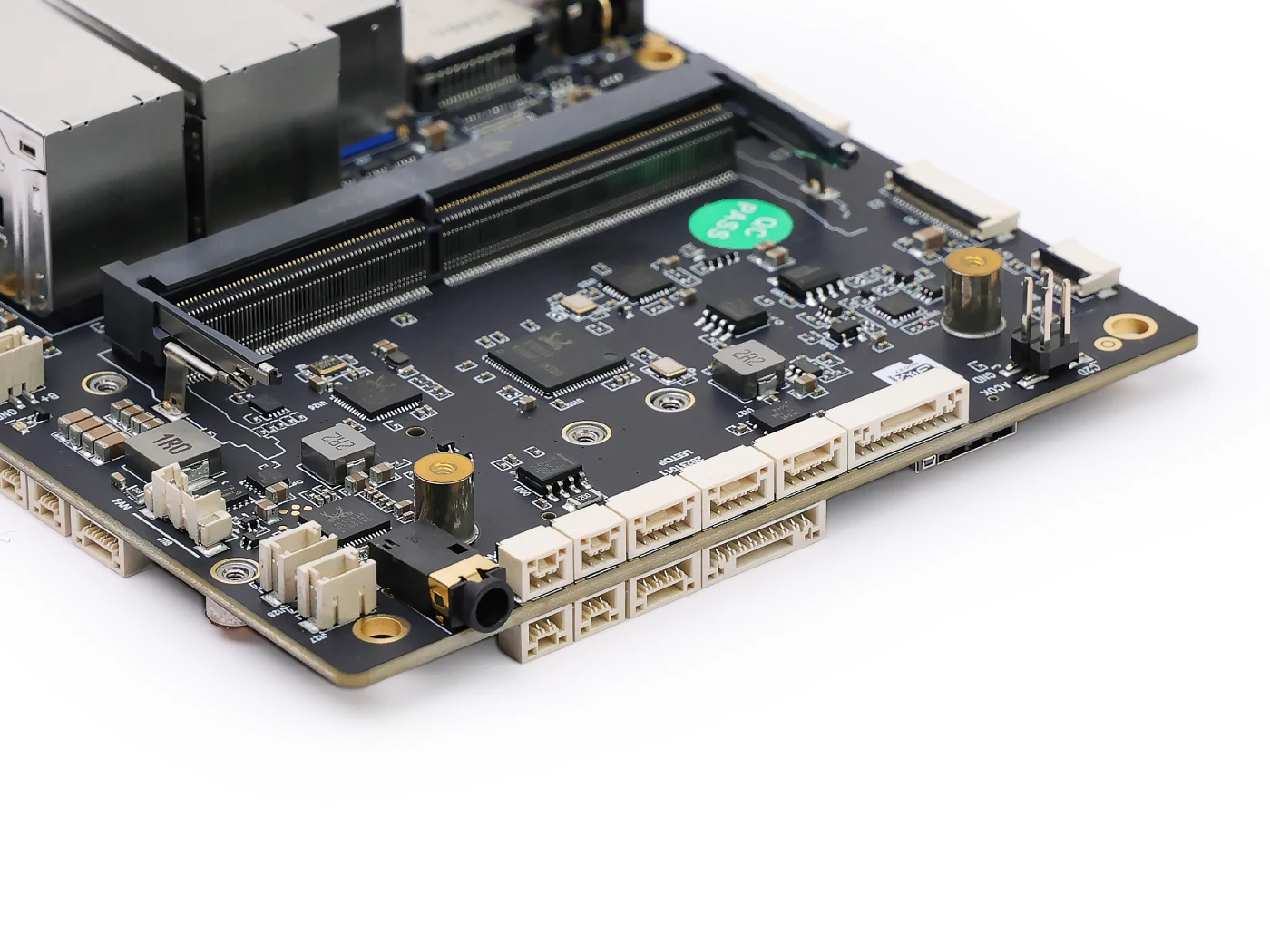

Multifunctional Port
2x IIC;
1x CAN (FD)
1x SPI
7x IO 3.3V
2x UART
1x DEBUG
1x POWER
1x RESET
1x RECOVERY
RTC
1x 3.0V RTC
Power
9-20V(MAX 60W) DC Input

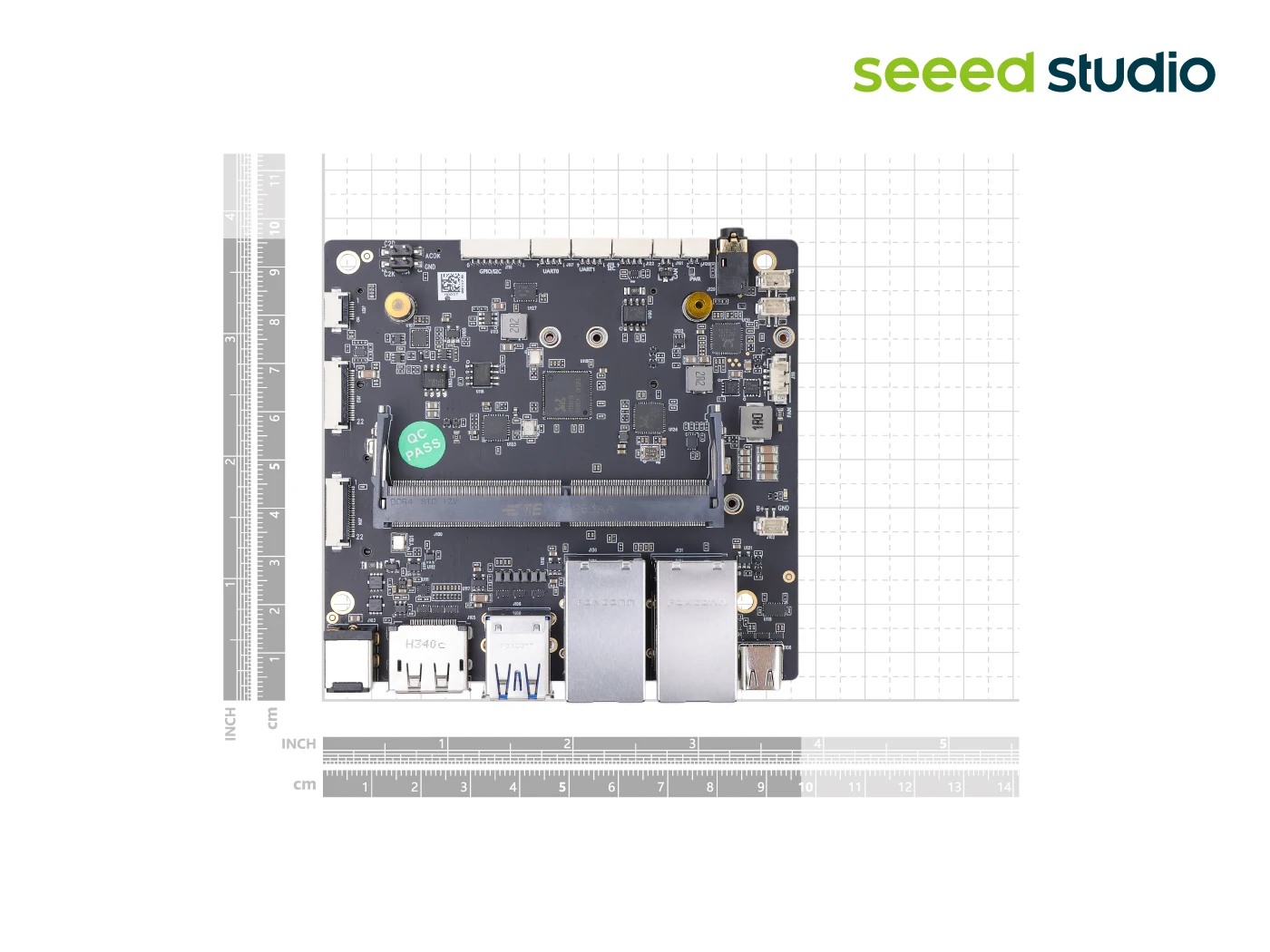

Mechanical (W x D x H)
101.5mm x 95mm
Operating Temperature
-25℃~65℃

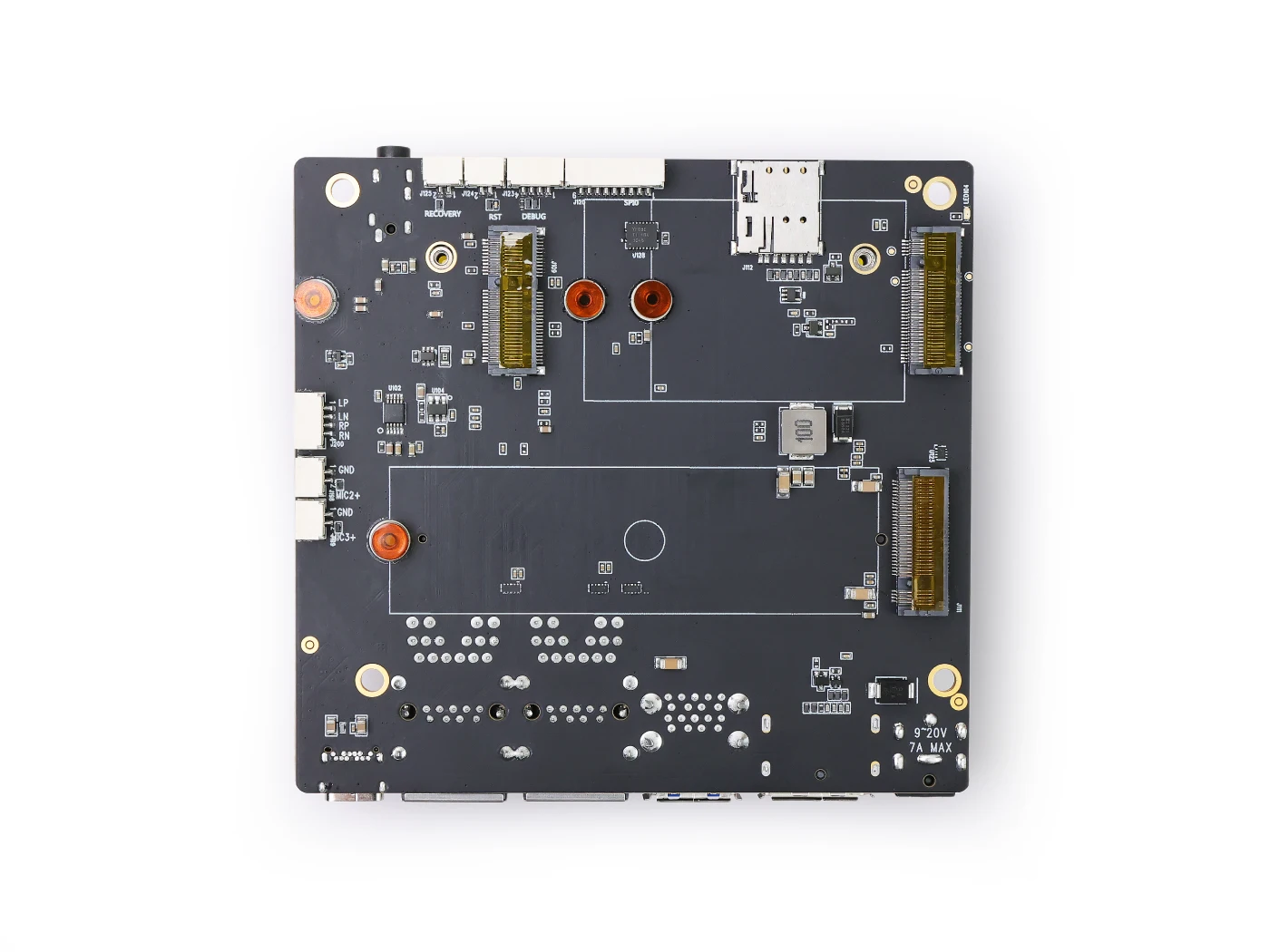

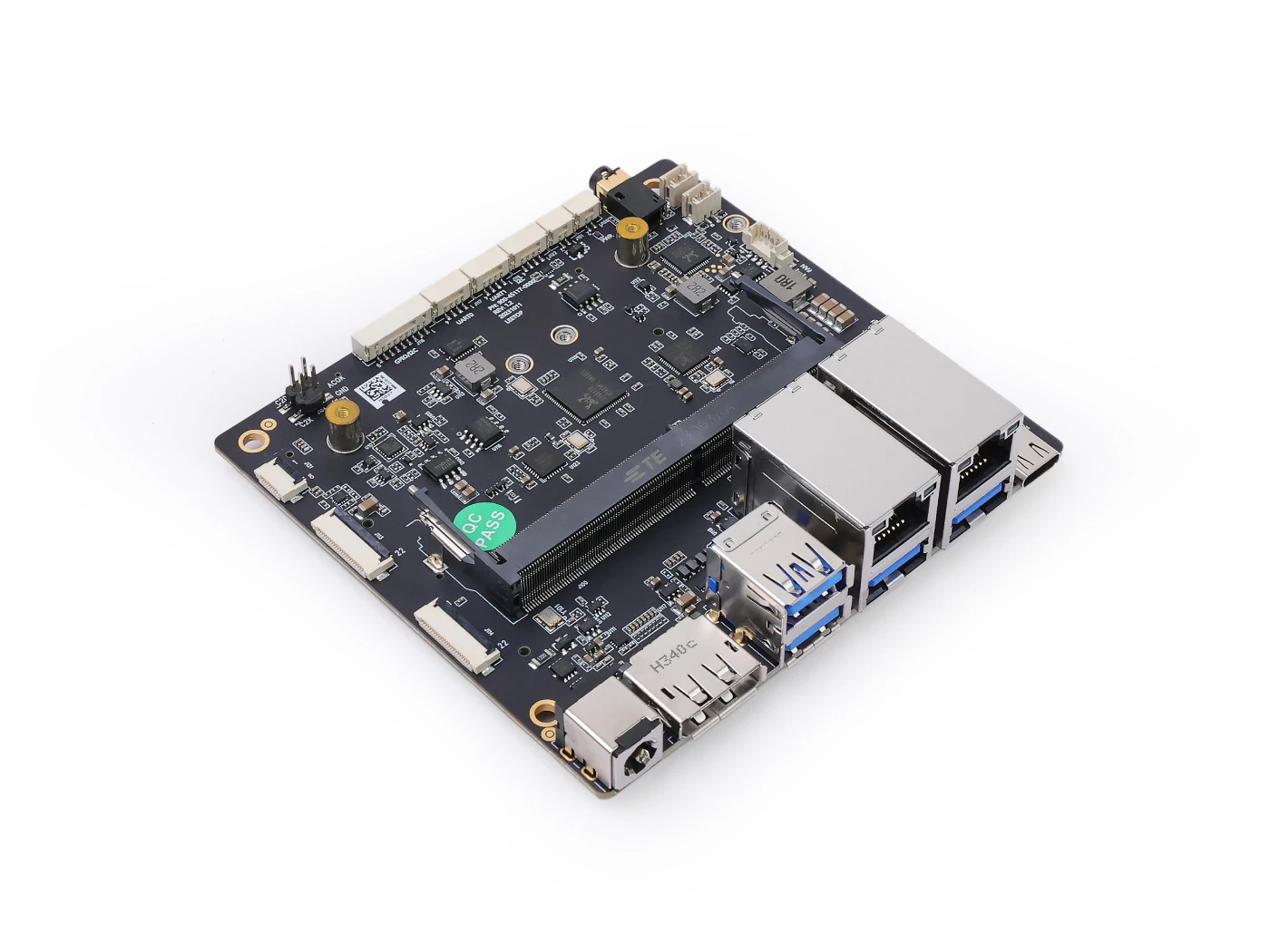

Hardware Overview
Carrier Board
Application
Application Fields:
Autonomous Mobile Robot (AMR)
AI Video Analytics
Machine Vision
Generative AI

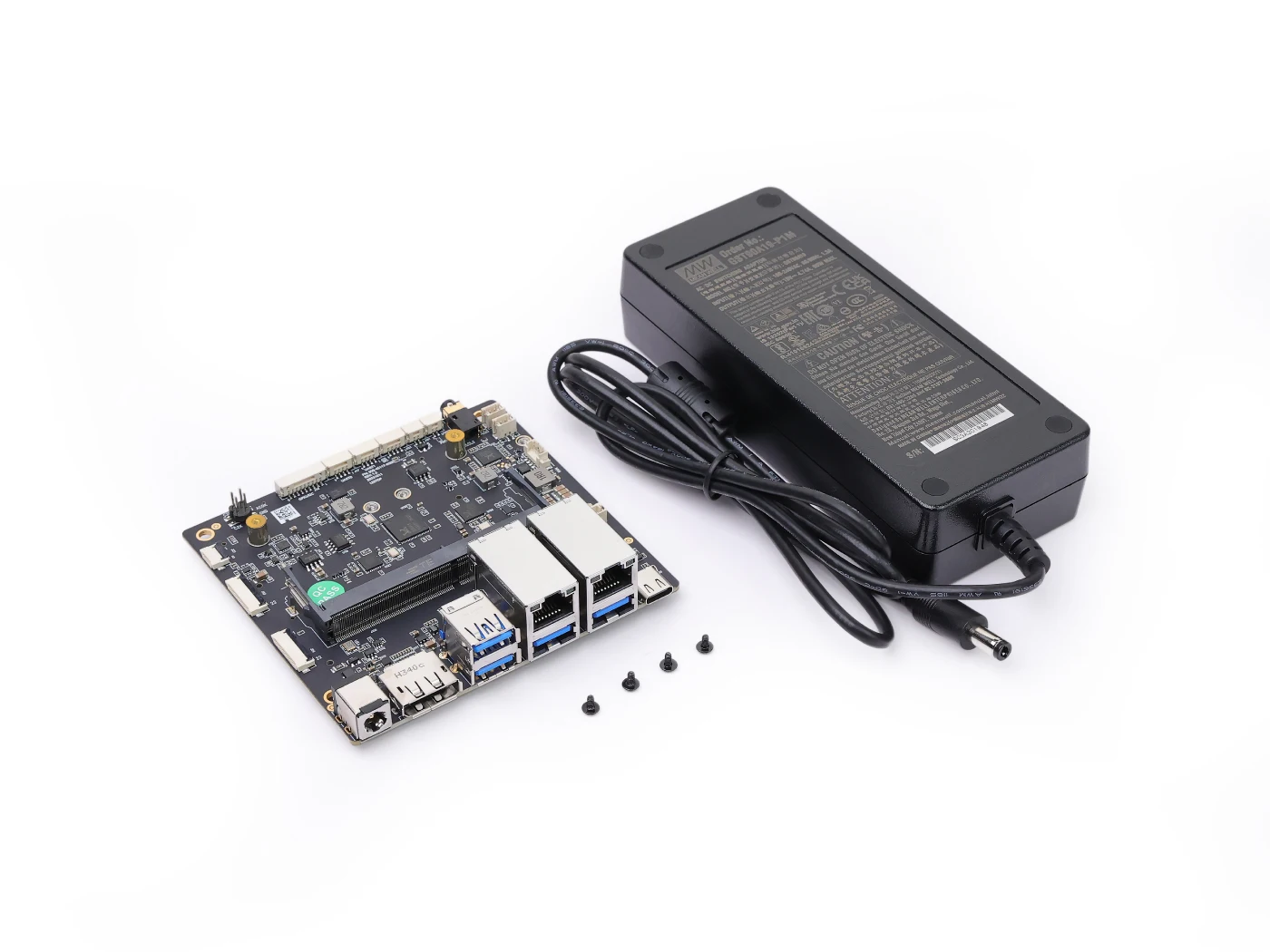

Part List
A608 Carrier Board for JetsonOrin™ NX/Orin™ Nano
x1
19V/4.74A(Barrel Jack 5.5/2.5mm) Power Adapter (Power cord not included)
x1
2 Pin Dupont Female Cable
x4
4 Pin Dupont Female Cable
x4
9 Pin Dupont Female Cable
x2
