Official Raspberry Pi Compute Module 5 IO Board, A Development Platform And Reference Base-board Designed For CM5, Suitable For All Variants Of Compute Module 5

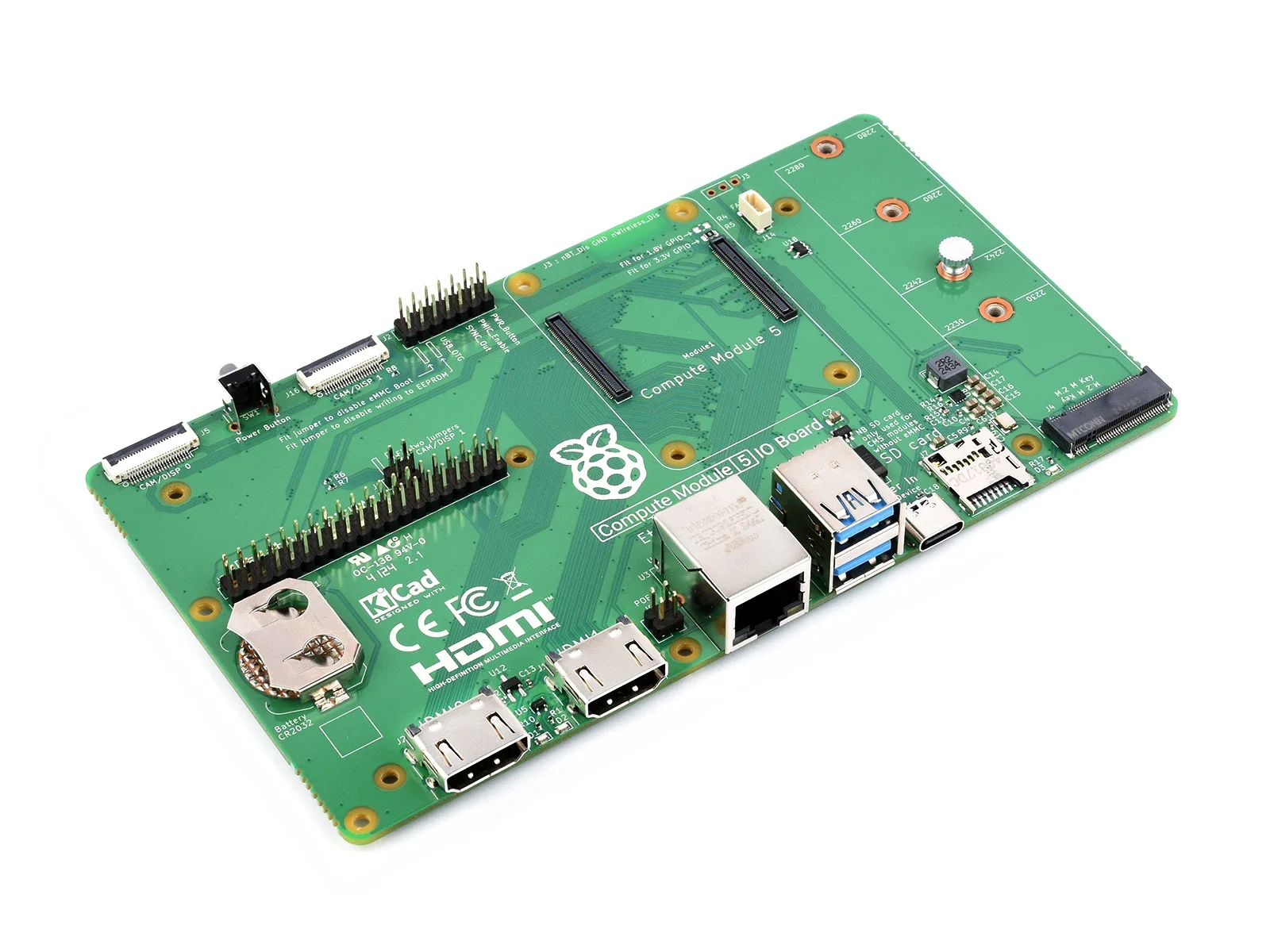

The Compute Module 5 IO Board is a companion board for Raspberry Pi Compute Module 5 (supplied separately). It is designed for use both as a development system for Compute Module 5 and as an embedded board integrated into end products.

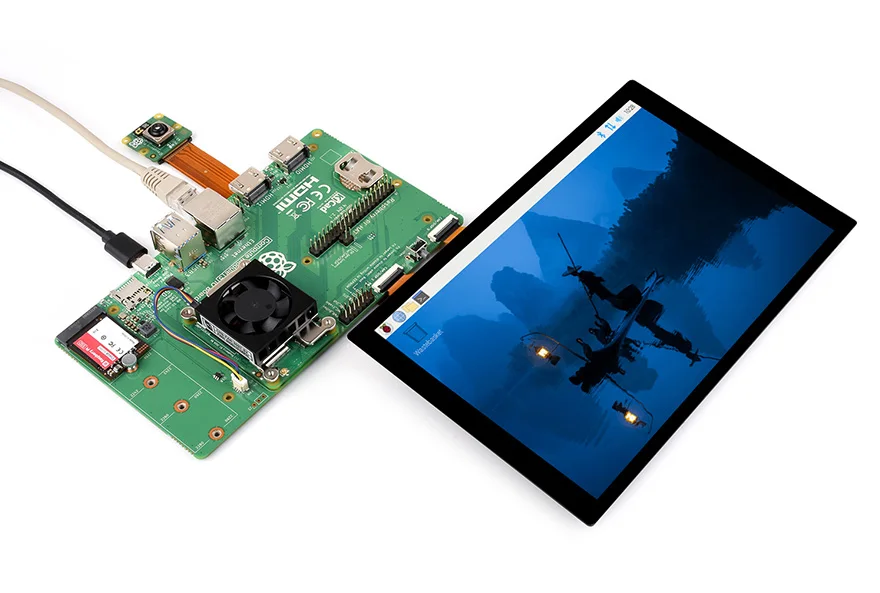

The IO board is designed to allow you to create systems quickly using off-the-shelf parts such as HATs and PCIe modules. The major user connectors are located along one side to make enclosures simple.
CM5 socket
suitable for all variants of Compute Module 5
network
Gigabit Ethernet RJ45 port
Supports PoE function, onboard PoE header, an external PoE module (NOT included) is required
Connectors
Raspberry Pi 40PIN GPIO header
M.2 M-Key PCIe socket, compatible with 2230, 2242, 2260 and 2280 form factors
USB
2 x USB3.2 Gen1 connectors
1 x Type-C port for updating Compute module 5
MIPI
2 x 4-lane MIPI DSI/CSI-2 connectors
Video
2 x HDMI ports with 4K support
RTC
Real-time clock with CR / ML2032 battery socket
Storage socket
MicroSD card socket for Compute Module 5 Lite (without eMMC) variants
Fan connector
5V, JST-SH PWM 4PIN connector
Power input
5V @5A via Type-C port, the same standard as the Raspberry Pi 5
Dimensions

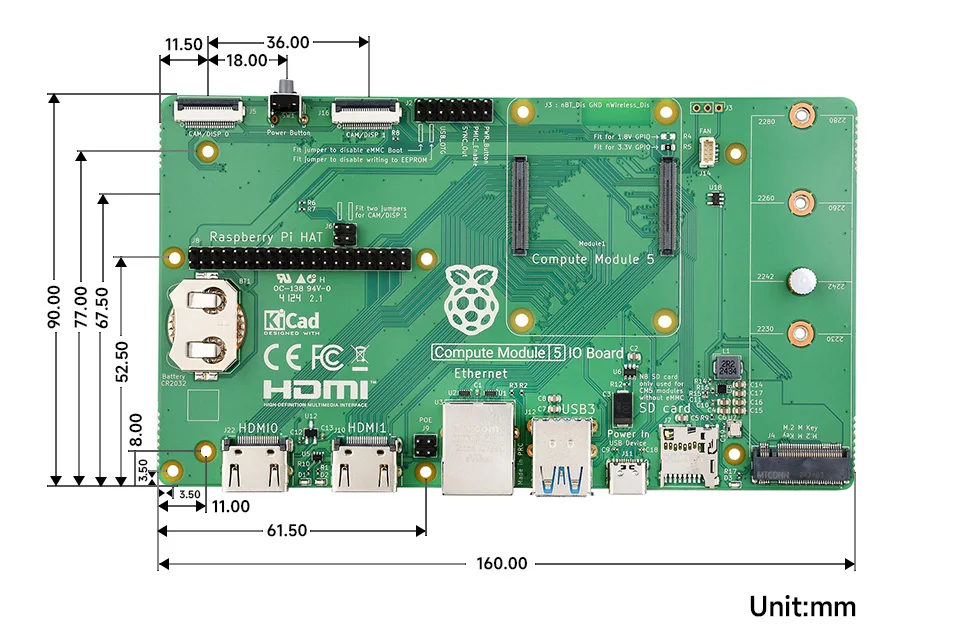

160 × 90mm

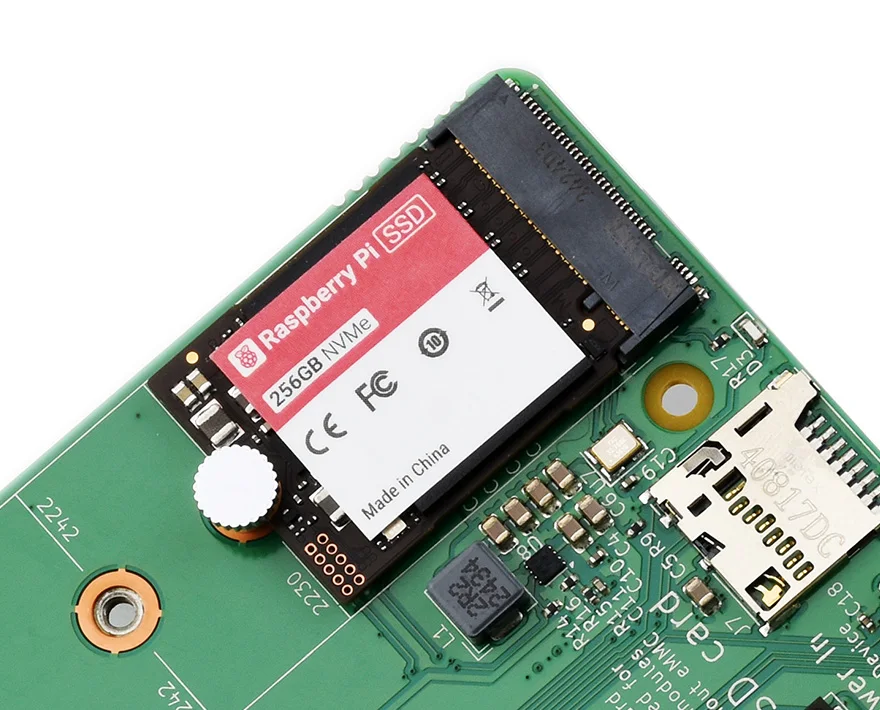

Supports M.2 NVMe Solid State Drive
Faster reading/writing speed compared to the Micro SD slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, support booting Raspberry Pi from NVMe Solid State Drive
* for reference only, the Solid State Drive is NOT included
* for reference only, the Compute Module 5 is NOT included
* for reference only, please refer to the Package Content for detailed part list
