Placa de expansión PoE IO para Raspberry Pi Compute Module CM4S/CM3

【Overview】

[] This is an IO board for evaluating the Raspberry Pi CM4 or being integrated into end products. the board feature PoE function, it can be used for all variants of CM4.

【Features At A Glance】

[] Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs

[] 10/100M auto-negotiation Ethernet port, with PoE enabled

[] 4x USB ports, allows connecting more USB devices

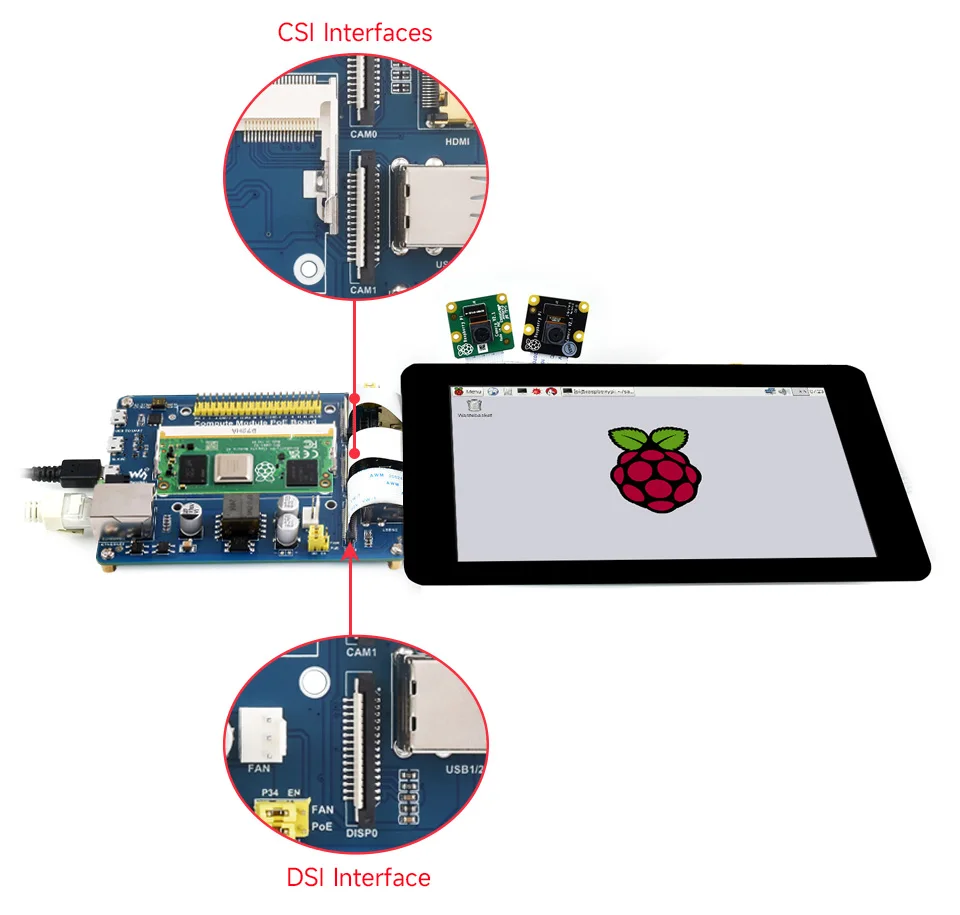

[] 2x CSI camera interfaces

[] Onboard HDMI / DSI interfaces for connecting displays

[] Onboard USB TO UART, for serial debugging

[] Cooling fan interface, auto run on power up OR controlled by IO pins

[] Adopts isolated SMPS (Switching Mode Power Supply)

【Base Board Specifications】

[] POE POWER INPUT : 37V ~ 57V DC in

[] POE POWER OUTPUT: 5V 2.5A DC out

[] NETWORK STANDARD: 802.3af PoE standard

[] POWER SUPPLY: micro USB port / PoE Ethernet port

[] MOUNTING HOLE SIZE: 3.2mm

[] DIMENSIONS: 114mm × 84.4mm

【Supports CM4S / CM3 Series Boards】

[] Suitable For Raspberry Pi CM4S / CM3 / CM3L / CM3+ / CM3+L

[] Supports PoE Power Supply, Onboard Multiple Peripheral Interfaces

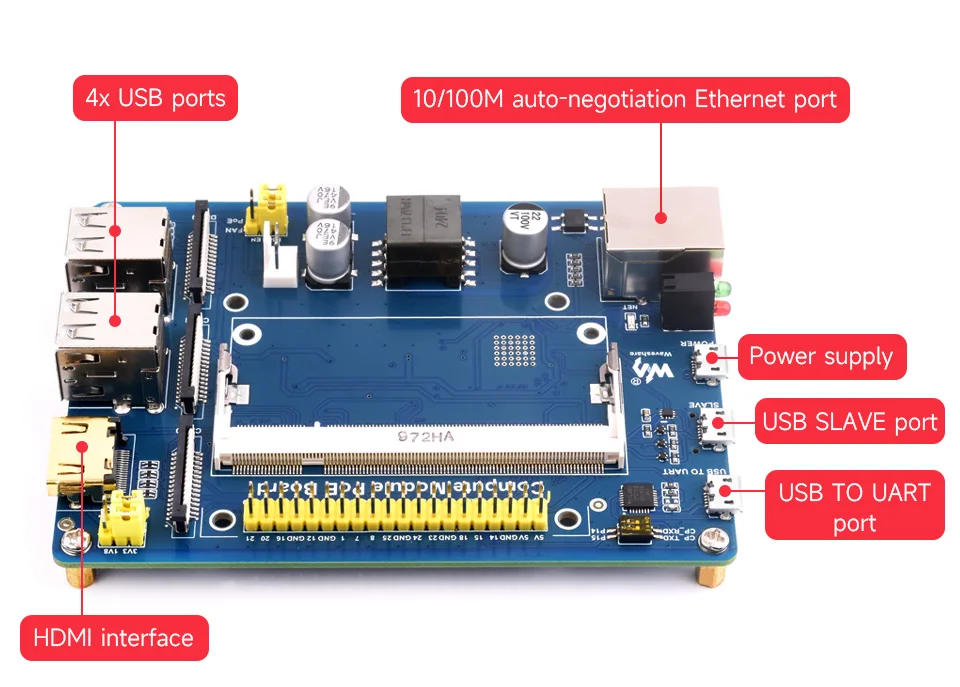

【Multiple Peripheral Connectors】

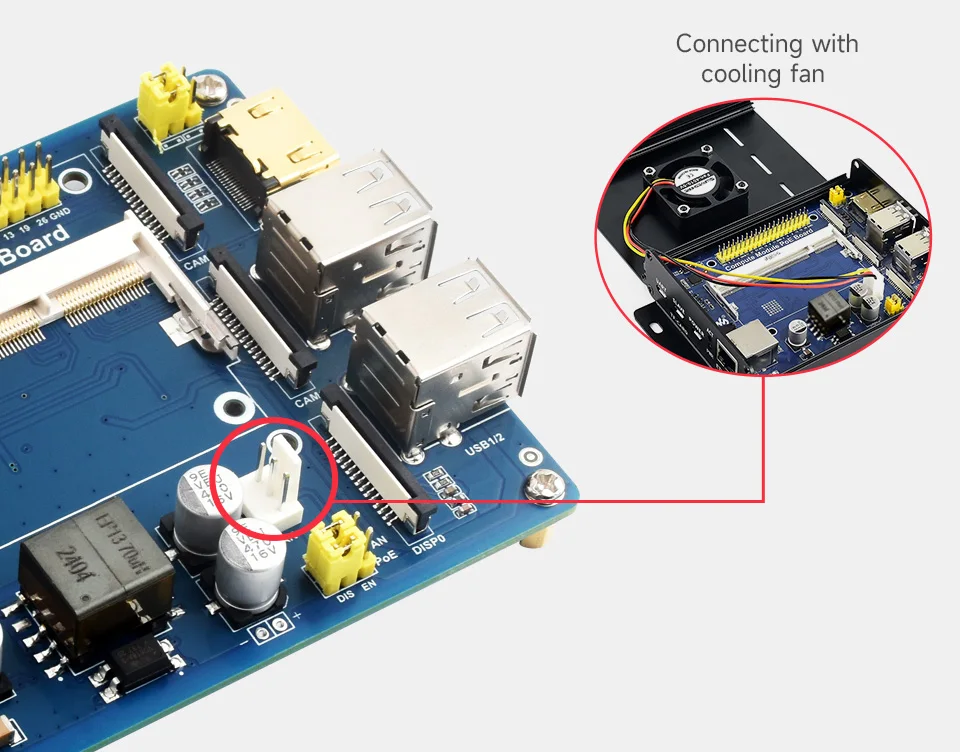

【Reserved Cooling Fan Header】

[] Supports Controlling The Fan Via GPIO Or Direct Running From 5V Power Supply

[]* for reference only, the cooling fan and the case are NOT included.

【Application Example】

[] Suitable For Raspberry Pi Applications Or Other Industrial Context Requiring Binocular Vision Or PoE Power Supply

【What's On Board】

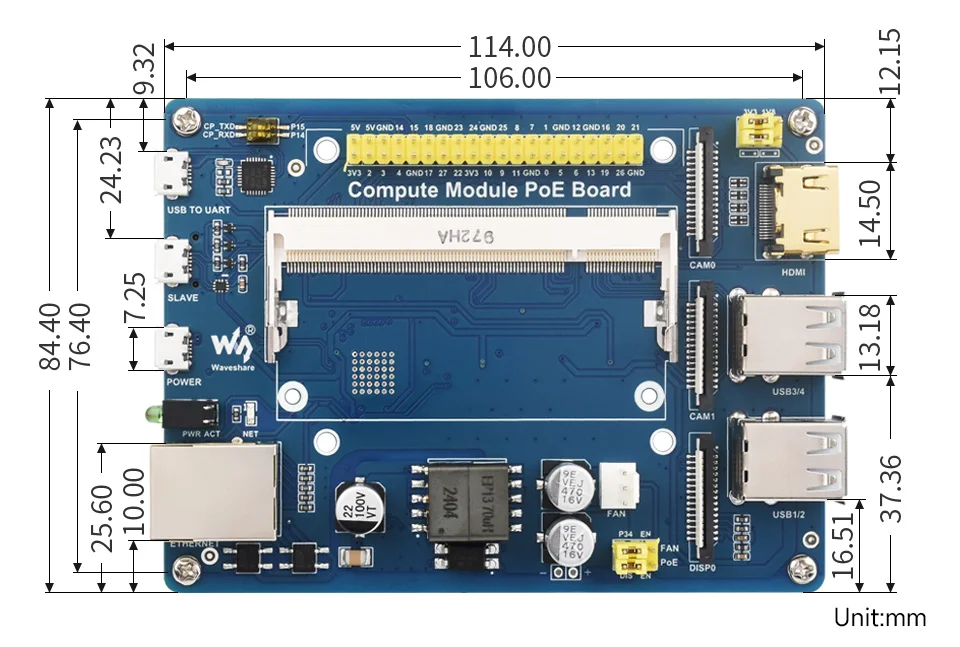

【Outline Dimensions】

[] Compute-Module-PoE-Board
