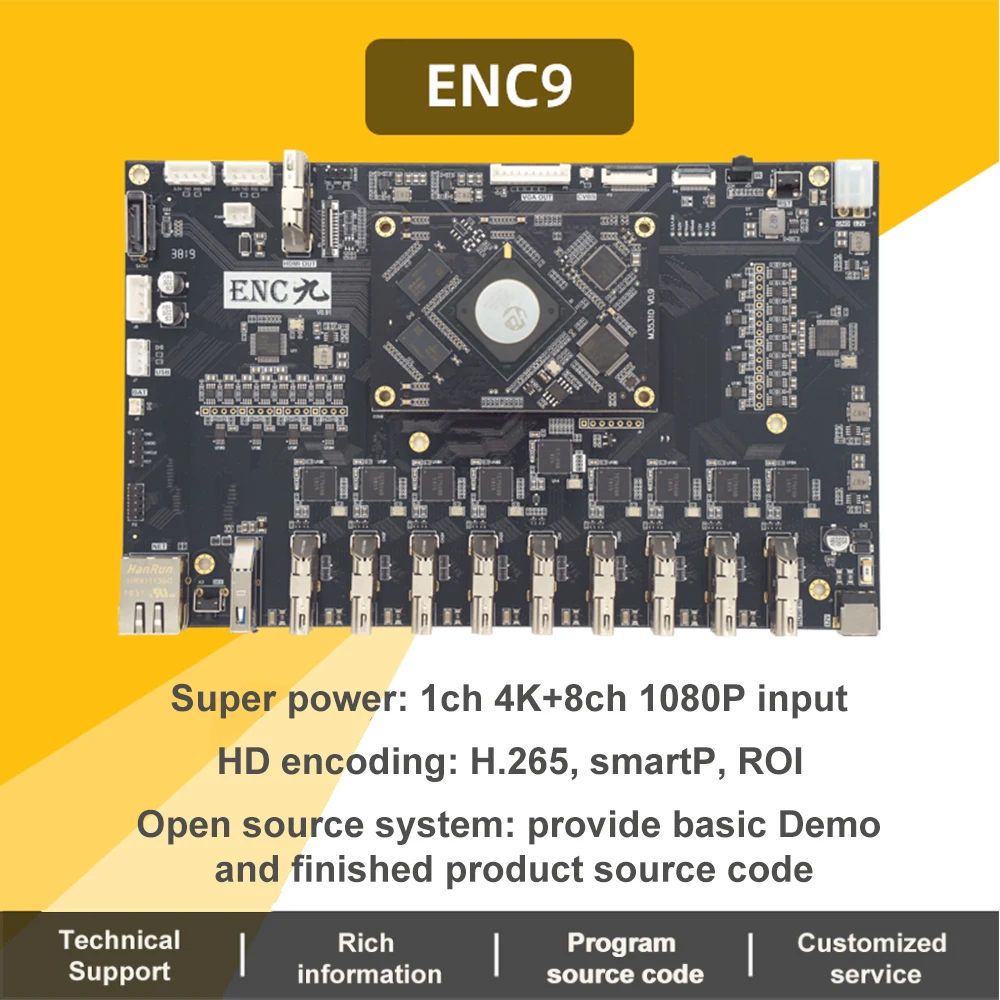

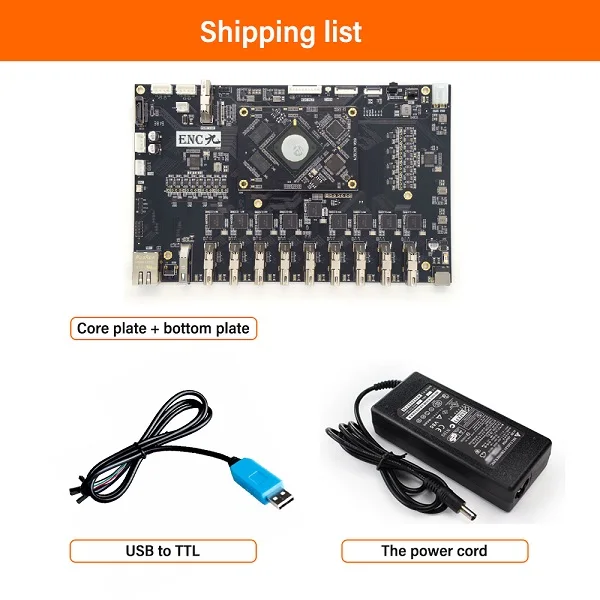

Introduction
Product features Ultra-clear input, high performance, high configuration, customizable, expandable 4K-HDMIx11080P-HDMIx8 12x1080P or 3×4K simultaneous real-time encoding and decoding 2GB DDR3256MB Nand Flash open source system supports secondary development, expandable touch screen, audio board, battery pack, etc. interface layout performance Parameters core performance Main chip: Hi3531DV100 CPU: ARM Cortex A9 dual-core @1.4GHz Memory: 2GB DDR3 Fl
Product Features
Ultra-clear input
high performance
High profile
customizable
Scalable
4K-HDMIx1
1080P-HDMIx812x1080P or 3×4K
simultaneous real-time encoding and decoding2GB DDR3
256MB Nand FlashOpen source system
supports secondary developmentExpandable touch screen,

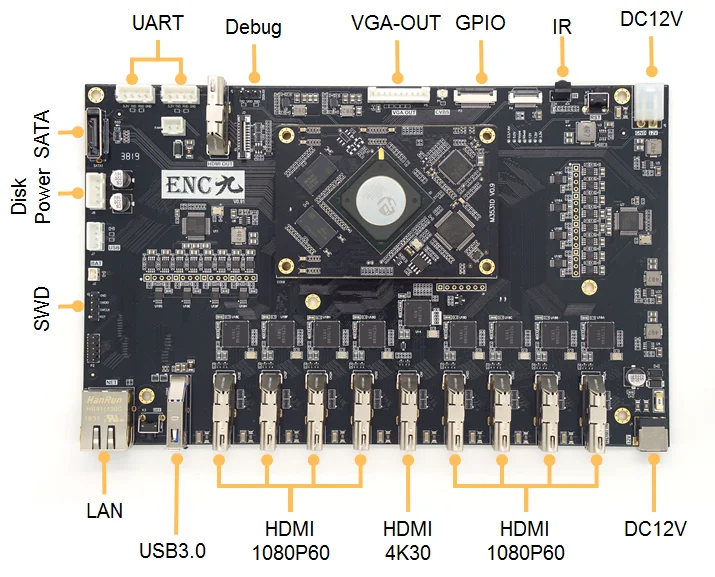

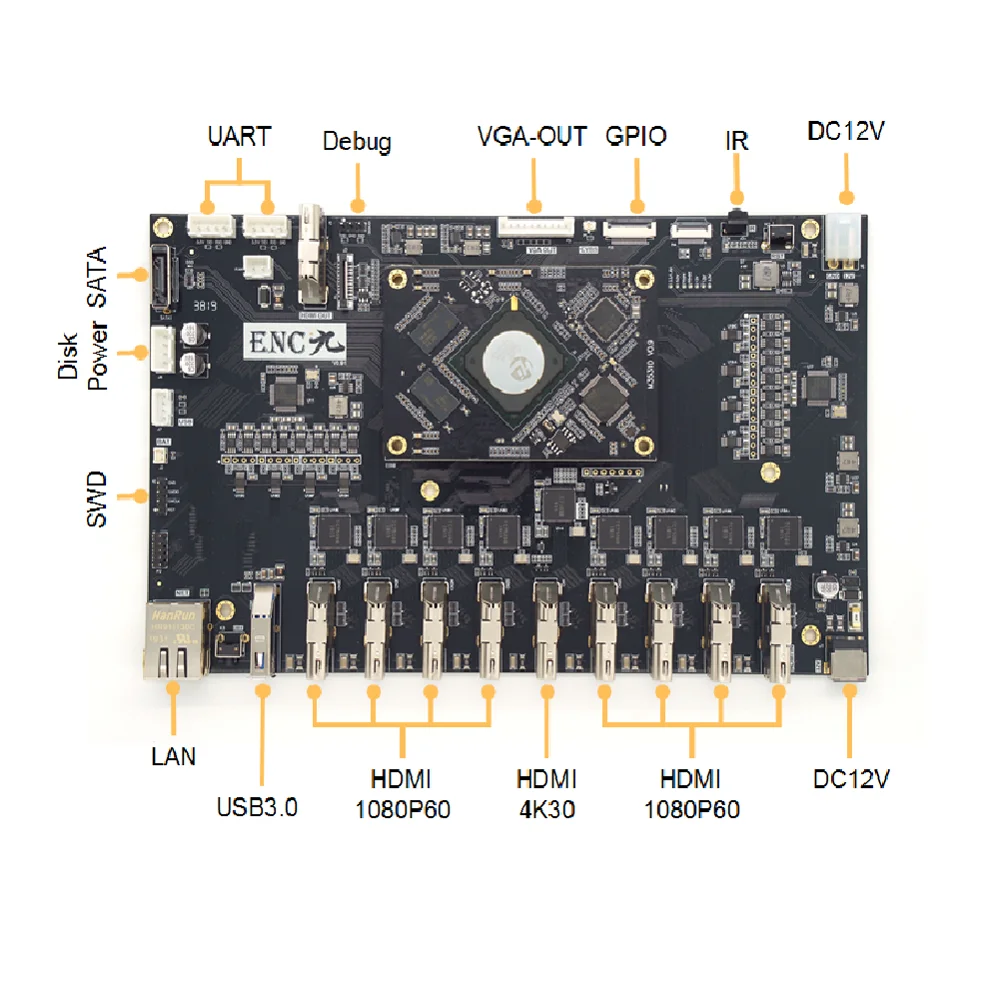

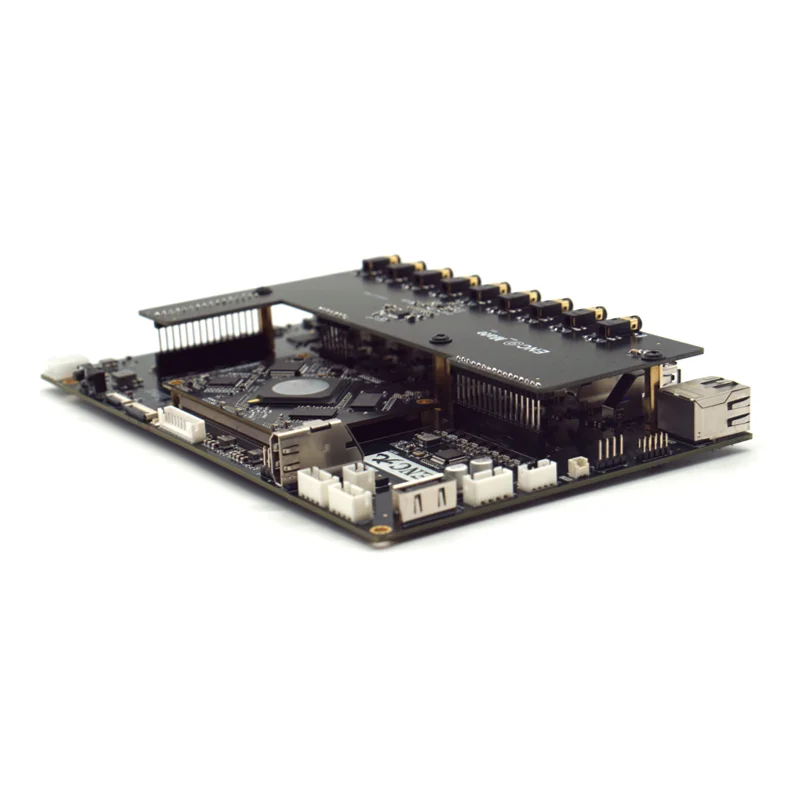

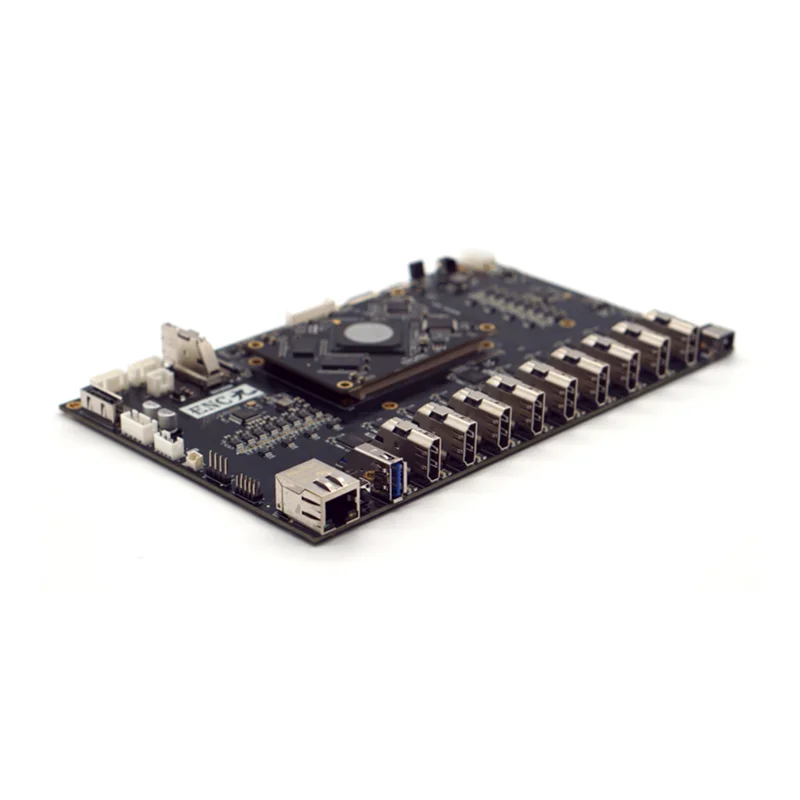

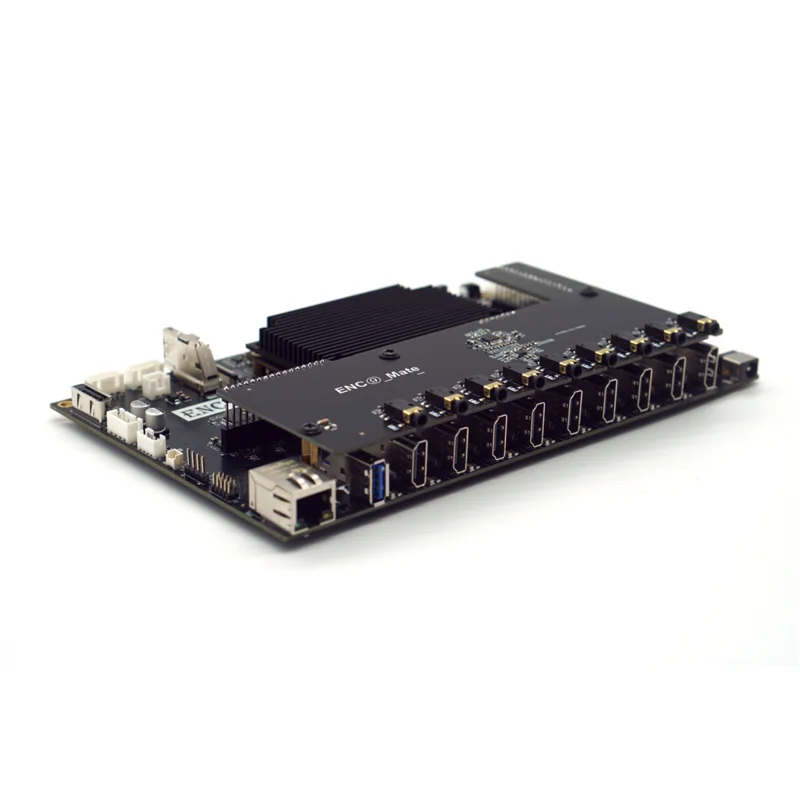

audio board, battery pack, etc.Interface layout
Performance parameter
Core performance
main chip:
Hi3531DV100
CPU:
ARM Cortex A9 dual core @1.4GHz
RAM:
2GB DDR3
Flash:
256MB Nand Flash

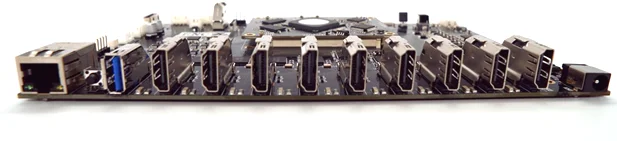

input interface
HDMIx9 supports up to 4K@30 with audio
Output Interface
-
Front HDMIx1 supports 4K
-
Built-in VGA pin x1 supports 1080P
Codec performance
-
12x1080P@30+8xD1@30 h264/h265 encoding
-
3x4K@30+ 2x1080P@30 h264/h265 encoding
-
12x1080P@30 or 3x4K@30 h264/h265 decoding
-
4x1080P@30 mjpeg encoding/decoding
-
Support H264+ (intelligent multi-reference frame, AVBR)
-
Maximum bit rate 40Mbps
other
The internet:
Gigabit wired network
storage:
SATAx1
Audio:
Audio board dedicated expansion interface
MCU:
STM32F103RBT
Pin:
GPIO, PWM, UART, I2C, SPI, USB, I2S/PCM
other:
USB3.0x1, button x2
power supply:
DC12V, typical power consumption 15W, maximum power consumption 30W, it is recommended to use 12V5A
Audio board:
Optional, mutually exclusive with HDMI audio
Software function
basic skills:

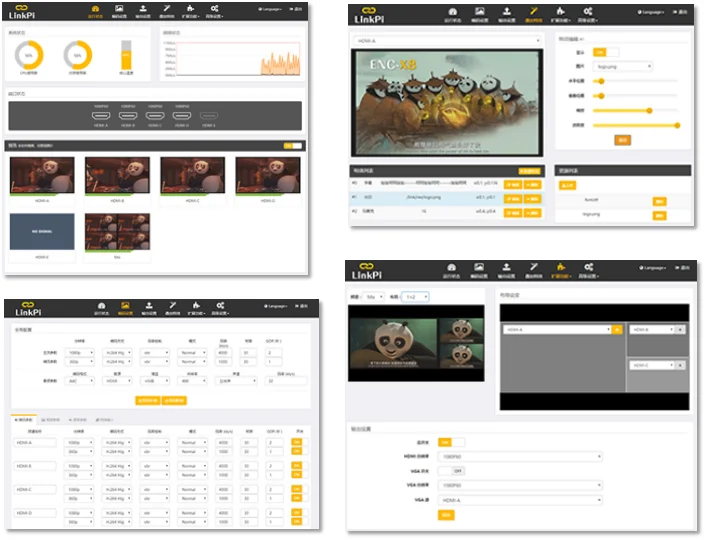

WEB configuration, hot parameter update, firmware upgrade, network setting, password management
Special effects overlay:
Logo, watermark, subtitle, rolling caption, mosaic, time stamp
Video mixing:
Picture-in-picture, 4 pictures, 9 pictures, etc., support real-time switching, support mixing
Resource management:
Custom font, upload watermark Logo image

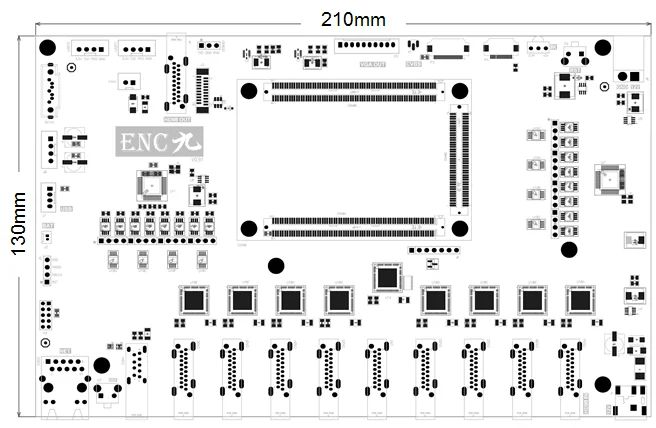

Board size
Note: The PCB location map is included in the development data, please refer to the actual measurement.
Example tutorial

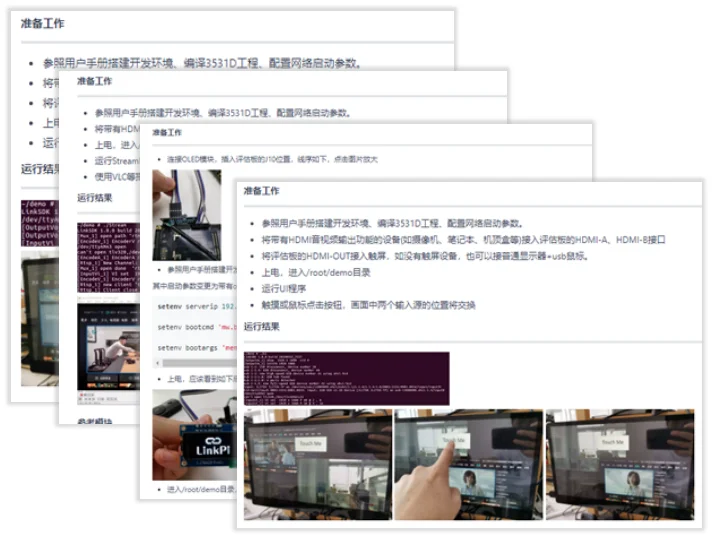

We have carefully produced a wealth of sample tutorials, covering audio and video input and output, audio and video codec, screenshots, streaming, recording, video mixing, special effects overlay, USB camera, GPIO operation, power management, touch screen operation, OLED screen control, etc. Links to help you remove all the problems that may be encountered in the product development process. We will continue to update sample projects and tutorials.
LinkSVP

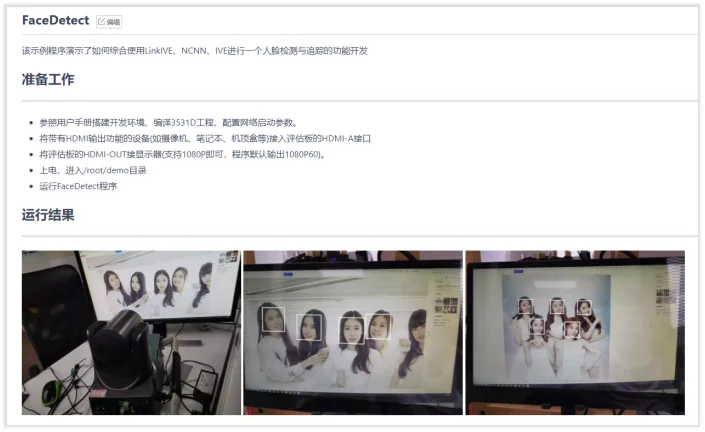

In order to facilitate users to develop products in the field of machine vision and AI, we have developed the LinkSVP framework to simplify the upstream and downstream development process and allow developers to focus on core algorithms. At the same time, several sample programs have been made to help users easily get started. Even in the scheme with NNIE unit, we provide tools for the acceleration of embedded optimization and can also run deep learning algorithms.
Development environment
We have cross-compiled common third-party libraries and placed them in the virtual machine to facilitate user development and use.
Development framework: QT5
Media related: ffmpeg, fdkaac, lame, alsa
WEB development: php, nginx (nginx-rtmp+http-flv)
Network related: iperf, ppp, wpa, hostap, iw, libnl, ssl
Graphics processing: Opencv, NCNN
Others: freetype, icu, libts, zlib, libxml...
Open source software
In order to demonstrate the basic capabilities of the evaluation board so that users can fully evaluate the solution before starting to develop it, we have produced an "encoder system" that demonstrates all the interface capabilities and codec performance of the solution in the form of a universal encoder. The product is completely open source, including main program source code, file system, webpage source code, etc.
If the user's target product is similar to the open source product, it can be modified directly on the basis of the product source code.
Development model
The product can be developed directly using the official HiSilicon SDK, and the core hardware is fully compatible. It can directly use the official kernel, uboot, etc., without modifying any line of code.
On this basis, LinkPi provides a faster and more convenient LinkSDK, which not only reduces the difficulty of learning, but also provides richer extended functions.
Technical Support
We will assign professional engineers to provide you with one-to-one technical support. The technical support team is composed of engineers with rich industry experience, and will do our best to answer all possible problems you may encounter in all aspects of the product development process.
[technical support]
