Placa de desarrollo ESP32 S3 Dual-Core integrada CH343 CH334 ESP32-S3-WROOM-1-N8R8 WiFi/Bluetooth 8MB PSRAM opciones 8MB y 16MB Flash

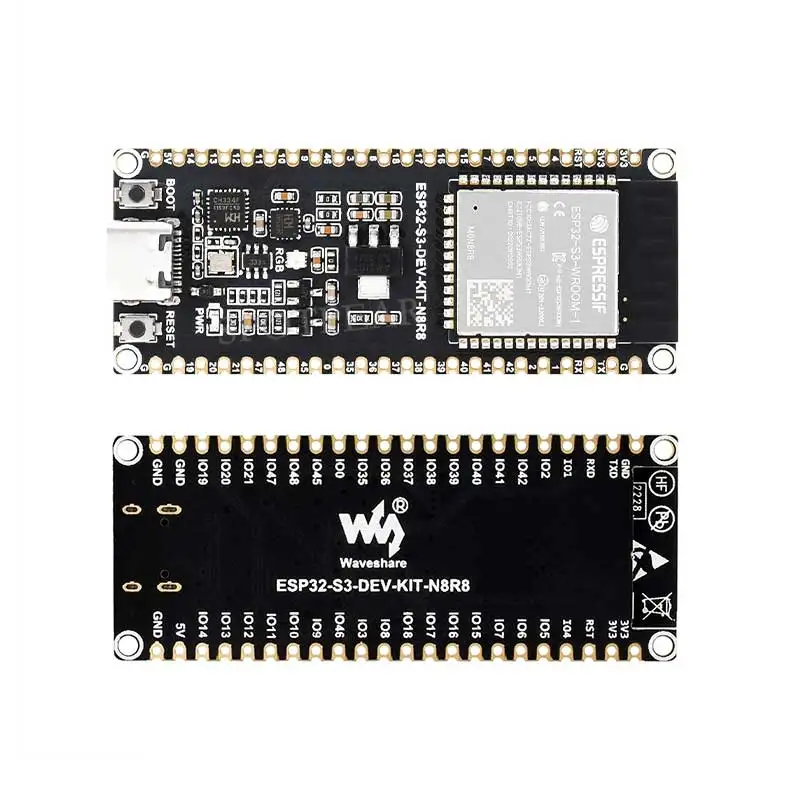

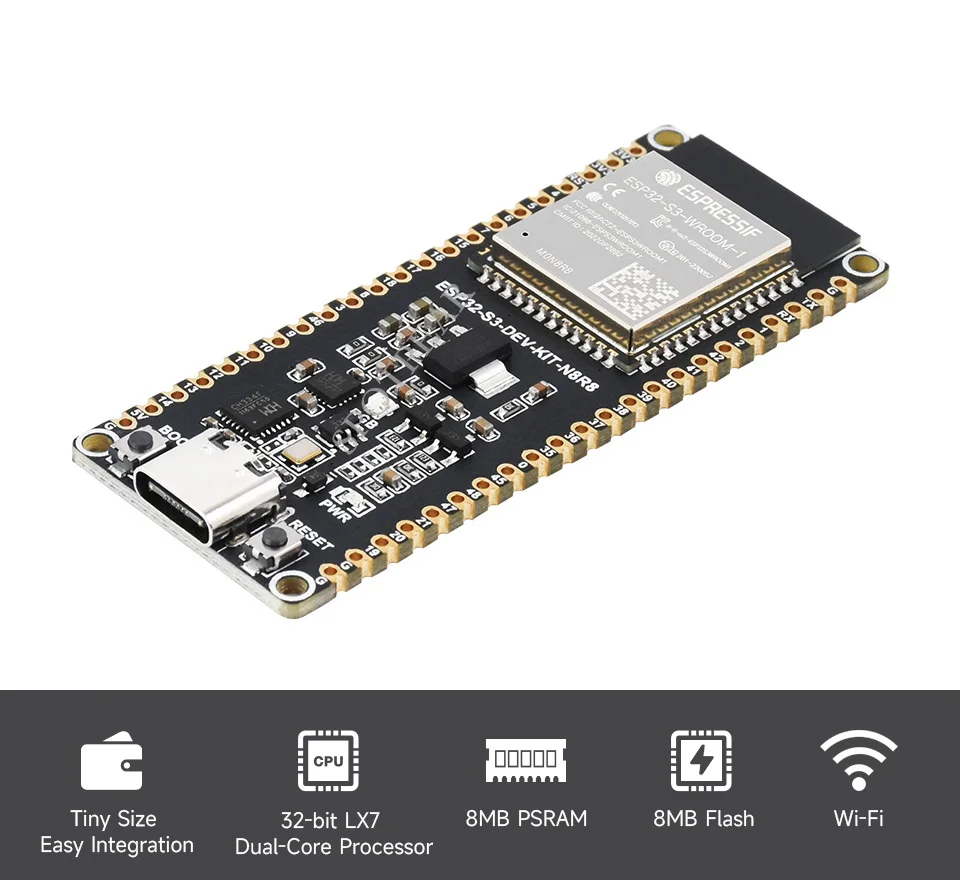

[] The ESP32-S3-DEV-KIT-N8R8 is a compact-size microcontroller development board with multiple digital interfaces.
[] Adopts ESP32-S3-WROOM-1-N8R8 module, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, built-in 512 KB SRAM (TCM) and 8MB PSRAM; Onboard CH343 and CH334 chips for USB and UART development via USB-C port. Compatible with the pinout of ESP32-S3-DevKitC-1 development board, more convenient to use and expand a variety of peripheral modules.

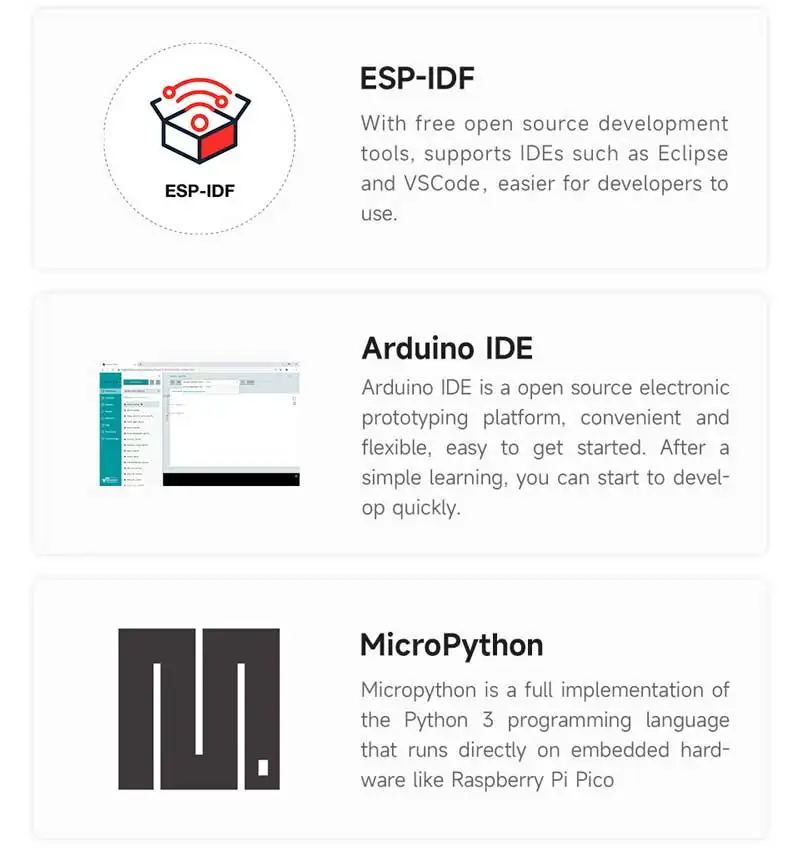

[] You can choose ESP-IDF, Arduino, MicroPython, or other development environments in software so that you can easily and quickly get started and apply it to the product.


[] Adopts ESP32-S3-WROOM-1-N8R8 module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
[] Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash memory

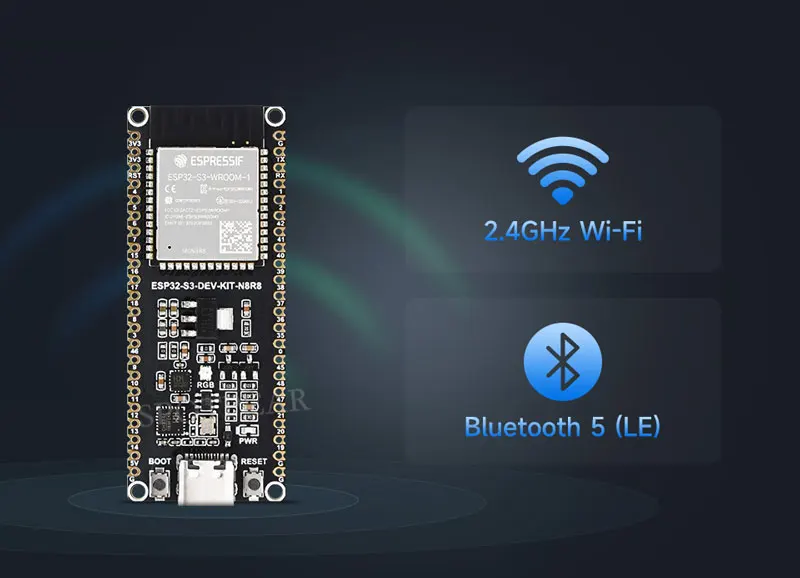

[] Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
[] Type-C connector, easier to use

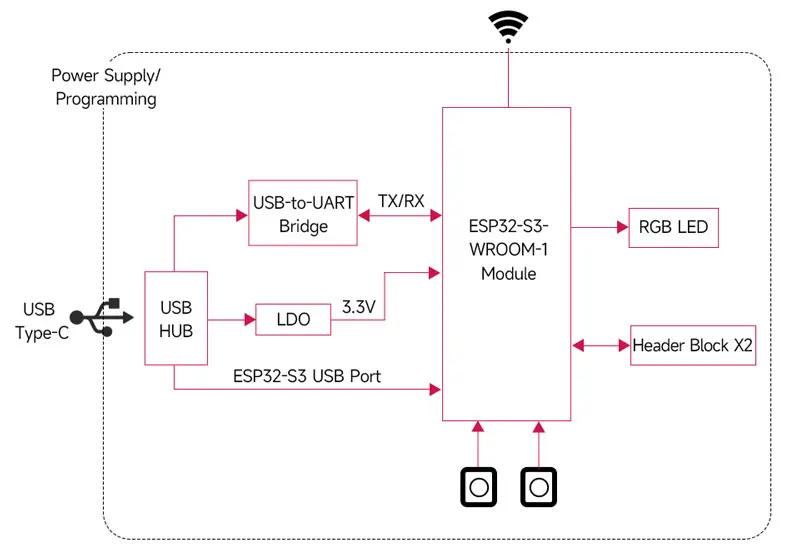

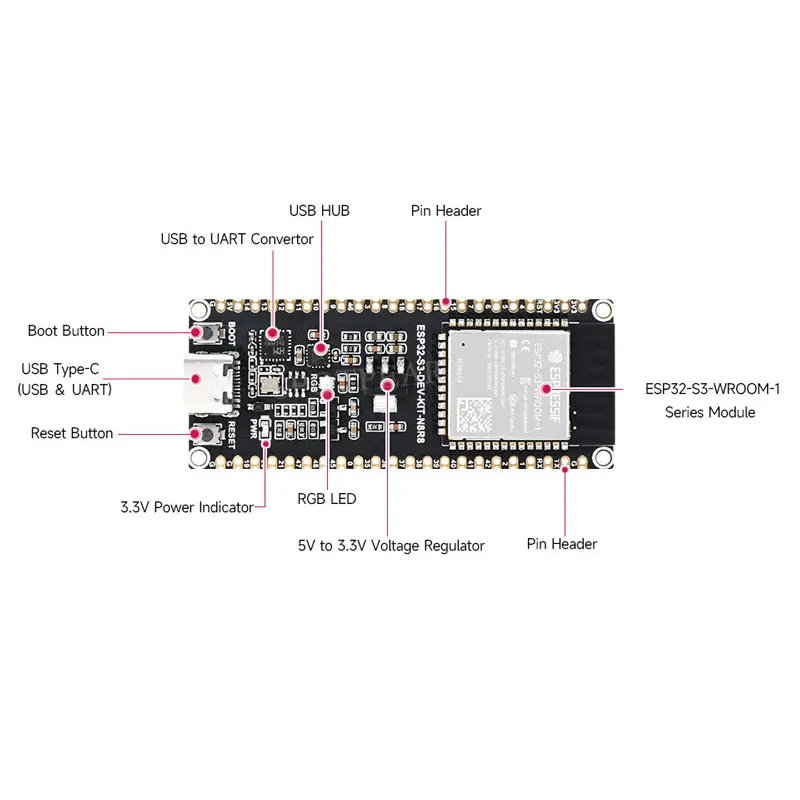

[] Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface

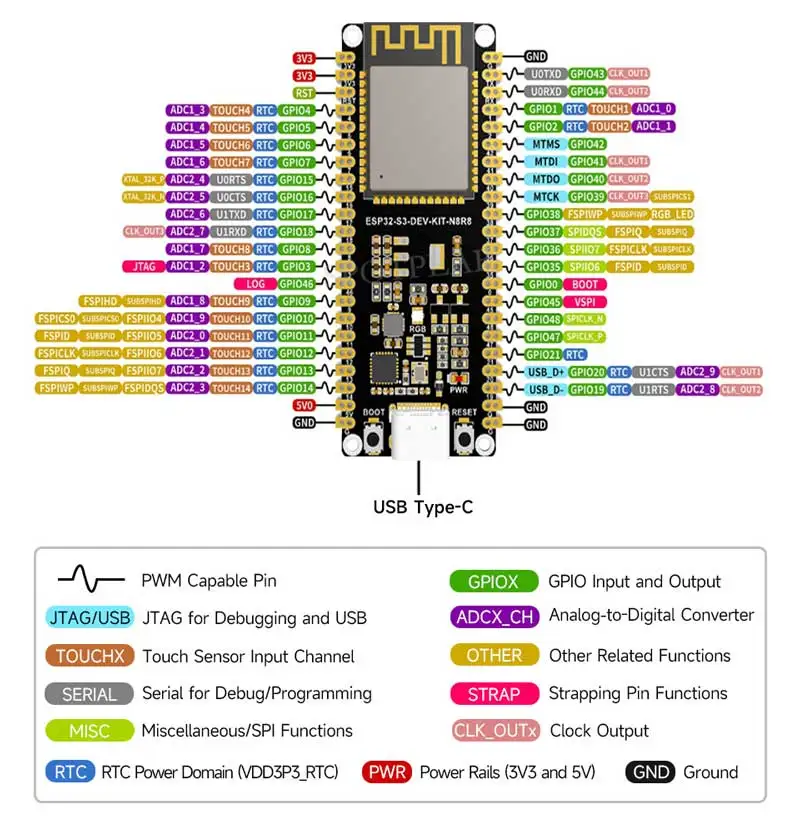

[] Rich peripheral interfaces, compatible with the pinout of ESP32-S3-DevKitC-1 development board, offers strong compatibility and expandability
[] Castellated module allows soldering directly to carrier boards
[] Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios

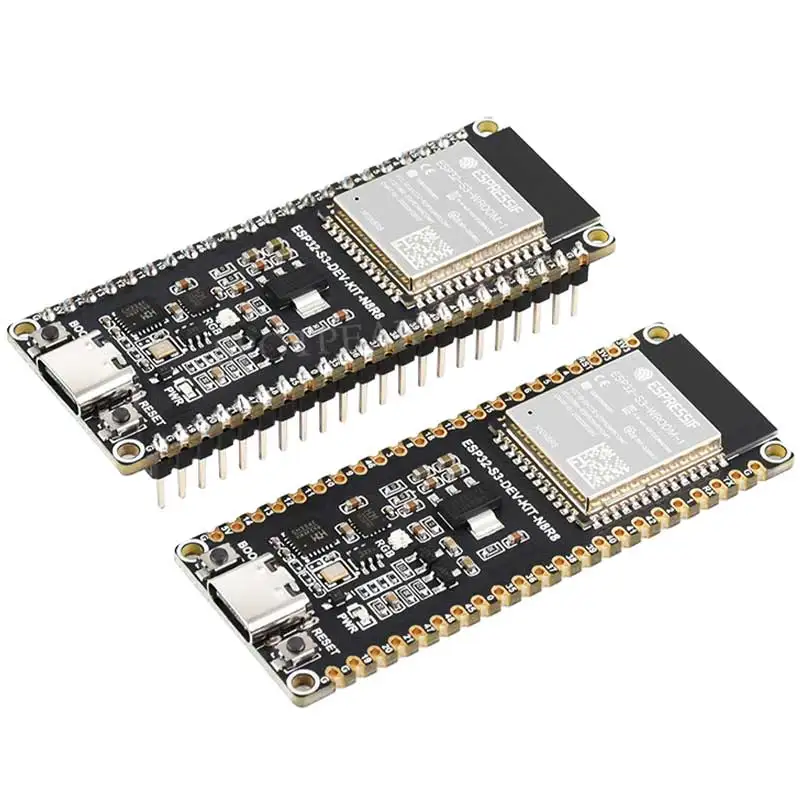

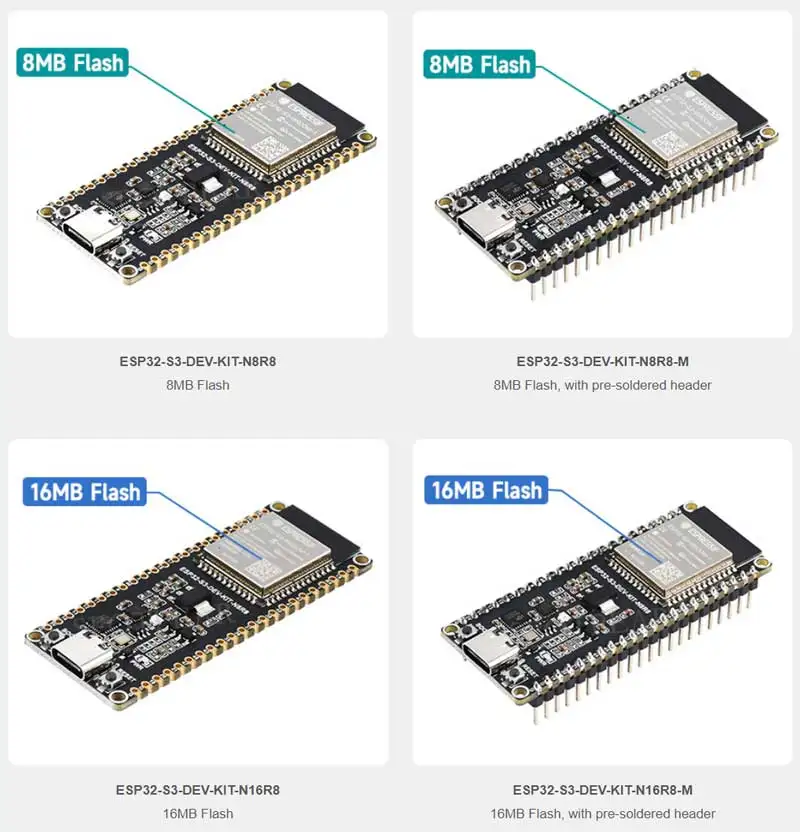

Version And Pinheader Options

[] Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started



[] Powered By Xtensa 32-Bit LX7 Dual-Core Processor With Frequency Up To 240 MHz
[] Powerful AI Computing Capability & Reliable Security Features



[] ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 B/G/N) With 40 MHz Of Bandwidth Support
[]

[]

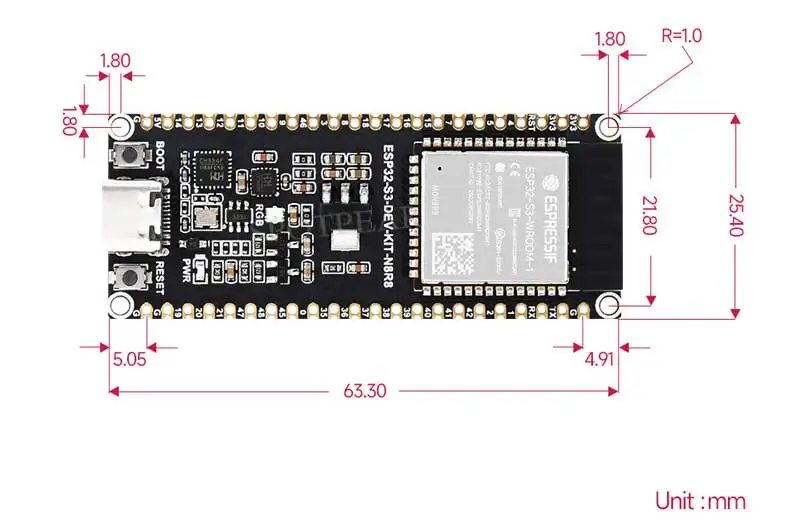

【Outline Dimensions】

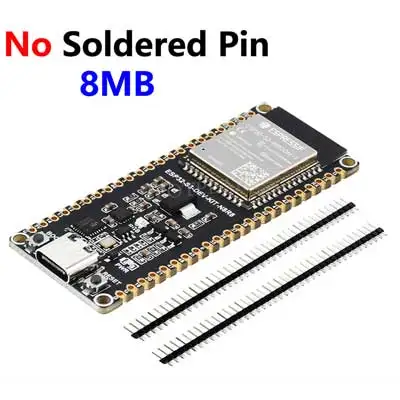

ESP32-S3-DEV-KIT-N8R8(8MB flash)

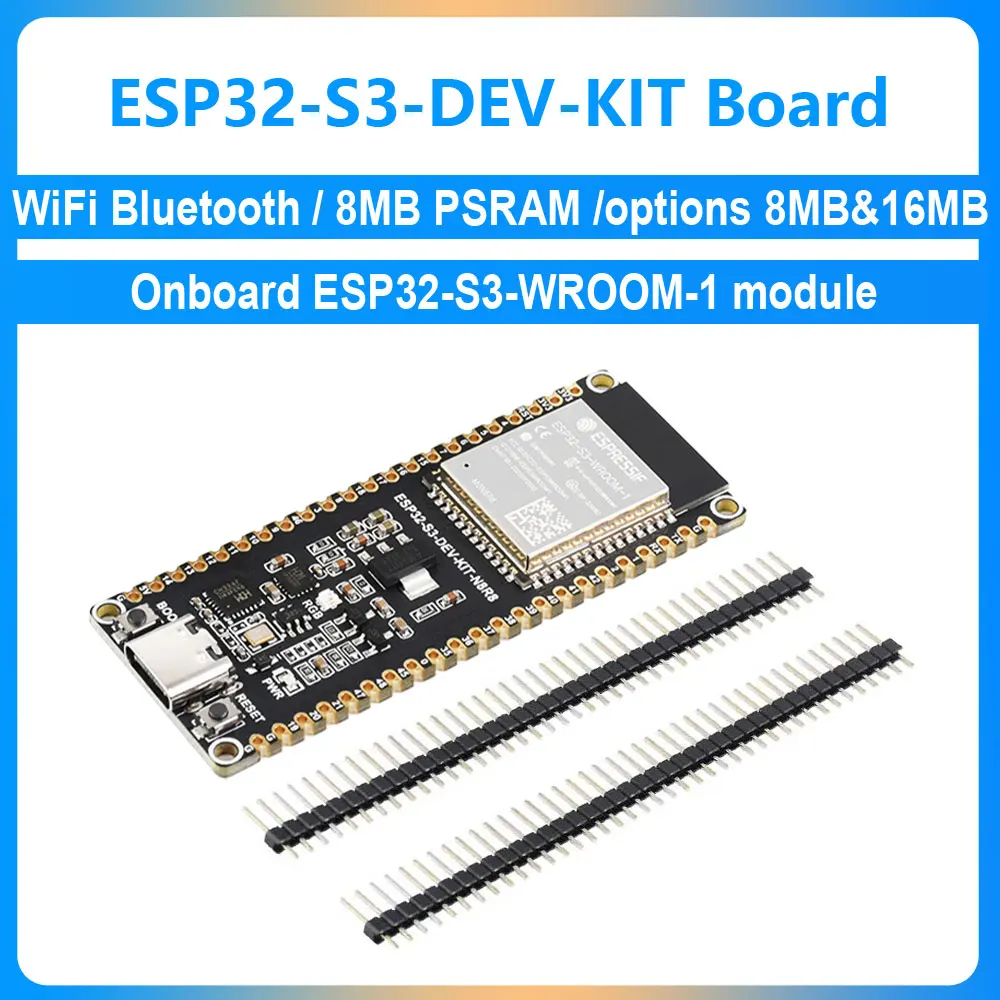

1. ESP32-S3-DEV-KIT-N8R8 x1

2. 40PIN male pinheader(black) x2

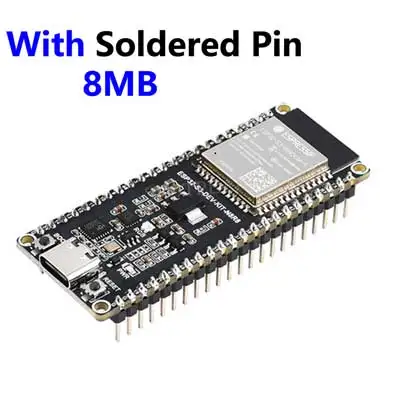

ESP32-S3-DEV-KIT-N8R8-M(8MB flash)

1. ESP32-S3-DEV-KIT-N8R8 soldered pin x1

ESP32-S3-DEV-KIT-N16R8(16MB flash)

1. ESP32-S3-DEV-KIT-N16R8 x1

2. 40PIN male pinheader(black) x2

ESP32-S3-DEV-KIT-N16R8-M(16MB flash)
