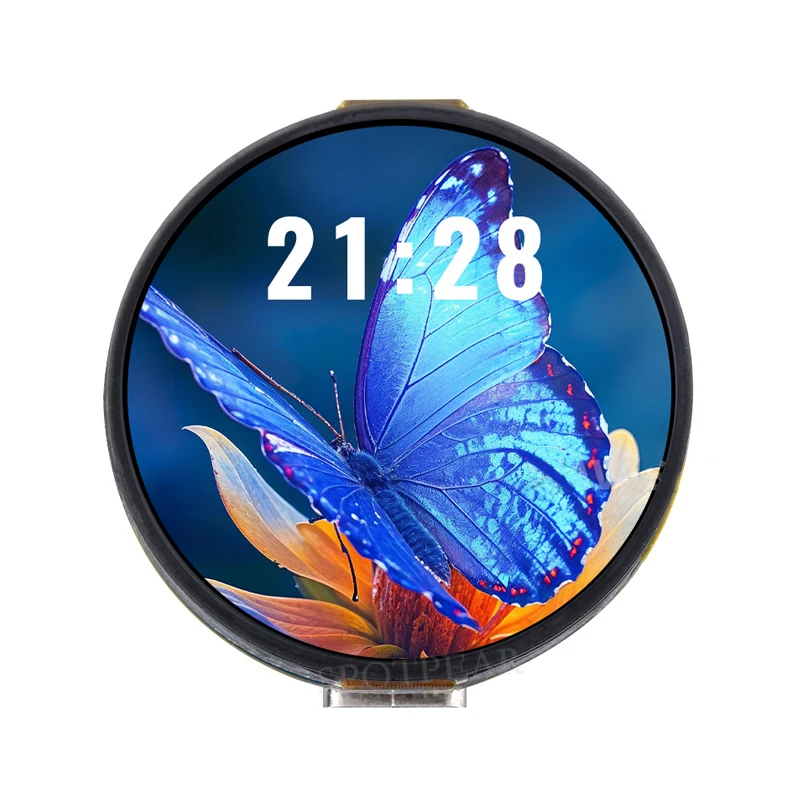

ESP32-C6 1.32inch AMOLED Display Development Board
Embedded With CO5300 Display Driver And CST820 Capacitive Touch Chip
The ESP32-C6-Touch-AMOLED-1.32 is a compact 1.32inch AMOLED capacitive touch display development board designed by Waveshare. Onboard power management module, low power audio codec circuit, and MIC, adapting 12PIN expansion I/O interface, Lithium Batt. header, and speaker header, suitable for applications such as AI voice agents.
Equipped with ESP32-C6 high-performance 32-bit RISC-V processor, up to 160MHz main frequency
Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM and 16MB Flash memory
Onboard 1.32inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
Built-in CO5300 display driver and CST820 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard 3.7V MX1.25 Lithium Batt. recharge/discharge header
Equipped with the ES8311 low-power audio codec chip, supports high-quality audio input and output to meet diverse application needs such as speech interaction and audio playback
Adapting SH1.0 12PIN expansion interface for DIY functionality expansion
Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
DISPLAY PANEL
AMOLED
DISPLAY SIZE
1.32 inch
RESOLUTION
466 × 466 pixels
DISPLAY COLORS
16.7M
BRIGHTNESS
500 cd/㎡
CONTRAST RATIO
10000:1
COMMUNICATION INTERFACE
QSPI
DRIVER IC
CO5300
TOUCH
Supported
TOUCH IC
CST820
Suitable For Various Smart Device Development, And Can Realize Human-Machine Interaction Function. Supports Connecting To A Batt. For Independent Operation
The Next-Generation Display Technology, Compared To Traditional LCD Displays, The AMOLED Screen Features Precise Light-Control Capability, Representing More Delicate Colors, More Picture Details, And More Vivid Videos And Images
Excellent Display Performance, 16.7M Color, Wide Viewing Angle
Supports High-Quality Audio Processing, Providing Clear And High-Quality Audio Input And Output

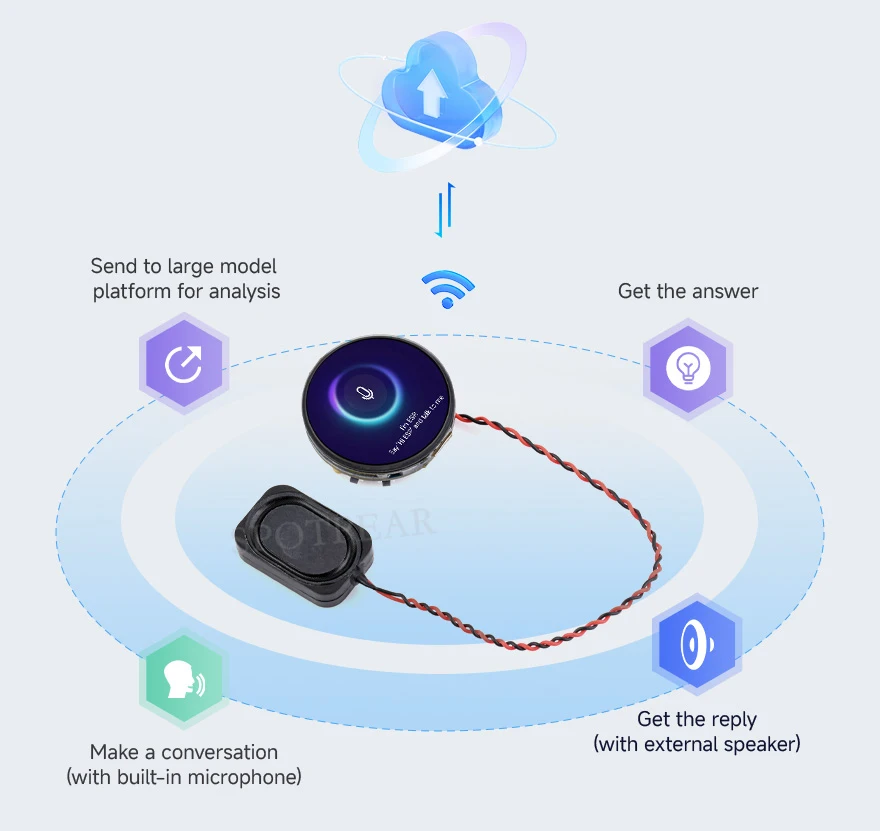

Allows Access To Online Large Model Platforms Such As DeepSeek, Doubao, Etc.
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
ESP32-C6 Suitable For AIoT Applications
Equipped With A High-Performance 32-Bit RISC-V Processor And A Low-Power 32-Bit RISC-V Processor

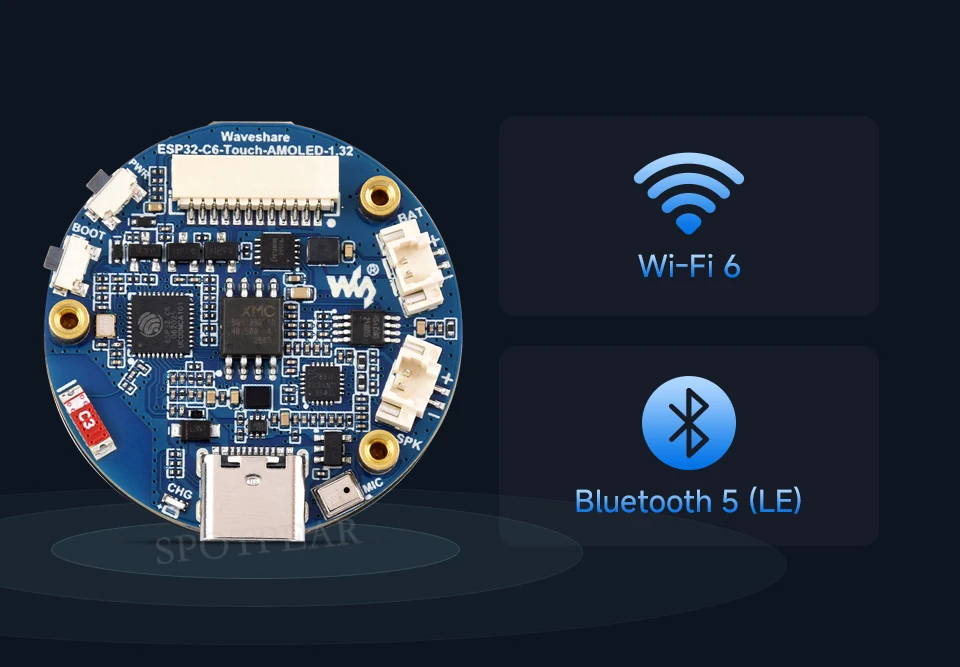

Supports Wi-Fi 6, Bluetooth 5 And IEEE 802.15.4 (Zigbee 3.0 And Thread)
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

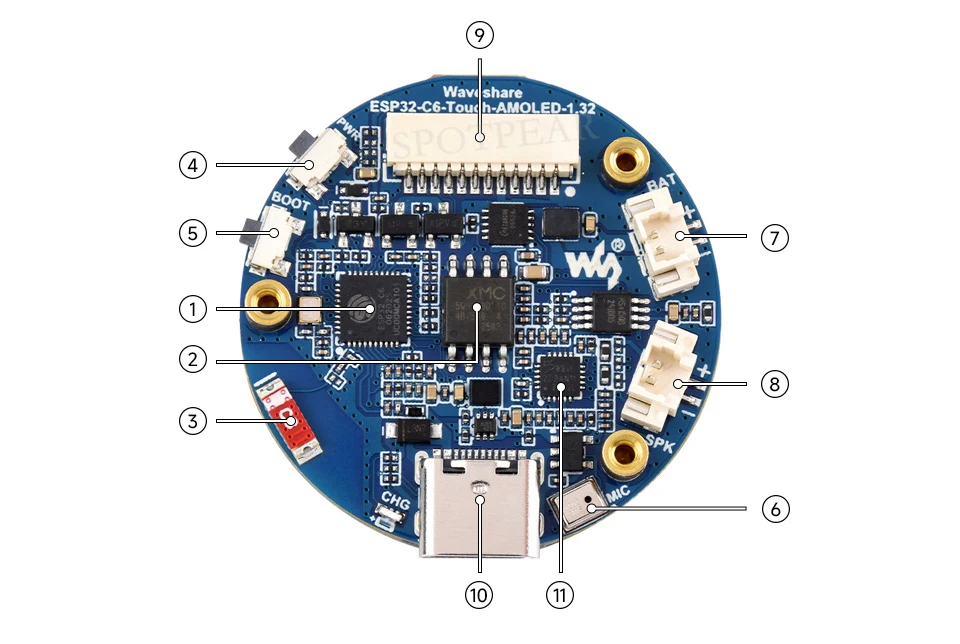

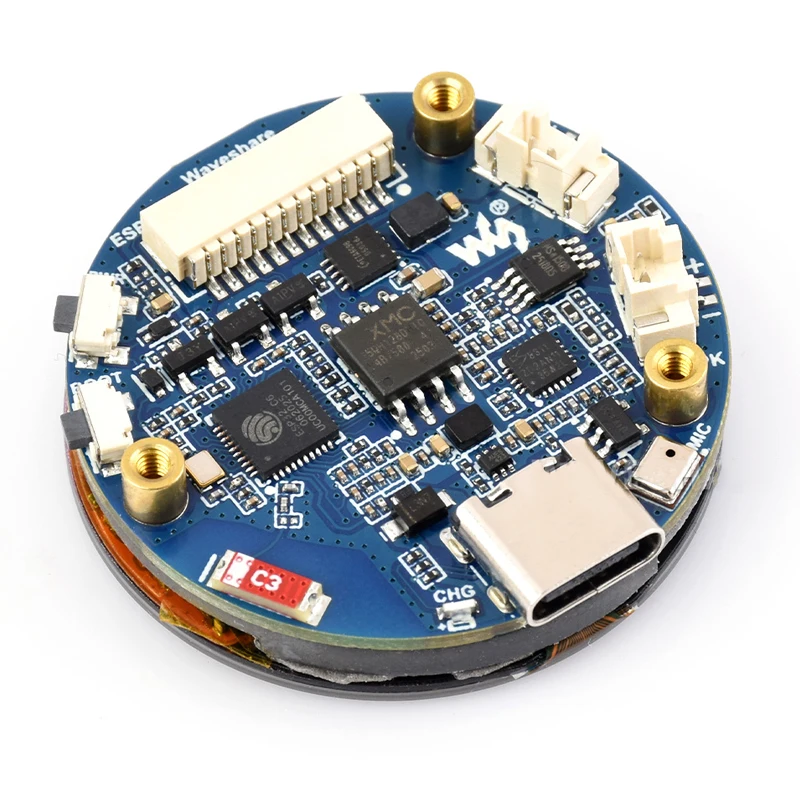

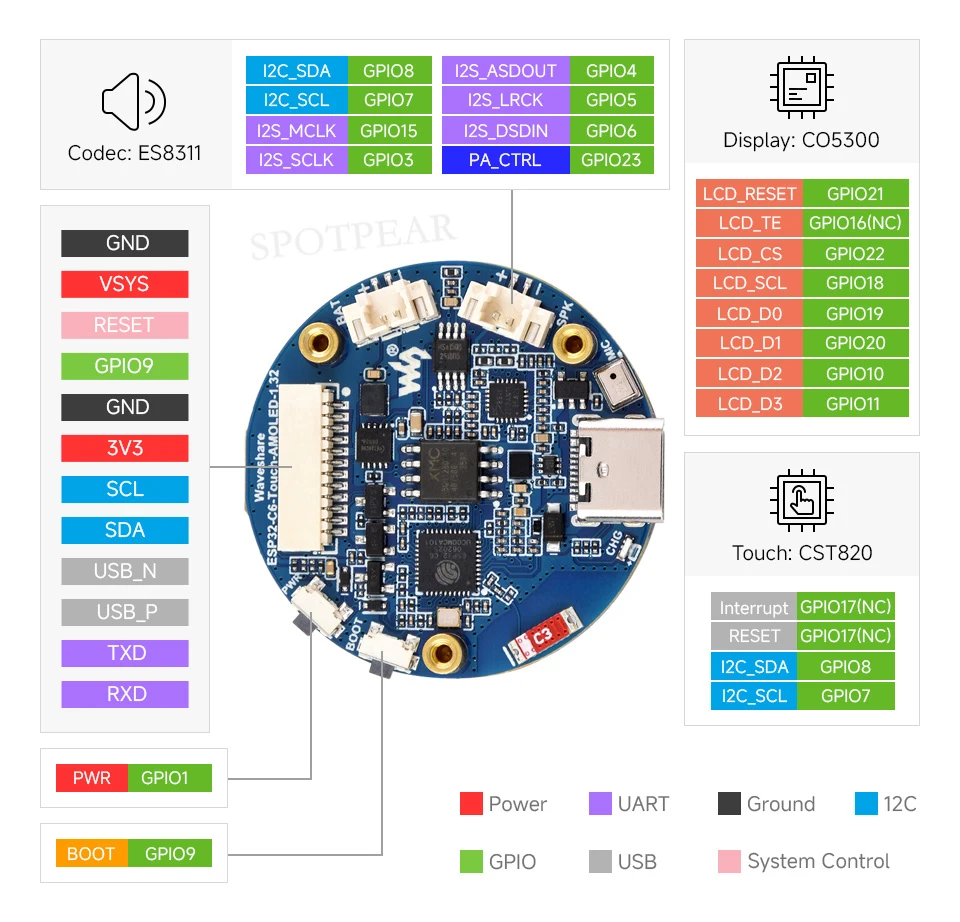

What's On Board
ESP32-C6
RISC-V 32-bit single-core processor, up to 160MHz operating frequency, with 2.4GHz Wi-Fi 6 and BLE 5 supportW25Q128JVSI
16MB FlashOnboard antenna
Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)PWR button
for power supply ON/OFF when powered by Lithium Batt., driver requiredBOOT button
Press and hold the BOOT button, then power up again to enter download mode
Digital microphone
for audio captureMX1.25 2PIN Lithium Batt. header
for 3.7V Lithium Batt., supports charging and dischargingMX1.25 2PIN speaker header
Audio signal output, supports connecting external speakersSH1.0 12PIN interface
for external device connection and debugging, allowing flexible configuration of peripheral functionsType-C port
for program burning and log printingES8311
High-performance and low-power audio codec chip

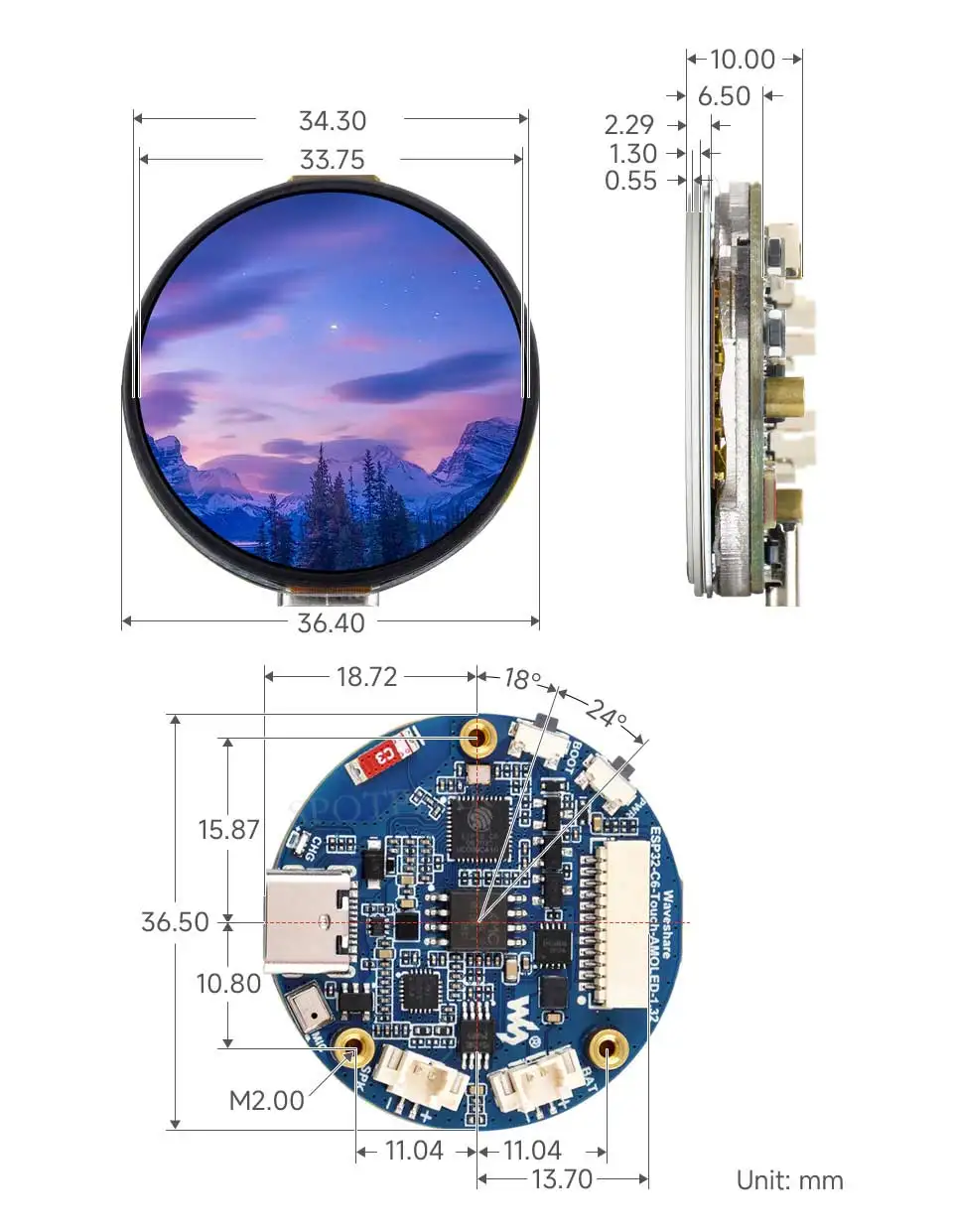

Outline Dimensions
Package Contains

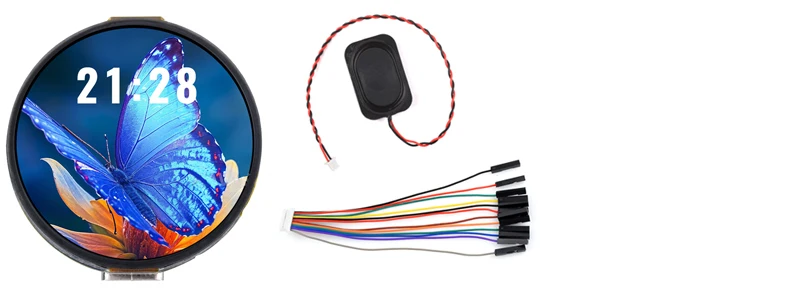

[] ESP32-C6-Touch-AMOLED-1.32
