Placa controladora LVDS/convertidor adaptador compatible LVDS a HDMI compatible con resolución 1080P

This board is limited to LVDS output, the resolution must be the VESA standard, and the driver board should be at least V59 grade, or the driver board is not available.

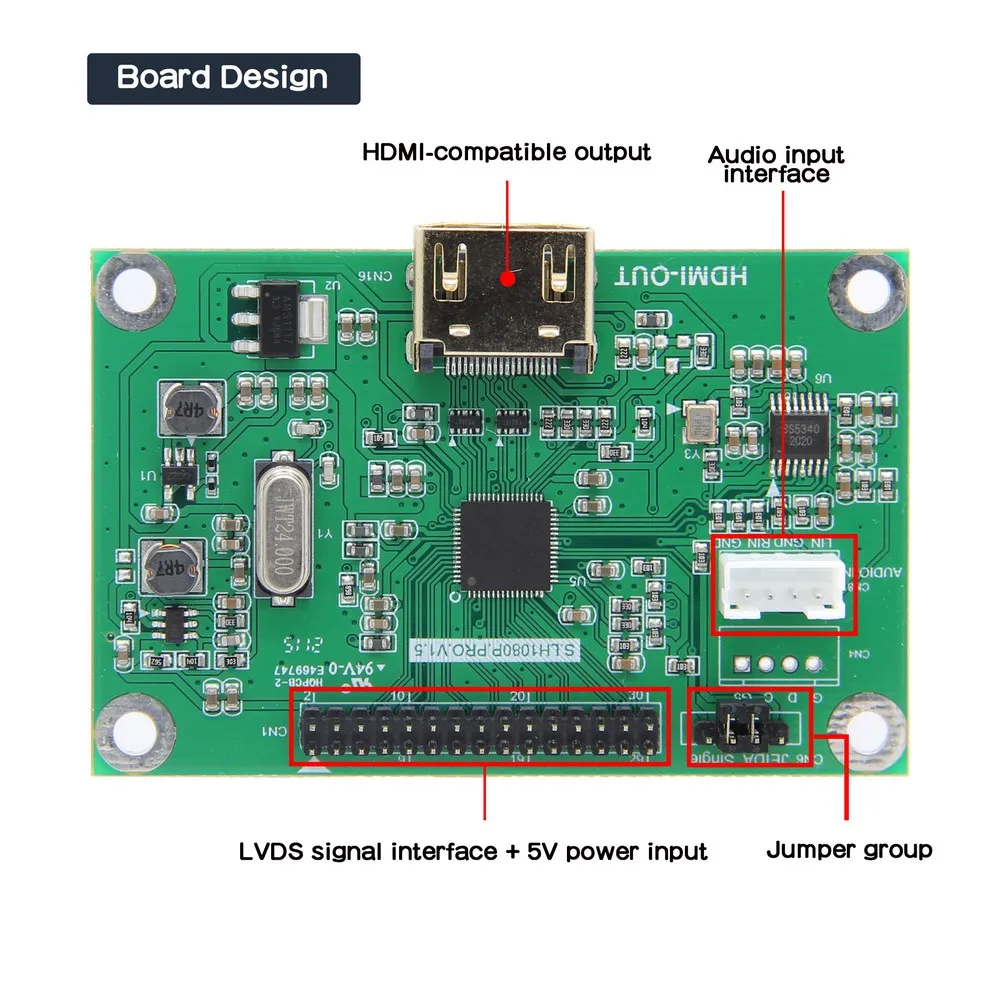

Pin Connection: 2 x 40Pin

Because it is the DIY product, so sometimes there may be the compatibility problem. When it shows no signal or no sound, it may be the compability problem.

It is not recommend to use with 4K TV as it may have some compability problem.

Double 8, Support 1080P (1920*1080P)

Single 8, Support 720P/768P/960P etc.

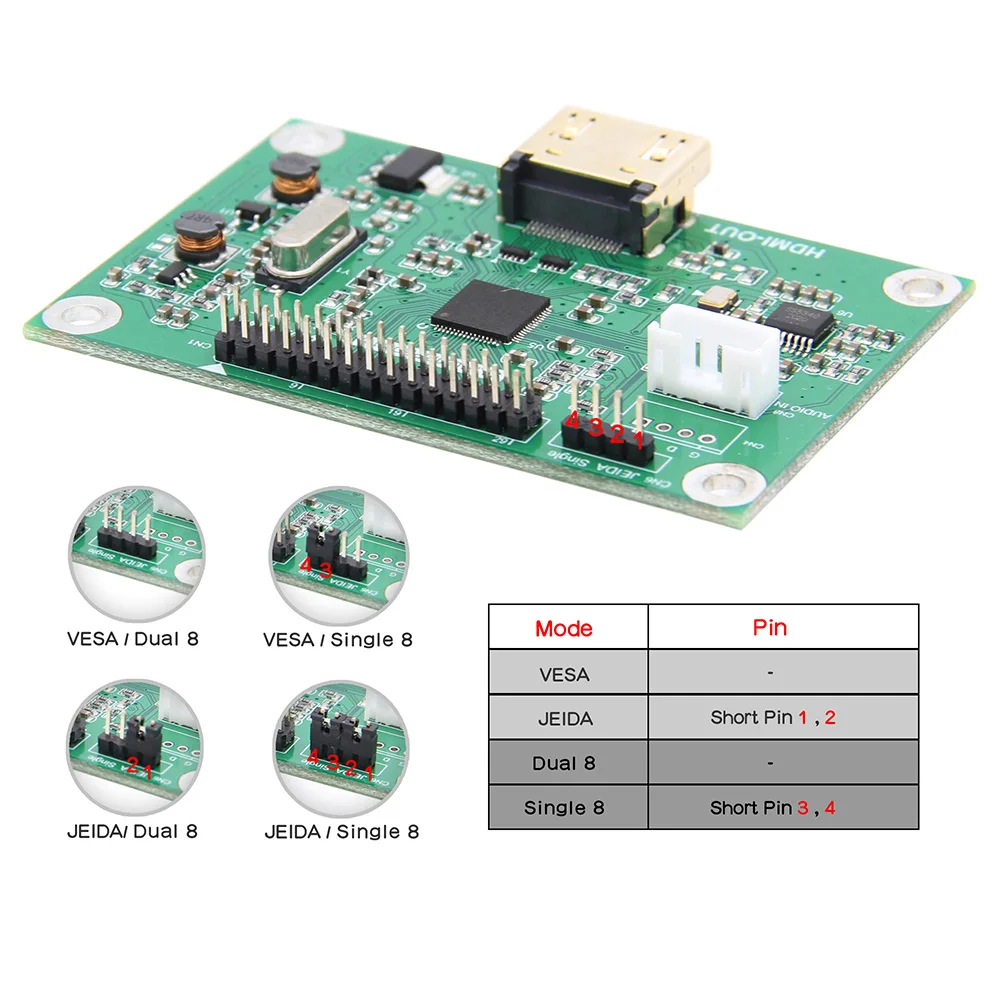

Note: The default is Dual 8 mode, can switch to Single 8 mode by short GND and S1.

1 x LVDS To HDMI-compatible Adapter Board

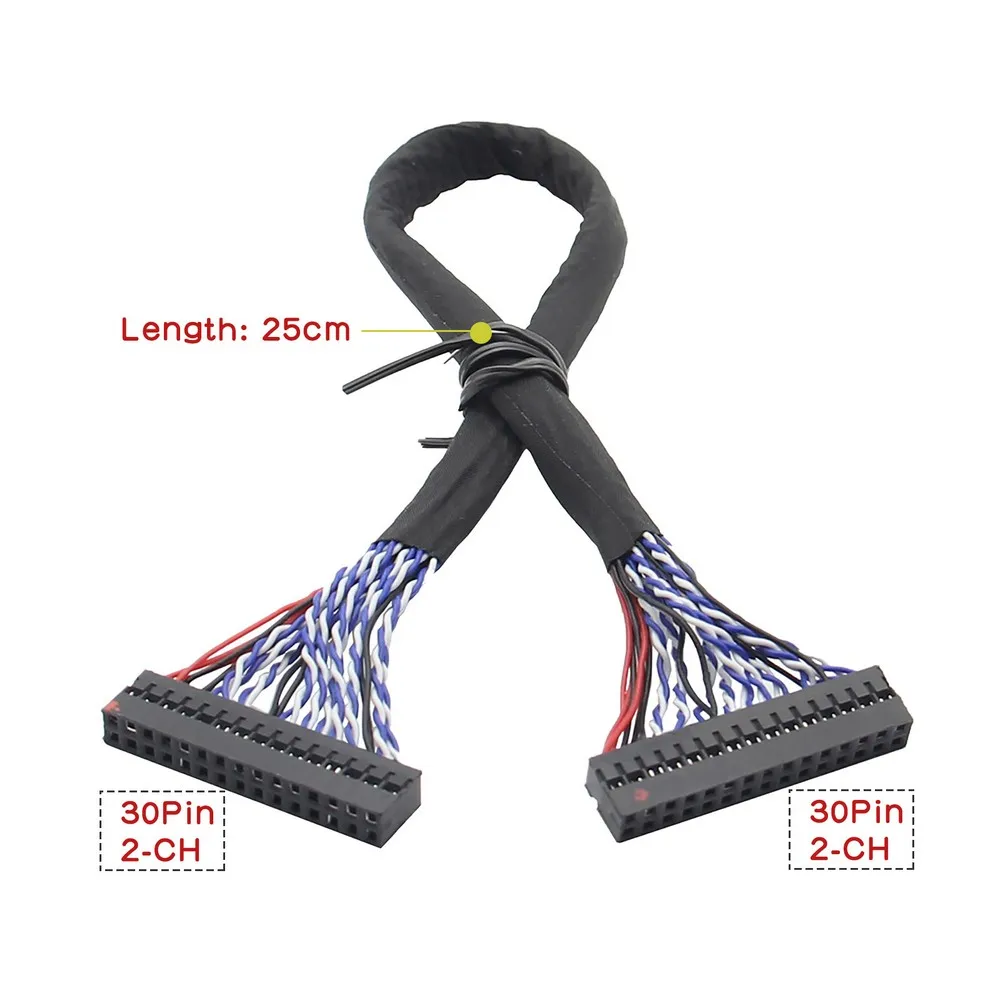

1 x LVDS To HDMI-compatible Cable(cable length:25cm)

1 x LVDS To HDMI-compatible Adapter Board

https://raspberrypiwiki.com/LVDS_Adapter
