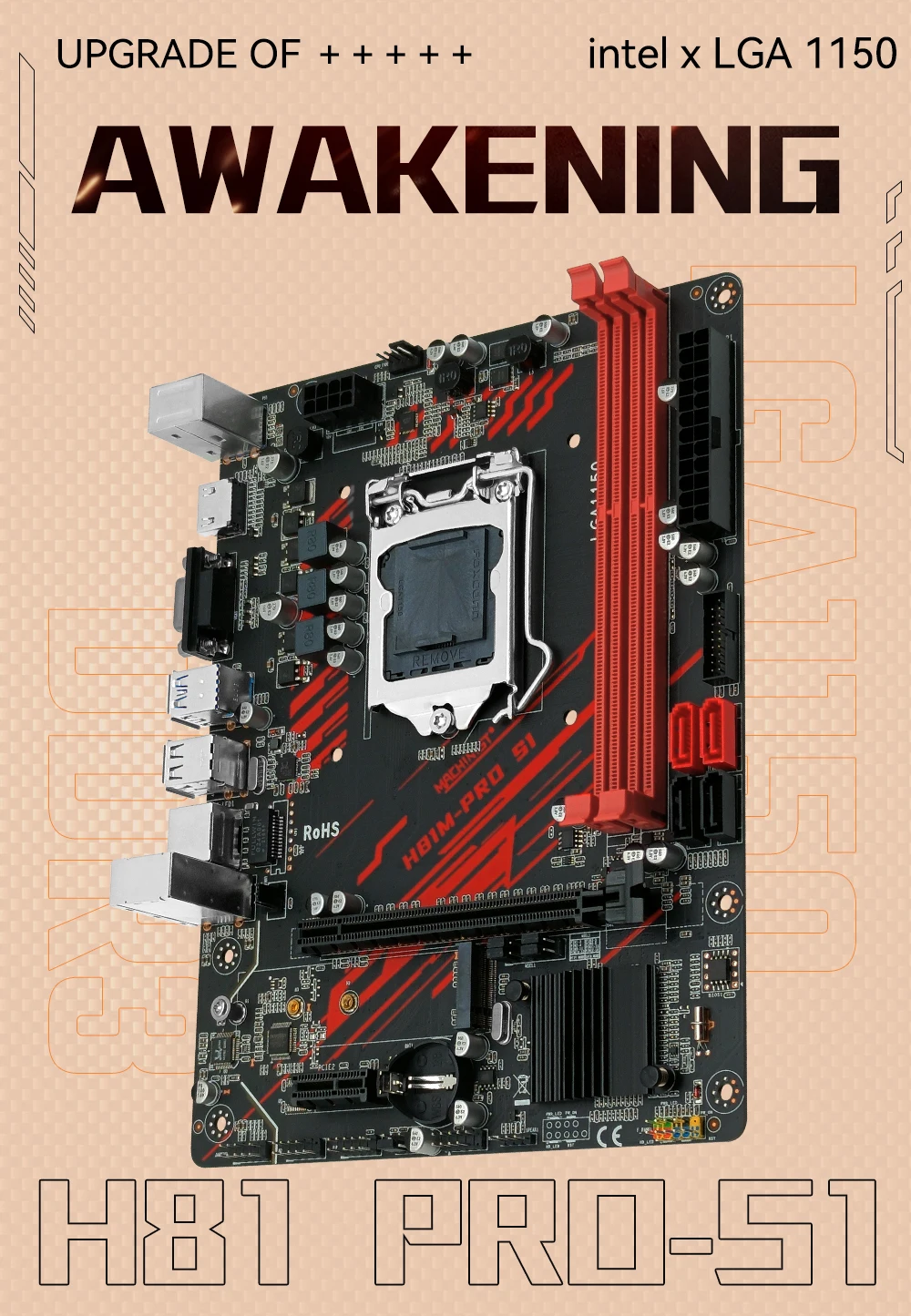

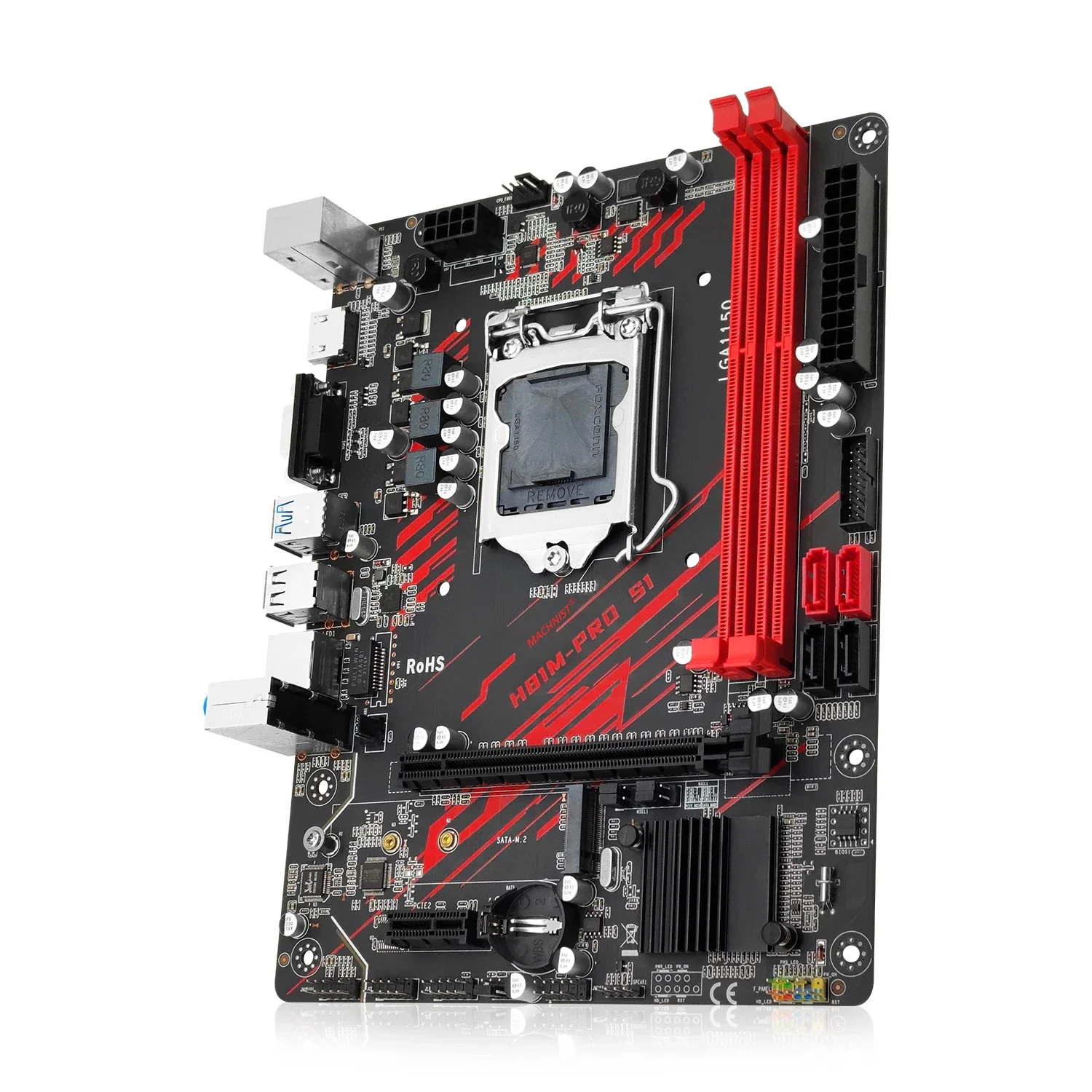

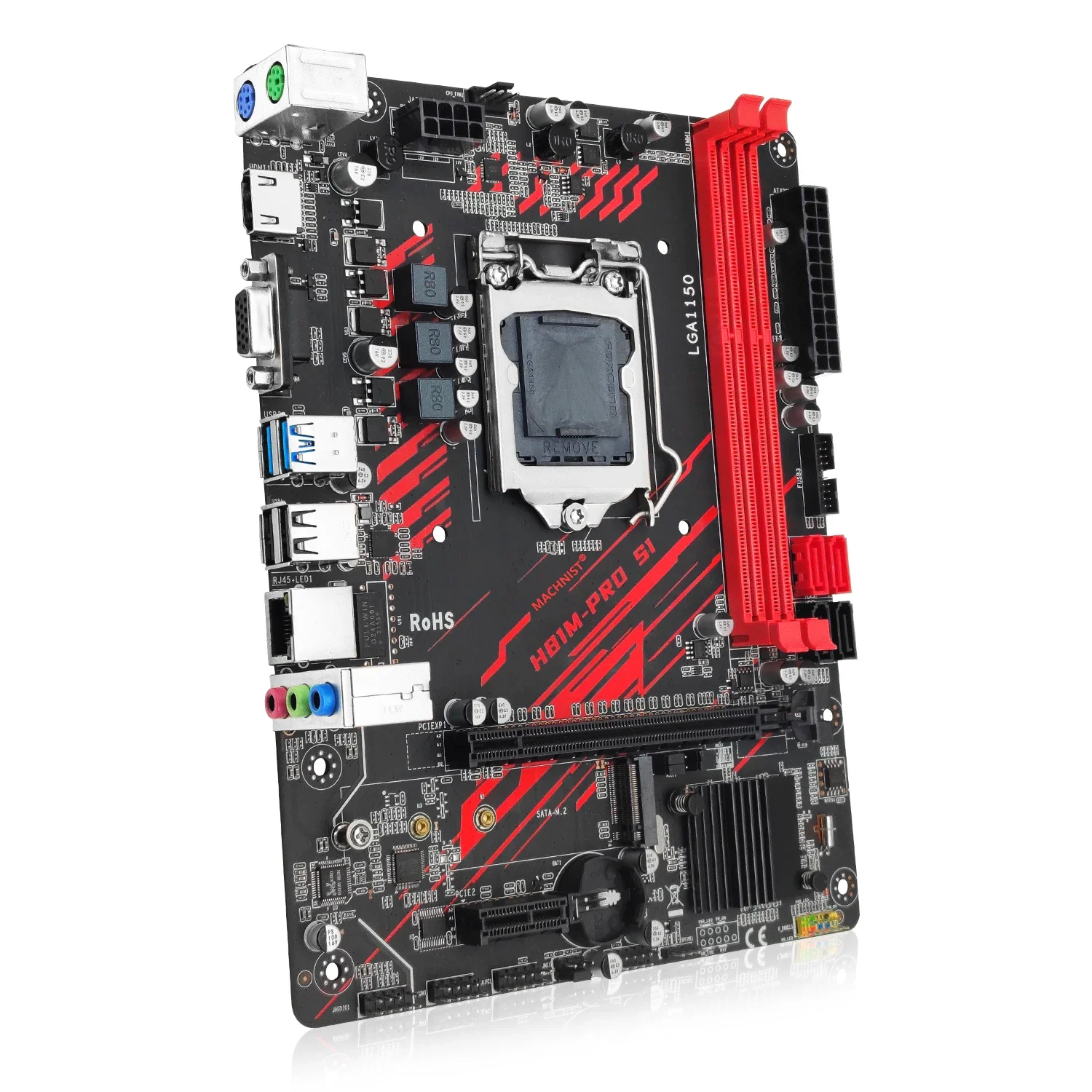

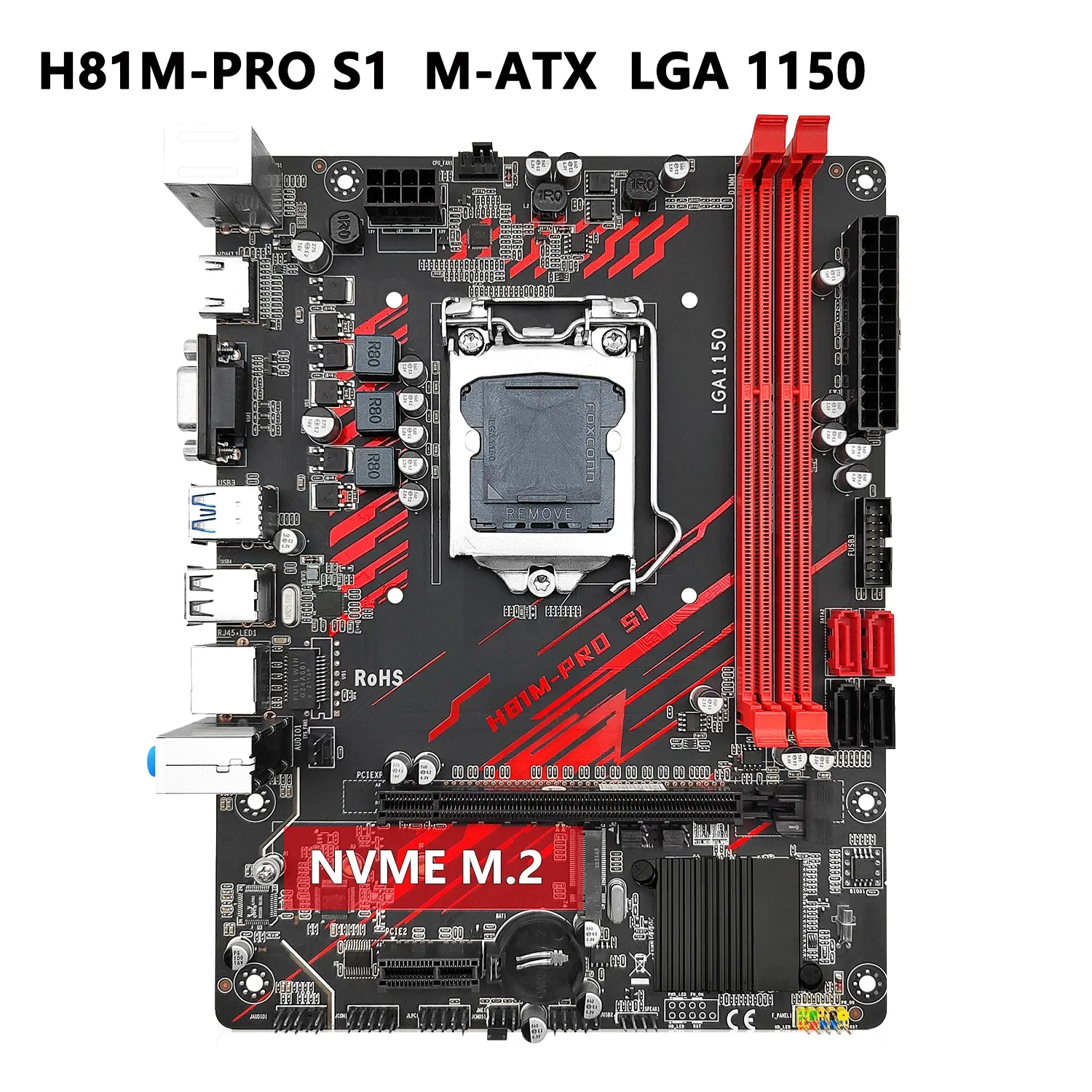

Placa base MACHINIST H81M PRO S1 LGA 1150 compatible con Pentium Core i3 i5 i7 4. ° procesador DDR3 RAM SATA3.0 USB3.0

The package contains:

# Main products: MACHINIST H81M PRO S1 motherboard *1;

## Complimentary accessories: I/O shield, SATA cable;

### Packaging is carried out after manual testing before sending. Please understand if there is any missing gift!

Motherboard information:

Brand: MACHINIST.

Motherboard model: H81M PRO S1.

Processor: Supports Intel LGA 1150 pin series processors.

Chipset: H81 chipset.

Structure: M-ATX.

Memory:

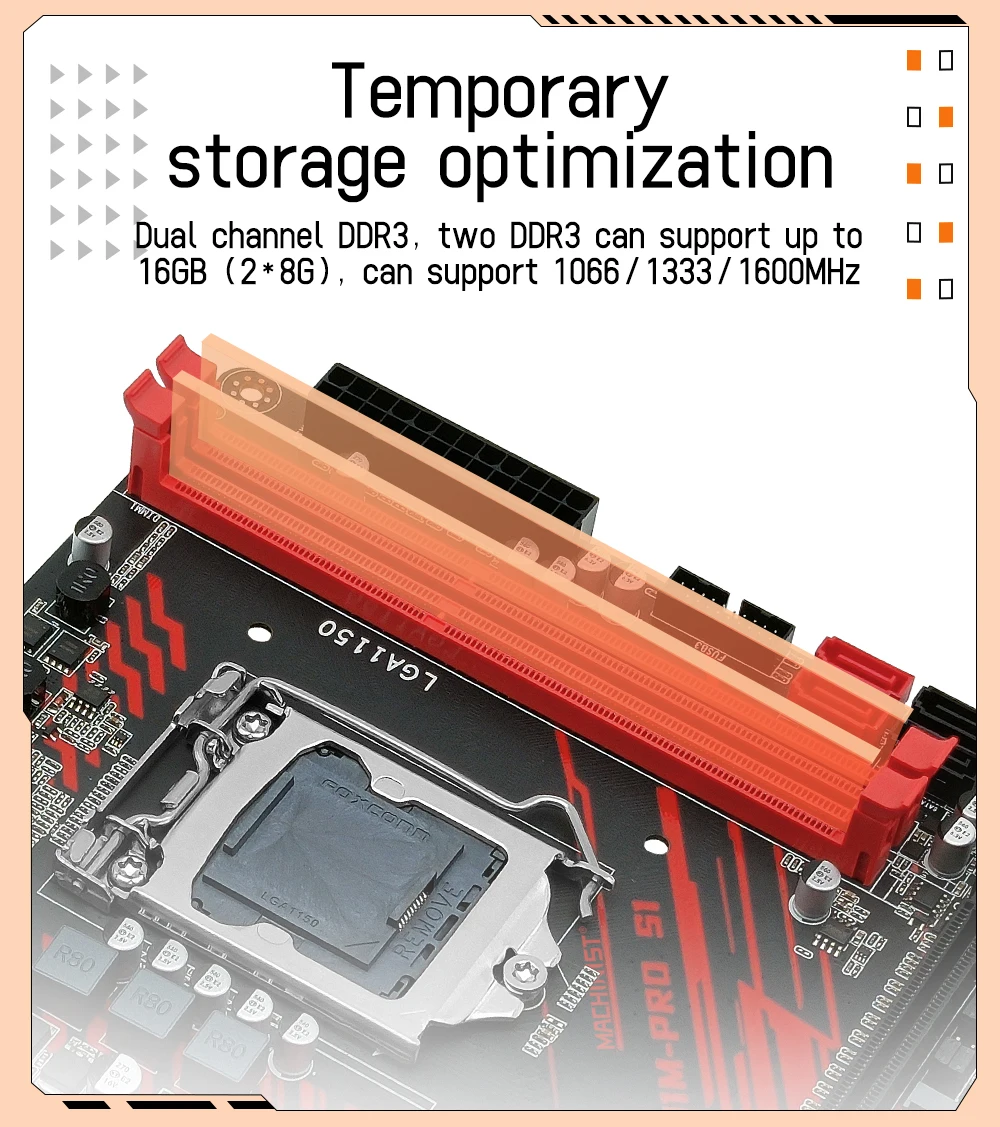

Technology: Dual channel DDR3. Supports 1066/1333/1600/1866 MHZ.

Maximum capacity 16GB (8G x 2).

Memory slot: 2*240 PIN DDR3.

Supported memory type: Only DDR3 desktop memory is supported.

(Note: Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may not be compatible.)

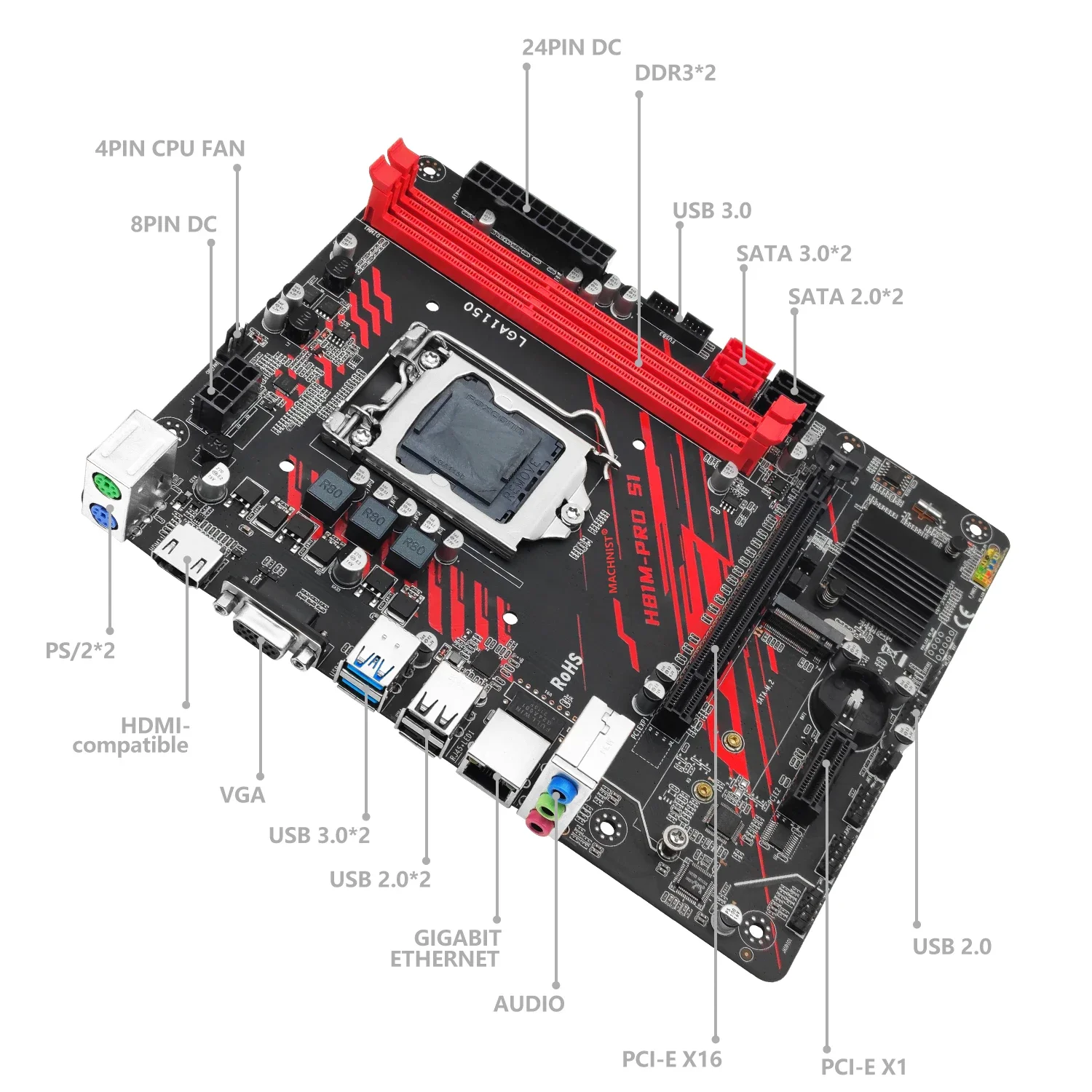

Post I/O:

PS/ 2:1 KB interface and 1 MS interface;

USB interface: 2 USB2.0; 3 USB2.0;

Display interface: 1 HDMI; 1 VGA;

Ethernet: 1 gigabit network card;

Audio: 3.

Internal connector:

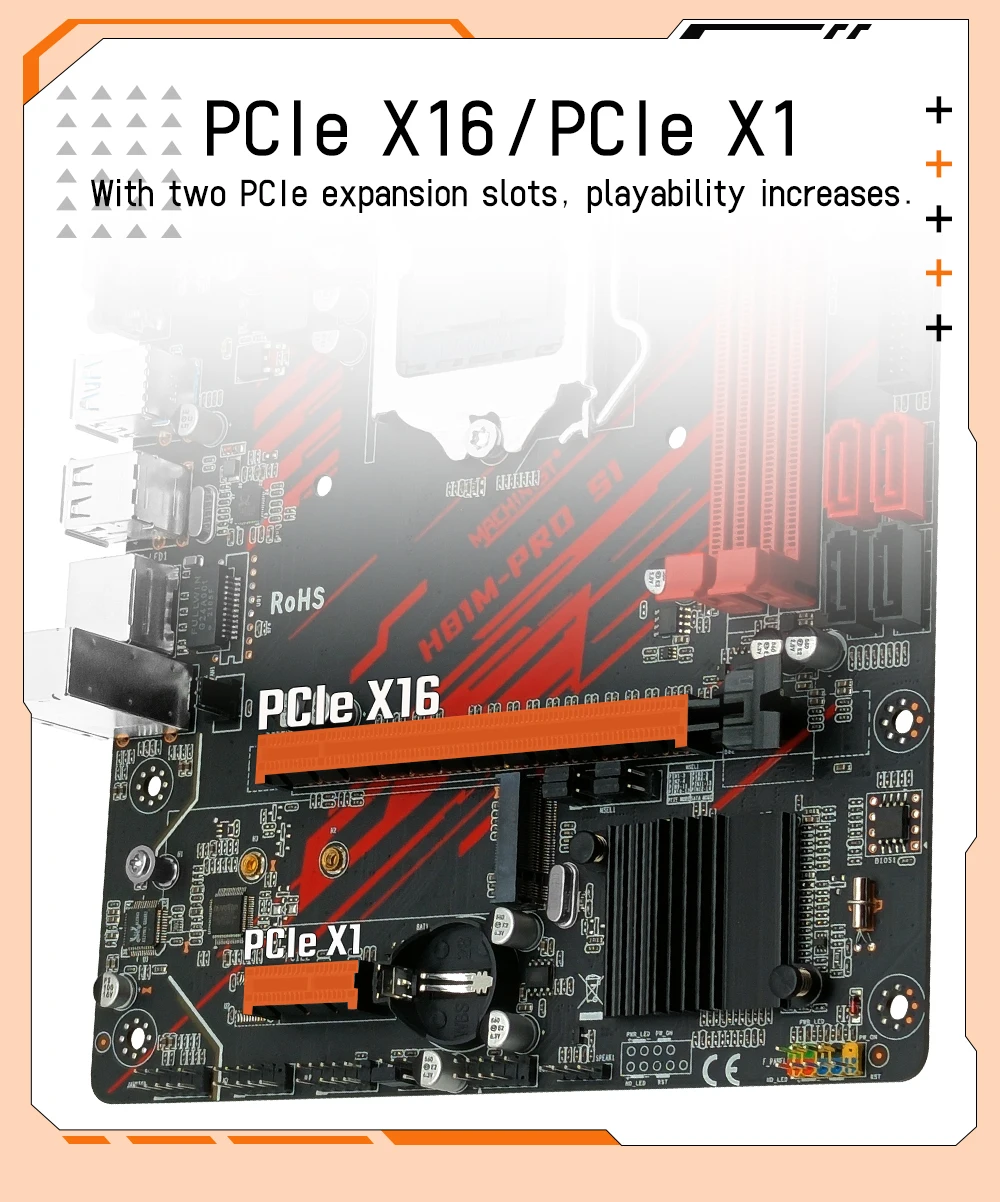

PCIe: 2 (1 PCIe x16, 1 PCIe X1);

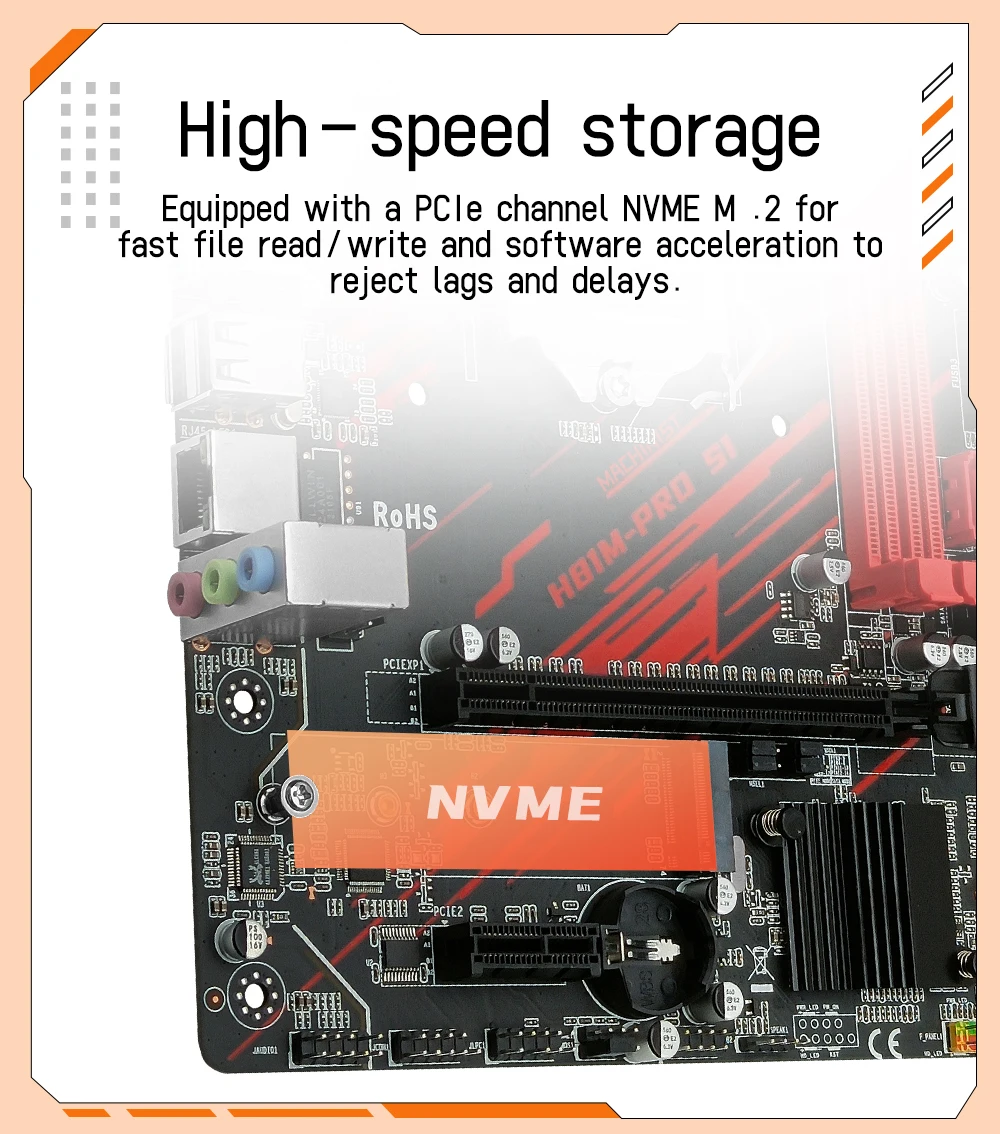

M. 2:1 NVME M.2;

WIFI: 1 WLAN-1 interface;

ATXPWR interface: Standard lx8PIN power socket; 1 standard 1x24PIN power outlet;

SATA interface: Two SATA interfaces (SATA3.0); 2 SATA interfaces (SATA2.0);

Overall dimensions:

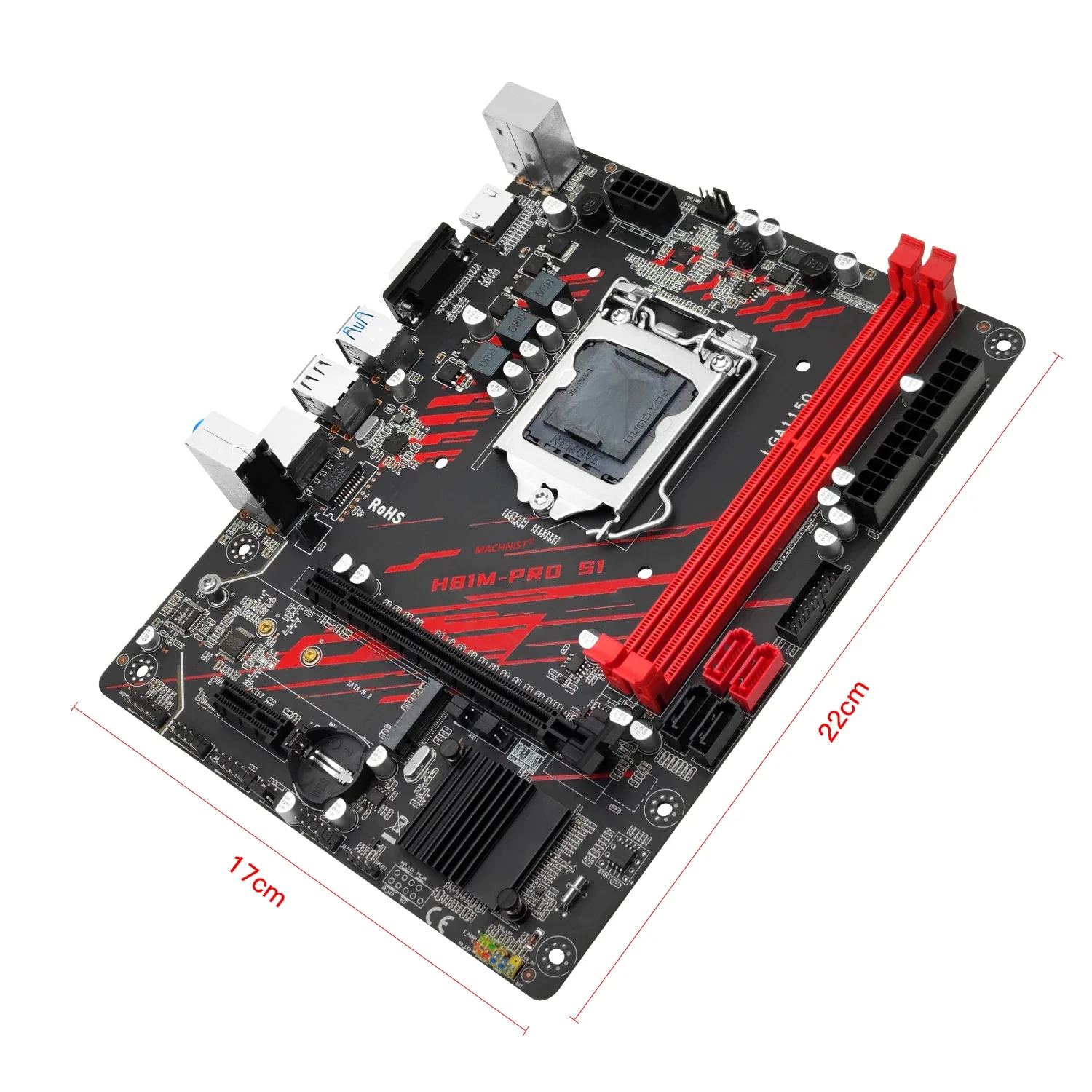

Motherboard size: 244MM*303MM

Motherboard weight (including packaging) : about 0.7kg.

Regarding the tariff issue, please make sure that you can solve the customs clearance problem yourself, if you can't solve it, we do not recommend that you buy products in our store. We are not responsible for tariffs. Thank you for your understanding.

Note:

(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are constantly optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1-3mm.

(3) Due to different displays and different lighting, the picture may not show the actual color of the item. Thank you for your understanding.

(4) The platform needs a powerful power supply. Make sure your power supply is sufficient to support this platform. (At least 500w brand power supply)

(5) The battery in the motherboard photo is not included and will be removed before shipment, because the logistics requirements prohibit the use of the battery.
