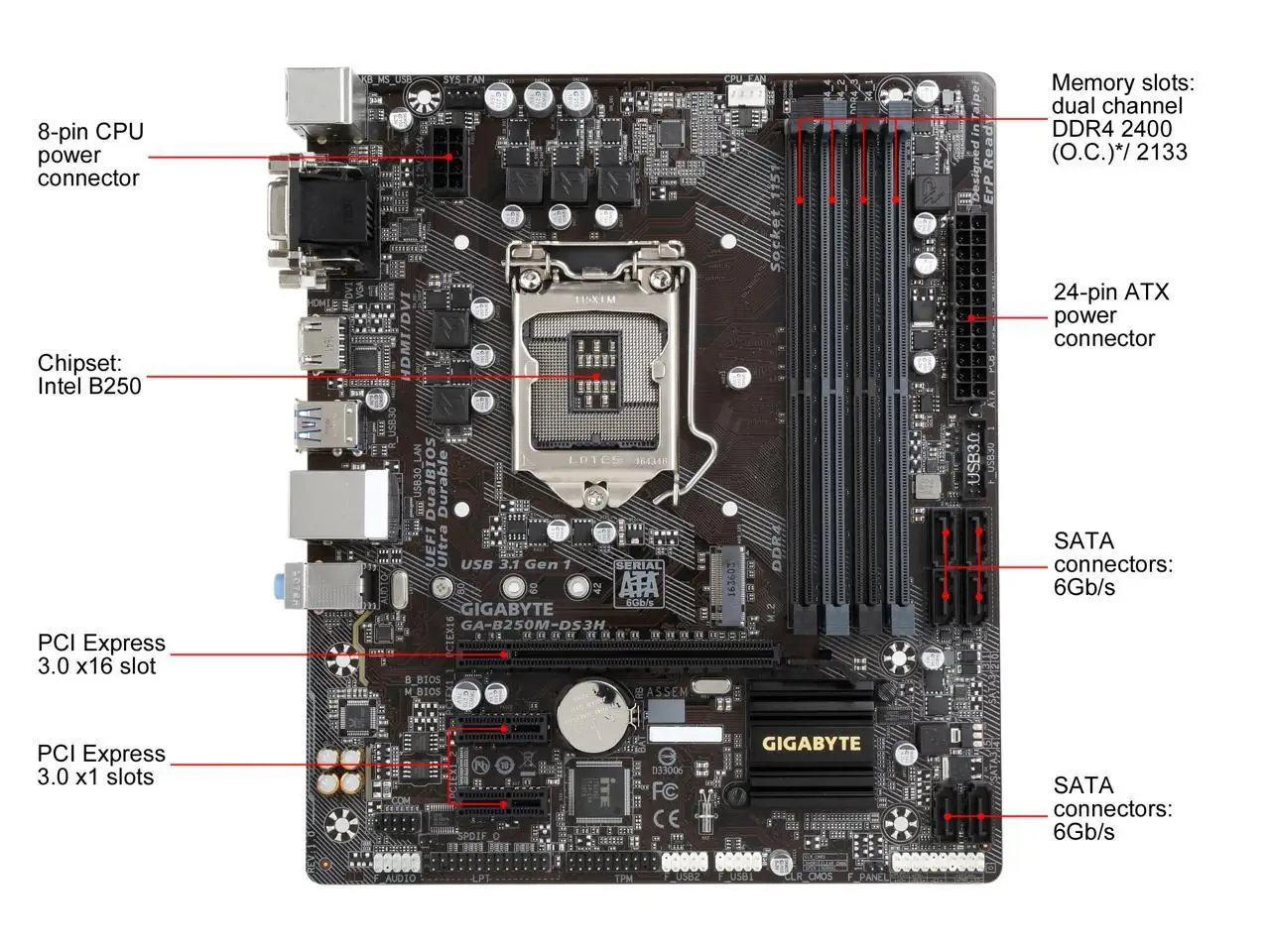

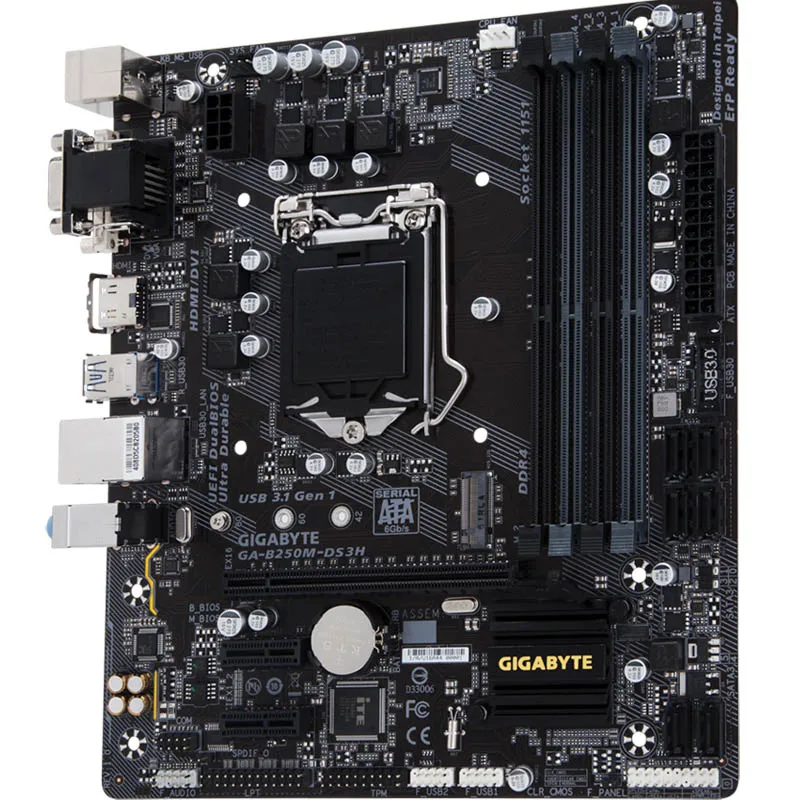

Placa base de escritorio Gigabyte B250M-DS3H LGA 1151 compatible con 6a/7a generación i7 i5 i3 DDR4 64GB M.2 SSD

CPU Socket Type

LGA 1151

CPU Type

Support for 7th and 6th generation Intel Core i7/i5/i3 / Intel Pentium/Celeron processors in the LGA1151 package

Supported CPU Technologies

* Not Compatible with Intel 8th Gen CPUs

Chipset

Intel B250

Onboard Video Chipset

Integrated Graphics Processor - Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz
* Support for HDMI 1.4 version.
Support for up to 3 displays at the same time
Maximum shared memory of 1GB

Number of Memory Slots

4x288pin (DDR4)

Memory Standard

DDR4 2400*/ 2133
* To support 2400 MHz or XMP memory, you must install a 7th generation processor.

Maximum Memory Supported

64GB
* Due to a Windows 32-bit operating system limitation, when more than 4GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Channel Supported

Dual Channel

PCI Express 3.0 x16

1 x PCI Express x16 slot, running at x16

PCI Express x1

2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

SATA 6Gb/s

6 x SATA 6Gb/s

M.2

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

Audio Chipset

Realtek ALC887

Audio Channels

2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN Chipset

Realtek GbE LAN chip

Max LAN Speed

10/100/1000Mbps

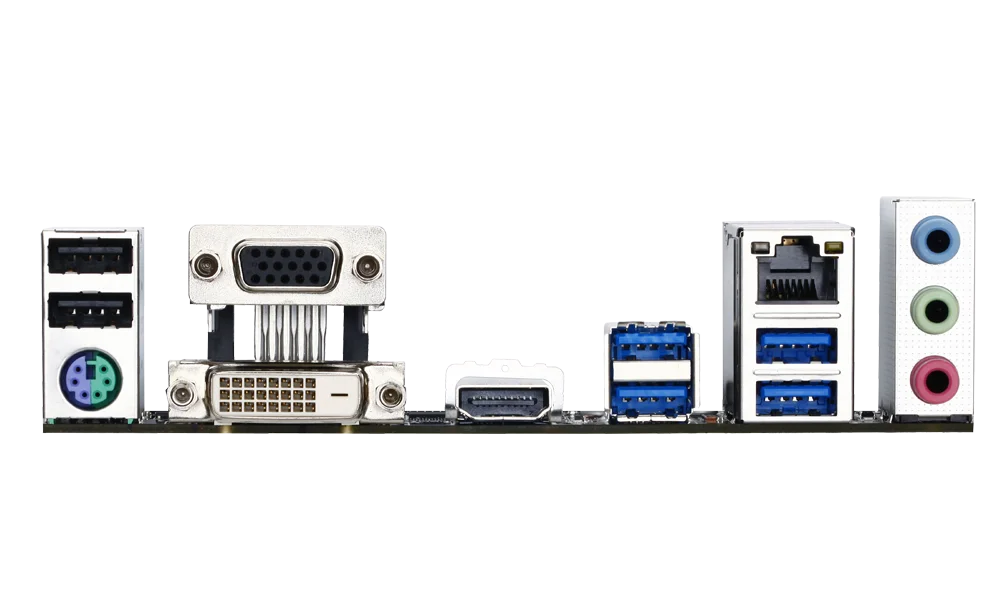

PS/2

1 x PS/2 keyboard/mouse port

Video Ports

1 x D-Sub port
1 x DVI-D port

HDMI

1 x HDMI

RJ45

1 x RJ45

USB 3.1

4 x USB 3.1 Gen 1 ports

USB 1.1/2.0

2 x USB 2.0

Audio Ports

3 x audio jacks (Line In, Line Out, Mic In)

Onboard USB

1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers

Other Connectors

1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper

Form Factor

Micro ATX

Dimensions (W x L)

8.9" x 7.6"

Power Pin

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Features

I/O Controller:
- iTE I/O Controller Chip

H/W Monitoring:
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS:
- 2 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner
- Support for 3TB+ Unlock
- Support for Q-Flash
- Support for Xpress Install

Bundle Software:
- Norton Internet Security (OEM version)
- Intel Optane Memory Ready
- cFosSpeed

Operating System:
- Windows 10 64-bit (for 7th Generation Intel Processors)
- Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bit (for 6th Generation Intel Processors)
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
