Descripción

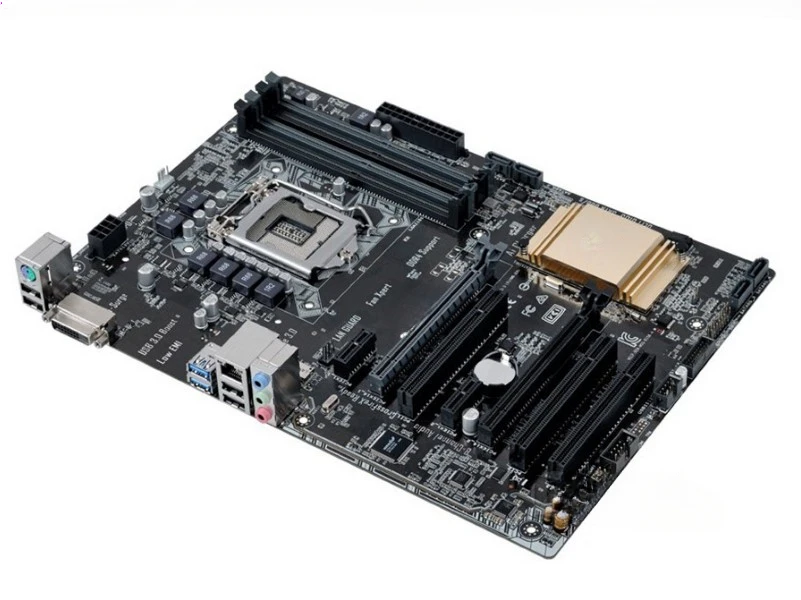

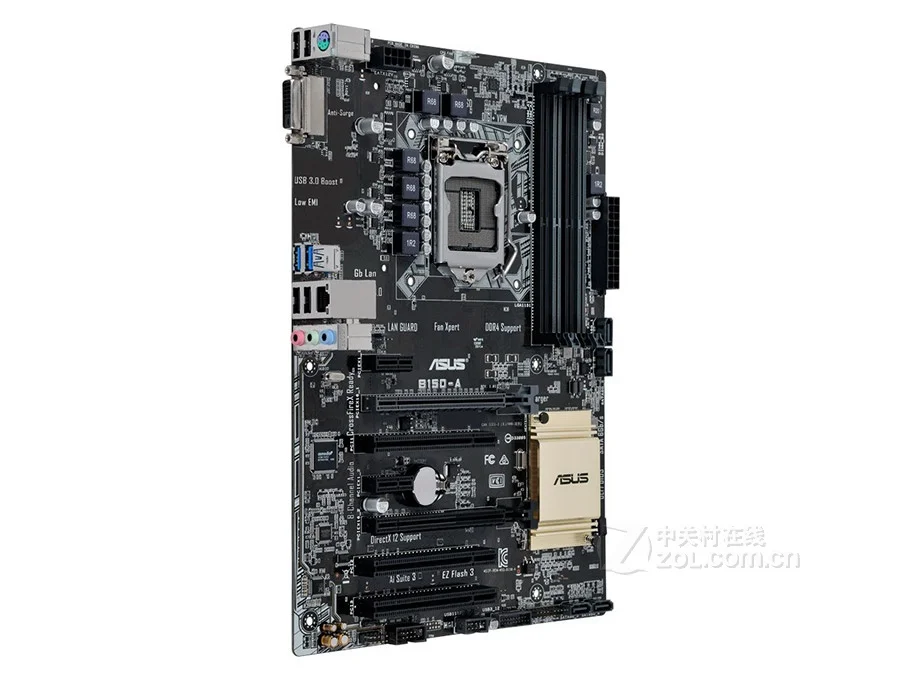

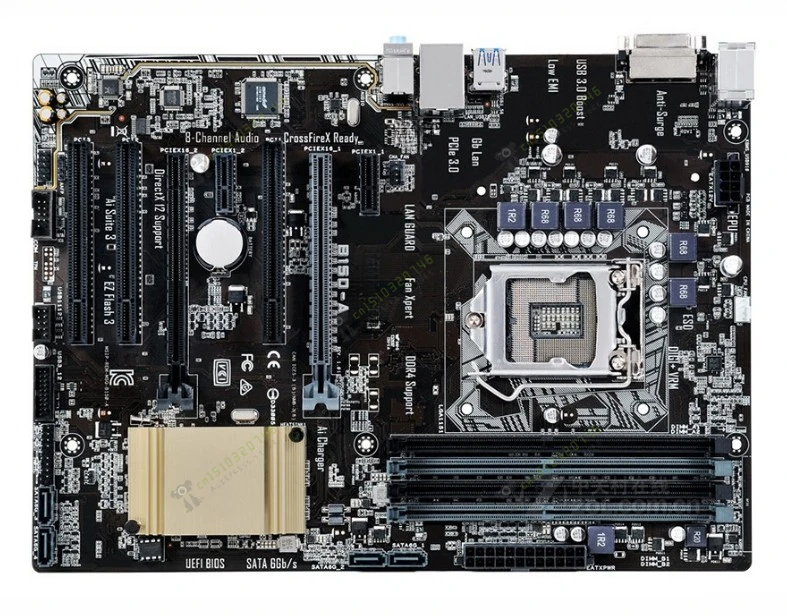

ASUS B150 Motherboard B150-A Motherboard LGA 1151 DDR4 64GB support 6100 6300 6400 7300 7400 7700 7600 G4560 6700 9900 ATX
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel B150
Chipset description uses Intel B150 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated with Realtek ALC887 8-channel sound effect chip
Network card chip onboard Realtek RTL8111GR gigabit network card
Processor specifications
CPU type: 6th generation Core i7/i5/i3/Pentium/Celeron
CPU slot LGA 1151
CPU description supports Intel 14nm processors
Memory specifications
Memory type 4xDDR4 DIMM
Maximum memory capacity 64GB
Memory Description: Supports dual channel DDR4 2133MHz memory
Storage Expansion
PCI-E Standard PCI-E 3.0
PCI-E slot 2 x PCI-E X16 graphics card slot, 2 x PCI-E X1 slot
3 PCI slots
Storage interface 4 x SATA III interface

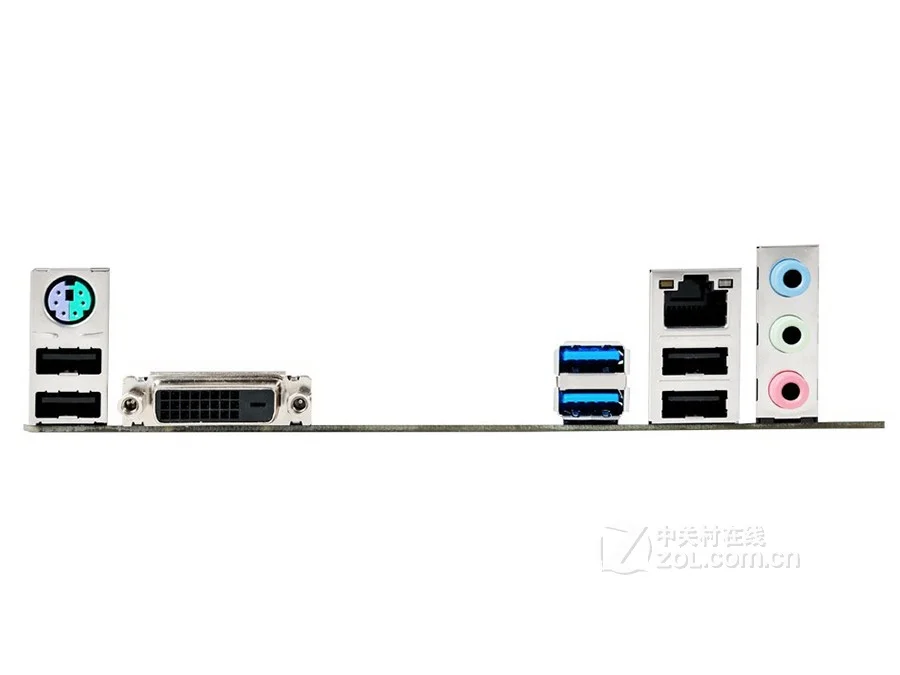

I/O interface
USB interface 4 x USB 3.0 interface (2 built-in+2 backplane), 6 x USB 2.0 interface (2 built-in+4 backplane)
Video interface 1 x DVI interface
One 8-pin power interface and one 24 pin power interface
Other interfaces: 1 x RJ45 network interface, 3 x audio interface, 1 x front panel audio interface, 1 x system panel interface, 1 x PS/2 keyboard and mouse universal interface, 1 x COM interface
Plate type
Motherboard type ATX board type
Dimensions 30.5 × 21.8cm
